Aztech HomePlug HL108E Instructions for use

HL108E HomePlug AV

Easy Start Guide
© Copyright 2007 All rights reserved.
No part of this document may be reproduced, republished, or retransmitted in any form or by any means
whatsoever, whether electronically or mechanically, including, but not limited to, by way of photocopying,
recording, information recording, or through retrieval systems without the express written permission. We
reserve the right to revise this document at any time without the obligation to notify any person and/or
entity. All other company or product names mentioned are used for identification purposes only and may
be trademarks of their respective owners.
Page 2 of 20

Easy Start Guide
Contents
About the Product ...................................................................................................... 4
Package Contents........................................................................................ 4
Requirements.............................................................................................. 4
Device Design .............................................................................................. 5
Getting Started........................................................................................................... 6
Planning your Network ............................................................................... 7
Local Network ...........................................................................................................7
Gaming Network.......................................................................................................7
Entertainment Network............................................................................................8
Media Network .........................................................................................................8
Remove/Disable Conflicts ........................................................................... 9
TCP/IP........................................................................................................................9
Internet Properties..................................................................................................10
Connecting the Device............................................................................... 10
About HL108E HomePlug AV Utility.......................................................................... 11
Requirements............................................................................................ 11
Software..................................................................................................................11
Hardware.................................................................................................................11
Installation ................................................................................................ 12
Opening HL108E HomePlug AV Utility ....................................................... 12
HL108E HomePlug AV Utility User Interface .............................................. 13
Home.......................................................................................................................13
Private Network Name...........................................................................................14
Quality of Service....................................................................................................16
Devices ....................................................................................................................17

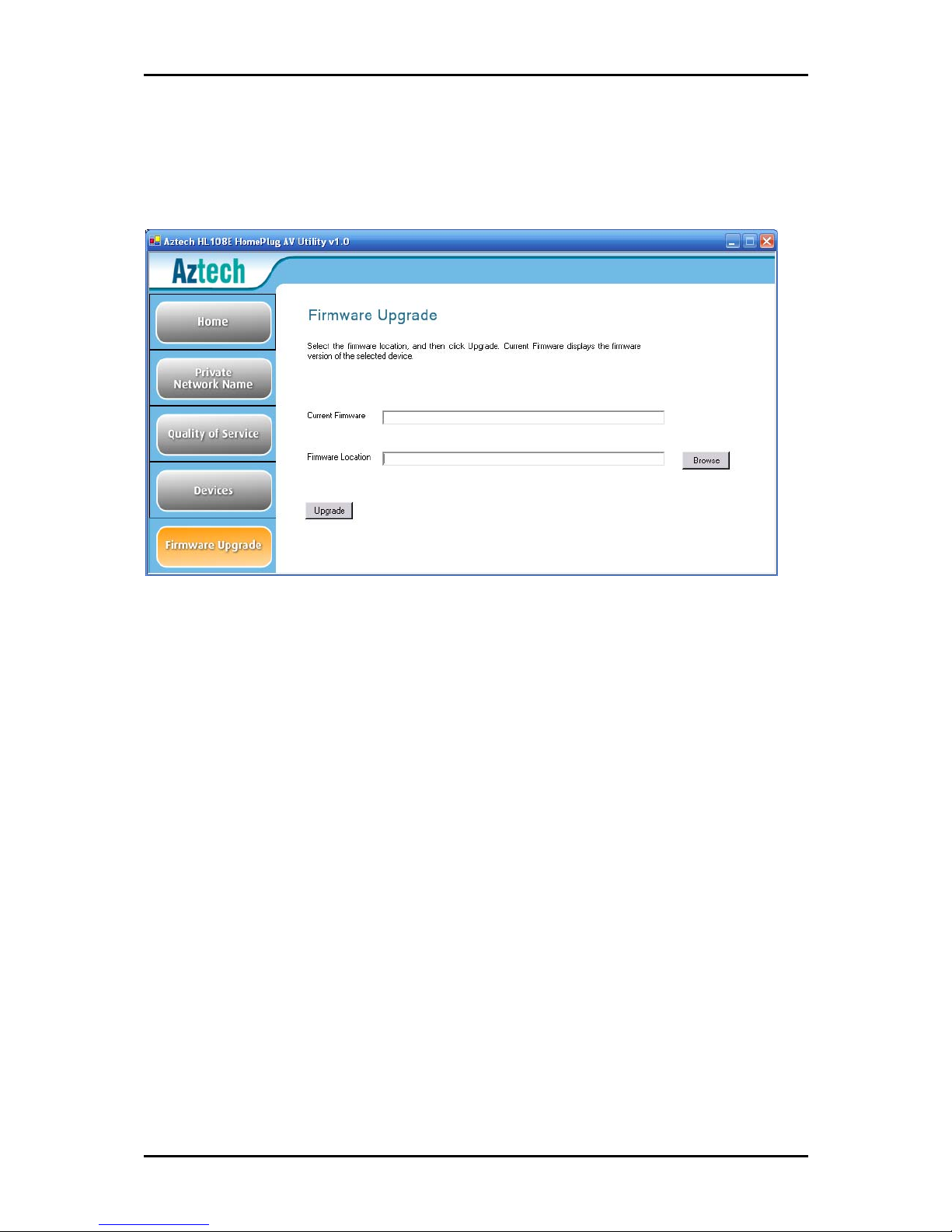

Firmware Upgrade..................................................................................................18
Regulatory Compliance Notices................................................................................ 19
FCC Statement ........................................................................................... 19
European Regulations ............................................................................... 19
Page 3 of 20

Easy Start Guide
About the Product
HomePlug AV is a device that utilizes the existing electrical wiring in the house as a path
to create a secured network of computers and Ethernet devices. HomePlug AV is ready to
use out of the box and it does not require a device driver to work. With a maximum data
rate of 200 Mbps, HomePlug AV can reliably handle high requirement applications like
Internet telephony, streaming of high quality video, and Internet simultaneously.
HomePlug AV is operating system independent. It can be connected to any device using
Windows, Macintosh, or Linux operating systems. Encryption is built-in the HomePlug AV
design. To change the encryption settings, however, you need a computer with a
Windows operating system.
Package Contents
The package contains the following items:
• 1 HomePlug AV for Single Pack or 2 HomePlug AVs for Twin Pack
• 1 Network cable for Single Pack or 2 network cables for Twin Pack
• Resource CD
• Easy Start Guide
Requirements
HomePlug AV requires an Ethernet port to connect with another device.
Page 4 of 20

Easy Start Guide
Device Design

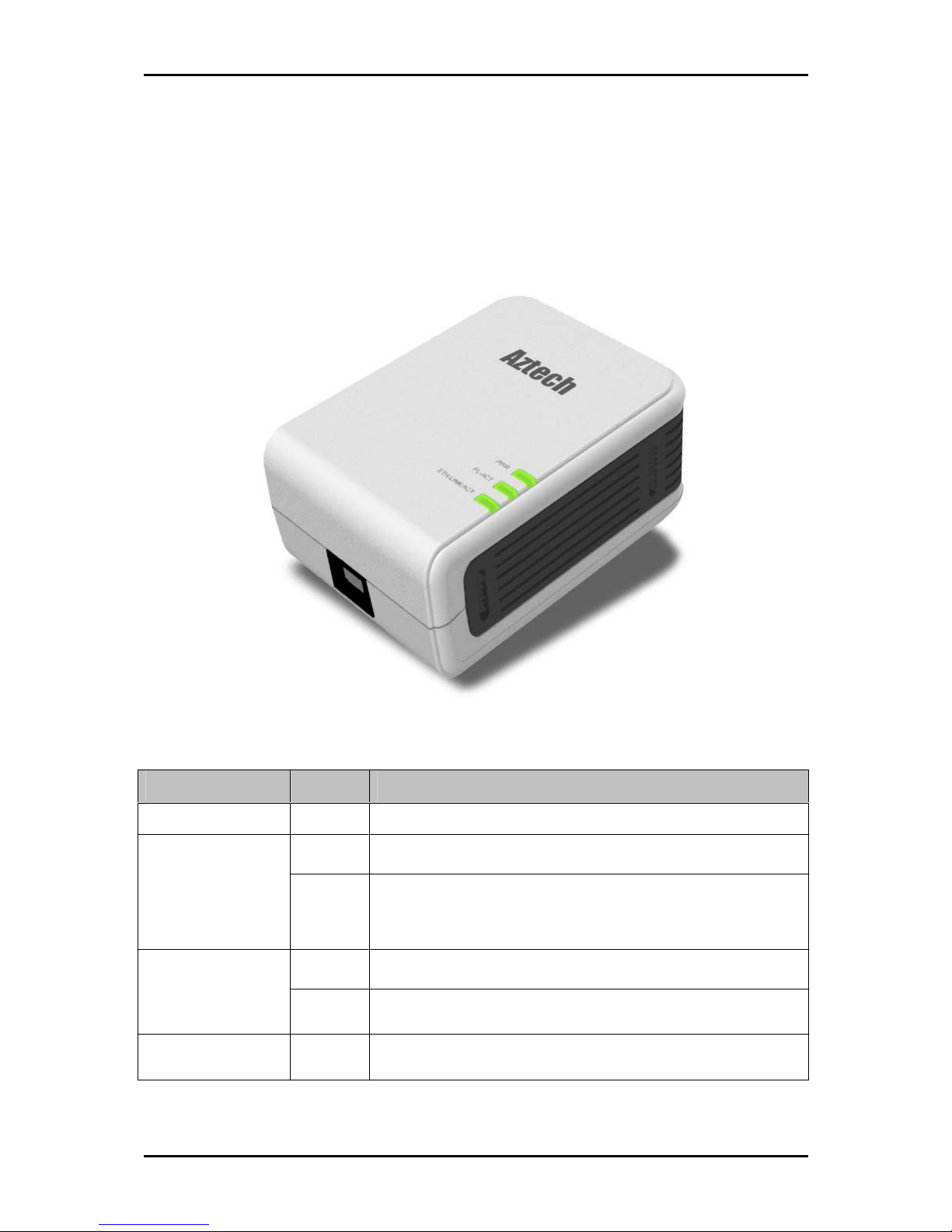

HomePlug AV has three LED indicators and an Ethernet port.
Label Status Description/ Function
PWR On/Off Power is on/off.
On/Off Another HomePlug is detected/not detected.
PL-ACT Flashes PL-ACT flashes whenever there is data transmission within the
network. However, the PL-ACT for the HomePlug AV device that
powers on first will stay on even when data is being transmitted.
On/Off Ethernet is connected/not connected.
ETH-LINK/ACT OFF Flashes Sending/receiving data.
Ethernet Port Accepts either cross or straight cable.
Page 5 of 20

Easy Start Guide
Getting Started

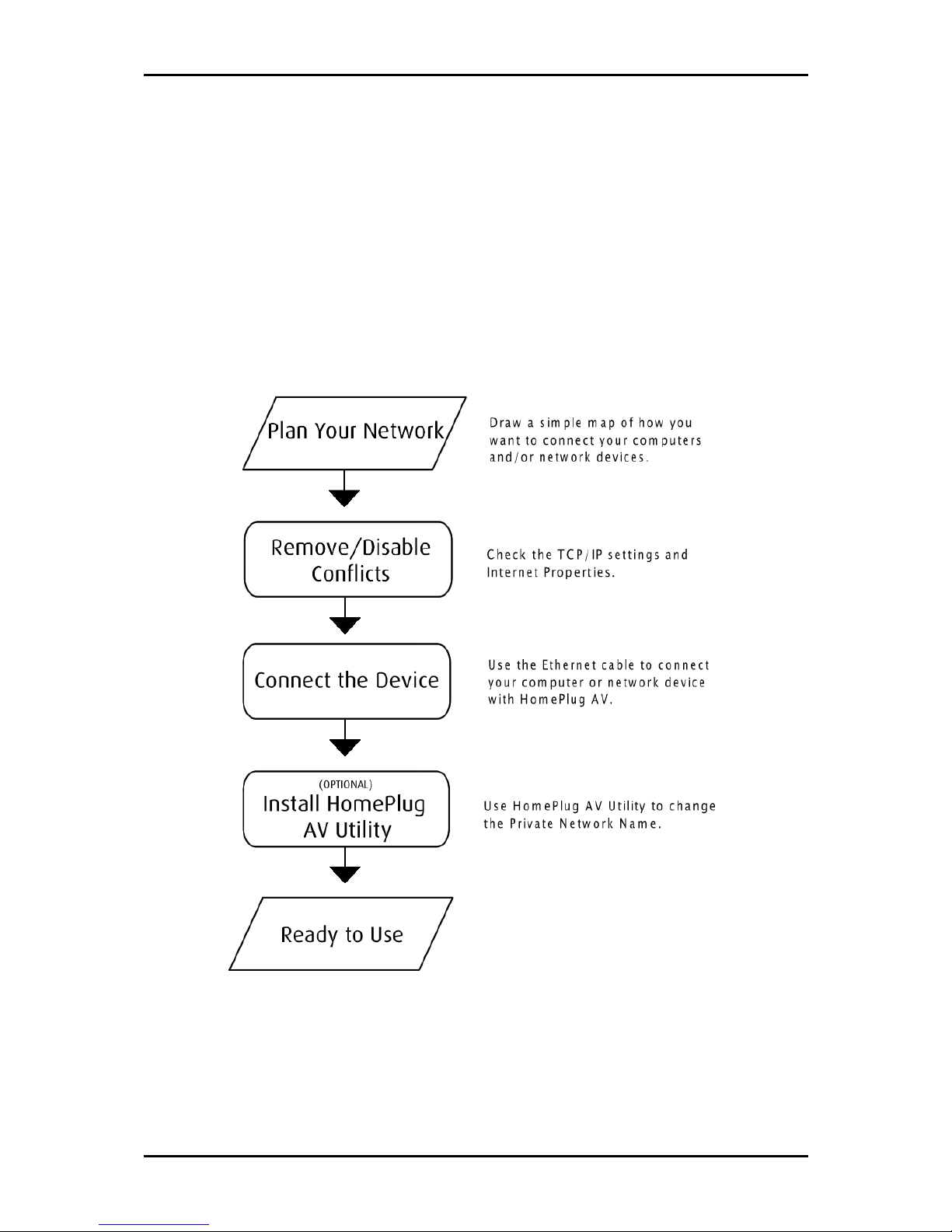

Setting up the device is easy. The flowchart below provides an outline of the steps you
need to go through. Some steps are required while some are optional. There are brief
descriptions beside each step to help you along. Detailed instructions are provided in the
subsequent pages.
Page 6 of 20

Easy Start Guide
Planning your Network
Here are ideas on how you can use HomePlug AV.
Local Network
Share ultra fast Internet connection with any computer wherever it is in the house.
Gaming Network
Connect your gaming console into the Internet and compete with other online players.
Page 7 of 20

Easy Start Guide
Entertainment Network
Experience the distinction of viewing and listening to media files using your
entertainment system.
Media Network
Realize your high-tech lifestyle by converging your IP devices into a single network.
Page 8 of 20

Easy Start Guide
Remove/Disable Conflicts
You may need to check the TCP/IP and Internet properties to make sure there are no
conflicts with the way devices in the network are identified.
TCP/IP
HomePlug AV’s IP Address should be obtained automatically.
To set the TCP/IP properties:
1. Select Start > Run. This opens the Run dialog box.
2. Enter control ncpa.cpl and then click OK. This opens the Network Connections in
your computer.
3. Right-click LAN and then select Properties. This opens the Local Area Connection
Properties dialog box.
4. Select Internet Protocol (TCP/IP) and then click Properties. This opens the Internet
Protocol (TCP/IP) dialog box.
5. Select Obtain an IP address automatically.
6. Click OK to close the Internet Protocol (TCP/IP) dialog box.
7. Click OK to close the Local Area Connection Properties dialog box.
Page 9 of 20

Easy Start Guide
Internet Properties
To set the Internet Properties:
1. Select Start > Run. This opens the Run dialog box.
2. Enter control inetcpl.cpl and then click OK. This opens the Internet Properties
dialog box.
3. Click Connections tab.
4. In the Dial-up and Virtual Private Network settings pane, select Never dial a
connection.
5. Click OK to close the Internet Properties dialog box.
Connecting the Device
HomePlug AV does not require the installation of a device driver. It is a plug-and-play
device that can be used right after connecting the network cables and plugging it into a
power outlet.
To connect HomePlug AV with your computer:
1. Insert one end of the network cable into your computer’s Ethernet port.
2. Insert the other end of the network cable into HomePlug AV.
3. Plug HomePlug AV into a power outlet.
Page 10 of 20

Easy Start Guide
About HL108E HomePlug AV Utility
HL108E HomePlug AV Utility is a software application that allows you to configure
HomePlug AV. It is mainly used for changing the Private Network Name and detecting
other HomePlug AV’s in the network. Installation is straightforward and the user interface
is easy to use.
Note: The .NET Framework is required to open HL108E HomePlug AV Utility.
Requirements
Your computer must meet the following requirements:
Software
 Windows 98SE, ME, 2000, or XP 32-bit, and Vista 32-bit
 .NET Framework 1.1 or above
Hardware
 300 MHz Processor
 Network Interface Card
 CD-ROM
 128 Mb of free hard disk space
 128 Mb of RAM
Page 11 of 20

Easy Start Guide
Installation
To install HL108E HomePlug AV Utility:
1. Insert the Resource CD that comes with HomePlug AV into the CD-ROM drive.
2. If the installer does not launch automatically, select Start > Run, enter
D:\Setup.exe (where D: is your CD-ROM drive), and then click OK.
3. Follow the instructions on the Utility.
Two applications will be installed in your computer - HL108E HomePlug AV Utility
will be installed first followed by .NET Framework. The installer detects any
version of .NET Framework in your computer. If .NET Framework is not installed, a

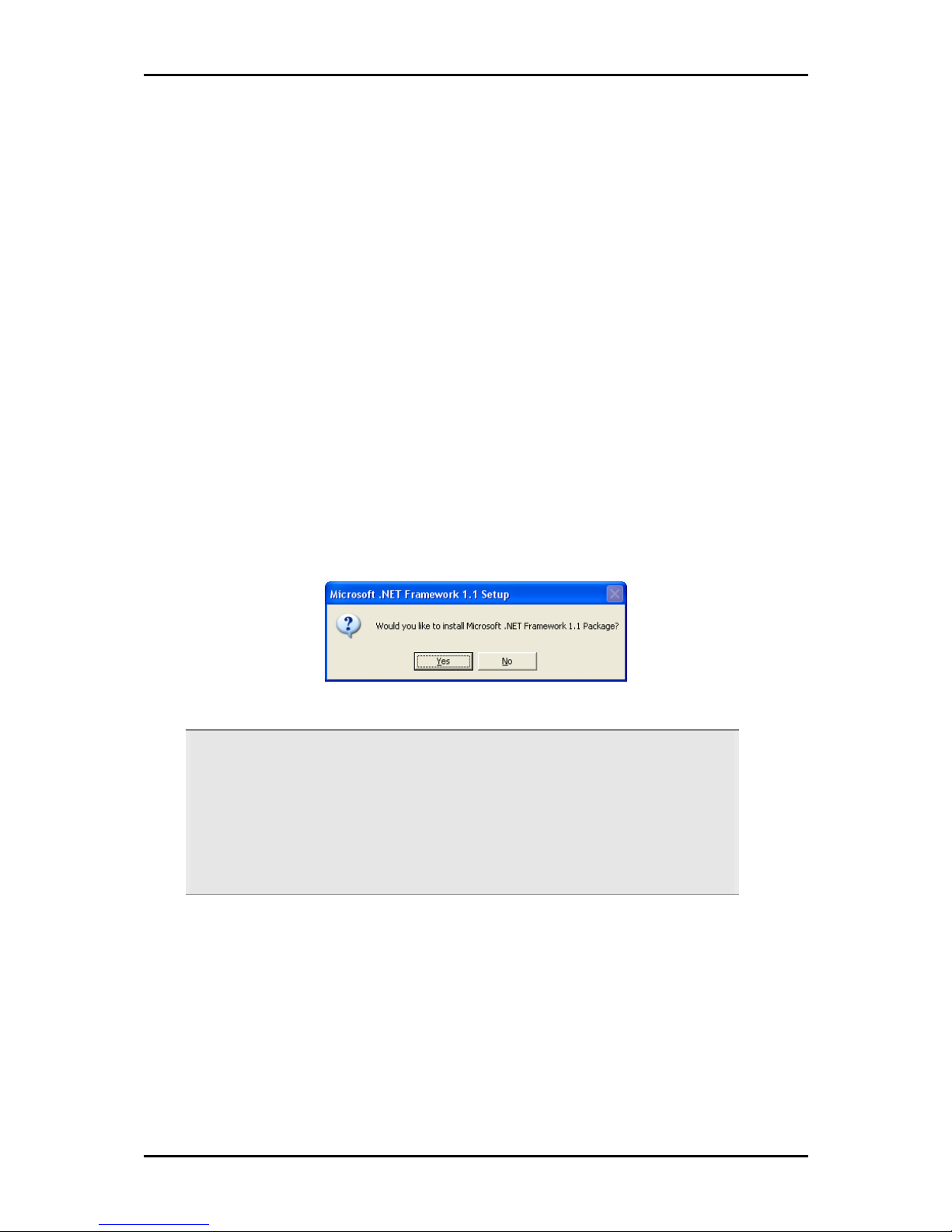

dialog box opens to ask if you would like to install .NET Framework 1.1. Click Yes.
The .NET Framework will not be installed if a version is already in your computer.
.NET Framework 1.1 Setup
Notes:
- When you configure local and remote HomePlug AVs, it is recommended to keep a
list of your HomePlug AV Device ID’s. This is printed at the back of the device.
- In case you cannot connect into the network or Internet, you may have to power
cycle the device. To power cycle, disconnect and reconnect HomePlug AV from the
power outlet.
Opening HL108E HomePlug AV Utility
To open HL108E HomePlug AV Utility:
 Right-click HL108E HomePlug AV Utility desktop shortcut and then select Open.
 Or, select Start > All Programs > Aztech HomePlug > HL108E HomePlug AV >
Aztech Hl108E Utility.
Page 12 of 20

Easy Start Guide
HL108E HomePlug AV Utility User
Interface
The HL108E HomePlug AV Utility user interface is divided into tabs. These tabs include:
 Home
 Private Network Name
 Quality of Service
 Devices
 Firmware Upgrade
Home
Home provides a list of all the possible tasks you can perform in this Utility. To start a
task, you need to specify which network card is connected to your HomePlug AV device.
This is most helpful when you have more than one network card in your computer.
Home
Page 13 of 20

Easy Start Guide
Private Network Name
Private Network Name provides the function to change the Private Network Name of
local and remote HomePlug AVs. A Private Network Name acts as an authentication
mechanism against network eavesdroppers. By default, the Private Network Name is
HomePlugAV.
Always remember that a HomePlug AV can only communicate with other HomePlug AVs
using a similar Private Network Name. If you intend to create multiple networks, you can
assign different Private Network Names among your devices. You have to, however,
make sure that at least two HomePlug AVs have similar Private Network Names. A
HomePlug AV that uses a unique Private Network Name will not be able to communicate
with other HomePlug AVs.
Private Network Name
Page 14 of 20

Easy Start Guide
Local Private Network Name
Local Private Network Name refers to the Private Network Name of the HomePlug AV,
which is directly connected to the computer running HL108E HomePlug AV Utility.
To change the local Private Network Name:
1. Open HL108E HomePlug AV Utility.
2. Click Private Network Name.
3. Enter the new Private Network Name. This field is case sensitive.
4. Click Apply. HomePlug AV restarts and saves the new Private Network Name.
Remote Private Network Name
Without leaving your computer, you can change the Private Network Name of remote
HomePlug AV devices, provided they are connected to the network using the same
Private Network Name as your local HomePlug AV.
To change a remote Private Network Name:
1. Open HL108E HomePlug AV Utility.
2. Click Private Network Name.
3. Enter the new Private Network Name. This field is case sensitive.
4. Select Change Private Network Name of remote device.
5. Enter the Device ID of the remote device. The Device ID is printed on the device.
6. Click Apply. The remote HomePlug AV restarts and saves the new password.
Page 15 of 20

Easy Start Guide
Quality of Service
Quality of Service gives you the capability to prioritize particular applications within your
network. QoS is not enabled by default.
QoS Modes:
• Online Game/Internet mode prioritizes data streaming.
• Audio or Video prioritizes multimedia streaming.
• Voice over IP prioritizes voice applications.
Quality of Service
To enable QoS:
1. Open HL108E HomePlug AV Utility.
2. Click Quality of Service.
3. Select Enable QoS.
4. Click a QoS mode.
5. Click Apply.
Page 16 of 20

Easy Start Guide
Devices
Devices displays information about HomePlug AV’s detected in the network.
Devices
Devices displays the following parameters:
TEI Refers to the Terminal Equipment Identifier.
Device MAC address HomePlug AV MAC Address.
Bridge MAC Address Refers to the MAC Address of the Ethernet network adapter
connected to the HomePlug AV.
PHY Rate includes the Transmit and Received bit rates.
Page 17 of 20

Easy Start Guide
Firmware Upgrade
Use Firmware Upgrade to upgrade the firmware.
Firmware Upgrade
To upgrade the firmware of a HomePlug AV:
1. Open HL108E HomePlug AV Utility.
2. Click Firmware Upgrade.
3. Click Browse to select the location of the upgrade file. This file is downloaded
from the product Web site with a file extension of NVM.
4. Click Upgrade.
Page 18 of 20

Easy Start Guide
Regulatory Compliance Notices
FCC Statement
This equipment has been tested and complies with the specifications for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used according to the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which is found by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
 Reorient or relocate the receiving antenna
 Increase the separation between the equipment or devices
 Connect the equipment to an outlet other than the receiver’s
 Consult a dealer or an experienced radio/TV technician for assistance
European Regulations
The product has been designed, tested and manufactured according to the European R&TTE directive 1999/5/EC.
Page 19 of 20

Easy Start Guide
Safety Warnings
For your safety, be sure to read and follow all warning notices and instructions.
 Do not open the device. Opening or removing the device cover can expose you to
dangerous high voltage points or other risks. Only qualified service personnel can
service the device. Please contact your vendor for further information.
 Do not use your device during a thunderstorm. There may be a risk of electric
shock brought about by lightning.
 Do not expose your device to dust or corrosive liquids.
 Do not use this product near water sources.
 Make sure to connect the cables to the correct ports.
 Do not obstruct the ventilation slots on the device.
Page 20 of 20
