Aztech PHON SPORTS ABT100S User manual

USER MANUAL

User Manual
Page 2 of 28
© Copyright 2014 All rights reserved.
No part of this document may be
reproduced, republished, or retransmitted in
any form or by any means whatsoever,
whether electronically or mechanically,
including, but not limited to, by way of
photocopying, recording, information
recording, or through retrieval systems without
the express written permission. We reserve the
right to revise this document at any time
without the obligation to notify any person
and/or entity. All other company or product
names mentioned are used for identification
purposes only and may be trademarks of their
respective owners.

User Manual
Page 3 of 28
LIMITATION OF LIABILITY AND DAMAGES
THE PRODUCT AND THE SOFTWARES WITHIN
ARE PROVIDED "AS IS," BASIS. THE
MANUFACTURER AND MANUFACTURER’S
RESELLERS (COLLECTIVELY REFERRED TO AS
“THE SELLERS”) DISCLAIM ALL WARRANTIES,
EXPRESS, IMPLIED OR STATUTORY, INCLUDING
WITHOUT LIMITATION THE IMPLIED WARRANTIES
OF NON-INFRINGEMENT, MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE, OR ANY
WARRANTIES ARISING FROM COURSE OF
DEALING, COURSE OF PERFORMANCE, OR
USAGE OF TRADE. IN NO EVENT WILL THE
SELLERS BE LIABLE FOR DAMAGES OR LOSS,
INCLUDING BUT NOT LIMITED TO DIRECT,
INDIRECT, SPECIAL WILLFUL, PUNITIVE,

User Manual
Page 4 of 28
INCIDENTAL, EXEMPLARY, OR CONSEQUENTIAL,
DAMAGES, DAMAGES FOR LOSS OF BUSINESS
PROFITS, OR DAMAGES FOR LOSS OF BUSINESS
OF ANY CUSTOMER OR ANY THIRD PARTY
ARISING OUT OF THE USE OR THE INABILITY TO
USE THE PRODUCT OR THE SOFTWARES,
INCLUDING BUT NOT LIMITED TO THOSE
RESULTING FROM DEFECTS IN THE PRODUCT OR
SOFTWARE OR DOCUMENTATION, OR LOSS OR
INACCURACY OF DATA OF ANY KIND,
WHETHER BASED ON CONTRACT, TORT OR ANY
OTHER LEGAL THEORY, EVEN IF THE PARTIES
HAVE BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. THE ENTIRE RISK AS TO THE
RESULTS AND PERFORMANCE OF THE PRODUCT
OR ITS SOFTWARE IS ASSUMED BY CUSTOMER.
BECAUSE SOME STATES DO NOT ALLOW THE

User Manual
Page 5 of 28
EXCLUSION OR LIMITATION OF LIABLITY FOR
DAMAGES, THE ABOVE LIMITATION MAY NOT
APPLY TO THE PARTIES. IN NO EVENT WILL THE
SELLERS’ TOTAL CUMULATIVE LIABILITY OF EACH
AND EVERY KIND IN RELATION TO THE
PRODUCT OR ITS SOFTWARE EXCEED THE
AMOUNT PAID BY CUSTOMER FOR THE
PRODUCT.

User Manual
Page 6 of 28
Contents
About the Product……………………………………. 7
Package Contents ……………………….9
Device Design…………………………… 10
Description ………………………………..10
Setup……………………………………………………17
Charging Speaker ..................................... 17
Pairing and connecting Bluetooth
devices …………………………………18
AUX………………………………………………….21
NFC………………………………………………….21
Technical Information............................... 22
Proper Use ................................................... 22
Safety Precautions …………………………………..24

User Manual
Page 7 of 28
About the Product
Maximize the use of your speaker with your
new powerful PHON SPORTS ABT100S. With the
rechargeable, high capacity 4400mAh Lithium
battery of this device, you can rock out with
up to 10 hours of extended playtime at 50%
volume. It has IP67 rating Dustproof and
Waterproof*that makes it even more
promising to use during your sport activities.
PHON SPORTS has a MicroSD card slot which
serves as an alternate source of music. Play
tons of music that are absolutely perfect for
various occasions.
*These conditions comply to manufacturer’s
IP67 test guidelines.

User Manual
Page 8 of 28
Need to make a call? No problem! The built in
functionality allows you to easily make and
receive calls right from your speaker. Among
the supported media connections are: AUX
Cable, Bluetooth 4.0, and NFC.

User Manual
Page 9 of 28
Package Contents
Package contents are listed below. For any
missing items, please contact your dealer
immediately. Product contents vary for
different models.
PHON SPORTS ABT100S
Power Adapter
USB Charging Cable
3.5mm Audio Cable
User Manual
Warranty Policy
Note: You may also download the Quick
Installation Guide, and the User Manual
by visiting this link:
http://www.aztech.com/support/

User Manual
Page 10 of 28
Device Design
Description

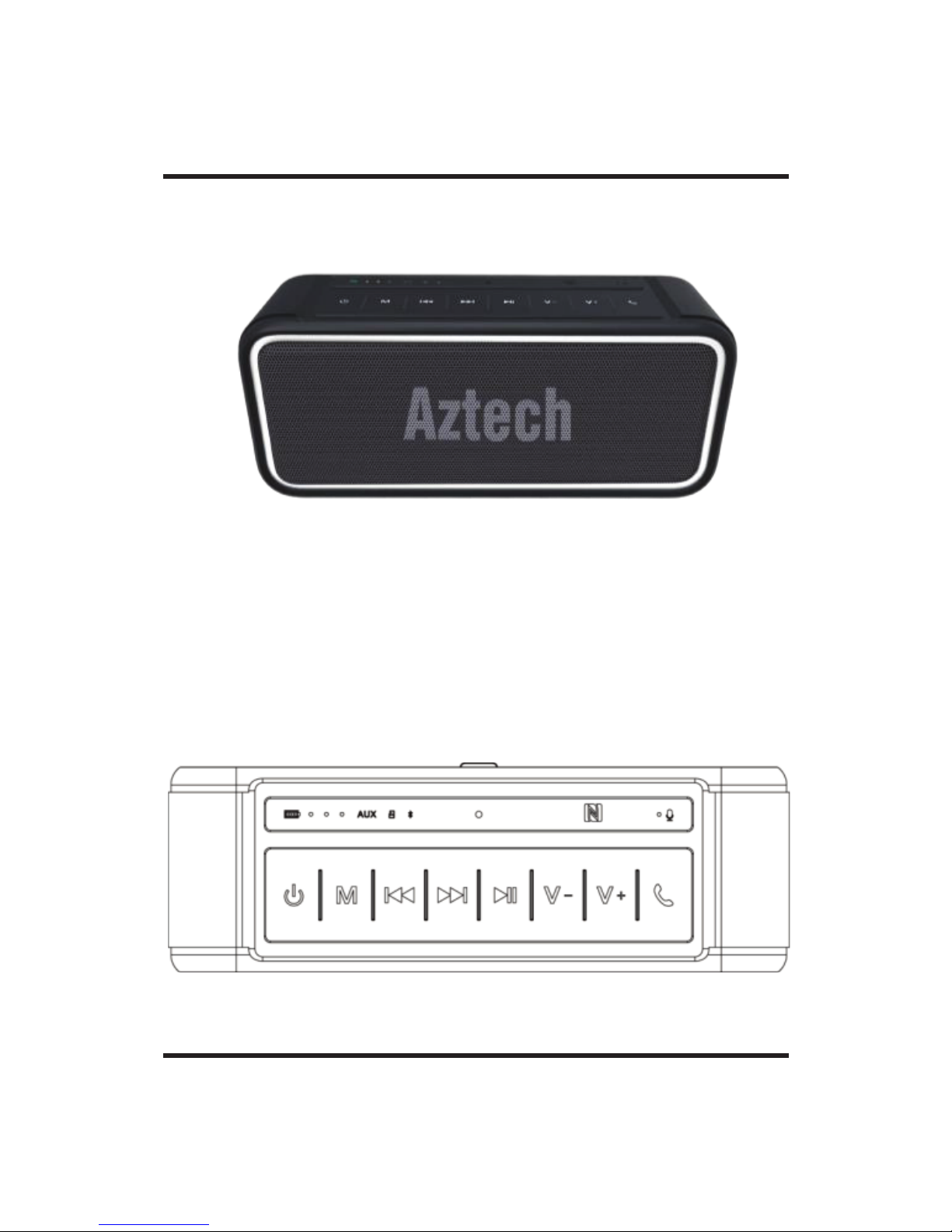

Control buttons are located on the top of the
speaker.

User Manual
Page 11 of 28
POWER BUTTON. Press and hold to turn
on. Press again to turn off.
Press and hold for 8 seconds to reset
device should operational issues
occur.
MODE BUTTON. Press to switch between
Bluetooth, AUX, and MicroSD modes. If
there is no AUX Cable or MicroSD card
inserted, speaker will automatically
enter default Bluetooth Mode.
PREVIOUS / NEXT BUTTONS. Press to
navigate between tracks (Available in
Bluetooth and MicroSD Mode).
PLAY / PAUSE BUTTON (BLUTOOTH
PAIRING BUTTON). Use to play and
pause audio.
*Note: Doubles as a Bluetooth pairing
button, press and hold to initiate
Bluetooth pairing.

User Manual
Page 12 of 28
VOLUME INCREASE / VOLUME
DECREASE BUTTON. Press to
increase/decrease the volume.
PHONE BUTTON. While in Bluetooth
mode, press and hold to activate Siri or
S-Voice. Press again to disable.
Incoming call: Press once to answer,
press again to end. Press and hold to
decline call.

User Manual
Page 13 of 28
Status indicators Illuminate when an audio
source or speaker state is activated.
CHARGING INDICATOR. Flashing Red:
Battery is low.
Solid Green: Device is charging.
BATTERY-LEVEL INDICATOR. Lights
indicate remaining power.
Flashing: Device is charging.
Solid: Device is fully charged.
AUX INDICATOR. When indicator light is
on, AUX Mode is enabled.

User Manual
Page 14 of 28
MICROSD INDICATOR. When indicator
light is on, MicroSD Mode is enabled.
BLUETOOTH INDICATOR. When indicator
light is on, Bluetooth Mode is enabled.
When Bluetooth is in pairing mode,
indicator will flash. Once a device has
been paired, indicator will remain solid.
THERMAL SENSOR. Detects the heat of
human hand and will automatically
activate the device frosted LED
button-backlighting.
NFC AREA. Hold your device over this
area to use NFC for Bluetooth
Connection.
MICROPHONE. Remain within three
feet of microphone while speaking.

User Manual
Page 15 of 28

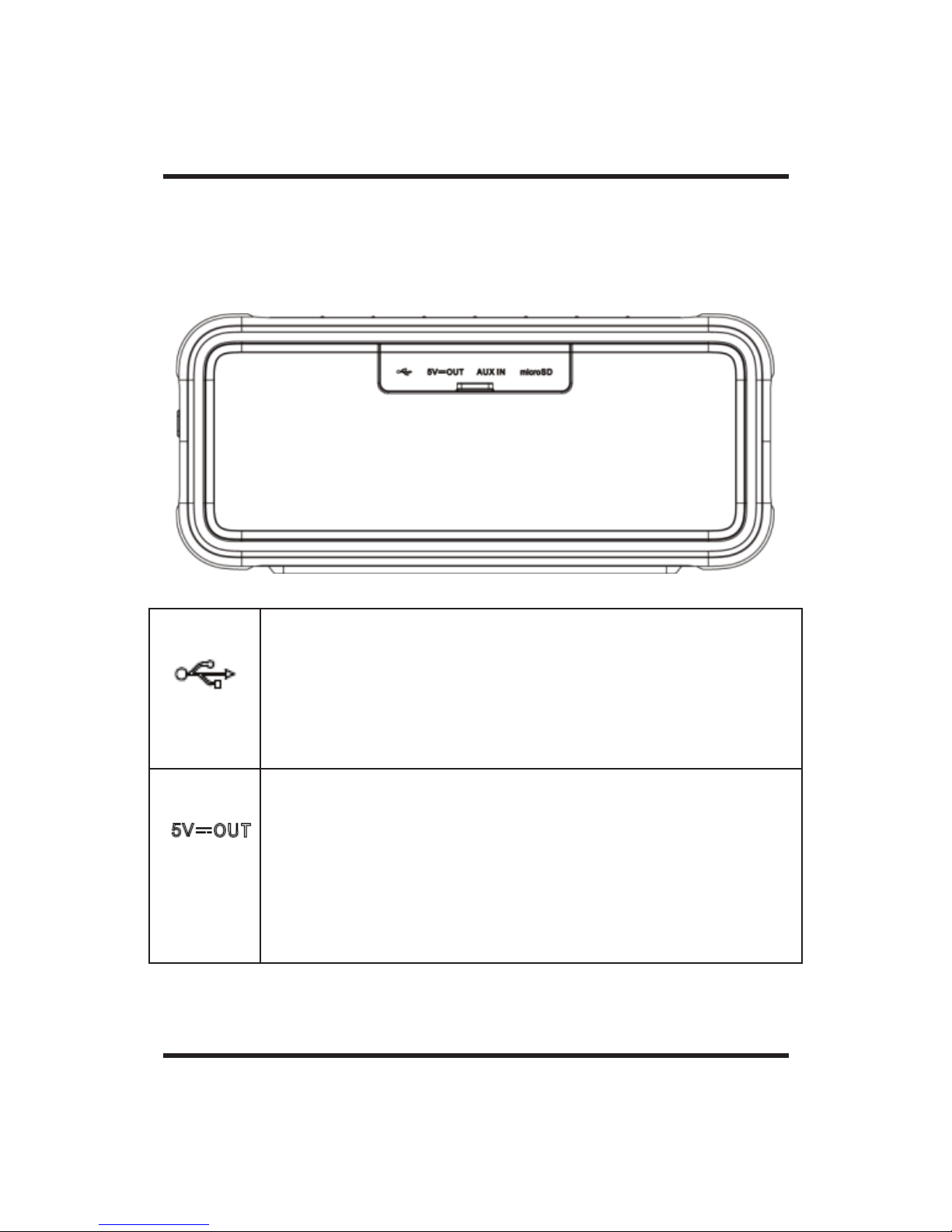

Back of the speaker:
CHARGING PORT. For use with
included Power Adapter (DC 15V/
1A).
USB POWER PORT. Provides power to
connected devices. (5V/ 1A output).
*This function is enabled when
speaker is on.

User Manual
Page 16 of 28
AUX IN PORT. Connects speaker to
external media devices.
MICROSD PORT. Insert MicroSD card
into slot to play stored media.

User Manual
Page 17 of 28
Setup
Setting up the device is easy. Just follow the
detailed instructions provided in this manual.
Charging Speaker
Insert the provided Power Adapter into the
charging port of the device. Charging begins
automatically even if the device is powered
off.

3
2
User Manual
Page 18 of 28
Pairing and connecting Bluetooth devices
To pair and connect a Bluetooth device to
the speaker:
a. Power on speaker and hold your
phone or other device within 3 feet
of the speaker, press and hold the
Play / Pause Button for 3 seconds,
the speaker will then enter pairing
mode and the indicator light should
be flashing.
b. Pairing mode will automatically be
cancelled (signaled by a beep)
after 3 minutes. To re-enter pairing
mode, follow instructions beginning
at Step a.

User Manual
Page 19 of 28
c. Ensure Bluetooth is enabled on the
device you wish to pair with the
speaker.
d. The speaker will display PHON SPORTS
when scanning for available
devices.
e. When selecting PHON SPORTS from
the list, if prompted for a Password
(sometimes called a “Passkey”, “PIN
Number”), enter 0000.
f. The speaker will record this device as
the last device paired.
g. Activate the Bluetooth connection
from your phone or other device
(some devices may do this
automatically).

User Manual
Page 20 of 28
h. When in Bluetooth mode. You can
switch to AUX Mode or MicroSD
Mode by pressing the Mode Button.
i. Incoming calls will override music
and other media with an incoming
call voice prompt, simply press the
Phone button to answer/ end call or
press and hold to decline the call.
Press the Phone button to answer a
second incoming call.
j. Press and hold the Phone button for
three (3) seconds to activate Siri/S-
Voice function of your phone.
