B-52 Geo43 User manual

User's Manual
GEO-43: without Bluetooth & FM Transmitter GEO-43BT with Bluetooth & FM transmitter

1
Table of Contents
Product Introductions ....................................................................................................... 2
Precautions ...................................................................................................................... 4
Guides of Using GPS Navigator....................................................................................... 5
Basic Operation .............................................................................................................. 6
Change Wallpaper...........................................................................................................14
Bluetooth and FM
.......................................................................................................... . .9
Media Playback
.............................................................................................................. 16
Games ...........................................................................................................................22
System Setting............................................................................................................... 23
Specifications ................................................................................................................. 26
In order to enable you to use this product correctly and quickly, we design and provide this
manual to introduce the product and the operation instructions. Please read it carefully
before using the navigator.

Product Introductions
kcaJenohpraEE
rewoP/uneMA rekaepSF
rotacidnIDELB nottuBteseRG
hctiwSrewoPH
tolSdraCDSC
sulytSI
troPBSUD
2

3
Accessories in the package
Device Holder
Car Mount
Car Charger
Stylus
User’s Manual
USB Cable

4
Precautions
Always operate the vehicle in a safe manner. Do not become distracted by the navigation
while driving, and always be fully aware of all driving condition. Minimize the amount of
time spent viewing the screen of the navigation while driving and use voice prompts when
possible. Do not enter destinations, change settings, or access any functions requiring
prolonged use of the unit’ controls while driving. Pull over in a safe and legal manner
before attempting such operations.
Use the specified power adaptor. Using a different type of adaptor may damage the
product.
Never attempt to repair the product by yourself.
Do not use the product near water. Do not touch this product with wet hands.
Do not use for many hours at extremely low or high temperature.
Avoid leaving the product in hot or humid place.
Do not drop it and avoid heavy impact at anytime.
Always use soft and dry cotton cloth when cleaning the product. Use of water/
detergent/benzene/surfactants as cleaning agents is strictly prohibited.
When attaching a navigation car mount, remove impurities on the surface before
attaching, and press suction cup lever to avoid falling.
Do not pull out SD Memory Card during the operation of navigation program. It may
cause a mechanical trouble.
Please obey the practical traffic regulations. Voice guidance and map route may
differ from the actual traffic condition.
When moving the product, separate the power from cigarette jack and separate the
main body from holder or separate the holder from window before moving.

5
Guides of Using GPS Navigator
This device is supplied with built-in Lithium battery which could be recharged. In
order to prolong battery's service life, please charge it at least 8 hours before the first
times use.
When using the device for the first time, it is necessary to calibrate the screen strictly
to avoid poor touch effect result from inaccurate calibration.
Re-calibrate if the touch screen couldn't run properly after it is used for a long time.
After connect to PC with USB cable, the system would close all the application
programs in progress to guarantee that the system can run stably.
Charge the device when following conditions occur:
1. The power icon shows that the power is low;
2. The system turns off immediately when you turn it on.
3. There isn't any response when pressing any key.
Two methods of charging are available:
1. Connect the device to the computer to charge, no matter it is power on or off. As
long as the device is connected to the computer, the battery will be recharged.
2. Charge with attached car charger. Connect the car charger to the cigarette jack;
insert another end (USB) to the GPS supply port. When the LED indicator is on,
charging is in process.

6
Basic Operation
WindTouch Technology
This GPS adopts the new touch technology - advanced “WindTouch”. The user is not only
can operate by pressing keys as before, but can click the menu, dragging the options and
so on. With this innovative and functional “WindTouch”, the user can handle all functions
simply by clicking with fingertip.

7
Main Menu
Main Menu Sub-menu
GPS GPS
Media VideoPlayer MusicPlayer Image Viewer Text Reader Browser
Setting Setting Calibrate GPSTTFF
Game reniMeniL
Click the main menu icon on the left to open the sub-menu.
Click the same icon again to close the sub-menu.

8
Drag leftward or rightward on the Taskbar area which is under the sub-menu to choose
different icon or directly click the icon of sub-menu to launch the program.

Click the setting,double click and then enter bluetooth. Pls see thefollowing:
Bluetooth
You will find the following interface:
9

Note: Pls review the operation manual of mobile phone for adding the Bluetooth device on
the phone, and the connection code is 0000.
You will see the following interface after you connecting the Bluetooth device.
10
This product can be used for Bluetooth earphone. Click and then enter the link status
as follows.Pls connect your Bluetooth mobile phone with in 1 minute. Pls repeat this operation
if exceed 1 minute.

2. Dialthe Phone
3. Calls History
Click and enter dial interface. You can make a call via this product.
Click and you will see the calls history of dial out/dial in & hng up.
11

This device support short cut dial, click and you can callfast on the last telephone No.
in the calloutrecord
In the records of Bluetooth connection the connection records between this device & other
Bluetooth devices are saved. Through this record, you can switch the connection status
between this product and these devices. Click ,and you can check the connection record,
pls see the.
6. Checktheversioninformation
5. Connection Record of Bluetooth
4. Shortcut Dial
12

Click , and you can check the version information. Pls see the following:
13

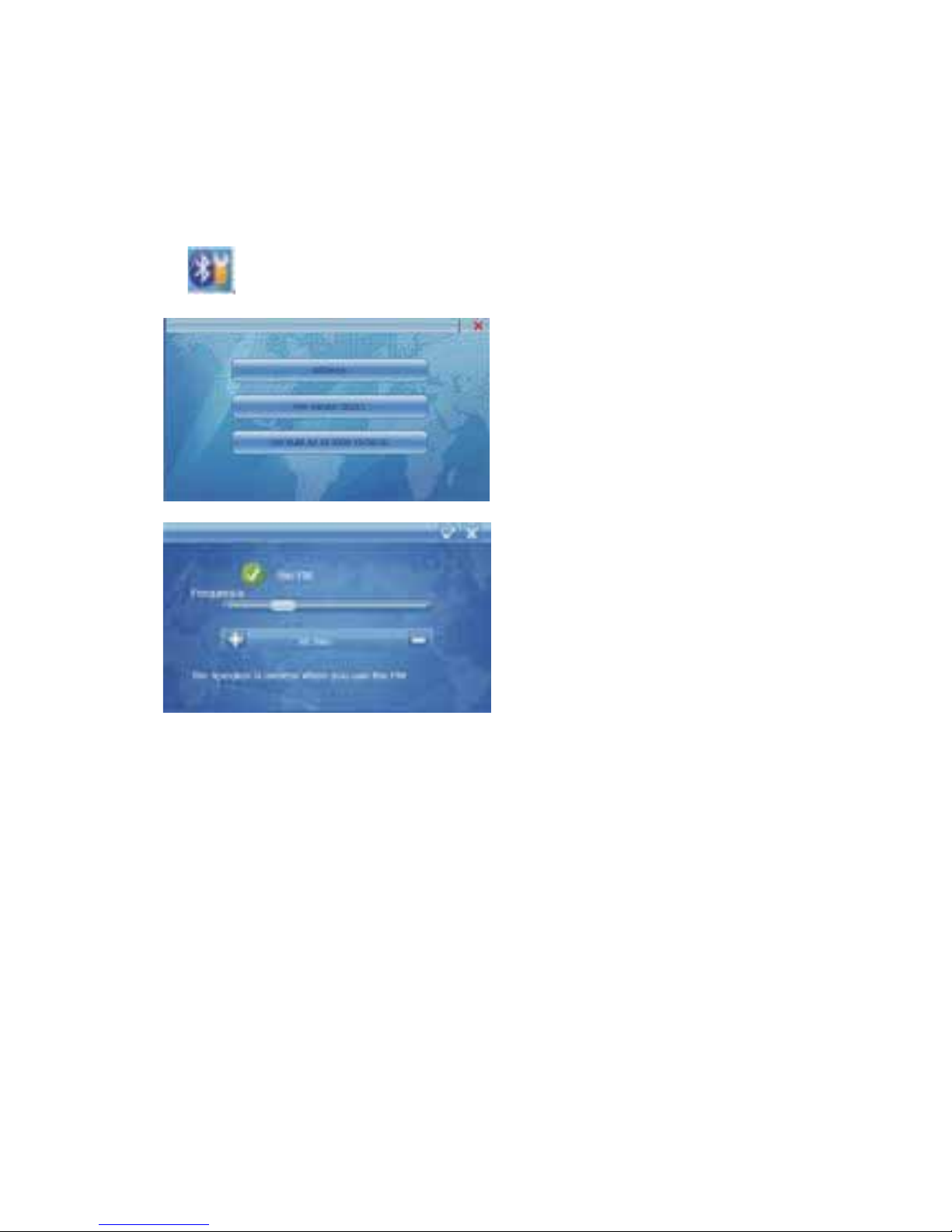

Click the FM transmitter menu and enter the operation interface of
FM transmitter.
2. Open the car radio and adjust it to match the fixed frequency on the GPS.
3. Try to choose the frequency that is unoccupied by the local broadcasting station.
4. If it is with big noise, you can change some different frequencies to test till you find the best one.
1. Move the frequency adjustment button left & right with your finger or click+-to select
afixed frequency.
5. The speaker of the GPS keep no sound when using the FM trans mitter function.

14
Change Wallpaper
The replacement of wallpaper
Touch on the top edge of desktop to change the wallpaper.
Audio Control
Click the music symbol on the top right of desktop to turn on or off the audio.
Audio on Audio off

15
Reset the Device
If the system halts when the GPS is running, restart the device by pressing the reset
button on the back side of device.
Connect to Computer & Transfer Data Files
1. Connect GPS device with USB Cable to computer.
2. Turn on the GPS device.
3. The folders of device will pop out; one for local memory and the other for user card if
it’s inserted.
4. Drag files into the folders to download or delete.
Battery
This device has built-in a high-capacity Lithium battery. The battery can be fully recharged
within 3-4 hours. Please charge the device at least 8 hours for the first time use.
GPS Navigating
Click GPS icon to enter GPS interface. Please see the attached Map Instruction for
details.

16
Media Playback
Media Center
On the main menu, click and select Media => Browser to enter My Media Center.
On the top right corner of My Media Center interface and other main interface, there is a
power icon of battery. When the device is connected to the computer or charger, the
power pulse in power icon is scrolling, and the icon is in static state while the battery is
fully charged.

17
File Classification Management
Click different icons on the bottom of browser to display related files.
Button Icon File Type
Audio ( MP3, WMA, OGG, ACC)
Video ( AVI, WAV, 3GP, ASF, MPG)
Image (JPEG, BMP, GIF)
e-Book (TXT)
My Media Center
Play List

18
Click the upper right icon of the browser to add or delete the files.
Select and click a media file in any category, the player or browser will be started
automatically to play the designated file.
User can browse all the files in My Media Center to play, edit or delete files.
Music Player
Music player supports the audio files of following formats: MP3, WMA, OGG, and ACC.
On the main menu, press Media => Music player to browse audio files and start to play.
LRC Function
The Media player supports lyrics display function. If there is LRC file available with the
same file name as music file and stored in the same location, the player will enter lyrics
show interface automatically.
Media Player Interface

19
Play List in Media Player
File options
Add file (to open file-selection dialog box)
Move file upward
Move file downward
Delete file
OK and back
Cancel and close
File-selection dialog box
Selecting : When this botton is hold, user can select multiple files to add into playlist.
All : Press this button to select all files in the current directory.
Dir : When this botton is hold, user can select folders (includs sub-directory) and files at
one time.
OK : Complete selection and go back to Media player.
:Exit dialog box.
