B. David Company RS-90 RC-93 RP-100
Nano Filtration System
Instructions and Operating Manual
Model#9333
Important – set flow meter to 1000 gallons -Filter placement above-
(B. David Specific filters)
Specifications
Pressure Range:
Temperature Range:
Service Flow Rate
@60 psi (4.1 bar):
Rated Service Life:
&
&
&
2.1--8.62 bar (20-115 psi)
4.4-38.8°C (4G-102°F)
&
2.3 Lpm at 4.1 bar 0.6 gpm
3,785 L(1000 gallons)
&
• After prolonged periods of non-use (such as during a vacation) it
is recommended that the system be flushed thoroughly. Let
water runfor 5-6 minutes before using.
• The filter cartridges used with this system have a limited service
life. Changes in taste, odor, and/or flow of the water being filtered
indicate that the cartridges should be replaced.
Dimensions: 394 mm x 133 mm x 356 mm
(15.5 in. x 5.25 in. x 14 in.)
Weight (filled with water): 8.6 kg (19 lbs.)
&
PartsIncluded
•Filter system with filter cartridges
•Installation hardware (mounting screws, saddle valve, fittings)
•6.35 mm (1/4-inch)tubing
• Lead-free faucet
IInstallation
• For standard under-sink installation on 10 mm (3/8-inchl cold
water line.
• Please read all instructions and precautions before installing and
usingyour filtration System.
• Numbered diagrams correspond with numbered steps.
&
1. Installing theSaddleValve
Diagram on page 2
Use of a hand drill isrecommended. To protect
Tools and Materials
Required:
• Safety Glasses
•Hand or electric drill
(cordless recommended)
•File
• Phillips head screwdriver
•2 Adjustable wrenches
•Tube cutters or utility knife
&
&
Precautions
Iiiif sink does not have hole
for separate faucet:
• Center punch
• 19 mm (3/4-inch) drill bit
yourself from serious injury or fatal shock when using an electric drill,
be sure the drill and the outlet it is plugged into are properly
grounded. When using a drill, follow the manufacturer's guidelines
and procedures.
NOTE: Saddle valve must be installed on a 51 mm (2-inch)long, straight-
walled section of 10-22 mm (3/8-inchto 7/8-inch) steel, brass, copper, or
PVC pipe.
(A) Turn off cold water supply and (turn on nearest faucet before
starting installation. Place a tray or towels under the cold water
line to catch excess water.
(C) Drill a 3 mm (1/8-inch) hole in cold water line. Remove any
burrs with sandpaper or file.
(D) Turn handle on the saddle valve to expose lance no morethan 5
WARNING&
L Protect filters against freezing,which can cause
crackingofthe filter andwater leakage.
The rubber o-ring provides the water-tight seal between
the cap andthe bottom of the housing. It isimportant that
the o-ring
be properly seated inthe groove below the threads of the
housing or a water leak could occur.
To prevent costly repairs or possible water damage, the
sump of plastic housings must be replaced every five years
for clear, and ten years for opaque. If sump is older than
recommended, replace immediately. Date sump for
reference and indicate replacement date.
NOTE:
• For cold water use only.
• Make certain that installation complies with all local
laws and regulations.
mm (3/16-inch) beyond black rubber gasket.
(E) Place valve body over hole in coldwaterline so lance fits into
hole.
(F) Attach back plate of clamp and tighten bolts evenly and firmly so
brackets are parallel.
(G) Turn valve handle clockwise to closed position and leave closed
untilinstallation is complete.
2. Selecting the Faucet Location
Diagram on page 2
NOTE:The drinking water faucet should be positioned with function,
convenience, and appearancein mind.An adequate flat area is
required to allow faucet base to rest securely. The faucet fits
through a 19mm (3/4-inch) hole. Mostsinks have pre-drilled 35 or
38mm
(1-inch) diameter holes that may be used for faucet installation of
these pre-drilled holes cannot be used or are in an inconvenient
location, it will be necessary to drill a 19mm (3/4-inch) hole in the
sink to accommodate the faucet.
&

'
DO NOT ATIEMPT TO DRILLTHROUGH AN ALL-PORCELAIN SINK. If you have an all-
porcelain sink, mount the faucet in pre-drilled sprayer hole or drillthrough countertop next to
sink..
When drilling through a countertop make sure the area below the drilled area is free of wiring and piping.
Make certain there is ample room to make the proper connections to the bottom of the faucet. Do not
drill through a countertop that is more than 25mm (1-inch) thick.
Do not attempt to drill through a tiled, marble, granite or similar countertop. Consult a plumber or
the countertop manufacturer for advice or assistance.
(A) Line bottom of sink with newspaper to prevent metal shavings, parts, or toolsfrom falling down drain.
(B) Place masking tape over the area to be drilled to prevent scratches if drill bit slips.
(C) Mark hole with center punch. Use a 6mm (l/4-inch) drill bit for a pilot hole, then, using a 13mm
(3/4- inch) drill bit or hole saw, drill a hole completely through the sink. Smooth rough edges with a
file.
&
3. Mountingthe Faucet
(A) Remove wingnut(C) and metalwasher (B) from the threaded shaft ofthefaucet. Leave
the black rubberwasher (A)on thethreaded shaft.
(B) Slide the threaded shaft of the faucet into drilled hole.
(C) From under the sink, slide the metal washer on and thread on the wing nut. Tighten wing nut by hand
until tight. I t may be necessary to have a second person hold the faucet while tightening the wing
nut.
NOTE: Do not over tighten the wing nut. Hand tighten only. Do not use pli iers or wrench to tighten.
4. Mountingthe System
(A) Center system between water supply adapter and drinking water faucet.
NOTE: Allow 38 mm (1.5 inches) clearance below system to enable filter cartridge changes.
(B) Install mounting screws at least 380 mm (15-inches) from cabinet floor and 235 mm (9 1/4 inches)
apart. Leave enough space [approximately 13 mm (l/2-inch)] between the head of the screw and the
wall to slip system onto screws.
(C) Place system over screws on wall and slide sideways. Tighten screws.
Caution: Make certain system is firmly attached to wall to prevent it from falling and possibly being
damaged.
&

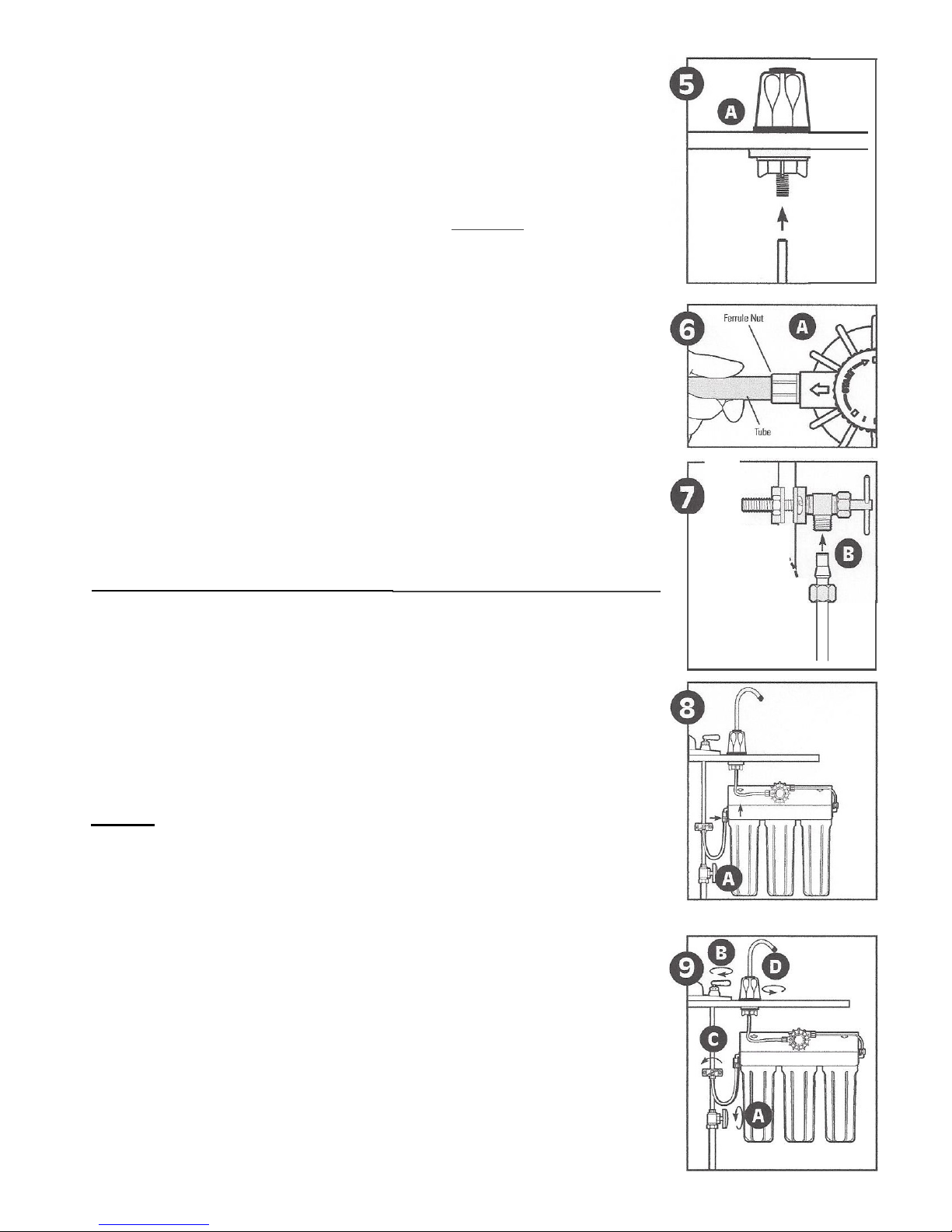

5. Connecting the Faucet (diagrams on page 3)
Caution: Do not over-tighten compression nut. Use caution not to bend or crimp tubes when securing.
(A) Locate compression nuts in installation kit and faucet package.
(8) Attach compression nuts to faucet stem and Effective Life Indicator (ELI) and hand tighten. Then
loosen compression nut one full turn.
NOTE: If the compression nut should come apart, reference diagram 5A for correct reassembly.
6. Attaching Tube
(A) Attach tube to compression nut on faucet stem by inserting tube into the compress on nut opening.
Gently push the tubing until it comes to a stop.
Caution: Tube must be fully inserted in the compresson fitting base to the tube stop on the faucet stem
and on the outlet stem of the ELI.
(B) Turn the nut handtight.
(C) Wrench tighten the nut 1 ½to 2 turns.
NOTE: All nuts must be retightened when the system reaches projected operating temperature.
NOTE: A squeaking sound when tightening the nut is normal. If fittings are removed, Teflon® tape
must be used for pipe threaded connections.
NOTE: Compression nut should come preassembled with ferrules inside.’F’ nut should come apart, see
figure 5A for proper reassembly.
(D) Determine the length of tubing needed from the faucet to the ELI and cut the tubing. A slight sag in
the lines will allow for some ease in installation. Insert the tubing into the compression nut on the ELI.
Repeatsteps68and6C.
7. Connecting the Saddle Valve
A) Determine the length of plastic tubing needed to connect the inlet (left) side of the filter with the
saddle valve. Be sure to allow enough tubing to prevent kinking and cut the tubing squarely. Slide
brass compression nut onto tubing,followed by plastic ferrule. The long, tapered end of the ferrule
should face towards the end of the tubing. Place insert into end of tubing.
(B) Inserttubing into saddle valve and hand-tighten compression nut. Using a wrench tighten nut 1 to 1 ½
turns.
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
3&
&
&
&
&&&&&&
&&Rubber&&&&&&&&
Washer&
&
&
&
&
&&&&&&&&Wing&nut&&
&
&&&&&&&&&&&&&&&&&&&&&&&
&&&&&&&&&&&&&&&&&&&&&&&&&&&
(Page&2)&
&
&
'
'
••
••
'
' &
Me
tal&
I

..
.....
8. Connecting Inlet Line to System
A) Locate Compression Nut in installation kit package and attach to inlet fitting. Tighten the nut is
hand tight and then loosen one full turn.
(B) Repeat steps 6B and 6C.
&
9. Setting the Effective Life Indicator
The effective life indicator is the black dial located on the center of the mounting bracket. Each white
mark on the dial represents 378.5L (100 gallons). The START mark represents 4542.5L (1,200 gallons);
however, the filter cartridges have an effective life of 3785.4L (1,000 gallons), so you will need to move the
dial clockwise so that the indicator arrow lines up with the 3785.4L (1,000 gallons)mark (2 marks past
The START mark). Important – set flow meter to 1000 gallons after each new filter replacement.
NOTE: To prevent indicator malfunctions, only move the dial when the system is depressurized.
10. Putting the System into Operation
(A) Slowly turn on cold water supply.
(B} Press red pressure relief button on top of system.
(C) Make sure effective life indicator is set at 3785.4L (1,000 gallons) .
(D) Rotate base of drinking water faucet counter-clockwise to "ON" position. Allow water to run for 5
minutes to flush air and carbon fines from filter cartridges. Check system for leaks before leaving
installation.
NOTE: A drinking water cartridge may contain carbon fines (very fine black powder). After installation,
flush the cartridge for 5 minutes to remove the fines before using the water. It is recommended
that you run the tap at least 20 seconds prior to using water for drinking or cooking purposes.
NOTE: Initially, filtered water may appear cloudy. If you set a glass of water on a level surface, you should
be able to watch the cloudiness disappear from the bottom of the glass upwards.This harmless
cloudiness results from the release of trapped air within the cartridge and will disappear within a
few weeks after installation.
INSTALLATION IS NOW COMPLETE.
&
&
Filter Cartridge Replacement
Filter cartridges will last about 3785 liters (1,000 gallons) or twelve months before they need to
be replaced. Filter cartridge life varies depending on filter life, usage, and/or water conditions.
Changes in taste, color, and flow of the water being filtered indicate that the cartridge should be
replaced.
Read all instructions before replacing filter cartridges.
1. Turn off cold water supply to system and press red pressure-relief button.
2. Unscrew and remove bottom of filter housing. Locate and remove large o-ring, wipe clean of
lubricant, and set aside. Repeat for second and third housings.
3. Discard used filter cartridges. Using a non-abrasive sponge or cloth, scrub the bottom of filter
housings,o-ring grooves, and caps with dish soap and warm water. Rinse thoroughly .Fill
bottom of each housing 1/3full with water. Add 14.7ML (1tablespoon) of household bleach and
scrub to disinfect.
Caution: Read "WARNING" information on the bleach container before using its contents.
4. Lubricate o-rings with clean silicone grease. Insert each o-ring in groove and press into place.
NOTE: This step is important to ensure a proper housing seal. Make certain each o-ring is
seated level in its groove or a leak may occur.
5. Screw bottom of housings with bleach water onto caps without filter cartridges and hand-tighten. Do
NOT OVER-TIGHTEN.
6. Turn on water supply. Let faucet run for about 10 seconds, then turn off faucet and let stand for 20-
30 minutes.
7. Turn on faucet and allow bleach water to run out (about 3-5 minutes).
8. Turn off water supply to system and press pressure-relief button. Remove bottom of housingsand
empty out water.
9. Insert each filter cartridge inbottom of appropriate filter housing.
10. Screw bottom of housings onto caps and hand-tighten.DO NOT OVER-TIGHTEN. Make certain cap
standpipe slips into cartridge.
11. Reset effective life indicator to 1000 gallons (see instructions under "Setting the Effective Life
Indicator" on Page 3).
12. Turn on water to system and press pressure-relief button. Letfaucet run for 5 minutes to
remove trapped air and carbon fines. Check system for leaks before leaving installation.
&
&
Page 3
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
,
......---I-T...... ..
'
A:
' :
........_ ,

NOTE:A drinking water cartridge may contain carbon fines
(very fine black powder). After installation, flush the cartridge
for 5 minutes to remove the fines before using the water. It is
recommended that you run the tap at least 20 seconds prior to
using water for drinking or cooking purposes.
NOTE:Initially, filtered water may appear cloudy. If you set a
glass of water on a level surface, you should be able to watch
the cloudiness disappear from the bottom of the glass upwards.
This harmless cloudiness results from the release of trapped air
within the cartridge and will disappear within a few weeks after
installation.
&
&
Troubleshooting
Leaks between cap and bottom of filter housing
Turn off water supply and turn on drinking water faucet to release
pressure insystem. Remove bottom of housing.Clean o-ring and
O-ring groove (located directly beneath threads of housing). Lubricate
O -ring with silicone grease and replace securely into groove. Screw
bottomofhousingontocapand hand-tighten.DONOTOVER-
TIGHTEN.Turn on water supply and check for leaks.
Leaks on systeminlet /outlet connections
Turn off water supply and turn on drinking water faucet to release
pressure in system. Remove tubing from fitting and make sure end of
tubing is cut squarely and free of burrs. Reinsert tubing into fitting,
making sure to push tubing to a hard stop. Hand tight compression nut
first, then tighten 1 to 1 1/2 turns for new compression nut. Tighten only
1/2 to 1 turn with wrench for previously tightened compression nut.
Leaks on faucet / tubing connection
Turn off water supply, then turn on drinking water faucet to release
pressure insystem. Loosen and remove compression nutfitting on
faucet stem. Make sure tubing is inserted firmly into end of faucet
stem, then retighten compression nut with fingers until secure.
Turn on saddle valve, then turn off faucet to check for leaks.
NOTE: If leaks persist, or if there are other leaks on system, turn off
water supply..
&
Low Water Flow
1. Check flow at faucet. The # 9333 system should fill a gallon jug in
approximately 2 minutes.Flow rates will vary with individual
household water pressure.
2. Check filter cartridge installation. Make certain all filter cartridges
are properly oriented in filter housings.
B. David specific / Replacement Filter Cartridges
1.Stage # 1: RS-90
2. Stage # 2: RC-93
3. Stage # 3: RP-100
Complete&System
# 9333 Nano filtration system
&
&
B.David '" LIMITED WARRANTY
B David warrants to the original owner (under normal use): all products and parts to be
free from defects in material and workmanship for a period of one (1)year. Notwithstand-
ing the foregoing, (a) the warranty period for sumps shall be a period of five (5 years
andthewarranty period for quickchange heads shall be a period of two (2) years. Any
replacement productsfurnished willbefree from defects inmaterial and/orworkmanship
for the remainder of the originalwarranty period or 30 days, whichever is longer. This
warranty doesnotcover:(1)cartridges,filterbags,media,UVbulbs,and accessories (2)
defects notreportedwithinthe abovetimeperiod,(3)itemsmanufactured byother com-
panies,(4)problems arisingfrom failureto comply with B.David instructions,(5) problems
and/ordamage arisingfrom actsof nature.abuse.misuse,negligence or accident byany
partyotherthan B.David,(6) problems and/or damage resulting in wholeor inpartfrom
alteration.modification. repairor attempted alteration. modification or repairbyanyparty
other than B.David , (7) noncompliance with applicable codes/ordinances.
If a defect inworkmanship and/or material in a product or part covered bythe warranty
should arise, B.David,at its solediscretion, willrepair or replace the defective product or
part B.David may consider ingood faith, the customer's preference).
All claimed defective product must: (1) be authorized for return by B.David with an RGA
number (2) include proof of the purchase date of the product or part (3) returned to
B.David prior to the expiration of the warranty date at the customer's expense. shipment
pre-paid,
(4) be accompanied by a letter detailing the Model Number, Serial Number (if any), and a
brief description of the problem.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW. B DAVID DISCLAIMS ALL
OTHER WARRANTIES, WHETHER EXPRESS OR IMPLIED, INCLUDING,BUT NOT LIMITED
TO. THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, WITH REGARD TO THE PRODUCTS. PARTS AND ANY ACCOMPANYING WRIT-
TEN MATERIALS.
To the maximum extent permitted by applicable law, B.David shall not be liable for any
damages whatsoever (including, but not limited to, loss of time, inconvenience, expenses.
labor or material charges incurred in connection with the removal or replacement of the
products or parts, special. Incidental ,consequential, or indirect damages for personal
injury, loss of business profits, businessinterruption ,loss of business information, or any
other pecuniary loss) arising out of the use of or inability to use the defective products
or partseven if B.David has been advised of the possibility of such damages.
B. David’smaximum liabilityunder any provision of this limitedWarranty shall be
limitedto the amount actually paidforthe productsor parts.
NOTE: Because some states do not allow the exclusion or limitation of incidental or
consequential damages, the above limitations or exclusions may not apply.
THIS WARRANTY GRANTS SPECIFIC LEGAL RIGHTS, ANO OTHER RIGHTS MAY APPLY.
SUCH RIGHTS VARY FROM STATE TO STATE.
&
&
&
&
&
&
&
Bruce Ribnick / B. David Company, Inc.
E-mail: [email protected] or [email protected]
FAX: [phone]
Telephone: [phone]
Visit our WEB Site: WWW.Bdavidwater.com
Rev 2/14
Page 4
