BA Pumps & Sprayers EZI-SPOT User manual

Greens Keeper
Thank you for purchasing another quality made
product from BA Group Australia
BA Group Australia 13-14 Hume reserve Court, North Geelong, Vic 3215
Ph: 03 5278 9033 Fax: [phone]
www.bagroupaustralia.com.au

To the Owner of this Sprayer
Our sprayers have been designed and manufactured with the discerning operator in mind. BA Group Australia provides
long term durability by using the finest materials in the construction of our products.
This booklet deals with the Warranty, Operation and Trouble Shooting of the Greens Keeper sprayer. Read thoroughly
before attempting to use your sprayer. If you are unsure of any aspect, ask the dealer who supplied the machine to
explain any unclear points.
BA Group Australia Warranty Policy
BA Group Australia warrants the owner that it will
repair or replace without charge parts found defective
or malfunctioning in accordance with the warranty
limitation and adjustment schedule below.
BA Group Australia (Company) hereby warrants to
the original purchaser (Owner) of this machine
against faulty material and workmanship for a
period as described above after delivery
according to the conditions outlined.
This Warranty does not extend to any part or
parts of the machine not manufactured by the
said Company. These parts being covered by the
Warranty of the makers.
This Warranty does not extend to defects due to
parts damaged by the neglect, misuse or
negligence of the purchaser or any damage
caused as a result of incorrect installation of the
machine or to normal wear.
This Warranty does not extend to any damage to
tanks due to the chemicals being used or left in
tanks when not in use.
In the event of a defect occurring within the said
period as stated above, the purchaser must not
attempt to correct or remedy such defect either
by modification of, adjustment or alteration to
any part or parts of the machine.
This Warranty will stop by right if the product is
used in a manner not up to the manufacturer's
directions or for bad maintenance.
In the event of any defect being disclosed to BA
Group Australia within the specified period, BA
Group Australia, after due examination and on
being satisfied that such defect is due to faulty
material or workmanship undertakes to repair or
replace such defective part or parts free of
charge.
Freight and labour costs in relation to any
replacement under this warranty are the
responsibility of the purchaser.
In no event shall BA Group Australia be liable for
downtime expenses, loss of chemicals, loss of
machine use or other incidental, consequential or
special damages.
This warranty is subject to the following
conditions, which must be conformed to by the
purchaser.
CONDITIONS OF WARRANTY
1. The warranty is NOT transferable.
2. The purchaser must complete the 'Starting Up'
form upon completion of starting the machine.
The Start Up Registration Form must be returned
to BA Group Australia within 14 days of taking
delivery of the unit. Only when Registration is
completed and returned, can BA Group Australia
fulfil all obligations.
3. Components and conditions not covered by
warranty are:
Abuse: Failure resulting from neglect, such as
improper operation, lack of required maintenance
or continued use of a sprayer after the discovery
of a defect which results in greater damage to the
unit.
All products
Private Domestic Use 12 months
Private and Commercial Agriculture 12 months
Agricultural Contractors 6 months
All Non-Agricultural Applications 3 months
This warranty period will begin on the date the product is delivered to the first retail purchaser.

BA Group Australia Warranty Policy
Environmental Conditions and Application:
Deteriorated or failed components such as
diaphragms, O'rings, hoses, seals, electrical wiring
and connections damaged by corrosive chemicals
dirt and sand, excessive heat or moisture.
Owners should ensure the type and strength of
chemicals used in the sprayer are compatible with
the design of the unit. Warranty determination
for these types of failures will be made by BA
Group Australia only after inspection of failed
components. In most instances these will incur
inspection charges and cost of replacement parts.
Normal Wear: Normal wear and consumable
items such as: oils and lubricants, diaphragms,
filter elements, flow meters, clutches, pivot pins,
paint, and nozzles are considered to be normal
wear items and are not warranted.
Maintenance: Component failure caused by not
performing scheduled maintenance service such
as: oils, grease, failure to clean tanks, pumps,
filters, spray lines, nozzles, fans or any other
blocked components. Not tightening or replacing
loose or missing bolts, nuts, fittings, shields and
covers.
Damage: Damages or machine failure, caused by
carelessness or accidental damage, improper
operation, inappropriate transportation or
storage of the sprayer or attachment.
Power Source: Failures due to faulty or
inadequate electrical sources of power. Owners
who use their own 12 volt power source must
make sure that it is suitable for operating the
spraying equipment.
Alterations: Any unauthorised alteration,
modification, attachments or unauthorised
repairs to the sprayer or attachments. Written
approval must be obtained from BA Group
Australia for any such items to maintain warranty.
Removal and Installation: The time taken to
remove and re-install a warranted part or
component into other brands of sprayers will not
be covered by the BA Group Australia Warranty.
Only parts and labour directly attributable to the
repair of the sprayer is covered.
Clean-up Time: BA Group Australia does not pay
for cleaning the sprayer, parts, accessories or
work area before or after the warranty repair.
Clean-up time is affected primarily by the
application or conditions in which the sprayer is
operated and maintained. Since clean-up time can
be so variable, cleaning time should be
considered a customer expense.
Transportation Costs: Warranty does not cover
transportation or insurance costs for sprayers or
other equipment needing repair or replacement
of warranted components. Nor does it cover any
freight or insurance costs in obtaining new parts
or returning old parts to BA Group Australia for
inspection purposes.
Travel Time: Travel time required for warranty
repairs is the responsibility of the Owner.
Diagnostic Time: Warranty does not cover time
required to diagnose a warranty problem.
Diagnostic time is affected greatly by the training
and expertise of the technician employed to do
the job. With proper training of service
personnel, diagnostic time should be at a
minimum. BA Group Australia expects that their
Agents are well trained and proficient to handle
any warranty repairs. Since BA Group Australia is
not in control of these responsibilities, we elect
not to cover diagnostic time.
Non-Genuine Repairs: Use of parts other than
genuine parts for repair of warranted parts will
automatically negate any guarantee. Warranted
components must be replaced with genuine BA
Group Australia repair parts.
Unauthorised Repairs: Repairs by an
unauthorised agent will automatically forfeit any
warranty. Warranty repairs must be carried out
by an authorised BA Group Australia dealer only.
Disclaimer:- The contents of this manual are
published and given in good faith. However,
neither BA Group Australia nor any of its
associates or directors or employees give any
warranty of accuracy nor accept any responsibility
in law. No reader should act on the basis of any
matter contained in this manual without
considering and taking appropriate advice based
upon their particular circumstance. BA Group
Australia 2014.
Due to continuous product development, BA
Group Australia reserves the right to change
specifications and design without notice.

GREENS KEEPER SPRAYER
By BA Group Australia
Whether you are a commercial greens keeper or home gardener, you will find many uses for this unit. The tank, pump
and all fittings are corrosion resistant and are suitable for applying weedicides, herbicides, insecticides, fungicides,
fertilizers, miticides, and green formulations.
Please read the Operators instructions on page 5 before operating the Greens Keeper sprayer

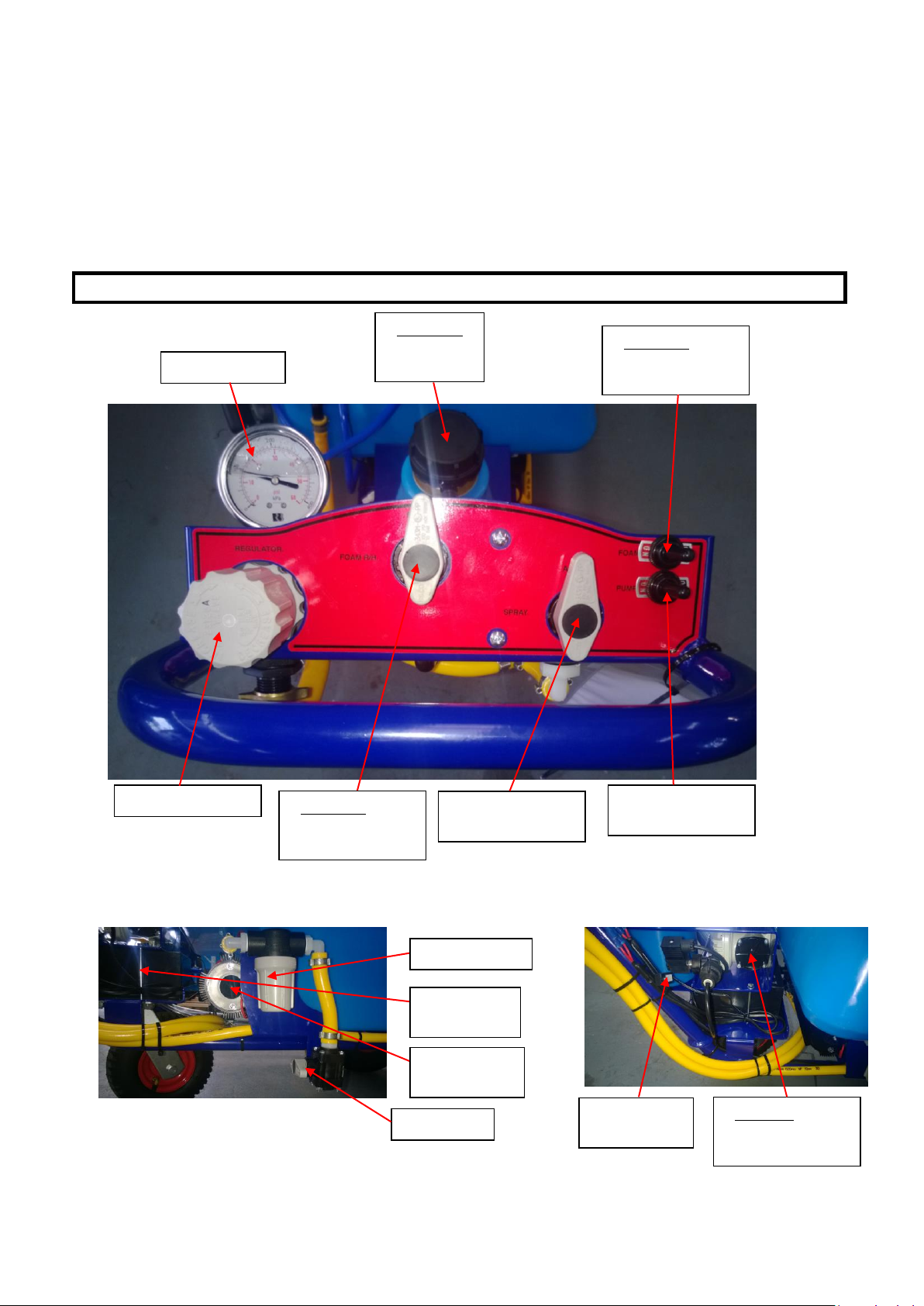

Spray/Agitate
Control Valve
Pressure Regulator
Pressure Gauge
OPTIONAL
Foam Marker
tank
Pump ON/OFF
Switch
OPTIONAL Foam
Marker
Compressor Switch
OPTIONAL Foam
Marker Control
Valve
Rechargeable
Battery
12 volt
Shurflo Pump
Suction filter
Drain Valve
OPTIONAL Foam
Marker
Compressor
Battery
Charger input

Greens Keeper Operators Instructions
Specifications
Pump
Shur-flo 2088 series, 12volt, 11.3 litres per minute
open flow, on demand with electric pressure switch
complete with a Teejet pressure relief valve.
Tank
The blue translucent tanks are made from UV stabilized
and impact resistant polyethylene. The screw on lid
incorporates an anti-spill breather.
Filtration
Teejet AA122 line strainer.
Nozzles Bodies
Teejet Chemsaver manual nozzle shut off valves are
fitted to each nozzle body. Comes standard with Teejet
AIXR low pressure air induction nozzles for ultimate in
drift control and spray coverage.
Controls
On/Off pump power switch. Spray and agitate valve.
Pressure Relief valve. Foam Marker left/right control
valve and Foam Marker compressor ON/OFF power
switch where fitted.
Charging the 12 volt battery
The battery comes charged but may need topping up
before the first use. Plug the supplied charger lead into
the connection of the Greens Keeper wiring loom and
then plug the charger into a 240 volt power point and
turn on.
At the end of each spraying session connect the
charging lead into the Greens keeper charge
connection and turn ON. SEE SUPPLIED CHARGER
INSTRUCTION BOOKLET.
Foam Marker Option - where fitted
The optional foam marker allows you to keep track of
the spraying process particularly in larger areas by
dropping a “dob of foam every so often. Applying one
cap of commercially available foam marker
concentrate into the contents of the Foam Marker
Tank will last for approximately 1.5 hrs of continuous
use.
Operating Instructions for the Greens Keeper
Position the sprayer so as to minimize contamination
to the operator or any bystander or to any part of the
environment not being involved.
Fill the tank with the desired amount of clean water
and turn the pump on to check all fittings and hoses for
any leaks. Adjust the pressure relief valve to your
desired pressure. Turning the pressure relief valve
knob clockwise will increase the pressure and anti-
clockwise will reduce the application pressure. Ideal
pressure is around 3 bar when using the Teejet AIXR
low pressure air induction nozzles.
After following all safety precautions and the chemical
manufacturers’ label regarding application rate and
mixing instruction you can introduce the spraying
product to the tank.
Position the Greens Keeper where you wish to
commence spraying. Grasp and lift the boom handles
and open each side of the boom and position in place.
Turn the “Spray/Agitate Control Valve”to “Agitate”
and turn the pump switch on. Allow the pump to
recirculate and mix the product in the tank for a couple
of minutes before spraying.
If a Foam Marker is fitted, turn the “Foam Marker
Control Valve” to the desired operating side and turn
the Foam Marker switch on. This may take a short time
for the foam to come through to the foam dropper on
the end of the boom.
Once you are ready, turn the “Spray/Agitate Control
Valve” to “Spray”. The nozzles will start spraying and
you can commence your spraying operation.
Take note of your speed via the digital speedometer so
you maintain as close to your desired speed as
possible. This will avoid over and under application.
Note:- if you don’t require all the nozzles to be
operating at the same time, you can turn the individual
nozzle bodies off or on with the use of the manual
Chemsaver valves located on each nozzle body.
OPTIONAL 3 Way
Nozzle Bodies fitted
with Low Pressure Air
Induction Nozzles
Manual Chemsaver
Nozzle Shut Valve
Digital Speedo
Boom Lift
Handles

Greens Keeper Operators Instructions
Care and Maintenance
Always fill the sprayer from a clean water source.
The line strainer should be checked and cleaned if
necessary each time the tank is filled but
definitely after each time you use it.
Appropriate protective equipment should be used
whenever maintenance is carried out. Adhere to
the chemical manufacturer’s safety
recommendation.
SHURFLO PUMPS
To facilitate assessments and rectifications of any
pump faults, the above Trouble Shooting information
has been provided for your use.
These checks need to be performed prior to
submission of suspected warranty claims or requests
for replacement pumps.
If further assistance is required please contact our
customer service staff on 03 5278 9033.
Shutdown and Storage
Check the chemical manufacturer’s label for
disposal of chemical. Drain the excess material
from the tank. Select an appropriate place (one
that will not endanger animals or the
environment) for cleaning and flushing the
system.
Flush tank, pump and hose until they flow clean.
This prevents build up of residues in hoses and
pump valves. If heavy frosts are experienced, run
the pump to make sure pump and spray lines are
dry. This will prevent water freezing in the pump
or spray lines and damaging the sprayer.
General Guidance
Do Spray:
Only after reading this instruction manual
carefully and following the advice given.
With pump pressures as low as possible
consistent with chemical container label
conditions and nozzle type.
With nozzles that reduce spray drift to a
minimum but maintains coverage.
With booms as close to the ground as
practicable but not sacrificing the overlap of
the nozzle pattern.
Using the correct personal protective
equipment specified on the chemical
containers label.
Don’t Spray:
With booms higher than is necessary, and no
more than about one metre above the
ground.
Unless you have been trained to using
spraying equipment.
With wind below 3kph (possible inversion
layer condition) or above 16kph a condition
which could cause off target spray damage.
WARNINGS!!
You need to read carefully and take note of the
following warnings before attempting to operate
this sprayer. Failure to comply with these
warnings may result in serious injury or death.
This sprayer is designed and manufactured
solely for the purpose of applying agricultural
chemicals. Under no circumstances may it be
used for any other purpose.
Prior to sprayer usage, all users and operators
must have read and fully understood the
contents of this operator’s manual.
Never allow inadequately trained personnel to
operate the sprayer.
Refer to the chemical manufacturer’s labels for
correct use, safe handling and disposal
instructions of chemicals before use.
Before carrying out any maintenance work
wash the sprayer thoroughly. Remove all toxic
chemicals that may contaminate the machine.
Adhere to Safe Working practices.

TROUBLE SHOOTING FOR 12 VOLT SHURFLO DIAPHRAGM
PUMPS
Problem
Probable Cause
Remedy
Pump starts but doesn’t prime
Low Voltage
No liquid / low liquid flow
Air lock on pressure side of pump
Check elec connections/charge battery
Check liquid level
Undo hose on pressure side of pump
to relieve air lock, refit hose
Air leak in inlet line
Damaged / sticky valves
Debris in pump
Check fittings and o ring
Replace / clean valves
Clean filter
Check for debris in bottom of tank
Blocked Filter
Worn valves
Suction / delivery line
Clean / replace
Replace valve set
Ensure the lines are fitted to correct
Inlet / Outlet ports.
External leak from pump head
Ruptured diaphragm
Piston screw loose
Piston screw cross threaded
Replace diaphragm
Tighten piston screws
Re-thread and fit new screw
Suction Leak
Pinched diaphragm
Cracked upper housing
Inlet fitting loose
Cracked valve housing
Replace diaphragm
Replace upper housing
Tighten fitting
Replace valve housing
Pump running rough or noisy
Faulty motor
Loose body screws
Broken magnet inside motor housing
Damaged bearing
Replace motor
Tighten screws
Replace motor
Replace bearing
Low Performance
Blocked filter
Improper voltage
Worn / damaged valves
Loose fasteners
Clean / replace
Check wiring and connections
Replace valves
Tighten fasteners
Pump will not start
Motor faulty
Loose / contaminated connection
Failed pressure switch
Damaged / worn brushes / broken
brush spring
Blown main fuse
No power to pump
Replace motor or complete pump
Check all electrical connections
Replace broken pressure switch
Replace brush housing assembly
Replace fuse
Check power source and all
connections
Your BA Pumps and Sprayers Dealer is :
Name: ____________________________________________________________________________________________
Address: _______________________________________________________ Town: _____________________________
Phone: ______________________________________________ Mobile: ______________________________________
Model: ______________________________________________ Serial #: ______________________________________
Date Purchased: ______________________

BA Group Australia
13-14 Hume Reserve Court
P O Box 155
North Geelong Vic 3215
Phone: [phone]
Fax: [phone]
E:[email protected]
OTHER PRODUCTS YOU MAY BE INTERESTED IN.
