Baby Love BL90A/2010 User manual

Convertible Booster Restraint
INSTRUCTION BOOK
Forward Facing with in-built harness.
For children approximately 6 months to
approximately 4 years of age, using the in-built
harness.
Forward Facing with Seat Belt.
For children approximately 4 years of age to approximately 6
to 8 years of age when used as a Booster Seat with lap-sash
seat belt or Child Harness and seatbelt. (A Child Harness
must be used in a position with a lap only seat belt).
Suitable for use only with the
Babylove EzyGo Harness™ Series BL220/2010 or
Safe-n-Sound™Protecta PLUS™Harness Series 220/2010
Child Harnesses.
Series No. BL90A/2010
IMPORTANT:
KEEP THIS BOOKLET IN THE PLACE
PROVIDED ON THE CHILD RESTRAINT

INTRODUCTION
2
INDEX
3
The child restraint is suitable for toddlers and older children as a harnessed seat that can then convert to a
Booster Seat for an older child. This child restraint is tted with our exclusive VERSATETHER™catch that
allows it to use the Babylove EzyGo Harness™in Booster Seat mode for older children.
To be used in forward-facing position with in-built harness by children whose shoulders are above the
lower shoulder height marker (approximately 6 months of age) until their shoulders reach the middle
shoulder height marker (approximately 4 years of age). Then to be used with either a lap-sash seatbelt
or an add-on accessory Child Harness until their shoulders reach the upper shoulder height marker
(approximately 6 to 8 years of age).
Continue to use this child restraint until the child reaches this limit. Children are safest in a Booster Seat
until their shoulders reach the upper shoulder height marker of the Booster Seat.
Do not use this restraint until child’s shoulders are above the lower shoulder height marker.
Just using a seatbelt is not recommended for children that have outgrown this seat. Use a larger booster.
This product is only suitable for the use with the following Child Harnesses:
• Babylove™EzyGo Harness™ Series BL220/2010 and
• Safe-n-Sound™ Protecta PLUS™ Harness Series 220/2010
WHEN USED WITH IN-BUILT HARNESS - TO BE USED WITH A LAP-SASH OR LAP ONLY SEAT BELT IN
THE BACK OF MOST CARS WITH FORWARD FACING SEATS.
THIS BOOSTER MAY ONLY BE SUITABLE FOR USE IN UPRIGHT ONLY AS THE CAR'S SEATBELT MAY NOT
BE LONG ENOUGH FOR USE IN THE RECLINED POSITION.
THIS RESTRAINT MUST BE USED IN CARS WITH FORWARD-FACING SEATS WITH A LAP-SASH
SEATBELT AND CHILD HARNESS.
WHEN USED AS A BOOSTER SEAT:- THIS RESTRAINT MUST BE USED IN CARS WITH FORWARD FACING
SEATS WITH A LAP-SASH SEAT BELT OR WITH A SEAT BELT AND CHILD HARNESS. When using a Child
Harness with the seat it may be used in seating positions with either a lap or lap-sash seat belt.
THIS BOOSTER SEAT MAY ONLY BE SUITABLE FOR USE WITH A CHILD HARNESS IN THE UPRIGHT
POSITION. IN THE RECLINE POSITION, THE CAR'S SEATBELT MAY NOT BE LONG ENOUGH.
No child restraint can guarantee absolute protection from injury in every crash. However, to ensure
that your child gets all the protection designed into the restraint PLEASE READ AND FOLLOW THESE
INSTRUCTIONS EXACTLY and use only Babylove recommended parts and accessories.
Carefully read all the instructions for installation in this book. If in doubt about the method of installation,
consult Nursery Elegance or agent or a child restraint tting station authorized by a relevant transport
authority or, in New Zealand, the agent for the vehicle or authorized child restraint tter.
THIS RESTRAINT MUST BE ATTACHED TO A CHILD RESTRAINT ANCHORAGE POINT IN THE CAR. REFER
TO CAR OWNER’S HANDBOOK FOR LOCATION OF ANCHORAGE POINTS. REFER TO A CHILD RESTRAINT
FITTING STATION IF NO ANCHORAGE POINTS ARE IN THE MOTOR CAR.
INTRODUCTION
WARNINGS
SHOULDER HEIGHT MARKERS & A GROWING CHILD
SHOULDER HEIGHT LABELS & THE NEXT STEP
FEATURES TODDLER USE
SUITABLE FOR USE
HOW TO USE
HOW TO SETUP
FEATURES CHILD USE
SUITABLE FOR USE
HOW TO USE
HOW TO INSTALL WITH A CHILD HARNESS
CARE AND MAINTENANCE
ACCESSORIES AND FEATURES
PRECAUTIONS
PRE INSTALLATION ANCHOR FITTING
PAGE
4
6
8
10
12
13
18
20
22
23
32
44
46
50
51
3

WHEN USED WITH THE 'BUILT-IN' HARNESS
• Fit the restraint rmly to the car.
• Fit the harness rmly to the child.
• A loose restraint or harness is dangerous.
• When used in this mode the restraint must be tted to the car with a lap or lap-sash seat belt.
AS A BOOSTER SEAT (with or without a separately supplied Child Harness)
• DO NOT USE WITH JUST A LAP BELT. You must use with a lap-sash belt or with a seat belt and Child
Harness.
• The lap part of the seat belt must be rmly across the thighs and the sash straps tted diagonally
across the chest and on the shoulder.
• If used with a Child Harness, the lap strap of the seat belt must be adjusted rmly rst and then the
harness, so that the lap strap is not lifted off the child’s lap when the harness is adjusted.
• DO NOT USE THIS RESTRAINT WITHOUT THE COVER.
• Do not use with the integral harness when in booster mode. This built in harness must be stored.
• Use only with a lap-sash seat belt or with an add-on accessory Child Harness and either a lap or lap-sash
seat belt.
GENERAL WARNINGS- also see warnings on pages 12 and 22.
• Supervision of children is needed because they may be able to undo buckles and adjusters.
• Use the restraint exactly as shown in the instructions.
• DO NOT LEAVE CHILDREN UNATTENDED IN THE CAR.
• Do not alter or modify this restraint.
• Repairs must only be done by the manufacturer or agent. Use only recommended parts and
accessories.
• Do not allow the restraint to come into contact with polishes, oils, bleach and other chemicals.
• Destroy the restraint if it has been in a severe crash, even if no damage is visible.
• DO NOT USE THIS RESTRAINT WITHOUT THE COVER.
• Regularly check the restraint components, straps and other tments for correct function and condition.
Seek prompt repair.
• IF AN AIRBAG IS FITTED IN THE SEATING POSITION WHERE THE CHILD RESTRAINT IS TO BE FITTED,
FOLLOW THE VEHICLE MANUFACTURERS WARNINGS AND INSTRUCTIONS.
• Straps may be damaged by unsecured cargo in a collision. Secure or remove hazardous cargo before
using this restraint. Hatch-back or Wagon: Do not use the child restraint where this strap may fall into a
split in the seat back. Always attach hook and remove slack.
• Protect all webbing from abrasion and cutting by sharp corners and edges.
• The restraint should not be purchased or sold as a second hand item. It is recommended not to use
child restraints older than 10 years as the protection in an accident may be reduced.
• This restraint must be used in conjunction with a lap-sash seatbelt or lap seatbelt and a Child Harness
in booster mode.
• THIS RESTRAINT IS NOT SUITABLE FOR USE WHERE THE ANCHORAGE STRAP MAY FALL INTO A
SPLIT IN THE SEAT BACK (E.G. HATCHBACK OR WAGON).
• Seat belt extenders should not be used if the seat belt is not long enough to t around the child. If a
seat belt extender is used then the seat belt buckle must not be in contact with the child.
• Do not store in areas that may get hot, like in car boots, roof space, beside shed walls which get hot in
summer. Do not place heavy items on top of the seat as this may distort the plastic
4 5
DO NOT LEAVE CHILDREN UNATTENDED IN THE CAR.
:

SHOULDER HEIGHT MARKERS & A GROWING CHILD SHOULDER HEIGHT MARKERS & A GROWING CHILD
OLDER CHILD MODE - USE AS A BOOSTER SEAT
OR
YOUNG TODDLER

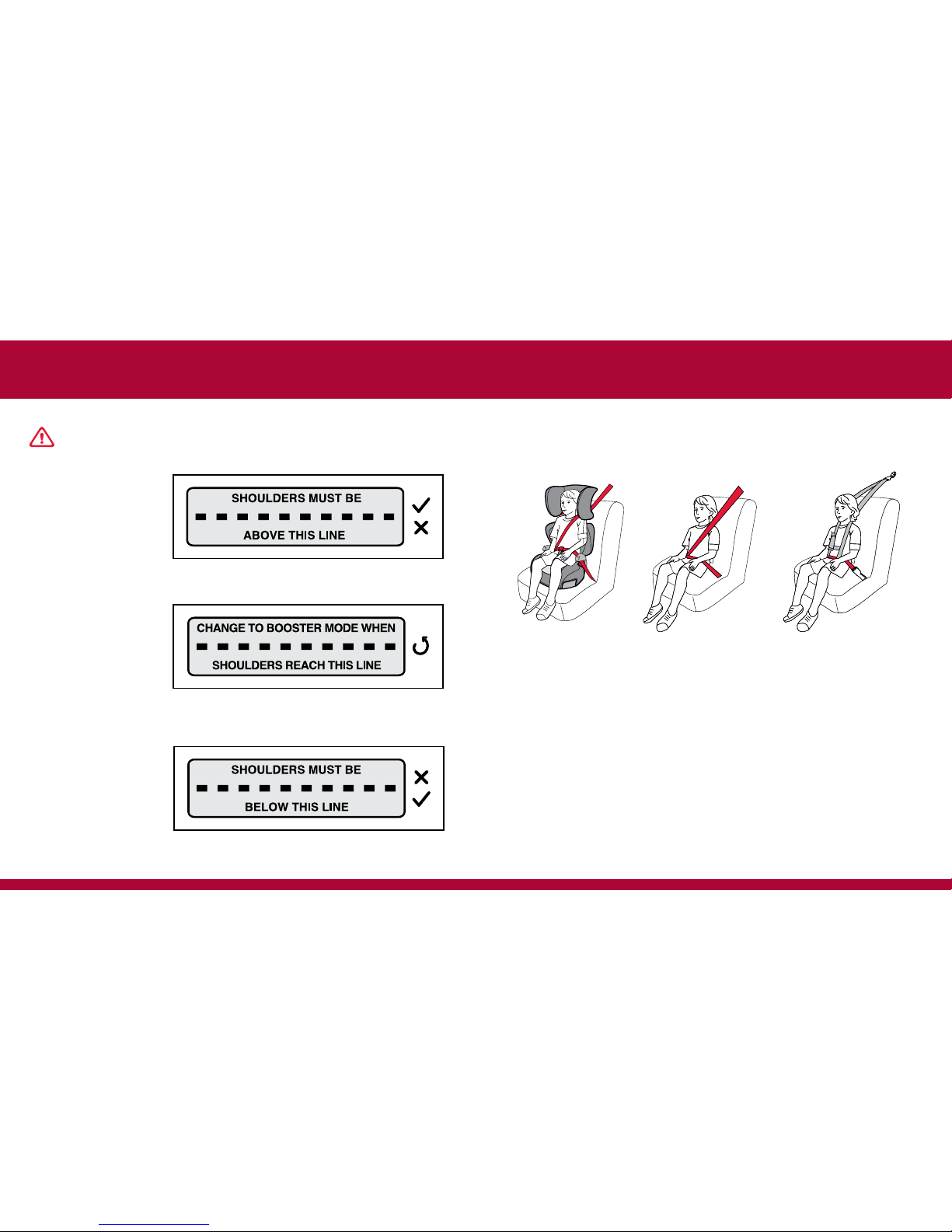

Shoulders must not be below the lowest marker.
Use the in-built harness.
From approximately 6 months of age.
OLDER TODDLER
Shoulders in-line with middle marker.
Change to Booster Seat mode.
To approximately 4 years of age.
AS A BOOSTER SEAT WITH
CHILD HARNESS AND SEAT BELT
To approximately 6 - 8 years of age.
AS A BOOSTER SEAT WITH
LAP SASH SEAT BELT
To approximately 6 - 8 years of age.
6 7
Marker A
SHOULDER HEIGHT MARKERS
TODDLER MODE - USING IN-BUILT HARNESS
Marker B
Front of Vehicle
Front of Vehicle
Marker B
Marker C
Marker C
Marker B
Marker A
Change to the next type of Booster Seat or child restraint when shoulders reach the upper shoulder height
marker.
A Child Harness must be used if the car’s seating position is tted with a lap only seat belt.
If a child no longer physically ts in the seat then move to the next form of child restraint.

IMPORTANT: Follow this advice.
Using the in-built harness, The
child’s shoulders must be in-line
with this marker or above this
marker. If the child’s shoulders
are below then the child should
remain in their previous child
restraint.
When the child’s shoulders
reach this marker, convert the
child restraint to Booster Seat
mode and use either a lap-sash
seat belt or a Child Harness and
lap-sash seat belt or lap only
seat belt.
When the child’s shoulders reach
this upper marker, or the child no
longer ts in the child restraint,
approximately 6 to 8 years of
age, then the child must be
moved to the next form of child
restraint, see below.
Marker A Smaller Toddler - LOWER SHOULDER HEIGHT MARKER
Marker B Larger Toddler - MIDDLE SHOULDER HEIGHT MARKER
Marker C Larger Child - UPPER SHOULDER HEIGHT MARKER
SHOULDER HEIGHT LABELS & THE NEXT STEP
SHOULDER HEIGHT LABELS & THE NEXT STEP
8 9
Or just the car's
lap-sash seatbelt.
Or you can use a Child Harness and
lap seat belt. Lap seat belts can be
dangerous without a Child Harness.
You can use a narrow Booster
Seat suitable for children
up to 8-10 years of age. An
accessory Child Harness may
be used.
Next type of restraint that can be used in the car for your child.
When your child has outgrown the seat, you can then either use:

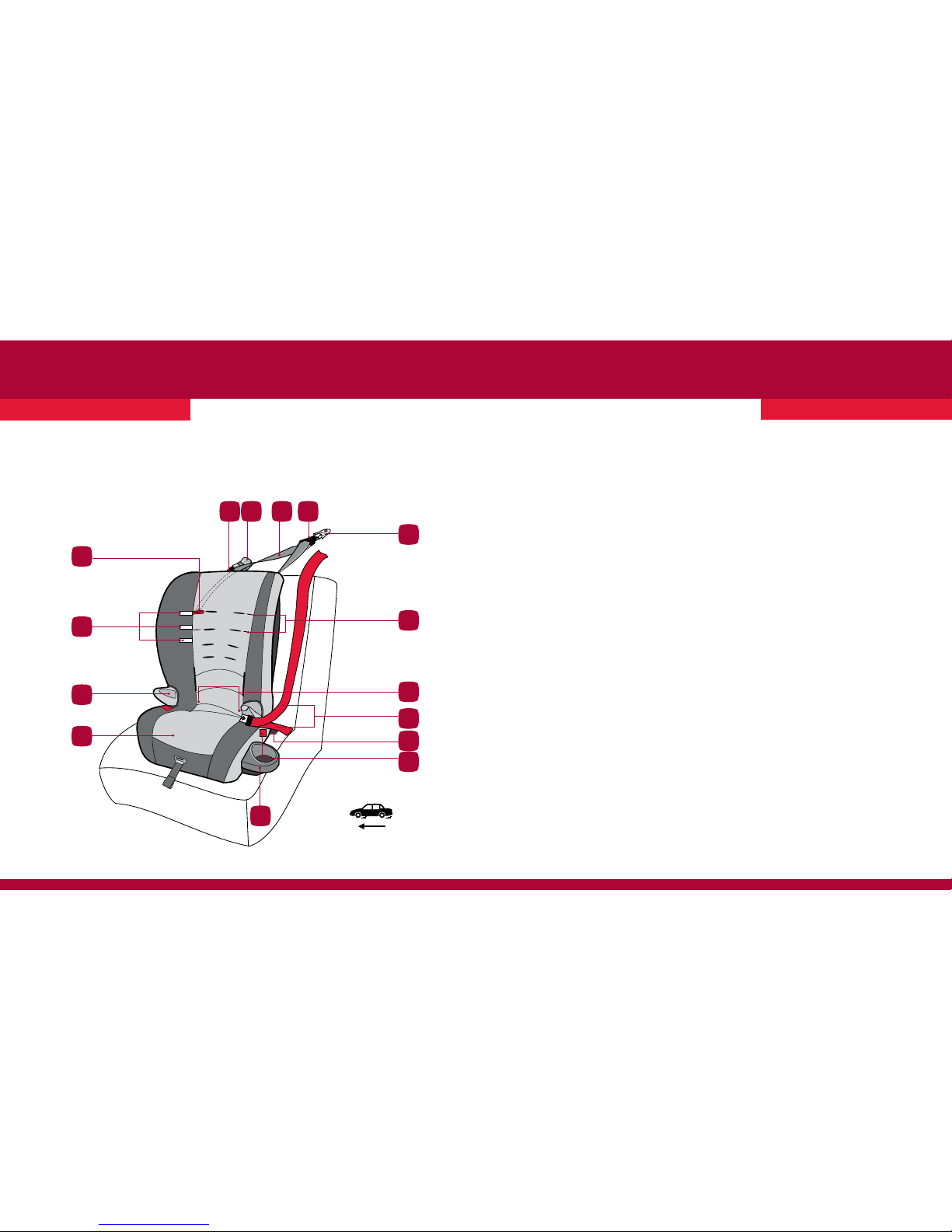

Anchor Fitting
Vehicle lap-sash seat belt or lap belt
Armrests
Recline Foot (shown in upright position)
Red Seat belt markers (each side) for booster mode (child use only).
Cup Holder (if tted)
Harness Adjuster Strap
Harness Adjustment
Padded cover for comfort
Quick Release Harness Buckle (red button)
Fully adjustable 6 point harness
Shoulder Height Markers
Upper Anchorage Strap Adjuster
Upper Anchorage Storage band
Adjustable Upper Anchorage Strap
Attachment Clip, Cover and VERSATETHER™catch
Front of Vehicle NOTE: Not all features are supplied on some models.“if tted” is used to indicate some of the features that
may not be on the seat supplied.
10 11
FEATURES TODDLER USE FEATURES TODDLER USE
To be used only in a forward-facing position for a child whose shoulder height is between the middle and
lower shoulder height markers, approximately 6 months of age, up to approximately 4 years of age using
the in-built harness.
Harness Tongues
Harness
Buckle
2
3
1
4
5
6
7
8
9
10
11
12
13 14 15 16
2
1
3
4
5
6
7
8
9
10
11
12
13
14
15
16
TODDLER USETODDLER USE

12 13
HOW TO USESUITABLE FOR USE

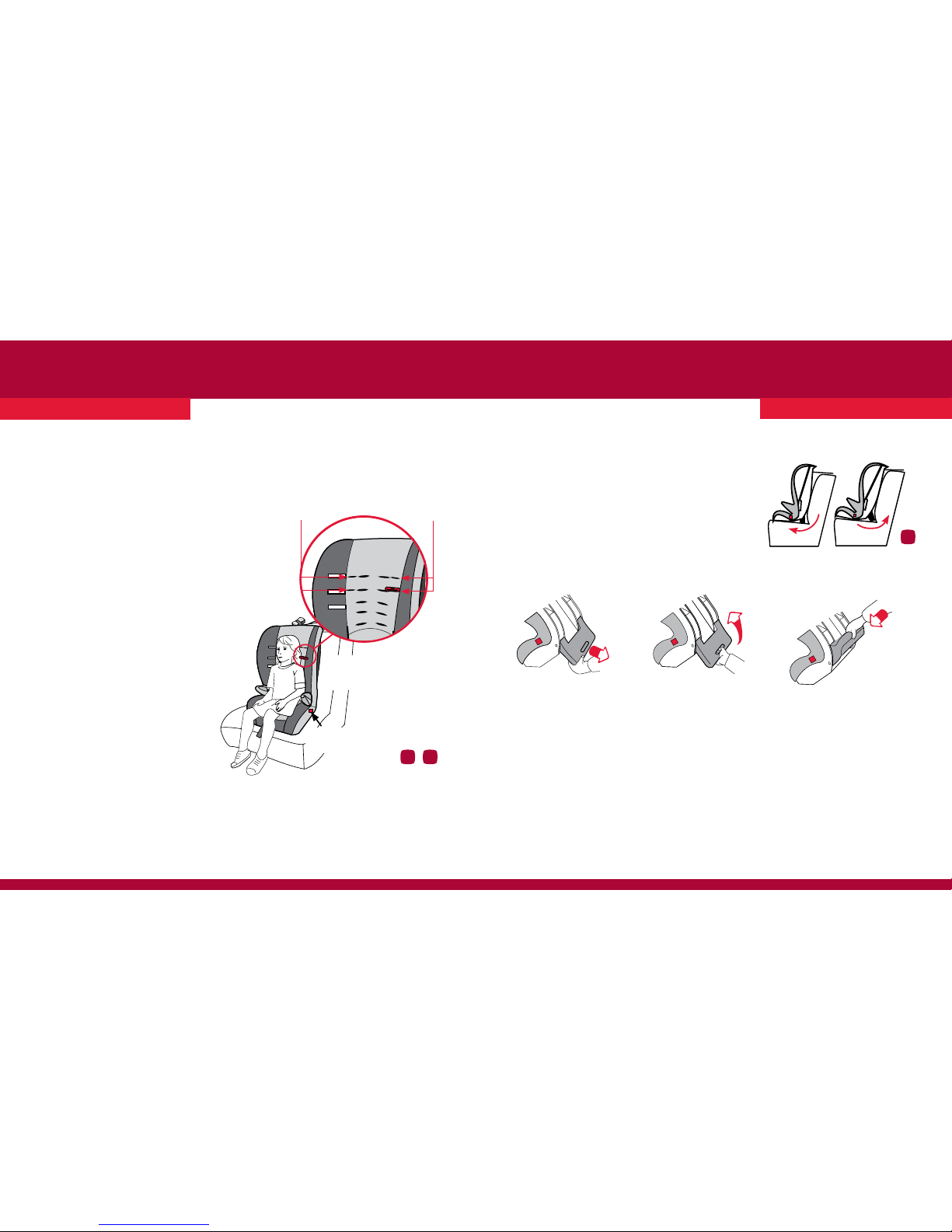

ADJUSTING SHOULDER HARNESS STRAPS HEIGHT
Correct tment of the harness is very important as it restrains the child
in the restraint. The harness must t rmly around the upper torso of the
child and be positioned so as to leave the child’s arms and legs free.
1. Top shoulder strap slots used for Child Harness
2. Upper shoulder strap slots.
3. Mid shoulder strap slots.
4. Lower shoulder strap slots.
5. Shoulder harness straps.
6. Harness tongues & buckle.
7. Lap strap slots.
8. Crotch strap slots.
The shoulder straps must be in the slots which
are nearest to the child’s shoulders, but not
more than 25mm below the child’s shoulders.
TO BE USED WITH A LAP SASH OR LAP ONLY SEAT BELT IN THE BACK OF MOST CARS WITH
FORWARD-FACING SEATS.
To be used in forward-facing position with in-built harness by children whose shoulders are above the
lower shoulder height marker (approximately 6 months of age) until their shoulders reach the middle
shoulder height marker (approximately 4 years of age).
Continue to use this restraint until the child reaches this limit.
Do not use this restraint until the child’s shoulders are above the lower shoulder height marker.
Infants are at risk of serious injury if they face forward too early.
The child should not sit in this forward facing child restraint until their neck muscles are able to support
their head. Stay in a rear facing child restraint.
Regional Road Rules may prohibit the use of this restraint in the front seat until the child is 4 years of age.
Check your Regional Rules for exemptions.
• Fit the restraint rmly to the car seat and then t the harness rmly to the child.
• A loose restraint or harness is dangerous.
• Do not use this restraint if the child's shoulders are below the lowest shoulder height marker.
• Do not use in a front seat, unless it has a child restraint anchorage point i.e.: utilities.
• Do not use the restraint without the Upper Anchorage Strap correctly attached.
• Do not use on any vehicle seat which faces sideways or rearwards.
• WHERE AN AIRBAG IS FITTED IN THE SEATING POSITION WHERE THE CHILD RESTRAINT IS TO BE
FITTED, FOLLOW THE VEHICLE MANUFACTURERS WARNINGS AND INSTRUCTIONS.
5 5
2
6
3
1
4
77
8
FOR TODDLER USE: The shoulder straps must be in the
slots which are nearest to the child’s shoulders, but not
more than 25mm below the child’s shoulders. If when
in the top slots, the harness straps are more than 25mm
below the level of the child’s shoulders or child weighs
more than 18kg, then the child is too large for the harness
straps and the restraint should be now used as a booster.
(Booster Mode - see pages 20 onwards). 25mm
TODDLER USETODDLER USE
IMPORTANT:
Use lap or lap-sash seat belt and upper anchorage strap to attach the child restraint to the vehicle seat
when using the in-built harness.

14
HOW TO USE
STEPS IN CHANGING SHOULDER STRAP SLOTS
A. Remove the restraint from vehicle.
B. At the rear of the restraint, remove one of the harness
shoulder straps from metal Strap Connector by slipping strap
through open slot. The metal Strap Connector is shown in
diagram right.
C. From the front, pull the shoulder strap out through shoulder
slot.
D. Insert shoulder strap through restraint slot which will position
shoulder strap level with or above the child’s shoulder, shown
above. Ensure that the Shoulder strap passes through matching
slots in cover and restraint body.
E. Ensure there are no twists in the harness strap and the buckle
tongues face the correct way.
F. Connect shoulder strap to metal strap connector at rear of
restraint.
G. Repeat for other shoulder strap. It is better to change one
strap at a time so that the other strap will be a guide for re-
assembly.
15
SETTING UP THE HARNESS
A. Sit the restraint against a wall for stability and get the child to sit comfortably in position.
B. Determine the desired shoulder strap position as detailed on the previous page.
C. Remove the child and adjust the shoulder straps as detailed below.
D. Repeat steps A & B to conrm the correct set-up of the built-in harness.
INSTALLING INTO VEHICLE (FORWARD-FACING) (UPRIGHT OR RECLINED)
A. Determine whether an upright or reclined
installation is required.

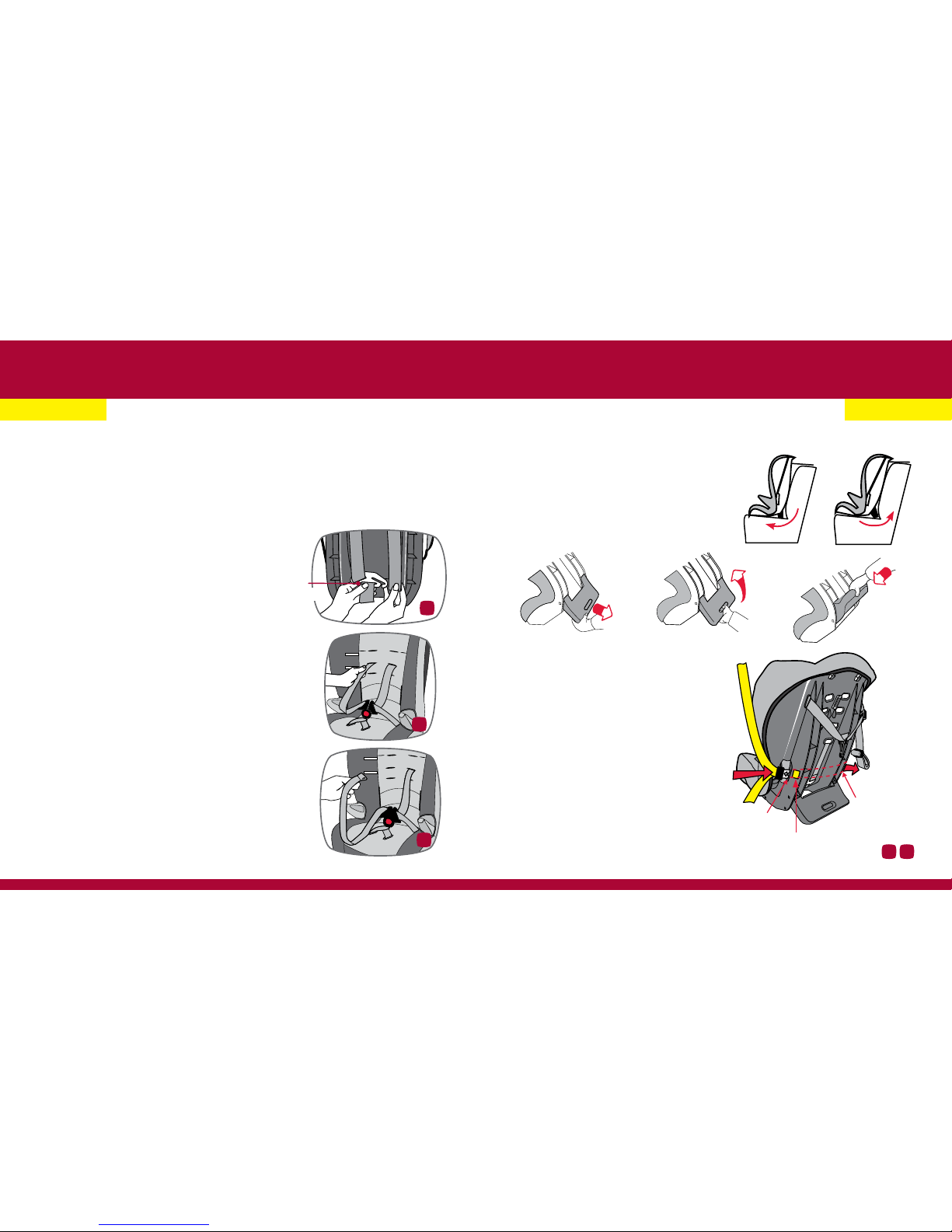

B. To move the Recline Foot from upright to reclined
mode or vice versa. Pull the Foot outwards to
unlock it, then rotate the foot.
Push inwards to lock in place. See diagrams below.
Pull out
Rotate
Push in
to lock
HOW TO USE
UPRIGHT RECLINED
Engage
into Seat
belt buckle
Far seat belt slot
Near seat belt slot
Seat belt feeds
through slot in
seat between
trim and seat
back.
FORWARD-FACING SEATBELT PATH
(marked in yellow)
C. Position restraint centrally to the
chosen position in forward facing
mode and align restraint centrally to the
chosen seating position. Some vehicle
seat fabrics (particularly velours) may
be damaged by a child restraint used
continuously. We recommend the use of
a thick towel or other protection under
and behind the seat to keep the vehicle
seat in good condition.
D. Fully lengthen lap or lap sash seat
belt and insert through near seatbelt slot.
Ensure the seatbelt is between the cover
and seat back as you push the seatbelt
through and out the far seatbelt slot.
Follow the yellow FORWARD-FACING
SEATBELT PATH labels.
Strap
Connector
B
C D
D
C
TODDLER USE
TODDLER USE

16
HOW TO USE HOW TO USE
17
E. Engage car seat belt buckle and tongue. Push
down on the restraint while pulling on the lap
portion to remove all slack from the belt. Then,
pull the remaining slack in the sash belt and allow
excess belt to feed back into the retractor.
Remove
slack
Vehicle
seat belt
Engage
seat belt
NOTE: Some vehicle seats have more rearward slope
than others. Use a rolled up towel or padding under the
seat for contoured vehicle seats to prevent excessive
recline.
Rolled up
towel or
padding
G. Fit the Attachment Clip to the Anchor Fitting
making sure to remove as many twists as possible.
H. Pull Upper Anchorage Adjustment Strap (C) to
remove any slack but do not tighten so much that the
restraint lifts off the car seat. Roll up excess strap
tightly and use storage band to neatly store excess
strap behind seat.
Always attach hook and remove slack.
F. To lengthen the Upper Anchorage Strap, fully press
Adjuster Button (A) while pulling Upper Anchorage
Strap (B) to slacken as shown below.
Pull Adjustment Strap
to remove slack
Storage
Band
Always ensure that the car seat belt and upper anchorage strap are rmly restraining the restraint on the
vehicle seat.
Make sure Cup Holders (If tted) do not interfere with closure of the car door.
IMPORTANT :
AB
C
Attachment Clip
Car's Anchor Fitting
E
G
H
F
TODDLER USETODDLER USE
Storage
Band Roll up tightly
so the webbing
is thick enough
to be held in the
storage band.

18 19
HOW TO SET-UP HOW TO SET-UP
PLACING TODDLER IN THE RESTRAINT
A. Lengthen harness by lifting the adjuster lever
while pulling on both shoulder straps until the
harness will be longer than that required by the child.
B. Place child in the restraint and feed each arm
through shoulder straps. Pull harness buckle up
between child’s legs.
C. Fit either harness buckle tongues
into the harness buckle followed by the
other tongue until a click is heard.
Should the second tongue not
insert then press the red button and
reinsert the tongues. Ensure secure
engagement by pulling harness straps.
D. Ensure all slack is removed from the harness lap strap by
pulling shoulder straps
E. Pull the harness adjuster strap to remove slack so the
harness ts the child with minimal slack (see previous page).
Shoulder straps must t rmly to the child. A loose harness
could result in serious injury in a crash. Do not over tighten.
Do not use restraint if straps do not tighten and contact your
local authorised service agent for repair.
TO REMOVE TODDLER
Press red button on harness buckle then both harness tongues will be released. Lift the shoulder straps
from the child’s shoulders and lift the child out of the seat. You may lengthen the shoulder straps if you
wish but don't forget to retighten when you next use the restraint.
Pull Harness
strap to tighten
Pull to remove slack from
harness lap strap
Shoulder
Strap
Harness
Lap strap
Crotch
Straps
Click
C
ED
B
Lift and hold
Harness
adjuster lever.
A LOOSE HARNESS IS DANGEROUS
TODDLER USETODDLER USE
A
Pull to
lengthen
A

20 21
Front of Vehicle
To be used with either a lap-sash seatbelt or an add-on accessory Child Harness by children whose
shoulders are above the lower shoulder height marker (approximately 4 years of age) until their shoulders
reach the upper shoulder height marker (approximately 6 to 8 years of age).
Car's Anchor Fitting
Sash Guide Slots (each side)
Harness stored in recess under cover trim
Vehicle lap-sash seatbelt
Recline Foot (shown in upright position)
Booster Seatbelt Path markers (each side)
Cup Holder (if tted)
Padded cover for comfort
Armrests
Shoulder Height Markers
Sash Guide in position (hooked onto elastic behind cover)
Upper Anchorage Strap Adjuster
Upper Anchorage Storage band
Adjustable Upper Anchorage Strap
Attachment Clip, with VERSATETHER™catch
NOTE: Not all features are supplied on some models.“if tted” is used to indicate some of the features that
may not be on the seat supplied.
FEATURES CHILD USE FEATURES CHILD USE
2
3
1
4
5
6
7
8
9
10
11
12 13 14 15
2
1
3
4
5
6
7
8
9
10
11
12
13
14
15
BOOSTER SEAT WITH SEATBELT BOOSTER SEAT WITH SEATBELT

SUITABLE FOR USE
22 23
To be used with either a lap-sash seatbelt or an add-on accessory Child Harness by children whose
shoulders are above the lower shoulder height marker with the head restraint in the lowest position
(approximately 4 years of age) until their shoulders reach the upper shoulder height marker with the head
restraint in the highest position (approximately 6 to 8 years of age).
Continue to use this child restraint until child reaches the limit. Children are safest in a Booster Seat until
their shoulders reach the upper shoulder height marker of the Booster Seat.
Do not use in this Booster Seat or child mode until the shoulders reach the middle shoulder height marker.
THIS RESTRAINT MUST BE USED IN CARS WITH FORWARD-FACING SEATS WITH A LAP-SASH SEAT
BELT OR WITH A SEAT BELT AND CHILD HARNESS.
Suitable only for use with the following Child Harnesses:
Babylove EzyGo Harness™(series BL220/2010) and
Safe-n-Sound Protecta PLUS™harness (series 220/2010)
This seat is not suitable for use with any other child safety harness.
DO NOT USE WITH JUST A LAP BELT. You must use with a lap-sash
belt or with a seat belt and Child Harness. If used with a Child
Harness, the lap strap of the seat belt must be adjusted rmly rst
and then the harness, so that the lap strap is not lifted off the child’s
lap when the harness is adjusted.
Do not use with the integral harness when in booster mode.
This integral harness must be stored (see page 23).
Do not use the restraint without the Upper Anchorage Strap correctly attached.
Do not use with just a lap seat belt (unless using a Child Harness - refer to page 32-42).
Do not use in a front seat, unless it has a child restraint anchorage point and permitted under the local road rules.
Do not use on any vehicle seat which faces sideways or rearwards.
WHERE AN AIRBAG IS FITTED IN THE SEATING POSITION WHERE THE CHILD RESTRAINT IS TO BE
FITTED, FOLLOW THE VEHICLE MANUFACTURERS WARNINGS AND INSTRUCTIONS.
CAUTION:
Upper anchorage strap must be used and properly connected at all times
CONVERTING INTO CHILD BOOSTER SEAT
To use this child restraint as a Booster Seat the harness and buckle needs to be stored under the cover.
Upper anchorage strap must be used in booster position.
The upper anchorage strap will need to remain connected after converting to a Booster Seat.
Disengage and remove the seat belt from the restraint.
If tted, remove all accessories from the restraint.
STORING ACCESSORIES AND HARNESS IN SEAT RECESS
When used as a Booster seat, any accessories such as shoulder pads can be stored in the recess under
the cover, as shown below. Other pads should be stored in a safe place for future use.
See the next page for detailed steps.
Store harness shoulder pads in
recess under cover.
Place rolled-up Harness Strap and
Harness Tongue in recess
Buckle
Stored in
recess
HOW TO USE
1 2
BOOSTER SEAT WITH SEATBELT BOOSTER SEAT WITH SEATBELT
Lap part of
seatbelt in
recess
area (under
armrest).

F. Roll up adjuster strap (with metal connector plate) and drop into
pocket in recline foot.
G. Store pads (if tted) in a safe place for future use, or under the
cover. To store the buckle see page 23.
H. Align cover and re-engage elastic loops at the front of the cover.
FIT THE SASH GUIDE
A. Unhook the elastic loops at the top rear of the restraint, then pull the cover forward to reveal the Sash
Guide which is attached to a strap at the back of the seat cover.
24 25
HOW TO USE HOW TO USE
STORING THE HARNESS
A. Disengage harness buckle. Fully lengthen the harness
by pressing the Harness Adjustment lever and pulling the
harness shoulder straps.
B. At the rear of the restraint, remove both of the harness
shoulder straps from metal Strap Connector by slipping strap
through open slot.
C. Pull the shoulder straps through slots in the seat back.
D. Remove the Elastic loops holding the cover in place at the
lower front of the seat. Lift the cover to expose the storage
inserts in the seat base.
E. Feed the straps with harness buckle tongues through
the bottom rear of the seat cover (see location shown by
the arrow in drawing (C)). Roll up the harness straps with
harness buckle tongue and place them into the left and right
rear recess in the seat base (underneath the cover).
A
C
F
Strap
Connector
B
Sash Guide
Thread the Sash Guide through the chosen
slot in the seat cover. (See next page).
A
BOOSTER SEAT WITH SEATBELT BOOSTER SEAT WITH SEATBELT
E

26 27
HOW TO USE
HOW TO USE
PLACING CHILD IN THE RESTRAINT USING LAP SASH SEATBELT

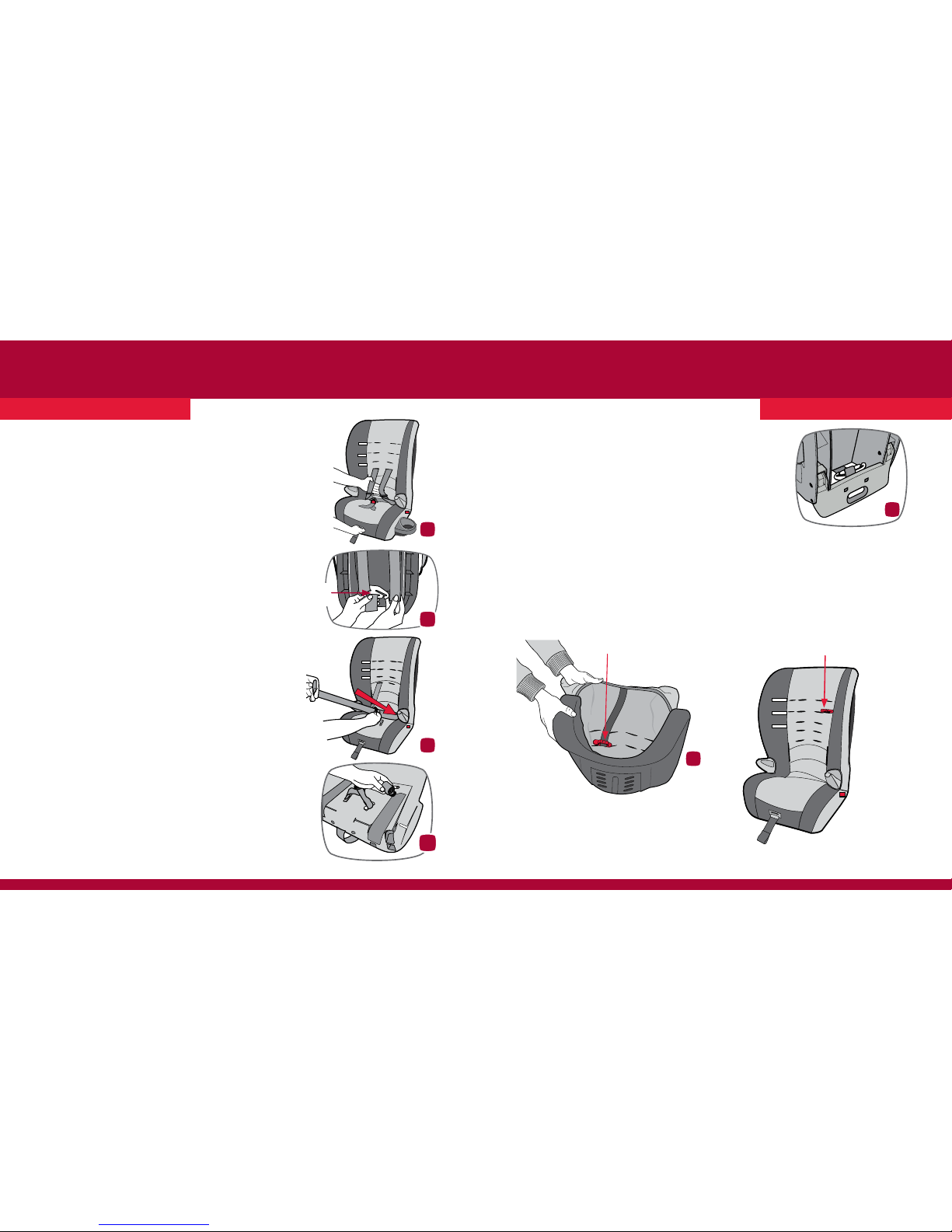

A. Determine whether an upright or reclined installation is
required.
B. To move the Recline Foot from reclined to upright mode
or vice versa, swing the seat to access the foot, pull the foot
outwards to unlock it, then rotate the foot. Push inwards to
lock in place. Swing the seat back until it sits rmly on the
vehicle seat.
THIS BOOSTER SEAT MAY ONLY BE SUITABLE FOR USE ONLY IN UPRIGHT POSITION AS THE CAR'S
SEATBELT MAY NOT BE LONG ENOUGH WHEN USED IN THE RECLINED POSITION.
UPRIGHT RECLINED A
Sash
Guide
slots
Sash
Guide
slots
DC
B. Fit the Sash Guide to the bottom Sash Guide slot of
the cover then ret the cover.
C. If your child grows or if you are using the seat for a
child that is not regular user then determine the correct
height for sash guide.
Sit the restraint against a wall for stability and get the
child to sit comfortably in position.
Determine the correct slot for the Sash Guide (refer to
illustration right). There are 2 Sash Guide slots on each
side of the seat cover, beside of the shoulder strap
slots.
D. Sash Guide should be located just above the child's
shoulders.
Sash Guide clip level with
or just above the child’s
shoulder.
BOOSTER SEATBELT PATH
marker.
BOOSTER SEAT WITH SEATBELT BOOSTER SEAT WITH SEATBELT
Pull out
Rotate
Push in
to lock

28
HOW TO USE HOW TO USE
29
C. Ensure the upper anchorage strap is still engaged
into the anchor tting or reattach and remove slack if
necessary. Remove slack as shown on page 17. Do
not overtighten causing the restraint to lift. The upper
anchorage strap must be connected when using in this
Booster Seat mode.
NOTE: Some vehicle seats have more rearward slope than
others. Use a rolled up towel or padding under the seat for
contoured vehicle seats to prevent excessive recline.
D. Sit the child on the restraint. So they are not slumping.
Sit upright.
E. Position the lap-sash belt over the child ensuring the lap
portion is positioned under the armrest as indicated by the
red BOOSTER SEATBELT PATH label. The lap belt must be
positioned low down on the thighs and hips of the child and
not on the abdomen.
F. Engage seat belt buckle and tongue ensuring
there are no twists in the belt. If the seat belt buckle
is adjustable, adjust the buckle as low as possible
away from the child.
G. Connect the sash of the seat belt to the Sash
Guide at shoulder height.
The Sash Guide must be used to position the sash
portion of the lap-sash seat belt across the child’s
shoulders and chest. Choose the Sash Guide slot
nearest to but above the shoulder height of the child.
IMPORTANT:
ALWAYS USE THE SASH GUIDE.
Adjust the sash guide so that it pulls the sash belt
over the chest and the front of the shoulder. Do not
over tighten.
H. Adjust lap and sash portion of seat belt rmly but
comfortably across the child’s lap and chest.
I. If using an Inertia Reel Retractor seat belt, adjust
the lap portion of the seat belt rmly around the
child and restraint and through the strap locator clip,
then let the slack retract up into the sash retractor.
J. When not using the restraint, secure in position
by engaging the seat belt over the seat.
Attachment Clip
Anchor Fitting
Rolled up
towel or
padding
C
D
Lap belt path under the armrest
identied by the red label:
BOOSTER SEATBELT PATH.
Sash
Guide
1
2Hold the
Sash Guide
and pull
strap to
shorten
Rotate
Sash Guide
whilst
pulling
webbing (2)
to lengthen.
BOOSTER SEAT WITH SEATBELT BOOSTER SEAT WITH SEATBELT

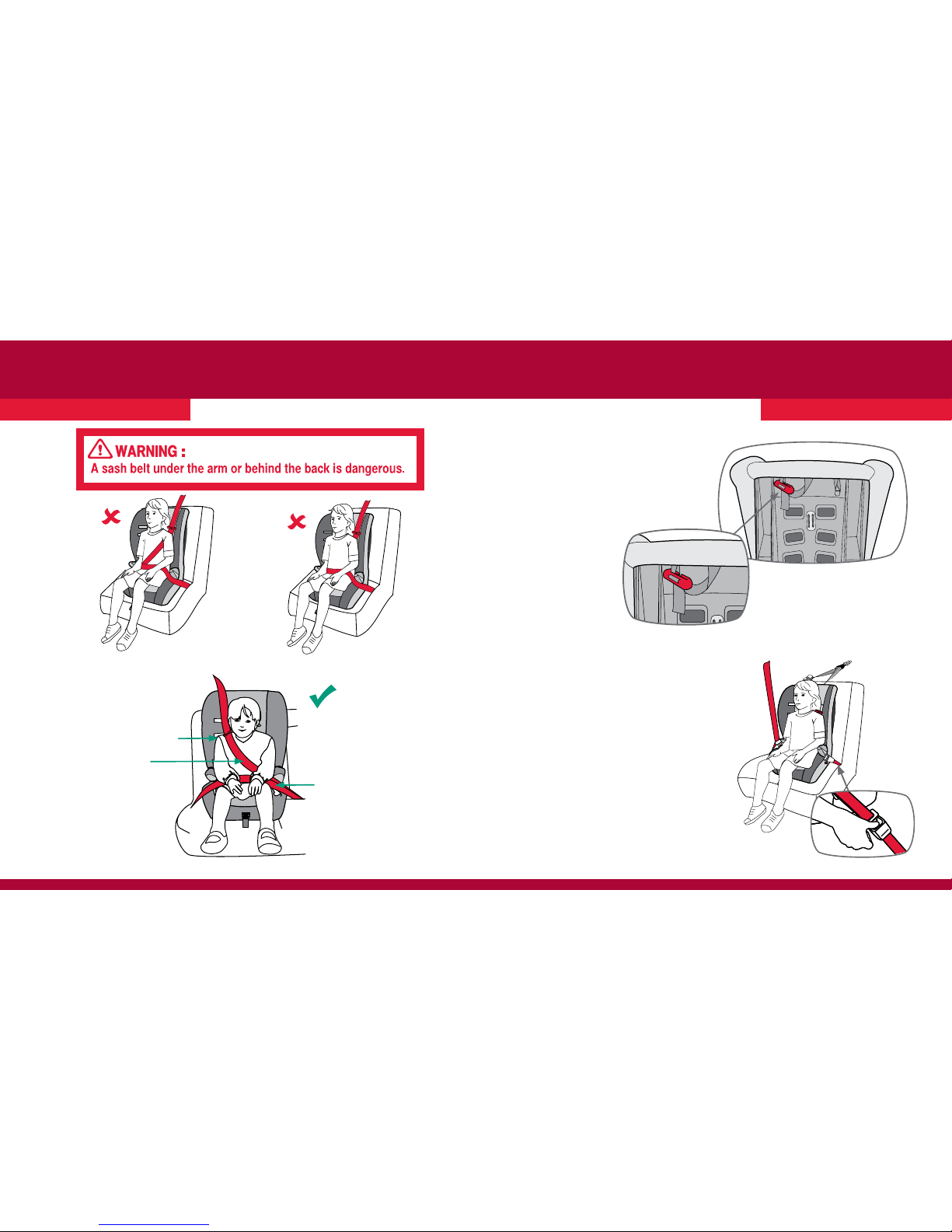

SEAT BELT UNDER THE
ARM IS DANGEROUS
SEAT BELT BEHIND THE
BACK IS DANGEROUS
Seat belt across the chest.
Lap belt must always be
rm on the thighs. The
child must not slump or
slouch.
Locate sash guide so it
is close to the shoulders.
HOW TO USE HOW TO USE
TO REMOVE CHILD
Disengage seat belt tongue and buckle, remove the
lap portion of seat belt from child.
When Booster is not being used, secure in position,
by engaging seat belt over the Booster Seat.
TO STORE SASH GUIDE
When Sash Guide is not in use, Hook the Sash
Guide at the back of the cover to the elastic loop.
30 31
NOTE: Do not use this Booster
Seat if the child’s shoulders are
above the upper shoulder height
marker.
BOOSTER SEAT WITH SEATBELT BOOSTER SEAT WITH SEATBELT

32 33
HOW TO INSTALL WITH A CHILD HARNESS
HOW TO INSTALL WITH A CHILD HARNESS
Always attach the hook and remove the slack.
USING WITH Babylove EzyGo Harness™Series BL220/2010 or
Safe-n-Sound™Protecta PLUS™220/2010 Harness (purchased separately)
This Booster Seat is only suitable for use with Babylove EzyGo Harness™ Series BL220/2010 or Safe-n-
Sound™Protecta PLUS™Harness Series 220/2010. Refer to the instruction book supplied with the Child
Harness for full details of using and installing the Child Harness. When installing the Child Harness into
the vehicle and Booster Seat, connect the upper anchorage strap to the VERSATETHER™ Catch on the
Booster Seat’s upper tether strap (as shown below).
If required, use the extension strap supplied with the child harness for all other instances to attach the
harness to anchor points in the luggage area such as the vehicle oor or ceiling. Not suitable for most
other styles of child safety harnesses.

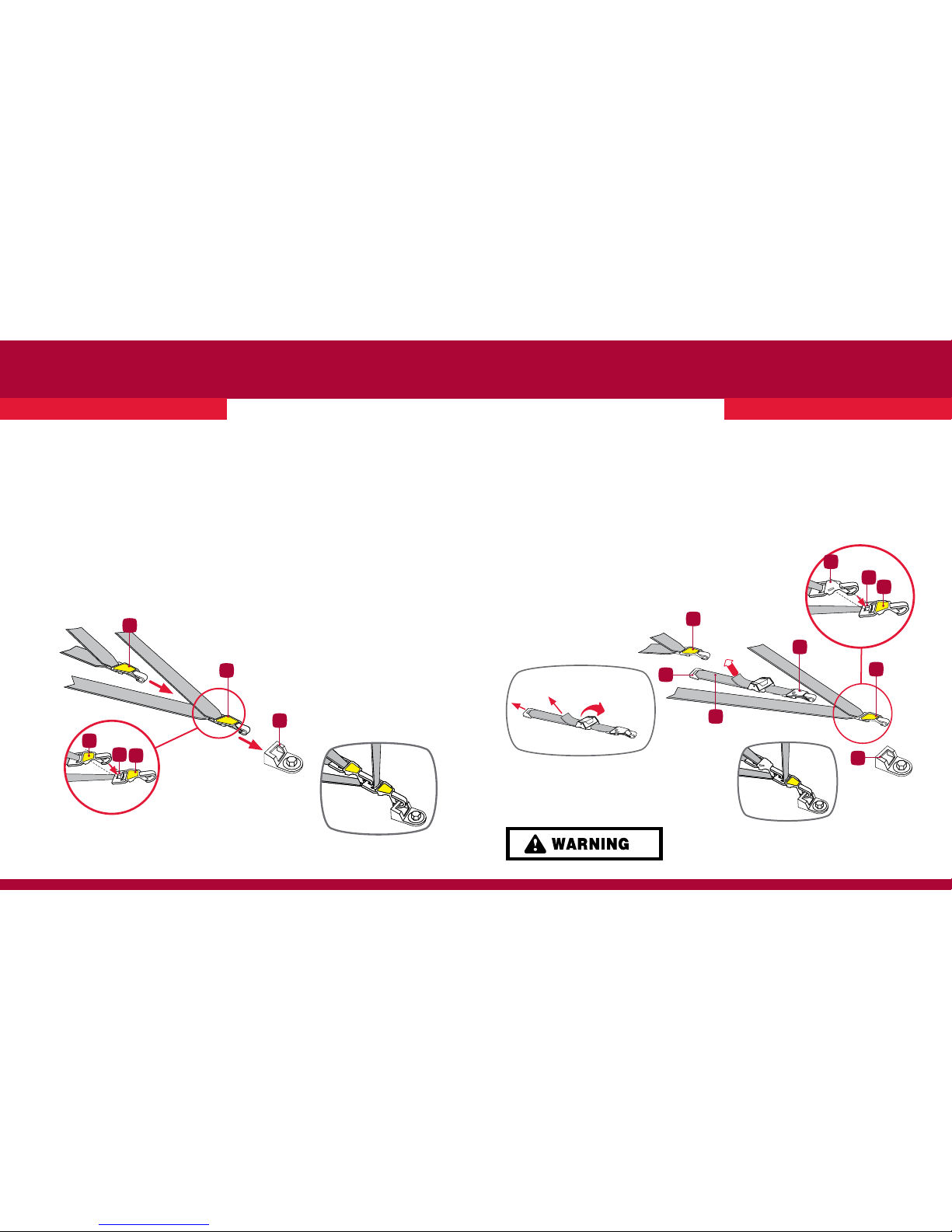

INSTALLING INTO VEHICLE WITHOUT EXTENSION STRAP
Hook the Child Harness attachment clip (1) onto VERSATETHER™ Catch (2). Then hook attachment
clip (3) onto anchor tting (4). Ensure that none of the straps are twisted and not passing over any sharp
edges.
NOTE:
Do not use the VERSATETHER™catch on the Child Harness Clip (1).
VERSATETHER™catch (2) is only for use with a Child Harness.
INSTALLING Babylove EzyGo Harness™Child Harness Series BL220 HARNESS
WITH EXTENSION STRAP INTO VEHICLE
An adjustable extension strap is supplied with the Child Harness. Hook the Babylove EzyGo
Harness™Child Harness clip rst onto the extension strap catch (6), then hook the extension strap hook
onto the VERSATETHER™ Catch on the Booster Seat’s upper anchorage strap (2) as shown below.
Attach the Booster Seat's attachment clip (3) to the car's anchor tting (4) if not all ready attached.
Ensure that none of the straps are twisted or catching on sharp edges. Tighten the Booster Seat’s upper
anchorage strap (refer to page 17) then remove excess slack from the extension strap by pulling the
adjuster strap as illustrated below.
1. Attachment Clip from Child Harness.
2. VERSATETHER™ Catch.
3. Booster Seat Attachment Clip.
4. Anchor Fitting in the car.
Child Harness Attachment
Clip attaches to the
VERSATETHER™Catch
1. Attachment clip from the Child Harness
2. VERSATETHER™ Catch
3. Booster Seat Attachment Clip
4. Anchor Fitting in the Car
5. Adjustable Extension Strap
6. Extension Strap Catch
7. Extension Strap Attachment Clip
To lengthen the Adjustable
Extension strap rotate the adjuster
and pull the main strap.
Pull to remove
slack
Attachment Clip
attaches to the
VERSATETHER™
Catch
2
3
3
4
1
1
Pull to remove
slack
Pull to
lengthen
Rotate the
Adjuster to
lengthen
2
3
3
4
7
7
6
5
1
BOOSTER SEAT WITH CHILD HARNESS BOOSTER SEAT WITH CHILD HARNESS

34 35
CHOOSING METHOD OF INSTALLATION
The Child Harness can be installed using either of the
following methods.
METHOD 1 : Using a lap sash seat belt in conjunction
with Gated 3-bar Slide (provided with the Child Harness)
to convert to lap belt plus upper anchorage strap.
METHOD 2 : Using lap seat belt plus upper anchorage
strap.
Before installing the Child Harness determine which
method of installation is required and follow instructions
carefully.
NOTE: When using the Child Harness, ensure the
‘in- built’ shoulder harness is rolled up and stored in
the recesses under the cover. Refer to pages 23-24
on storing the harness the crotch buckle must also be
stored in the recesses under the cover. Roll up the metal
connector and tuck it into the recess in the recline foot at
the back of the seat.
Right Shoulder Strap
with Tongue
Left Shoulder Strap
with Tongue
INSTALLING CHILD SAFETY HARNESS INTO SEAT
A. Lengthen the Child Harness using the
adjuster under the cover (see the Child
Harness instructions on the adjustment
method). Press the Adjuster button (1)
on the adjuster and pull the shoulder
strap (2).
B. Feed the left hand Harness Strap &
Cross Strap through the shoulder slots
that are just above the child's shoulders.
Make sure that the Attachment Clip also
feeds through to the back of the restraint.
HOW TO INSTALL WITH A CHILD HARNESS HOW TO INSTALL WITH A CHILD HARNESS
Feed left hand Harness
Strap, Cross Strap and
attachment clip through
appropriate slot
Left hand Strap
Adjuster under cover
Attachment Clip
Cross Strap
THIS BOOSTER SEAT MAY ONLY BE SUITABLE FOR USE WITH A CHILD HARNESS IN THE UPRIGHT
POSITION. IN THE RECLINE POSITION, THE CAR’S SEATBELT MAY NOT BE LONG ENOUGH.
Some vehicle seat belts are too short and you may experience some difculty tting the converted lap-
sash around your child. If so, adjust the gated slide nearer to your child, ideally under the armrest and lap
belt recess area, (ensure the slide does not touch your child). This should provide more belt length to t
your child, but if the belt still will not t, try another location in the vehicle, e.g. side seat. If the vehicle belts
are still too short, then contact the vehicle manufacturer for advice on longer seat belts.
2
1
B
IMPORTANT:
BOOSTER SEAT WITH CHILD HARNESS BOOSTER SEAT WITH CHILD HARNESS
Buckle Stored
in recess

METHOD 1: USING LAP-SASH SEAT
BELT WITH CHILD SAFETY HARNESS.
Refer to the Harness instructions for tting the
gated slide to the lap-sash seat belt. Once tted,
position the gated slide near to the child (under
the armrest) but not touching the child. Thread the
converted lap-sash seat belt through the harness
strap loops as shown left. Ensure there are no
twists in the harness, cross strap and seat belt.
IMPORTANT:
The Gated Slide must be removed from the seat
belt if the Booster Seat and Child Harness are no
longer used in the car to allow other users to use
the seatbelt as a lap-sash seatbelt.
Important Note: Some vehicle seat belts are too
short and you may experience some difculty
tting the converted lap-sash around your child.
If so, adjust the gated slide nearer to your child,
(ensure the slide does not touch your child). This
may provide more belt length to t your child, but
if the belt still will not t, try another location in
the vehicle, e.g.. side seat. If the vehicle seatbelts
are still too short, then contact the vehicle
manufacturer for advice on longer seat belts.
3736
HOW TO INSTALL WITH A CHILD HARNESS HOW TO INSTALL WITH A CHILD HARNESS
Gated Slide
Harness strap loops
C. Pull the left hand Harness Strap & Cross
Strap through the opposite shoulder slot. Hook
the Child Harness Attachment Clip onto the
VERSATETHER™Catch and ensure that the
straps line up to an equal length.
Faces towards
child.
Outer
strap. Inner
strap.
C
Hook the Attachment Clip onto
VERSATETHER™ Catch.
Pull left hand Harness
Strap through
opposite slot until the
straps are of equal
length.
Position the
Gated Slide
near the child
(under the
armrest) but
not touching
the child.
BOOSTER SEAT WITH CHILD HARNESS BOOSTER SEAT WITH CHILD HARNESS

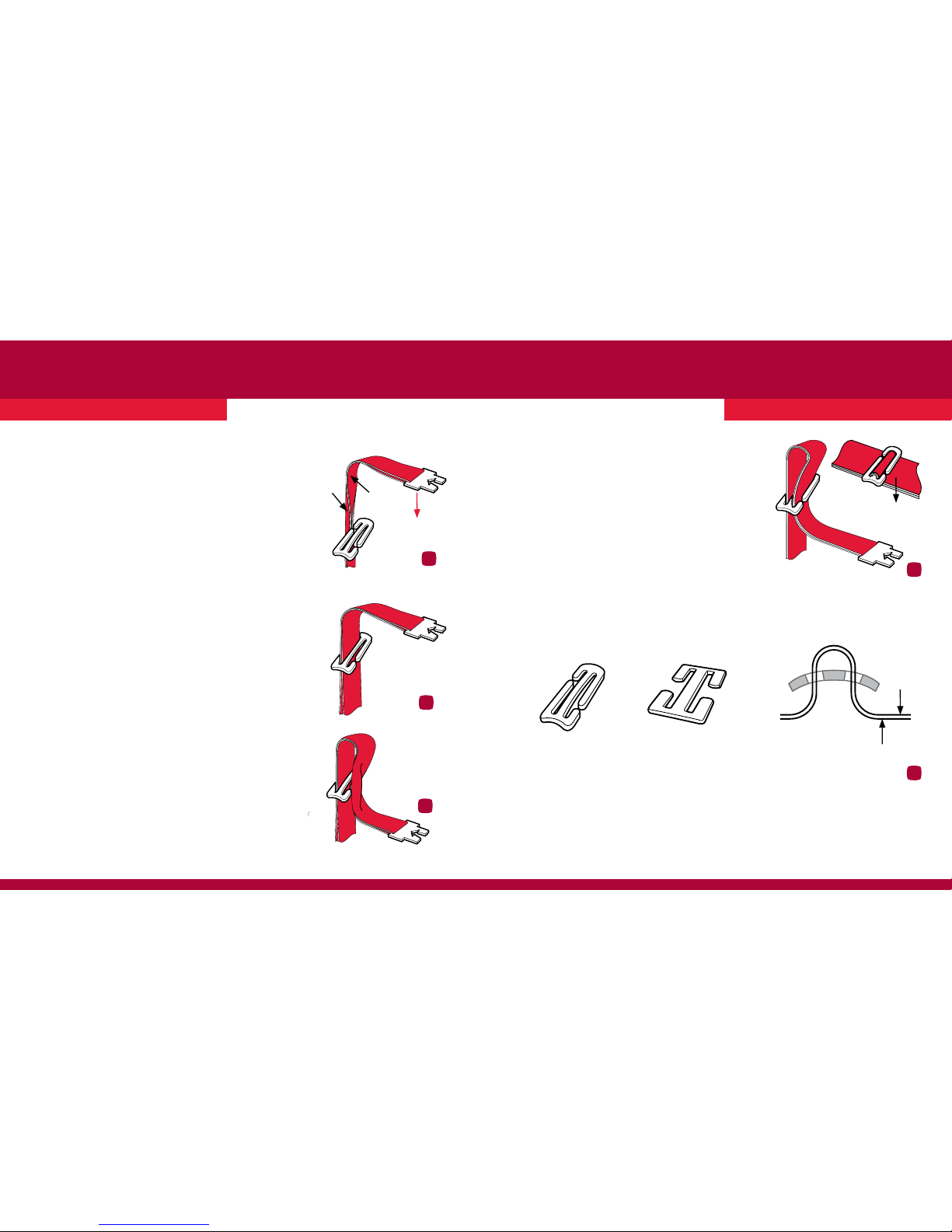

FITTING THE GATED SLIDE TO THE LAP-SASH SEAT BELT
B. The two straps should slide freely in the Gated Slide slot.
Faces towards
child.
Outer
strap. Inner
strap.
A. Hold the lap and sash straps together and fold
as shown right. Slide the inner strap into the Gated
Slide followed by the outer strap.
C. Repeat previous step Afor the other slot in the Gated Slide.
D. Feed the straps through the Gated Slide to remove any slack.
Hollow side
towards child.
Sash belt
portion
Lap belt
portion
E. There may be two types of Gated Slides available, Curved and Flat.
Curved Flat
When tting the Curved Gated Slide, the seat belt route can only go one way, as shown right.
39
38
HOW TO INSTALL WITH A CHILD HARNESS HOW TO INSTALL WITH A CHILD HARNESS
A
B
C
D
E
BOOSTER SEAT WITH CHILD HARNESS BOOSTER SEAT WITH CHILD HARNESS
