BABYBELLE BBF01 User manual

2-in-1 Fan ( Air Purifier ) & Hand-Held Vacuum
Cleaner
Model No.: BBF01
Specification
Fan ( Air Purifier )
220-240V~ 50-60Hz 35W
Hand-Held Vacuum Cleaner
DC 4.8V 10W

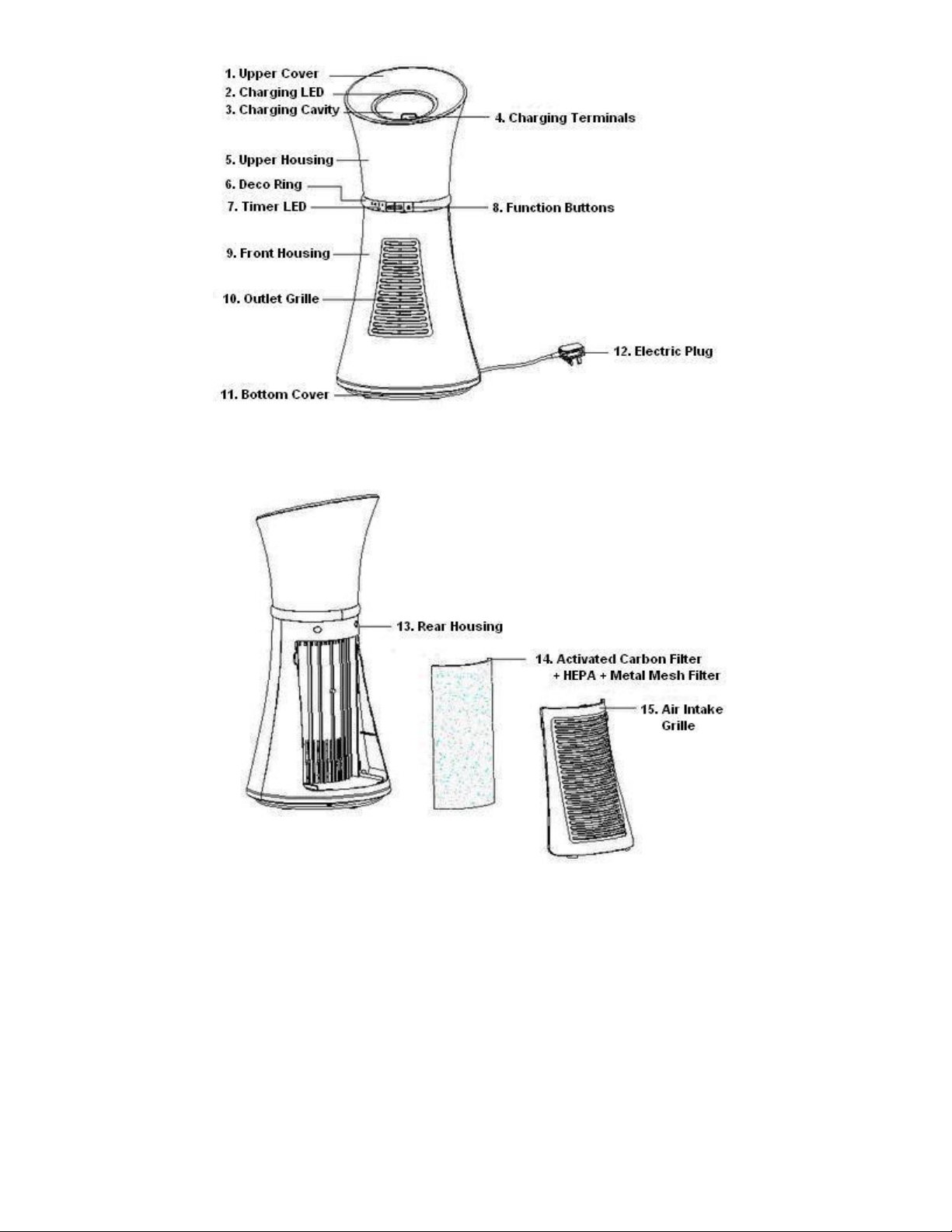

Fig. 1 Fan ( Air Purifier Part ) - Front View
Fig. 2 Fan (Air Purifier Part ) –Rear View

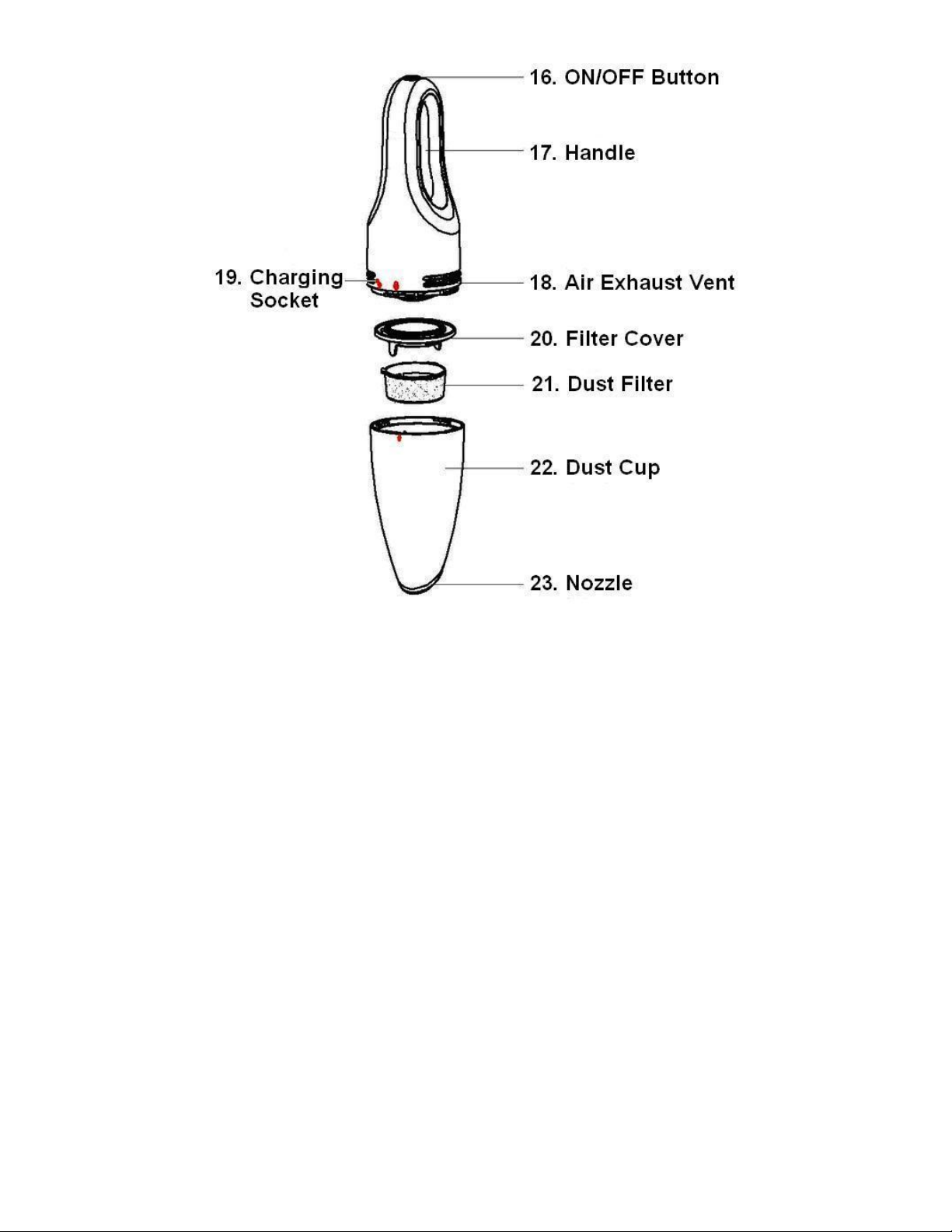

Fig 3. Vacuum Cleaner Part

Safety Precautions
1. Read the safety instructions carefully before using the appliance for the first time and retain them
for future reference.
2. Before plugging in the appliance, check that the electrical rating shown on the rating plate
corresponds with your house electricity supply.
3. If the power cord is damaged, it must be replaced by the manufacturer or its service agents or
qualified electricians in order to avoid a hazard.
4. Switch off the appliance before unplugging it from the mains. Do not touch the plug with wet
hands to avoid risk of electric shock.
5. Do not insert fingers or small objects into the grille during operation to reduce the risk of injury to
persons.
6. Do not use the appliance on an inclined surface greater than 10º, or in a lay-down position.
7. Do not spray insecticide near the air inlet or outlet of the air purifier. Avoid putting the air purifier
in area where the air passageway may be blocked.
8. The air purifier should not be used in area with high temperature (higher than 40 ºC) and high
humidity, say bathroom. Also avoid using it in dusty or oily area.
9. Do not put the appliance, the power cord or the plug into water or any other liquid.
10. The appliance is designed for household use only. Use the appliance with its intended use.
11. Unplug the appliance before storing, assembling and cleaning the components of the appliance.
12. This appliance is not intended for use by persons (including children) with reduced physical
sensory or mental capabilities, or lack ofexperience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
13. Children should be supervised to ensure that they do not play with the appliance.
14. Do not immerse in water for cleaning.
Using your Clean Tower
Fan (Air Purifier )
1. Before using the air purifier, check that the filters are installed in the following order:
i. Activated Carbon Filter → ii. HEPA Filter → iii. Metal Mesh Filter → iv. Air Inlet
2. Buttons
ON/OFF Button: Press once to turn the air purifier ON. The default speed is Speed I.
Press again to turn it OFF.
Speed Button: Press the Speed Button to advance the speed by one setting. When
the air purifier is at Speed III, pressing the Speed Button will return the
speed setting to Speed I. It follows the cycle like this →I→II→III→
Timer Button: Press the Timer Button to select the pre-set time, in mode of 0H, 1H,
2H, 4H, 8H. It follows the cycle like this →0H→1H→2H→4H→8H→
3. Function of air purifier
Four layers of filter can clean the air with their respective function:

a. Air Intake Grille can block the large particles from getting into the air purifier directly
b. Metal mesh filter filters out the dusts and air pollutants
c. Activated carbon filter removes contaminants, impurities and VOCs from the air.
Hand-held Vaccum Cleaner
1. Charging / Stand-by Mode
a. The charging cavity is located at the top part of the product. Place it on a flat horizontal
surface when charging.
b. Do not charge the vacuum cleaner with other chargers.
c. For the first use, charge the vacuum cleaner continuously for 4 hours.
d. Switch off the vacuum cleaner during charging.
e. When the vacuum cleaner is placed in the charging cavity, the charging indication LED will
light up (red –charging / blue –charging completed).
2. When the vacuum cleaner is charged, take out the vacuum cleaner and push the ON/OFF Button
at the back side of the handle, your vacuum cleaning is ready to use.

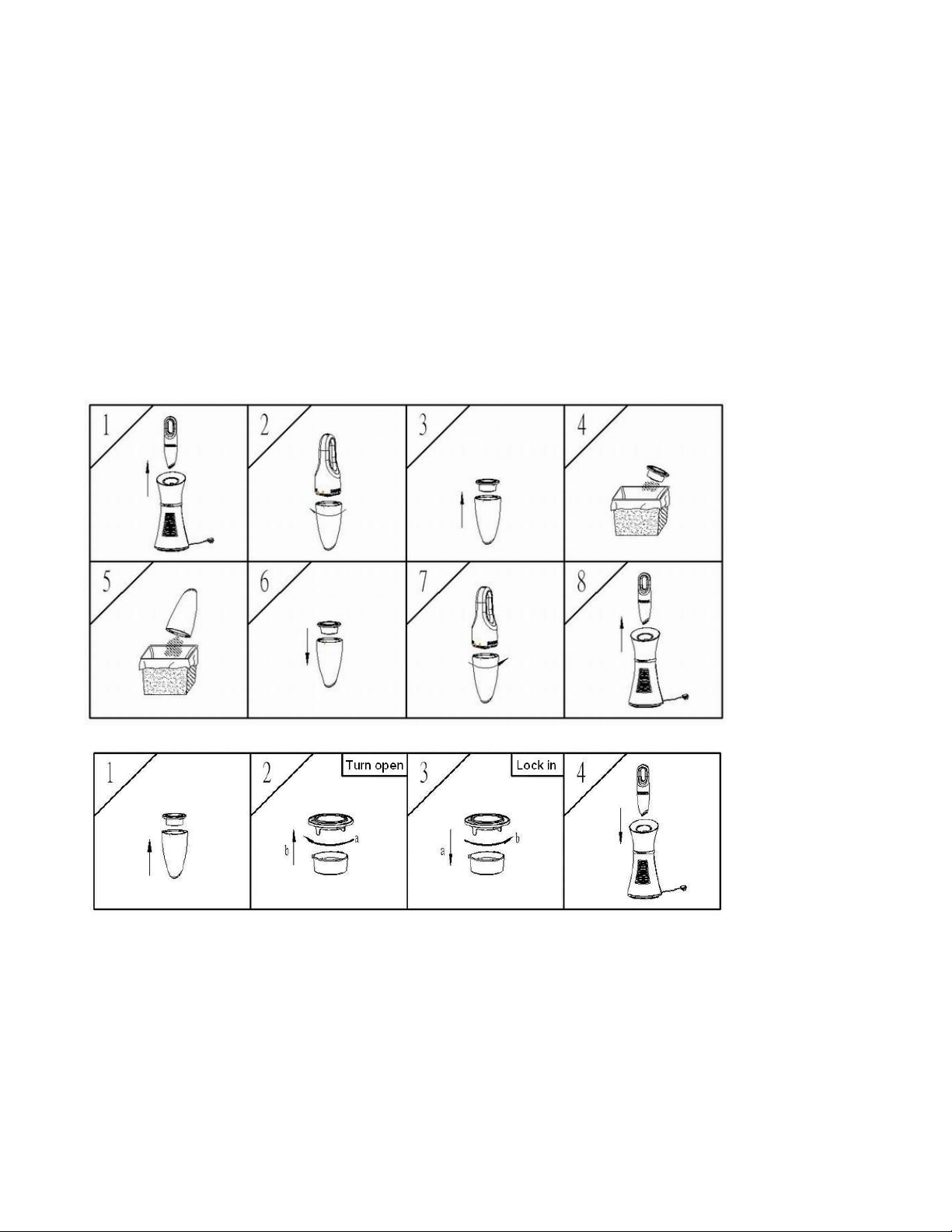

3. Follow the procedures shown below for dust disposal
4. The Dust Filter is not disposable type and it can be used repeatedly.
Care and Maintenance
1. Turn off and unplug air purifier before cleaning or replacing filters.
2. Gently push the release tabs on the Air Intake Grille and pull backward to remove it.
3. Remove the filters and put them aside.
4. Clean the air purifier & vacuum cleaner with a soft, damp cloth.
5. Use mild soapy water to clean the product, do not use bleach or other abrasive detergents.
6. Put the product in cool & well ventilated area until it is thoroughly dry.
7. Reassemble the filters in order as mentioned in previous session.
8. The product is now ready to use or for storage.

Troubleshooting
Problem
Probable Cause
Correction
Air purifier does not run.
The power cord is not yet
plugged into the socket, or it
is not plugged in securely.
Plug in the power cord to the
socket securely again.
There is abnormal noise
when operating the air
purifier.
Foreign material is trapped
and in touch with the rotating
fan.
Unplug the unit. Check
whether is anything entangled
in the grilles.
Vacuum cleaner does not run.
1. Power not enough
2. Bad contact of charging
terminals
3. Battery cannot be charged
4. Machine malfunctions
1. Charge the vacuum
cleaner until the charging
LED turns blue.
2. Clean the charging
terminals.
3. Contact Authorized
Service Agent.
4. Contact Authorized
Service Agent.
Low suction of vacuum
cleaner
1. Battery flat
2. Dust Cup is full
3. Dust Filter is blocked
1. Charge the vacuum
cleaner until the charging
LED turns blue
2. Empty the Dust Cup
3. Clean the Dust Filter
Dust overflows
1. The Dust Cup is full
2. The Dust Filter is blocked
1. Empty the Dust Cup
2. Clean the Dust Filter
Battery cannot be charged
1. The ON/OFF switch of the
vacuum cleaner is in the
ON status
1. Push the ON/OFF switch
again to switch OFF the
vacuum cleaner and
proceed charging.
Manufacturer : Tai Yu ( Dongguan ) Electrical Co., Ltd.
Dong Xing Industrial Park, Dong Keng Town,
DongGuan City, Guang Dong Province,
China.
Correct Disposal of this product
This marking indicates that this product should not be disposed with other household
wastes throughout the EU. To prevent possible harm to the environment or human health
from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of
material resources. To return your used device, please use the return and collection systems
or contact the retailer where the product was purchased. They can take this product for
environmental safe recycling.
