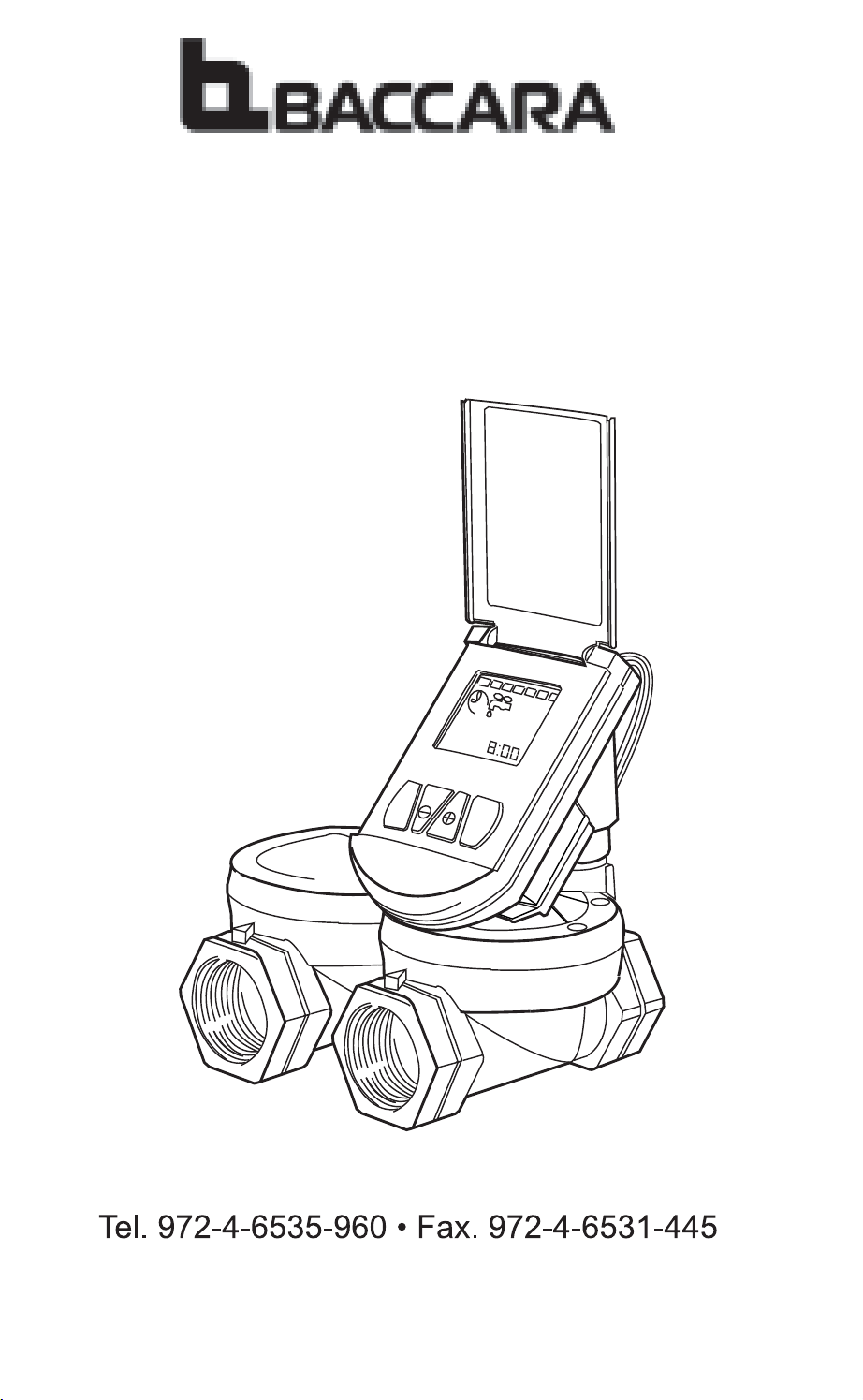

Baccara G75 User manual
G75 Two Valves
Irrigation Controller
4257201402 (6/20)
• English
USERS GUIDE
16
17
18 O Season
Screws
Battery
Cover Seal
19 20
Troubleshooting
21

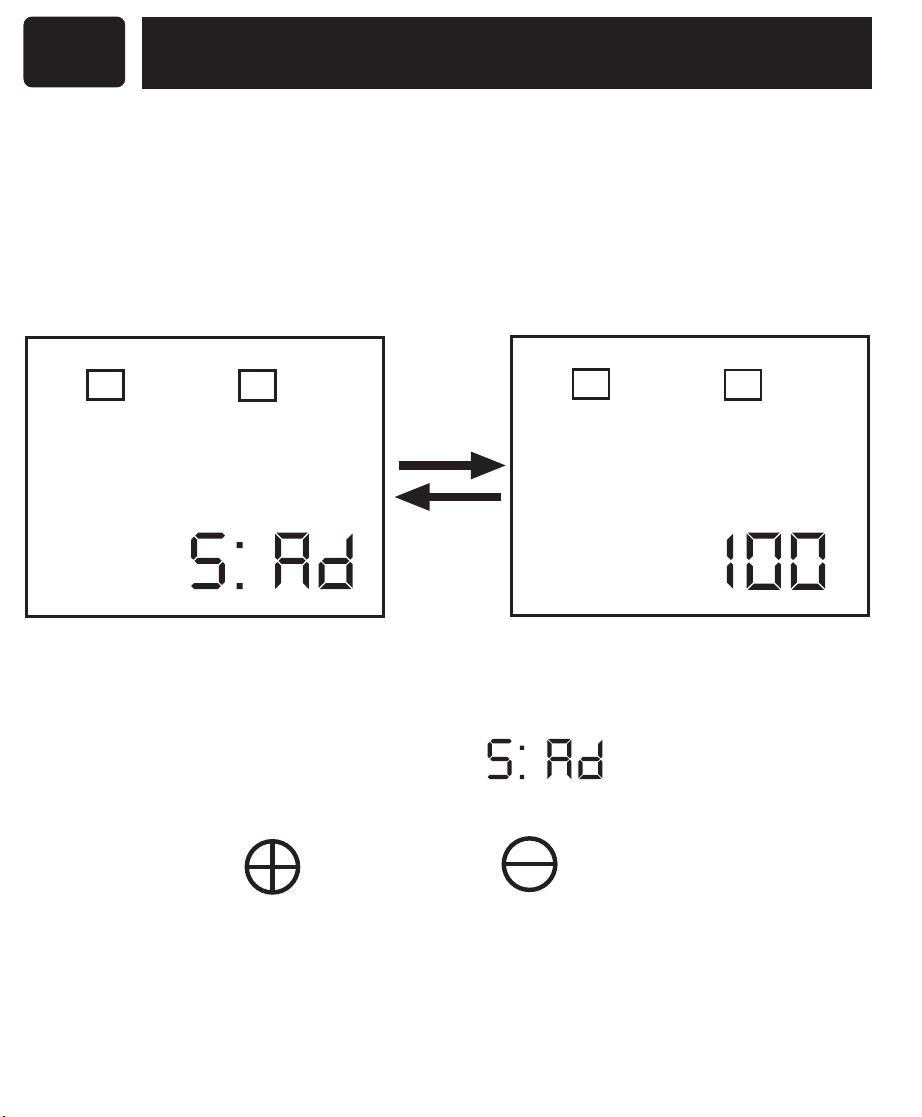

1. Press five long presses on the MODE
button until the following screen
appears:
1 2 3 4 5 6 7 1 2 3 4 5 6 7
The percentage programmed will flash on the
screen alternately with
2. Use the and the buttons to adjust
percentage amount to your requirments.
3. Press SET to complete adjustment.
The Controller comes with the following
factory default settings:
Factory Default Settings
Sun. Mon. Tue. Wed. Thu. Fri. Sat.
P1
P2
Selected Starts
Irrigation Days
Irrigation Start Times
Irrigation Duration for Valve 1 (P1) and
Valve 2 (P2)
Start 1 Start 2 Start 3
Start Times for P1 and P2
Duration Time
Selected Starts for P1
Selected Starts for P2
P1 0:15
P2 0:15
√
√
√
√
√
√
√
√

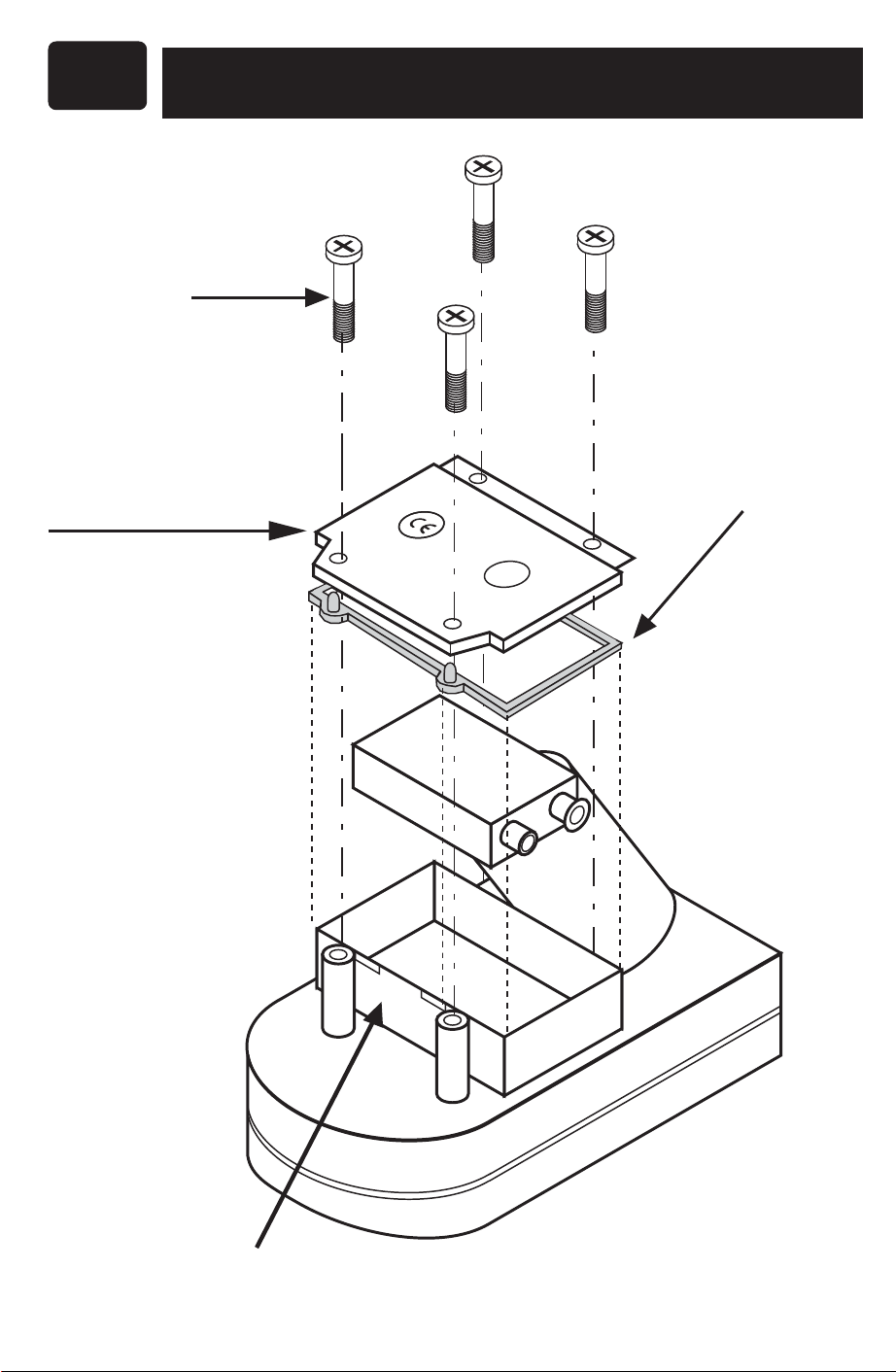

Battery Installation
Replace the battery at the start of each
irrigation season and when the low battery
symbol appears:
Use a 9V alkaline top quality battery only.
1. Use a Phillips screwdriver, remove the
four battery cover screws.
2. Remove the battery cover and seal.
3. Replace the battery.
4. After reattaching the seal, put the cover
back, and secure with the four screws.
When replacing seal,
push seal tabs into slots.
PROBLEM
Controller
does not
irrigate plants
as desired
CAUSE SOLUTION
Water at main faucet
is shut o
Check faucet
Hose cut or
blocked
Battery dead
Controller set on
OFF
Controller
improperly
programmed
P1 has priority and
has not completed
its duration
Wait until P1
finishes irrigating
Battery dead
Replace valve
Water does
not turn o
Valve blocked by
dirt or scale
Valve installed
backwards
Install valve so that
the arrow points in
the direction of the
water flow.
Replace battery
Set controller to
desired program
P2 does not
begin on time
Blank display
Controller in sleep
mode
Replace damaged
section
Check program
and clock settings
Replace battery
Press MODE to
activate screen
SET
MODE
Kvutzat Geva, 1891500, Israel
Maintenance
During the season when you do not need to
water your plants, press the MODE button
quickly until OFF is displayed. DO NOT remove
the battery.
The Controller is equipped with a flash
memory that will save the programmed
functions even without the battery.
Start 1 Start 2 Start 3
Guarantee
Baccara products are guaranteed to be free from
defects in material and workmanship for a period
of one year from the date of delivery.
This guarantee does nor apply where equipment is
not used and installed strictly in accordance with
Baccara specifications and Users Guide. Neither
does it apply to failures caused by lightning strikes
or damage due to freezing temperatures or mecha-
nical causes (e.g. lawn mowers).
Baccara is not
To receive guarantee benefits, customers should
return defective units along with the receipt to the
nearest Baccara distributor.
Baccara reserves the right to alter, modify or
redesign its products, pricing and guarantee at all
times without creating any liability for the
obsolescence of customer inventory of such parts
or products.
This manufacturer guarantee policy may apply
differently in different countries.
liable for indirect, incidental or consequential
damage in connection with the use of equipment.
No display
Sleep mode Mode
Mode
Mins.
Mins.
Mins.
Mins.
Hours
Hours
Set Set Set
Day
Starts 1, 2, 3
Set Set
Hours select select
Set Set Set Set
deselect deselect
Set clock and
day of week
Set irrigation
Start
Select Starts
1, 2, 3
Select Day
1 - 7
Set seasonal
adjustment
Set P1
(valve 1)
Set P2
(valve 2)
Set
deselect
deselect
Set
Set
Set
Set
Set Start
1, 2, 3
Set Day
1 - 7
select
select
Hours
Irrigation duration
Irrigation duration
Auto
operating modes Mode OFF
Flow Chart for G75 2 Valves Irrigation Controller
06:00 12:00 18:00
Mode>2 secs.
Mode>2 secs.
Mode>2 secs.
Mode>2 secs.
Mode>2 secs.
E-mail: water@baccara-geva.com
www.baccara-geva.com
®
SET
MODE
3
4
5
6
8:00
1
2
1
1
P1
P2
1 2 3 4 5 6 7
START
1 2 3 2
1
3
4
7
6
5
P1
Current time
1 2 3 4 5 6 7
Days of
the week
Clock
12345
678910
11 12 13
Setting the Duration Time 14 15
Features
Connects to two separate valves
Up to three operations per day
Easy installation and programming
Waterproof and weather resistant
Battery powered; no need for electrical
hookup.
Getting Started

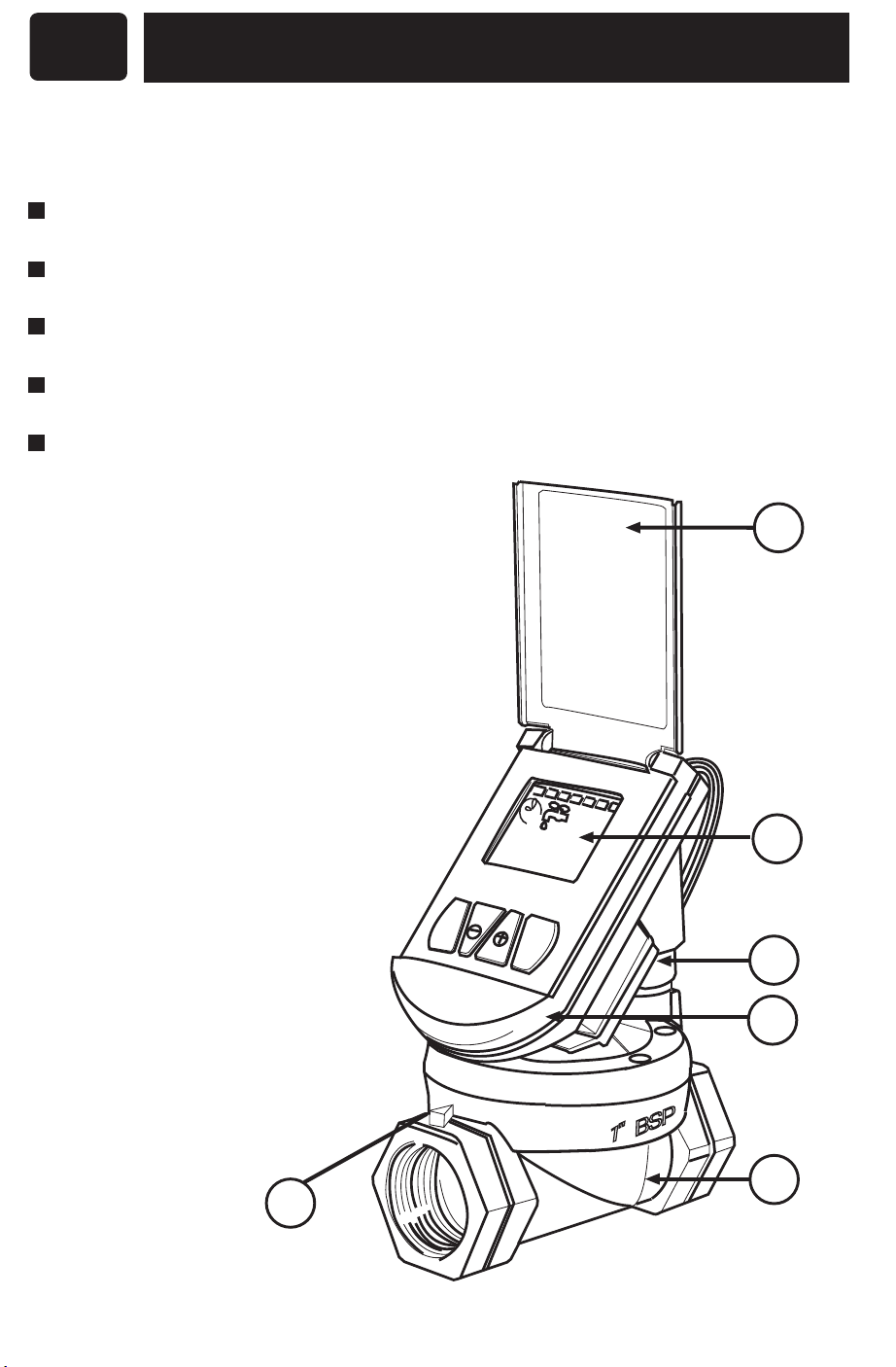

Parts Identification
1. Top cover
2. Controller Display
3. Solenoid
4. Controllor
5. Water flow direction
arrow
6. Hydraulic valve
This section gives a brief description of the
Controller buttons. See the following sections
for further details.
MODE button – Quick presses of the
MODE button turn the controller on or o.
Longer presses of the MODE button put the
Controller in programming mode.
SET button - Press the SET button to set
a function and proceed.
Use these buttons to increase and
decrease schedule functions, or
select / deselect functions.

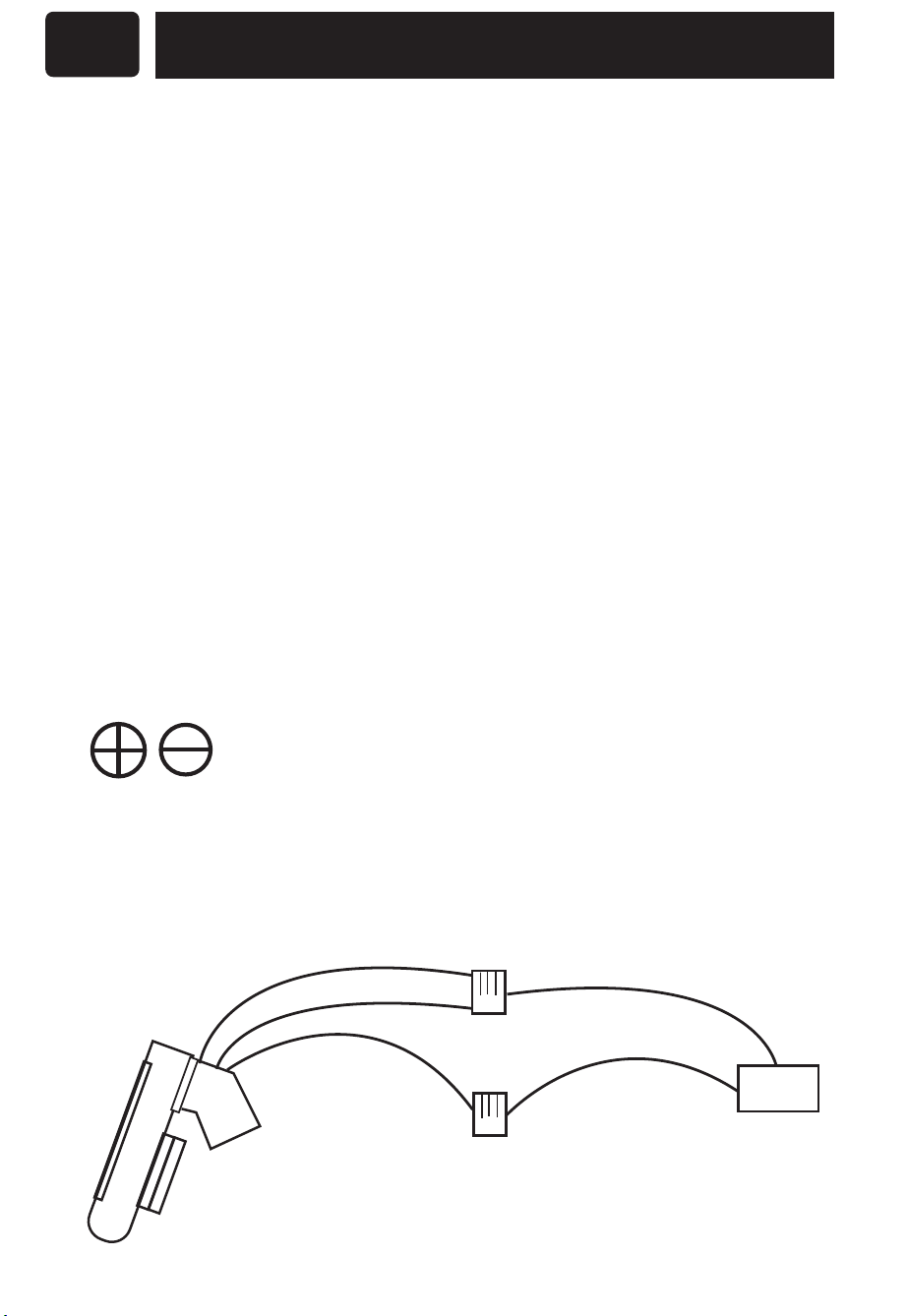

Installing connectors wires
G75
2V
1. Strip wire 1/2”.
2. Align frayed strands or conductors.
3. Do not pre-twist. Place stripped wires
together with ends even, lead stranded
wire slightly.
4. Twist connector onto wires pushing
firmly until hand-tight. DO NOT torque.
5. Swipe excess sealant in and around
conductors. DO NOT REUSE.
Installing the Connectors
NOTE: Can only open one valve at a time.
The valves are indicated as P1 and P2.
If the controller is correctly wired, continue
the installation process as follows:
Turn o the main faucet.
1.
2.
Basic Controller Functions
Install the valve in the irrigation system
so that the black arrow on the valve is
pointing in the direction of the water
flow. The controller may be swiveled
around to faciliate installation.
Occasionally the valve opens in transit. To
ensure that the valve is closed before you
open the main faucet, first make sure that
the controller is not set to OFF (If it is set to
OFF, press briefly on the MODE button to
turn on).
3. Press and SET simultaneously.
P1 will flash.
4. Press SET to select P1 or to
select P2.
5. Press SET and to close the
valve.
You are now ready to program the
controller.
6. Turn on the main faucet.
To manually open the valve, make sure that
the controller is in operating mode and press
and SET simultaneously.
P1 will flash. Press SET to select P1 or
to select P2 and then SET.
Manual Function
The irrigation will continue until the interval
defined has passed. If the irrigation duration
has been set to zero, the valve will close
after one minute.
To stop irrigating, press and SET
simultaneously.
Irrigation schedule design table
Sun. Mon. Tues. Wed. Thu. Fri. Sat..
P1
P2
Selected Starts
Irrigation Days
Irrigation Start Times
Irrigation periods for period 1(P1)
and period 2 (P2)
Start 1 Start 2 Start 3
Start times for P1 and P2
Period time
Selected Starts for P1
Selected Starts for P2
Start 1 Start 2 Start 3
P1
P2
Programming the Controller
Meaning of Controller Icons
NOTE: Quick presses of the MODE button on
or o. Longer presses of the MODE
buttton put the controller in programming
mode.
1. Irrigating days of
the week.
2. Program starts.
3. P1 is period 1,
P2 is period 2
4. Irrigation
5. Timing or clock
6. Low battery
7. Time adjustment
Setting the Clock
If screen is blank, press MODE to activate.
Before programming the controller you
must set the clock.
1. Press MODE for several seconds until the
time adjustment icon appears. (The
minutes will be flashing):
On this screen the numbers represent the
current time.
2. Use the and the buttons to adjust
the minutes.
3. Press SET to continue.
4. Use the and the buttons to
adjust the hours.
5. Press SET to continue.
6. Use the and the buttons to select
the current days of the week. The selected
day will flash.
7. Press SET to return to operating mode.
After setting the clock,
1. Two long presses on the MODE button
makes the following screen appear:
On this screen, the clock numbers refer to
the time you wish irrigation to begin. There
are three start times which are the same for
both valves (P1 & P2).
Setting the Start Times
2. Use the and the buttons to adjust
the minutes.
3. Press SET to continue.
4. Use the and the buttons to adjust
the hours.
5. Press SET to return to start time 2, and
repeat steps 1-3 for start times 2 and 3.
Setting the Irrigation Program
The irrigation program must be set separately
for P1 & P2.
The start times are common for both P1 & P2.
Each P1 & P2 may be set with dierent
duration time,dierent start selects, and
dierent days of operation.
1 2 3 4 5 6 7
START
1

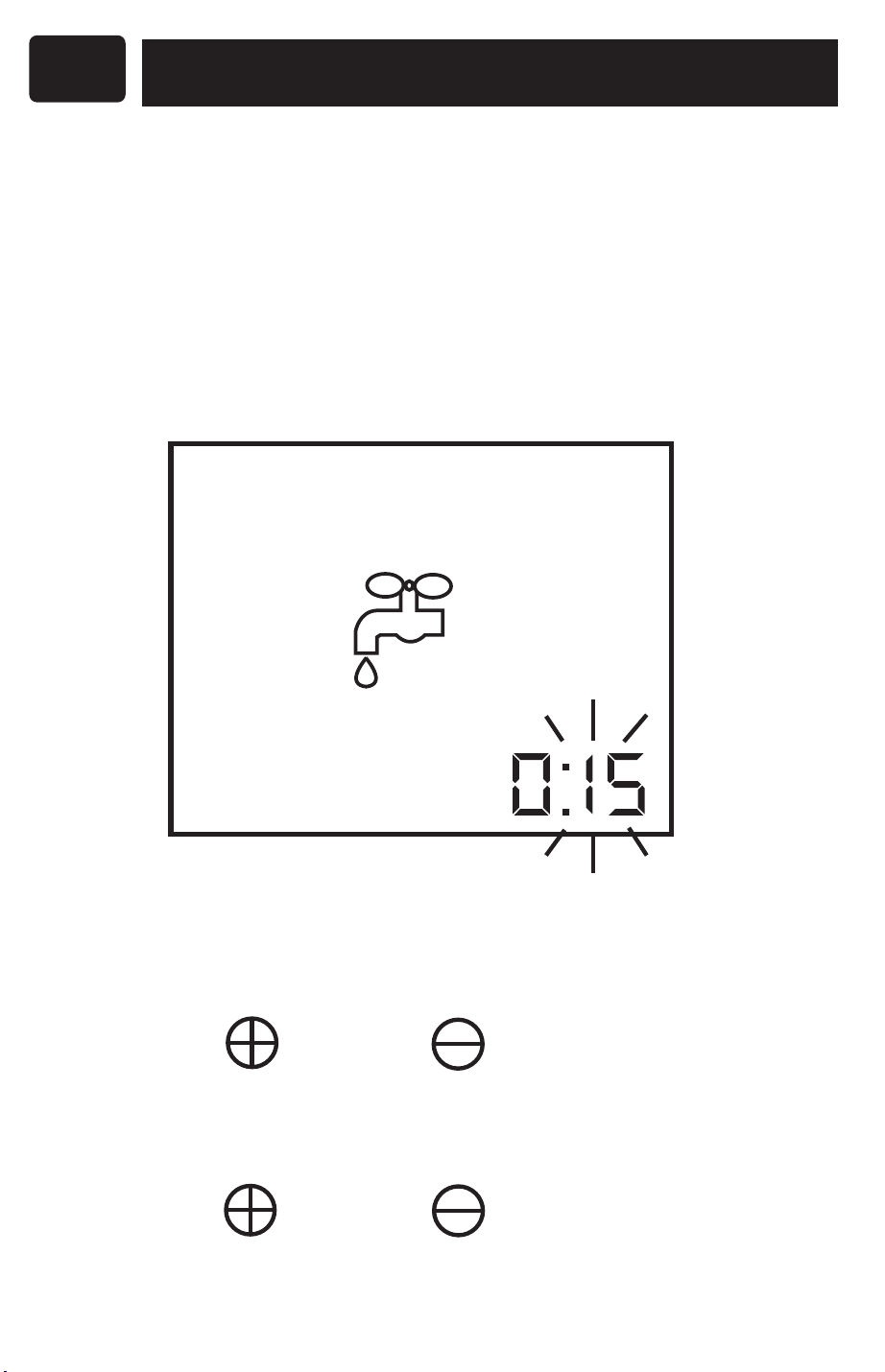

1. Press 3 long presses on the MODE button
until the following screen appears (The
minutes will be flashing):
On this screen, the clock numbers refer to
the irrigation duration of P1.
2. Use the and the buttons to adjust
the minutes.
3. Press SET to continue.
4. Use the and the buttons to adjust
the hours.
5. Press SET to continue.
1 2 3 4 5 6 7
START
1
P1
On this screen, you select the Starts you
wish to irrigate with period 1 (P1).
Start 1 will flash.
1. To select Start 1, press and then
SET and Start 2 will flash.
OR
2. To deselect Start 1, press and then
SET and Start 2 will flash.
3. Repeat fro Start 2 and 3.

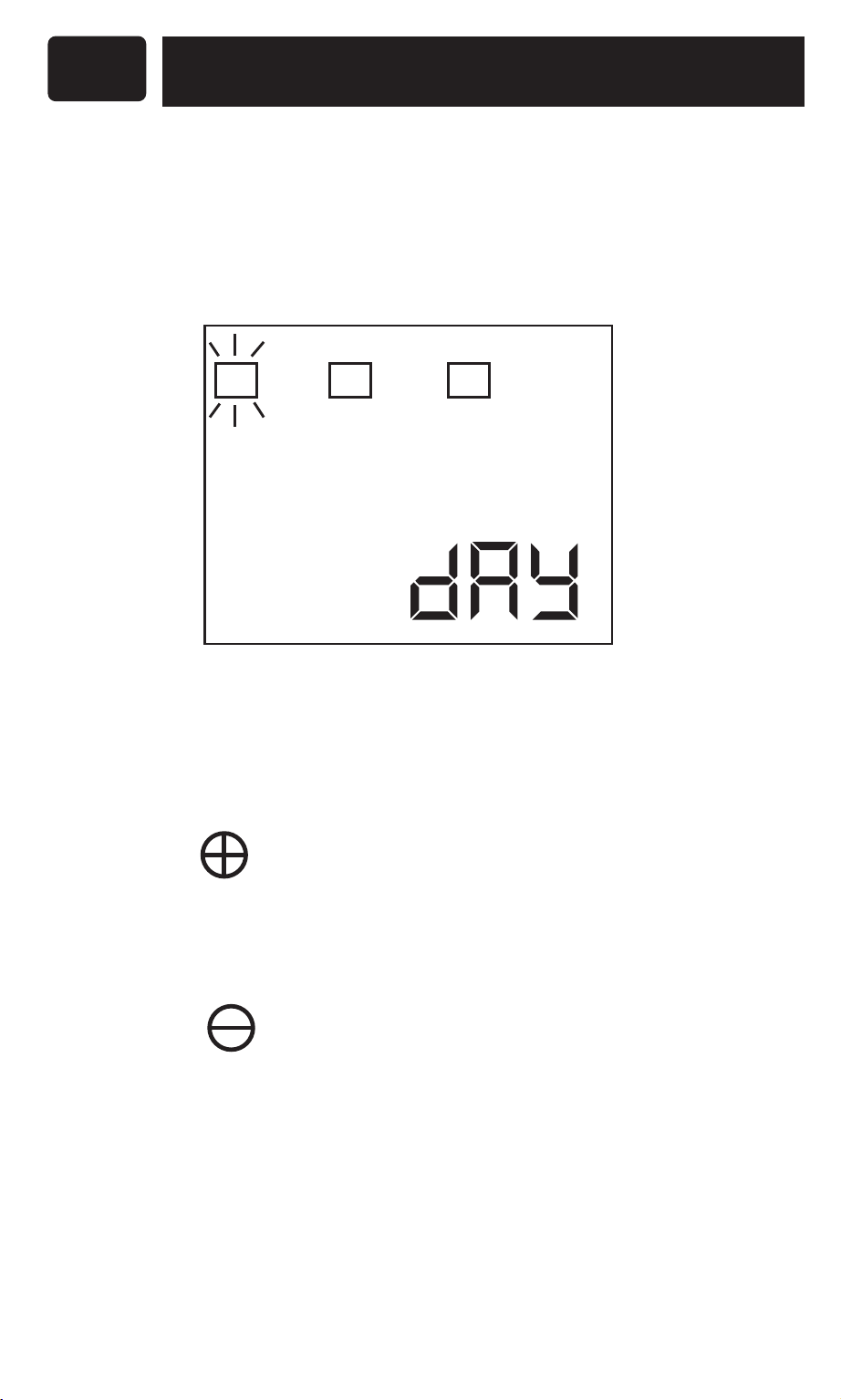

The Select Day screen appears. Day 1
will flash.
The Select Day screen appears after the
Start times have been programmed
(as in section 12).
1. Press SET to reach the day you wish
to irrigate. The number (corresponding
to the day of the week) will flash.
2. Press to select that day (the
square which appears indicates day is
selected).
3. Press to deselect a day.
4. Press SET until all days are
programmed as desired.
5. Press SET to return to operating mode.
P1 programming is now complete. Four
long presses on MODE will begin the
programming for P2.
Setting the Days
1 2 3 4 5 6 7
P1
Follow the instructions for Setting the
Irrigation Program (section 10).
Example
If you wish to irrigate with period 1 (P1) on
Sunday, Tuesday, Thursday and Saturday at
06:00 in the morning for 15 minutes:
Make sure the clock is set, and you are in
operating mode. Then press MODE twice to
get to the Start Times. Set Start 1 to 6:00
(factory default). Press MODE three times to
set duration time. On the following screen,
select Start 1, and deselect Starts 2 and 3.
On the following screen select days 1, 3, 5
and 7. At the same time, you may program
period 2 (P2) to irrigate for 30 minutes at
13:00 on Monday and Thursdays. Start time
are the same for both valves, but Start 2 is
not in use for P1 in this example, so you
may program Start 2 to the desired time of
13:00.
Press MODE twice to get to the Start Times.
Press SET until Start 2 is selected, and
adjust time to 13:00. Press MODE four times
to set the duration time for P2. On the
following screen, deselect Start 1, select
Start 2 and deselect Start 3. On the next
screen, select days 2 and 4.
It is possible to make a seasonal
adjustment to the irrigation duration for
both valves as necessary. The minimum
adjustment is 10% of the programmed
duration, and the maximum is 200%.
Seasonal Adjustment
Seasonal Adjustment
Setting the Irrigation Program
To set the irrigation program, you must be in
an operating mode.
First program P1 as follows:
The hhhstart screen appears:
Selecting the Starts
Sol.1
Green
Black
Red
Black
Green
SET
MODE
3
4
5
6
8:00
1
2
1
1
P1
P2
1 2 3 4 5 6 7
START
1 2 3 2
1
3
4
7
6
5
P1
Current time
1 2 3 4 5 6 7
Days of
the week
Clock
12345
678910
11 12 13
Setting the Duration Time 14 15
Features
Connects to two separate valves
Up to three operations per day
Easy installation and programming
Waterproof and weather resistant
Battery powered; no need for electrical
hookup.
Getting Started
Parts Identification
1. Top cover
2. Controller Display
3. Solenoid
4. Controllor
5. Water flow direction
arrow
6. Hydraulic valve
This section gives a brief description of the
Controller buttons. See the following sections
for further details.
MODE button – Quick presses of the
MODE button turn the controller on or o.
Longer presses of the MODE button put the
Controller in programming mode.
SET button - Press the SET button to set
a function and proceed.
Use these buttons to increase and
decrease schedule functions, or
select / deselect functions.
Installing connectors wires
G75
2V
1. Strip wire 1/2”.
2. Align frayed strands or conductors.
3. Do not pre-twist. Place stripped wires
together with ends even, lead stranded
wire slightly.
4. Twist connector onto wires pushing
firmly until hand-tight. DO NOT torque.
5. Swipe excess sealant in and around
conductors. DO NOT REUSE.
Installing the Connectors
NOTE: Can only open one valve at a time.
The valves are indicated as P1 and P2.
If the controller is correctly wired, continue
the installation process as follows:
Turn o the main faucet.
1.
2.
Basic Controller Functions
Install the valve in the irrigation system
so that the black arrow on the valve is
pointing in the direction of the water
flow. The controller may be swiveled
around to faciliate installation.
Occasionally the valve opens in transit. To
ensure that the valve is closed before you
open the main faucet, first make sure that
the controller is not set to OFF (If it is set to
OFF, press briefly on the MODE button to
turn on).
3. Press and SET simultaneously.
P1 will flash.
4. Press SET to select P1 or to
select P2.
5. Press SET and to close the
valve.
You are now ready to program the
controller.
6. Turn on the main faucet.
To manually open the valve, make sure that
the controller is in operating mode and press
and SET simultaneously.
P1 will flash. Press SET to select P1 or
to select P2 and then SET.
Manual Function
The irrigation will continue until the interval
defined has passed. If the irrigation duration
has been set to zero, the valve will close
after one minute.
To stop irrigating, press and SET
simultaneously.
Irrigation schedule design table
Sun. Mon. Tues. Wed. Thu. Fri. Sat..
P1
P2
Selected Starts
Irrigation Days
Irrigation Start Times
Irrigation periods for period 1(P1)
and period 2 (P2)
Start 1 Start 2 Start 3
Start times for P1 and P2
Period time
Selected Starts for P1
Selected Starts for P2
Start 1 Start 2 Start 3
P1
P2
Programming the Controller
Meaning of Controller Icons
NOTE: Quick presses of the MODE button on
or o. Longer presses of the MODE
buttton put the controller in programming
mode.
1. Irrigating days of
the week.
2. Program starts.
3. P1 is period 1,
P2 is period 2
4. Irrigation
5. Timing or clock
6. Low battery
7. Time adjustment
Setting the Clock
If screen is blank, press MODE to activate.
Before programming the controller you
must set the clock.
1. Press MODE for several seconds until the
time adjustment icon appears. (The
minutes will be flashing):
On this screen the numbers represent the
current time.
2. Use the and the buttons to adjust
the minutes.
3. Press SET to continue.
4. Use the and the buttons to
adjust the hours.
5. Press SET to continue.
6. Use the and the buttons to select
the current days of the week. The selected
day will flash.
7. Press SET to return to operating mode.
After setting the clock,
1. Two long presses on the MODE button
makes the following screen appear:
On this screen, the clock numbers refer to
the time you wish irrigation to begin. There
are three start times which are the same for
both valves (P1 & P2).
Setting the Start Times
2. Use the and the buttons to adjust
the minutes.
3. Press SET to continue.
4. Use the and the buttons to adjust
the hours.
5. Press SET to return to start time 2, and
repeat steps 1-3 for start times 2 and 3.
Setting the Irrigation Program
The irrigation program must be set separately
for P1 & P2.
The start times are common for both P1 & P2.
Each P1 & P2 may be set with dierent
duration time,dierent start selects, and
dierent days of operation.
1 2 3 4 5 6 7
START
1
1. Press 3 long presses on the MODE button
until the following screen appears (The
minutes will be flashing):
On this screen, the clock numbers refer to
the irrigation duration of P1.
2. Use the and the buttons to adjust
the minutes.
3. Press SET to continue.
4. Use the and the buttons to adjust
the hours.
5. Press SET to continue.
1 2 3 4 5 6 7
START
1
P1
On this screen, you select the Starts you
wish to irrigate with period 1 (P1).
Start 1 will flash.
1. To select Start 1, press and then
SET and Start 2 will flash.
OR
2. To deselect Start 1, press and then
SET and Start 2 will flash.
3. Repeat fro Start 2 and 3.
The Select Day screen appears. Day 1
will flash.
The Select Day screen appears after the
Start times have been programmed
(as in section 12).
1. Press SET to reach the day you wish
to irrigate. The number (corresponding
to the day of the week) will flash.
2. Press to select that day (the
square which appears indicates day is
selected).
3. Press to deselect a day.
4. Press SET until all days are
programmed as desired.
5. Press SET to return to operating mode.
P1 programming is now complete. Four
long presses on MODE will begin the
programming for P2.
Setting the Days
1 2 3 4 5 6 7
P1
Follow the instructions for Setting the
Irrigation Program (section 10).
Example
If you wish to irrigate with period 1 (P1) on
Sunday, Tuesday, Thursday and Saturday at
06:00 in the morning for 15 minutes:
Make sure the clock is set, and you are in
operating mode. Then press MODE twice to
get to the Start Times. Set Start 1 to 6:00
(factory default). Press MODE three times to
set duration time. On the following screen,
select Start 1, and deselect Starts 2 and 3.
On the following screen select days 1, 3, 5
and 7. At the same time, you may program
period 2 (P2) to irrigate for 30 minutes at
13:00 on Monday and Thursdays. Start time
are the same for both valves, but Start 2 is
not in use for P1 in this example, so you
may program Start 2 to the desired time of
13:00.
Press MODE twice to get to the Start Times.
Press SET until Start 2 is selected, and
adjust time to 13:00. Press MODE four times
to set the duration time for P2. On the
following screen, deselect Start 1, select
Start 2 and deselect Start 3. On the next
screen, select days 2 and 4.
It is possible to make a seasonal
adjustment to the irrigation duration for
both valves as necessary. The minimum
adjustment is 10% of the programmed
duration, and the maximum is 200%.
Seasonal Adjustment
Seasonal Adjustment
Setting the Irrigation Program
To set the irrigation program, you must be in
an operating mode.
First program P1 as follows:
The hhhstart screen appears:
Selecting the Starts
Sol.1
Green
Black
Red
Black
Green
SET
MODE
3
4
5
6
8:00
1
2
1
1
P1
P2
1 2 3 4 5 6 7
START
1 2 3 2
1
3
4
7
6
5
P1
Current time
1 2 3 4 5 6 7
Days of
the week
Clock
12345
678910
11 12 13
Setting the Duration Time 14 15
Features
Connects to two separate valves
Up to three operations per day
Easy installation and programming
Waterproof and weather resistant
Battery powered; no need for electrical
hookup.
Getting Started
Parts Identification
1. Top cover
2. Controller Display
3. Solenoid
4. Controllor
5. Water flow direction
arrow
6. Hydraulic valve
This section gives a brief description of the
Controller buttons. See the following sections
for further details.
MODE button – Quick presses of the
MODE button turn the controller on or o.
Longer presses of the MODE button put the
Controller in programming mode.
SET button - Press the SET button to set
a function and proceed.
Use these buttons to increase and
decrease schedule functions, or
select / deselect functions.
Installing connectors wires
G75
2V
1. Strip wire 1/2”.
2. Align frayed strands or conductors.
3. Do not pre-twist. Place stripped wires
together with ends even, lead stranded
wire slightly.
4. Twist connector onto wires pushing
firmly until hand-tight. DO NOT torque.
5. Swipe excess sealant in and around
conductors. DO NOT REUSE.
Installing the Connectors
NOTE: Can only open one valve at a time.
The valves are indicated as P1 and P2.
If the controller is correctly wired, continue
the installation process as follows:
Turn o the main faucet.
1.
2.
Basic Controller Functions
Install the valve in the irrigation system
so that the black arrow on the valve is
pointing in the direction of the water
flow. The controller may be swiveled
around to faciliate installation.
Occasionally the valve opens in transit. To
ensure that the valve is closed before you
open the main faucet, first make sure that
the controller is not set to OFF (If it is set to
OFF, press briefly on the MODE button to
turn on).
3. Press and SET simultaneously.
P1 will flash.
4. Press SET to select P1 or to
select P2.
5. Press SET and to close the
valve.
You are now ready to program the
controller.
6. Turn on the main faucet.
To manually open the valve, make sure that
the controller is in operating mode and press
and SET simultaneously.
P1 will flash. Press SET to select P1 or
to select P2 and then SET.
Manual Function
The irrigation will continue until the interval
defined has passed. If the irrigation duration
has been set to zero, the valve will close
after one minute.
To stop irrigating, press and SET
simultaneously.
Irrigation schedule design table
Sun. Mon. Tues. Wed. Thu. Fri. Sat..
P1
P2
Selected Starts
Irrigation Days
Irrigation Start Times
Irrigation periods for period 1(P1)
and period 2 (P2)
Start 1 Start 2 Start 3
Start times for P1 and P2
Period time
Selected Starts for P1
Selected Starts for P2
Start 1 Start 2 Start 3
P1
P2
Programming the Controller
Meaning of Controller Icons
NOTE: Quick presses of the MODE button on
or o. Longer presses of the MODE
buttton put the controller in programming
mode.
1. Irrigating days of
the week.
2. Program starts.
3. P1 is period 1,
P2 is period 2
4. Irrigation
5. Timing or clock
6. Low battery
7. Time adjustment
Setting the Clock
If screen is blank, press MODE to activate.
Before programming the controller you
must set the clock.
1. Press MODE for several seconds until the
time adjustment icon appears. (The
minutes will be flashing):
On this screen the numbers represent the
current time.
2. Use the and the buttons to adjust
the minutes.
3. Press SET to continue.
4. Use the and the buttons to
adjust the hours.
5. Press SET to continue.
6. Use the and the buttons to select
the current days of the week. The selected
day will flash.
7. Press SET to return to operating mode.
After setting the clock,
1. Two long presses on the MODE button
makes the following screen appear:
On this screen, the clock numbers refer to
the time you wish irrigation to begin. There
are three start times which are the same for
both valves (P1 & P2).
Setting the Start Times
2. Use the and the buttons to adjust
the minutes.
3. Press SET to continue.
4. Use the and the buttons to adjust
the hours.
5. Press SET to return to start time 2, and
repeat steps 1-3 for start times 2 and 3.
Setting the Irrigation Program
The irrigation program must be set separately
for P1 & P2.
The start times are common for both P1 & P2.
Each P1 & P2 may be set with dierent
duration time,dierent start selects, and
dierent days of operation.
1 2 3 4 5 6 7
START
1
1. Press 3 long presses on the MODE button
until the following screen appears (The
minutes will be flashing):
On this screen, the clock numbers refer to
the irrigation duration of P1.
2. Use the and the buttons to adjust
the minutes.
3. Press SET to continue.
4. Use the and the buttons to adjust
the hours.
5. Press SET to continue.
1 2 3 4 5 6 7
START
1
P1
On this screen, you select the Starts you
wish to irrigate with period 1 (P1).
Start 1 will flash.
1. To select Start 1, press and then
SET and Start 2 will flash.
OR
2. To deselect Start 1, press and then
SET and Start 2 will flash.
3. Repeat fro Start 2 and 3.
The Select Day screen appears. Day 1
will flash.
The Select Day screen appears after the
Start times have been programmed
(as in section 12).
1. Press SET to reach the day you wish
to irrigate. The number (corresponding
to the day of the week) will flash.
2. Press to select that day (the
square which appears indicates day is
selected).
3. Press to deselect a day.
4. Press SET until all days are
programmed as desired.
5. Press SET to return to operating mode.
P1 programming is now complete. Four
long presses on MODE will begin the
programming for P2.
Setting the Days
1 2 3 4 5 6 7
P1
Follow the instructions for Setting the
Irrigation Program (section 10).
Example
If you wish to irrigate with period 1 (P1) on
Sunday, Tuesday, Thursday and Saturday at
06:00 in the morning for 15 minutes:
Make sure the clock is set, and you are in
operating mode. Then press MODE twice to
get to the Start Times. Set Start 1 to 6:00
(factory default). Press MODE three times to
set duration time. On the following screen,
select Start 1, and deselect Starts 2 and 3.
On the following screen select days 1, 3, 5
and 7. At the same time, you may program
period 2 (P2) to irrigate for 30 minutes at
13:00 on Monday and Thursdays. Start time
are the same for both valves, but Start 2 is
not in use for P1 in this example, so you
may program Start 2 to the desired time of
13:00.
Press MODE twice to get to the Start Times.
Press SET until Start 2 is selected, and
adjust time to 13:00. Press MODE four times
to set the duration time for P2. On the
following screen, deselect Start 1, select
Start 2 and deselect Start 3. On the next
screen, select days 2 and 4.
It is possible to make a seasonal
adjustment to the irrigation duration for
both valves as necessary. The minimum
adjustment is 10% of the programmed
duration, and the maximum is 200%.
Seasonal Adjustment
Seasonal Adjustment
Setting the Irrigation Program
To set the irrigation program, you must be in
an operating mode.
First program P1 as follows:
The hhhstart screen appears:
Selecting the Starts
Sol.1
Green
Black
Red
Black
Green
SET
MODE
3
4
5
6
8:00
1
2
1
1
P1
P2
1 2 3 4 5 6 7
START
1 2 3 2
1
3
4
7
6
5
P1
Current time
1 2 3 4 5 6 7
Days of
the week
Clock
12345
678910
11 12 13
Setting the Duration Time 14 15
Features
Connects to two separate valves
Up to three operations per day
Easy installation and programming
Waterproof and weather resistant
Battery powered; no need for electrical
hookup.
Getting Started
Parts Identification
1. Top cover
2. Controller Display
3. Solenoid
4. Controllor
5. Water flow direction
arrow
6. Hydraulic valve
This section gives a brief description of the
Controller buttons. See the following sections
for further details.
MODE button – Quick presses of the
MODE button turn the controller on or o.
Longer presses of the MODE button put the
Controller in programming mode.
SET button - Press the SET button to set
a function and proceed.
Use these buttons to increase and
decrease schedule functions, or
select / deselect functions.
Installing connectors wires
G75
2V
1. Strip wire 1/2”.
2. Align frayed strands or conductors.
3. Do not pre-twist. Place stripped wires
together with ends even, lead stranded
wire slightly.
4. Twist connector onto wires pushing
firmly until hand-tight. DO NOT torque.
5. Swipe excess sealant in and around
conductors. DO NOT REUSE.
Installing the Connectors
NOTE: Can only open one valve at a time.
The valves are indicated as P1 and P2.
If the controller is correctly wired, continue
the installation process as follows:
Turn o the main faucet.
1.
2.
Basic Controller Functions
Install the valve in the irrigation system
so that the black arrow on the valve is
pointing in the direction of the water
flow. The controller may be swiveled
around to faciliate installation.
Occasionally the valve opens in transit. To
ensure that the valve is closed before you
open the main faucet, first make sure that
the controller is not set to OFF (If it is set to
OFF, press briefly on the MODE button to
turn on).
3. Press and SET simultaneously.
P1 will flash.
4. Press SET to select P1 or to
select P2.
5. Press SET and to close the
valve.
You are now ready to program the
controller.
6. Turn on the main faucet.
To manually open the valve, make sure that
the controller is in operating mode and press
and SET simultaneously.
P1 will flash. Press SET to select P1 or
to select P2 and then SET.
Manual Function
The irrigation will continue until the interval
defined has passed. If the irrigation duration
has been set to zero, the valve will close
after one minute.
To stop irrigating, press and SET
simultaneously.
Irrigation schedule design table
Sun. Mon. Tues. Wed. Thu. Fri. Sat..
P1
P2
Selected Starts
Irrigation Days
Irrigation Start Times
Irrigation periods for period 1(P1)
and period 2 (P2)
Start 1 Start 2 Start 3
Start times for P1 and P2
Period time
Selected Starts for P1
Selected Starts for P2
Start 1 Start 2 Start 3
P1
P2
Programming the Controller
Meaning of Controller Icons
NOTE: Quick presses of the MODE button on
or o. Longer presses of the MODE
buttton put the controller in programming
mode.
1. Irrigating days of
the week.
2. Program starts.
3. P1 is period 1,
P2 is period 2
4. Irrigation
5. Timing or clock
6. Low battery
7. Time adjustment
Setting the Clock
If screen is blank, press MODE to activate.
Before programming the controller you
must set the clock.
1. Press MODE for several seconds until the
time adjustment icon appears. (The
minutes will be flashing):
On this screen the numbers represent the
current time.
2. Use the and the buttons to adjust
the minutes.
3. Press SET to continue.
4. Use the and the buttons to
adjust the hours.
5. Press SET to continue.
6. Use the and the buttons to select
the current days of the week. The selected
day will flash.
7. Press SET to return to operating mode.
After setting the clock,
1. Two long presses on the MODE button
makes the following screen appear:
On this screen, the clock numbers refer to
the time you wish irrigation to begin. There
are three start times which are the same for
both valves (P1 & P2).
Setting the Start Times
2. Use the and the buttons to adjust
the minutes.
3. Press SET to continue.
4. Use the and the buttons to adjust
the hours.
5. Press SET to return to start time 2, and
repeat steps 1-3 for start times 2 and 3.
Setting the Irrigation Program
The irrigation program must be set separately
for P1 & P2.
The start times are common for both P1 & P2.
Each P1 & P2 may be set with dierent
duration time,dierent start selects, and
dierent days of operation.
1 2 3 4 5 6 7
START
1
1. Press 3 long presses on the MODE button
until the following screen appears (The
minutes will be flashing):
On this screen, the clock numbers refer to
the irrigation duration of P1.
2. Use the and the buttons to adjust
the minutes.
3. Press SET to continue.
4. Use the and the buttons to adjust
the hours.
5. Press SET to continue.
1 2 3 4 5 6 7
START
1
P1
On this screen, you select the Starts you
wish to irrigate with period 1 (P1).
Start 1 will flash.
1. To select Start 1, press and then
SET and Start 2 will flash.
OR
2. To deselect Start 1, press and then
SET and Start 2 will flash.
3. Repeat fro Start 2 and 3.
The Select Day screen appears. Day 1
will flash.
The Select Day screen appears after the
Start times have been programmed
(as in section 12).
1. Press SET to reach the day you wish
to irrigate. The number (corresponding
to the day of the week) will flash.
2. Press to select that day (the
square which appears indicates day is
selected).
3. Press to deselect a day.
4. Press SET until all days are
programmed as desired.
5. Press SET to return to operating mode.
P1 programming is now complete. Four
long presses on MODE will begin the
programming for P2.
Setting the Days
1 2 3 4 5 6 7
P1
Follow the instructions for Setting the
Irrigation Program (section 10).
Example
If you wish to irrigate with period 1 (P1) on
Sunday, Tuesday, Thursday and Saturday at
06:00 in the morning for 15 minutes:
Make sure the clock is set, and you are in
operating mode. Then press MODE twice to
get to the Start Times. Set Start 1 to 6:00
(factory default). Press MODE three times to
set duration time. On the following screen,
select Start 1, and deselect Starts 2 and 3.
On the following screen select days 1, 3, 5
and 7. At the same time, you may program
period 2 (P2) to irrigate for 30 minutes at
13:00 on Monday and Thursdays. Start time
are the same for both valves, but Start 2 is
not in use for P1 in this example, so you
may program Start 2 to the desired time of
13:00.
Press MODE twice to get to the Start Times.
Press SET until Start 2 is selected, and
adjust time to 13:00. Press MODE four times
to set the duration time for P2. On the
following screen, deselect Start 1, select
Start 2 and deselect Start 3. On the next
screen, select days 2 and 4.
It is possible to make a seasonal
adjustment to the irrigation duration for
both valves as necessary. The minimum
adjustment is 10% of the programmed
duration, and the maximum is 200%.
Seasonal Adjustment
Seasonal Adjustment
Setting the Irrigation Program
To set the irrigation program, you must be in
an operating mode.
First program P1 as follows:
The hhhstart screen appears:
Selecting the Starts
Sol.1
Green
Black
Red
Black
Green
SET
MODE
3
4
5
6
8:00
1
2
1
1
P1
P2
1 2 3 4 5 6 7
START
1 2 3 2
1
3
4
7
6
5
P1
Current time
1 2 3 4 5 6 7
Days of
the week
Clock
12345
678910
11 12 13
Setting the Duration Time 14 15
Features
Connects to two separate valves
Up to three operations per day
Easy installation and programming
Waterproof and weather resistant
Battery powered; no need for electrical
hookup.
Getting Started
Parts Identification
1. Top cover
2. Controller Display
3. Solenoid
4. Controllor
5. Water flow direction
arrow
6. Hydraulic valve
This section gives a brief description of the
Controller buttons. See the following sections
for further details.
MODE button – Quick presses of the
MODE button turn the controller on or o.
Longer presses of the MODE button put the
Controller in programming mode.
SET button - Press the SET button to set
a function and proceed.
Use these buttons to increase and
decrease schedule functions, or
select / deselect functions.
Installing connectors wires
G75
2V
1. Strip wire 1/2”.
2. Align frayed strands or conductors.
3. Do not pre-twist. Place stripped wires
together with ends even, lead stranded
wire slightly.
4. Twist connector onto wires pushing
firmly until hand-tight. DO NOT torque.
5. Swipe excess sealant in and around
conductors. DO NOT REUSE.
Installing the Connectors
NOTE: Can only open one valve at a time.
The valves are indicated as P1 and P2.
If the controller is correctly wired, continue
the installation process as follows:
Turn o the main faucet.
1.
2.
Basic Controller Functions
Install the valve in the irrigation system
so that the black arrow on the valve is
pointing in the direction of the water
flow. The controller may be swiveled
around to faciliate installation.
Occasionally the valve opens in transit. To
ensure that the valve is closed before you
open the main faucet, first make sure that
the controller is not set to OFF (If it is set to
OFF, press briefly on the MODE button to
turn on).
3. Press and SET simultaneously.
P1 will flash.
4. Press SET to select P1 or to
select P2.
5. Press SET and to close the
valve.
You are now ready to program the
controller.
6. Turn on the main faucet.
To manually open the valve, make sure that
the controller is in operating mode and press
and SET simultaneously.
P1 will flash. Press SET to select P1 or
to select P2 and then SET.
Manual Function
The irrigation will continue until the interval
defined has passed. If the irrigation duration
has been set to zero, the valve will close
after one minute.
To stop irrigating, press and SET
simultaneously.
Irrigation schedule design table
Sun. Mon. Tues. Wed. Thu. Fri. Sat..
P1
P2
Selected Starts
Irrigation Days
Irrigation Start Times
Irrigation periods for period 1(P1)
and period 2 (P2)
Start 1 Start 2 Start 3
Start times for P1 and P2
Period time
Selected Starts for P1
Selected Starts for P2
Start 1 Start 2 Start 3
P1
P2
Programming the Controller
Meaning of Controller Icons
NOTE: Quick presses of the MODE button on
or o. Longer presses of the MODE
buttton put the controller in programming
mode.
1. Irrigating days of
the week.
2. Program starts.
3. P1 is period 1,
P2 is period 2
4. Irrigation
5. Timing or clock
6. Low battery
7. Time adjustment
Setting the Clock
If screen is blank, press MODE to activate.
Before programming the controller you
must set the clock.
1. Press MODE for several seconds until the
time adjustment icon appears. (The
minutes will be flashing):
On this screen the numbers represent the
current time.
2. Use the and the buttons to adjust
the minutes.
3. Press SET to continue.
4. Use the and the buttons to
adjust the hours.
5. Press SET to continue.
6. Use the and the buttons to select
the current days of the week. The selected
day will flash.
7. Press SET to return to operating mode.
After setting the clock,
1. Two long presses on the MODE button
makes the following screen appear:
On this screen, the clock numbers refer to
the time you wish irrigation to begin. There
are three start times which are the same for
both valves (P1 & P2).
Setting the Start Times
2. Use the and the buttons to adjust
the minutes.
3. Press SET to continue.
4. Use the and the buttons to adjust
the hours.
5. Press SET to return to start time 2, and
repeat steps 1-3 for start times 2 and 3.
Setting the Irrigation Program
The irrigation program must be set separately
for P1 & P2.
The start times are common for both P1 & P2.
Each P1 & P2 may be set with dierent
duration time,dierent start selects, and
dierent days of operation.
1 2 3 4 5 6 7
START
1
1. Press 3 long presses on the MODE button
until the following screen appears (The
minutes will be flashing):
On this screen, the clock numbers refer to
the irrigation duration of P1.
2. Use the and the buttons to adjust
the minutes.
3. Press SET to continue.
4. Use the and the buttons to adjust
the hours.
5. Press SET to continue.
1 2 3 4 5 6 7
START
1
P1
On this screen, you select the Starts you
wish to irrigate with period 1 (P1).
Start 1 will flash.
1. To select Start 1, press and then
SET and Start 2 will flash.
OR
2. To deselect Start 1, press and then
SET and Start 2 will flash.
3. Repeat fro Start 2 and 3.
The Select Day screen appears. Day 1
will flash.
The Select Day screen appears after the
Start times have been programmed
(as in section 12).
1. Press SET to reach the day you wish
to irrigate. The number (corresponding
to the day of the week) will flash.
2. Press to select that day (the
square which appears indicates day is
selected).
3. Press to deselect a day.
4. Press SET until all days are
programmed as desired.
5. Press SET to return to operating mode.
P1 programming is now complete. Four
long presses on MODE will begin the
programming for P2.
Setting the Days
1 2 3 4 5 6 7
P1
Follow the instructions for Setting the
Irrigation Program (section 10).
Example
If you wish to irrigate with period 1 (P1) on
Sunday, Tuesday, Thursday and Saturday at
06:00 in the morning for 15 minutes:
Make sure the clock is set, and you are in
operating mode. Then press MODE twice to
get to the Start Times. Set Start 1 to 6:00
(factory default). Press MODE three times to
set duration time. On the following screen,
select Start 1, and deselect Starts 2 and 3.
On the following screen select days 1, 3, 5
and 7. At the same time, you may program
period 2 (P2) to irrigate for 30 minutes at
13:00 on Monday and Thursdays. Start time
are the same for both valves, but Start 2 is
not in use for P1 in this example, so you
may program Start 2 to the desired time of
13:00.
Press MODE twice to get to the Start Times.
Press SET until Start 2 is selected, and
adjust time to 13:00. Press MODE four times
to set the duration time for P2. On the
following screen, deselect Start 1, select
Start 2 and deselect Start 3. On the next
screen, select days 2 and 4.
It is possible to make a seasonal
adjustment to the irrigation duration for
both valves as necessary. The minimum
adjustment is 10% of the programmed
duration, and the maximum is 200%.
Seasonal Adjustment
Seasonal Adjustment
Setting the Irrigation Program
To set the irrigation program, you must be in
an operating mode.
First program P1 as follows:
The hhhstart screen appears:
Selecting the Starts
Sol.1
Green
Black
Red
Black
Green
SET
MODE
3
4
5
6
8:00
1
2
1
1
P1
P2
1 2 3 4 5 6 7
START
1 2 3 2
1
3
4
7
6
5
P1
Current time
1 2 3 4 5 6 7
Days of
the week
Clock
12345
678910
11 12 13
Setting the Duration Time 14 15
Features
Connects to two separate valves
Up to three operations per day
Easy installation and programming
Waterproof and weather resistant
Battery powered; no need for electrical
hookup.
Getting Started
Parts Identification
1. Top cover
2. Controller Display
3. Solenoid
4. Controllor
5. Water flow direction
arrow
6. Hydraulic valve
This section gives a brief description of the
Controller buttons. See the following sections
for further details.
MODE button – Quick presses of the
MODE button turn the controller on or o.
Longer presses of the MODE button put the
Controller in programming mode.
SET button - Press the SET button to set
a function and proceed.
Use these buttons to increase and
decrease schedule functions, or
select / deselect functions.
Installing connectors wires
G75
2V
1. Strip wire 1/2”.
2. Align frayed strands or conductors.
3. Do not pre-twist. Place stripped wires
together with ends even, lead stranded
wire slightly.
4. Twist connector onto wires pushing
firmly until hand-tight. DO NOT torque.
5. Swipe excess sealant in and around
conductors. DO NOT REUSE.
Installing the Connectors
NOTE: Can only open one valve at a time.
The valves are indicated as P1 and P2.
If the controller is correctly wired, continue
the installation process as follows:
Turn o the main faucet.
1.
2.
Basic Controller Functions
Install the valve in the irrigation system
so that the black arrow on the valve is
pointing in the direction of the water
flow. The controller may be swiveled
around to faciliate installation.
Occasionally the valve opens in transit. To
ensure that the valve is closed before you
open the main faucet, first make sure that
the controller is not set to OFF (If it is set to
OFF, press briefly on the MODE button to
turn on).
3. Press and SET simultaneously.
P1 will flash.
4. Press SET to select P1 or to
select P2.
5. Press SET and to close the
valve.
You are now ready to program the
controller.
6. Turn on the main faucet.
To manually open the valve, make sure that
the controller is in operating mode and press
and SET simultaneously.
P1 will flash. Press SET to select P1 or
to select P2 and then SET.
Manual Function
The irrigation will continue until the interval
defined has passed. If the irrigation duration
has been set to zero, the valve will close
after one minute.
To stop irrigating, press and SET
simultaneously.
Irrigation schedule design table
Sun. Mon. Tues. Wed. Thu. Fri. Sat..
P1
P2
Selected Starts
Irrigation Days
Irrigation Start Times
Irrigation periods for period 1(P1)
and period 2 (P2)
Start 1 Start 2 Start 3
Start times for P1 and P2
Period time
Selected Starts for P1
Selected Starts for P2
Start 1 Start 2 Start 3
P1
P2
Programming the Controller
Meaning of Controller Icons
NOTE: Quick presses of the MODE button on
or o. Longer presses of the MODE
buttton put the controller in programming
mode.
1. Irrigating days of
the week.
2. Program starts.
3. P1 is period 1,
P2 is period 2
4. Irrigation
5. Timing or clock
6. Low battery
7. Time adjustment
Setting the Clock
If screen is blank, press MODE to activate.
Before programming the controller you
must set the clock.
1. Press MODE for several seconds until the
time adjustment icon appears. (The
minutes will be flashing):
On this screen the numbers represent the
current time.
2. Use the and the buttons to adjust
the minutes.
3. Press SET to continue.
4. Use the and the buttons to
adjust the hours.
5. Press SET to continue.
6. Use the and the buttons to select
the current days of the week. The selected
day will flash.
7. Press SET to return to operating mode.
After setting the clock,
1. Two long presses on the MODE button
makes the following screen appear:
On this screen, the clock numbers refer to
the time you wish irrigation to begin. There
are three start times which are the same for
both valves (P1 & P2).
Setting the Start Times
2. Use the and the buttons to adjust
the minutes.
3. Press SET to continue.
4. Use the and the buttons to adjust
the hours.
5. Press SET to return to start time 2, and
repeat steps 1-3 for start times 2 and 3.
Setting the Irrigation Program
The irrigation program must be set separately
for P1 & P2.
The start times are common for both P1 & P2.
Each P1 & P2 may be set with dierent
duration time,dierent start selects, and
dierent days of operation.
1 2 3 4 5 6 7
START
1
1. Press 3 long presses on the MODE button
until the following screen appears (The
minutes will be flashing):
On this screen, the clock numbers refer to
the irrigation duration of P1.
2. Use the and the buttons to adjust
the minutes.
3. Press SET to continue.
4. Use the and the buttons to adjust
the hours.
5. Press SET to continue.
1 2 3 4 5 6 7
START
1
P1
On this screen, you select the Starts you
wish to irrigate with period 1 (P1).
Start 1 will flash.
1. To select Start 1, press and then
SET and Start 2 will flash.
OR
2. To deselect Start 1, press and then
SET and Start 2 will flash.
3. Repeat fro Start 2 and 3.
The Select Day screen appears. Day 1
will flash.
The Select Day screen appears after the
Start times have been programmed
(as in section 12).
1. Press SET to reach the day you wish
to irrigate. The number (corresponding
to the day of the week) will flash.
2. Press to select that day (the
square which appears indicates day is
selected).
3. Press to deselect a day.
4. Press SET until all days are
programmed as desired.
5. Press SET to return to operating mode.
P1 programming is now complete. Four
long presses on MODE will begin the
programming for P2.
Setting the Days
1 2 3 4 5 6 7
P1
Follow the instructions for Setting the
Irrigation Program (section 10).
Example
If you wish to irrigate with period 1 (P1) on
Sunday, Tuesday, Thursday and Saturday at
06:00 in the morning for 15 minutes:
Make sure the clock is set, and you are in
operating mode. Then press MODE twice to
get to the Start Times. Set Start 1 to 6:00
(factory default). Press MODE three times to
set duration time. On the following screen,
select Start 1, and deselect Starts 2 and 3.
On the following screen select days 1, 3, 5
and 7. At the same time, you may program
period 2 (P2) to irrigate for 30 minutes at
13:00 on Monday and Thursdays. Start time
are the same for both valves, but Start 2 is
not in use for P1 in this example, so you
may program Start 2 to the desired time of
13:00.
Press MODE twice to get to the Start Times.
Press SET until Start 2 is selected, and
adjust time to 13:00. Press MODE four times
to set the duration time for P2. On the
following screen, deselect Start 1, select
Start 2 and deselect Start 3. On the next
screen, select days 2 and 4.
It is possible to make a seasonal
adjustment to the irrigation duration for
both valves as necessary. The minimum
adjustment is 10% of the programmed
duration, and the maximum is 200%.
Seasonal Adjustment
Seasonal Adjustment
Setting the Irrigation Program
To set the irrigation program, you must be in
an operating mode.
First program P1 as follows:
The hhhstart screen appears:
Selecting the Starts
Sol.1
Green
Black
Red
Black
Green
SET
MODE
3
4
5
6
8:00
1
2
1
1
P1
P2
1 2 3 4 5 6 7
START
1 2 3 2
1
3
4
7
6
5
P1
Current time
1 2 3 4 5 6 7
Days of
the week
Clock
12345
678910
11 12 13
Setting the Duration Time 14 15
Features
Connects to two separate valves
Up to three operations per day
Easy installation and programming
Waterproof and weather resistant
Battery powered; no need for electrical
hookup.
Getting Started
Parts Identification
1. Top cover
2. Controller Display
3. Solenoid
4. Controllor
5. Water flow direction
arrow
6. Hydraulic valve
This section gives a brief description of the
Controller buttons. See the following sections
for further details.
MODE button – Quick presses of the
MODE button turn the controller on or o.
Longer presses of the MODE button put the
Controller in programming mode.
SET button - Press the SET button to set
a function and proceed.
Use these buttons to increase and
decrease schedule functions, or
select / deselect functions.
Installing connectors wires
G75
2V
1. Strip wire 1/2”.
2. Align frayed strands or conductors.
3. Do not pre-twist. Place stripped wires
together with ends even, lead stranded
wire slightly.
4. Twist connector onto wires pushing
firmly until hand-tight. DO NOT torque.
5. Swipe excess sealant in and around
conductors. DO NOT REUSE.
Installing the Connectors
NOTE: Can only open one valve at a time.
The valves are indicated as P1 and P2.
If the controller is correctly wired, continue
the installation process as follows:
Turn o the main faucet.
1.
2.
Basic Controller Functions
Install the valve in the irrigation system
so that the black arrow on the valve is
pointing in the direction of the water
flow. The controller may be swiveled
around to faciliate installation.
Occasionally the valve opens in transit. To
ensure that the valve is closed before you
open the main faucet, first make sure that
the controller is not set to OFF (If it is set to
OFF, press briefly on the MODE button to
turn on).
3. Press and SET simultaneously.
P1 will flash.
4. Press SET to select P1 or to
select P2.
5. Press SET and to close the
valve.
You are now ready to program the
controller.
6. Turn on the main faucet.
To manually open the valve, make sure that
the controller is in operating mode and press
and SET simultaneously.
P1 will flash. Press SET to select P1 or
to select P2 and then SET.
Manual Function
The irrigation will continue until the interval
defined has passed. If the irrigation duration
has been set to zero, the valve will close
after one minute.
To stop irrigating, press and SET
simultaneously.
Irrigation schedule design table
Sun. Mon. Tues. Wed. Thu. Fri. Sat..
P1
P2
Selected Starts
Irrigation Days
Irrigation Start Times
Irrigation periods for period 1(P1)
and period 2 (P2)
Start 1 Start 2 Start 3
Start times for P1 and P2
Period time
Selected Starts for P1
Selected Starts for P2
Start 1 Start 2 Start 3
P1
P2
Programming the Controller
Meaning of Controller Icons
NOTE: Quick presses of the MODE button on
or o. Longer presses of the MODE
buttton put the controller in programming
mode.
1. Irrigating days of
the week.
2. Program starts.
3. P1 is period 1,
P2 is period 2
4. Irrigation
5. Timing or clock
6. Low battery
7. Time adjustment
Setting the Clock
If screen is blank, press MODE to activate.
Before programming the controller you
must set the clock.
1. Press MODE for several seconds until the
time adjustment icon appears. (The
minutes will be flashing):
On this screen the numbers represent the
current time.
2. Use the and the buttons to adjust
the minutes.
3. Press SET to continue.
4. Use the and the buttons to
adjust the hours.
5. Press SET to continue.
6. Use the and the buttons to select
the current days of the week. The selected
day will flash.
7. Press SET to return to operating mode.
After setting the clock,
1. Two long presses on the MODE button
makes the following screen appear:
On this screen, the clock numbers refer to
the time you wish irrigation to begin. There
are three start times which are the same for
both valves (P1 & P2).
Setting the Start Times
2. Use the and the buttons to adjust
the minutes.
3. Press SET to continue.
4. Use the and the buttons to adjust
the hours.
5. Press SET to return to start time 2, and
repeat steps 1-3 for start times 2 and 3.
Setting the Irrigation Program
The irrigation program must be set separately
for P1 & P2.
The start times are common for both P1 & P2.
Each P1 & P2 may be set with dierent
duration time,dierent start selects, and
dierent days of operation.
1 2 3 4 5 6 7
START
1
1. Press 3 long presses on the MODE button
until the following screen appears (The
minutes will be flashing):
On this screen, the clock numbers refer to
the irrigation duration of P1.
2. Use the and the buttons to adjust
the minutes.
3. Press SET to continue.
4. Use the and the buttons to adjust
the hours.
5. Press SET to continue.
1 2 3 4 5 6 7
START
1
P1
On this screen, you select the Starts you
wish to irrigate with period 1 (P1).
Start 1 will flash.
1. To select Start 1, press and then
SET and Start 2 will flash.
OR
2. To deselect Start 1, press and then
SET and Start 2 will flash.
3. Repeat fro Start 2 and 3.
The Select Day screen appears. Day 1
will flash.
The Select Day screen appears after the
Start times have been programmed
(as in section 12).
1. Press SET to reach the day you wish
to irrigate. The number (corresponding
to the day of the week) will flash.
2. Press to select that day (the
square which appears indicates day is
selected).
3. Press to deselect a day.
4. Press SET until all days are
programmed as desired.
5. Press SET to return to operating mode.
P1 programming is now complete. Four
long presses on MODE will begin the
programming for P2.
Setting the Days
1 2 3 4 5 6 7
P1
Follow the instructions for Setting the
Irrigation Program (section 10).
Example
If you wish to irrigate with period 1 (P1) on
Sunday, Tuesday, Thursday and Saturday at
06:00 in the morning for 15 minutes:
Make sure the clock is set, and you are in
operating mode. Then press MODE twice to
get to the Start Times. Set Start 1 to 6:00
(factory default). Press MODE three times to
set duration time. On the following screen,
select Start 1, and deselect Starts 2 and 3.
On the following screen select days 1, 3, 5
and 7. At the same time, you may program
period 2 (P2) to irrigate for 30 minutes at
13:00 on Monday and Thursdays. Start time
are the same for both valves, but Start 2 is
not in use for P1 in this example, so you
may program Start 2 to the desired time of
13:00.
Press MODE twice to get to the Start Times.
Press SET until Start 2 is selected, and
adjust time to 13:00. Press MODE four times
to set the duration time for P2. On the
following screen, deselect Start 1, select
Start 2 and deselect Start 3. On the next
screen, select days 2 and 4.
It is possible to make a seasonal
adjustment to the irrigation duration for
both valves as necessary. The minimum
adjustment is 10% of the programmed
duration, and the maximum is 200%.
Seasonal Adjustment
Seasonal Adjustment
Setting the Irrigation Program
To set the irrigation program, you must be in
an operating mode.
First program P1 as follows:
The hhhstart screen appears:
Selecting the Starts
Sol.1
Green
Black
Red
Black
Green
SET
MODE
3
4
5
6
8:00
1
2
1
1
P1
P2
1 2 3 4 5 6 7
START
1 2 3 2
1
3
4
7
6
5
P1
Current time
1 2 3 4 5 6 7
Days of
the week
Clock
12345
678910
11 12 13
Setting the Duration Time 14 15
Features
Connects to two separate valves
Up to three operations per day
Easy installation and programming
Waterproof and weather resistant
Battery powered; no need for electrical
hookup.
Getting Started
Parts Identification
1. Top cover
2. Controller Display
3. Solenoid
4. Controllor
5. Water flow direction
arrow
6. Hydraulic valve
This section gives a brief description of the
Controller buttons. See the following sections
for further details.
MODE button – Quick presses of the
MODE button turn the controller on or o.
Longer presses of the MODE button put the
Controller in programming mode.
SET button - Press the SET button to set
a function and proceed.
Use these buttons to increase and
decrease schedule functions, or
select / deselect functions.
Installing connectors wires
G75
2V
1. Strip wire 1/2”.
2. Align frayed strands or conductors.
3. Do not pre-twist. Place stripped wires
together with ends even, lead stranded
wire slightly.
4. Twist connector onto wires pushing
firmly until hand-tight. DO NOT torque.
5. Swipe excess sealant in and around
conductors. DO NOT REUSE.
Installing the Connectors
NOTE: Can only open one valve at a time.
The valves are indicated as P1 and P2.
If the controller is correctly wired, continue
the installation process as follows:
Turn o the main faucet.
1.
2.
Basic Controller Functions
Install the valve in the irrigation system
so that the black arrow on the valve is
pointing in the direction of the water
flow. The controller may be swiveled
around to faciliate installation.
Occasionally the valve opens in transit. To
ensure that the valve is closed before you
open the main faucet, first make sure that
the controller is not set to OFF (If it is set to
OFF, press briefly on the MODE button to
turn on).
3. Press and SET simultaneously.
P1 will flash.
4. Press SET to select P1 or to
select P2.
5. Press SET and to close the
valve.
You are now ready to program the
controller.
6. Turn on the main faucet.
To manually open the valve, make sure that
the controller is in operating mode and press
and SET simultaneously.
P1 will flash. Press SET to select P1 or
to select P2 and then SET.
Manual Function
The irrigation will continue until the interval
defined has passed. If the irrigation duration
has been set to zero, the valve will close
after one minute.
To stop irrigating, press and SET
simultaneously.
Irrigation schedule design table
Sun. Mon. Tues. Wed. Thu. Fri. Sat..
P1
P2
Selected Starts
Irrigation Days
Irrigation Start Times
Irrigation periods for period 1(P1)
and period 2 (P2)
Start 1 Start 2 Start 3
Start times for P1 and P2
Period time
Selected Starts for P1
Selected Starts for P2
Start 1 Start 2 Start 3
P1
P2
Programming the Controller
Meaning of Controller Icons
NOTE: Quick presses of the MODE button on
or o. Longer presses of the MODE
buttton put the controller in programming
mode.
1. Irrigating days of
the week.
2. Program starts.
3. P1 is period 1,
P2 is period 2
4. Irrigation
5. Timing or clock
6. Low battery
7. Time adjustment
Setting the Clock
If screen is blank, press MODE to activate.
Before programming the controller you
must set the clock.
1. Press MODE for several seconds until the
time adjustment icon appears. (The
minutes will be flashing):
On this screen the numbers represent the
current time.
2. Use the and the buttons to adjust
the minutes.
3. Press SET to continue.
4. Use the and the buttons to
adjust the hours.
5. Press SET to continue.
6. Use the and the buttons to select
the current days of the week. The selected
day will flash.
7. Press SET to return to operating mode.
After setting the clock,
1. Two long presses on the MODE button
makes the following screen appear:
On this screen, the clock numbers refer to
the time you wish irrigation to begin. There
are three start times which are the same for
both valves (P1 & P2).
Setting the Start Times
2. Use the and the buttons to adjust
the minutes.
3. Press SET to continue.
4. Use the and the buttons to adjust
the hours.
5. Press SET to return to start time 2, and
repeat steps 1-3 for start times 2 and 3.
Setting the Irrigation Program
The irrigation program must be set separately
for P1 & P2.
The start times are common for both P1 & P2.
Each P1 & P2 may be set with dierent
duration time,dierent start selects, and
dierent days of operation.
1 2 3 4 5 6 7
START
1
1. Press 3 long presses on the MODE button
until the following screen appears (The
minutes will be flashing):
On this screen, the clock numbers refer to
the irrigation duration of P1.
2. Use the and the buttons to adjust
the minutes.
3. Press SET to continue.
4. Use the and the buttons to adjust
the hours.
5. Press SET to continue.
1 2 3 4 5 6 7
START
1
P1
On this screen, you select the Starts you
wish to irrigate with period 1 (P1).
Start 1 will flash.
1. To select Start 1, press and then
SET and Start 2 will flash.
OR
2. To deselect Start 1, press and then
SET and Start 2 will flash.
3. Repeat fro Start 2 and 3.
The Select Day screen appears. Day 1
will flash.
The Select Day screen appears after the
Start times have been programmed
(as in section 12).
1. Press SET to reach the day you wish
to irrigate. The number (corresponding
to the day of the week) will flash.
2. Press to select that day (the
square which appears indicates day is
selected).
3. Press to deselect a day.
4. Press SET until all days are
programmed as desired.
5. Press SET to return to operating mode.
P1 programming is now complete. Four
long presses on MODE will begin the
programming for P2.
Setting the Days
1 2 3 4 5 6 7
P1
Follow the instructions for Setting the
Irrigation Program (section 10).
Example
If you wish to irrigate with period 1 (P1) on
Sunday, Tuesday, Thursday and Saturday at
06:00 in the morning for 15 minutes:
Make sure the clock is set, and you are in
operating mode. Then press MODE twice to
get to the Start Times. Set Start 1 to 6:00
(factory default). Press MODE three times to
set duration time. On the following screen,
select Start 1, and deselect Starts 2 and 3.
On the following screen select days 1, 3, 5
and 7. At the same time, you may program
period 2 (P2) to irrigate for 30 minutes at
13:00 on Monday and Thursdays. Start time
are the same for both valves, but Start 2 is
not in use for P1 in this example, so you
may program Start 2 to the desired time of
13:00.
Press MODE twice to get to the Start Times.
Press SET until Start 2 is selected, and
adjust time to 13:00. Press MODE four times
to set the duration time for P2. On the
following screen, deselect Start 1, select
Start 2 and deselect Start 3. On the next
screen, select days 2 and 4.
It is possible to make a seasonal
adjustment to the irrigation duration for
both valves as necessary. The minimum
adjustment is 10% of the programmed
duration, and the maximum is 200%.
Seasonal Adjustment
Seasonal Adjustment
Setting the Irrigation Program
To set the irrigation program, you must be in
an operating mode.
First program P1 as follows:
The hhhstart screen appears:
Selecting the Starts
Sol.1
Green
Black
Red
Black
Green
SET
MODE
3
4
5
6
8:00
1
2
1
1
P1
P2
1 2 3 4 5 6 7
START
1 2 3 2
1
3
4
7
6
5
P1
Current time
1 2 3 4 5 6 7
Days of
the week
Clock
12345
678910
11 12 13
Setting the Duration Time 14 15
Features
Connects to two separate valves
Up to three operations per day
Easy installation and programming
Waterproof and weather resistant
Battery powered; no need for electrical
hookup.
Getting Started
Parts Identification
1. Top cover
2. Controller Display
3. Solenoid
4. Controllor
5. Water flow direction
arrow
6. Hydraulic valve
This section gives a brief description of the
Controller buttons. See the following sections
for further details.
MODE button – Quick presses of the
MODE button turn the controller on or o.
Longer presses of the MODE button put the
Controller in programming mode.
SET button - Press the SET button to set
a function and proceed.
Use these buttons to increase and
decrease schedule functions, or
select / deselect functions.
Installing connectors wires
G75
2V
1. Strip wire 1/2”.
2. Align frayed strands or conductors.
3. Do not pre-twist. Place stripped wires
together with ends even, lead stranded
wire slightly.
4. Twist connector onto wires pushing
firmly until hand-tight. DO NOT torque.
5. Swipe excess sealant in and around
conductors. DO NOT REUSE.
Installing the Connectors
NOTE: Can only open one valve at a time.
The valves are indicated as P1 and P2.
If the controller is correctly wired, continue
the installation process as follows:
Turn o the main faucet.
1.
2.
Basic Controller Functions
Install the valve in the irrigation system
so that the black arrow on the valve is
pointing in the direction of the water
flow. The controller may be swiveled
around to faciliate installation.
Occasionally the valve opens in transit. To
ensure that the valve is closed before you
open the main faucet, first make sure that
the controller is not set to OFF (If it is set to
OFF, press briefly on the MODE button to
turn on).
3. Press and SET simultaneously.
P1 will flash.
4. Press SET to select P1 or to
select P2.
5. Press SET and to close the
valve.
You are now ready to program the
controller.
6. Turn on the main faucet.
To manually open the valve, make sure that
the controller is in operating mode and press
and SET simultaneously.
P1 will flash. Press SET to select P1 or
to select P2 and then SET.
Manual Function
The irrigation will continue until the interval
defined has passed. If the irrigation duration
has been set to zero, the valve will close
after one minute.
To stop irrigating, press and SET
simultaneously.
Irrigation schedule design table
Sun. Mon. Tues. Wed. Thu. Fri. Sat..
P1
P2
Selected Starts
Irrigation Days
Irrigation Start Times
Irrigation periods for period 1(P1)
and period 2 (P2)
Start 1 Start 2 Start 3
Start times for P1 and P2
Period time
Selected Starts for P1
Selected Starts for P2
Start 1 Start 2 Start 3
P1
P2
Programming the Controller
Meaning of Controller Icons
NOTE: Quick presses of the MODE button on
or o. Longer presses of the MODE
buttton put the controller in programming
mode.
1. Irrigating days of
the week.
2. Program starts.
3. P1 is period 1,
P2 is period 2
4. Irrigation
5. Timing or clock
6. Low battery
7. Time adjustment
Setting the Clock
If screen is blank, press MODE to activate.
Before programming the controller you
must set the clock.
1. Press MODE for several seconds until the
time adjustment icon appears. (The
minutes will be flashing):
On this screen the numbers represent the
current time.
2. Use the and the buttons to adjust
the minutes.
3. Press SET to continue.
4. Use the and the buttons to
adjust the hours.
5. Press SET to continue.
6. Use the and the buttons to select
the current days of the week. The selected
day will flash.
7. Press SET to return to operating mode.
After setting the clock,
1. Two long presses on the MODE button
makes the following screen appear:
On this screen, the clock numbers refer to
the time you wish irrigation to begin. There
are three start times which are the same for
both valves (P1 & P2).
Setting the Start Times
2. Use the and the buttons to adjust
the minutes.
3. Press SET to continue.
4. Use the and the buttons to adjust
the hours.
5. Press SET to return to start time 2, and
repeat steps 1-3 for start times 2 and 3.
Setting the Irrigation Program
The irrigation program must be set separately
for P1 & P2.
The start times are common for both P1 & P2.
Each P1 & P2 may be set with dierent
duration time,dierent start selects, and
dierent days of operation.
1 2 3 4 5 6 7
START
1
1. Press 3 long presses on the MODE button
until the following screen appears (The
minutes will be flashing):
On this screen, the clock numbers refer to
the irrigation duration of P1.
2. Use the and the buttons to adjust
the minutes.
3. Press SET to continue.
4. Use the and the buttons to adjust
the hours.
5. Press SET to continue.
1 2 3 4 5 6 7
START
1
P1
On this screen, you select the Starts you
wish to irrigate with period 1 (P1).
Start 1 will flash.
1. To select Start 1, press and then
SET and Start 2 will flash.
OR
2. To deselect Start 1, press and then
SET and Start 2 will flash.
3. Repeat fro Start 2 and 3.
The Select Day screen appears. Day 1
will flash.
The Select Day screen appears after the
Start times have been programmed
(as in section 12).
1. Press SET to reach the day you wish
to irrigate. The number (corresponding
to the day of the week) will flash.
2. Press to select that day (the
square which appears indicates day is
selected).
3. Press to deselect a day.
4. Press SET until all days are
programmed as desired.
5. Press SET to return to operating mode.
P1 programming is now complete. Four
long presses on MODE will begin the
programming for P2.
Setting the Days
1 2 3 4 5 6 7
P1
Follow the instructions for Setting the
Irrigation Program (section 10).
Example
If you wish to irrigate with period 1 (P1) on
Sunday, Tuesday, Thursday and Saturday at
06:00 in the morning for 15 minutes:
Make sure the clock is set, and you are in
operating mode. Then press MODE twice to
get to the Start Times. Set Start 1 to 6:00
(factory default). Press MODE three times to
set duration time. On the following screen,
select Start 1, and deselect Starts 2 and 3.
On the following screen select days 1, 3, 5
and 7. At the same time, you may program
period 2 (P2) to irrigate for 30 minutes at
13:00 on Monday and Thursdays. Start time
are the same for both valves, but Start 2 is
not in use for P1 in this example, so you
may program Start 2 to the desired time of
13:00.
Press MODE twice to get to the Start Times.
Press SET until Start 2 is selected, and
adjust time to 13:00. Press MODE four times
to set the duration time for P2. On the
following screen, deselect Start 1, select
Start 2 and deselect Start 3. On the next
screen, select days 2 and 4.
It is possible to make a seasonal
adjustment to the irrigation duration for
both valves as necessary. The minimum
adjustment is 10% of the programmed
duration, and the maximum is 200%.
Seasonal Adjustment
Seasonal Adjustment
Setting the Irrigation Program
To set the irrigation program, you must be in
an operating mode.
First program P1 as follows:
The hhhstart screen appears:
Selecting the Starts
Sol.1
Green
Black
Red
Black
Green
SET
MODE
3
4
5
6
8:00
1
2
1
1
P1
P2
1 2 3 4 5 6 7
START
1 2 3 2
1
3
4
7
6
5
P1
Current time
1 2 3 4 5 6 7
Days of
the week
Clock
12345
678910
11 12 13
Setting the Duration Time 14 15
Features
Connects to two separate valves
Up to three operations per day
Easy installation and programming
Waterproof and weather resistant
Battery powered; no need for electrical
hookup.
Getting Started
Parts Identification
1. Top cover
2. Controller Display
3. Solenoid
4. Controllor
5. Water flow direction
arrow
6. Hydraulic valve
This section gives a brief description of the
Controller buttons. See the following sections
for further details.
MODE button – Quick presses of the
MODE button turn the controller on or o.
Longer presses of the MODE button put the
Controller in programming mode.
SET button - Press the SET button to set
a function and proceed.
Use these buttons to increase and
decrease schedule functions, or
select / deselect functions.
Installing connectors wires
G75
2V
1. Strip wire 1/2”.
2. Align frayed strands or conductors.
3. Do not pre-twist. Place stripped wires
together with ends even, lead stranded
wire slightly.
4. Twist connector onto wires pushing
firmly until hand-tight. DO NOT torque.
5. Swipe excess sealant in and around
conductors. DO NOT REUSE.
Installing the Connectors
NOTE: Can only open one valve at a time.
The valves are indicated as P1 and P2.
If the controller is correctly wired, continue
the installation process as follows:
Turn o the main faucet.
1.
2.
Basic Controller Functions
Install the valve in the irrigation system
so that the black arrow on the valve is
pointing in the direction of the water
flow. The controller may be swiveled
around to faciliate installation.
Occasionally the valve opens in transit. To
ensure that the valve is closed before you
open the main faucet, first make sure that
the controller is not set to OFF (If it is set to
OFF, press briefly on the MODE button to
turn on).
3. Press and SET simultaneously.
P1 will flash.
4. Press SET to select P1 or to
select P2.
5. Press SET and to close the
valve.
You are now ready to program the
controller.
6. Turn on the main faucet.
To manually open the valve, make sure that
the controller is in operating mode and press
and SET simultaneously.
P1 will flash. Press SET to select P1 or
to select P2 and then SET.
Manual Function
The irrigation will continue until the interval
defined has passed. If the irrigation duration
has been set to zero, the valve will close
after one minute.
To stop irrigating, press and SET
simultaneously.
Irrigation schedule design table
Sun. Mon. Tues. Wed. Thu. Fri. Sat..
P1
P2
Selected Starts
Irrigation Days
Irrigation Start Times
Irrigation periods for period 1(P1)
and period 2 (P2)
Start 1 Start 2 Start 3
Start times for P1 and P2
Period time
Selected Starts for P1
Selected Starts for P2
Start 1 Start 2 Start 3
P1
P2
Programming the Controller
Meaning of Controller Icons
NOTE: Quick presses of the MODE button on
or o. Longer presses of the MODE
buttton put the controller in programming
mode.
1. Irrigating days of
the week.
2. Program starts.
3. P1 is period 1,
P2 is period 2
4. Irrigation
5. Timing or clock
6. Low battery
7. Time adjustment
Setting the Clock
If screen is blank, press MODE to activate.
Before programming the controller you
must set the clock.
1. Press MODE for several seconds until the
time adjustment icon appears. (The
minutes will be flashing):
On this screen the numbers represent the
current time.
2. Use the and the buttons to adjust
the minutes.
3. Press SET to continue.
4. Use the and the buttons to
adjust the hours.
5. Press SET to continue.
6. Use the and the buttons to select
the current days of the week. The selected
day will flash.
7. Press SET to return to operating mode.
After setting the clock,
1. Two long presses on the MODE button
makes the following screen appear:
On this screen, the clock numbers refer to
the time you wish irrigation to begin. There
are three start times which are the same for
both valves (P1 & P2).
Setting the Start Times
2. Use the and the buttons to adjust
the minutes.
3. Press SET to continue.
4. Use the and the buttons to adjust
the hours.
5. Press SET to return to start time 2, and
repeat steps 1-3 for start times 2 and 3.
Setting the Irrigation Program
The irrigation program must be set separately
for P1 & P2.
The start times are common for both P1 & P2.
Each P1 & P2 may be set with dierent
duration time,dierent start selects, and
dierent days of operation.
1 2 3 4 5 6 7
START
1
1. Press 3 long presses on the MODE button
until the following screen appears (The
minutes will be flashing):
On this screen, the clock numbers refer to
the irrigation duration of P1.
2. Use the and the buttons to adjust
the minutes.
3. Press SET to continue.
4. Use the and the buttons to adjust
the hours.
5. Press SET to continue.
1 2 3 4 5 6 7
START
1
P1
On this screen, you select the Starts you
wish to irrigate with period 1 (P1).
Start 1 will flash.
1. To select Start 1, press and then
SET and Start 2 will flash.
OR
2. To deselect Start 1, press and then
SET and Start 2 will flash.
3. Repeat fro Start 2 and 3.
The Select Day screen appears. Day 1
will flash.
The Select Day screen appears after the
Start times have been programmed
(as in section 12).
1. Press SET to reach the day you wish
to irrigate. The number (corresponding
to the day of the week) will flash.
2. Press to select that day (the
square which appears indicates day is
selected).
3. Press to deselect a day.
4. Press SET until all days are
programmed as desired.
5. Press SET to return to operating mode.
P1 programming is now complete. Four
long presses on MODE will begin the
programming for P2.
Setting the Days
1 2 3 4 5 6 7
P1
Follow the instructions for Setting the
Irrigation Program (section 10).
Example
If you wish to irrigate with period 1 (P1) on
Sunday, Tuesday, Thursday and Saturday at
06:00 in the morning for 15 minutes:
Make sure the clock is set, and you are in
operating mode. Then press MODE twice to
get to the Start Times. Set Start 1 to 6:00
(factory default). Press MODE three times to
set duration time. On the following screen,
select Start 1, and deselect Starts 2 and 3.
On the following screen select days 1, 3, 5
and 7. At the same time, you may program
period 2 (P2) to irrigate for 30 minutes at
13:00 on Monday and Thursdays. Start time
are the same for both valves, but Start 2 is
not in use for P1 in this example, so you
may program Start 2 to the desired time of
13:00.
Press MODE twice to get to the Start Times.
Press SET until Start 2 is selected, and
adjust time to 13:00. Press MODE four times
to set the duration time for P2. On the
following screen, deselect Start 1, select
Start 2 and deselect Start 3. On the next
screen, select days 2 and 4.
It is possible to make a seasonal
adjustment to the irrigation duration for
both valves as necessary. The minimum
adjustment is 10% of the programmed
duration, and the maximum is 200%.
Seasonal Adjustment
Seasonal Adjustment
Setting the Irrigation Program
To set the irrigation program, you must be in
an operating mode.
First program P1 as follows:
The hhhstart screen appears:
Selecting the Starts
Sol.1
Green
Black
Red
Black
Green
SET
MODE
3
4
5
6
8:00
1
2
1
1
P1
P2
1 2 3 4 5 6 7
START
1 2 3 2
1
3
4
7
6
5
P1
Current time
1 2 3 4 5 6 7
Days of
the week
Clock
12345
678910
11 12 13
Setting the Duration Time 14 15
Features
Connects to two separate valves
Up to three operations per day
Easy installation and programming
Waterproof and weather resistant
Battery powered; no need for electrical
hookup.
Getting Started
Parts Identification
1. Top cover
2. Controller Display
3. Solenoid
4. Controllor
5. Water flow direction
arrow
6. Hydraulic valve
This section gives a brief description of the
Controller buttons. See the following sections
for further details.
MODE button – Quick presses of the
MODE button turn the controller on or o.
Longer presses of the MODE button put the
Controller in programming mode.
SET button - Press the SET button to set
a function and proceed.
Use these buttons to increase and
decrease schedule functions, or
select / deselect functions.
Installing connectors wires
G75
2V
1. Strip wire 1/2”.
2. Align frayed strands or conductors.
3. Do not pre-twist. Place stripped wires
together with ends even, lead stranded
wire slightly.
4. Twist connector onto wires pushing
firmly until hand-tight. DO NOT torque.
5. Swipe excess sealant in and around
conductors. DO NOT REUSE.
Installing the Connectors
NOTE: Can only open one valve at a time.
The valves are indicated as P1 and P2.
If the controller is correctly wired, continue
the installation process as follows:
Turn o the main faucet.
1.
2.
Basic Controller Functions
Install the valve in the irrigation system
so that the black arrow on the valve is
pointing in the direction of the water
flow. The controller may be swiveled
around to faciliate installation.
Occasionally the valve opens in transit. To
ensure that the valve is closed before you
open the main faucet, first make sure that
the controller is not set to OFF (If it is set to
OFF, press briefly on the MODE button to
turn on).
3. Press and SET simultaneously.
P1 will flash.
4. Press SET to select P1 or to
select P2.
5. Press SET and to close the
valve.
You are now ready to program the
controller.
6. Turn on the main faucet.
To manually open the valve, make sure that
the controller is in operating mode and press
and SET simultaneously.
P1 will flash. Press SET to select P1 or
to select P2 and then SET.
Manual Function
The irrigation will continue until the interval
defined has passed. If the irrigation duration
has been set to zero, the valve will close
after one minute.
To stop irrigating, press and SET
simultaneously.
Irrigation schedule design table
Sun. Mon. Tues. Wed. Thu. Fri. Sat..
P1
P2
Selected Starts
Irrigation Days
Irrigation Start Times
Irrigation periods for period 1(P1)
and period 2 (P2)
Start 1 Start 2 Start 3
Start times for P1 and P2
Period time
Selected Starts for P1
Selected Starts for P2
Start 1 Start 2 Start 3
P1
P2
Programming the Controller
Meaning of Controller Icons
NOTE: Quick presses of the MODE button on
or o. Longer presses of the MODE
buttton put the controller in programming
mode.
1. Irrigating days of
the week.
2. Program starts.
3. P1 is period 1,
P2 is period 2
4. Irrigation
5. Timing or clock
6. Low battery
7. Time adjustment
Setting the Clock
If screen is blank, press MODE to activate.
Before programming the controller you
must set the clock.
1. Press MODE for several seconds until the
time adjustment icon appears. (The
minutes will be flashing):
On this screen the numbers represent the
current time.
2. Use the and the buttons to adjust
the minutes.
3. Press SET to continue.
4. Use the and the buttons to
adjust the hours.
5. Press SET to continue.
6. Use the and the buttons to select
the current days of the week. The selected
day will flash.
7. Press SET to return to operating mode.
After setting the clock,
1. Two long presses on the MODE button
makes the following screen appear:
On this screen, the clock numbers refer to
the time you wish irrigation to begin. There
are three start times which are the same for
both valves (P1 & P2).
Setting the Start Times
2. Use the and the buttons to adjust
the minutes.
3. Press SET to continue.
4. Use the and the buttons to adjust
the hours.
5. Press SET to return to start time 2, and
repeat steps 1-3 for start times 2 and 3.
Setting the Irrigation Program
The irrigation program must be set separately
for P1 & P2.
The start times are common for both P1 & P2.
Each P1 & P2 may be set with dierent
duration time,dierent start selects, and
dierent days of operation.
1 2 3 4 5 6 7
START
1
1. Press 3 long presses on the MODE button
until the following screen appears (The
minutes will be flashing):
On this screen, the clock numbers refer to
the irrigation duration of P1.
2. Use the and the buttons to adjust
the minutes.
3. Press SET to continue.
4. Use the and the buttons to adjust
the hours.
5. Press SET to continue.
1 2 3 4 5 6 7
START
1
P1
On this screen, you select the Starts you
wish to irrigate with period 1 (P1).
Start 1 will flash.
1. To select Start 1, press and then
SET and Start 2 will flash.
OR
2. To deselect Start 1, press and then
SET and Start 2 will flash.
3. Repeat fro Start 2 and 3.
The Select Day screen appears. Day 1
will flash.
The Select Day screen appears after the
Start times have been programmed
(as in section 12).
1. Press SET to reach the day you wish
to irrigate. The number (corresponding
to the day of the week) will flash.
2. Press to select that day (the
square which appears indicates day is
selected).
3. Press to deselect a day.
4. Press SET until all days are
programmed as desired.
5. Press SET to return to operating mode.
P1 programming is now complete. Four
long presses on MODE will begin the
programming for P2.
Setting the Days
1 2 3 4 5 6 7
P1
Follow the instructions for Setting the
Irrigation Program (section 10).
Example
If you wish to irrigate with period 1 (P1) on
Sunday, Tuesday, Thursday and Saturday at
06:00 in the morning for 15 minutes:
Make sure the clock is set, and you are in
operating mode. Then press MODE twice to
get to the Start Times. Set Start 1 to 6:00
(factory default). Press MODE three times to
set duration time. On the following screen,
select Start 1, and deselect Starts 2 and 3.
On the following screen select days 1, 3, 5
and 7. At the same time, you may program
period 2 (P2) to irrigate for 30 minutes at
13:00 on Monday and Thursdays. Start time
are the same for both valves, but Start 2 is
not in use for P1 in this example, so you
may program Start 2 to the desired time of
13:00.
Press MODE twice to get to the Start Times.
Press SET until Start 2 is selected, and
adjust time to 13:00. Press MODE four times
to set the duration time for P2. On the
following screen, deselect Start 1, select
Start 2 and deselect Start 3. On the next
screen, select days 2 and 4.
It is possible to make a seasonal
adjustment to the irrigation duration for
both valves as necessary. The minimum
adjustment is 10% of the programmed
duration, and the maximum is 200%.
Seasonal Adjustment
Seasonal Adjustment
Setting the Irrigation Program
To set the irrigation program, you must be in
an operating mode.
First program P1 as follows:
The hhhstart screen appears:
Selecting the Starts
Sol.1
Green
Black
Red
Black
Green
SET
MODE
3
4
5
6
8:00
1
2
1
1
P1
P2
1 2 3 4 5 6 7
START
1 2 3 2
1
3
4
7
6
5
P1
Current time
1 2 3 4 5 6 7
Days of
the week
Clock
12345
678910
11 12 13
Setting the Duration Time 14 15
Features
Connects to two separate valves
Up to three operations per day
Easy installation and programming
Waterproof and weather resistant
Battery powered; no need for electrical
hookup.
Getting Started
Parts Identification
1. Top cover
2. Controller Display
3. Solenoid
4. Controllor
5. Water flow direction
arrow
6. Hydraulic valve
This section gives a brief description of the
Controller buttons. See the following sections
for further details.
MODE button – Quick presses of the
MODE button turn the controller on or o.
Longer presses of the MODE button put the
Controller in programming mode.
SET button - Press the SET button to set
a function and proceed.
Use these buttons to increase and
decrease schedule functions, or
select / deselect functions.
Installing connectors wires
G75
2V
1. Strip wire 1/2”.
2. Align frayed strands or conductors.
3. Do not pre-twist. Place stripped wires
together with ends even, lead stranded
wire slightly.
4. Twist connector onto wires pushing
firmly until hand-tight. DO NOT torque.
5. Swipe excess sealant in and around
conductors. DO NOT REUSE.
Installing the Connectors
NOTE: Can only open one valve at a time.
The valves are indicated as P1 and P2.
If the controller is correctly wired, continue
the installation process as follows:
Turn o the main faucet.
1.
2.
Basic Controller Functions
Install the valve in the irrigation system
so that the black arrow on the valve is
pointing in the direction of the water
flow. The controller may be swiveled
around to faciliate installation.
Occasionally the valve opens in transit. To
ensure that the valve is closed before you
open the main faucet, first make sure that
the controller is not set to OFF (If it is set to
OFF, press briefly on the MODE button to
turn on).
3. Press and SET simultaneously.
P1 will flash.
4. Press SET to select P1 or to
select P2.
5. Press SET and to close the
valve.
You are now ready to program the
controller.
6. Turn on the main faucet.
To manually open the valve, make sure that
the controller is in operating mode and press
and SET simultaneously.
P1 will flash. Press SET to select P1 or
to select P2 and then SET.
Manual Function
The irrigation will continue until the interval
defined has passed. If the irrigation duration
has been set to zero, the valve will close
after one minute.
To stop irrigating, press and SET
simultaneously.
Irrigation schedule design table
Sun. Mon. Tues. Wed. Thu. Fri. Sat..
P1
P2
Selected Starts
Irrigation Days
Irrigation Start Times
Irrigation periods for period 1(P1)
and period 2 (P2)
Start 1 Start 2 Start 3
Start times for P1 and P2
Period time
Selected Starts for P1
Selected Starts for P2
Start 1 Start 2 Start 3
P1
P2
Programming the Controller
Meaning of Controller Icons
NOTE: Quick presses of the MODE button on
or o. Longer presses of the MODE
buttton put the controller in programming
mode.
1. Irrigating days of
the week.
2. Program starts.
3. P1 is period 1,
P2 is period 2
4. Irrigation
5. Timing or clock
6. Low battery
7. Time adjustment
Setting the Clock
If screen is blank, press MODE to activate.
Before programming the controller you
must set the clock.
1. Press MODE for several seconds until the
time adjustment icon appears. (The
minutes will be flashing):
On this screen the numbers represent the
current time.
2. Use the and the buttons to adjust
the minutes.
3. Press SET to continue.
4. Use the and the buttons to
adjust the hours.
5. Press SET to continue.
6. Use the and the buttons to select
the current days of the week. The selected
day will flash.
7. Press SET to return to operating mode.
After setting the clock,
1. Two long presses on the MODE button
makes the following screen appear:
On this screen, the clock numbers refer to
the time you wish irrigation to begin. There
are three start times which are the same for
both valves (P1 & P2).
Setting the Start Times
2. Use the and the buttons to adjust
the minutes.
3. Press SET to continue.
4. Use the and the buttons to adjust
the hours.
5. Press SET to return to start time 2, and
repeat steps 1-3 for start times 2 and 3.
Setting the Irrigation Program
The irrigation program must be set separately
for P1 & P2.
The start times are common for both P1 & P2.
Each P1 & P2 may be set with dierent
duration time,dierent start selects, and
dierent days of operation.
1 2 3 4 5 6 7
START
1
1. Press 3 long presses on the MODE button
until the following screen appears (The
minutes will be flashing):
On this screen, the clock numbers refer to
the irrigation duration of P1.
2. Use the and the buttons to adjust
the minutes.
3. Press SET to continue.
4. Use the and the buttons to adjust
the hours.
5. Press SET to continue.
1 2 3 4 5 6 7
START
1
P1
On this screen, you select the Starts you
wish to irrigate with period 1 (P1).
Start 1 will flash.
1. To select Start 1, press and then
SET and Start 2 will flash.
OR
2. To deselect Start 1, press and then
SET and Start 2 will flash.
3. Repeat fro Start 2 and 3.
The Select Day screen appears. Day 1
will flash.
The Select Day screen appears after the
Start times have been programmed
(as in section 12).
1. Press SET to reach the day you wish
to irrigate. The number (corresponding
to the day of the week) will flash.
2. Press to select that day (the
square which appears indicates day is
selected).
3. Press to deselect a day.
4. Press SET until all days are
programmed as desired.
5. Press SET to return to operating mode.
P1 programming is now complete. Four
long presses on MODE will begin the
programming for P2.
Setting the Days
1 2 3 4 5 6 7
P1
Follow the instructions for Setting the
Irrigation Program (section 10).
Example
If you wish to irrigate with period 1 (P1) on
Sunday, Tuesday, Thursday and Saturday at
06:00 in the morning for 15 minutes:
Make sure the clock is set, and you are in
operating mode. Then press MODE twice to
get to the Start Times. Set Start 1 to 6:00
(factory default). Press MODE three times to
set duration time. On the following screen,
select Start 1, and deselect Starts 2 and 3.
On the following screen select days 1, 3, 5
and 7. At the same time, you may program
period 2 (P2) to irrigate for 30 minutes at
13:00 on Monday and Thursdays. Start time
are the same for both valves, but Start 2 is
not in use for P1 in this example, so you
may program Start 2 to the desired time of
13:00.
Press MODE twice to get to the Start Times.
Press SET until Start 2 is selected, and
adjust time to 13:00. Press MODE four times
to set the duration time for P2. On the
following screen, deselect Start 1, select
Start 2 and deselect Start 3. On the next
screen, select days 2 and 4.
It is possible to make a seasonal
adjustment to the irrigation duration for
both valves as necessary. The minimum
adjustment is 10% of the programmed
duration, and the maximum is 200%.
Seasonal Adjustment
Seasonal Adjustment
Setting the Irrigation Program
To set the irrigation program, you must be in
an operating mode.
First program P1 as follows:
The hhhstart screen appears:
Selecting the Starts
Sol.1
Green
Black
Red
Black
Green
SET
MODE
3
4
5
6
8:00
1
2
1
1
P1
P2
1 2 3 4 5 6 7
START
1 2 3 2
1
3
4
7
6
5
P1
Current time
1 2 3 4 5 6 7
Days of
the week
Clock
12345
678910
11 12 13
Setting the Duration Time 14 15
Features
Connects to two separate valves
Up to three operations per day
Easy installation and programming
Waterproof and weather resistant
Battery powered; no need for electrical
hookup.
Getting Started
Parts Identification
1. Top cover
2. Controller Display
3. Solenoid
4. Controllor
5. Water flow direction
arrow
6. Hydraulic valve
This section gives a brief description of the
Controller buttons. See the following sections
for further details.
MODE button – Quick presses of the
MODE button turn the controller on or o.
Longer presses of the MODE button put the
Controller in programming mode.
SET button - Press the SET button to set
a function and proceed.
Use these buttons to increase and
decrease schedule functions, or
select / deselect functions.
Installing connectors wires
G75
2V
1. Strip wire 1/2”.
2. Align frayed strands or conductors.
3. Do not pre-twist. Place stripped wires
together with ends even, lead stranded
wire slightly.
4. Twist connector onto wires pushing
firmly until hand-tight. DO NOT torque.
5. Swipe excess sealant in and around
conductors. DO NOT REUSE.
Installing the Connectors
NOTE: Can only open one valve at a time.
The valves are indicated as P1 and P2.
If the controller is correctly wired, continue
the installation process as follows:
Turn o the main faucet.
1.
2.
Basic Controller Functions
Install the valve in the irrigation system
so that the black arrow on the valve is
pointing in the direction of the water
flow. The controller may be swiveled
around to faciliate installation.
Occasionally the valve opens in transit. To
ensure that the valve is closed before you
open the main faucet, first make sure that
the controller is not set to OFF (If it is set to
OFF, press briefly on the MODE button to
turn on).
3. Press and SET simultaneously.
P1 will flash.
4. Press SET to select P1 or to
select P2.
5. Press SET and to close the
valve.
You are now ready to program the
controller.
6. Turn on the main faucet.
To manually open the valve, make sure that
the controller is in operating mode and press
and SET simultaneously.
P1 will flash. Press SET to select P1 or
to select P2 and then SET.
Manual Function
The irrigation will continue until the interval
defined has passed. If the irrigation duration
has been set to zero, the valve will close
after one minute.
To stop irrigating, press and SET
simultaneously.
Irrigation schedule design table
Sun. Mon. Tues. Wed. Thu. Fri. Sat..
P1
P2
Selected Starts
Irrigation Days
Irrigation Start Times
Irrigation periods for period 1(P1)
and period 2 (P2)
Start 1 Start 2 Start 3
Start times for P1 and P2
Period time
Selected Starts for P1
Selected Starts for P2
Start 1 Start 2 Start 3
P1
P2
Programming the Controller
Meaning of Controller Icons
NOTE: Quick presses of the MODE button on
or o. Longer presses of the MODE
buttton put the controller in programming
mode.
1. Irrigating days of
the week.
2. Program starts.
3. P1 is period 1,
P2 is period 2
4. Irrigation
5. Timing or clock
6. Low battery
7. Time adjustment
Setting the Clock
If screen is blank, press MODE to activate.
Before programming the controller you
must set the clock.
1. Press MODE for several seconds until the
time adjustment icon appears. (The
minutes will be flashing):
On this screen the numbers represent the
current time.
2. Use the and the buttons to adjust
the minutes.
3. Press SET to continue.
4. Use the and the buttons to
adjust the hours.
5. Press SET to continue.
6. Use the and the buttons to select
the current days of the week. The selected
day will flash.
7. Press SET to return to operating mode.
After setting the clock,
1. Two long presses on the MODE button
makes the following screen appear:
On this screen, the clock numbers refer to
the time you wish irrigation to begin. There
are three start times which are the same for
both valves (P1 & P2).
Setting the Start Times
2. Use the and the buttons to adjust
the minutes.
3. Press SET to continue.
4. Use the and the buttons to adjust
the hours.
5. Press SET to return to start time 2, and
repeat steps 1-3 for start times 2 and 3.
Setting the Irrigation Program
The irrigation program must be set separately
for P1 & P2.
The start times are common for both P1 & P2.
Each P1 & P2 may be set with dierent
duration time,dierent start selects, and
dierent days of operation.
1 2 3 4 5 6 7
START
1
1. Press 3 long presses on the MODE button
until the following screen appears (The
minutes will be flashing):
On this screen, the clock numbers refer to
the irrigation duration of P1.
2. Use the and the buttons to adjust
the minutes.
3. Press SET to continue.
4. Use the and the buttons to adjust
the hours.
5. Press SET to continue.
1 2 3 4 5 6 7
START
1
P1
On this screen, you select the Starts you
wish to irrigate with period 1 (P1).
Start 1 will flash.
1. To select Start 1, press and then
SET and Start 2 will flash.
OR
2. To deselect Start 1, press and then
SET and Start 2 will flash.
3. Repeat fro Start 2 and 3.
The Select Day screen appears. Day 1
will flash.
The Select Day screen appears after the
Start times have been programmed
(as in section 12).
1. Press SET to reach the day you wish
to irrigate. The number (corresponding
to the day of the week) will flash.
2. Press to select that day (the
square which appears indicates day is
selected).
3. Press to deselect a day.
4. Press SET until all days are
programmed as desired.
5. Press SET to return to operating mode.
P1 programming is now complete. Four
long presses on MODE will begin the
programming for P2.
Setting the Days
1 2 3 4 5 6 7
P1
Follow the instructions for Setting the
Irrigation Program (section 10).
Example
If you wish to irrigate with period 1 (P1) on
Sunday, Tuesday, Thursday and Saturday at
06:00 in the morning for 15 minutes:
Make sure the clock is set, and you are in
operating mode. Then press MODE twice to
get to the Start Times. Set Start 1 to 6:00
(factory default). Press MODE three times to
set duration time. On the following screen,
select Start 1, and deselect Starts 2 and 3.
On the following screen select days 1, 3, 5
and 7. At the same time, you may program
period 2 (P2) to irrigate for 30 minutes at
13:00 on Monday and Thursdays. Start time
are the same for both valves, but Start 2 is
not in use for P1 in this example, so you
may program Start 2 to the desired time of
13:00.
Press MODE twice to get to the Start Times.
Press SET until Start 2 is selected, and
adjust time to 13:00. Press MODE four times
to set the duration time for P2. On the
following screen, deselect Start 1, select
Start 2 and deselect Start 3. On the next
screen, select days 2 and 4.
It is possible to make a seasonal
adjustment to the irrigation duration for
both valves as necessary. The minimum
adjustment is 10% of the programmed
duration, and the maximum is 200%.
Seasonal Adjustment
Seasonal Adjustment
Setting the Irrigation Program
To set the irrigation program, you must be in
an operating mode.
First program P1 as follows:
The hhhstart screen appears:
Selecting the Starts
Sol.1
Green
Black
Red
Black
Green
SET
MODE
3
4
5
6
8:00
1
2
1
1
P1
P2
1 2 3 4 5 6 7
START
1 2 3 2
1
3
4
7
6
5
P1
Current time
1 2 3 4 5 6 7
Days of
the week
Clock
12345
678910
11 12 13
Setting the Duration Time 14 15
Features
Connects to two separate valves
Up to three operations per day
Easy installation and programming
Waterproof and weather resistant
Battery powered; no need for electrical
hookup.
Getting Started
Parts Identification
1. Top cover
2. Controller Display
3. Solenoid
4. Controllor
5. Water flow direction
arrow
6. Hydraulic valve
This section gives a brief description of the
Controller buttons. See the following sections
for further details.
MODE button – Quick presses of the
MODE button turn the controller on or o.
Longer presses of the MODE button put the
Controller in programming mode.
SET button - Press the SET button to set
a function and proceed.
Use these buttons to increase and
decrease schedule functions, or
select / deselect functions.
Installing connectors wires
G75
2V
1. Strip wire 1/2”.
2. Align frayed strands or conductors.
3. Do not pre-twist. Place stripped wires
together with ends even, lead stranded
wire slightly.
4. Twist connector onto wires pushing
firmly until hand-tight. DO NOT torque.
5. Swipe excess sealant in and around
conductors. DO NOT REUSE.
Installing the Connectors
NOTE: Can only open one valve at a time.
The valves are indicated as P1 and P2.
If the controller is correctly wired, continue
the installation process as follows:
Turn o the main faucet.
1.
2.
Basic Controller Functions
Install the valve in the irrigation system
so that the black arrow on the valve is
pointing in the direction of the water
flow. The controller may be swiveled
around to faciliate installation.
Occasionally the valve opens in transit. To
ensure that the valve is closed before you
open the main faucet, first make sure that
the controller is not set to OFF (If it is set to
OFF, press briefly on the MODE button to
turn on).
3. Press and SET simultaneously.
P1 will flash.
4. Press SET to select P1 or to
select P2.
5. Press SET and to close the
valve.
You are now ready to program the
controller.
6. Turn on the main faucet.
To manually open the valve, make sure that
the controller is in operating mode and press
and SET simultaneously.
P1 will flash. Press SET to select P1 or
to select P2 and then SET.
Manual Function
The irrigation will continue until the interval
defined has passed. If the irrigation duration
has been set to zero, the valve will close
after one minute.
To stop irrigating, press and SET
simultaneously.
Irrigation schedule design table
Sun. Mon. Tues. Wed. Thu. Fri. Sat..
P1
P2
Selected Starts
Irrigation Days
Irrigation Start Times
Irrigation periods for period 1(P1)
and period 2 (P2)
Start 1 Start 2 Start 3
Start times for P1 and P2
Period time
Selected Starts for P1
Selected Starts for P2
Start 1 Start 2 Start 3
P1
P2
Programming the Controller
Meaning of Controller Icons
NOTE: Quick presses of the MODE button on
or o. Longer presses of the MODE
buttton put the controller in programming
mode.
1. Irrigating days of
the week.
2. Program starts.
3. P1 is period 1,
P2 is period 2
4. Irrigation
5. Timing or clock
6. Low battery
7. Time adjustment
Setting the Clock
If screen is blank, press MODE to activate.
Before programming the controller you
must set the clock.
1. Press MODE for several seconds until the
time adjustment icon appears. (The
minutes will be flashing):
On this screen the numbers represent the
current time.
2. Use the and the buttons to adjust
the minutes.
3. Press SET to continue.
4. Use the and the buttons to
adjust the hours.
5. Press SET to continue.
6. Use the and the buttons to select
the current days of the week. The selected
day will flash.
7. Press SET to return to operating mode.
After setting the clock,
1. Two long presses on the MODE button
makes the following screen appear:
On this screen, the clock numbers refer to
the time you wish irrigation to begin. There
are three start times which are the same for
both valves (P1 & P2).
Setting the Start Times
2. Use the and the buttons to adjust
the minutes.
3. Press SET to continue.
4. Use the and the buttons to adjust
the hours.
5. Press SET to return to start time 2, and
repeat steps 1-3 for start times 2 and 3.
Setting the Irrigation Program
The irrigation program must be set separately
for P1 & P2.
The start times are common for both P1 & P2.
Each P1 & P2 may be set with dierent
duration time,dierent start selects, and
dierent days of operation.
1 2 3 4 5 6 7
START
1
1. Press 3 long presses on the MODE button
until the following screen appears (The
minutes will be flashing):
On this screen, the clock numbers refer to
the irrigation duration of P1.
2. Use the and the buttons to adjust
the minutes.
3. Press SET to continue.
4. Use the and the buttons to adjust
the hours.
5. Press SET to continue.
1 2 3 4 5 6 7
START
1
P1
On this screen, you select the Starts you
wish to irrigate with period 1 (P1).
Start 1 will flash.
1. To select Start 1, press and then
SET and Start 2 will flash.
OR
2. To deselect Start 1, press and then
SET and Start 2 will flash.
3. Repeat fro Start 2 and 3.
The Select Day screen appears. Day 1
will flash.
The Select Day screen appears after the
Start times have been programmed
(as in section 12).
1. Press SET to reach the day you wish
to irrigate. The number (corresponding
to the day of the week) will flash.
2. Press to select that day (the
square which appears indicates day is
selected).
3. Press to deselect a day.
4. Press SET until all days are
programmed as desired.
5. Press SET to return to operating mode.
P1 programming is now complete. Four
long presses on MODE will begin the
programming for P2.
Setting the Days
1 2 3 4 5 6 7
P1
Follow the instructions for Setting the
Irrigation Program (section 10).
Example
If you wish to irrigate with period 1 (P1) on
Sunday, Tuesday, Thursday and Saturday at
06:00 in the morning for 15 minutes:
Make sure the clock is set, and you are in
operating mode. Then press MODE twice to
get to the Start Times. Set Start 1 to 6:00
(factory default). Press MODE three times to
set duration time. On the following screen,
select Start 1, and deselect Starts 2 and 3.
On the following screen select days 1, 3, 5
and 7. At the same time, you may program
period 2 (P2) to irrigate for 30 minutes at
13:00 on Monday and Thursdays. Start time
are the same for both valves, but Start 2 is
not in use for P1 in this example, so you
may program Start 2 to the desired time of
13:00.
Press MODE twice to get to the Start Times.
Press SET until Start 2 is selected, and
adjust time to 13:00. Press MODE four times
to set the duration time for P2. On the
following screen, deselect Start 1, select
Start 2 and deselect Start 3. On the next
screen, select days 2 and 4.
It is possible to make a seasonal
adjustment to the irrigation duration for
both valves as necessary. The minimum
adjustment is 10% of the programmed
duration, and the maximum is 200%.
Seasonal Adjustment
Seasonal Adjustment
Setting the Irrigation Program
To set the irrigation program, you must be in
an operating mode.
First program P1 as follows:
The hhhstart screen appears:
Selecting the Starts
Sol.1
Green
Black
Red
Black
Green
SET
MODE
3
4
5
6
8:00
1
2
1
1
P1
P2
1 2 3 4 5 6 7
START
1 2 3 2
1
3
4
7
6
5
P1
Current time
1 2 3 4 5 6 7
Days of
the week
Clock
12345
678910
11 12 13
Setting the Duration Time 14 15
Features
Connects to two separate valves
Up to three operations per day
Easy installation and programming
Waterproof and weather resistant
Battery powered; no need for electrical
hookup.
Getting Started
Parts Identification
1. Top cover
2. Controller Display
3. Solenoid
4. Controllor
5. Water flow direction
arrow
6. Hydraulic valve
This section gives a brief description of the
Controller buttons. See the following sections
for further details.
MODE button – Quick presses of the
MODE button turn the controller on or o.
Longer presses of the MODE button put the
Controller in programming mode.
SET button - Press the SET button to set
a function and proceed.
Use these buttons to increase and
decrease schedule functions, or
select / deselect functions.
Installing connectors wires
G75
2V
1. Strip wire 1/2”.
2. Align frayed strands or conductors.
3. Do not pre-twist. Place stripped wires
together with ends even, lead stranded
wire slightly.
4. Twist connector onto wires pushing
firmly until hand-tight. DO NOT torque.
5. Swipe excess sealant in and around
conductors. DO NOT REUSE.
Installing the Connectors
NOTE: Can only open one valve at a time.
The valves are indicated as P1 and P2.
If the controller is correctly wired, continue
the installation process as follows:
Turn o the main faucet.
1.
2.
Basic Controller Functions
Install the valve in the irrigation system
so that the black arrow on the valve is
pointing in the direction of the water
flow. The controller may be swiveled
around to faciliate installation.
Occasionally the valve opens in transit. To
ensure that the valve is closed before you
open the main faucet, first make sure that
the controller is not set to OFF (If it is set to
OFF, press briefly on the MODE button to
turn on).
3. Press and SET simultaneously.
P1 will flash.
4. Press SET to select P1 or to
select P2.
5. Press SET and to close the
valve.
You are now ready to program the
controller.
6. Turn on the main faucet.
To manually open the valve, make sure that
the controller is in operating mode and press
and SET simultaneously.
P1 will flash. Press SET to select P1 or
to select P2 and then SET.
Manual Function
The irrigation will continue until the interval
defined has passed. If the irrigation duration
has been set to zero, the valve will close
after one minute.
To stop irrigating, press and SET
simultaneously.
Irrigation schedule design table
Sun. Mon. Tues. Wed. Thu. Fri. Sat..
P1
P2
Selected Starts
Irrigation Days
Irrigation Start Times
Irrigation periods for period 1(P1)
and period 2 (P2)
Start 1 Start 2 Start 3
Start times for P1 and P2
Period time
Selected Starts for P1
Selected Starts for P2
Start 1 Start 2 Start 3
P1
P2
Programming the Controller
Meaning of Controller Icons
NOTE: Quick presses of the MODE button on
or o. Longer presses of the MODE
buttton put the controller in programming
mode.
1. Irrigating days of
the week.
2. Program starts.
3. P1 is period 1,
P2 is period 2
4. Irrigation
5. Timing or clock
6. Low battery
7. Time adjustment
Setting the Clock
If screen is blank, press MODE to activate.
Before programming the controller you
must set the clock.
1. Press MODE for several seconds until the
time adjustment icon appears. (The
minutes will be flashing):
On this screen the numbers represent the
current time.
2. Use the and the buttons to adjust
the minutes.
3. Press SET to continue.
4. Use the and the buttons to
adjust the hours.
5. Press SET to continue.
6. Use the and the buttons to select
the current days of the week. The selected
day will flash.
7. Press SET to return to operating mode.
After setting the clock,
1. Two long presses on the MODE button
makes the following screen appear:
On this screen, the clock numbers refer to
the time you wish irrigation to begin. There
are three start times which are the same for
both valves (P1 & P2).
Setting the Start Times
2. Use the and the buttons to adjust
the minutes.
3. Press SET to continue.
4. Use the and the buttons to adjust
the hours.
5. Press SET to return to start time 2, and
repeat steps 1-3 for start times 2 and 3.
Setting the Irrigation Program
The irrigation program must be set separately
for P1 & P2.
The start times are common for both P1 & P2.
Each P1 & P2 may be set with dierent
duration time,dierent start selects, and
dierent days of operation.
1 2 3 4 5 6 7
START
1
1. Press 3 long presses on the MODE button
until the following screen appears (The
minutes will be flashing):
On this screen, the clock numbers refer to
the irrigation duration of P1.
2. Use the and the buttons to adjust
the minutes.
3. Press SET to continue.
4. Use the and the buttons to adjust
the hours.
5. Press SET to continue.
1 2 3 4 5 6 7
START
1
P1
On this screen, you select the Starts you
wish to irrigate with period 1 (P1).
Start 1 will flash.
1. To select Start 1, press and then
SET and Start 2 will flash.
OR
2. To deselect Start 1, press and then
SET and Start 2 will flash.
3. Repeat fro Start 2 and 3.
The Select Day screen appears. Day 1
will flash.
The Select Day screen appears after the
Start times have been programmed
(as in section 12).
1. Press SET to reach the day you wish
to irrigate. The number (corresponding
to the day of the week) will flash.
2. Press to select that day (the
square which appears indicates day is
selected).
3. Press to deselect a day.
4. Press SET until all days are
programmed as desired.
5. Press SET to return to operating mode.
P1 programming is now complete. Four
long presses on MODE will begin the
programming for P2.
Setting the Days
1 2 3 4 5 6 7
P1
Follow the instructions for Setting the
Irrigation Program (section 10).
Example
If you wish to irrigate with period 1 (P1) on
Sunday, Tuesday, Thursday and Saturday at
06:00 in the morning for 15 minutes:
Make sure the clock is set, and you are in
operating mode. Then press MODE twice to
get to the Start Times. Set Start 1 to 6:00
(factory default). Press MODE three times to
set duration time. On the following screen,
select Start 1, and deselect Starts 2 and 3.
On the following screen select days 1, 3, 5
and 7. At the same time, you may program
period 2 (P2) to irrigate for 30 minutes at
13:00 on Monday and Thursdays. Start time
are the same for both valves, but Start 2 is
not in use for P1 in this example, so you
may program Start 2 to the desired time of
13:00.
Press MODE twice to get to the Start Times.
Press SET until Start 2 is selected, and
adjust time to 13:00. Press MODE four times
to set the duration time for P2. On the
following screen, deselect Start 1, select
Start 2 and deselect Start 3. On the next
screen, select days 2 and 4.
It is possible to make a seasonal
adjustment to the irrigation duration for
both valves as necessary. The minimum
adjustment is 10% of the programmed
duration, and the maximum is 200%.
Seasonal Adjustment
Seasonal Adjustment
Setting the Irrigation Program
To set the irrigation program, you must be in
an operating mode.
First program P1 as follows:
The hhhstart screen appears:
Selecting the Starts
Sol.1
Green
Black
Red
Black
Green
G75 Two Valves
Irrigation Controller
4257201402 (6/20)
• English
USERS GUIDE
16
17
18 O Season
Screws
Battery
Cover Seal
19 20
Troubleshooting
21
1. Press five long presses on the MODE
button until the following screen
appears:
1 2 3 4 5 6 7 1 2 3 4 5 6 7
The percentage programmed will flash on the
screen alternately with
2. Use the and the buttons to adjust
percentage amount to your requirments.
3. Press SET to complete adjustment.
The Controller comes with the following
factory default settings:
Factory Default Settings
Sun. Mon. Tue. Wed. Thu. Fri. Sat.
P1
P2
Selected Starts
Irrigation Days
Irrigation Start Times
Irrigation Duration for Valve 1 (P1) and
Valve 2 (P2)
Start 1 Start 2 Start 3
Start Times for P1 and P2
Duration Time
Selected Starts for P1
Selected Starts for P2
P1 0:15
P2 0:15
√
√
√
√
√
√
√
√
Battery Installation
Replace the battery at the start of each
irrigation season and when the low battery
symbol appears:
Use a 9V alkaline top quality battery only.
1. Use a Phillips screwdriver, remove the
four battery cover screws.
2. Remove the battery cover and seal.
3. Replace the battery.
4. After reattaching the seal, put the cover
back, and secure with the four screws.
When replacing seal,
push seal tabs into slots.
PROBLEM
Controller
does not
irrigate plants
as desired
CAUSE SOLUTION
Water at main faucet
is shut o
Check faucet
Hose cut or
blocked
Battery dead
Controller set on
OFF
Controller
improperly
programmed
P1 has priority and
has not completed
its duration
Wait until P1
finishes irrigating
Battery dead
Replace valve
Water does
not turn o
Valve blocked by
dirt or scale
Valve installed
backwards
Install valve so that
the arrow points in
the direction of the
water flow.
Replace battery
Set controller to
desired program
P2 does not
begin on time
Blank display
Controller in sleep
mode
Replace damaged
section
Check program
and clock settings
Replace battery
Press MODE to
activate screen
SET
MODE
Kvutzat Geva, 1891500, Israel
Maintenance
During the season when you do not need to
water your plants, press the MODE button
quickly until OFF is displayed. DO NOT remove
the battery.
The Controller is equipped with a flash
memory that will save the programmed
functions even without the battery.
Start 1 Start 2 Start 3
Guarantee
Baccara products are guaranteed to be free from
defects in material and workmanship for a period
of one year from the date of delivery.
This guarantee does nor apply where equipment is
not used and installed strictly in accordance with
Baccara specifications and Users Guide. Neither
does it apply to failures caused by lightning strikes
or damage due to freezing temperatures or mecha-
nical causes (e.g. lawn mowers).
Baccara is not
To receive guarantee benefits, customers should
return defective units along with the receipt to the
nearest Baccara distributor.
Baccara reserves the right to alter, modify or
redesign its products, pricing and guarantee at all
times without creating any liability for the
obsolescence of customer inventory of such parts
or products.
This manufacturer guarantee policy may apply
differently in different countries.
liable for indirect, incidental or consequential
damage in connection with the use of equipment.
No display
Sleep mode Mode
Mode
Mins.
Mins.
Mins.
Mins.
Hours
Hours
Set Set Set
Day
Starts 1, 2, 3
Set Set
Hours select select
Set Set Set Set
deselect deselect
Set clock and
day of week
Set irrigation
Start
Select Starts
1, 2, 3
Select Day
1 - 7
Set seasonal
adjustment
Set P1
(valve 1)
Set P2
(valve 2)
Set
deselect
deselect
Set
Set
Set
Set
Set Start
1, 2, 3
Set Day
1 - 7
select
select
Hours
Irrigation duration
Irrigation duration
Auto
operating modes Mode OFF
Flow Chart for G75 2 Valves Irrigation Controller
06:00 12:00 18:00
Mode>2 secs.
Mode>2 secs.
Mode>2 secs.
Mode>2 secs.
Mode>2 secs.
E-mail: water@baccara-geva.com
www.baccara-geva.com
®
G75 Two Valves
Irrigation Controller
4257201402 (6/20)
• English
USERS GUIDE
16
17
18 O Season
Screws
Battery
Cover Seal
19 20
Troubleshooting
21
1. Press five long presses on the MODE
button until the following screen
appears:
1 2 3 4 5 6 7 1 2 3 4 5 6 7
The percentage programmed will flash on the
screen alternately with
2. Use the and the buttons to adjust
percentage amount to your requirments.
3. Press SET to complete adjustment.
The Controller comes with the following
factory default settings:
Factory Default Settings
Sun. Mon. Tue. Wed. Thu. Fri. Sat.
P1
P2
Selected Starts
Irrigation Days
Irrigation Start Times
Irrigation Duration for Valve 1 (P1) and
Valve 2 (P2)
Start 1 Start 2 Start 3
Start Times for P1 and P2
Duration Time
Selected Starts for P1
Selected Starts for P2
P1 0:15
P2 0:15
√
√
√
√
√
√
√
√
Battery Installation
Replace the battery at the start of each
irrigation season and when the low battery
symbol appears:
Use a 9V alkaline top quality battery only.
1. Use a Phillips screwdriver, remove the
four battery cover screws.
2. Remove the battery cover and seal.
3. Replace the battery.
4. After reattaching the seal, put the cover
back, and secure with the four screws.
When replacing seal,
push seal tabs into slots.
PROBLEM
Controller
does not
irrigate plants
as desired
CAUSE SOLUTION
Water at main faucet
is shut o
Check faucet
Hose cut or
blocked
Battery dead
Controller set on
OFF
Controller
improperly
programmed
P1 has priority and
has not completed
its duration
Wait until P1
finishes irrigating
Battery dead
Replace valve
Water does
not turn o
Valve blocked by
dirt or scale
Valve installed
backwards
Install valve so that
the arrow points in
the direction of the
water flow.
Replace battery
Set controller to
desired program
P2 does not
begin on time
Blank display
Controller in sleep
mode
Replace damaged
section
Check program
and clock settings
Replace battery
Press MODE to
activate screen
SET
MODE
Kvutzat Geva, 1891500, Israel
Maintenance
During the season when you do not need to
water your plants, press the MODE button
quickly until OFF is displayed. DO NOT remove
the battery.
The Controller is equipped with a flash
memory that will save the programmed
functions even without the battery.
Start 1 Start 2 Start 3
Guarantee
Baccara products are guaranteed to be free from
defects in material and workmanship for a period
of one year from the date of delivery.
This guarantee does nor apply where equipment is
not used and installed strictly in accordance with
Baccara specifications and Users Guide. Neither
does it apply to failures caused by lightning strikes
or damage due to freezing temperatures or mecha-
nical causes (e.g. lawn mowers).
Baccara is not
To receive guarantee benefits, customers should
return defective units along with the receipt to the
nearest Baccara distributor.
Baccara reserves the right to alter, modify or
redesign its products, pricing and guarantee at all
times without creating any liability for the
obsolescence of customer inventory of such parts
or products.
This manufacturer guarantee policy may apply
differently in different countries.
liable for indirect, incidental or consequential
damage in connection with the use of equipment.
No display
Sleep mode Mode
Mode
Mins.
Mins.
Mins.
Mins.
Hours
Hours
Set Set Set
Day
Starts 1, 2, 3
Set Set
Hours select select
Set Set Set Set
deselect deselect
Set clock and
day of week
Set irrigation
Start
Select Starts
1, 2, 3
Select Day
1 - 7
Set seasonal
adjustment
Set P1
(valve 1)
Set P2
(valve 2)
Set
deselect
deselect
Set
Set
Set
Set
Set Start
1, 2, 3
Set Day
1 - 7
select
select
Hours
Irrigation duration
Irrigation duration
Auto
operating modes Mode OFF
Flow Chart for G75 2 Valves Irrigation Controller
06:00 12:00 18:00
Mode>2 secs.
Mode>2 secs.
Mode>2 secs.
Mode>2 secs.
Mode>2 secs.
E-mail: water@baccara-geva.com
www.baccara-geva.com
®
G75 Two Valves
Irrigation Controller
4257201402 (6/20)
• English
USERS GUIDE
16
17
18 O Season
Screws
Battery
Cover Seal
19 20
Troubleshooting
21
1. Press five long presses on the MODE
button until the following screen
appears:
1 2 3 4 5 6 7 1 2 3 4 5 6 7
The percentage programmed will flash on the
screen alternately with
2. Use the and the buttons to adjust
percentage amount to your requirments.
3. Press SET to complete adjustment.
The Controller comes with the following
factory default settings:
Factory Default Settings
Sun. Mon. Tue. Wed. Thu. Fri. Sat.
P1
P2
Selected Starts
Irrigation Days
Irrigation Start Times
Irrigation Duration for Valve 1 (P1) and
Valve 2 (P2)
Start 1 Start 2 Start 3
Start Times for P1 and P2
Duration Time
Selected Starts for P1
Selected Starts for P2
P1 0:15
P2 0:15
√
√
√
√
√
√
√
√
Battery Installation
Replace the battery at the start of each
irrigation season and when the low battery
symbol appears:
Use a 9V alkaline top quality battery only.
1. Use a Phillips screwdriver, remove the
four battery cover screws.
2. Remove the battery cover and seal.
3. Replace the battery.
4. After reattaching the seal, put the cover
back, and secure with the four screws.
When replacing seal,
push seal tabs into slots.
PROBLEM
Controller
does not
irrigate plants
as desired
CAUSE SOLUTION
Water at main faucet
is shut o
Check faucet
Hose cut or
blocked
Battery dead
Controller set on
OFF
Controller
improperly
programmed
P1 has priority and
has not completed
its duration
Wait until P1
finishes irrigating
Battery dead
Replace valve
Water does
not turn o
Valve blocked by
dirt or scale
Valve installed
backwards
Install valve so that
the arrow points in
the direction of the
water flow.
Replace battery
Set controller to
desired program
P2 does not
begin on time
Blank display
Controller in sleep
mode
Replace damaged
section
Check program
and clock settings
Replace battery
Press MODE to
activate screen
SET
MODE
Kvutzat Geva, 1891500, Israel
Maintenance
During the season when you do not need to
water your plants, press the MODE button
quickly until OFF is displayed. DO NOT remove
the battery.
The Controller is equipped with a flash
memory that will save the programmed
functions even without the battery.
Start 1 Start 2 Start 3
Guarantee
Baccara products are guaranteed to be free from
defects in material and workmanship for a period
of one year from the date of delivery.
This guarantee does nor apply where equipment is
not used and installed strictly in accordance with
Baccara specifications and Users Guide. Neither
does it apply to failures caused by lightning strikes
or damage due to freezing temperatures or mecha-
nical causes (e.g. lawn mowers).
Baccara is not
To receive guarantee benefits, customers should
return defective units along with the receipt to the
nearest Baccara distributor.
Baccara reserves the right to alter, modify or
redesign its products, pricing and guarantee at all
times without creating any liability for the
obsolescence of customer inventory of such parts
or products.
This manufacturer guarantee policy may apply
differently in different countries.
liable for indirect, incidental or consequential
damage in connection with the use of equipment.
No display
Sleep mode Mode
Mode
Mins.
Mins.
Mins.
Mins.
Hours
Hours
Set Set Set
Day
Starts 1, 2, 3
Set Set
Hours select select
Set Set Set Set
deselect deselect
Set clock and
day of week
Set irrigation
Start
Select Starts
1, 2, 3
Select Day
1 - 7
Set seasonal
adjustment
Set P1
(valve 1)
Set P2
(valve 2)
Set
deselect
deselect
Set
Set
Set
Set
Set Start
1, 2, 3
Set Day
1 - 7
select
select
Hours
Irrigation duration
Irrigation duration
Auto
operating modes Mode OFF
Flow Chart for G75 2 Valves Irrigation Controller
06:00 12:00 18:00
Mode>2 secs.
Mode>2 secs.
Mode>2 secs.
Mode>2 secs.
Mode>2 secs.
E-mail: water@baccara-geva.com
www.baccara-geva.com
®
G75 Two Valves
Irrigation Controller
4257201402 (6/20)
• English
USERS GUIDE
16
17
18 O Season
Screws
Battery
Cover Seal
19 20
Troubleshooting
21
1. Press five long presses on the MODE
button until the following screen
appears:
1 2 3 4 5 6 7 1 2 3 4 5 6 7
The percentage programmed will flash on the
screen alternately with
2. Use the and the buttons to adjust
percentage amount to your requirments.
3. Press SET to complete adjustment.
The Controller comes with the following
factory default settings:
Factory Default Settings
Sun. Mon. Tue. Wed. Thu. Fri. Sat.
P1
P2
Selected Starts
Irrigation Days
Irrigation Start Times
Irrigation Duration for Valve 1 (P1) and
Valve 2 (P2)
Start 1 Start 2 Start 3
Start Times for P1 and P2
Duration Time
Selected Starts for P1
Selected Starts for P2
P1 0:15
P2 0:15
√
√
√
√
√
√
√
√
Battery Installation
Replace the battery at the start of each
irrigation season and when the low battery
symbol appears:
Use a 9V alkaline top quality battery only.
1. Use a Phillips screwdriver, remove the
four battery cover screws.
2. Remove the battery cover and seal.
3. Replace the battery.
4. After reattaching the seal, put the cover
back, and secure with the four screws.
When replacing seal,
push seal tabs into slots.
PROBLEM
Controller
does not
irrigate plants
as desired
CAUSE SOLUTION
Water at main faucet
is shut o
Check faucet
Hose cut or
blocked
Battery dead
Controller set on
OFF
Controller
improperly
programmed
P1 has priority and
has not completed
its duration
Wait until P1
finishes irrigating
Battery dead
Replace valve
Water does
not turn o
Valve blocked by
dirt or scale
Valve installed
backwards
Install valve so that
the arrow points in
the direction of the
water flow.
Replace battery
Set controller to
desired program
P2 does not
begin on time
Blank display
Controller in sleep
mode
Replace damaged
section
Check program
and clock settings
Replace battery
Press MODE to
activate screen
SET
MODE
Kvutzat Geva, 1891500, Israel
Maintenance
During the season when you do not need to
water your plants, press the MODE button
quickly until OFF is displayed. DO NOT remove
the battery.
The Controller is equipped with a flash
memory that will save the programmed
functions even without the battery.
Start 1 Start 2 Start 3
Guarantee
Baccara products are guaranteed to be free from
defects in material and workmanship for a period
of one year from the date of delivery.
This guarantee does nor apply where equipment is
not used and installed strictly in accordance with
Baccara specifications and Users Guide. Neither
does it apply to failures caused by lightning strikes
or damage due to freezing temperatures or mecha-
nical causes (e.g. lawn mowers).
Baccara is not
To receive guarantee benefits, customers should
return defective units along with the receipt to the
nearest Baccara distributor.
Baccara reserves the right to alter, modify or
redesign its products, pricing and guarantee at all
times without creating any liability for the
obsolescence of customer inventory of such parts
or products.
This manufacturer guarantee policy may apply
differently in different countries.
liable for indirect, incidental or consequential
damage in connection with the use of equipment.
No display
Sleep mode Mode
Mode
Mins.
Mins.
Mins.
Mins.
Hours
Hours
Set Set Set
Day
Starts 1, 2, 3
Set Set
Hours select select
Set Set Set Set
deselect deselect
Set clock and
day of week
Set irrigation
Start
Select Starts
1, 2, 3
Select Day
1 - 7
Set seasonal
adjustment
Set P1
(valve 1)
Set P2
(valve 2)
Set
deselect
deselect
Set
Set
Set
Set
Set Start
1, 2, 3
Set Day
1 - 7
select
select
Hours
Irrigation duration
Irrigation duration
Auto
operating modes Mode OFF
Flow Chart for G75 2 Valves Irrigation Controller
06:00 12:00 18:00
Mode>2 secs.
Mode>2 secs.
Mode>2 secs.
Mode>2 secs.
Mode>2 secs.
E-mail: water@baccara-geva.com
www.baccara-geva.com
®
Other manuals for G75
3
Table of contents
Other Baccara Irrigation System manuals
