Base Building 10' x 12'
01-05-2021
GAMBREL 10' x 12' (304,8 x 365,8 cm)
ASSEMBLY MANUAL
16460
KEEP THIS MANUAL FOR FUTURE REFERENCE
BUILDING SIZE ACTUAL FLOOR SIZE
10' x 12' (365,8 x 365,8 cm)
BASE MODEL 10' x 12' (304,8 x 365,8 cm)
10' x 16' (365,8 x 487,7 cm)
ADD 10' x 4' 10' x 16' (304,8 x 487,7 cm)
BEFORE YOU BEGIN
IMPORTANT!
READ INSTRUCTIONS THOROUGHLY PRIOR TO BEGINNING ASSEMBLY.
• BUILDING RESTRICTIONS AND APPROVALS
Be sure to check local building department and homeowners association for specic restrictions and/ or requirements before building.
• ENGINEERED DRAWINGS
Contact our Customer Service Team if engineered drawings are needed to pull local permits.
• SURFACE PREPARATION
To ensure proper assembly you must build your shed on a level surface.
Recommended methods and materials to level your shed are listed on page 10.
• CHECK ALL PARTS
Inventory all parts listed on pages 5-8.
• ADDITIONAL MATERIALS
You will need additional materials to complete your shed. See pages 3-4 for required and optional materials and quantities.
***CONTACT OUR CUSTOMER SERVICE TEAM
IF ANY PARTS ARE MISSING OR DAMAGED***
- Order form and warranty at back of manual -
Call: 1-888-827-9056 email: [e-mail]
Base Building +1 Extender
10' x 16'

2

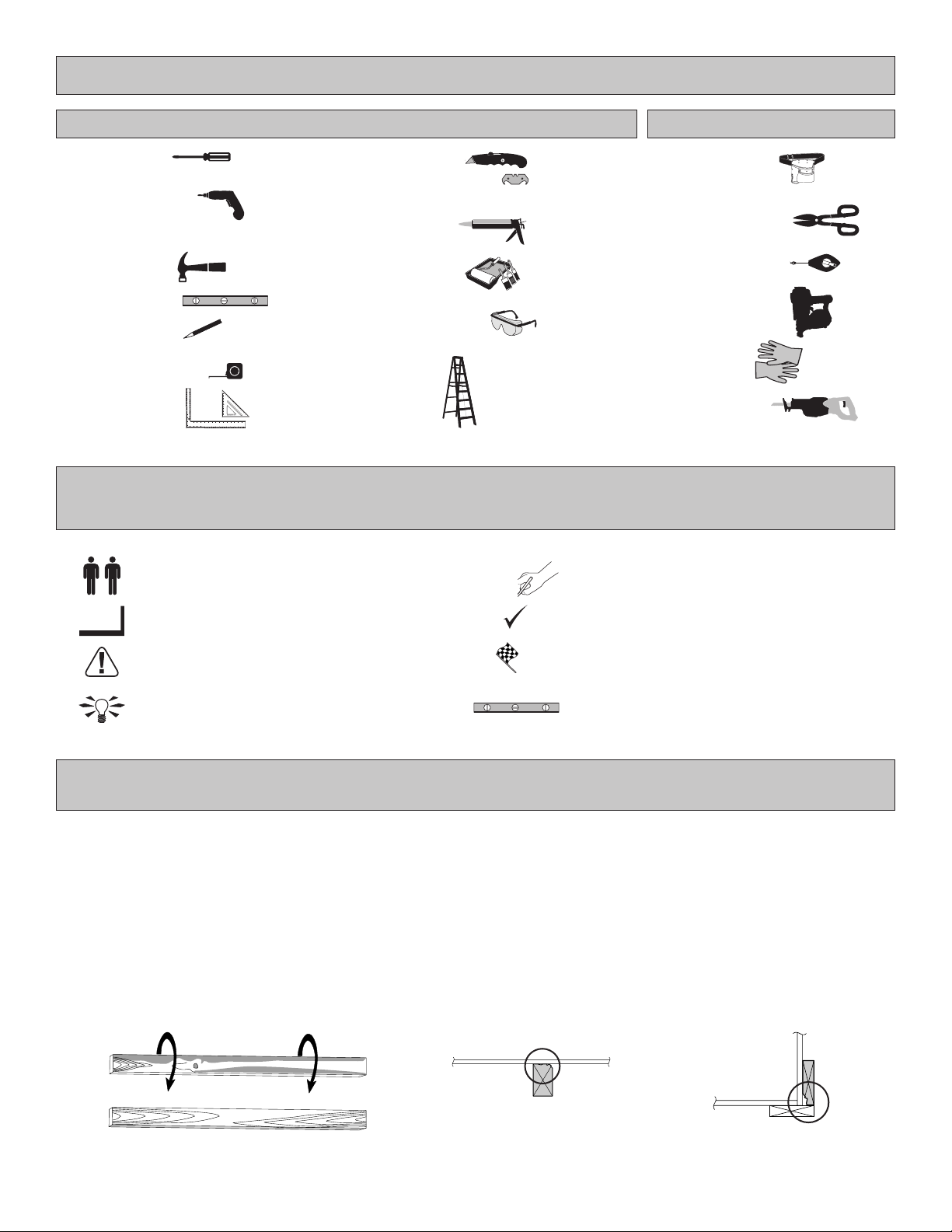

TOOLS
Safety! Always use approved safety glasses during assembly.
OptionalRequired
HELPFUL REMINDER SYMBOLS
Look for these symbols for helpful reminders throughout this manual.
ORIENT LUMBER AND TRIM FOR BEST APPEARANCE
= Assistance Required; two or more people.
= Ensure squareness.
= Important required step or operation.
= Helpful assembly hint.
= Mark part with pencil.
= Beginning of steps for assembly or installation.
= You have nished the assembly or installation.
= Level
❑Gloves
Framing lumber is graded for structural strength and not appearance. Exterior trim is graded for one good side.
Always install the material leaving the best edge and best surface visible. Please remember that these blemishes in no way
negatively a󰀨ect the strength or integrity of our product. (See Fig. A, B, C.)
A
❑Safety Glasses
❑Tape Measure
❑Paint Tools
❑Ladder
❑Caulk Gun
❑Hammer
❑Level
FINISH
BEGIN
❑Pencil
❑ Phillips
Screwdriver
❑ Drill / Driver
❑ 3/8" Drill Bit
❑#2 Philips Drive Bit
❑ Tool Belt/
Nail Pouch
❑Chalk Line
❑Nail Gun
• gun nails
❑Tin Snips
(for drip edge)
❑ Square or
❑Utility Knife
❑Shingle Blades
B C
❑Sawsall

3
FOUNDATION OR FLOOR MATERIALS
ADDITIONAL MATERIALS
• This shed does not include any oor or leveling materials.
• See the FLOOR LEVELING section on page 10 for recommended methods and suggested materials to properly level your oor,
as this will vary depending on your specic site.
REINFORCED WOOD FLOOR FRAME (OPTIONAL)
IMPORTANT! Depending on your specic use you may want to construct a heavy duty oor frame by adding additional oor joists
(shown below as shaded). Below is a list of additional materials (not included):
x3
x4
x12
x16
2 x 4 x 10' (5,1 x 10,2 x 304,8 cm) Treated Lumber
cut to 2 x 4 x 117" (5,1 x 10,2 x 297,2 cm)
3" (7,6 cm) hot-dipped galvanized nails
2 x 4 x 10' (5,1 x 10,2 x 304,8 cm) Treated Lumber
cut to 2 x 4 x 117" (5,1 x 10,2 x 297,2 cm)
3" (7,6 cm) hot-dipped galvanized nails
10x16'
10x12'
Optional 12" (30,5 cm) spacing
Optional 12" (30,5 cm) spacing
Standard 16" (40,5 cm) spacing
Standard 16" (40,5 cm) spacing

4
ADDITIONAL MATERIALS
ALL SIZES
COMPLETING YOUR SHED
You will need these additional materials:
OPTIONAL MATERIALS
REFER TO THE BACK OF THIS MANUAL AND THE MANUFACTURER’S INSTRUCTIONS FOR
INSTALLATION OF SHINGLES, DRIP EDGE AND FELT.
3-TAB SHINGLES (Bundles)..................
PAINT FOR SIDING (Gallons)................
Use 100% acrylic latex exterior paint.
1" GALVANIZED ROOFING NAILS (lbs).
For shingles.
PAINT FOR TRIM ......................1 Quart
Use 100% acrylic latex exterior paint.
CAULK ...10x12 - 3 Tubes ...10x16 - 4 Tubes
Use acrylic latex exterior caulk that is paintable.
7
3
4
9
3
5
10x12' 10x16'
10x12' 10x16'
(2) coats recommended.
DRIP EDGE (Feet).......................................
#15 ROOFING FELT (Sq ft. to cover)........
1" GALVANIZED ROOFING NAILS(lbs)....
40
198
¼
40
263
¼
For roong felt.
2" (5,1 cm) 2" (5,1 cm)
x3 x4
1 lb. of 2" (5,1 cm) Hot
Dipped Galvanized
Box-Type Nails.
1 lb. of 2" (5,1 cm) Hot
Dipped Galvanized
Box-Type Nails.
NOTE: Use a minimum of 5/8" (1,6 cm) Oriented Strand Board (OSB)
5/8" x 48" x96"
(1,6 x 121,9 x 243,8 cm)
x4
5/8" x 48" x96"
(1,6 x 121,9 x 243,8 cm)
x5
FLOOR PANELS (Not Included)
You will need oor panels and nails to complete your oor.
Floor panel sizes and quantities are shown below.
10x12' 10x16'
NAIL BOXES (Not Included)
3" (7,6 cm)
2" (5,1 cm)
x5 BOXES
x6 BOXES

5
RAFTERS WALL
3/4"
(1,9 cm)
6 x 24" (15,2 x 61 cm)
x12
x5 2 x 4 x 7" (5,1 x 10,2 x 17,8 cm)
AL
x2 2 x 4 x 48" (5,1 x 10,2 x 121,9 cm)
SP
x2 2 x 4 x 44-3/8" (5,1 x 10,2 x 112,7 cm)
HVC
x2 2 x 4 x 67" (5,1 x 10,2 x 170,2 cm)
AM
x1 7/16" x 3-1/4" x 66-3/4" (1,1 x 8,3 x 170,2 cm) OSB
x2 2 x 4 x 68" (5,1 x 10,2 x 172,7 cm)
UM
x4 2 x 4 x 68-1/2" (5,1 x 10,2 x 174 cm)
YFA
x22 2 x 4 x 78-1/2" (5,1 x 10,2 x 199,4 cm)
AI
x4 2 x 4 x 92-5/8" (5,1 x 10,2 x 235,3 cm)
TJ
x4 2 x 4 x 96" (5,1 x 10,2 x 243,9 cm)
TP
x2 2 x 4 x 96" (5,1 x 10,2 x 243,9 cm)
TP
x2 2 x 4 x 84" (5,1 x 10,2 x 213,4 cm)
TO
x14
2 x 4 x 36" (5,1 x 10,2 x 91,4 cm)
x2 SL
2 x 4 x 24" (5,1 x 10,2 x 61 cm)
x2 RL
2 x 4 x 20-3/8" (5,1 x 10,2 x 51,8 cm)
x2 JBD
2 x 4 x 39" (5,1 x 10,2 x 99,1 cm)
x4 QL
1 x 3 x 5" (2,5 x 7,6 x 12,7 cm)
Used as a gauge block for 3/4"
(1,9 cm) measurement.
x1 GAA
PARTS IDENTIFICATION AND SIZES
Double letter part identication
is stamped on some parts.
• Check these locations for part stamp.
WOOD SIZE CONVERSION CHART
Nominal Board Size Actual Size
1 x 4 .................3/4" x 3-1/2" (1,9 x 8,9 cm)
2 x 4 ..............1-1/2" x 3-1/2" (3,8 x 8,9 cm)
2 x 3 ..............1-1/2" x 2-1/2" (3,8 x 6,3 cm)
1 x 3 .................3/4" x 2-1/2" (3,8 x 6,3 cm)
RS RS
RS

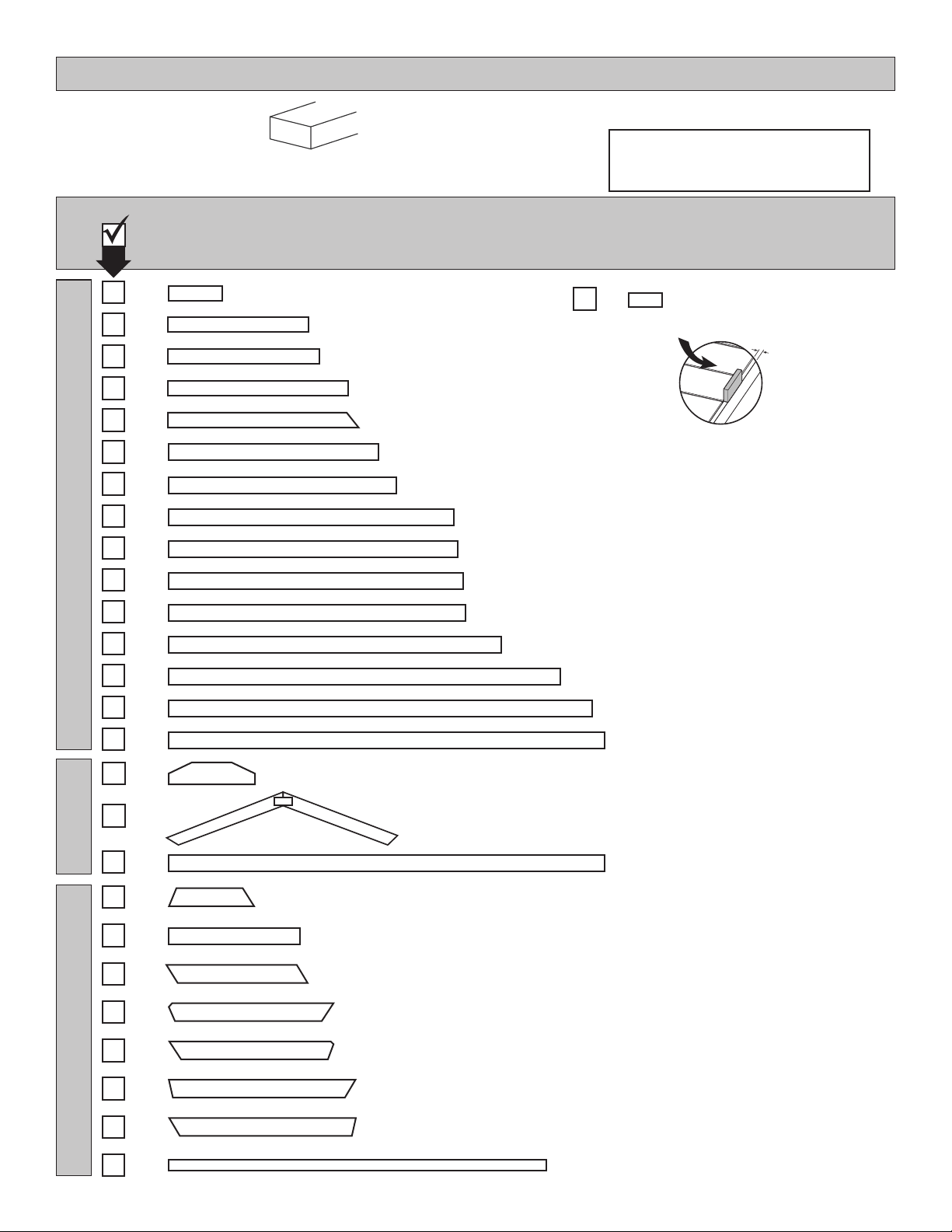

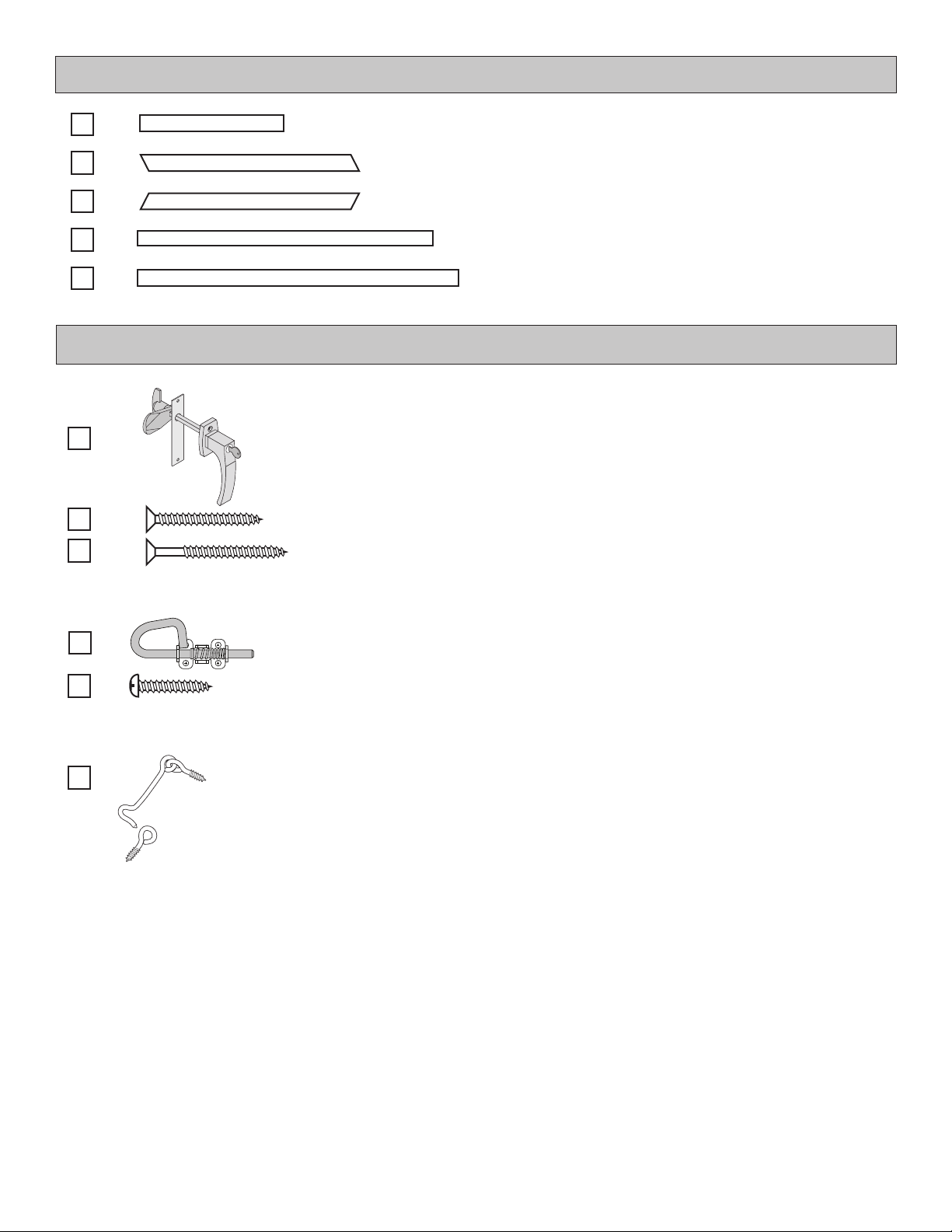

GAMBREL 10' x 12' PARTS LIST
INVENTORY YOUR PARTS before you begin.
We suggest sorting parts by the category they are listed in.
10x12'
Pre-assembled
TRIM
KX
x4 19/32" x 2-1/2" X 21-3/4" (1,6 x 7,6 x 55,2 cm)
5/8 x 4 x 36" (1,6 x 10 x 91 cm)
ZJL
x2
5/8 x 4 x 36" (1,6 x 10 x 91 cm)
ZJR
x2
5/8 x 4 x 48-5/16 (1,6 x 10 x 123 cm)
ZQL
x2
5/8 x 4 x 48-5/16 (1,6 x 10 x 123 cm)
ZQR
x2
3/8" x 1-3/4" x 83-1/4" (1 x 4,5 x 211,5 cm)
x8
x2 19/32" x 2-1/2" x 12-7/8" (1,6 x 7,6 x 32,7 cm)
JGA
x1 LKA 19/32" x 2-1/2" x 25-3/4" (1,6 x 7,6 x 65,4 cm)

6
NOTE: Panel parts are not stamped with part identication.
x3x7
x1
x1
3/8 x 48 x 84"
(1 x 121,9 x 213,4 cm)
3/8 x 23-7/8 x 84"
(1 x 121,9 x 213,4 cm)
3/8 x 11-7/8 x 84" (1 x 30,2 x 213,4 cm) 3/8 x 11-7/8 x 84" (1 x 30,2 x 213,4 cm)
x2 x2
3/8" x 43-3/8" x 48"
(1 x 110,2 x 121,9 cm)
3/8" x 23-7/8" x 47-1/8"
(1 x 60,6 x 119,7 cm)
Roof panels are 7/16" (1,1 cm) thick.
x2
48" x 96"
(121,9 x 243,8 cm)
x2
23-7/8" x 96"
(60,6 x 243,8 cm)
1-1/4" (3,2 cm)
1-1/2" (3,8 cm)
x200
x85
x25
2" (5,1 cm)
3" (7,6 cm)
x2
x10
x105
2" (5,1 cm)

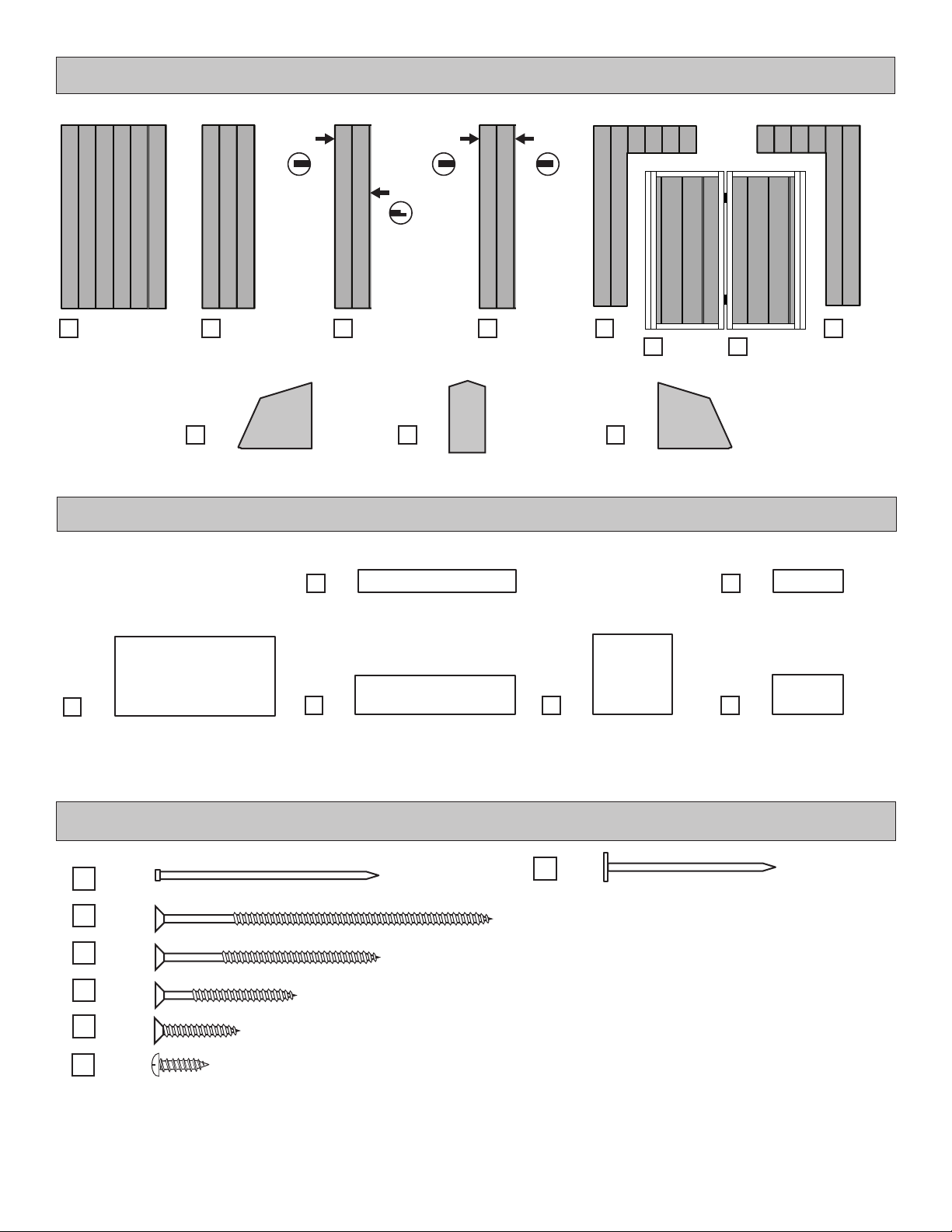

FASTENER/HARDWARE BAG (Shown Actual Size)
PANEL & DOORS PARTS LIST
x1
x1
x2
3/8" x 43-3/8" x 48"
(1 x 110,2 x 121,9 cm)
ROOF PANELS
x2
47-7/8" x 48"
(121,6 x 121,9 cm)
x2
23-7/8" x 48"
(60,6 x 121,9 cm)
NOTE:
If you are using a nail gun, nails
may be used where screws are
shown for quicker assembly.
Length of nail must match screw length.
x1
Left
x1
Right
LIP EDGE
SQUARE
EDGE
SQUARE
EDGE
SQUARE
EDGE
x2
11-7/8" x 48"
(30,2 cm x 121,9 cm)
x2
11-7/8" x 96"
(30,2 cm x 243,8 cm)
3/4" (1,9 cm)
1/2" (1,3 cm)
x12

7
DOOR HARDWARE
3/4" (1,9 cm)
x8
x2
x1
x2
x2
1" (2,5 cm)
1-1/4" (3,2 cm)
DOOR TRIM
x2
AH
x2 19/32" x 2-1/2" x 26-5/8" (1,5 x 6,3 x 67,7 cm)
MDRx2 19/32" x 2-1/2" x 39-7/8" (1,5 x 6,3 x 101,3 cm)
MDLx2 19/32" x 2-1/2" x 39-7/8" (1,5 x 6,3 x 101,3 cm)
OO
x2 69" (175,3 cm) Door Sti󰀨ener
ZJ
x1 19/32" x 2-1/2" x 72" (1,5 x 6,3 x 182,9 cm)

8

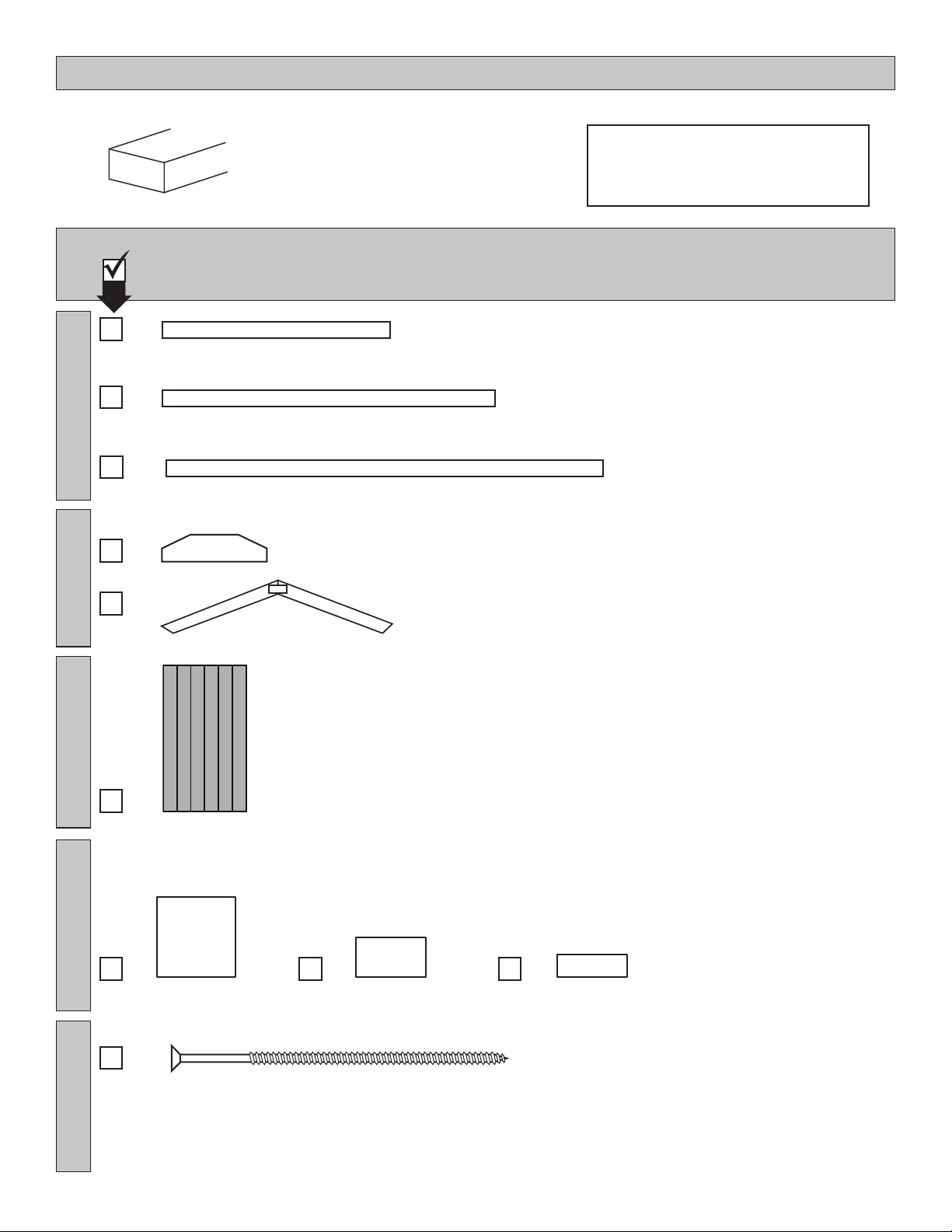

PARTS IDENTIFICATION AND SIZES
GAMBREL 10' x 4' EXTENDER KIT PARTS LIST
INVENTORY YOUR PARTS before you begin.
We suggest sorting parts by the category they are listed in.
WOOD SIZE CONVERSION CHART
Nominal Board Size Actual Size
10x4'
Part identication is
stamped on some parts.
• Check these locations for part stamp.
RS RS
6" x 24" (15 x 60,1 cm)
x4
x6 2 x 4 x 48" (5,1 x 10,2 x 121,9 cm)
SP
x4 2 x 4 x 78-1/2" (5,1 x 10,2 x 199,4 cm)
AI
Roof panels are 7/16" (1,1 cm) thick.
x2 3/8 x 48 x 84"
(1 x 121,9 x 213,4 cm)
1 x 4 .................3/4" x 3-1/2" (1,9 x 8,9 cm)
2 x 4 ..............1-1/2" x 3-1/2" (3,8 x 8,9 cm)
2 x 3 ..............1-1/2" x 2-1/2" (3,8 x 6,3 cm)
1 x 3 .................3/4" x 2-1/2" (3,8 x 6,3 cm)
WALL
RAFTERSHARDWARE WALL PANELSROOF PANELS
x4 Pre-assembled
x1 2 x 4 x 96" (5,1 x 10,2 x 243,9 cm)
TP
3" (7,6 cm)
x12
x2
47-7/8" x 48"
(121,6 x 121,9 cm)
x2
23-7/8" x 47-7/8"
(60,5 x 121,9 cm)
x2
11-7/8" x 48"
(30,2 cm x 121,9 cm)

9
A
B
C
4"
(10,2 cm)
3-1/2"
(8,9 cm)
D
D
CONCRETE FOUNDATION
If you choose to install your kit on a concrete slab refer to the diagram below.
Attach the sill plates on the foundaton as shown, and continue on to page 14.
ABC D
Actual Floor SizeBuilding Size
• A treated 2x4 (5,1 x 10,2 cm) sill plate is required when installing your shed on concrete.
Purchase full length treated lumber, or butt shorter pieces end-to-end and seal seams with caulk.
• Use a high quality exterior grade caulk beneath all sill plates.
• Fasten 2x4 (5,1 x 10,2 cm) sill plates to slab using approved concrete anchors (fasteners not included).
• Check local code for concrete foundation requirements.
120" (304,8 cm)
120" (304,8 cm)
137" (348 cm)
185" (469,9 cm)
10' x 12' (304,8 x 365,8 cm)
10'x 16' (304,8 x 487,7 cm)
10'x12' (304,8 x 365,8 cm)
10'x 16' (304,8 x 487,7 cm)
144" (365,8 cm) 187-7/16" (476,1 cm)
192" (487,7 cm) 226-7/16" (575,2 cm)
Treated Sill Plate
Caulk between
sill plate and
concrete.
10' x 12' Building Requires:
10' x 16' Building Requires:
2 x 4 x 12' (5,1 x 10,2 x 365,8 cm)
x2 2 x 4 x 10' (5,1 x 10,2 x 304,8 cm) x2
2 x 4 x10' (5,1 x 10,2 x 304,8 cm)
x2
2 x 4 x 16' (5,1 x 10,2 x 487,7 cm)
x2
Sill plates must be treated lumber.
Caulk
x1
Caulk
x1
Allow new concrete slabs to cure for at least seven (7) days.
ABC D
Actual Floor SizeBuilding Size

10
• 3" Screws angled into 4x4.
• (2) at each point frame
and 4x4 touch.
Runners are generally
12" (30,5 cm) from ends
of oor frame and
under seams.
FLOOR FRAME NOT INCLUDED
OPTIONAL WOOD FRAME FLOOR LEVELING OPTIONS
There are multiple ways to level your oor frame. Our recommended leveling method is shown below.
Leveling materials are not included in this kit.
PREFERRED METHOD - 4x4 TREATED RUNNERS (Typical for 10' x 12' Kit)
• Level under 4x4 runners only.
• Locate leveling material 12" from ends of runners and no more than 48" apart.
• Asphalt shingles should be used between 4x4 runners and blocks or treated lumber.
Never use shingles in direct contact with ground.
• For best results and aiding in water drainage use gravel under each concrete block.
LEVELING METHODS
MATERIAL REQUIRED:
4 x 4 x 12' (10,2 x 10,2 x 305 cm) Treated Lumber
4 x 4 x 16' (10,2 x 10,2 x 487,7 cm) Treated Lumber
x3
x3
Use only wood treated for ground contact and fasteners approved for use with treated wood.
Always support frame seams.
Leveling higher than 16" not recommended.
LEVELING MATERIALS
Gravel
2x4 Treated Lumber
Solid Masonry Blocks in 1", 2", 4" or 8" thickness
Asphalt Shingles
10' x 12'
10' x 16'
3" (7,6 cm)
3" (7,6 cm)
Fasteners for Frame to 4x4:
(3" Screws shown as one option.)
Minimum 3" screws / exterior grade.
12"
(30,5 cm)
12"
(30,5 cm)
Measurements to
centers of 4x4's.
8" Block
4" Block
Gravel
Gravel
Do not exceed 16".
4x4 Runner
Shingle
Shingle
Maximum between leveling
material locations.
48"
12"
2x4 Treated Lumber
2" Block
Level
12"
x60
x78

11
Measurements to
centers of 4x4's.
Measurements to
centers of 4x4's.
4x4 runners are generally installed 12" (30,5 cm) from ends of oor frame and under any seams.
FINISH
FINISH
Your oor frame is now level.
Your oor frame is now level.
After the frame is level and square, secure one side of frame to 4x4 runners using one fastener at ends
of each runner. At the opposite end of the frame, secure the frame to 4x4 runners with one fastener at the
ends of each runner, ensuring that the frame remains square.
Fasten the frame to the 4x4 runners with (2) 3" screws at each connection (Fig. B).
Second, secure at ends with
one fastener.
Second, secure at ends with
one fastener.
Fig. A
10' x 12'
Fig. C
10' x 16'
12"
(30,5 cm)
12"
(30,5 cm)
12"
(30,5 cm)
12"
(30,5 cm)
First, secure at ends with
one fastener.
Fig. B
Fig. B
187-7/16"
(476,1 cm)
226-7/16"
(575,2 cm)
187-7/16"
(476,1 cm)
226-7/16"
(575,2 cm)
LEVEL AND SQUARE FLOOR FRAME
Before attaching oor decking, it is important to level and square the oor frame.
A level and square oor frame is required to correctly construct your shed.
2
BEGIN
1
Use a level and ensure the frame is level before applying oor panels.
Check for frame squareness by measuring diagonally across the corners.
If the measurements are the same, the frame is square.
• The diagonal measurement for 10' x 12' will be approximately 187-7/16" (476,1 cm) (Fig. A).
• The diagonal measurement for 10' x 16' will be approximately 226-7/16" (575,2 cm) (Fig. C).
See page 10 for the preferred oor leveling method.
LEVELING & SQUARING THE FLOOR FRAME (Not Included)
• 3" (7,6 cm) screws angled into 4x4.
• (2) at each connnection.
• 3" (7,6 cm) screws angled into 4x4.
• (2) at each connnection.
First, secure at ends with
one fastener.

12
IMPORTANT!
IMPORTANT!
• The oor should used as a stable work surface for wall construction.
• Organize your assembly procedure during the build process
to avoid over-handling of the walls.
HINT:
DOOR
EAVE WALL
EAVE WALL
EAVE WALL
EAVE WALL
OPTIONS
GABLEWALL
DOOR
CENTERED
EAVE WALL
DOOR OFFSET
EAVE WALL
DOOR
CENTERED
GABLE WALL
NOTE: 10' x 12' Gambrel shown standard throughout manual
Ensure the oor frame is level after installing oor panels. Re-level if needed.

13
(This page intentionally left blank.)

14

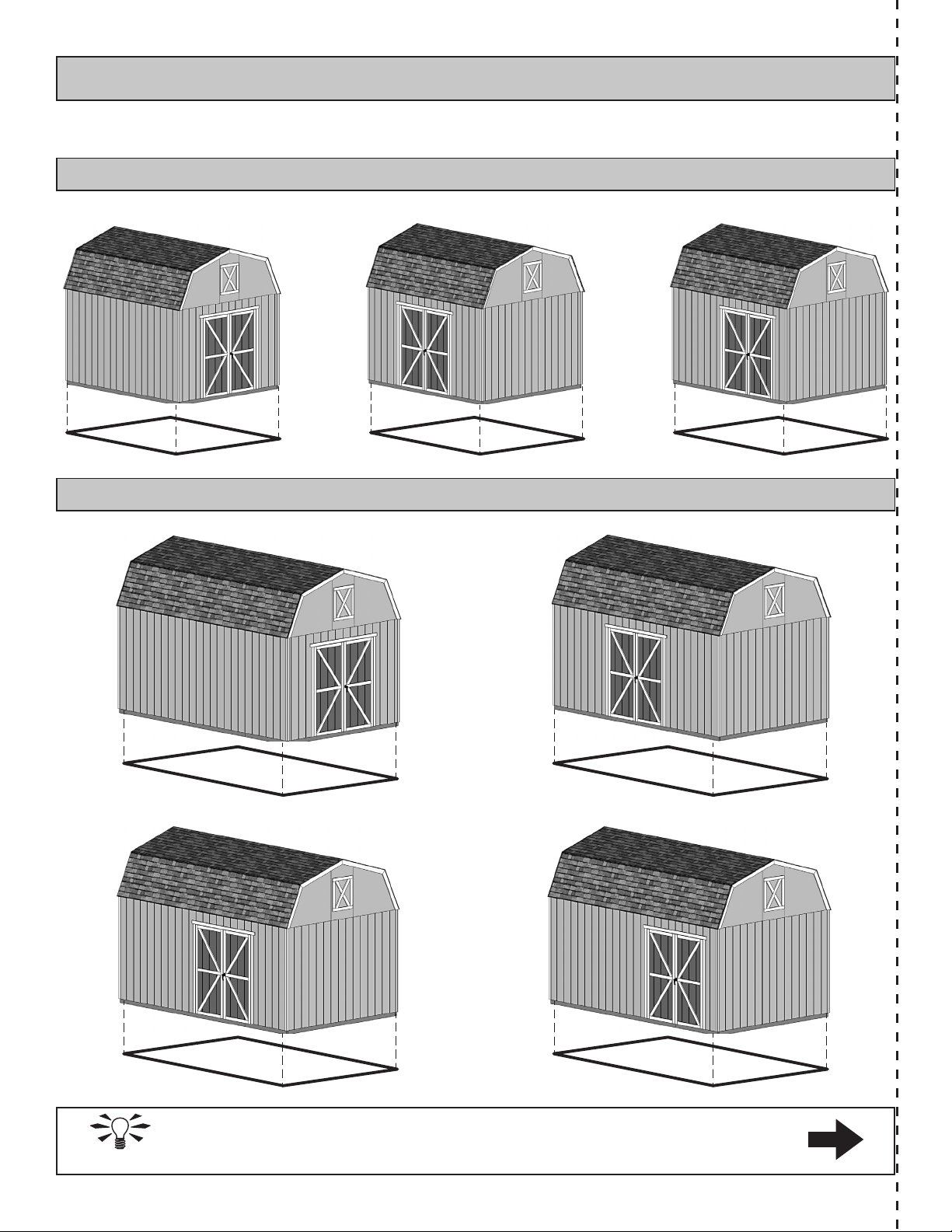

WALL CONFIGURATION GUIDE
10' x 12'
10' x 16'
Create your own style of shed. Choose your door location.
Compare this guide with the wall index to nd the corresponding pages.
01
01
03
03
03
03 03
02
02
02
02
02
02 02
04
08
11
10
12
06 07
05
09
08
09
09
04
V-1
V-1
V-2 V-3
V-2
05
Streamline your wall assembly process by cutting out the pages
for the wall conguration guide and the wall index.
HINT:
CUT HERE

15
10' x 12' After assembling the walls for your 10' x 12' shed, go to page 42 for wall installation.
10' x 16' After assembling the walls for your 10' x 16' shed, go to page 49 for wall installation.
10' x 12'
Door is on the 10' wall.
Wall 01: Page 18
Wall 02: Page 20
Wall 04: Page 24
Wall 05: Page 26
10' x 12' V-1
Door is on the 12' wall, centered.
Wall 02: Page 20
Wall 03: Page 22
Wall 04: Page 24
Wall 06: Page 28
10' x 12' V-2
Door is on the 12' wall, oset.
Wall 02: Page 20
Wall 03: Page 22
Wall 05: Page 26
Wall 07: Page 30
10' x 16'
Door is on the 10' wall.
Wall 01: Page 18
Wall 02: Page 20
Wall 08: Page 32
Wall 09: Page 34
10' x 16' V-1
Door is on the 16' wall, centered.
Wall 02: Page 20
Wall 03: Page 22
Wall 09: Page 34
Wall 10: Page 36
10' x 16' V-2
Door is on the 16' wall, o󰀨set.
Wall 02: Page 20
Wall 03: Page 22
Wall 08: Page 32
Wall 11: Page 38
10' x 16' V-3
Door is on the 16' wall, extra-o󰀨set.
Wall 02: Page 20
Wall 03: Page 22
Wall 09: Page 34
Wall 12: Page 40

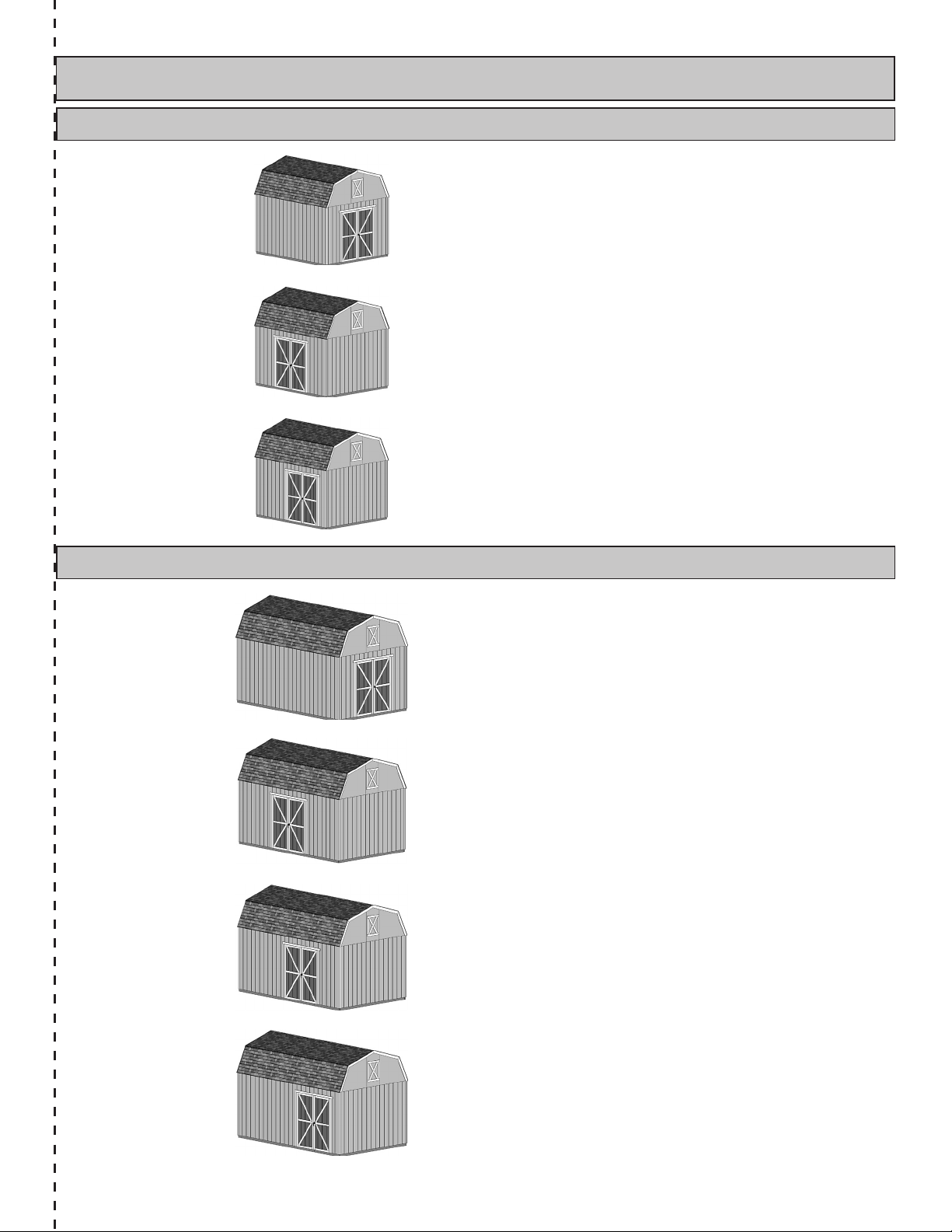

WALL INDEX
CUT HERE

16

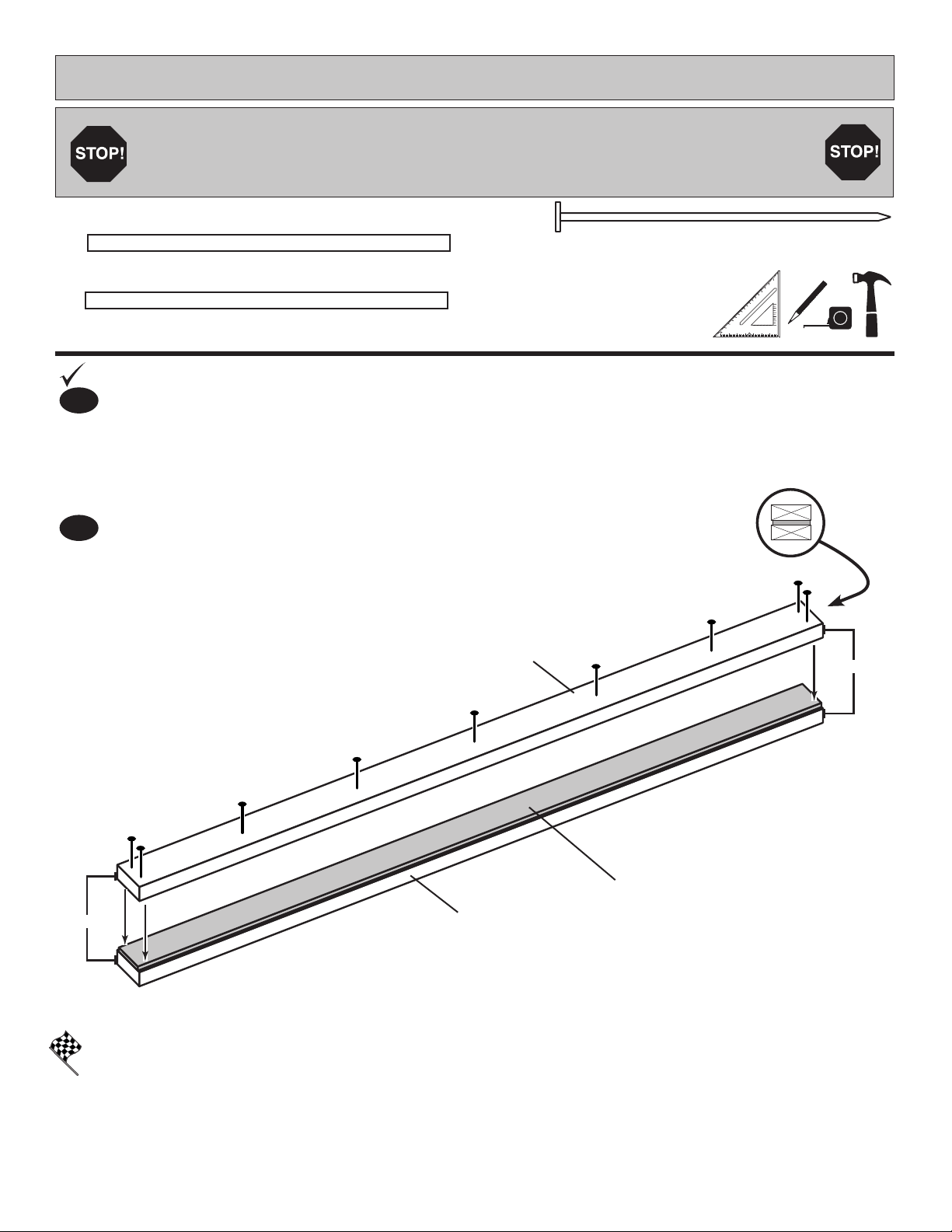

PARTS REQUIRED: 3" (7,6 cm)
DOOR HEADER
x18
x2
2 x 4 x 67" (5,1 x 10,2 x 170,2 cm)
AM
x1
7/16 x 3-1/4 x 66-3/4" (1,1 x 8,3 x 170,2 cm) OSB
Place (1) AM and OSB end-to-end on at surface, ush in middle.
Center OSB on top of AM.
Fasten together with 3" nails in the pattern shown.
Your door header is now assembled.
FINISH
OSB
ASSEMBLED
END VIEW
BEGIN
1
AM
AM
2Flip header assembly over and nail as shown on the other side.
Flush
Flush
Assemble this door header before building any walls!
Any wall with a door will require this assembly.

17
x40
2" (5,1 cm)
PARTS REQUIRED:
Place a 48" X 84" panel on the wall frame, as shown.
Locate the panel 1-1/2" above the top plate.
Use a 2 x 3 as a gauge block for the 1-1/2" top overhang measurement.
Use the gauge block to mark the 3/4" side measurement on the wall stud.
Secure panel with (2) 2" nails in the corners (Fig. A).
2
Secure panel with 2" nails spaced 6" apart on edges and 12" apart inside panel.
Note the panel lip-edge/square edge orientation.
EXAMPLE WALL
Ensure your wall is square by installing one panel and squaring frame.
Move to the opposite end. Using the long edge of the panel as a lever,
move the panel side-to-side until you have a 3/4" measurement on the wall stud.
Secure corner with (2) 2" nails (Fig. B).
3/4" Gauge
Block
x1 3/8 x 48 x 84"
(1 x 121,9 x 213,4 cm )
For squareness maintain 3/4" and 1-1/2"
measurement along panel edge.
BEGIN HERE
3/4"
(1,9 cm)
6" (15,2 cm)
12" (30,5 cm)
2x3"
TEMP. SPACER
3/4" GAUGE
BLOCK
GAA
WALL PANEL INSTALLATION HINTS & EXAMPLES
BEGIN
1
Angle nail to draw panels
tight at seams.
Install all wall panels with the primed side facing up.
2x3
1-1/2"
(3,8 cm)
3/4"
(1,9 cm)
LIP EDGE
SQUARE
EDGE
Do not nail
in groove.
3/4"
(1,9 cm)
Fig. A 3/4"
(1,9 cm)
2 Nails
1-1/2" (3,8 cm)
Overlap
Fig. B 3/4"
(1,9 cm)
1-1/2" (3,8 cm)
Overlap
2 Nails
Install 2nd panel
ush to
installed panel.
HINTS

18
12"
25-3/4"
36" 84"
60"
84"
12"
25-3/4"
120"
84" 36"
(30,5 cm)
(65,4 cm)
(91,4 cm) (213,4 cm)
(152,4 cm)
(213,4 cm)
(30,5 cm)
(65,4 cm)
(304,8 cm)
(213,4 cm) (91,4 cm)
78-1/2"
(199,4 cm)
1-1/2"
(3,8 cm)
Fig. B
3" (7,6 cm)
Screws
Pre-Assembled Header
Install Header in
this position
Fig. A
PARTS REQUIRED:
3" (7,6 cm)
10' WALL - 01
x72
2
1
BEGIN
3" (7,6 cm)
x6
x1
Pre Assembled Header
x5
2 x 4 x 7" (5,1 x 10,2 x 17,8 cm)
AL
x2 2 x 4 x 68" (5,1 x 10,2 x 172,7 cm)
UM
x6 2 x 4 x 78-1/2" (5,1 x 10,2 x 199,4 cm)
AI
x2 2 x 4 x 84" (5,1 x 10,2 x 213,4 cm)
TO
2 x 4 x 36" (5,1 x 10,2 x 91,4 cm)
x2 SL
TO
UM UM
TO
SL
SL
AI x6
AL x5
Flush Flush
Flush Flush
Seam
3" (7,6 cm)
Screws
Orient parts on edge on oor as shown. Measure and mark from end of boards.
Orient Pre Assembled Header on at side (Fig. A).
Secure with (2) 3" nails at each connection and (4) 3" nails at seams.
Fasten (3) middle parts AL to Pre Assembled Header with (2) 3" screws (Fig. B).
Fasten (2) end AL to studs AI with (4) 3" nails at each side.
Secure parts AL to top plates with (2) 3" nails at each connection and (4) 3" nails at seam.
Flush
Flush
Seam
64"
(162,6 cm)
Refer to the WALL CONFIGURATION GUIDE and WALL INDEX at this time.
