(This page intentionally left blank.)

05/15/2019
KEEP THIS MANUAL FOR FUTURE REFERENCE
ACTUAL FLOOR SIZE IS 96" x 140-5/8" (243,8 x 357,2 cm)
16911
BEFORE YOU BEGIN
IMPORTANT!
READ INSTRUCTIONS THOROUGHLY PRIOR TO BEGINNING ASSEMBLY.
- CUSTOMER SERVICE -
Call: 1-800-577-9663 email: [email protected]
• BUILDING RESTRICTIONS AND APPROVALS
Be sure to check with local building department and homeowners association for specic restrictions and/ or requirements before building.
.• ENGINEERED DRAWINGS
Contact our Customer Service Team if engineered drawings are needed to pull local permits.
• SURFACE PREPARATION
To ensure proper assembly you must build your shed on a level surface. Recommended methods and materials to level your shed are
listed on page 7.
• CHECK ALL PARTS
Inventory all parts listed on pages 4 - 6. Contact our Customer Service Team if any parts are missing or damaged.
• ADDITIONAL MATERIALS
You will need additional materials to complete your shed. See page 3 for required and optional materials and quantities.
ROCKPORT 8' x 12' (244 x 366 cm)
ASSEMBLY MANUAL
A Backyard Products Company

2
TOOLS
Safety! Always use approved safety glasses during assembly.
OptionalRequired
HELPFUL REMINDER SYMBOLS
Look for these symbols for helpful reminders throughout this manual.
ORIENT LUMBER AND TRIM FOR BEST APPEARANCE
= Assistance Required; two or more people.
= Ensure squareness.
= Important required step or operation.
= Helpful assembly hint.
= Mark part with pencil.
= Beginning of steps for assembly or installation.
= You have nished the assembly or installation.
= Level
❑Gloves
Framing lumber is graded for structural strength and not appearance. Exterior trim is graded for one good side.
Always install the material leaving the best edge and best surface visible. Please remember that these blemishes in no way
negatively affect the strength or integrity of our product. (See Fig. A, B, C.)
A
❑Safety Glasses
❑Tape Measure
❑Paint Tools
❑Ladder
❑Caulk Gun
❑Hammer
❑Level
FINISH
BEGIN
❑Pencil
❑Phillips
Screwdriver ❑Tool Belt/
Nail Pouch
❑Chalk Line
❑Nail Gun
• gun nails
❑Tin Snips
(for drip edge)
❑ Square or
❑Utility Knife
❑Shingle Blades
B C
❑Drill / Driver
❑1/8" Drill Bit
❑#2 Philips Drive Bit
❑1/4" Drill Bit
❑5/16" Drill Bit
❑1/2" Drill Bit

3
COMPLETING YOUR SHED
You will need these additional materials:
FOUNDATION OR FLOOR MATERIALS
ADDITIONAL MATERIALS
DRIP EDGE ................................... 60 Feet #15 ROOFING FELT
To cover 169 Sq. Ft. of roof area.
REFER TO THE BACK OF THIS MANUAL AND THE MANUFACTURER’S INSTRUCTIONS FOR
INSTALLATION OF SHINGLES, DRIP EDGE AND FELT.
3-TAB SHINGLES ............................ 6 Bundles
PAINT FOR SIDING .......................... 2 Gallons
Use 100% acrylic latex exterior paint. (2) coats recommended.
CAULK ................................................. 3 Tubes
Use acrylic latex exterior caulk that is paintable.
1" GALVANIZED ROOFING NAILS.... 4 Lbs
For shingles.
PAINT FOR TRIM .............................2 Quart
Use 100% acrylic latex exterior paint.
REINFORCED WOOD FLOOR FRAME (OPTIONAL)
IMPORTANT! The included oor has been designed for general use. Depending on your specic use you may want to construct a
heavy duty oor frame by adding additional oor joists (shown below as shaded). Below is a list of additional materials (not included):
x6
x24
2 x 4 x 8' (5 x 10 x 244 cm) Treated Lumber
Cut to (6) 2 x 4 x 93" (5 x 10 x 236 cm)
ea. 3" (7,6 cm) Hot Dipped Galvanized Nails
TO VALIDATE YOUR WARRANTY YOU MUST USE THE FOLLOWING:
1" GALVANIZED ROOFING NAILS....1/4 Lb
For roong felt.
CAULK .............................................. 1 Tube
For windows use acrylic latex exterior caulk that is paintable.
• This shed kit includes a complete wood oor system.
• This shed kit does not include ANY leveling materials.
• See the FLOOR LEVELING section on page 7 for recommended methods and suggested materials to properly level your
oor, as this will vary depending on your specic site.
Optional 12" (30,5 cm) spacing
Standard 24" (61 cm) spacing

WOOD SIZE CONVERSION CHART
Nominal Board Size Actual Size
1 x 4 .................3/4" x 3-1/2" (1,9 x 8,9 cm)
2 x 4 ..............1-1/2" x 3-1/2" (3,8 x 8,9 cm)
2 x 3 ..............1-1/2" x 2-1/2" (3,8 x 6,3 cm)
1 x 3 .................3/4" x 2-1/2" (3,8 x 6,3 cm)
PARTS IDENTIFICATION AND SIZES
RS RS
Part identication
letters are stamped on some parts.
Check these locations for
part stamp.
All treated lumber
is stamped:
WALLS
x3 2 x 3 x 89" (5,1 x 7,6 x 226,1 cm)
SZ
x1 2 x 3 x 84" (5,1 x 7,6 x 213,4 cm)
FW
x1 2 x 3 x 96" (5,1 x 7,6 x 238,8 cm)
PT
x4 2 x 4 x 68-5/8" (5,1 x 10,2 x 174,3 cm)
YF
x19 2 x 4 x 68" (5,1 x 10,3 x 172,7 cm)
UM
x2 1 x 4 x 46-1/2" (2,5 x 10,2 x 118,1
TKA
x2 1 x 4 x 46-1/2" (2,5 x 10,2 x 118,1 cm)
TKA
x1 2 x 4 x 37-3/4" (5,1 x 10,2 x 95,9 cm)
YFB
PARTS LIST
INVENTORY YOUR PARTS before you begin.
We suggest sorting parts by the category they are listed in.
RAFTERS
x11 7-1/4 x 18-1/4" (18,4 x 46,4 cm)
TRIM
x8 3/8 x 1-3/4 x 67-3/4" (1 x 4,4 x 172,1 cm)
x2 19/32 x 3 x 36-3/4" (1,5 x 7,6 x 93,3 cm)
x2 3/8 x 2-3/4 x 80-1/4" (1 x 7 x 203,8 cm)
x2 3/8 x 2-3/4 x 69" (1 x 7 x 175,3 cm)
x2 19/32 x 3 x 9" (1,5 x 7,6 x 22,9 cm)
x12 2 x 4 x 68-7/16" (5,1 x 10,2 x 173,8 cm)
YJ
x2 2 x 4 x 69-7/8" (5,1 x 10,2 x 177,5 cm)
WW
x1 19/32 x 4 x 69-7/8" (1,5 x 10,2 x 177,5 cm)
WML
x1 19/32 x 4 x 69-7/8" (1,5 x 10,2 x 177,5 cm)
WMR
x1 2 x 4 x 17-1/2" (5,1 x 10,2 x 44,5 cm)
YG
x2 2 x 4 x 16-1/2" (5,1 x 10,2 x 41,9 cm)
RD
x1 2 x 4 x 6-1/2" (5,1 x 10,2 x 16,51 cm)
UY
x2 3/8 x 2 x 5" (1,0 x 5,1 x 12,7 cm)
WA
EY
x4 2 x 4 x 72" (5,1 x 10,2 x 182,9 cm)
TM
3/4"
(1,9 cm)
1 x 3 x 5" (2,5 x 7,6 x 12,7 cm) Gauge Block for 3/4" (1,9 cm) measurement
x1 GAA
OSB OR WOOD GRAIN
x1 96" (243,8 cm) Z-STRIP
4
FLOOR
x2 2 x 4 x 48" (5,1 x 10,2 x 121,9 cm)
2 x 4 x 93" (5,1 x 10,2 x 236,2 cm)
x7
x2 2 x 4 x 92-5/8" (5,1 x 10,2 x 235,3 cm)

x2 1 x 2 x 96" (2,5 x 5,1 x 243,8 cm)
ZM
x4 2 x 3 x 68-7/16" (5,1 x 7,6 x 173,8 cm)
WE
x2 1 x 2 x 43-1/2" (2,5 x 5,1 x 110,5 cm)
WS
x4 19/32 x 3 x 23" (1,5 x 7,6 x 58,4 cm)
GI
OVERHANG
x2 19/32 x 6-15/16 x 5-1/2" (1,5 x 17,6 x 13,4 cm)
SOFFITDOOR
WR
x1 19/32 x 3 x 63" (1,5 x 7,6 x 160 cm)
PARTS LIST continued...
x2 3/8 x 7-7/8 x 57-7/8" (1 x 20 x 147 cm)
x2 3/8 x 5-3/16 x 69-3/8" (1 x 13,2 x 176,2 cm)
x2 3/8 x 5-3/16 x 72" (1 x 13,2 x 182,9 cm)
x2 3/8 x 7-7/8 x 7-7/8" (1 x 20 x 20 cm)
x2 3/8 x 5-13/16 x 7-7/8" (1 x 14,8 x 20 cm)
x2 2 x 3 x 5-1/8" (5,1 x 7,6 x 13 cm)
WD
x4 2 x 3 x 7-7/8" (5,1 x 7,6 x 20 cm)
DY
OO
x2 1-1/4 x 2-1/2 x 69" (3,2 x 6,3 x 175,3 cm)
x2 19/32 x 6-15/16 x 5-1/2" (1,5 x 17,6 x 13,4 cm)
5
PANEL PARTS LIST
ROOF PANELS
FLOOR PANELS
NOTE: Panel parts are not stamped.
Floor panels are 5/8" (1,6 cm) thick.Roof panels are 7/16" (1,1 cm) thick.
7/16 x 22 x 46-1/2"
(1,1 x 55,9 x 118,1 cm)
x2
7/16 x 8-7/8 x 70"
(1,1 x 22,5 x 177,8 cm)
x2
7/16 x 22 x 96"
(1,1 x 55,9 x 243,8 cm)
x2
7/16 x 47-7/8 x 48"
(1,1 x 121,6 x 121,9 cm)
x2
7/16 x 48 x 94-1/2"
(1,1 x 121,9 x 240 cm)
x2
5/8 x 48 x 96"
(1,6 x 121,9 x 243,8 cm)
x2
5/8 x 44-5/8 x 96"
(1,6 x 113,3 x 243,8 cm)
x1
x1 7-1/4 x 18-1/4" (18,4 x 46,4 cm) WITH WOOD GRAIN ON FACE

x2
3/8 x 44-5/8 x 72"
(1 x 113,3 x 182,9 cm)
x6
3/8 x 48 x 72"
(1 x 121,9 x 182,9 cm)
WALL PANEL & DOORS PARTS LIST
x1
x1
x1
x1
x1
LEFT DOOR
x1
RIGHT DOOR
x3 BOXES
x5 BOXES
x180
x155
x14
x60
x7
x117
x110
x12
NAIL BOXES

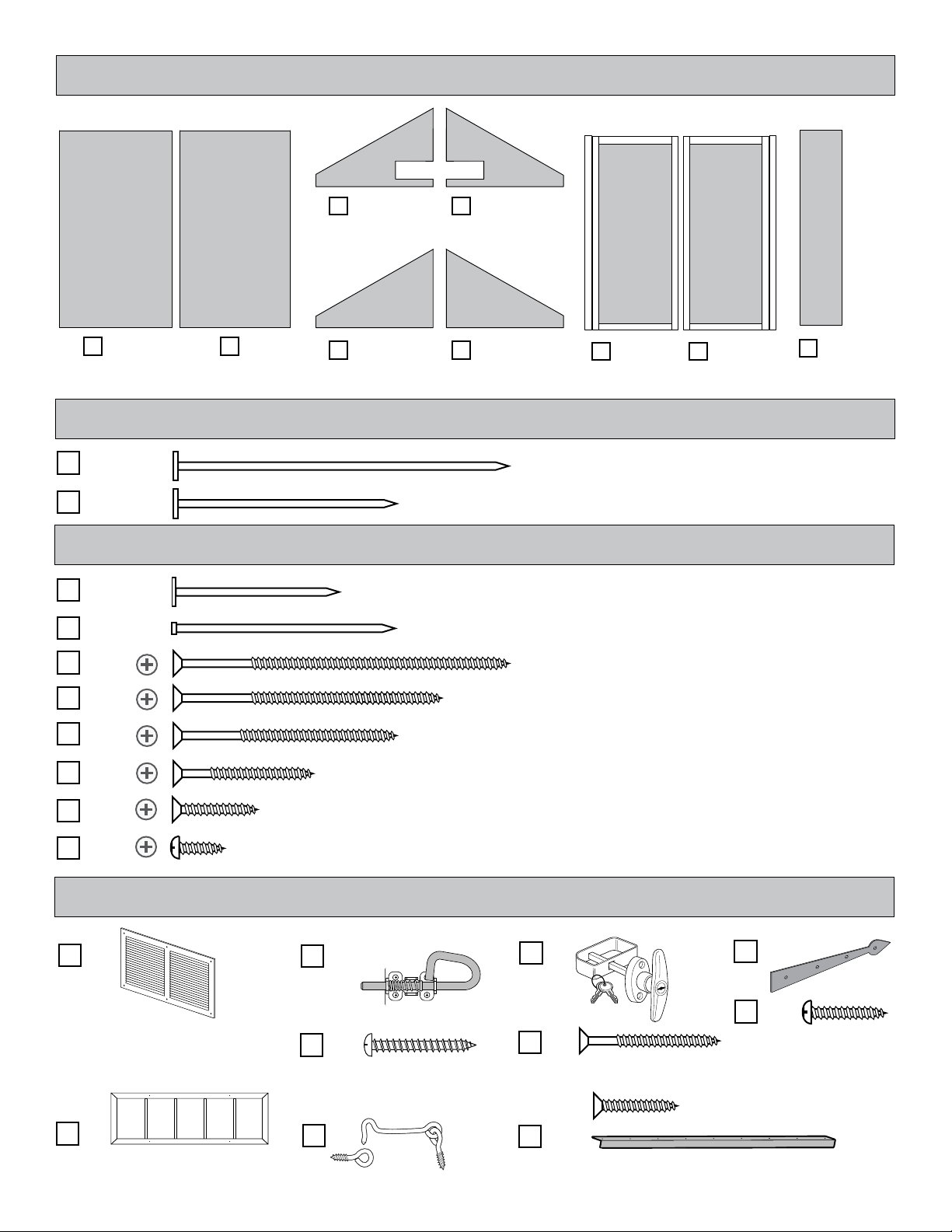

VENT, DOOR HARDWARE, AND WINDOW
FASTENER/HARDWARE BAG
x2
3/8 x 19-5/8 x 72"
(1 x 49,8 x 182,9 cm)
6
1-1/4" (3,2 cm)
2" (5,1 cm)
2-1/2" (6,4 cm)
3" (7,6 cm)
3/4" (1,9 cm)
2" (5,0 cm)
3" (7,6 cm)
2" (5,1 cm)
1-1/2" (3,8 cm)
x2
x8
x1
WINDOW
x2
1/2" (1,3 cm)
8 x 16"
(20,3 x 35,6 cm)
NOTE:
If you are using a nail gun, nails may
be used where screws are shown for
quicker assembly.
Length of nail must match screw length.
x1
1" (2,5 cm)
x2
1-1/2" (3,8 cm)
x4
3/4" (1,9 cm)
x12
3/4" (1,9 cm) x9
Bagged separately / special coating
x1
56" Metal Threshold
x2

7
DOOR
FLOOR LEVELING OPTIONS

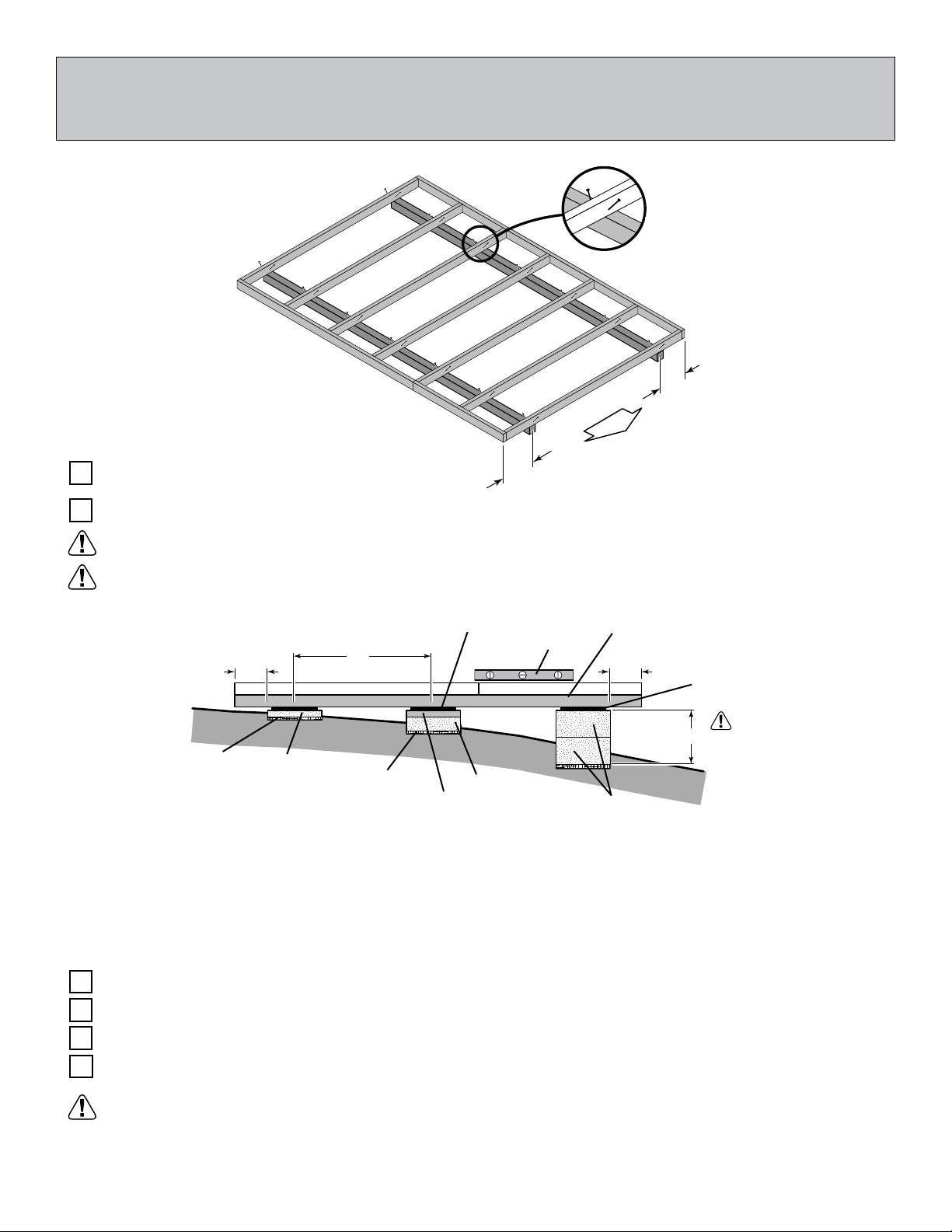

There are multiple ways to level your oor frame. Our recommended leveling method is shown below.
Leveling materials are not included in this kit.
PREFERRED METHOD - 4x4 TREATED RUNNERS
Measurements to
centers of 4x4's.
• 3" Screws angled into 4x4.
• (2) at each point frame
•and 4x4 touch.
12"
(30,5 cm)
12"
(30,5 cm)
• Level under 4x4 runners only.
• Locate leveling material 12" from ends of runners and no more than 48" apart.
• Asphalt shingles should be used between 4x4 runners and blocks or treated lumber. Never use
shingles in direct contact with ground.
• For best results and aiding in water drainage use gravel under each concrete block.
LEVELING METHODS
• If you are building your shed on a concrete foundation see the following page.
CONCRETE
MATERIAL REQUIRED
x2 4 x 4 x 12' (10 x 10 x 366 cm)Treated Lumber
Fasteners for Frame to 4x4.
(3" Screws shown as one option.) Minimum (32) 3" screws / exterior grade.
Use only wood treated for ground contact and fasteners approved for use with treated wood.
Always support frame seams.
Leveling higher than 16" not recommended.
LEVELING MATERIALS
Gravel
2x4 Treated Lumber
Solid Masonry Blocks in 1", 2", 4" or 8" thickness
Asphalt Shingles
8" Block
4" Block
Gravel
Gravel
Do not exceed 16".
4x4 Runner
Shingle
Shingle
Maximum between leveling
material locations.
48"
12"
2x4 Treated Lumber
2" Block
Level
12"

8

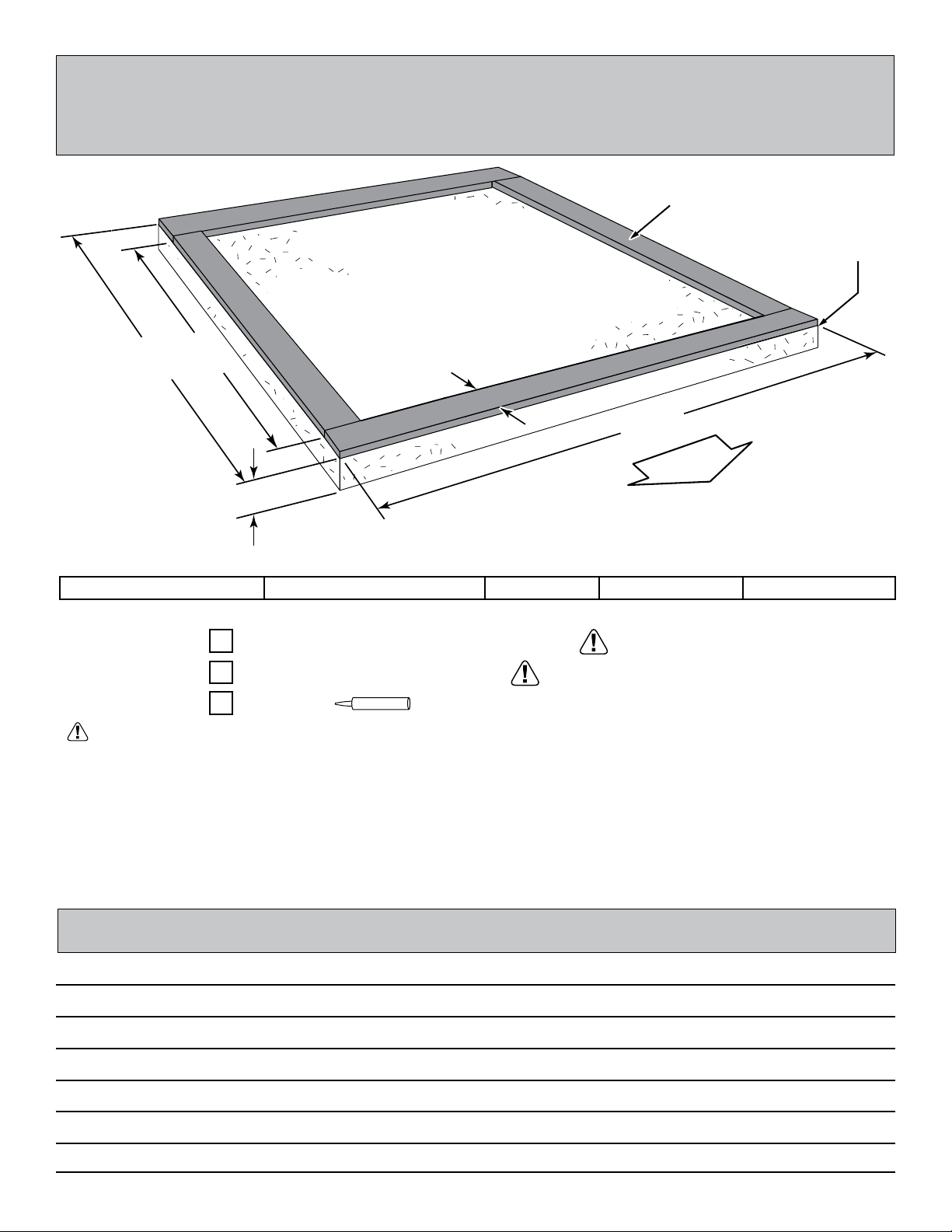

CONCRETE FOUNDATION
Your kit contains all materials to construct a wooden oor. If you choose to install your kit
on a concrete slab refer to the diagram below.
• A treated 2 x 4" (5,1 x 10,2 cm) sill plate is required when installing your shed on concrete. Hint: Use treated lumber in your kit or
purchase full length treated lumber.
• Use a high quality exterior grade caulk beneath all sill plates.
• Fasten 2 x 4" (5,1 x 10,2 cm) sill plates to slab using approved concrete anchors (fasteners not included).
• Check local code for concrete foundation requirements.
NOTES
Allow new concrete slabs to cure for at least seven (7) days.
2" x 4" x 11'-1-5/8" (5,1 x 10,2 x 339,4 cm)
2" x 4" x 8' (5,1 x 10,2 x 244 cm)
Caulk
Requires:
x2
x2
x1
MUST be treated lumber.
MUST be treated lumber.
96" (243,8 cm)
96" x 140-5/8" (243,8 x 357,2 cm) 133-5/8" (339,4 cm)
8'x 12' (243,8 x 365,8 cm) 140-5/8" (357,2 cm)
AActual Size B CBuilding Size
A
B
C
4"
(10,2 cm)
3-1/2"
(8,9 cm)
DOOR
Treated Sill Plate
Caulk between sill
plate and concrete.

9
3" (7,6 cm)
x32
PARTS REQUIRED:

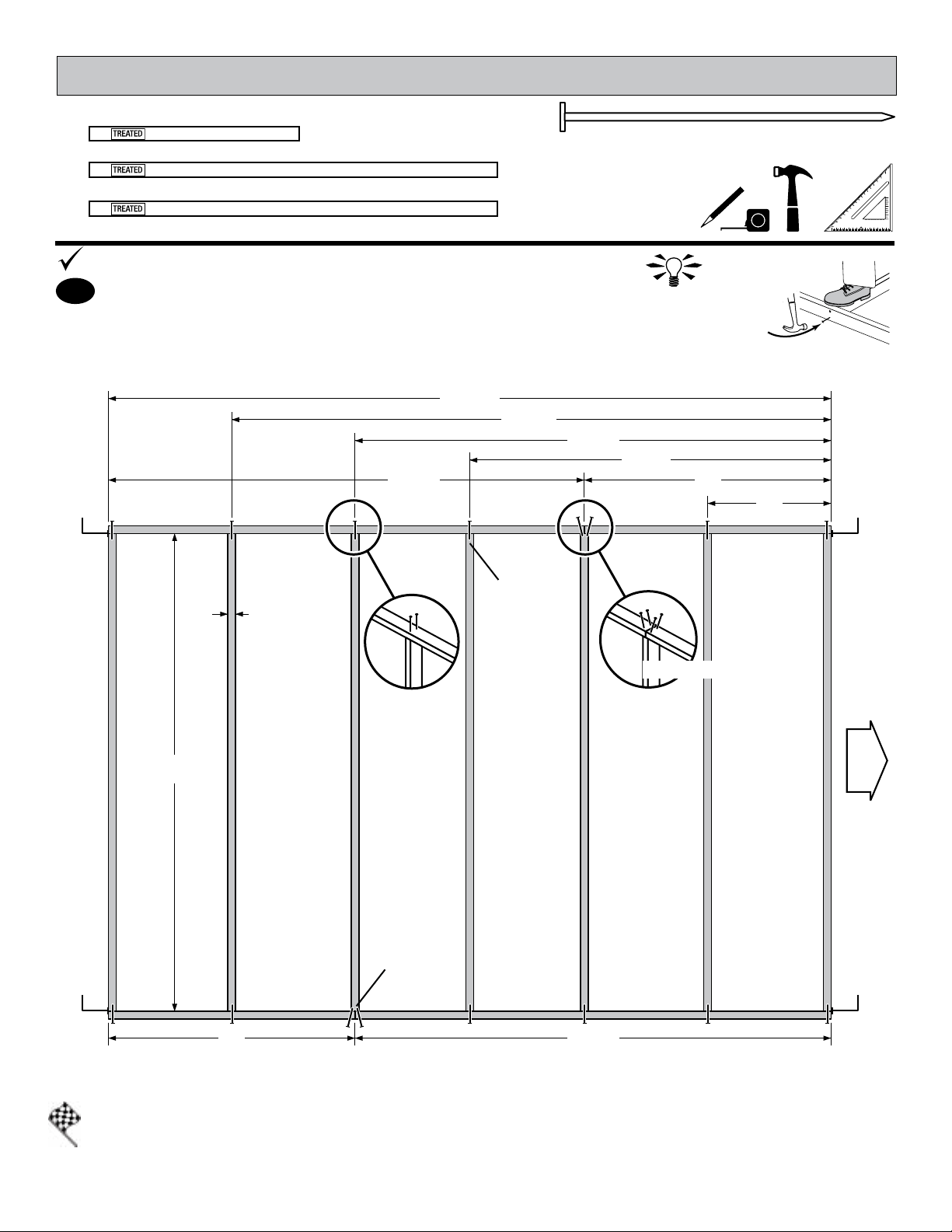

FLOOR FRAME
HINT:
For easier nailing
stand on frame.
24"
48"
92 5/8"
70 3/8"
92 5/8"
116 5/8"
140 5/8"
93"
48" 92 5/8"
(61 cm)
1-1/2"
(3,8 cm)
(121,9 cm)
(235,3 cm)
(178,8 cm)
(235,3 cm)
(296,2 cm)
(357,2 cm)
(236,2 cm)
48" 92 5/8"
Center
on marks
Stagger
Seams
Flush
Flush
Flush
Flush
DOOR

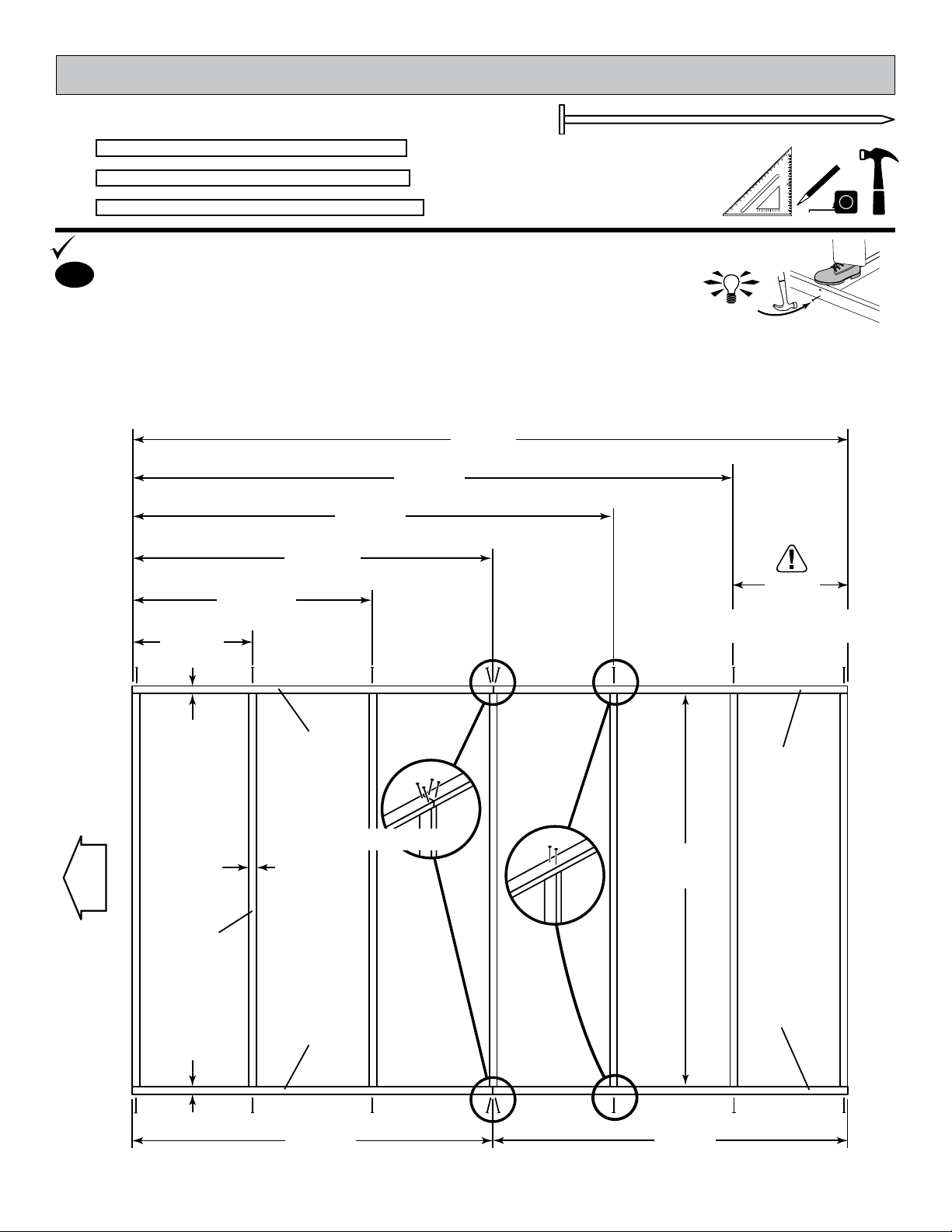

1Orient parts as shown on at surface. Measure and mark.
Secure using (2) 3" nails at each mark and (4) 3" nails at seams.
BEGIN
You have nished your oor frame.
FINISH
x2
2 x 4 x 92-5/8" (5,1 x 10,2 x 235,3 cm)
x7
2 x 4 x 93" (5,1 x 10,2 x 236,2 cm)
x2
2 x 4 x 48" (5,1 x 10,2 x 121,9 cm)
TOENAILING

10
DOOR
LEVEL AND SQUARE FLOOR FRAME
Before attaching oor decking, it is important to level and square the oor frame.
A level and square oor frame is required to correctly construct your shed.
First, secure at ends using one fastener.
Second,
secure at
ends using
one fastener.
170-1/4"
(432,4 cm)
170-1/4"
(432,4 cm)
Fig. A
FINISH
BEGIN
2
3
4
1
Use a level and check that the frame is level before installing oor panels.
Check for frame squareness by measuring diagonally across the corners.
If the measurements are the same, the frame is square.
The diagonal measurement will be approximately 170-1/4" (432,4 cm).
When the frame is level and square, secure one side of frame to the 4x4 runners using one fastener at
ends of each runner. Move to the opposite end of the frame. Secure the frame to 4x4 runners using one
fastener at ends of each runner making sure the frame remains square (Fig. A).
Once the oor frame is level and square fasten the frame to the 4x4 runners at each point where
the frame contacts the 4x4 runners.
See page 7 for the preferred oor leveling method.

11
Fig. C
PARTS REQUIRED: x55
x1 5/8 x 48 x 96"
(1,6 x 121,9 x 243,8 cm)
2" (5,1 cm)
FLOOR PANELS
DOOR
Grid lines up
12"
(30,2 cm)
6"
(15,2 cm)
Flush
Flush
Flush
(2) Nails
(2) Nails
3/4"
(1,9 cm)
3/4"
(1,9 cm)
DOOR
170-1/4"
(432,4 cm
170-1/4"
(432,4 cm
3/4" GAUGE
BLOCK
Fig. B
Fig. A
Move to the opposite side. Using the long edge of the panel as a lever, move the
panel side-to-side until the top corner is ush to the oor frame (Fig. B).
Secure panel using (2) 2" nails in the corners.
2
BEGIN
1
3
4
Ensure your oor frame is square by installing (1) panel and squaring frame.
Check the oor frame is square by measuring diagonally across the frame corners. If the measurements are the
same your oor frame is square. The measurement will be approximately 170-1/4" (432,4 cm) (Fig. C).

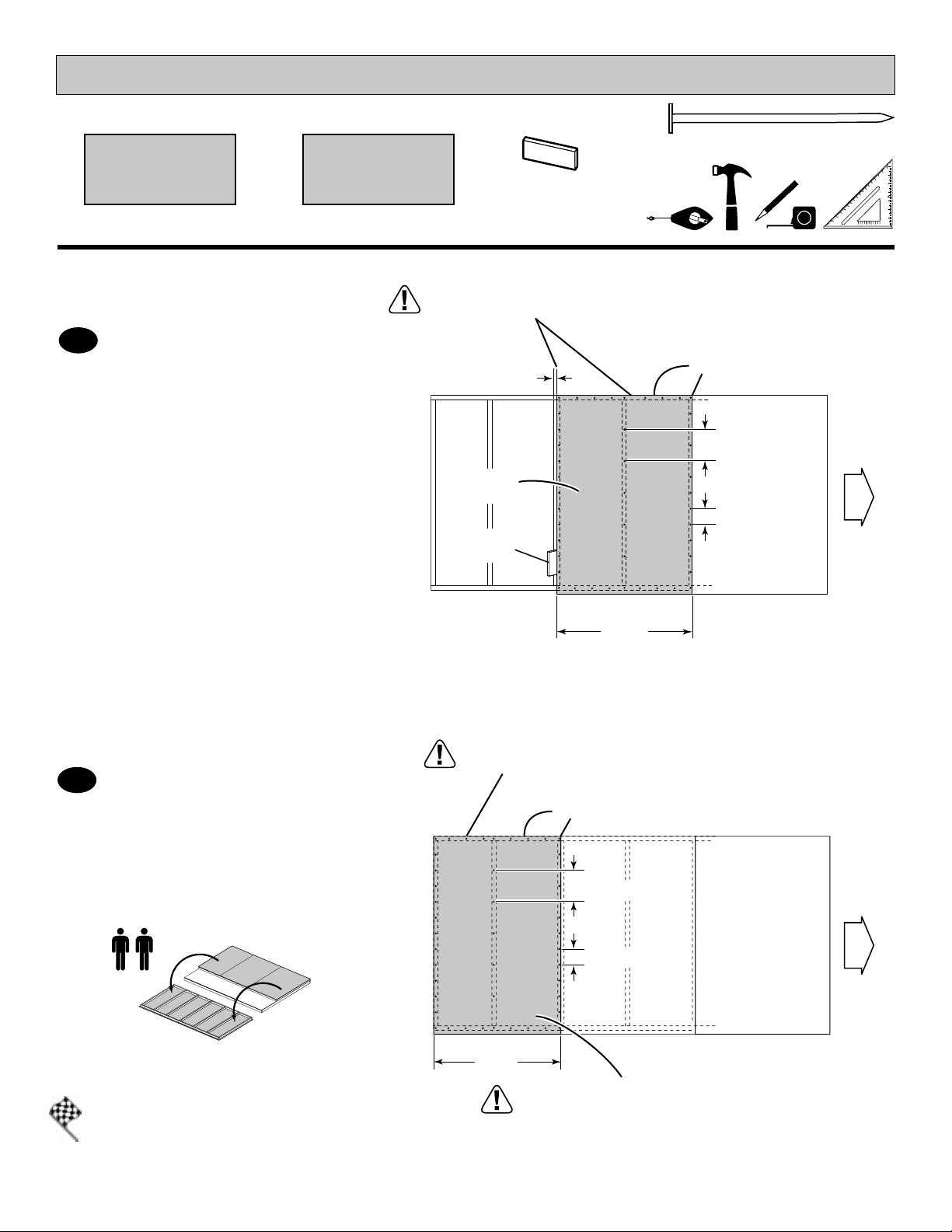

Install a 48" x 96" panel with the rough side up (painted-grid lines side) and with the 48" edge and corner
ush to the oor frame (Fig A). Use the gauge block to mark the 3/4" measurement on joist.
Secure panel using (2) 2" nails in the corners.
Use a chalk line grid lines to help locate frame. Use the gauge block to mark the 3/4" measurement on joist.
Secure panel using 2" nails 6" apart on edges and 12" apart inside panels.
3/4" GAUGE
BLOCK
GAA

12
PARTS REQUIRED:
FINISH
Your oor panels are now installed.
Continue installing panels with rough side up (painted grid lines).
Install 44-5/8" x 96" panel in middle of oor frame.
Use the gauge block to mark the 3/4" measurement on the oor joists.
5
x1 x1
x110
5/8 x 48 x 96"
(1,6 x 121,9 x 243,8 cm)
5/8 x 44-5/8 x 96"
(1,6 x 113,3 x 243,8 cm)
2" (5,1 cm)
FLOOR PANELS
Secure panels using 2" nails 6" apart on edges, and 12" apart inside panels.
3/4" GAUGE
BLOCK
GAA
DOOR
Grid lines up
6"
(15,2 cm)
3/4"
(1,9 cm)
3/4"
(1,9 cm)
3/4" GAUGE
BLOCK
12"
(30,2 cm)
44-5/8"
(30,2 cm)
Flush
Flush
Flush
FlushFlush
For squareness maintain 3/4"
measurement along panel edges.
BEGIN HERE

13
DOOR
DOOR
Check that the oor frame is level after installing oor panels.
Re-level if needed.
HINT:
IMPORTANT!
• The oor should be used as a stable work surface for wall construction.
• Organize your assembly procedure during the build process
to avoid over-handling of the walls.
BACK WALL
FRONT WALL
LEFT WALL
RIGHT WALL

LEFT WALL FRAME
PARTS REQUIRED:
140-5/8”
(352,7cm)
120”
(304,8 cm)
96”
(243,8 cm)
68-5/8”
(174,3 cm)
72”
(182,9 cm)
48”
(121,9 cm)
72”
(182,9 cm)
20-5/8”
(52,4 cm)
24”
(61 cm)
68”
(172,7 cm)
1-1/2”
(3,8 cm)
1-1/2”
(3,8 cm)
1-1/2”
(3,8 cm)
UM x7
TM
YF
TM
YF
HINT:
For easier nailing
stand on frame.
x2 2 x 4 x 72" (5,1 x 10,2 x 182,9 cm)
TM
x2 2 x 4 x 68-5/8" (5,1 x 10,2 x 174,3 cm)
YF
x7 2 x 4 x 68" (5,1 x 10,2 x 172,7 cm)
UM
x32
14
DOOR
3" (7,6 cm)
BEGIN
1
Secure using (2) 3" nails at each mark. Use (4) 3" nails at seams
Orient parts on edge on oor. Measure and mark.
TOENAILING
ASSEMBLE ONE LEFT AND ONE RIGHT WALL SEPARATELY.
IMPORTANT
MEASUREMENT

15
For squareness maintain Flush and 3/4"
measurement along panel edges.
LEFT SIDE WALL PANELS
48 x 72"
(121,9 x 213,4 cm)
PARTS REQUIRED:
x1
x45 2" (5,1 cm)
Fig. B
BEGIN HERE
Fig. A
3/4"
(1,9 cm) 3/4"
(1,9 cm)
2 Nails
2 Nails
Flush
DOOR
INSTALL ALL WALL PANELS WITH THE PRIMED SIDE FACING OUTWARD
48"
(121,9 cm)
3/4"
(1,9 cm) 1”
(2,5 cm)
3/4"
(1,9 cm)
12"
(30,5 cm) 6"
(15,2 cm)
20-5/8"
(52,4 cm)
Place 48" x 72" panel onto wall frame ush to top of frame.
Use the gauge block to mark the 3/4" measurement on the wall stud.
Secure panel using (2) 2" nails in the corners (Fig. A).
Ensure your wall frame is square by installing one panel and squaring frame.
Move to the opposite end. Using the long edge of the panel as a lever move the panel side-to-side until
you have a 3/4" measurement on the wall stud. Secure corner using (2) 2" nails (Fig. B).
Secure the panel using 2" nails 6" apart on edges and 12" apart inside panel.
2
3/4" GAUGE
BLOCK
GAA
3/4" GAUGE
BLOCK
BEGIN
1

16
3/4"
(1,9 cm)
48"
(121,9 cm)
12"
(30,5 cm)
6"
(15,2 cm)
Flush
44-5/8"
(113,3 cm)
12"
(30,5 cm)
6"
(15,2 cm)
Flush
For squareness maintain ush and
3/4" measurement along panel edges.
For squareness maintain ush
along panel edges.
Place center 48" x 72" panel on frame
as shown with primed side facing up.
Nail using 2" nails 6" apart on edges
and 12" apart inside panel.
6
Place end 44-5/8" x 72" panel on frame
as shown with primed side facing up.
Nail using 2" nails 6" apart on edges
and 12" apart inside panel.
7
You have nished building your left wall.
FINISH
Primed
side up
Primed
side up
48 x 72"
(121,9 x 213,4 cm)
44-5/8 x 72"
(121,9 x 213,4 cm)
x1 x1
x90
LEFT SIDE WALL PANELS
PARTS REQUIRED: 2" (5,1 cm)
Carefully ip the left wall over.
DOORDOOR
3/4" GAUGE
BLOCK
3/4" GAUGE
BLOCK
GAA

17
DOOR
RIGHT WALL FRAME
PARTS REQUIRED:
140-5/8”
(352,7cm)
120”
(304,8 cm)
96”
(243,8 cm)
68-5/8”
(174,3 cm)
72”
(182,9 cm)
48”
(121,9 cm)
72”
(182,9 cm)
20-5/8”
(52,4 cm)
24”
(61 cm)
68”
(172,7 cm)
1-1/2”
(3,8 cm)
1-1/2”
(3,8 cm)
1-1/2”
(3,8 cm)
UM x7
TM YF
TM
YF
HINT:
For easier nailing
stand on frame.
x2 2 x 4 x 72" (5,1 x 10,2 x 182,9 cm)
TM
x2 2 x 4 x 68-5/8" (5,1 x 10,2 x 174,3 cm)
YF
x7 2 x 4 x 68" (5,1 x 10,2 x 172,7 cm)
UM
x32 3" (7,6 cm)
BEGIN
1Orient parts on edge on oor. Measure and mark.
Secure using (2) 3" nails at each mark and (4) 3" nails at seams.
TOENAILING
IMPORTANT
MEASUREMENT

18
RIGHT SIDE WALL PANELS
48 x 72"
(121,9 x 213,4 cm)
PARTS REQUIRED:
x1
x45 2" (5,1 cm)
Fig. B
Fig. A
Flush
3/4"
(1,9 cm) 3/4"
(1,9 cm)
2 Nails
2 Nails
DOOR
BEGIN HERE
INSTALL ALL WALL PANELS WITH THE PRIMED SIDE FACING UP
48"
(121,9 cm)
3/4"
(1,9 cm)
3/4"
(1,9 cm)
20-5/8"
(52,4 cm)
12"
(30,5 cm)
1”
(2,5 cm)
6"
(15,2 cm)
Nail the panel using 2" nails 6" apart on edges and 12" apart inside panel.
Ensure your wall frame is square by installing (1) panel and squaring frame.
Move to the opposite end. Using the long edge of the panel as a lever move the panel side-to-side until you have
a 3/4" measurement on the wall stud. Secure corner with (2) 2" nails (Fig. B).
3
4
2
3/4" GAUGE
BLOCK
Primed
side up
For squareness maintain ush and
3/4" measurement along panel edges.
Place 48 x 72" panel onto wall frame ush to top of frame with primed side up as shown.
Use the gauge block to mark the 3/4" measurement on the wall stud. Secure panel using
(2) 2" nails in the corners (Fig. A).
3/4" GAUGE
BLOCK
GAA
