ACTUAL FLOOR SIZE IS 96 x 168" (243,8 x 426,7 cm)
OPTION 1:
DOOR LOCATION
LEFT SIDE OF FRONT WALL
OPTION 2:
DOOR LOCATION
RIGHT SIDE OF FRONT WALL
16574-SB
BEFORE YOU BEGIN
IMPORTANT!
READ INSTRUCTIONS THOROUGHLY PRIOR TO BEGINNING ASSEMBLY.
• BUILDING RESTRICTIONS AND APPROVALS
Be sure to check with local building department and homeowners association for specic restrictions and/ or requirements before building.
• ENGINEERED DRAWINGS
Contact our Customer Service Team if engineered drawings are needed to pull local permits.
• SURFACE PREPARATION
To ensure proper assembly you must build your shed on a level surface. Recommended methods and materials to level your shed are
listed on page 9.
• CHECK ALL PARTS Inventory all parts listed on pages 3 - 7.
• ADDITIONAL MATERIALS
You will need additional materials to complete your shed. See page 8 for required and optional materials and quantities.
CRESTWOOD GABLE 8' x 14' (244 x 426,7 cm)
***CONTACT OUR CUSTOMER SERVICE TEAM
IF ANY PARTS ARE MISSING OR DAMAGED***
Call: 1-800-844-9273 email: [email protected]
A Backyard Products Company

2
TOOLS
Safety! Always use approved safety glasses during assembly.
OptionalRequired
HELPFUL REMINDER SYMBOLS
Look for these symbols for helpful reminders throughout this manual.
ORIENT LUMBER AND TRIM FOR BEST APPEARANCE
= Assistance Required; two or more people.
= Ensure squareness.
= Important required step or operation.
= Helpful assembly hint.
= Mark part with pencil.
= Beginning of steps for assembly or installation.
= You have nished the assembly or installation.
= Level
❑Gloves
Framing lumber is graded for structural strength and not appearance. Exterior trim is graded for one good side.
Always install the material leaving the best edge and best surface visible. Please remember that these blemishes in no way
negatively affect the strength or integrity of our product. (See Fig. A, B, C.)
A
❑Safety Glasses
❑Tape Measure
❑Paint Tools
❑Ladder
❑Caulk Gun
❑Hammer
❑Level
FINISH
BEGIN
❑Pencil
❑Phillips
Screwdriver ❑Tool Belt/
Nail Pouch
❑Chalk Line
❑Nail Gun
• gun nails
❑Tin Snips
(for drip edge)
❑Square or
❑Utility Knife
❑Shingle Blades
B C
❑Drill / Driver
❑1/8" Drill Bit
❑#2 Philips Drive Bit
❑1/4" Drill Bit
❑5/16" Drill Bit
❑1/2" Drill Bit
❑Hand Saw

WOOD SIZE CONVERSION CHART
Nominal Board Size Actual Size
1 x 4.................3/4" x 3-1/2" (1,9 x 8,9 cm)
2 x 4.............1-1/2" x 3-1/2" (3,8 x 8,9 cm)
2 x 3..............1-1/2" x 2-1/2" (3,8 x 6,3 cm)
1 x 3.................3/4" x 2-1/2" (3,8 x 6,3 cm)
PARTS IDENTIFICATION AND SIZES
RS RS
Part identication
letters are stamped on some parts.
Check these locations for
part stamp.
WALLS
x3 2 x 4 x 89" (5,1 x 10,2 x 226,1 cm) SZ
x24 2 x 4 x 80" (5,1 x 10,2 x 203,2 cm) TK
x2 2 x 4 x 68-1/2" (5,1 x 10,2 x 174 cm)
YFA
x3 2 x 4 x 72" (5,1 x 10,2 x 182,9 cm)
TM
x1 2 x 4 x 64" (5,1 x 10,2 x 162,6 cm) UX
PARTS LIST
INVENTORY YOUR PARTS before you begin.
We suggest sorting parts by the category they are listed in.
RAFTERS
TRIM
x5 2 x 4 x 10" (5,1 x 10,2 x 25,4 cm)
PWA
x4 2 x 4 x 8-1/2" (5,1 x 10,2 x 21,6 cm)
CPA
x2 2 x 4 x 6" (5,1 x 10,2 x 15,2 cm) PVA
x8 3/8 x 1-3/4 x 81-1/2" (1 x 4,4 x 207 cm)
x4 2 x 4 x 96" (5,1 x 10,2 x 243,8 cm)
TP
1 x 3 x 5" (2,5 x 7,6 x 12,7 cm) Gauge Block for 3/4" (1,9 cm) measurement
x1 GAA
3/4"
(1,9 cm)
3
x16 2 x 4 x 63-7/8" (5,1 x 10,2 x 162,2 cm)
ASA
1 x 4 x 60" (1,6 x 10,2 x 152,4 cm)
x2 JF
x2 3/8 x 4-7/8 x 73-1/2" (1 x 12,4 x 186,7 cm)
x2 3/8 x 4-3/4 x 77-1/4" (1 x 12,1 x 196,2 cm)
x2 3/8 x 4-7/8 x 96" (1 x 12,4 x 243,8 cm)
x2 3/8 x 4-3/4 x 64-1/8" (1 x 12,1 x 162,9 cm)
x2 3/8 x 4-3/4 x 64-1/8" (1 x 12,1 x 162,9 cm)
x4 3/8 x 4-3/4 x 54-5/8" (1 x 12,1 x 138,7 cm)
x2 3/8 x 4-3/4 x 96" (1 x 12,1 x 243,8 cm)
x4 2 x 4 x 64-1/8" (5,1 x 10,2 x 162,9 cm)
ATA
x2 2 x 4 x 20" (5,1 x 10,2 x 50,8 cm) ABA
x6 2 x 4 x 22-1/2" (5,1 x 10,2 x 57,1 cm) AO
x2 2 x 4 x 12-1/2" (5,1 x 10,2 x 31,8 cm) AJ
x2 2 x 4 x 35" (5,1 x 10,2 x 88,9 cm) QT
x2 3/8 x 10 x 17" (1 x 25,4 x 43,2 cm)
x14 6 x 24" (15,2 x 61 cm) OSB OR WOOD GRAIN

WINDOW TRIM, DOOR TRIM & SHUTTERS
4
NOTE: Panel parts are not stamped.
LOFT & SHELVES
x1 19/32 x 2-1/2 x 30-1/8" (1,5 x 6,3 x 76,5 cm)
AZ
OOx3
AUA
x1 19/32 x 2-1/2 x 53" (1,5 x 6,3 x 134,6 cm)
DEAx1 19/32 x 3-1/2 x 55" (1,5 x 8,9 x 139,7 cm)
LRA
x2 1 x 4 x 69-3/4" (2,5 x 10,2 x 177,2 cm)
ZJ
x1 19/32 x 2-1/2 x 72" (3,2 x 6,3 x 182,9 cm)
x4 19/32 x 2-1/2 x 11" (1,5 x 6,3 x 27,9 cm) DJA
x4 19/32 x 5-1/2 x 30-1/8" (1,5 x 14 x 76,5 cm) DHA
x1 19/32 x 2-1/2 x 70-7/8" (1,5 x 6,3 x 180 cm)
DGR
x2 19/32 x 2-1/2 x 70-7/8" (1,5 x 6,3 x 180 cm)
DGL
x1 DFA 19/32 x 3-1/2 x 72" (1,5 x 8,9 x 182,9 cm)
x1 DDA 19/32 x 3-1/2 x 40" (1,5 x 8,9 x 101,6 cm)
x1 2 x 4 x 96" (5,1 x 10,2 x 243,8 cm) TP
x5 2 x 3 x 96" (5,1 x 7,6 x 243,8 cm) PT
x2 7/16 x 10-1/2 x 89" (1,1 x 26,7 x 226,1 cm)
x1 7/16 x 26-5/8 x 89" (1,1 x 67,6 x 226,1 cm)
x2 2 x 3 x 21-3/4" (5,1 x 7,6 x 55,2 cm)
AED
x3 19/32 x 6-7/16 x 5-1/2" (1,5 x 16,4 x 14 cm)
NRA
x3 19/32 x 6-7/16 x 2" (1,5 x 16,4 x 5,1 cm)
JTA
69" (175,3 cm) Door Stiffener

5
NOTE: Panel parts are not stamped.
WALL PANELS & DOORS
x5
3/8 x 48 x 84"
(1 x 121,9 x 213,4 cm)
x2
x2
x1
3/8 x 48 x 84"
(1 x 121,9 x 213,4 cm)
x1
3/8 x 48 x 84"
(1 x 121,9 x 213,4 cm)
x1
3/8 x 48 x 84"
(1 x 121,9 x 213,4 cm)
x1
3/8 x 48 x 84"
(1 x 121,9 x 213,4 cm)
x1
3/8 x 48 x 84"
(1 x 121,9 x 213,4 cm)
x1
UNIVERSAL DOOR
Right / Left
Painted
Black
on Ends
x1
LEFT DOOR
x1
RIGHT DOOR
Painted
Green on End
Painted
Red on End
x1
3/8 x 23-7/8 x 84"
(1 x 60,6 x 213,4 cm)
x2
3/8 x 11-7/8 x 84"
(1 x 30,2 x 213,4 cm)

6
ROOF PANELS
NOTE: Panel parts are not stamped.Roof panels are 7/16" (1,1 cm) thick.
7/16 x 15-7/8 x 23-7/8"
(1,1 x 40,3 x 60,6 cm)
x2
7/16 x 15-7/8 x 96"
(1,1 x 40,3 x 243,8 cm)
x2
7/16 x 15-7/8 x 48"
(1,1 x 40,3 x 121,9 cm)
x2
7/16 x 48 x 96"
(1,1 x 121,9 x 243,8 cm)
x2
7/16 x 48 x 71-7/8"
(1,1 x 121,9 x 182,6 cm)
x2
FLOOR PARTS
NOTE: Panel parts are not stamped.Floor panels are 5/8" (1,6 cm) thick.
5/8 x 23-7/8 x 96"
(1,5 x 60,6 x 243,8 cm)
x1
5/8 x 48 x 96"
(1,5 x 121,9 x 243,8 cm)
x3
x2
2 x 4 x 72" (5,1 x 10,2 x 182,9 cm)
x12
2 x 4 x 93" (5,1 x 10,2 x 236,2 cm)
x2
2 x 4 x 96" (5,1 x 10,2 x 243,8 cm)
Look for
Stamp
TREATED

x335
x130
x30
x100
x113
x27
VENT/ DOOR HARDWARE/ WINDOWS
FASTENERS & HARDWARE
FASTENER/HARDWARE BAG
x7
x4
NOTE:
If you are using a nail gun, nails
may be used where screws are
shown for quicker assembly.
Length of nail must match screw length.
7
1-5/8" (4,1 cm)
2" (5,1 cm)
3" (7,6 cm)
3/4" (1,9 cm)
2" (5,0 cm)
1-1/2" (3,8 cm)
1" (2,5 cm)
x25
x2
3" (7,6 cm)
2" (5,1 cm)
Window
x2
Vent with Frame
x18
1" (2,5 cm)
x6
Decorative Hinges
Spring Bolt
x2
(4 screws in each package)
Boxes
Boxes
x2
x1
T-Handle
x4 1-1/2" (3,8 cm)
(2 screws in each package)
4-1/2" Shaft
x1 5-1/2" Shaft
x8
1-1/4 (3,2 cm)

8
DRIP EDGE ..................... 60 Feet #15 ROOFING FELT
To cover 160 Sq. Ft. of roof area.

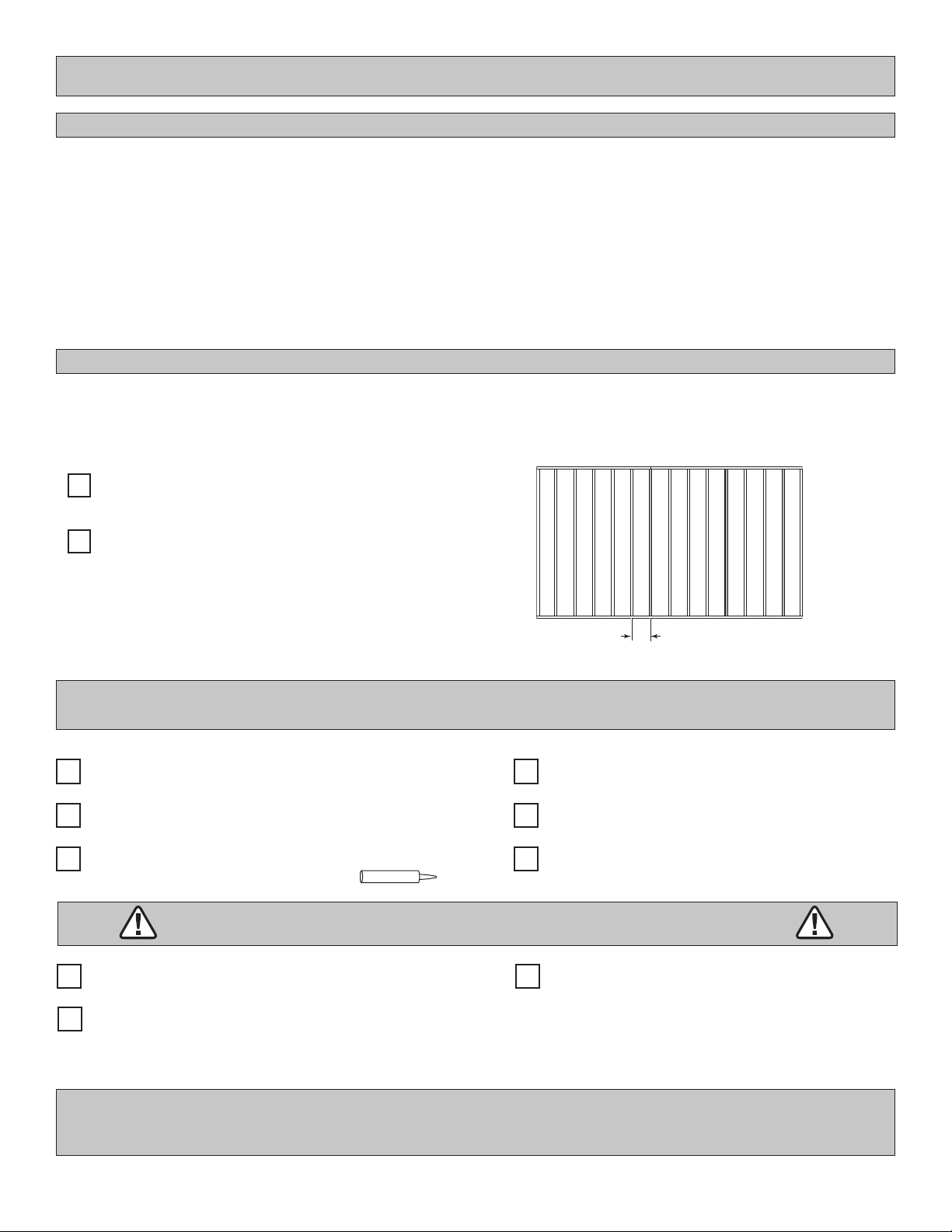

IMPORTANT! Depending on your specic use you may want to construct a heavy duty oor frame by adding additional oor joists
(shown below as shaded). Below is a list of additional materials (not included):
x3
x12
2 x 4 x 8' (5 x 10 x 243,8 cm) Treated Lumber
Cut to (3) 2 x 4 x 93" (5 x 10 x 236,2 cm)
ea. 3" (7,6 cm) Hot Dipped Galvanized Nails
Optional 12" (30,5 cm) spacing
Standard 16" (40,7 cm) spacing
REFER TO THE BACK OF THIS MANUAL AND THE MANUFACTURER’S INSTRUCTIONS FOR
INSTALLATION OF SHINGLES, DRIP EDGE AND FELT.
COMPLETING YOUR SHED
You will need these additional materials:
REINFORCED WOOD FLOOR FRAME (OPTIONAL)
CAULK .............................................. 1 Tube
For windows use acrylic latex exterior caulk that is paintable.
TO VALIDATE YOUR WARRANTY YOU MUST USE THE FOLLOWING:
FOUNDATION OR FLOOR MATERIALS
ADDITIONAL MATERIALS
• This shed does not include any leveling materials.
• See the FLOOR LEVELING section on page 9 for recommended methods and suggested materials to properly level your oor,
as this will vary depending on your specic site.
• If you choose to install your kit on a concrete slab refer to page 10.
3-TAB SHINGLES ............................. 7 Bundles
PAINT FOR SIDING .......................... 3 Gallons
Use 100% acrylic latex exterior paint. (2) coats recommended.
CAULK ................................................. 2 Tubes
Use acrylic latex exterior caulk that is paintable.
1" GALVANIZED ROOFING NAILS.... 3 Lbs
For shingles.
PAINT FOR TRIM .......................... 3 Quarts
Use 100% acrylic latex exterior paint.
1" GALVANIZED ROOFING NAILS....1/4 Lb
For roong felt.

DOOR
9
• Level under 4x4 runners only.
• Locate leveling material 12" from ends of runners and no more than 48" apart.
• Asphalt shingles should be used between 4x4 runners and blocks or treated lumber. Never use
shingles in direct contact with ground.
• For best results and aiding in water drainage use gravel under each concrete block.
LEVELING METHODS
• If you are building your shed on a concrete foundation see the following page.
CONCRETE
Use only wood treated for ground contact and fasteners approved for use with treated wood.
Always support frame seams.
Leveling higher than 16" not recommended.
LEVELING MATERIALS
Gravel
2x4 Treated Lumber
Solid Masonry Blocks in 1", 2", 4" or 8" thickness
Asphalt Shingles
8" Block
4" Block
Gravel
Gravel
Do not exceed 16".
4x4 Runner
Shingle
Shingle
Maximum between leveling
material locations.
48"
12"
2x4 Treated Lumber
2" Block
Level
12"
• 3" Screws angled into 4x4.
• (2) at each point frame
and 4x4 touch.
Runners are generally 12" (30,5 cm) from

OPTIONAL WOOD FRAME FLOOR LEVELING OPTIONS
There are multiple ways to level your oor frame. Our recommended leveling method is shown below.
Leveling materials are not included in this kit.
PREFERRED METHOD - 4x4 TREATED RUNNERS (Typical for 8' x 14' Kit)
MATERIAL REQUIRED
4 x 4 x 14' (10,2 x 10,2 x 426,7 cm) Treated Lumber
x2 x48 3" (7,6 cm)
Fasteners for Frame to 4 x 4.
(3" Screws shown as one option.)
Minimum 3" screws / exterior grade.
12"
(30,5 cm)
16"
(40,6 cm)
12"
(30,5 cm)
Measurements to
centers of 4x4's.

10
CONCRETE FOUNDATION
Your kit contains all materials to construct a wooden oor. If you choose to install your kit
on a concrete slab refer to the diagram below.
• A treated 2 x 4 (5,1 x 10,2 cm) sill plate is required when installing your shed on concrete.
Hint: Purchase full length treated lumber.
• Use a high quality exterior grade caulk beneath all sill plates.
• Fasten 2 x 4 (5,1 x 10,2 cm) sill plates to slab using approved concrete anchors (fasteners not included).
• Check local code for concrete foundation requirements.
NOTES
Allow new concrete slabs to cure for at least seven (7) days.
2 x 4 x 8' (5,1 x 10,2 x 244 cm)
Caulk
Requires:
x2
x2
x1
MUST be treated lumber.
MUST be treated lumber.
96" (243,8 cm)
96" x 168" (243,8 x 426,7 cm) 161" (408,9 cm)
8' x 14' (243,8 x 365,8 cm) 168" (426,7 cm)
AActual Size B CBuilding Size
A
B
C
4"
(10,2 cm)
3-1/2"
(8,9 cm)
Treated Sill Plate
Caulk between sill
plate and concrete.
2 x 4 x 14' (5,1 x 10,2 x 365,8 cm)
DOUBLE
DOOR
SINGLE
DOOR

11
3" (7,6 cm)
x44
x12
2 x 4 x 93" (5,1 x 10,2 x 236,2 cm)
x2
2 x 4 x 96" (5,1 x 10,2 x 243,8 cm)
x2 2 x 4 x 72" (5,1 x 10,2 x 182,9 cm)
PARTS REQUIRED:
Center
on marks

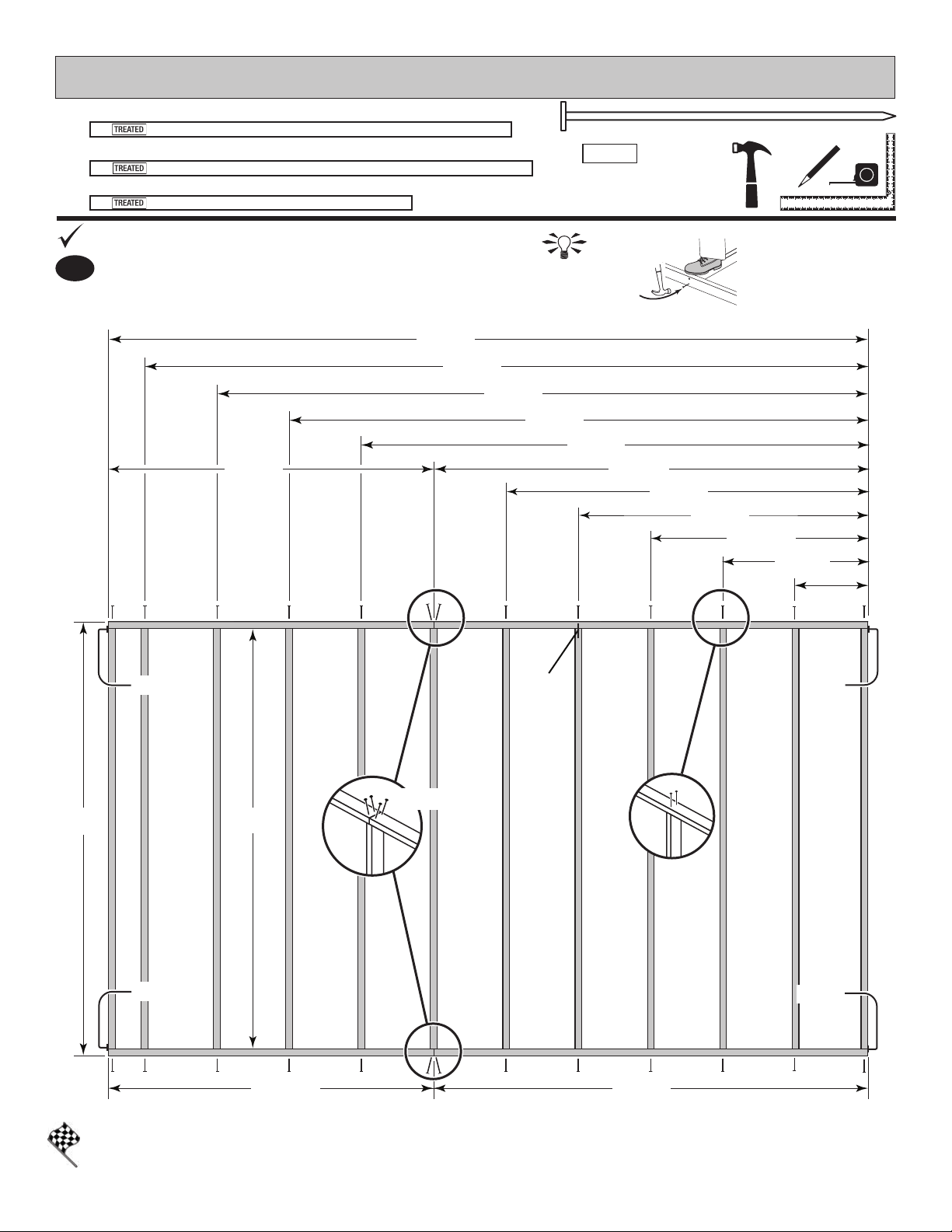

FLOOR FRAME
Look for
Stamp
TREATED
HINT:
For easier nailing
stand on frame.
1
Use (2) 3" nails at each mark and (4) nails at seams.
Orient parts as shown on at surface. Measure and mark.
BEGIN
You have nished your oor frame. Proceed to level and square frame.
FINISH
Flush
Flush
Flush Flush
SEAM
32"
(81,3 cm)
72"
(182,9 cm)
48"
(121,9 cm)
16"
(40,6 cm)
64"
(162,6 cm)
80"
(203,2 cm)
96"
(243,8 cm)
93"
(236,2 cm)
96"
(243,8 cm)
96"
(243,8 cm)
72"
(182,9 cm)
112"
(284,5 cm)
128"
(325,1 cm)
144"
(365,8 cm)
160"
(406,4 cm)
168"
(426,7 cm)
96"
(243,8 cm)

12
FINISH
LEVEL AND SQUARE FLOOR FRAME
Before installing oor decking, it is important to level and square the oor frame.
A level and square oor frame is required to correctly construct your shed.
BEGIN
2
3
1
Use level and check the frame is level before applying oor panels.
Check for frame squareness by measuring diagonally across corners. If the measurements are the
same, the frame is square. The diagonal measurement will be approximately 193-1/2" (491,5 cm).
When the frame is level and square secure one side of frame to the 4x4 runners using one fastener at
ends of each runner. Move to the opposite end of the frame. Secure the frame to 4x4 runners with one
fastener at ends of each runner making sure the frame remains square (Fig. A).
Once the oor frame is level and square, fasten the frame to the 4x4 runners at each point where
the frame contacts the 4x4 runners.
See page 9 for the preferred oor leveling method.
First, secure
at ends with
one fastener.
Second, secure
at ends with
one fastener.
193-1/2"
(491,5 cm)
193-1/2"
(491,5 cm)
Fig. A
DOUBLE
DOOR
SINGLE
DOOR

13
Move to the opposite side.
Using the long edge of the panel as a lever,
move the panel side-to-side until the top corner
is ush to the oor frame (Fig. B).
Secure panel with (2) 2" nails in the corners.
2
BEGIN
1
3Continue securing the panel with 2" nails spaced 6" apart on edges and 12" apart inside panel.
Use a chalk line or use pre-painted grid lines to nail into joists under panel.

PARTS REQUIRED:
x1
x219
5/8 x 48 x 96"
(1,6 x 121,9 x 243,8 cm)
2" (5,1 cm)
FLOOR PANELS
Secure the 48 x 96" panel with the 48" edge
and corner ush to the oor frame (Fig A).
Secure panel with (2) 2" nails in the corners.
Flush
Flush
Install gable panels with the rough side facing up (painted grid lines).
6"
(15,2 cm)
12"
(30,5 cm)
Flush
(2) Nails
3/4"
(1,9 cm)
Fig. A
Flush
(2) Nails
3/4"
(1,9 cm)
Fig. B
2" (5,1 cm)
Nails

14
PARTS REQUIRED:
FINISH
Your oor is now assembled.
Next, install 48" x 96" and 23-7/8" x 96" panels.
Use a chalk line or use pre-painted grid lines on panel for 2" nails spaced 6" apart on edges
and 12" apart inside panels.
4
FLOOR PANELS
Flush
6"
(15,2 cm)
12"
(30,5 cm)
Flush Flush Flush Flush
2" (5,1 cm)
5/8" x 23-7/8" x 96" (1,6 x 60,6 x 243,8 cm)
x1
5/8" x 48" x 96" (1,6 x 121,9 x 243,8 cm)
x2
23-7/8"
(60,6 cm)
48"
(121,9 cm)
48"
(121,9 cm)

15
GABLE END
WALL
GABLE DOOR
WALL
BACK WALL
BACK WALL

Re-level if needed.
HINT:
IMPORTANT!

• Organize your assembly procedure during the build process
to avoid over-handling of the walls.
FRONT WALL
(Your door location may vary.)
DOUBLE
DOOR
SINGLE
DOOR

16
PARTS REQUIRED:
FINISH
You have nished rafter jig. Proceed to assemble your rafters.
RAFTER ASSEMBLY
96"
(243,8 cm)
35-3/16"
(89,4 cm)
35-3/16"
(89,4 cm)
48"
(122 cm)
3/4"
(1,9 cm)
CPA CPA
CPA
3" (7,6 cm)
x6
Measure over 48" and up 35-3/16" from the oor edges and secure CPA with (2) 3" screws.
Check CPA is 35-3/16" at both ends for squareness.
BEGIN
¸
1Secure (1) CPA ush to the oor deck with (2) 3" screws.
Measure over 96-3/4" and install a second CPA ush to the oor deck. CPA will overhang the oor.
Secure with (2) 3" screws.
2
96-3/4"
(245,7 cm) IMPORTANT MEASUREMENT !!
Fig. B
Fig. A
You will build a rafter jig using the oor and (3) CPA parts as shown.
Floor Width
(2) 3" (7,6 cm)
Screws
in each CPA
There will be an
overhang on
this end.
Flush Flush
x3 2 x 4 x 8-1/2" (5,1 x 10,2 x 21,6 cm)
CPA

17
PARTS REQUIRED: x 168 2" (5,1 cm)
x 16 1-5/8" (4,1 cm)
RAFTER ASSEMBLY
You will build 8 rafters - Six with 2 gussets and Two with only 1 gusset.
x14
6 x 24" (15,2 x 61 cm)
OSB OR WOOD GRAIN
x16
2 x 4 x 63-7/8" (5,1 x 10,2 x 162,2 cm)
ASA
1/4" (1,9 cm)
GAP
1/4" (1,9 cm)
GAP
1/4" (1,9 cm)
GAP
1/4" (1,9 cm)
GAP
ASA x2
ASA x2
Fig. A
Fig. B
Fig. C
CPA at both ends when securing gusset.
You have nished assembling your rafters.
Repeat Steps 1 - 2 to assemble ve more rafters with 2gussets.
Repeat Step 1 to assemble two more rafters with only 1gusset.
Remove CPA's from oor.
Flip rafters over and install a second gusset with (12) 2" nails. No need to use jig for this gusset.
3
4
2
Keep ASA rm against outside CPA's as shown (Fig.A) and push rafters tight to the middle CPA.
Rafters should touch at tips (Fig. A).
Place gusset onto ASA holding a 1/4" gap from edge (Fig. C) and keeping rafters rm as instructed.
Secure gusset with (1) 1-5/8" screw into each rafter.
HINT: These screws will help hold the measurements when you nail on gussets.
Secure the gusset to the rafter with (10) 2" nails in the pattern shown (Fig. C).
BEGIN
¸
1Place two rafters ASA into the jig as shown.
FINISH
1-5/8" (4,1 cm)
Screw
96-3/4"
(245,7 cm)

x1 2 x 4 x 64" (5,1 x 10,2 x 162,6 cm)
UX
x2
2 x 4 x 80" (5 x 10,2 x 203,2 cm)
TK
18
HINT:
For easier nailing
stand on frame.
x1
2 x 4 x 89" (5 x 10,2 x 226,1 cm)
SZ
PARTS REQUIRED:
3" (7,6 cm)
x24
GABLE DOOR WALL
BEGIN
1
Use (2) 3" nails at each mark.
Orient parts on edge on oor. Measure and mark.
89"
(226,1 cm)
64"
(162,6 cm)
77-1/4"
(196,2 cm)
80"
(203,2 cm)
68-1/2"
(174 cm) 44-1/2"
(113 cm) 20-1/2"
(52,1 cm)
11-3/4"
(29,8 cm)
12-1/2"
(31,8 cm)
12-1/2"
(31,8 cm)
10"
(25,4 cm)
PWA x3
UX
TK TK
3" (7,6 cm)
Nails
SZ
AJ AJ
x3
2 x 4 x 10" (5,1 x 10,2 x 25,4 cm)
PWA x2
2 x 4 x 12-1/2" (5,1 x 10,2 x 31,8 cm)
AJ
Flush Flush
