Bad Boy 644582 User manual

OWNER’S GUIDE
644582
HD ELECTRIC
REVISED AUGUST 2015ISSUED MAY 2015

WELCOME
Thank you for purchasing this vehicle. Before you drive the vehicle, read this Owner’s Guide. This guide contains mainte-
nance and operation information. The illustrations can show items that are optional for your vehicle.
You can do most of the service procedures in this guide with common, automotive hand tools. If necessary, contact your
service representative for information about how to service the vehicle as shown in the Periodic Service Schedule.
Repair or replacement parts are available from your E-Z-GO dealer or E-Z-GO Service Parts Department.
When you contact E-Z-GO about service or parts for your vehicle, the information below is needed.
Vehicle Model: ___________________________________________________________
PIN, VIN or Serial Number: _________________________________________________

Never modify the vehicle in any way that will alter the weight distribution of the vehicle, decrease its stability or increase the speed
beyond the factory specifications. Such modifications can cause serious personal injury or death. E-Z-GO Division of Textron Inc. prohib-
its and disclaims responsibility for any such modifications or any other alteration which would adversely affect the safety of the vehicle.
E-Z-GO Division of Textron Inc. reserves the right to incorporate engineering and design changes to products in this manual, without obli-
gation to include these changes on units sold previously.
The information contained in this manual may be revised periodically by E-Z-GO, and therefore is subject to change without notice.
E-Z-GO DISCLAIMS LIABILITY FOR ERRORS IN THIS MANUAL, and SPECIFICALLY DISCLAIMS LIABILITY FOR INCIDENTAL AND CONSE-
QUENTIAL DAMAGES resulting from the use of the information and materials in this Manual.
These are the original instructions as defined by 2006/42/EC.
CONTACT US:
E-Z-GO Division of Textron Inc.
1451 Marvin Griffin Road.
Augusta, Georgia, USA 30906-3852
North America:
Technical Assistance & Warranty PHONE: [phone] FAX: [phone]
Service Parts PHONE: 1-888-GET-EZGO (1-888-438-3946) FAX: [phone]
International:
PHONE: [phone] FAX: [phone]
i
OWNER’S GUIDE
72V ELECTRIC POWERED VEHICLE
HD ELECTRIC
STARTING MODEL YEAR 2016
CALIFORNIA Proposition 65 Warning
WARNING: Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known
to the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids con-
tained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to
cause cancer and birth defects or other reproductive harm.

FORWARD
ii Owner’s Guide
This vehicle was designed and manufactured in the United States of America (USA). The
Standards and Specifications listed in the following text originate in the USA unless other-
wise indicated.
Use Original Equipment Manufacturer (OEM) approved parts to keep the warranty effective.
If you do not correctly do maintenance on the batteries, you will cancel the warranty. Refer
to the MAINTENANCE section for instructions on the correct maintenance of the batteries.
BATTERY PROLONGED STORAGE
The batteries discharge over time. The rate of discharge changes according to the ambient
temperature, the age and condition of the batteries.
Completely charged batteries will not freeze in winter temperatures unless the temperature
is less than -75°F (- 60°C).
For winter storage, the batteries must be clean, completely charged and disconnected from
any electrical drain.
The battery charger can stay connected to the vehicle to keep a full charge on the batteries
while the charger is connected to an active electrical supply. If the power to the electrical
supply is disconnected or interrupted, the battery charger will continuously check the
charge on the battery pack. A continuous check of the battery pack will pull power from the
battery pack and drain the batteries.
The batteries must be checked and charged again as required or at a minimum of 30-day
intervals.
Check and keep correct fluid level in all battery cells during the storage period. Correct fluid
level is necessary for maximum battery performance.
BATTERY DISPOSAL
Lead-acid batteries are recyclable. Return discarded batteries to distributor, manufacturer
or lead smelter for recycling. For neutralized spills, put residue in acid-resistant containers
with absorbent material, sand or earth and discard according to local, state and federal reg-
ulations for acid and lead compounds. Contact local or state environmental authorized peo-
ple for the disposal information.

B
TABLE OF CONTENTS
iii
Owner’s Guide
SAFETY
GENERAL......................................................................................................................... 1
NOTICES, CAUTIONS, WARNINGS AND DANGERS .................................................... 1
GENERAL OPERATION................................................................................................... 3
MAINTENANCE................................................................................................................ 4

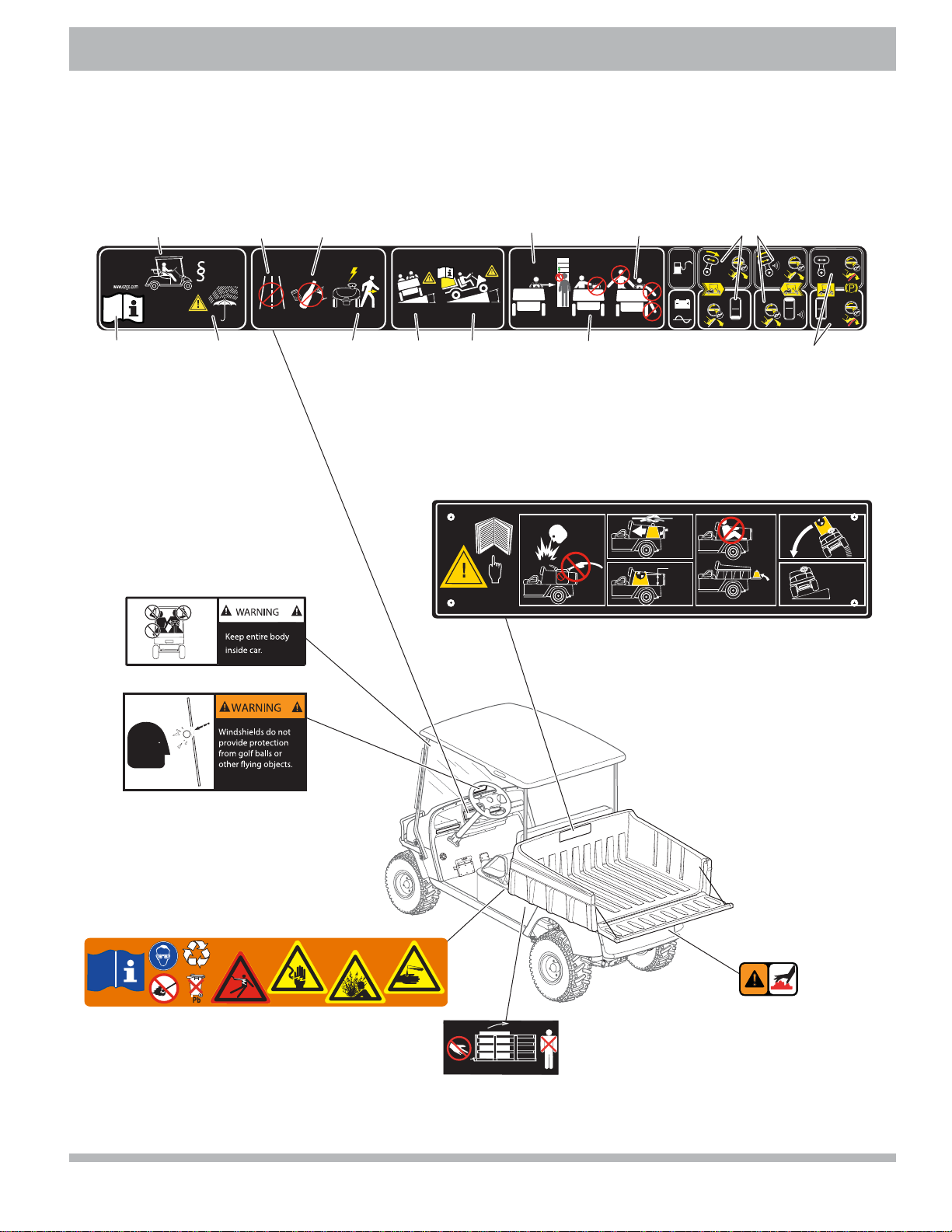

LABELS AND PICTOGRAMS........................................................................................... 5
GENERAL SPECIFICATIONS

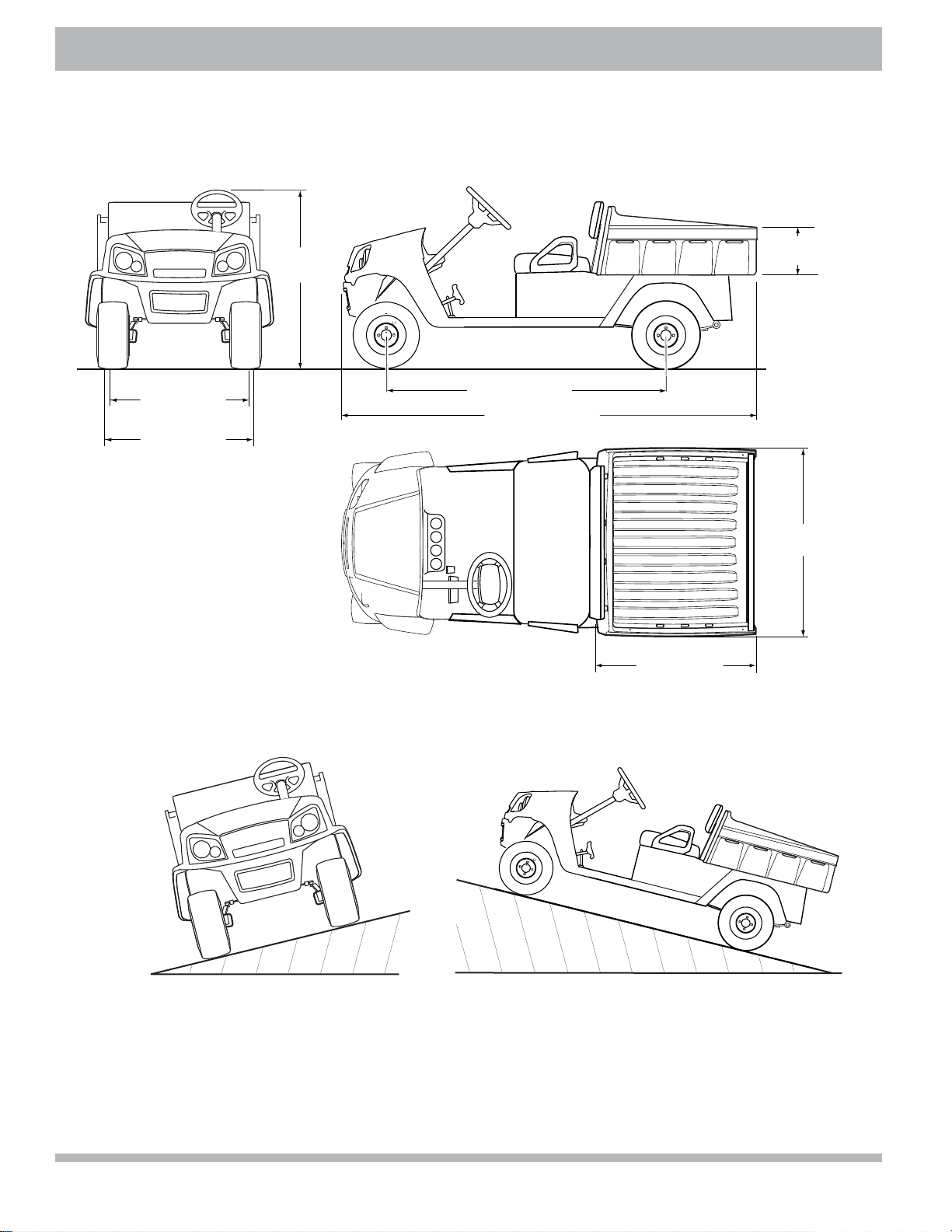

VEHICLE DIMENSIONS................................................................................................... 8

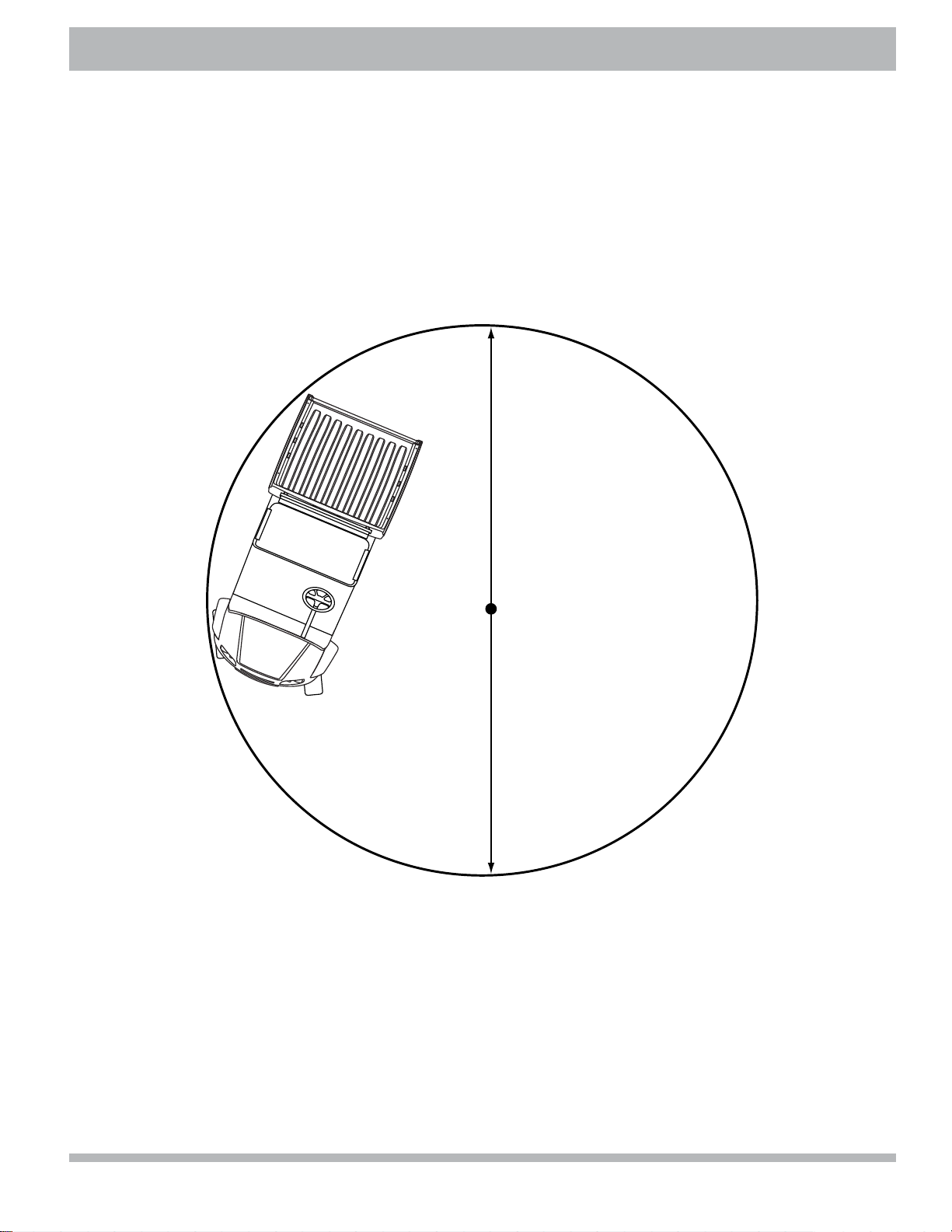

TURNING DIAMETER AND INCLINE INFORMATION .................................................... 9
INTRODUCTION
FEATURES..................................................................................................................... 11
General Information .......................................................................................... 11

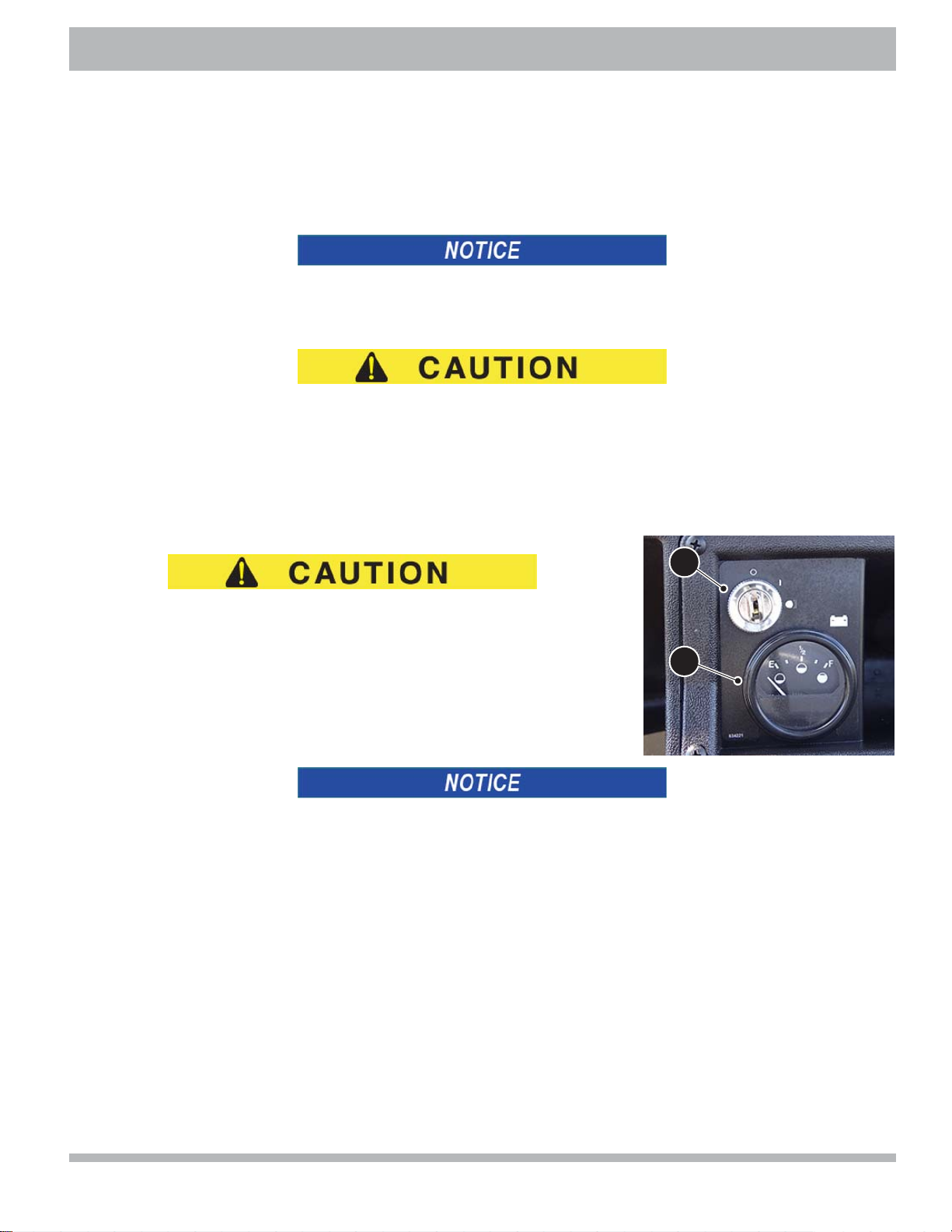

Key and Light Switch .......................................................................................... 11
State of Charge Meter........................................................................................ 11
Direction Selector .............................................................................................. 12
Accelerator Pedal .............................................................................................. 12
Brake and Parking Brake Pedal......................................................................... 12
Charger Receptacle (if equipped) ...................................................................... 12
CE Charger Receptacle (if equipped) ................................................................ 12
AC Outlet (if equipped)....................................................................................... 13
CE Seat Lock ..................................................................................................... 13
Seat.................................................................................................................... 13
Hip Restraint ...................................................................................................... 13
Steering Wheel................................................................................................... 13
Brake Light......................................................................................................... 13
Cup Holder......................................................................................................... 13
Truck Bed........................................................................................................... 13
Truck Bed Handle/Latch..................................................................................... 13
Electric Truck Bed Lift Switch............................................................................. 14
12-Volt Outlet (if equipped) ................................................................................ 14
DC to DC Converter........................................................................................... 14
Fuse Block ......................................................................................................... 14
OPERATING PROCEDURES
SERIAL NUMBER LOCATION ....................................................................................... 17

B
iv
TABLE OF CONTENTS
Owner’s Guide
BEFORE INITIAL USE..................................................................................................... 17
CHARGER....................................................................................................................... 18
On-Board Charger ..............................................................................................18
HOW TO OPERATE THE VEHICLE ............................................................................... 19
Key and Light Switch Operation ..........................................................................20
Direction Selector Operation ...............................................................................21
Accelerator Pedal Operation ...............................................................................21
Brake and Parking Brake Operation ...................................................................21
Truck Bed Operation ...........................................................................................22
Truck Bed Handle/Latch Operation .....................................................................23
Electric Lift Operation .........................................................................................23
Tailgate Operation ..............................................................................................23
PERFORMANCE............................................................................................................. 23
Pedal-Up Braking ................................................................................................24
Terrain .................................................................................................................24
Walk-Away Feature .............................................................................................24
Anti-Roll Back Feature ........................................................................................25
Anti-Stall Feature ................................................................................................25
High Pedal Disable Feature ................................................................................25
Diagnostic Mode Feature ....................................................................................25
STARTING AND DRIVING.............................................................................................. 25
Starting Vehicle On A Hill ....................................................................................26
Coasting ..............................................................................................................26
SUN TOP AND WINDSHIELD (IF EQUIPPED)............................................................... 26
MAINTENANCE
VEHICLE CLEANING AND CARE................................................................................... 29
ENVIRONMENTAL CONCERNS .................................................................................... 29
Battery Disposal ..................................................................................................30
LIFTING THE VEHICLE................................................................................................... 30
WHEELS AND TIRES...................................................................................................... 31
Recommended Tire Pressures ...........................................................................31
Tire Repair ..........................................................................................................31
Wheel Installation ................................................................................................32
LIGHT BULB REPLACEMENT........................................................................................ 33
Headlight .............................................................................................................33

B
TABLE OF CONTENTS
v
Owner’s Guide
Taillight ............................................................................................................... 33
FUSE REPLACEMENT................................................................................................... 33
TRANSPORTING VEHICLE........................................................................................... 34
Towing ................................................................................................................ 34
Hauling ............................................................................................................... 34
SERVICE AND MAINTENANCE..................................................................................... 34
ROUTINE MAINTENANCE............................................................................................. 35
TIRE INSPECTION......................................................................................................... 35
BRAKES ......................................................................................................................... 36
Periodic Brake Test ............................................................................................ 36
REAR AXLE.................................................................................................................... 37
Checking the Lubricant Level ............................................................................. 37
LUBRICATION................................................................................................................ 37
CAPACITIES AND REPLACEMENT PARTS ................................................................. 37
HARDWARE................................................................................................................... 38
BATTERY CHARGING AND MAINTENANCE ............................................................... 39
Safety ................................................................................................................. 39
Battery Disposal ................................................................................................. 39
Battery ................................................................................................................ 40
Battery Maintenance .......................................................................................... 40
At Each Charging Cycle ..................................................................................... 40
Monthly ............................................................................................................... 40
Electrolyte Level and Water ............................................................................... 40
Battery Cleaning ................................................................................................. 42
Battery Replacement .......................................................................................... 43
Prolonged Storage ............................................................................................. 44
Battery Charging ................................................................................................ 44
AC Voltage ......................................................................................................... 45
Fault Diagnosis .................................................................................................. 45
Hydrometer ........................................................................................................ 45
Using A Hydrometer ........................................................................................... 46
Battery Charger Maintenance ............................................................................ 46
PERIODIC SERVICE SCHEDULE
PERIODIC SERVICE SCHEDULE ................................................................................. 49

B
vi
TABLE OF CONTENTS
Owner’s Guide

SAFETY
Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
1
Owner’s Guide
SAFETY
GENERAL
For any questions about material in this manual, contact an authorized representative.
Read and understand all labels on the vehicle. Always replace any damaged or missing labels.
Steep hills allow the vehicle to move at faster speeds than on a flat surface. To prevent the loss of vehicle control and
possible injury, speeds must be controlled to the maximum level ground speed indicated in the GENERAL SPECIFICA-
TIONS section. Apply the brake to control the speed.
If you operate the vehicle above the maximum specified speed, you can damage the drivetrain components. Damaged
drivetrain components can cause loss of vehicle control. Damage to the drivetrain caused by excessive speed is abusive,
and will not be covered under the warranty.
Use caution when you tow the vehicle. Towing the vehicle at above the recommended speed can cause personal injury
or damage to the vehicle and other property.

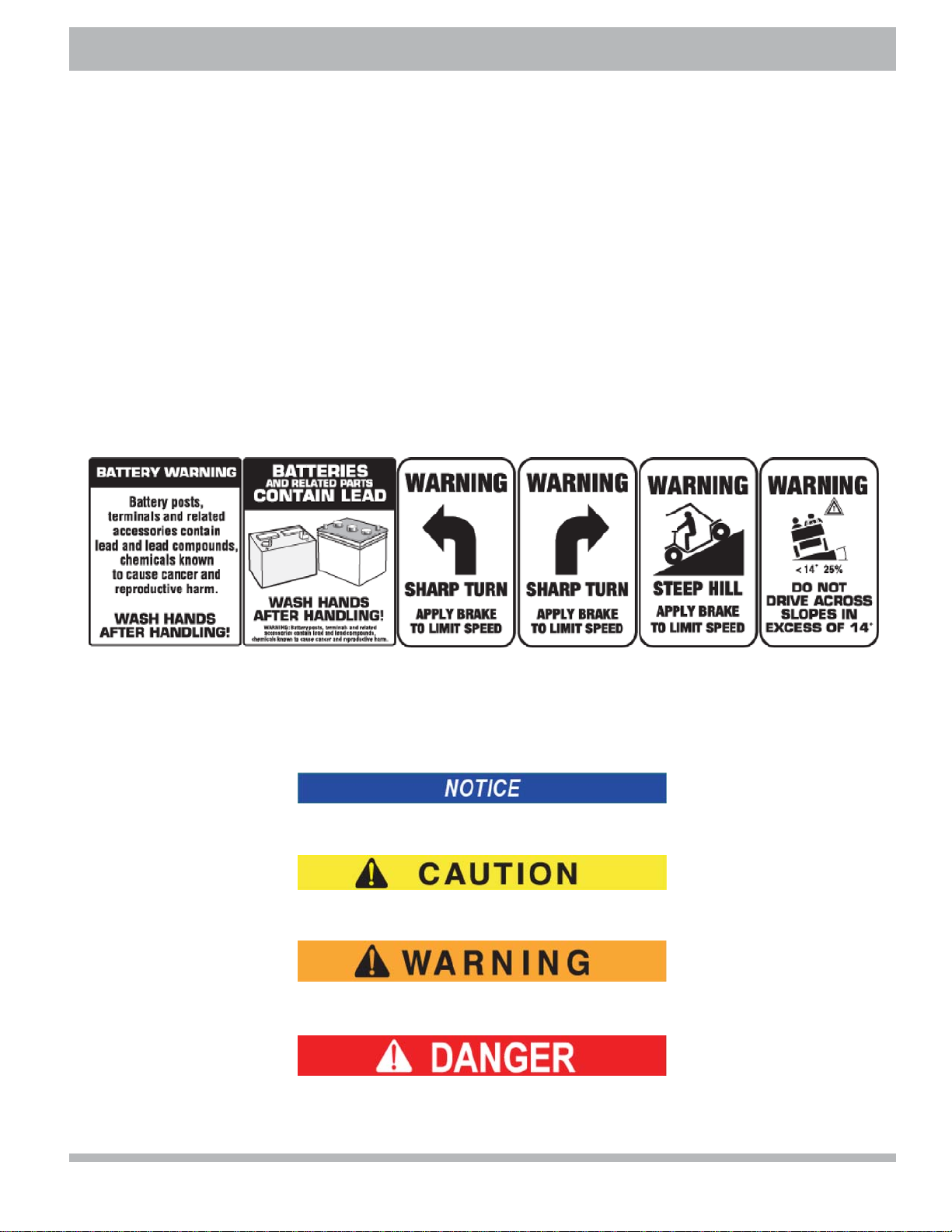

If the vehicle is used in a commercial environment, signs must be in position to inform of possible conditions that can be
dangerous. Examples shown below.
.
NOTICES, CAUTIONS, WARNINGS AND DANGERS
Read the NOTICES, CAUTIONS, WARNINGS and DANGERS. The person who services a vehicle needs the mechani-
cal skill and experience to see possible hazardous conditions. Incorrect service or repairs can cause damage to the vehi-
cle or make the vehicle dangerous to operate.
A NOTICE indicates and describes information not related to personal injury.
A CAUTION indicates a dangerous condition that can cause injury that is not life threatening.
A WARNING indicates a dangerous condition that can cause death or serious injury.
A DANGER indicates a dangerous condition that will cause death or serious injury.

2Owner’s Guide
SAFETY
Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
This manual contains recommended maintenance procedures from the manufacturer. Follow these procedures and fault
isolation information to get the best service from the product. To decrease the risk of personal injury or property damage,
read and follow all safety information and operational procedures in this manual.
Certain replacement parts can be used independently and/or in combination with other accessories to modify
an E-Z-GO-manufactured vehicle to permit the vehicle to operate at or in excess of 20 mph. When an E-Z-GO-
manufactured vehicle is modified in any way by the Distributor, Dealer or customer to operate at or in excess
of 20mph, UNDER FEDERAL LAW the modified product will be a Low Speed Vehicle (LSV) subject to the stric-
tures and requirements of Federal Motor Vehicle Safety Standard 571.500. In these instances, pursuant to
Federal law the Distributor or Dealer MUST equip the product with headlights, rear lights, turn signals, seat
belts, top, horn and all other modifications for LSV’s mandated in FMVSS 571.500, and affix a Vehicle Identifi-
cation Number to the product in accordance with the requirements of FMVSS 571.565. Pursuant to FMVSS
571.500, and in accordance with the State laws applicable in the places of sale and use of the product, the
Distributor, Dealer or customer modifying the vehicle also will be the Final Vehicle Manufacturer for the LSV,
and required to title or register the vehicle as mandated by State law.
E-Z-GO will NOT approve Distributor, Dealer or customer changes that change an E-Z-GO product into a Low Speed
Vehicle (LSV).
Anyone who operates this vehicle must be A LICENSED DRIVER AND OPERATE THE VEHICLE ACCORDING TO
APPLICABLE STATE REQUIREMENTS. This rule is important to the SAFE USEAND OPERATION of the product. All
customers must obey this SAFETY RULE.
Information on FMVSS 571.500 is found at Title 49 of the Code of Federal Regulations, section 571.500. For information
online, go to www.ecfr.gov.
Vehicles are used for different purposes, so it is not possible to know and inform of every possible occurrence. Be careful
when you drive to prevent avoidable personal injury or damage to the vehicle.All users must read and obey this manual.
Make sure you give special attention to the CAUTIONS, WARNINGS and DANGERS.
For questions about this vehicle, contact your E-Z-GO/CUSHMAN dealer or write to the address on the back cover of this
publication, Attention: Customer Care Department.
E-Z-GO has the right to change the design of the vehicle. There is no responsibility to make the changes on units pur-
chased before changes were made. The information in this manual can change without notice.
E-Z-GO IS NOT LIABLE FOR ERRORS IN THIS MANUAL. E-Z-GO IS NOT LIABLE FOR INCIDENTAL OR CONSE-
QUENTIAL DAMAGES THAT RESULT FROM THE USE OF THE MATERIAL IN THIS MANUAL.
This vehicle meets the current applicable standard for safety and performance requirements.
These vehicles are for off-road use. They DO NOT meet the federal Motor Vehicle Safety Standards of the United States
ofAmerica (USA) and are not for operation on the public streets. Some areas allow the operation of the vehicles on their
streets according to local codes.
Refer to GENERAL SPECIFICATIONS for capacity of the vehicle.
Do not change the vehicle in any manner that changes the weight distribution, decreases stability,
increases speed or extends the necessary distance to stop more than the factory specification.
Such changes can cause personal injury or death.
Do not change the vehicle in any manner that changes the weight distribution, decreases stability, increases speed or
extends the necessary distance to stop more than the factory specification. E-Z-GO is not responsible for changes that
cause the vehicle to be dangerous.
Do not let anyone below the height of 59 inches (150 cm) operate the vehicle.

B
SAFETY
Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
3
Owner’s Guide
GENERAL OPERATION
Read the following warnings before attempting to operate the vehicle.
When you leave the vehicle, turn the key to the OFF position and remove the key from the vehicle.
Drive the vehicle only as fast as terrain and conditions allow. Consider the terrain and traffic condi-
tions. Consider environmental conditions that change the terrain and your ability to control the
vehicle.
Do not drive fast downhill. Sudden stops or change of direction can cause a loss of control. Use
the brake to control the speed of the vehicle when you drive down a slope.
When possible, stay in approved areas and do not drive on steep slopes.
Always keep feet, legs, hands and arms inside vehicle.
Do not drive on rough terrain.
Before you drive in the reverse direction, make sure the area behind the vehicle is clear.
Make sure the direction selector is in the correct position before you press the accelerator pedal.
Decrease speed before and during turns.
Make sure you completely stop the vehicle before you move the direction selector.
See GENERAL SPECIFICATIONS for the vehicle load and seat capacity.
Read the following text and warnings before you service the vehicle.
Normal use, age, wear or abuse can cause some components on the vehicle to fail. The manufacturer can not know all
possible component failures or the methods that failures can occur.
A vehicle in need of repair does not operate correctly and can be dangerous.
Be careful when you service the vehicle. Be aware of your safety and the safety of other people in the area.
Some components are heavy, spring loaded, corrosive, explosive, can cause high amperage or get hot. Battery acid and
hydrogen gas can cause injury. Do not put your hands, face, feet or body in a location that can expose them to injury if an
unexpected situation occurs.
Always use the correct tools shown in the tool list and wear safety equipment.

4Owner’s Guide
SAFETY
Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
Remove all jewelry before you service the vehicle.
Do not allow loose clothing or hair to contact the moving parts.
Do not touch hot objects.
When you service the vehicle, always wear eye protection. Be careful
when you do work around batteries or you use solvents or compressed
air.
ALWAYS:
• Use the vehicle with responsibility and keep the vehicle in safe condition for operation.
• Read and obey all warnings and operation instruction labels on the vehicle.
• Follow all safety rules in the area where the vehicle is operated.
• When there is a risk of lightning, leave the vehicle and look for a safe location to wait until the lightning has stopped.
• Drive the vehicle only as fast as terrain and conditions allow.
• Apply brake to control the speed on steep grades.
• Keep enough distance between vehicles.
• Decrease speed in wet areas.
• Be careful when you make sharp turns, or turns you are not familiar with.
• Be careful when you drive on loose terrain.
• Be careful when you operate the vehicle around people.
MAINTENANCE
ALWAYS:
• Replace damaged or missing warning, caution or information labels.
• Service the vehicle according to the periodic service schedule in this manual.
• Make sure that approved and qualified personnel do all repairs.
• Follow the manufacturers maintenance procedures.
• Use insulated tools within the battery area to prevent sparks or battery explosion.
• Use specified replacement parts, DO NOT use replacement parts of less quality.
• Use recommended tools.
• Make sure that tools and procedures not specified by the manufacturer will not be a safety risk to personnel or oper-
ation of the vehicle.
• Support the vehicle with wheel chocks and jack stands. NEVER get below a vehicle that is supported by a jack. Lift
the vehicle according to the manufacturers instructions.
• Make sure you service the vehicle in an area away from open flame or sparks.
• Know that a vehicle in need of repair does not operate correctly and can be dangerous to operate.
• After you do the repairs or maintenance, test the vehicle in a safe area that is without vehicle and person traffic.
• Make sure you record and keep all of the maintenance history of the vehicle.

B
SAFETY
Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
5
Owner’s Guide
LABELS AND PICTOGRAMS
74821G06
75696G01
DO NOT FILL GAS
CAN IN LOAD BED
MAX SIDE
SLOPE 14°
HIGH CENTER
OF GRAVITY MAY
CAUSE TIP OVER
WARNING
READ THE
MANUAL
WARNING
READ THE
MANUAL
SAFETY
GLASSES
RECYCLE
BATTERIES
DANGER
ELECTROCUTION
EXPLOSIVE
CORROSIVE
ELECTRIC
SHOCK
NO OPEN
FLAMES
SECURE LOAD
MAX BED WEIGHT
500 LBS or 225 KG
NO
PASSENGERS
IN LOAD BED
MAX CENTER OF
GRAVITY HEIGHT
5” OR 12 CM
ABOVE FLOOR
HOT ENGINE
MAX TAILGATE
LOAD 100 LBS
OR 45 KG
27653G01
EGWHL14
740499G01
634229
75696G01
MAX
14o/ 25%
MAX
400 lbs.
180 kg
MAX
5 in.
12 cm
P
P
MAX
100 lbs.
45 kg
74821G06
634229
< 14° 25%
< 14° 25%
cm
MIN 150
RF
I
O
I
O
F
R
F
I
O
I
O
RN
I
O
I
O
RF
N
FOR INFORMATION
REFER TO OWNERS
MANUAL OR
WEBSITE
OBEY LOCAL
RULES AND
REGULATIONS
USE CAUTION IN
INCLEMENT
WEATHER
NO PUBLIC
ROAD USE
DO NOT OPERATE
UNDER DRUG/ALCOHOL
INFLUENCE
LEAVE VEHICLE
IN THREAT OF
LIGHTNING
OPERATOR MUST
BE MIN 150 CM
REMAIN SEATED
KEEP ARMS / LEGS
WITHIN VEHICLE
TO OPERATE VEHICLE:
- TURN KEY TO ON
- MOVE DIRECTION SELECTOR TO
FORWARD OR REVERSE
- PRESS ACCELERATOR
TO PARK VEHICLE:
- TURN KEY TO OFF
- MOVE DIRECTION SELECTOR
TO N (ELECTRIC) OR F (GAS)
- ENGAGE PARKING BRAKE
MAX SIDE
SLOPE 14°
READ MANUAL
FOR MAX LOAD
BED CAPACITY.
MAX INCLINE 14°
OPERATE FROM
DRIVERS SIDE
ONLY
RECYCLE
RETURN
LEAD
640561
640561

6Owner’s Guide
SAFETY
Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
Notes:

GENERAL SPECIFICATIONS
Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
7
Owner’s Guide
GENERAL SPECIFICATIONS
MODEL: HD Electric
TYPE: ELECTRIC 72V POWERED TRUCK
MODEL YEAR: 2016
Part No:. 644586
Solid State continuously variable AC speed controller Full torque, reduced speed reverse
Seat wrap mounted direction selector switch (Forward-Neutral-Reverse) Inductive throttle sensor
Anti-roll back, walk-away braking and alarm (only with key in on position) Diagnostic indicator
Anti-stall motor protection Factory programmable to application
Regenerative ‘Pedal Down’ and/or ‘Pedal Up’ braking
Battery Charger: 900 W, 72 VDC, 120/230 VAC 50/60 Hz. Underwriters Laboratories (U.L.) Listed, (C.S.A. Certified)
Motor: 72 V AC Induction, solid copper windings. Non vented 22.4 hp (16.7 kW) Peak
Drive Train: Direct motor shaft connected to transaxle pinion shaft
Electrical System: 72 V DC, nine, 8 volt deep cycle storage batteries (78 minutes @ 75 Amps, 170 amp-hour @ 20 hour discharge rate)
Transaxle: Differential with helical gears
Brakes: Dual rear wheel mechanical self-adjusting drum brakes. Automatic single point park brake release with self-compensating system
Cargo Bed: Roto-molded cross-linked polyethelene. Lifts for access to powertrain. Removable hinged multi-position tailgate requires no latch mechanism
Performance
Overall Length 111 in (281 cm) Seating Capacity 2 Person
Overall Width 49.8 in (126 cm) Dry Weight 1060 lb (480 kg) (without Batteries)
Overall Height (No Canopy) 52.0 in (132 cm) (Top of steering wheel) Curb Weight 1620 lb (730 kg)
Overall Height (with Canopy) 77.0 in (196 cm) Bed Load Capacity 500 lb (227 kg)
Wheel Base 78.0 in (198 cm) Vehicle Load Capacity 900 lb (408 kg)
Front Wheel Track 38.0 in (97 cm) Outside Clearance Circle 24.0 ft (7.3 m)
Rear Wheel Track 38.8 in (99 cm) Intersecting Aisle Clearance N/A
Ground Clearance (at Differential) 7.0 in (18 cm) Speed (Level Ground) 16 mph ± 0.5 mph (26 kph ± 0.8 kph)
Cargo Box Width (inside) 44.0 in (112 cm) Towing Capacity 930 lb (4137 N) max drawbar
Cargo Box Length (inside) 36.0 in (91 cm) Steering & Suspension
Cargo Box Depth (inside) 10.5 in (27 cm) Steering Self-compensating rack and pinion
Cargo Box Capacity 9.6 cu ft (0.27 m3) Front Suspension Leaf springs with hydraulic shock absorbers
Cargo Box Material Roto-molded polyethylene Rear Suspension Leaf springs with hydraulic shock absorbers
Vehicle Power Service Brake Rear wheel mechanical self-adjusting drum
Power Source 72 Volts DC Parking Brake Self-compensating, single point engagement
Motor Type AC Induction Front Tires 23 x 10.5 -12 (4 Ply Rated)
Horsepower (kW) 22.4 hp (16.7 kW) Peak Rear Tires 23 x 10.5 -12 (4 Ply Rated)
Electrical System 72 Volt Body & Chassis
Batteries (Qty, Type) Nine, 8 Volt Deep Cycle Frame Welded steel. DuraShield™ powder coat
Key or Pedal Start Pedal Start Front Body & Finish Injection molded TPO
Battery Charger 900 Watt, 72VDC Standard Color Matte black
Speed Controller 350 Amp AC Noise & Vibration
Drive Train Motor shaft direct drive Noise Sound pressure; continued A-weighted ч70 db(A)
Transaxle Differential with helical gears Vibration, WBV Highest RMS value of weighted acceleration less than 2.5 m/s
Gear Selection Seat wrap mounted F-N-R Vibration, HAV Highest RMS value of weighted acceleration less than 2.5 m/s
Rear Axle Ratio 17:1 The uncertainty of measurement is 0.12 m/s
Measurement methods were applied per the ISO 2631 and ISO 5349
PRODUCT OVERVIEW
CONFIGURATION HIGHLIGHTS
PRODUCT SPECIFICATION
Dimensions

8Owner’s Guide
GENERAL SPECIFICATIONS
Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
VEHICLE DIMENSIONS
RECOMMENDED MAX SIDE TILT
25% or 14o
RECOMMENDED MAX RAMP GRADE
25% or 14 MAX
o
MAX
78 in. (198 cm)
111 in. (281 cm)
10.5 in.
(27 cm)
52 in.
(132 cm)
Rear
38 in (97 cm)
Front
37 in. (94 cm)
48.5 in.
(123 cm)
36 in. (91 cm)

B
GENERAL SPECIFICATIONS
Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
9
Owner’s Guide
TURNING DIAMETER AND INCLINE INFORMATION
TURNING CLEARANCE DIAMETER
24 ft (7.3 m)

10 Owner’s Guide
GENERAL SPECIFICATIONS
Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.

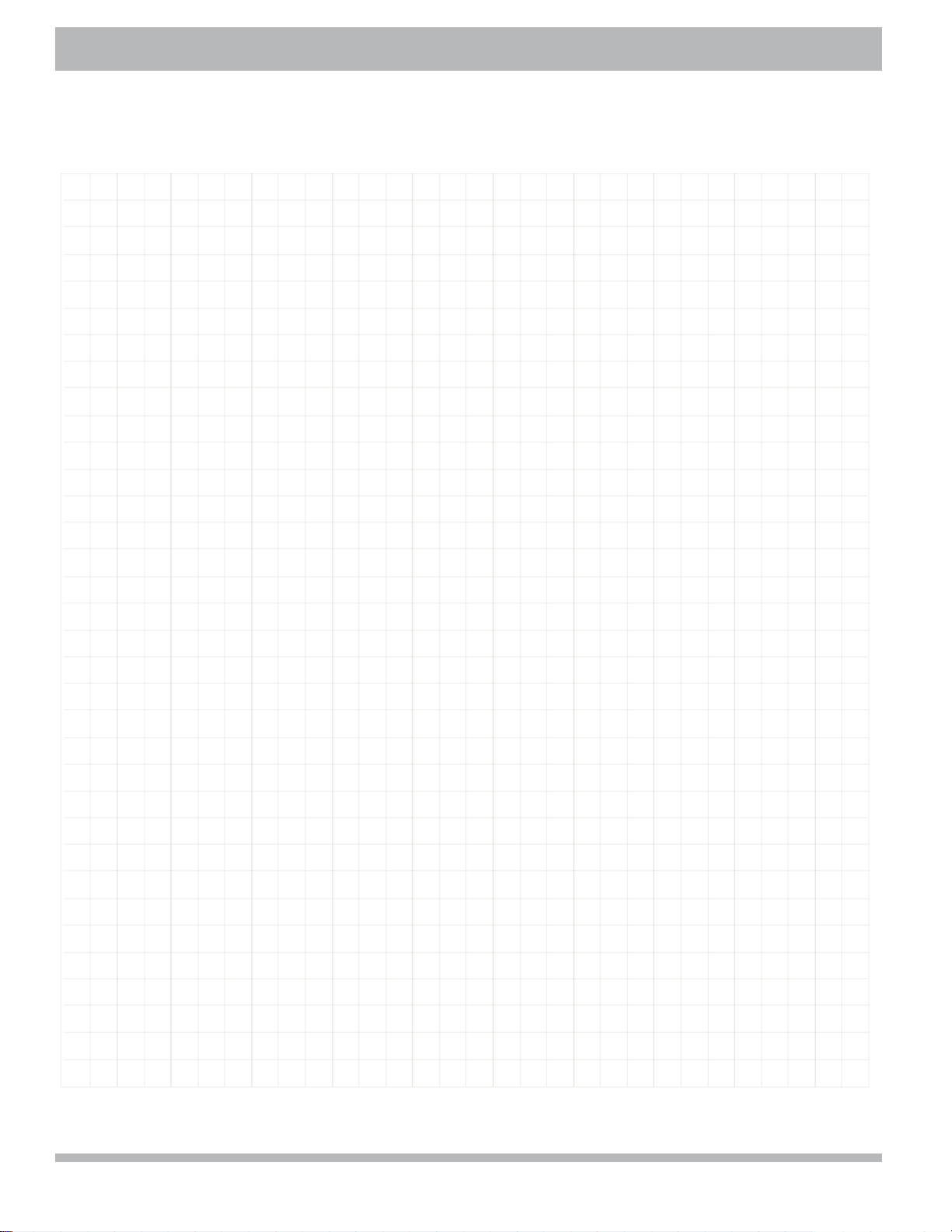

Notes:

INTRODUCTION
Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
11
Owner’s Guide
INTRODUCTION
FEATURES
General Information
If the vehicle has accessories that were installed at the factory, some accessories continue to operate with the key
switch in the OFF position.
ALL accessories that do NOT use the accessory wiring harness MUST be connected to the DC to DC con-
verter to pull from the full 48-Volt battery pack. A DC to DC converter is necessary for the accessories that
need voltage different from 48 volts to operate correctly.
All accessories connected to the vehicle that do not use the accessory harness must be connected to the DC to DC con-
verter.
1. Key and Light Switch
To decrease the risk of component damage, stop the vehicle before you
move the key switch or the direction selector.
The key and light switch is found on the instrument panel. The switch controls the
basic electrical system of the vehicle and the lights. To prevent accidental opera-
tion of an unattended vehicle, turn the key to the OFF position and remove from
the switch.
If the vehicle has accessories that were installed at the factory, some accessories continue to operate with the key
switch in the OFF position.
2. State of Charge Meter
The illuminated state of charge meter is found on the instrument panel near the key switch. The meter indicates the
amount of power within the batteries. F indicates a full charge on the battery pack and E indicates the battery pack needs
to be charged. The yellow light indicates the batteries must be charged immediately.
1
2

12 Owner’s Guide
INTRODUCTION
Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.

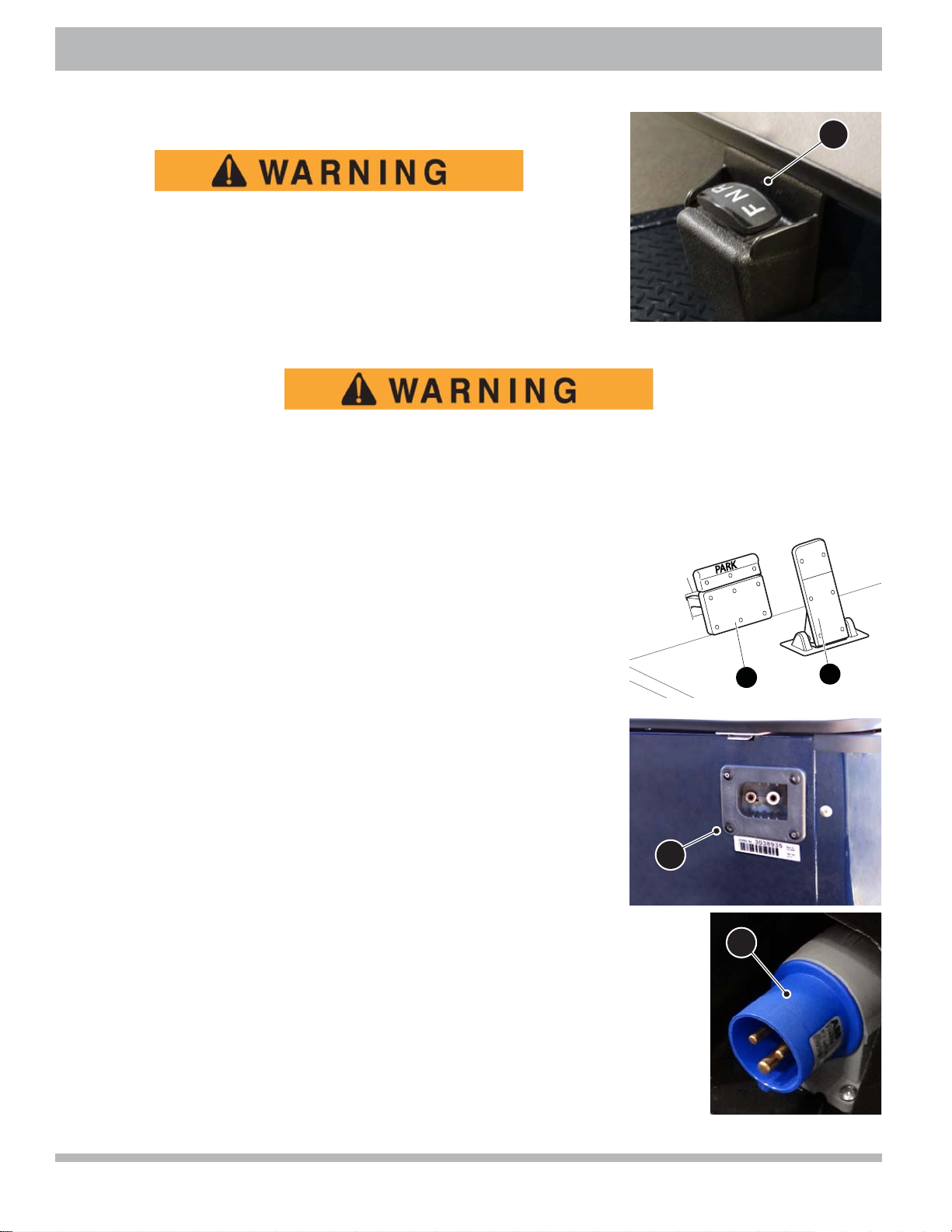

3. Direction Selector
To prevent loss of control or possible damage to the vehicle, do not
move the direction selector while the vehicle is in motion.
The direction selector is found on the seat wrap panel and allows the operator to
select F (forward) or R (reverse) or N (neutral).
When the direction selector is moved to the R position, a reverse warning buzzer
activates.
4. Accelerator Pedal
Accidental movement of the accelerator pedal can cause the vehicle to suddenly move and cause
severe injury or death.
With the key switch in the ON position, press the accelerator pedal to start the motor. When the pedal is released, the
motor will stop. To stop the vehicle immediately, press the brake pedal.
5. Brake and Parking Brake Pedal
The foot operated parking brake is the top part of the brake pedal. To engage the
parking brake, press on the upper section of the pedal until it locks in position.
Press the lower part of the brake pedal to release the parking brake.
A parking brake that is engaged releases when you press the accelerator pedal.
This is a feature to make sure the vehicle is not driven with the parking brake
engaged. Pressing the accelerator pedal is not the recommended method to
release the parking brake.
6. Charger Receptacle (if equipped)
The polarized charger receptacle is found on the panel below the driver seat.
Connect the off board charger to the receptacle to charge the batteries.
7. CE Charger Receptacle (if equipped)
The CE charger receptacle is found on the panel below the driver seat.
Connect the CE charger to the receptacle to charge the batteries.
3
54
6
7
