I-Motioncaddys im4 Range 2013 User manual

Range 2013
“Dedication to Excellence”

Golf Buggy

Dimensions
Length 49.5” (125.7cm) Width 32.5” (82.6cm)
Height 42” (106.7cm)
Height folded 31” (78.7cm)
with quick seat release 27” (68.6cm)
Minimal ground clearance 4.5” (11cm)
Performance
•One person seating capacity
•Carrying capacity 150Kg
•Weight 145Kg with batteries, 100Kg without batteries
•Maximum speed 15-19Km/h
•Slope climbing capacity 17 degrees
•Brake range <4m
•Turning radius <3m
•Forward & reverse console mounted
Other Features
•Helix spring absorbers
•Tyres: 32.5cm x 15cm 4 wheels
•Japanese wheel bearings
•Electromagnetic & mechanical braking system
•Full range of optional accessories available
Technical Specifications
Body & Chassis
•Steel frame construction
•Strong fibreglass body
•Rust protected powder coated steel work
•Easy battery access
•Range of colours available
Power
•Motor 36V 1200 watt permanent magnetism
•Sealed Lead Acid batteries 12V 45/48/or 75AH
•Automatic pulse charger input AC110V/240V Optional Output DC36V/5A/8A
•Speed switch High (19Km/h) Low (6.4Km/h)
•Recharge time 6-8 hours
•Maximum travel distance 50Km
•CURTIS controller 1227-3402 DC36V/160A
•CURTIS connector
•Micro switch fitted
•Emergency foot brake
•Hall accelerator continuous variable speed system

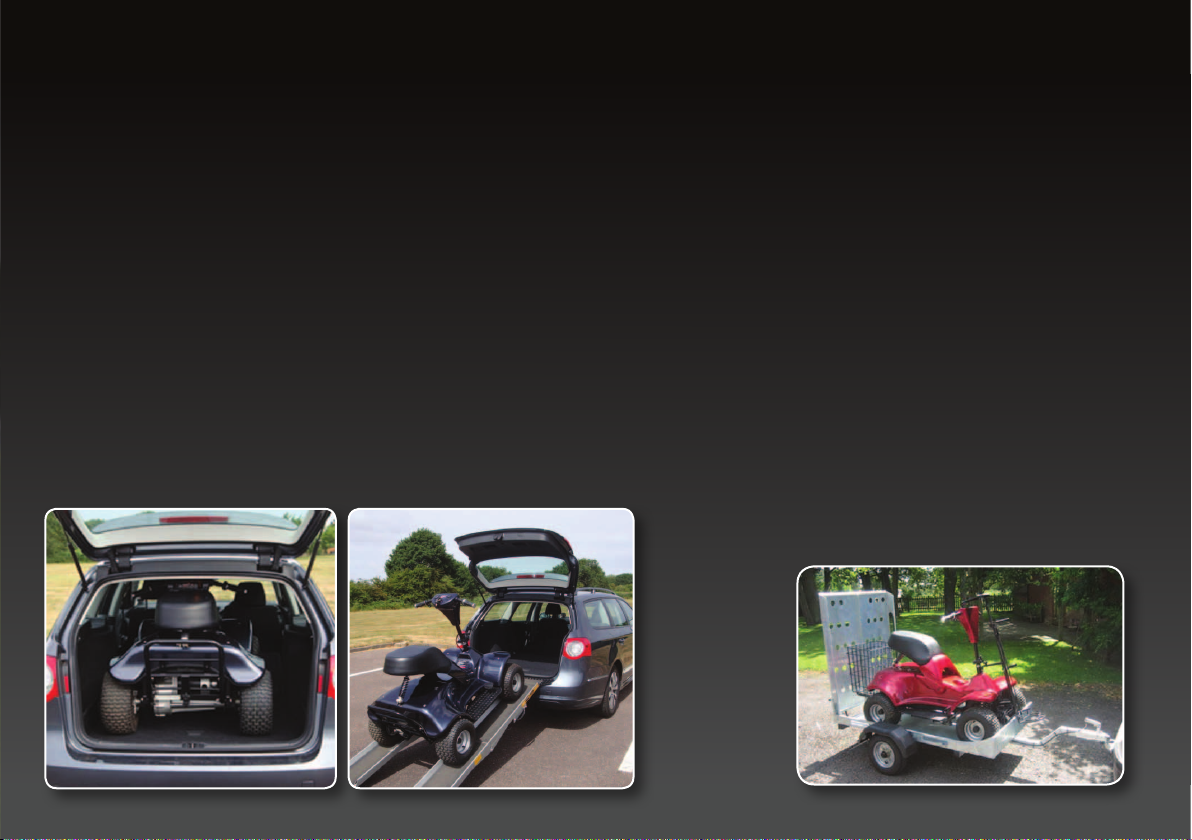

Bespoke i-m4Trailer
The i-m4
has foldable
handlebars to
enable easy
loading into the
boot of a car.
A quick release
seat option is
available as an
extra.

Roadster

Performance
•One person seating capacity
•Carrying capacity 200kg
•Weight 153kg with batteries, 100kg without batteries
•Maximum speed 12km/h
•Slope climbing capacity 17 degrees
•Brake range ≤4m
•Turning radius ≤3m
•Forward & reverse console mounted
Dimensions
Length 49.5” (127.7cm) Width 32.5” (82.6cm) Height 42” (106.7cm)
Height folded 31” (78.7cm) with quick seat release 27” (68.6cm)
Minimal ground clearance 4.5” (11cm)
Technical Specifications
Body & Chassis
•Front and rear headlights
•Front and rear indicator lights
•Steel frame construction
•Strong fibreglass body
•Rust protected powder coated steel work
•Easy battery access
•Range of colours available
Power
•Motor 36V 1200 watt permanent magnetism
•
Sealed lead acid batteries 12V 75AH
• Automatic pulse charger Input AC110V/240V
• Optional Output DC36V/5A/8A
• Speed switch High (12km/h) Low (6.4km/h)
• Recharge time 6-8 hours
• Maximum travel distance 50km
• Curtis Controller 1227-3402 DC36V/160A
• Curtis Connector
• Micro switch fitted
• Emergency foot brake
• Hall accelerator continuous variable speed system.
Other
Features
•Helix spring absorbers
•Tyres: 32.5cm x 15cm
•Japanese wheel
bearings
•Electromagnetic &
mechanical braking
system
•Full range of optional
accessories available

Dual

Dimensions
Length 49” (125cm) Width 30” (76cm) Height 44” (112cm)
Length with Golf bag holder and headrest 62” (158cm)
Width with Golf bag holder and headrest 30” (76cm)
Height with Golf bag holder and headrest 50.5” (128cm) Height folded 49” (125cm)
Height back of seat folded 34” (86cm) Height seat off 22” (56cm)
Performance
•One person seating capacity
•Maximum travel distance 45km
•Carrying capacity 150kg
•Weight 153kg with batteries, 132kg without batteries
•Slope climbing capacity 13 degrees
•Brake range ≤4m
•Turning radius ≤3m
•Forward & reverse switch console mounted
•Front fork and spring suspension
Other Features
•Helix spring absorbers
•Tyres 32.5cm x 15cm
•4×4 Balloon 4 ply tyres
•Japanese wheel bearings
•Electromagnetic & mechanical braking system
•Quick release seat system
•Ignition key console mounted
•Battery indicator console mounted
•Charging point
•Full range of optional accessories available
Technical Specifications
Body & Chassis
•Front and rear headlights
•Front and rear indicator lights
•Steel frame construction
•Strong injection moulding construction
•Rust protected powder coated steel work
•Easy battery access
•Range of colours available
Power
• Motor 24V 800 Watt permanent magnetism
• Sealed lead acid batteries 12V 45 or 75AH x 2
• Automatic pulse charger Input 24V 5Amp
• Input AC115V/230V Output DC24V/5Amp
• Speed switch High (12km/h) Low (6.4km/h)
• Recharge time 8-10 hours
• Maximum speed 12Km/h
• Controller PG,S-DRIVE 24V120A
• Hall accelerator continuous variable speed system.

Picture 1
Locate pivot arm into slot provided
on fixing angle. Attach to i-m4
and semi-fasten bakelite knob
provided.
Picture 3

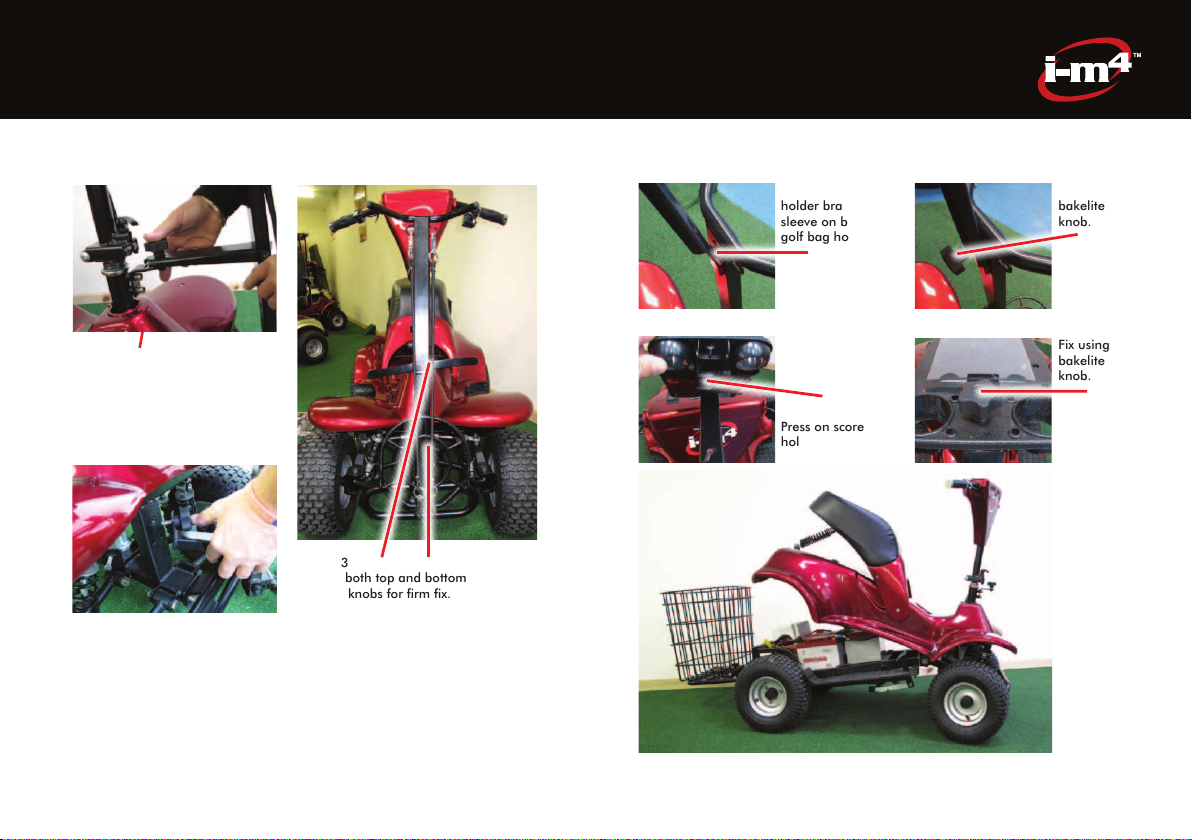

Golf Bag Holder Assembly
Picture 2
locate bottom pivot arm into fixing
hole provided and semi-tighten
bakelite knob provided.
Picture 1
Picture 2
Picture 3
Tighten both top and bottom
bakelite knobs for firm fix.
Reverse process to remove.
Picture 1
Picture 3
Picture 2
Picture 4
Score Card Holder Assembly
Mount score card
holder bracket into
sleeve on back of
golf bag holder.
Press on score card
holder to supprting
bracket.
Fix using
bakelite
knob.
Fix using
bakelite
knob.
Picture 1.
To access the batteries, release bakelite knob at the rear of the buggy,
lift the body and attach the fixed hold up arm.
Operation

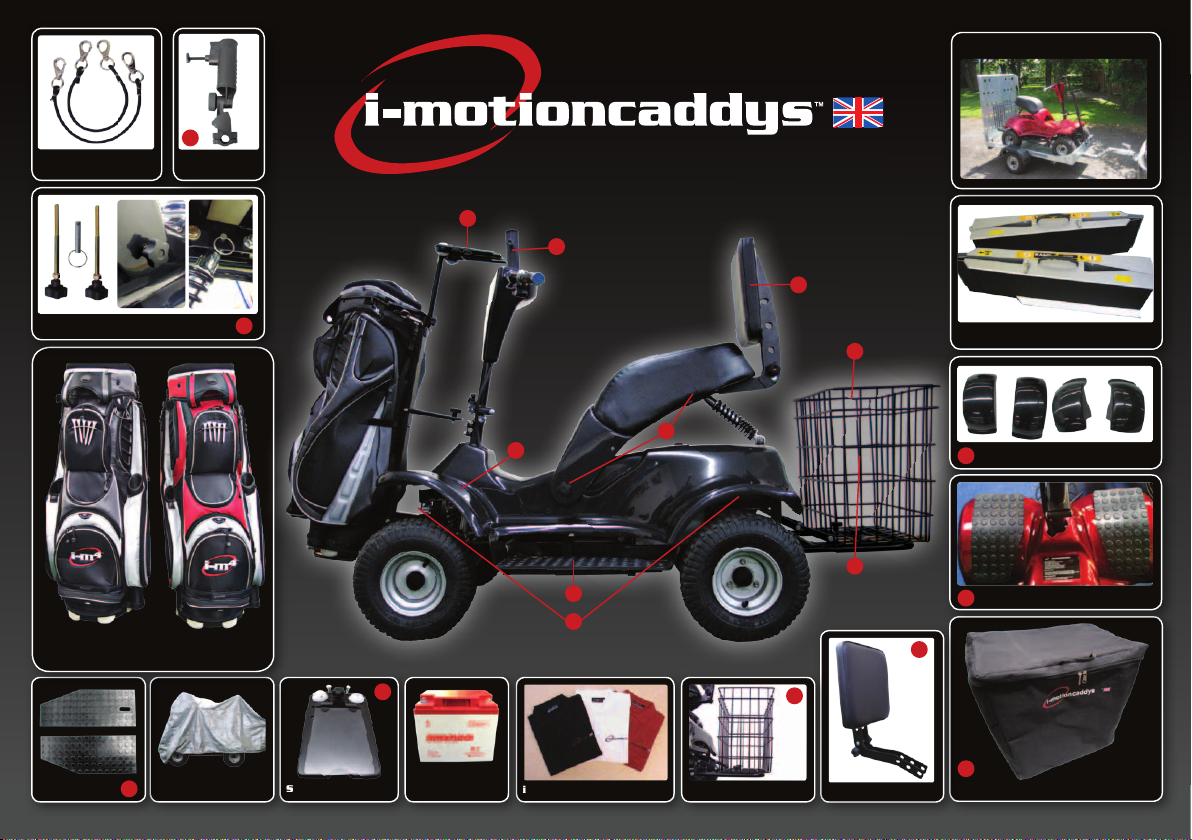

Accessories Range
Scorecard Holder
i-m4 Glenmuir Polo Shirt
Weather Cover
Foot Mats Rear Basket Weather Cover
i-m4 Golf Bag
Fold Up Ramps
Rear Back Rest
Golf Bag Strap
Bespoke i-m4Trailer
Mudflap Kit
Fender Foot Mats
Quick Release Seat Kit
Umbrella
Holder
Rear Basket
45 / 48 / 75
AH Batteries
1
1
4
2
2
3
3
9
45
5
7
6
6
9
8
7
8

8 9 10 11
12
13
14
23
20 19 18 17 16
21
15
1
2
3
4
5
6
722
24
27

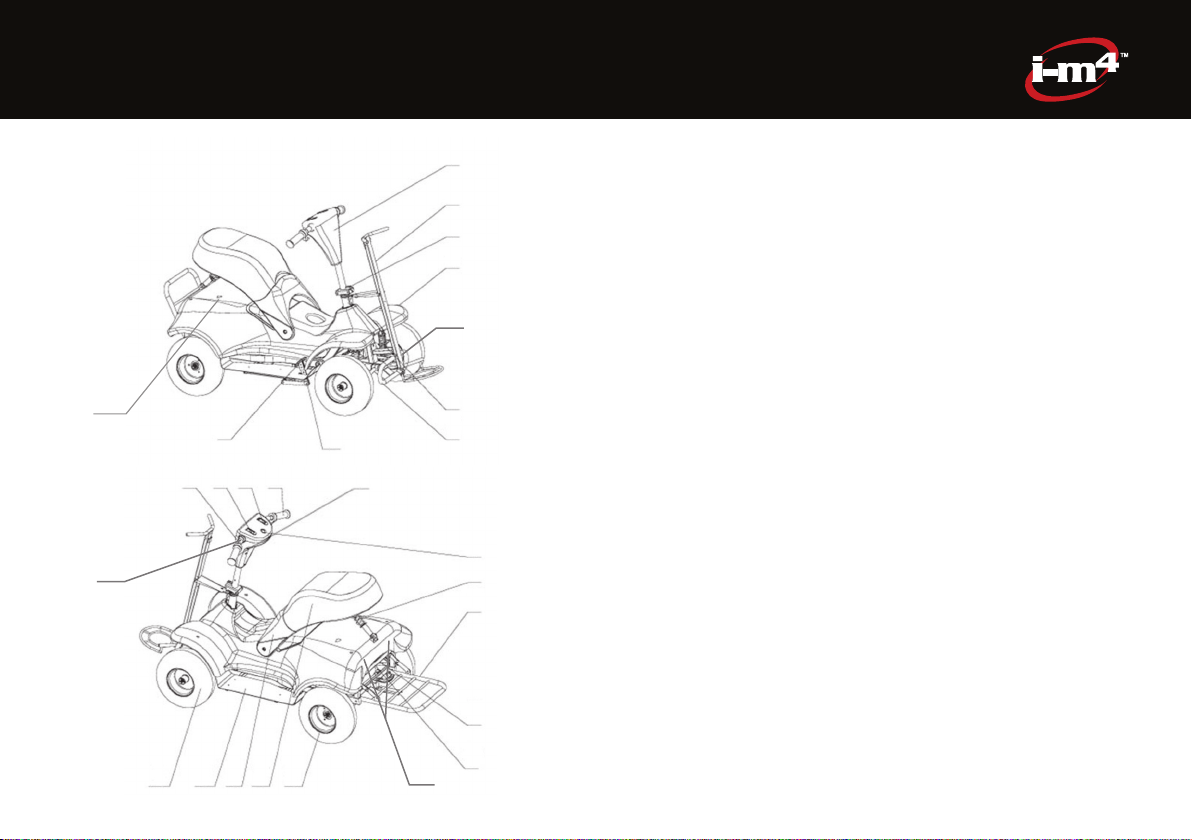

Parts Description
1) Control panel
2) Golf bag holder
3) Handlebar release pin
4) Body
5) Front suspension
6) Front bumper
7) Foot brake pedal
8) Horn button
9) Battery power indicator
10) Direction switch
11) Accelerator throttle
12) Ignition
13) Seat suspension
14) Rear carry bracket
15) Electromagnetic
brake handle
(Free wheel lever)
16) Rear tyre 18 p.s.i
17) Padded seat
18) Seat body assembly
19) Footplate
20) Front tyre 18 p.s.i
21) Bonnet release catch
22) Micro switch
23) High/low speed switch
24) Slide or lift cap battery
charger point
25) Roadster front bumper
light cluster*
26) Rear lights and
indicators*
27) Light switch*
* Additions to Roadster model only.
25
27

Operation
· Please remove the charger from the buggy
before turning the ignition key on.
· Turn ignition key on.
· Ensure charge indicator is sufficient.
· Press FWD to move forward.
· Press REV to move in reverse.
· Turn throttle anti-clockwise to increase speed.
· Release throttle to slow down or stop.
· Brake pedal is for emergency stop only.
· When the throttle is released the back wheel is
locked automatically
for parking on inclines or declines.
Motor brake handle
· The electro magnetic brake lever (free wheel
lever) can be found
under the body attached to the motor.
· Make sure the electro magnetic brake lever is in
the vertical position
to engage the motor.
· Dis-engage the electro magnetic brake lever to
free wheel the vehicle.
Battery discharging Point
· The battery charger socket is located under the
seat.
· Ensure the cover is replaced after charging.
Power display
· Running time will change according to ground
conditions and terrain.
· FULL CHARGE: LED light/bar is at the top
· MINIMAL CHARGE: LED light/bar is at the
bottom
Seat
· The seat height can be adjusted to 3 positions
using the bolts at
the top end of the suspension spring.
· Seat can have a quick-release system fitted to
allow easier seat removal.
Golf bag holder
· The golf bag holder is attached and detached
using the lower and upper bakelite knobs at the
front of the buggy.
Rear fold down carrier
· To open: Release the bakelite bolt, fold down
the rear bracket and tighten the bakelite bolt.
· To close: Release the bakelite bolt, push up the
rear bracket and
re-tighten the bakelite bolt.
Parts Operation

Inspection and maintenance
Parts Inspection
Golf buggy After use clean any mud or debris from under the body either with a hand brush
or a light air hose. Only use a mild detergent with warm water for the exterior.
DO NOT use a high-pressure jet wash.
Steering system Ensure all parts are functioning properly.
Accelerator throttle handle Ensure the buggy moves when the throttle is
turned anti-clockwise and it stops when the throttle is released.
Battery power indicator Ensure the power has enough charge
remaining before use.
Seat Ensure the seat is fixed properly.
Brake pedal Ensure the brake pedal works freely.
Tyres Ensure the tyres are in good condition and that
they are at the recommended air pressure at all
times (18 p.s.i).
Wheels Check all nuts and bolts and ensure the wheel
nuts are tight and secure.
Batteries Recharge batteries after every use and check
the battery indicator is full before use.
Battery charger DO NOT allow the battery charger to get wet.
Operation

Picture 1 & 2: Flick lever on handle over to release tension on fixing bolt.
Picture 3 & 4: Pull down lever handle from top fixing bracket. Slide lever to the left, releasing the
holding bolt from the top bracket therefore releasing the handlebars to fold down.
Quick Release Lever for Handlebar Assembly
Picture 1
Fully locked lever assembly
Picture 4
Lever handle bar release
Picture 3
Fold down lever handle
Picture 2
Unlock lever assembly
The buggy won’t start · Check the F/R Switch is not in the neutral position
· Check the key is in the on position
· Check the battery power indicator
· Check the batteries are connected properly
· Ensure the buggy is NOT in free wheel mode
· Ensure the footbrake is NOT engaged
Other · Contact your supplier
Troubleshooting

Single seater golf and utility vehicle
The i-m4 golf buggy is like any other electrical or mechanical
device. Cleaning, care and inspection is a “must” which will
result in longer life and extended reliability!
General care and inspection
After every use clean any mud or debris from under the body either with a hand
brush or a light air hose.
Use a mild detergent and warm water for the exterior.
DO NOT use a high-pressure wash.
Check all bolt and nut connections are tight before use, especially the wheel nuts.
Check tyre pressure and maintain the recommended pressure at all times.
Recharge batteries after every use and check the battery indicator is full before use.
DO NOT allow the battery charger to get wet.
Let the i-m4 add to your golfing experience.
i-m4 General Care

Safety Operation
Please read the following instructions carefully before using the i-m4 golf buggy.
· DO NOT use the throttle handle as a support when mounting the buggy.
· Turn off ignition when not in use.
· Leave buggy in neutral mode when not in use.
· The i-m4 golf buggy is designed to carry one person.
· The Golf buggy is NOT road legal.
· Please use the throttle to decrease the speed when turning the buggy.
· Please use the throttle to increase the speed when climbing a hill.
· When driving the buggy take care in crowded areas, wet or slippery surfaces and tight gaps.
· Do not allow others to use the i-m4 buggy without your permission.
· Please do not stand up on the i-m4 buggy when in motion as you may lose your balance.
· Please do not lean side from side to side on the im4.
· Do not drive the i-m4 down hills backwards.
· Try to avoid pot holes or uneven paths.
· Keep the i-m4 buggy in a dry area or under cover when not in use.
· Do not use a mobile phone when driving the buggy.
· Do not get off the buggy until it has come to a complete stand still.
· The direction switch should not be changed when the buggy is moving.
· The Speed switch should not be changed when the buggy is moving.

0121 503 8109 www.i-motioncaddys.com [email protected]
GOLF BUGGY ROADSTER DUAL
BODY & CHASSIS Steel frame construction ••• Strong fibreglass body • • Rust protected powder coated steel work ••• Front & rear headlights • • Front & rear indicator lights • • Easy battery access ••• Range of colours available ••• POWER Motor 36V 1200 watt permanent magnetism • • Motor 24V 800 watt permanent magnetism • Automatic pulse charger input AC110V/240V Optional output DC36V/5A/8A • • Automatic pulse charger input 24V 5Amp Input AC115V/230V Output DC24V/5Amp • Speed switch High (19Km/h) Low (6.4Km/h) • Speed switch High (12Km/h) Low (6.4Km/h) ••• Recharge time 6-8 hours • • Recharge time 8-10 hours • Maximum travel distance 45Km • Maximum travel distance 50Km • • CURTIS controller 1227-3402 DC36V/160A • • CURTIS connector • • Controller PG, S-DRIVE 24V 120A • Micro switch fitted • Emergency foot brake • Hall accelerator continuos variable speed system ••• PERFORMANCE One person seating capacity ••• Carrying capacity 200 Kgs • • Carrying capacity 150 Kgs • Maximum speed 15-19Km/h • • Maximum speed 12Km/h • Slope climbing capacity 17 degrees • • Slope climbing capacity 13 degrees • Brake range < 4m ••• Turning radius < 3m ••• Forward & Reverse console mounted ••• Front fork & spring suspension ••• OTHER FEATURES Helix sping absorbers ••• 4 x 4 Balloon 4 ply tyres ••• Tyres 32.5cm x 15cm ••• Japanese wheel bearings ••• Electromagnetic & mechanical braking system ••• Quick release seat system ••• Ignition key & console mounted ••• Full range of optional extra’s •••
