Bad Boy Greedy Pig GP1103 User manual

ROBOTIC POOL FLOOR CLEANER
BATTERY DRIVEN
Greedy Pig
GP1103

USER MANUAL & WARRANTY
Thank you for purchasing Pool Monster Pool Cleaner. If you have any questions or
issues, please contact your local dealer for customer service.
Contents
i. Introduction ................................................................................................................... 4
Ii. Appearance Characteristics & Structure ....................................................................... 4
Iii. Specifications ................................................................................................................ 4
Iv. Operation Instruction ..................................................................................................... 5
V. Trouble Shooting .......................................................................................................... 11
Vi. Packing List ................................................................................................................ 11
Vii. Warranty ..................................................................................................................... 12

Subject to update by manufacturer without prior notice
Important Precautions
1. Please read the manual carefully and use the cleaner according to the manual. We cannot be
held liable for any loss or injury caused by improper use.
2. Use the accessories recommended or sold by the manufacturer only.
3. This model mainly applies to swimming pools with a flat floor to moderate slope. It does not climb
walls.
4. Do not allow children to ride on it or play with it. It is not a toy.
5. Use the original and authorised power adapter only.
6. If the power cable is damaged, it must be replaced by a certified professional.
7. Do not power the cleaner ‘’on’’ when it is out of the water.
8. Power off the unit upon retrieval.
9. The power cord must be connected to a leakage protected and earthed socket when charging.
10. Do not operate the cleaner when there are people in the pool.
11. Always clean and wash the filter tray after use. Dry off the charging terminals before charging.
12. Power off the cleaner when maintaining, cleaning or not using it.
13. The cleaner should be stored in a cool and ventilated place, away from direct sunshine.
14. Charge the unit out of direct sunlight in a cool place. Do not cover it with anything to prevent
damage of internal electrical components caused by overheating.
15. Only authorised professionals can disassemble the sealed driving kit of the cleaner.
16. Ideally operate while pool filter is running unless flow inhibits unit operation.
17. The cleaner should be charged and discharged and recharged to 40-60% every three months if
it needs to be stored for a long period of time to maintain battery life. Use the original and
authorised power adapter only.
18. Do not use or store the cleaner near any heat source.
19. Insert charger socket lightly onto unit terminal poles until the red light shows on the charger. Do
not force socket down with force or damage to the charger or terminal poles may occur.

I. INTRODUCTION
The Greedy Pig pool cleaner GP1103 is a new type of rechargeable automatic cleaner that
will self-park when the battery runs low.
Please read this manual carefully before use.
II. APPEARANCE CHARACTERISTICS & STRUCTURE
III. SPECIFICATIONS
1. Name: Greedy Pig
2. Model: GP1103
3. Working voltage: 12.6V
4. Power: 50W
5. Working Cycle: 120min
6. Rated input voltage of adapter: 100Vac-240Vac
7. Input power of adapter: 47Hz-63Hz
8. Rated output current of adapter: 1.8A
Top cover
Filter tray
Chassis
Swing plate
Floating handle
Brush

9. Rated output voltage of adapter: 12.6V
10. Charging time: 5-6h
11. Battery capacity: 6600mAh
12. Max. Cleaning surface: 100m²
13. Filter capacity: appr. 10m³/h
14. Filter capability: 180μm
15. Climbing slope: 15°
16. Pool water temperature: 10°-35°C
17. Moving speed: appr. 16m/min
18. IP Grade: IPX8 (main body)
19. Charging environment temperature: 0°-45°C
20. Max. Water depth: 2.0m
21. Size: 400(L)*360（W）*270（H）mm
22. Weight: 5.5kg
23. Storage condition:
Short term (less than 1 month): -20°-60℃，≤75%RH
Medium term (less than 3 months): -20°-45℃，≤75%RH
Long term (more than 3 months): -20°-20℃，≤75%RH
IV. OPERATION INSTRUCTION
1. Precautions

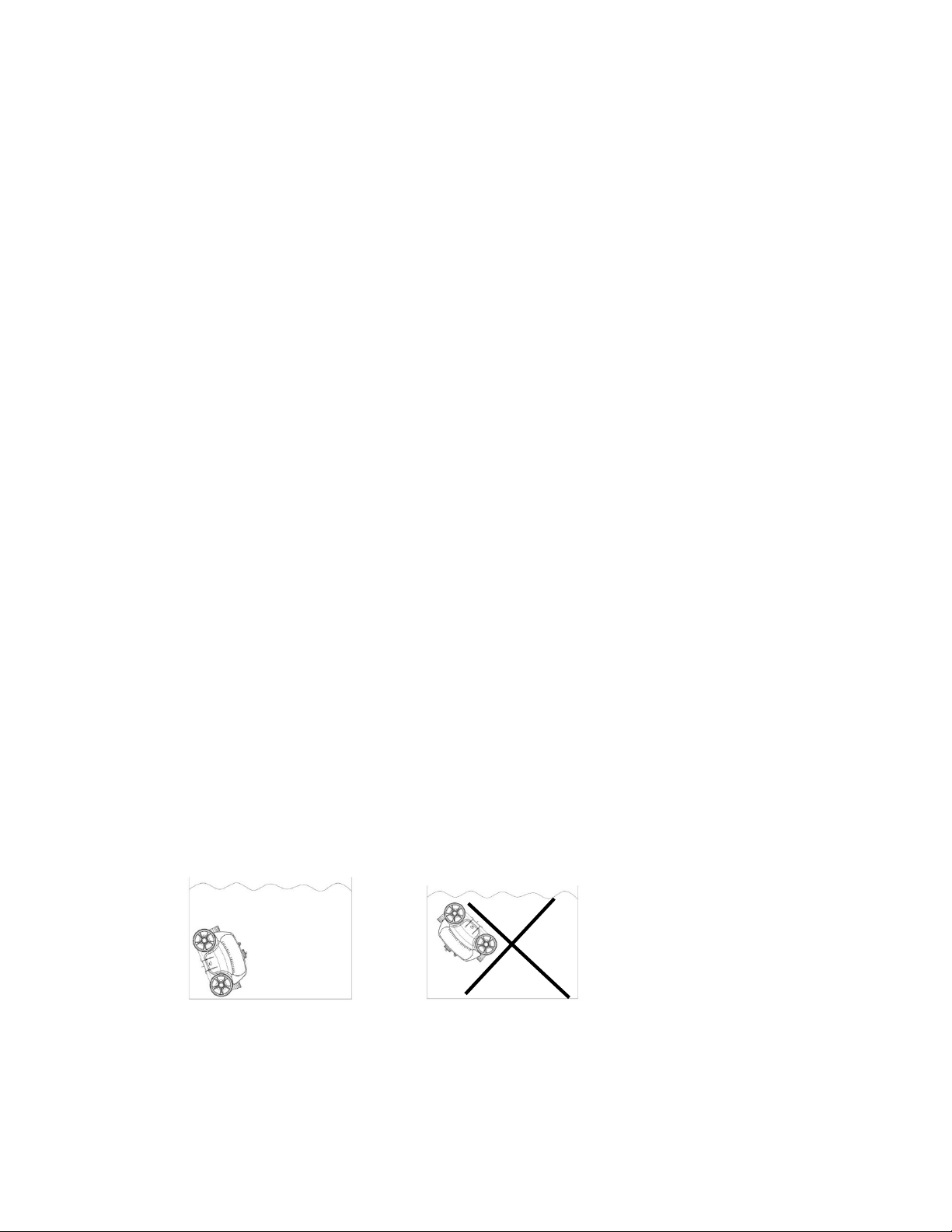

a. Put into or lift out of the pool with the cleaner base towards the wall to avoid any possible
scratches to the pool.

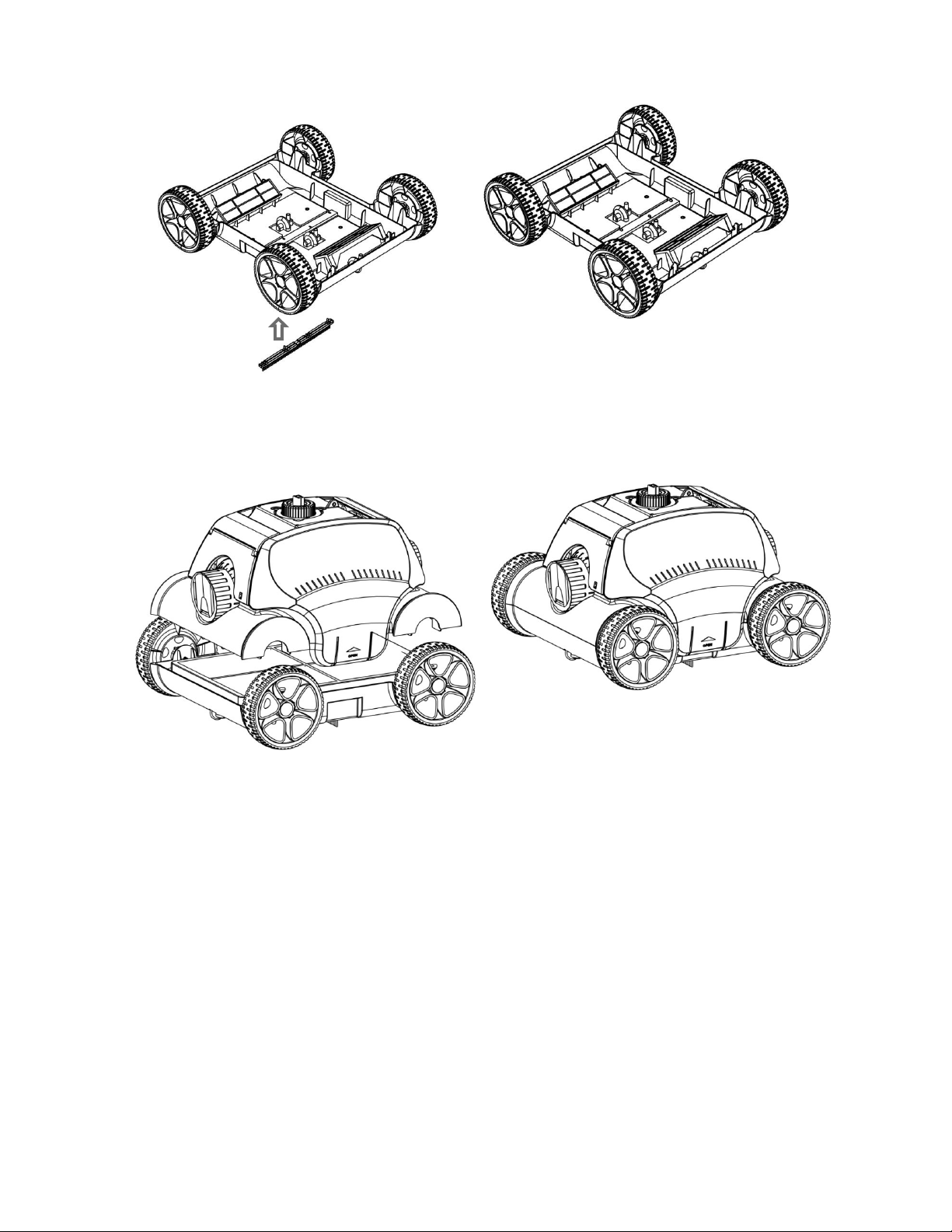

b. Install the brush before use.
c. Please ensure that the top cover of the cleaner is tightly clipped onto the chassis.
d. Power off the cleaner after use.
e. Do not touch against the wall to avoid scratching the wall or damaging the cleaner when
putting into or lifting out of the pool.
f. Hold the cleaner horizontal on the water surface for 10-15 seconds until it empties before
removing from the pool.
2. Quick operation
a. Plug in the cleaner using the supplied adapter and charging line to charge the battery.
* Insert socket only as far onto terminal as red charging light comes on. Do not force
socket on, as damage may occur.

* Clean and dry the charging port before charging.
Turn the switch to ON after putting it in the water, the indicator light will be a steady blue. The
cleaner begins to work about 15 seconds later and the blue light flashes. Power-off operation:
switch off the knob and always clean the filter tray after use.
Status Indicator
Switch On Blue light is steady on
Switch off Red light flashes once then powers off
Cleaner is out of water Blue light flashes rapidly
Cleaner is working in the pool Blue light flashes
Working cycle finished (low battery) Red light stays steady on
Faults Red light flashes
3. Functions and adjustment of nozzles
There are two nozzles on the cleaner, one of them opens once the other closes. Water
flows out through the open nozzle to thrust the cleaner forward. Adjust the nozzle by turning
it to control the cleaner route.
a. Setting nozzle angle and cleaner route
The nozzles of the cleaner are marked with angles (0°—40°).
The cleaner moves in an approximately straight line when the nozzle angle is 0°.
The cleaner moves progressively, in a more curved line at a larger angle from 0°- 40°.
ON
OFF

b. Three nozzle settings are recommended:
Setting 1: default setting 0°—30°, for most of pools.
Nozzle
angle
Running
Path
Setting 2: 0°—20°
Nozzle
angle
Running
Path

Setting 3: 0°—40°, when setting 1 does not manage a full coverage of the pool.
Nozzle
angle
Running
Path
Setting 4: 20°—20°, for round pools.
Nozzle
angle
Running
Path

Note: These are the recommended settings. Different settings may work better for your pool. Test
run several settings to find what works best for you.
4. Cleaning the filter tray
a. Open the cleaner by the marked clips
b. Take off the filter tray
c. Clean the filter tray and chassis. Rinse thoroughly.
d. Reassemble the cleaner

e. Re-clip on to assemble
V. TROUBLE SHOOTING
VI. PACKING LIST
Item Name Model QTY(pc) Application Remark
1 Cleaner body BBGP1103 1 In carton
Symptom Possible reason Solution
The cleaner does not work and the
light indicator is red Low battery Charge the battery
The cleaner does not work and the
red indicator light slowly flashes. Internal fault Contact after-sales service
The cleaner does not work and the
blue indicator light flashes. Pump protection activated Re-start the robot.
The cleaner does not work and the
indicator light does not flash Battery protection activated
Charge the robot and in case it
does not work, please ask for after
sales service
The adapter indicator light does not
work. Adapter damage Contact after-sales service
The cleaner does not achieve a full
coverage of the pool.
Unsuitable nozzle angle Adjust nozzle angle
Special pool shape Adjust nozzle to increase angle of
deflection
Pool water filtration system
is disturbing Robot
operation.
Turn off water filtration system
Red on/off knob difficult to
turn
Grit/sand obstructing turning
function
Jet water under cowling or remove
screws and jet again.

2 Adapter XSG1261800 1 In carton
3 User manual & certificate 1 In plastic bag
4 Brush 1 In plastic bag
5 Tow rope 1 In plastic bag
6 Floating handle 1 In plastic bag
VII. WARRANTY
In the unlikely event you experience any issues with your pool cleaner within 2 years of the date of
purchase, please contact the dealer from which you purchased the cleaner who will organise repair or
replacement. Ensure you have a valid proof of purchase that clearly demonstrates the product name,
the date and place of purchase. This is a return to base warranty. The onus is on the purchaser to return
the cleaner at the purchaser’s own expense.
ITEMS NOT COVERED BY THE WARRANTY
 Claims outside the 2 year warranty period.
 Fair wear & tear.
 Damage resulting from misuse, neglect, improper use outside design parameters.
 Improper or inadequate installation or operation.
 Voltage spikes
 Excessive pool chemical usage (maintain pool Ph between 7.2 -7.8 & Chlorine < 3ppm).
 Unauthorised persons attempting repairs or modifications.
 When used in a commercial & non-domestic application, warranty is for 3 months only.
Space Industries Ltd is not liable for any consequential losses associated with this Floor Cleaner for
whatever reason. Nor are they liable for any damage or injury caused directly or indirectly as a result of
the operation of this Robotic Pool Floor Cleaner.
This limitation does not negate our obligations under New Zealand Law
160 Plunket Ave, Manukau City, Auckland 2104
[e-mail]
www.spaceindustries.co.nz
0800 766 586
