OPERATOR’S MANUAL
BELT GRINDER
MODEL: BG-248-3
© 2015 Baileigh Industrial, Inc.
REPRODUCTION OF THIS MANUAL IN ANY FORM WITHOUT WRITTEN APPROVAL OF BAILEIGH INDUSTRIAL, INC.
IS PROHIBITED. Baileigh Industrial, Inc. does not assume and hereby disclaims any liability for any damage or loss
caused by an omission or error in this Operator’s Manual, resulting from accident, negligence, or other occurrence.
Rev. 12/2015
Baileigh Industrial, Inc.
P.O. Box 531
Manitowoc, WI 54221-0531
Phone: [phone]
Fax: [phone]
[email protected]

Table of Contents
THANK YOU & WARRANTY.......................................................................................... 1
INTRODUCTION............................................................................................................. 3
GENERAL NOTES.......................................................................................................... 3
SAFETY INSTRUCTIONS ..............................................................................................4
SAFETY PRECAUTIONS ...............................................................................................7
TECHNICAL SPECIFICATIONS................................................................................... 10
TECHNICAL SUPPORT ............................................................................................... 10
UNPACKING AND CHECKING CONTENTS................................................................ 11
Cleaning .................................................................................................................... 11
TRANSPORTING AND LIFTING .................................................................................. 12
INSTALLATION............................................................................................................. 13
Securing the Base..................................................................................................... 14
ASSEMBLY AND SET UP ............................................................................................14
Mounting the Head.................................................................................................... 14
Mounting the Tool Rest ............................................................................................. 15
Mounting the Work Table ..........................................................................................15
ELECTRICAL................................................................................................................17
MACHINE ADJUSTMENTS.......................................................................................... 19
Belt Installation and Removal.................................................................................... 19
Belt Tracking.............................................................................................................. 20
OPERATION.................................................................................................................21
Setting Head Position................................................................................................ 21
Selecting Wheel Size................................................................................................. 22
Contact Wheel Sanding and Polishing ...................................................................... 22
Guard Operation........................................................................................................23
LUBRICATION AND MAINTENANCE .......................................................................... 23
DRIVE ASSEMBLY PARTS DIAGRAM........................................................................ 24
Drive Assembly Parts List.......................................................................................... 24
BODY AND STAND PARTS DIAGRAM........................................................................ 25
Body and Stand Parts List.........................................................................................26

1
1
THANK YOU & WARRANTY
Thank you for your purchase of a machine from Baileigh Industrial. We hope that you find it
productive and useful to you for a long time to come.
Inspection & Acceptance. Buyer shall inspect all Goods within ten (10) days after receipt thereof. Buyer’s
payment shall constitute final acceptance of the Goods and shall act as a waiver of the Buyer’s rights to inspect or
reject the goods unless otherwise agreed. If Buyer rejects any merchandise, Buyer must first obtain a Returned
Goods Authorization (“RGA”) number before returning any goods to Seller. Goods returned without a RGA will be
refused. Seller will not be responsible for any freight costs, damages to goods, or any other costs or liabilities
pertaining to goods returned without a RGA. Seller shall have the right to substitute a conforming tender. Buyer will
be responsible for all freight costs to and from Buyer and repackaging costs, if any, if Buyer refuses to accept
shipment. If Goods are returned in unsalable condition, Buyer shall be responsible for full value of the Goods.
Buyer may not return any special order Goods. Any Goods returned hereunder shall be subject to a restocking fee
equal to 30% of the invoice price.
Specifications. Seller may, at its option, make changes in the designs, specifications or components of the Goods
to improve the safety of such Goods, or if in Seller’s judgment, such changes will be beneficial to their operation or
use. Buyer may not make any changes in the specifications for the Goods unless Seller approves of such changes
in writing, in which event Seller may impose additional charges to implement such changes.
Limited Warranty. Seller warrants to the original end-user that the Goods manufactured or provided by Seller
under this Agreement shall be free of defects in material or workmanship for a period of twelve (12) months from
the date of purchase, provided that the Goods are installed, used, and maintained in accordance with any
instruction manual or technical guidelines provided by the Seller or supplied with the Goods, if applicable. The
original end-user must give written notice to Seller of any suspected defect in the Goods prior to the expiration of
the warranty period. The original end-user must also obtain a RGA from Seller prior to returning any Goods to
Seller for warranty service under this paragraph. Seller will not accept any responsibility for Goods returned without
a RGA. The original end-user shall be responsible for all costs and expenses associated with returning the Goods
to Seller for warranty service. In the event of a defect, Seller, at its sole option, shall repair or replace the defective
Goods or refund to the original end-user the purchase price for such defective Goods. Goods are not eligible for
replacement or return after a period of 30 days from date of receipt. The foregoing warranty is Seller’s sole
obligation, and the original end-user’s exclusive remedy, with regard to any defective Goods. This limited warranty
does not apply to: (a) die sets, tooling, and saw blades; (b) periodic or routine maintenance and setup, (c) repair or
replacement of the Goods due to normal wear and tear, (d) defects or damage to the Goods resulting from misuse,
abuse, neglect, or accidents, (f) defects or damage to the Goods resulting from improper or unauthorized
alterations, modifications, or changes; and (f) any Goods that has not been installed and/or maintained in
accordance with the instruction manual or technical guidelines provided by Seller.
EXCLUSION OF OTHER WARRANTIES. THE FOREGOING LIMITED WARRANTY IS IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED. ANY AND ALL OTHER EXPRESS, STATUTORY OR IMPLIED
WARRANTIES, INCLUDING BUT NOT LIMITED TO, ANY WARRANTY OF MERCHANTABILITY OR FITNESS
FOR ANY PARTICULAR PURPOSE ARE EXPRESSLY DISCLAIMED. NO WARRANTY IS MADE WHICH
EXTENDS BEYOND THAT WHICH IS EXPRESSLY CONTAINED HEREIN.
Limitation of Liability. IN NO EVENT SHALL SELLER BE LIABLE TO BUYER OR ANY OTHER PARTY FOR
ANY INCIDENTIAL, CONSEQUENTIAL OR SPECIAL DAMAGES (INCLUDING, WITHOUT LIMITATION, LOST
PROFITS OR DOWN TIME) ARISING FROM OR IN MANNER CONNECTED WITH THE GOODS, ANY BREACH
BY SELLER OR ITS AGENTS OF THIS AGREEMENT, OR ANY OTHER CAUSE WHATSOEVER, WHETHER
BASED ON CONTRACT, TORT OR ANY OTHER THEORY OF LIABILITY. BUYER’S REMEDY WITH RESPECT
TO ANY CLAIM ARISING UNDER THIS AGREEMENT IS STRICTLY LIMITED TO NO MORE THAN THE
AMOUNT PAID BY THE BUYER FOR THE GOODS.

2
2
Force Majuere. Seller shall not be responsible for any delay in the delivery of, or failure to deliver, Goods due to
causes beyond Seller’s reasonable control including, without limitation, acts of God, acts of war or terrorism, enemy
actions, hostilities, strikes, labor difficulties, embargoes, non-delivery or late delivery of materials, parts and
equipment or transportation delays not caused by the fault of Seller, delays caused by civil authorities,
governmental regulations or orders, fire, lightening, natural disasters or any other cause beyond Seller's reasonable
control. In the event of any such delay, performance will be postponed by such length of time as may be reasonably
necessary to compensate for the delay.
Installation. If Buyer purchases any Goods that require installation, Buyer shall, at its expense, make all
arrangements and connections necessary to install and operate the Goods. Buyer shall install the Goods in
accordance with any Seller instructions and shall indemnify Seller against any and all damages, demands, suits,
causes of action, claims and expenses (including actual attorneys’ fees and costs) arising directly or indirectly out
of Buyer’s failure to properly install the Goods.
Work By Others; Safety Devices. Unless agreed to in writing by Seller, Seller has no responsibility for labor or
work performed by Buyer or others, of any nature, relating to design, manufacture, fabrication, use, installation or
provision of Goods. Buyer is solely responsible for furnishing, and requiring its employees and customers to use all
safety devices, guards and safe operating procedures required by law and/or as set forth in manuals and instruction
sheets furnished by Seller. Buyer is responsible for consulting all operator’s manuals, ANSI or comparable safety
standards, OSHA regulations and other sources of safety standards and regulations applicable to the use and
operation of the Goods.
Remedies. Each of the rights and remedies of Seller under this Agreement is cumulative and in addition to any
other or further remedies provided under this Agreement or at law or equity.
Attorney’s Fees. In the event legal action is necessary to recover monies due from Buyer or to enforce any
provision of this Agreement, Buyer shall be liable to Seller for all costs and expenses associated therewith,
including Seller’s actual attorneys' fees and costs.
Governing Law/Venue. This Agreement shall be construed and governed under the laws of the State of
Wisconsin, without application of conflict of law principles. Each party agrees that all actions or proceedings arising
out of or in connection with this Agreement shall be commenced, tried, and litigated only in the state courts sitting in
Manitowoc County, Wisconsin or the U.S. Federal Court for the Eastern District of Wisconsin. Each party waives
any right it may have to assert the doctrine of “forum non conveniens” or to object to venue to the extent that any
proceeding is brought in accordance with this section. Each party consents to and waives any objection to the
exercise of personal jurisdiction over it by courts described in this section. Each party waives to the fullest extent
permitted by applicable law the right to a trial by jury.
Summary of Return Policy.
10 Day acceptance period from date of delivery. Damage claims and order discrepancies will not be accepted
after this time.
You must obtain a Baileigh issued RGA number PRIOR to returning any materials.
Returned materials must be received at Baileigh in new condition and in original packaging.
Altered items are not eligible for return.
Buyer is responsible for all shipping charges.
A 30% re-stocking fee applies to all returns.
Baileigh Industrial makes every effort to ensure that our posted specifications, images, pricing and product
availability are as correct and timely as possible. We apologize for any discrepancies that may occur. Baileigh
Industrial reserves the right to make any and all changes deemed necessary in the course of business including but
not limited to pricing, product specifications, quantities, and product availability.
For Customer Service & Technical Support:
Please contact one of our knowledgeable Sales and Service team members at:
[phone] or e-mail us at [e-mail]

3
3
INTRODUCTION
The quality and reliability of the components assembled on a Baileigh Industrial machine
guarantee near perfect functioning, free from problems, even under the most demanding
working conditions. However if a situation arises, refer to the manual first. If a solution cannot be
found, contact the distributor where you purchased our product. Make sure you have the serial
number and production year of the machine (stamped on the nameplate). For replacement parts
refer to the assembly numbers on the parts list drawings.
Our technical staff will do their best to help you get your machine back in working order.
In this manual you will find: (when applicable)
Safety procedures
Correct installation guidelines
Description of the functional parts of the machine
Capacity charts
Set-up and start-up instructions
Machine operation
Scheduled maintenance
Parts lists
GENERAL NOTES
After receiving your equipment remove the protective container. Do a complete visual
inspection, and if damage is noted, photograph it for insurance claims and contact your
carrier at once, requesting inspection. Also contact Baileigh Industrial and inform them of the
unexpected occurrence. Temporarily suspend installation.
Take necessary precautions while loading / unloading or moving the machine to avoid any
injuries.
Your machine is designed and manufactured to work smoothly and efficiently. Following proper
maintenance instructions will help ensure this. Try and use original spare parts, whenever
possible, and most importantly; DO NOT overload the machine or make any unauthorized
modifications.
Note: This symbol refers to useful information throughout the manual.

4
4
LEARN TO RECOGNIZE SAFETY INFORMATION
This is the safety alert symbol. When you see this symbol on
your machine or in this manual, BE ALERT TO THE
POTENTIAL FOR PERSONAL INJURY!
Follow recommended precautions and safe operating
practices.
UNDERSTAND SIGNAL WORDS
A signal word –DANGER, WARNING, or CAUTION
is used with the safety alert symbol. DANGER
identifies a hazard or unsafe practice that will result in
severe Injury or Death.
Safety signs with signal word DANGER or WARNING are
typically near specific hazards.
General precautions are listed on CAUTION safety signs.
CAUTION also calls attention to safety messages in this
manual.
IMPORTANT
PLEASE READ THIS OPERATORS MANUAL CAREFULLY
It contains important safety information, instructions, and necessary operating
procedures. The continual observance of these procedures will help increase your
production and extend the life of the equipment.
SAFETY INSTRUCTIONS

5
5
SAVE THESE INSTRUCTIONS.
Refer to them often and use them to instruct others.

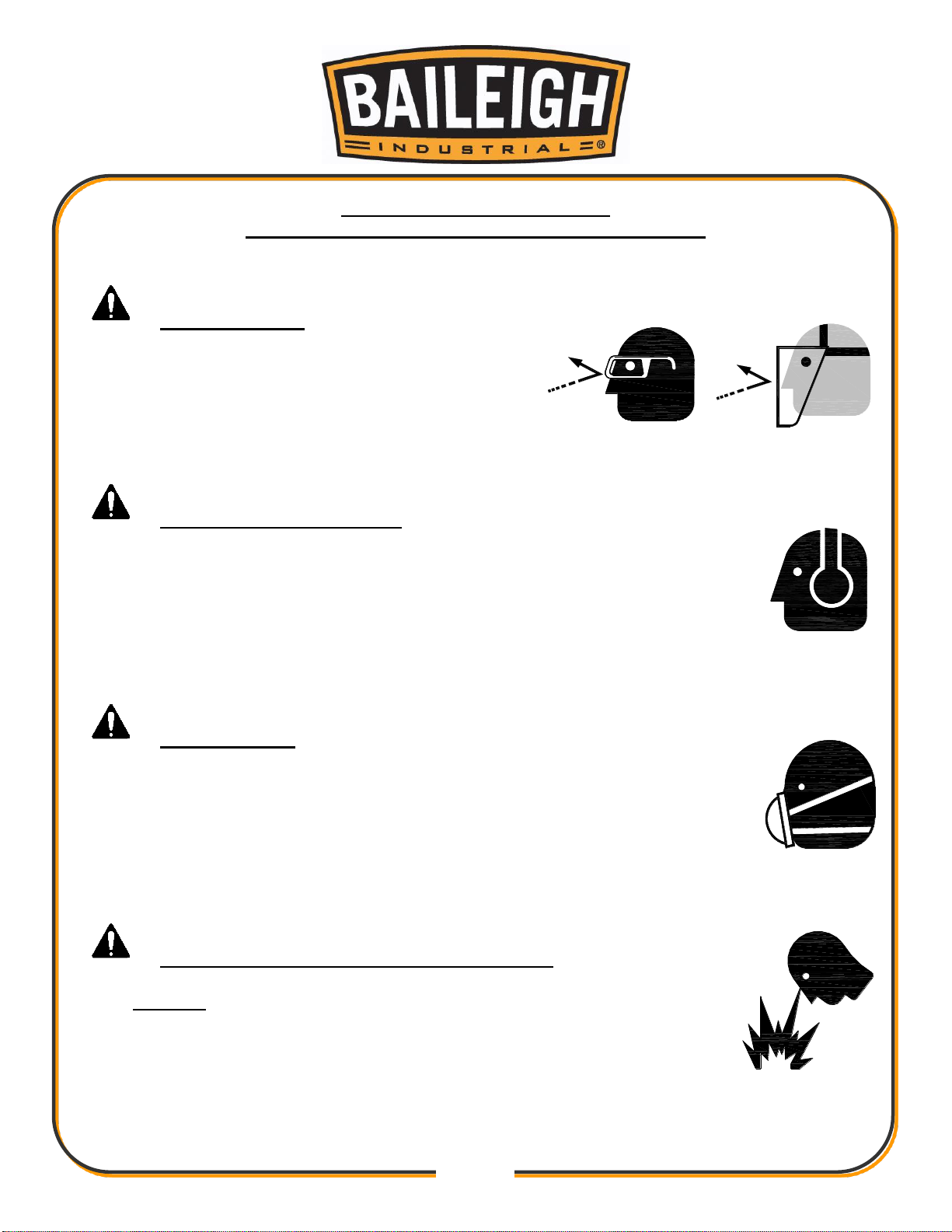

PROTECT EYES
Wear safety glasses or suitable eye protection
when working on or around machinery.
PROTECT AGAINST NOISE
Prolonged exposure to loud noise can cause impairment or loss of
hearing. Wear suitable hearing protective devices such as ear muffs or
earplugs to protect against objectionable or uncomfortable loud noises.
DUST HAZARD
Wear appropriate dust mask. Dust created while using machinery can
cause cancer, birth defects, and long term respiratory damage. Be aware
of the dust hazards associated with all types of materials.
DUST PARTICLES AND IGNITION SOURCES
DO NOT operate the grinder in areas where explosion risks are high.
Such areas include locations near pilot lights, open flames, or other
ignition sources.

6
6

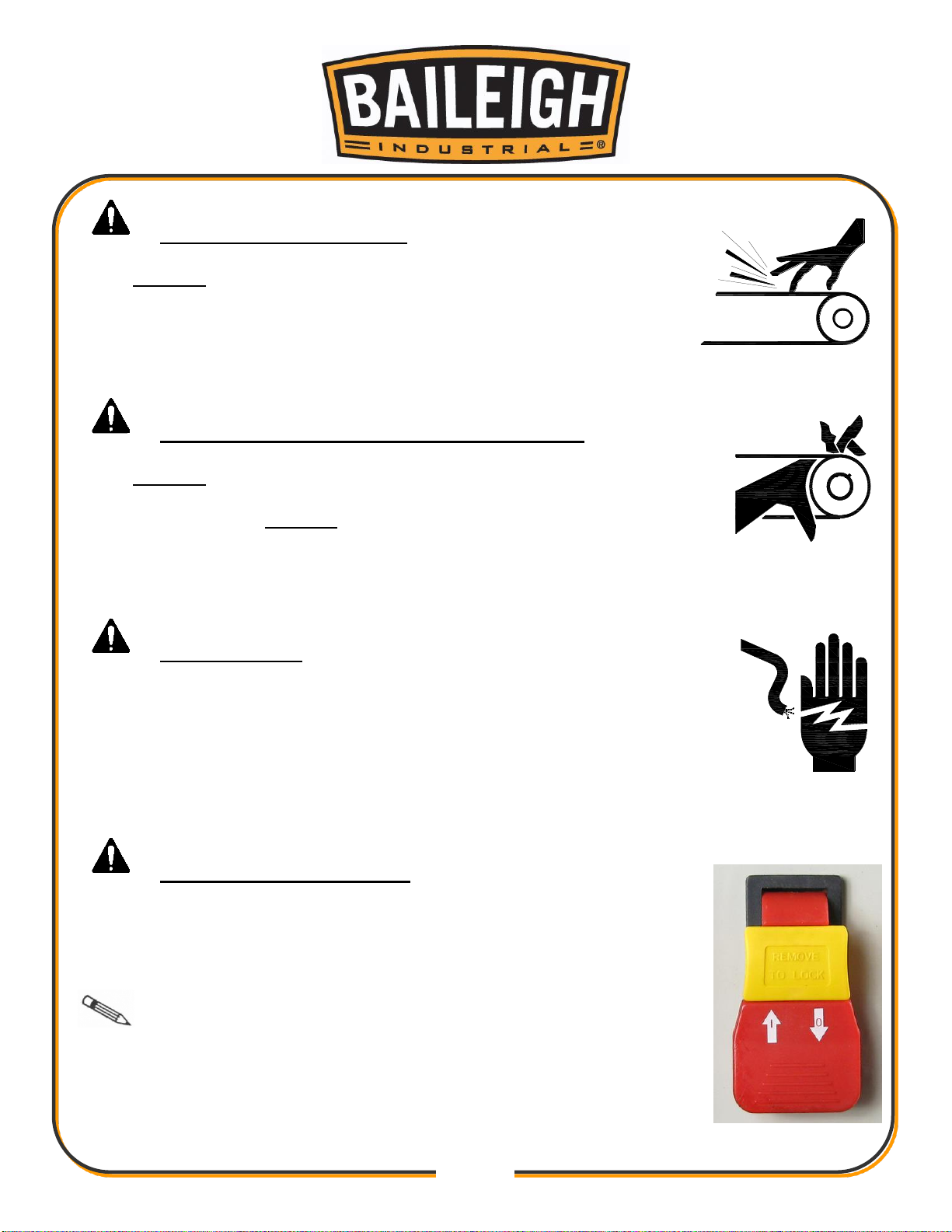

MOVING BELT ABRASIONS
DO NOT place hands or fingers near, or in contact with sanding
belt during operation.
MOVING BELTS CAN CRUSH AND DISMEMBER
DO NOT allow fingers to get pinched between belt and belt rollers.
This may pull the operator’s hand into the machine causing serious
personal injury. DO NOT operate without guards in place.
HIGH VOLTAGE
USE CAUTION IN HIGH VOLTAGE AREAS. DO NOT assume the
power to be off.
FOLLOW PROPER LOCKOUT PROCEDURES.
Power Switch with Lock Out
In the event of incorrect operation or dangerous conditions, the
machine can be stopped immediately by pressing the Power Switch
paddle downward. Remove the yellow lock key to prevent the
machine from starting.
Note: Resetting the Power Switch WILL start the machine.

7
7
SAFETY PRECAUTIONS
Metal working can be dangerous if safe and proper operating procedures are not followed. As
with all machinery, there are certain hazards involved with the operation of the product. Using
the machine with respect and caution will considerably lessen the possibility of personal injury.
However, if normal safety precautions are overlooked or ignored, personal injury to the operator
may result.
Safety equipment such as guards, hold-downs, safety glasses, dust masks and hearing
protection can reduce your potential for injury. But even the best guard won’t make up for poor
judgment, carelessness or inattention. Always use common sense and exercise caution in
the workshop. If a procedure feels dangerous, don’t try it.
REMEMBER: Your personal safety is your responsibility.
1. FOR YOUR OWN SAFETY, READ INSTRUCTION MANUAL BEFORE OPERATING THE
MACHINE. Learn the machine’s application and limitations as well as the specific hazards.
2. Only trained and qualified personnel can operate this machine.
3. Make sure guards are in place and in proper working order before operating
machinery.
4. Remove any adjusting tools. Before operating the machine, make sure any adjusting tools
have been removed.
5. Keep work area clean. Cluttered areas invite injuries.
6. Overloading machine. By overloading the machine you may cause injury from flying parts.
DO NOT exceed the specified machine capacities.
7. Dressing material edges. Always chamfer and deburr all sharp edges.
8. Do not force tool. Your machine will do a better and safer job if used as intended. DO NOT
use inappropriate attachments in an attempt to exceed the machines rated capacity.
9. Use the right tool for the job. DO NOT attempt to force a small tool or attachment to do the
work of a large industrial tool. DO NOT use a tool for a purpose for which it was not
intended.
10.Dress appropriate. DO NOT wear loose fitting clothing or jewelry as they can be caught in
moving machine parts. Protective clothing and steel toe shoes are recommended when
using machinery. Wear a restrictive hair covering to contain long hair.
WARNING:FAILURE TO FOLLOW THESE RULES MAY RESULT IN
SERIOUS PERSONAL INJURY

8
8
11.Use eye and ear protection. Always wear ISO approved impact safety goggles. Wear a full-
face shield if you are producing metal filings.
12.Do not overreach. Maintain proper footing and balance at all times. DO NOT reach over or
across a running machine.
13.Stay alert. Watch what you are doing and use common sense. DO NOT operate any tool or
machine when you are tired.
14.Check for damaged parts. Before using any tool or machine, carefully check any part that
appears damaged. Check for alignment and binding of moving parts that may affect proper
machine operation.
15.Observe work area conditions. DO NOT use machines or power tools in damp or wet
locations. Do not expose to rain. Keep work area well lighted. DO NOT use electrically
powered tools in the presence of flammable gases or liquids.
16.Keep children away. Children must never be allowed in the work area. DO NOT let them
handle machines, tools, or extension cords.
17.Store idle equipment. When not in use, tools must be stored in a dry location to inhibit rust.
Always lock up tools and keep them out of reach of children.
18.DO NOT operate machine if under the influence of alcohol or drugs. Read warning
labels on prescriptions. If there is any doubt, DO NOT operate the machine.
19.Sparks and hot material from cutting can easily go through small cracks and openings into
adjacent areas. Do not grind where the atmosphere might contain flammable dust, gas, or
liquid vapors such as from gasoline.
20.Watch for fire and keep a fire extinguisher close by.
21.Turn off power before checking, cleaning, or replacing any parts.
22.Be sure all equipment is properly installed and grounded according to national, state, and
local codes.
23.Keep all cords dry, free from grease and oil, and protected from sparks and hot metal.
24.Inspect power and control cables periodically. Replace if damaged or bare wires are
exposed. Bare wiring can kill! DO NOT touch live electrical components or parts.
25.DO NOT bypass or defeat any safety interlock systems.
26.Keep visitors a safe distance from the work area.
27.Never leave machine running unattended. TURN POWER OFF. Don’t leave machine until
it comes to a complete stop.
28.Minimum Stock Dimensions. DO NOT sand material thinner than 1/16” (1.5mm), narrower
than 1/8” (3mm), or shorter than 8” (203mm).
29.Changing Sanding Belt. DO NOT operate the sander if the belt is damaged or badly worn.
Replace at once.

9
9
30.Inspect Piece Part. Always inspect piece part for staples, nails, knots, or other
imperfections that could become projectiles causing personal injury.
31.Correctly Feeding The Stock. Grasp the piece part firmly with both hands and ease into the
belt with light pressure. NEVER force the piece part into the belt. DO NOT sand tapered or
pointed stock with the point facing into the feed direction of the belt. NEVER sand more than
one piece of stock at a time.
32.Avoid Contact With The Belt. The abrasive belt when running is an aggressive cutting tool.
Extra care should be exercised when using coarse grit belts due to their rapid cutting action.
33.Bolt this grinder securely to the stand ensuring that the stand is bolted to a stable surface to
stop it from tipping over or moving when in use.
34.Sharpen Cutting Tools In Proper Direction. Always sharpen cutting tools especially
knives, scissors, chisels, etc. with the cutting edge facing downwards and in the direction of
rotation of the belt. NEVER face the cutting edge upward against the rotation of the belt; this
can result in injury.
35.Hold Material Tightly. Always hold the work piece firmly when grinding and apply light and
steady pressure against the abrasive belt.
36.Do Not Force Tool. It will do the job better and safer at the rate for which it was designed.
37.Do Not Use Damaged Belts. Belts that show
signs of wear or are torn should be replaced
before continuing use.
38.Install Belts in Correct Direction. Install belts
with the arrows on the back of the belt facing the
correct direction. Belts with a lap joint must be
mounted facing the correct direction.
39.Never Use The Back Of The Large Drive Wheel. Using the back of the large drive wheel
will cause debris to travel upwards and contact operator or bystanders.
40.Keep BG-248-3 Properly Maintained. Ensure contact wheels and drive wheels are in good
condition and are free from cuts or splits that can be a danger in operation. Replace all
damaged contact wheels before operating machine.

10
10
TECHNICAL SPECIFICATIONS
Belt Size
48" x 2" (1220 x 50.8mm)
Belt Speed
3,600 fpm (1097mpm)
Power
110V, 60hz
Motor
1.5hp (1.1kw)
Shipping Weight
175 lbs. (79.5kgs)
Shipping Dimensions
48" x 31" x 43" (1220 x 788 x 1092mm)
TECHNICAL SUPPORT
Our technical support department can be reached at 920.684.4990, and asking for the support
desk for purchased machines. Tech Support handles questions on machine setup, schematics,
warranty issues, and individual parts needs: (other than die sets and blades).
For specific application needs or future machine purchases contact the Sales Department at:
[email protected], Phone: [phone], or Fax: [phone].
Note: The photos and illustrations used in this manual are representative only and
may not depict the actual color, labeling or accessories and may be intended to illustrate
technique only.
Note: The specifications and dimensions presented here are subject to change
without prior notice due to improvements of our products.

11
11

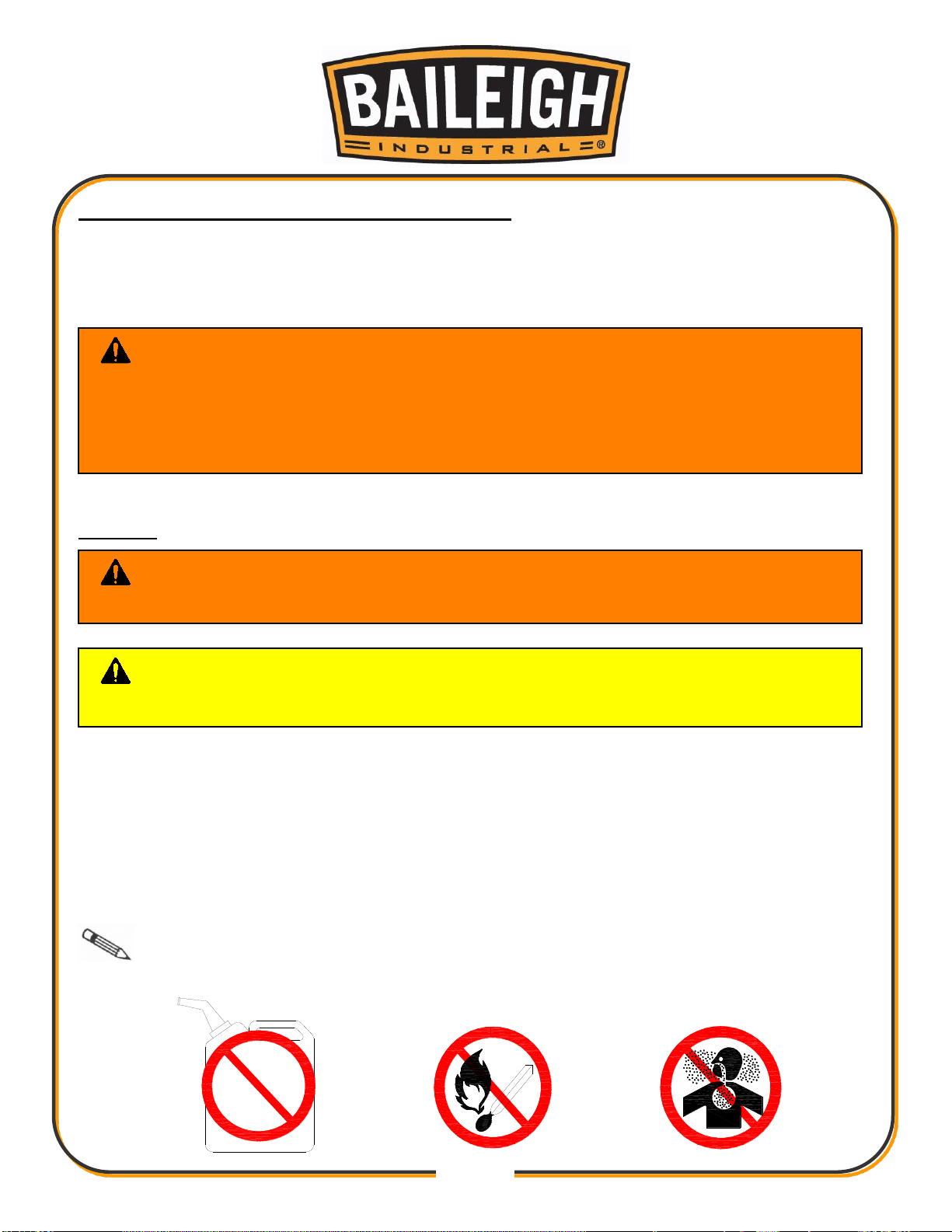

UNPACKING AND CHECKING CONTENTS
Your Baileigh machine is shipped complete. Separate all parts from the packing material and
check each item carefully. Make certain all items are accounted for before discarding any
packing material.
Cleaning
Your machine may be shipped with a rustproof waxy coating and/or grease on the exposed
unpainted metal surfaces. Fully and completely remove this protective coating using a
degreaser or solvent cleaner. Moving items will need to be moved along their travel path to
allow for cleaning the entire surface. For a more thorough cleaning, some parts will occasionally
have to be removed. DO NOT USE acetone or brake cleaner as they may damage painted
surfaces.
Follow manufacturer’s label instructions when using any type of cleaning product. After cleaning,
wipe unpainted metal surfaces with a light coating of quality oil or grease for protection.
Important: This waxy coating is NOT a lubricant and will cause the machine to
stick and lose performance as the coating continues to dry.
WARNING: SUFFOCATION HAZARD! Immediately discard any plastic
bags and packing materials to eliminate choking and suffocation hazards to children
and animals.
If any parts are missing, DO NOT place the machine into service until the missing
parts are obtained and installed correctly.
WARNING: DO NOT USE gasoline or other petroleum products to clean
the machine. They have low flash points and can explode or cause fire.
CAUTION: When using cleaning solvents work in a well-ventilated area.
Many cleaning solvents are toxic if inhaled.
GAS

12
12

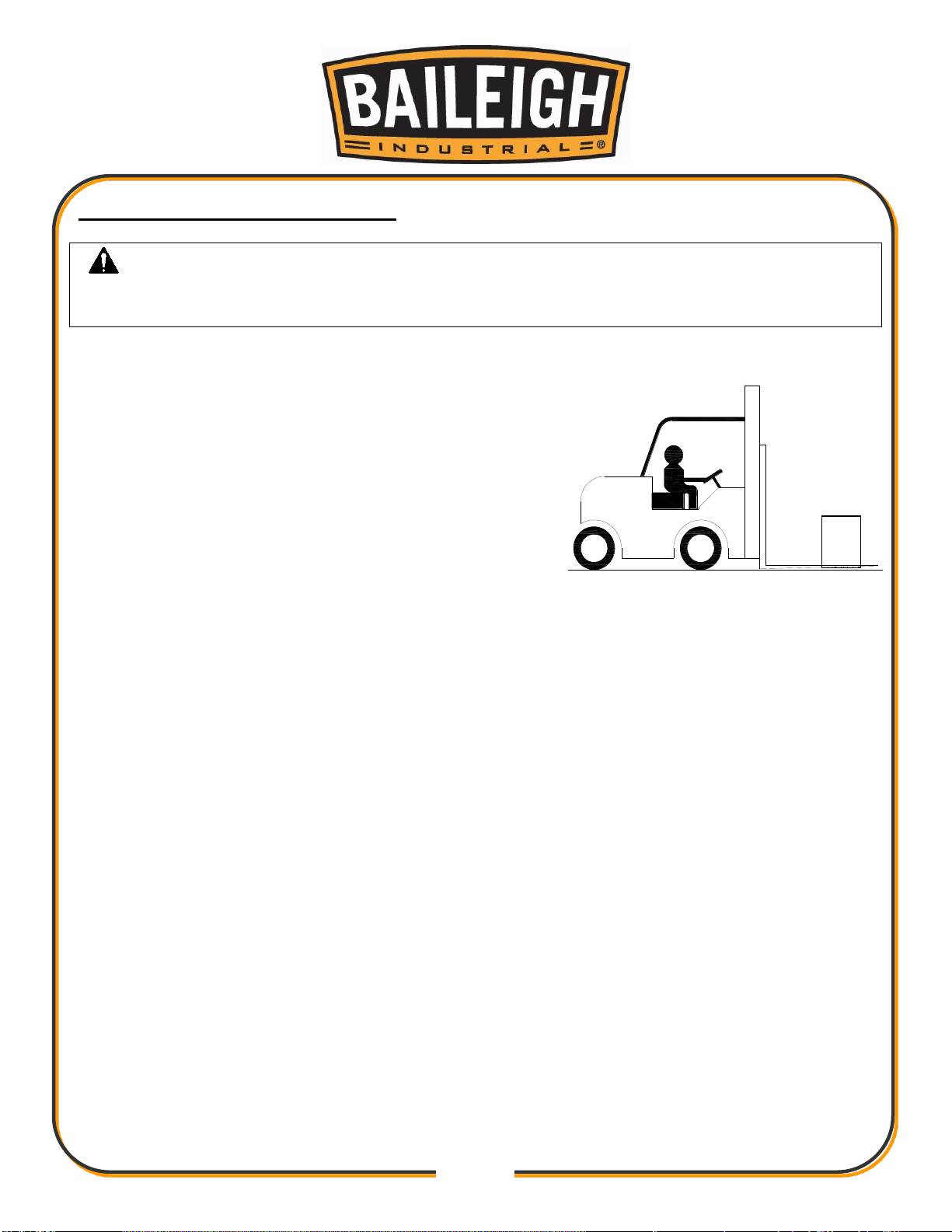

TRANSPORTING AND LIFTING
IMPORTANT: Lifting and carrying operations should be carried out by skilled workers,
such as a truck operator, crane operator, etc. If a crane is used to lift the machine, attach the
lifting chain carefully, making sure the machine is well balanced.
Follow these guidelines when lifting with truck or trolley:
The lift truck must be able to lift at least 1.5 –2 times
the machines gross weight.
Make sure the machine is balanced. While
transporting, avoid rough or jerky motion, and
maintain a safe clearance zone around the transport
area.
Use a fork lift with sufficient lifting capacity and forks
that are long enough to reach the complete width of
the machine.
Remove the securing bolts that attach the machine to the pallet.
Approaching the machine from the side, lift the machine on the frame taking care that there
are no cables or pipes in the area of the forks.
Move the machine to the required position and lower gently to the floor.
Level the machine so that all the supporting feet are taking the weight of the machine and no
rocking is taking place.
Follow these guidelines when lifting crane or hoist:
Always lift and carry the machine with the lifting holes provided at the top of the machine.
Use lift equipment such as straps, chains, capable of lifting 1.5 to 2 times the weight of the
machine.
Take proper precautions for handling and lifting.
Check if the load is properly balanced by lifting it an inch or two.
Lift the machine, avoiding sudden accelerations or quick changes of direction.
Locate the machine where it is to be installed, and lower slowly until it touches the floor.

13
13
INSTALLATION
IMPORTANT:
Consider the following when looking for a suitable location to place the machine:
Overall weight of the machine.
Weight of material being processed.
Sizes of material to be processed through the machine.
Space needed for auxiliary stands, work tables, or other machinery.
Clearance from walls and other obstacles.
Maintain an adequate working area around the machine for safety.
Have the work area well illuminated with proper lighting.
Keep the floor free of oil and make sure it is not slippery.
Remove scrap and waste materials regularly, and make sure the work area is free from
obstructing objects.
If long lengths of material are to be fed into the machine, make sure that they will not extend
into any aisles.
LEVELING: The machine should be sited on a level, concrete floor. Provisions for securing it
should be in position prior to placing the machine. The accuracy of any machine depends on
the precise placement of it to the mounting surface.
FLOOR: This tool distributes a large amount of weight over a small area. Make certain that
the floor is capable of supporting the weight of the machine, work stock, and the operator.
The floor should also be a level surface. If the unit wobbles or rocks once in place, be sure to
eliminate by using shims.
WORKING CLEARANCES: Take into consideration the size of the material to be
processed. Make sure that you allow enough space for you to operate the machine freely.
POWER SUPPLY PLACEMENT: The power supply should be located close enough to the
machine so that the power cord is not in an area where it would cause a tripping hazard. Be
sure to observe all electrical codes if installing new circuits and/or outlets.

14
14
Securing the Base
The machine should be sited on a level, concrete floor. Provisions for securing it should be in
position prior to placing the machine. The accuracy of any machine depends on the precise
placement of it to the mounting surface.
Anchoring the Machine
Once positioned, anchor the machine to the floor, as shown in
the diagram. Use bolts and expansion plugs or sunken tie rods
that connect through and are sized for the holes in the base of
the stand.
This machine requires a solid floor such as concrete at a
minimum of 4” (102mm) thick. 6” (153mm) minimum is preferred.
ASSEMBLY AND SET UP
Mounting the Head
1. Secure the stand to the floor.
2. Mount the head assembly onto the stand with the
motor placed over the hinge side of the mounting
plate.
3. Secure the motor to the plate with four cap screws,
eight flat washers and four Nylock nuts.
WARNING: Before operating; make sure it is firmly bolted to a table,
bench, or the floor. If it tips over on you, it could cause severe injury or death.
WARNING:For your own safety, DO NOT connect the machine to the
power source until the machine is completely assembled and you read and
understand the entire instruction manual.
.31"
(7.87mm)
.50"
(12.7mm)

15
15

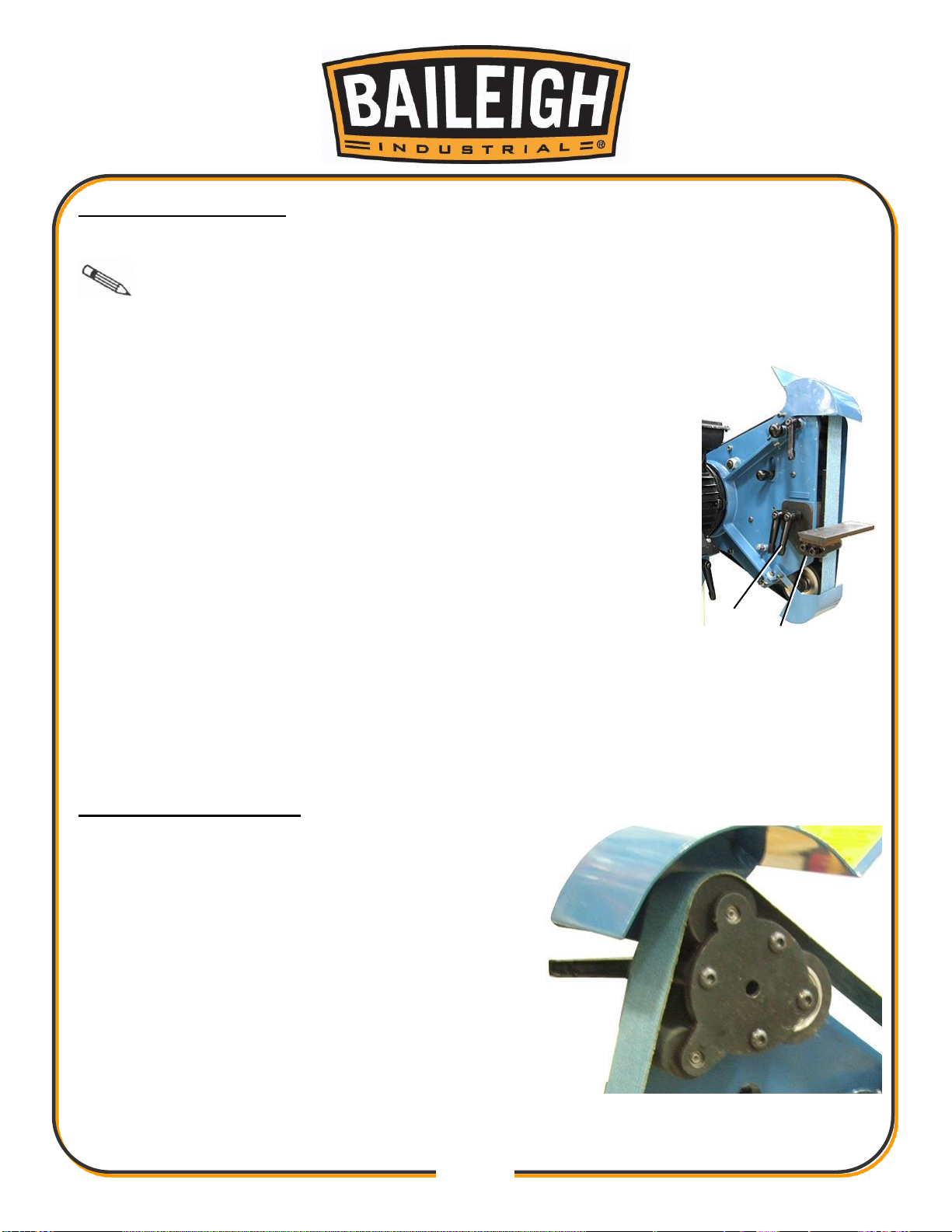

Mounting the Tool Rest
1. Verify that the grinder is turned off and unplugged.
IMPORTANT: The tool rest should never exceed the 1/16” (.0625”) [1.58mm]
MAXIMUM gap between the edge of the tool rest and the belt or 1/16 inch. The tool rest should
not touch the belt.
2. To attach the tool rest loosen the two clamp handles (A).
3. Slide the tool rest into position.
a. If the tool rest table is at the desired angle, position the tool rest
up to the belt at the desired gap. Do not exceed 1/16” (.0625”)
[1.58mm]. Fully tighten the clamp handles.
b. If the angle of the tool rest table will be changed, position the
tool rest to the belt with a gap of approximately 1/8” (.125”)
[3.1mm] between the tool rest and the belt. Lightly tighten the
two clamp handle.
4. Change the tool rest table angle by loosening the two screws under
the table.
5. Tilt the table to the desired angle and tighten the two screws (B) to
secure the table at the desired angle.
6. Recheck and if needed, reset the tool rest to belt gap. Do not exceed 1/16” (.0625”)
[1.58mm]. Fully tighten the clamp handles.
Mounting the Work Table
1. Verify that the grinder is turned off and unplugged.
2. Select the desired wheel size to be used as
described earlier in this document.
3. Tilt the BG-248-3 to the inclined position as
described earlier in this document.
4. Rotate the head assembly into the horizontal
position and secure in place.
5. Swing the wheel guard open and away from the
radius wheels.
A
B

16
16
6. Loosen the table clamp (A).
7. Slide the work table into position ensuring
the spacer washer (B) is underneath the
work table mounting bracket.
8. Loosen the lock bolts (C) and tilt the work
table to the desired angle.
9. When in position tighten the tilt lock bolts.
10.Check the clearance of the belt and the work
table before tightening the locking clamp. Do
not exceed 1/16” (.0625”) [1.58mm]. Once
satisfied the work table will not contact the
moving belt, tighten the locking clamp (A)
and ensure a firm fitting.
Note: With three sized contact
wheel available in this position, you will need to
adjust the work table to fit each size contact
wheel.
B
A
C

17
17
ELECTRICAL
Motor Specifications
Your tool is wired for 110 volt, 60Hz alternating current. Before connecting the tool to the power
source, make sure the machine is cut off from power source.
Considerations
Observe local electrical codes when connecting the machine.
The circuit should be protected with a time delay fuse or circuit breaker with a amperage
rating slightly higher than the full load current of machine.
A separate electrical circuit should be used for your tools. Before connecting the motor to the
power line, make sure the switch is in the “OFF” position and be sure that the electric current
is of the same characteristics as indicated on the tool.
All line connections should make good contact. Running on low voltage will damage the
motor.
In the event of a malfunction or breakdown, grounding provides a path of least resistance for
electric current to reduce the risk of electric shock. This tool is equipped with an electric cord
having an equipment-grounding conductor and a grounding plug. The plug must be plugged
into a matching outlet that is properly installed and grounded in accordance with all local
codes and ordinances.
CAUTION: HAVE ELECTRICAL UTILITIES CONNECTED TO MACHINE BY
A CERTIFIED ELECTRICIAN!
Check if the available power supply is the same as listed on the machine nameplate.
WARNING: Make sure the grounding wire (green) is properly connected
to avoid electric shock. DO NOT switch the position of the green grounding wire if
any electrical plug wires are switched during hookup.
WARNING:In all cases, make certain the receptacle in question is
properly grounded. If you are not sure, have a qualified electrician check the
receptacle.

18
18
Improper connection of the equipment-grounding conductor can result in risk of electric
shock. The conductor with insulation having an outer surface that is green with or without
yellow stripes is the equipment-grounding conductor. If repair or replacement of the electric
cord or plug is necessary, do not connect the equipment-grounding conductor to a live
terminal.
Check with a qualified electrician or service personnel if the grounding instructions are not
completely understood, or if in doubt as to whether the tool is properly grounded.
Repair or replace damaged or worn cord immediately.
Extension Cord Safety
Extension cord should be in good condition and meet the minimum wire gauge requirements
listed below:
LENGTH
AMP RATING
25ft
50ft
100ft
1-12
16
16
14
13-16
14
12
12
17-20
12
12
10
21-30
10
10
No
WIRE GAUGE
An undersized cord decreases line voltage, causing loss of power and overheating. All cords
should use a ground wire and plug pin. Replace any damaged cords immediately.
Power cord connection:
1. Verify that ON/OFF switch on the motor is in the OFF position with the safety key removed.
2. Unwrap the power cord and route the cord away from the machine toward the power supply.
a. Route the power cord so that it will NOT become entangled in the machine in any
way.
b. Route the cord to the power supply in a way that does NOT create a trip hazard.
3. Connect the power cord to the power supply and check that the power cord has not been
damaged during installation.
4. When the machine is clear of any obstruction. The main power switch may be turn ON to test
the operation. Turn the switch OFF when the machine is not in operation.
