Before you get started
This User’s Guide is designed for the BlackBerry OS 7 devices using the OS version 7.0 and
higher. If you are using another device, the information herein may be different or may not
apply. If you have questions, contact your network administrator or email
[e-mail].
Proper Care of your baiMobile™3000MP Bluetooth Smart Card Reader
Your baiMobile™3000MP Bluetooth Smart Card Reader is an electronic product similar
to a cell phone or MP3 player that may be damaged by excessive moisture, sand, dirt and
impact. Taking proper care of your reader is essential for continued, trouble-free operation.
Welcome
The baiMobile™solution for the BlackBerry OS 7 devices includes:
1. baiMobile™3000MP Reader
2. baiMobile™BlackBerry OS 7 reader driver (baiSmartCardReaderDriver.cod) –
This file must be installed on your device.
This baiMobile 3000MP solution permits you to perform many of the same functions on a
mobile device that are available on a desktop PC including:
digitally sign and decrypt emails and documents
log on to web sites and network servers that require smart card (CAC or PIV)
authentication
other applications that require smart card authentication.
Hardware and Software Requirements
This section describes the minimum hardware and software requirements necessary to use
your Reader with and BlackBerry OS 7 device.
Hardware Requirements
The baiMobile 3000MP reader with firmware version 2.03.01 or higher.
Software Requirements
The following software components are required on your BlackBerry OS 7 device:
1. BlackBerry OS 7 version 7.0.x or higher
2. baiMobile reader driver baiSmartCardReaderDriver.cod.

6
Supported Smart Cards
The baiMobile middleware libraries contain the PKCS#11 command set that is specific to
each smart card type. Support for CAC, PIV and the SafeNet 330 smart cards are included
in the BlackBerry OS 7. For support for other smart card types, please contact your
administrator or email [e-mail] .
baiMobile™ Bluetooth Smart Card Reader Specifications
Specifications
Description
baiMobile 3000MP Bluetooth Smart Card Reader
Hardware Specifications
Dimensions
62 mm (2.44 in) wide x 110 mm (4.33 in) high x 20 mm (4.79 in) thick
Weight
70g (2.46 oz)
Status Indicator
LCD panel provides connection indication, signal strength, battery capacity, device
name, version info, aided pairing. Configurable LED indicators (use/don’t use) for
connection indication, user attention and LCD backlighting
Battery
Removable PolyFlex cell; rated capacity 580 mAh, normal voltage 3.7v; in low power
mode - 3.5mA, (~7 days batt life) On but BT connection; 14mA, (~2 days batt life) power
on with BT connection.
Power On / Off
Power on activated by card insertion and/or front OK button. Power off activated by
card removal or application/device security policy.
Charging Port
Mini-B USB (Charger included with Reader)
Wireless Communications
Communications Protocol
2.4 GHz frequency ISM band. IEEE 802.15.1 (Bluetooth) with full security enabled
RF Transmission range
10 meters
Supported Bluetooth versions
Devices with Bluetooth ver 2.1 and higher and the BlueZ stack
Data Throughput
750 kb/s to 1 Mb/s
baiMobile Middleware Libraries / Security
Bluetooth & AES
Mode 4: service level security; FIPS 140-2 approved AES-256 encryption overlay
Authentication Method
S/MIME, SSL and PKI
Mobile Device Security
Custom Reader firmware; FIPS 140-2 certified version of the OpenSSL library on reader
and device (NIST certification number 1051);
Mobile Operating Systems
Supported Operating Systems
iPhone/iPad iOS version 4.0 and higher, BlackBerry OS 7.0 and higher, Android version
2.2 and higher, BlackBerry 10.2.1 and higher

7
Accessories
Included with your Reader is a charging cable, comprised of a plug and a mini-USB cable.
Reader Basics
Reader Features

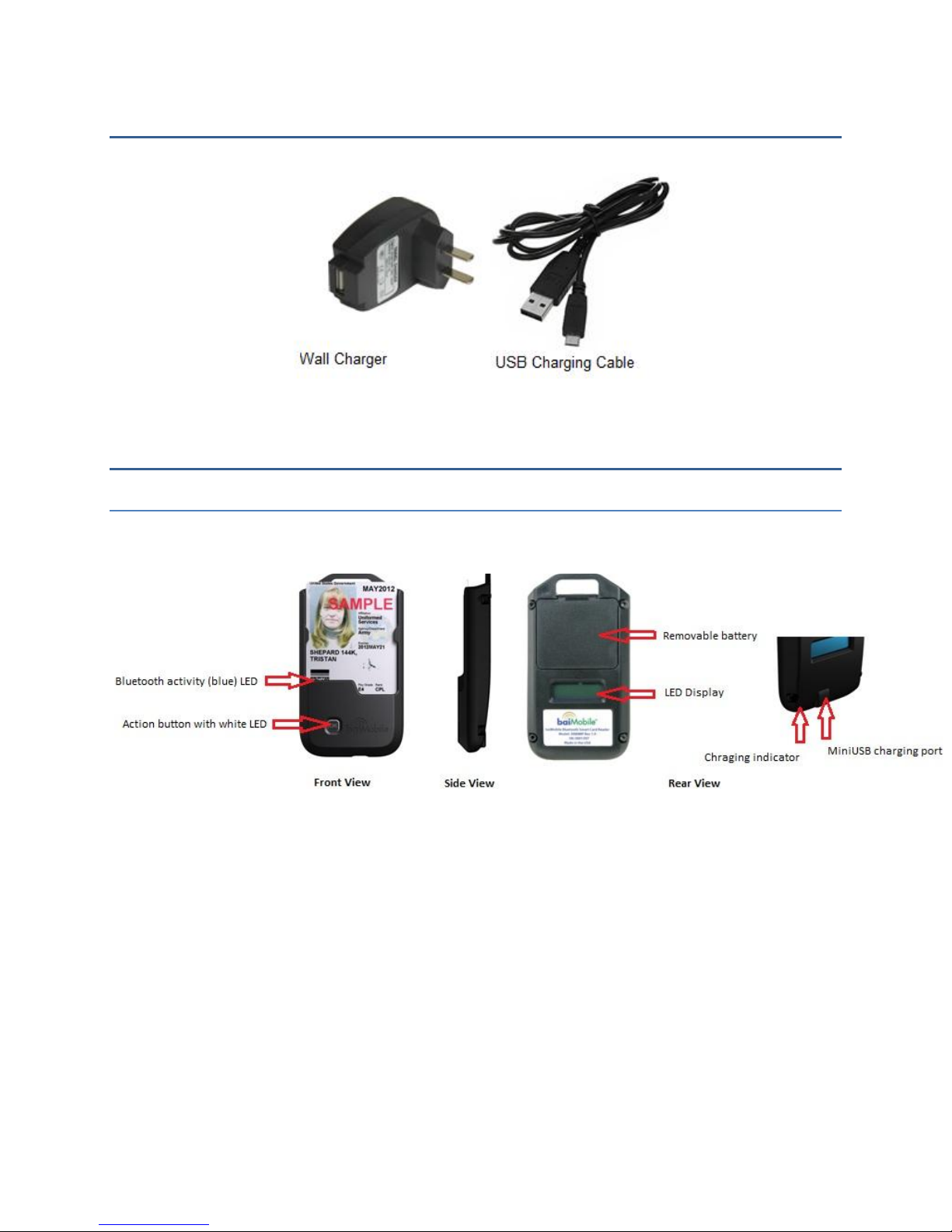

Please familiarize yourself with the features of the baiMobile 3000MP Reader.
Blue LED indicator The blue LED indicator is located on the front portion of the
reader, facing the Smart Card. It will flash when the reader’s Bluetooth radio is on
and is transmitting or receiving data.
OK Button with White LED indicator The OK button is located on the front
portion of the reader. Certain functions, such as pairing and reconnecting to the
BlackBerry OS 7 device, require an acknowledgment by the user. A white LED
indicator will flash whenever an action or acknowledgment must be performed by the
user.
Removable Battery/Battery Cover The reader battery is the only component that
will need to be replaced periodically, depending on usage. The battery is rated for
600 charge-discharge cycles, or about two years of normal use. Should the battery
need replacing, remove the battery cover and replace the old battery with a new
(baiMobile approved) battery. Note: This reader uses a battery custom built for the

8
reader. Inserting a battery other than a baiMobile approved battery will cause
serious damage to the reader and will void its warranty.
LED Display The LED display is located on the rear of the reader and will display
various messages and reader status icons when the reader is powered on.
MiniUSB Charging Port The reader’s battery is charged using a charging cable and
power supply. The power cable is inserted into the miniUSB port located at the
bottom of the reader. Note that the miniUSB port is for charging only and will not
support the transfer of data.
Power consumption
The baiMobile 3000MP smart card reader includes a low-power mode. The operation of
the low power modes is complex and based on idle timeouts.
Reader firmware version 2.2.0 and higher
oFull power consumption (50-60mA)
During pairing
During each reader or card command execution duration
Each lasts a few seconds, max
oIdle Power Mode (25mA)
Lasts 8 seconds after the last command execution is completed
oLow Power Mode –connected (3.5mA)
Starts 8 seconds after the last command execution is completed
oLow Power Mode –not connected (3.5mA)
Starts immediately after booting is complete (and LCD back light is off)
Starts immediately following a disconnection from Bluetooth.
oFor any duration that the LCD back light is on, add another 30mA, but the
back light only stays on for short durations (6 seconds, or during pairing, or
while holding down the button to see version number, etc.)
To calculate the length of time the reader could continue in any one of these modes, use
this equation:
Time in hours = 600 / (mA consumption)
For instance, while connected but in Low Power Mode (3.5mA)
600 / 3.5 = 171 hours (or over 7 days)

9
Powering on the Reader
The baiMobile 3000MP Reader does not have an On/Off switch or button. Your reader is
powered on by inserting your smart card into your reader. If your smart card is already
inserted in your reader, slide it out and then reinsert the card. You will notice the reader’s
Home Screen displayed on the LED panel on the back of the reader.

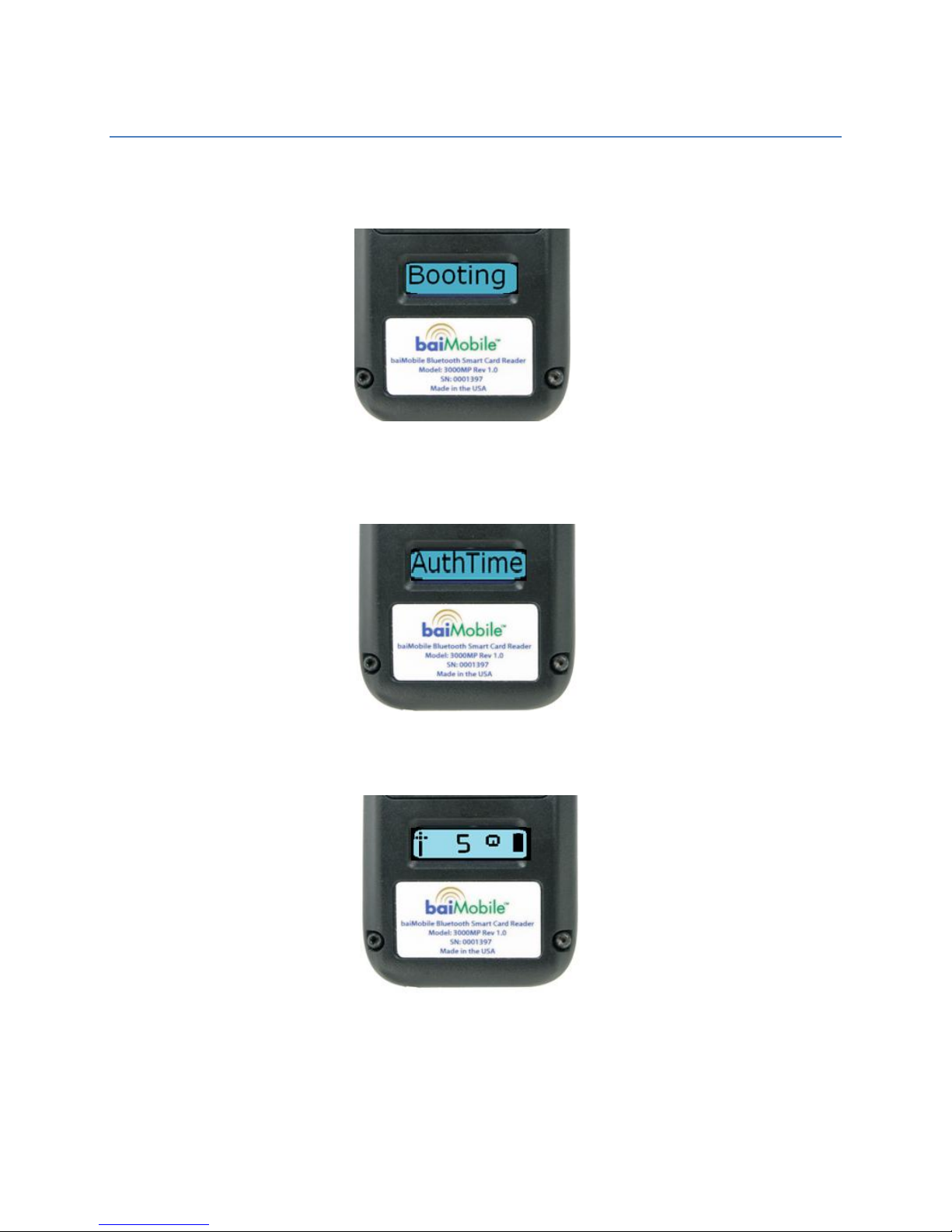

Power On Screen 1 –displayed for about 1.7 seconds when reader is first powered on
Power On Screen 2 –displayed for about 1.7 seconds

10
Power On Screen 3 –Reader will accept a Bluetooth connection request from an
application on your BlackBerry OS 7 device without requiring the user to press the OK
button for 5 minutes.
Power On Screen 4 –Reader is now powered on and is “listening” for a Bluetooth
connection request from an application on your BlackBerry OS 7 device. User must first
press the OK button to accept a connection request. The reader will stay in this state for
approximately 7 days until the battery is exhausted (firmware version 2.02.00 and higher)
or until the Smart Card is removed from the Reader, whichever occurs first. If the reader
receives a connection request from the BlackBerry OS 7 device, you may be prompted to
authorize the request by pressing and releasing the 0K button on the front of the reader.
Accepting a Bluetooth connection
NSA security requirements state that the user must accept (acknowledge) all Bluetooth
connection requests from his or her mobile device.
Examples:
When a client application on the mobile device needs to establish a Bluetooth
connection to the reader to access information (certificates) residing on the Smart
Card
When a client application on the mobile device requires that the user acknowledge an
action (digital signing) involving the Smart Card
In such cases, the reader will display a message prompt such as “Auth?” and the white LED
beneath the OK button will flash repeatedly until the OK button is pressed.

11
Powering off the Reader
Your reader will automatically power off if any of the following occur:
Your smart card is removed from your reader
The reader’s battery runs out
The reader times out (a configurable setting)
When the reader is powered off, nothing will be displayed in the LED panel.
Charging the Reader
Your charging cable separates into a plug end and a mini-USB cable. You may charge your
reader using the charging cable plugged into an electrical wall outlet or use just the mini-
USB portion of the charging cable to connect between your reader and a USB port on a
computer.
It is recommended that the reader be charged whenever the battery status icon on the
reader indicates that the reader battery level is less than 20%. The reader should be
charged from an AC power source using the supplied charger and cable. A red LED on the
bottom of the reader will illuminate indicating that the reader is charging. Once the red LED
is no longer illuminated, the battery is fully charged and the charging source should then be
removed from the reader.
During charging, a red LED on the bottom of your reader will indicate that the battery is
being charged. When the red LED turns off, your reader battery is fully charged.
NOTE: Most smartphone charging cables with a mini-USB-a connector will also charge your
reader.

12
Upgrading the Reader Firmware
The baiMobile 3000MP Bluetooth Smart Card reader contains upgradeable firmware. The
feature extends the functionality of your Reader in the following areas:
Security Policies: Changes in security policies may require a firmware update.
OS Releases: New versions of the BlackBerry OS 7 device/ operating system may
require a firmware update.
Smart Card Types: Support for new smart card types may require a firmware
update.
Power Modes: Improvements in the reader’s power consumption may require a
firmware update.
Device Support: New devices may require a firmware update.
Bluetooth Stack Support: Support for additional Bluetooth stacks may require a
firmware update.
Additional OS Support: Support for additional operating systems (such as Windows
7) may require a firmware update.
Application Support: Certain applications may require a firmware update.
BAL will have a firmware upgrade app available in the BlackBerry World App store some
time in Q4, 2014.
LED Panel Icons
Home Screen
The Home Screen is displayed on the reader’s LED panel when the reader is first powered
on. The display indicates the following:
Reader’s Bluetooth transmission status: (On / Transmitting)
Reader’s Authentication Timeout status
Reader’s battery power status: (see Battery Status Icons)

13
Data Transfer Screen
The Data Transfer Screen is displayed on the reader’s LED panel when there is data being
transferred between the BlackBerry OS 7 device and the reader over a secure Bluetooth
connection.
Battery Status Icons
The reader’s Battery Status Icon will display the remaining charge remaining in the reader’s
battery, as shown below:
When the battery reaches 5% charge, the Low Battery warning will be displayed. You should
charge your reader when the battery reaches about 20% - 40%, depending on your
anticipated activities what will require connectivity to your reader, such as accessing email
or another application that requires smart card authentication.

14
Inserting a CAC or PIV card
As noted above, the reader does not have a power on or off button. Inserting a smart card
into your reader will power on the reader. Removing the smart card will power off the
reader.
NOTE:When used in the Bluetooth mode, the reader’s radio functions are only enabled
when your smart card is firmly inserted into the reader as shown below.
Battery
Your reader contains a removable, rechargeable battery. This battery is a custom battery,
built specifically for the baiMobile 3000MP Reader. In the event that your reader’s battery
no longer holds a charge, please contact [e-mail] for a replacement battery.
Reader Error Massages
"NO CARD!"

15
This is displayed when the reader is powered-on without any card inserted. This can happen
if the user uses the 'OK' button to cause power-on without a card inserted or if they plug-in
the charger to the reader without the card inserted. This indication is displayed for a few
seconds before the reader will turn itself off.
"BAD CARD"
It is displayed while the reader is powering-on with a card inserted but the reader was
unable to get the card to return an ATR (Answer To Reset) after causing card Reset. This
indication is displayed for a few seconds before the reader will turn itself off.
"LOW BATT"
It is displayed during power-on if the battery is detected as having very little power
remaining. Once the reader is finished powering-on (booting), this indication is replaced
with normal LCD indicators. This indication can only be displayed as a result of the booting
self-checks. We don't quantify this threshold value in any way since it may be adjusted in
the future.
Installing the baiMobile Reader Driver
Install via BES
The baiMobile 3000MP Reader driver must be installed on your BlackBerry phone. This can
only be installed via a BES. You may verify that the driver is installed by, on your
BlackBerry phone, go to Work > App Manager > Device Monitor > Memory. You should
see the baiMobile listed:
Install via Javaloader.exe
Files required:
1. Javaloader.exe
2. baiSmartCardReaderDriver.cod
1. On your Windows computer, install both files in the C: directory
2. On your Windows computer, tether your BlackBerry OS7 phones via a USB cable.
3. Make sure that your phone is powered On
4. On your Windows computer, open the Command Prompt (In the Accessories
folder)

16

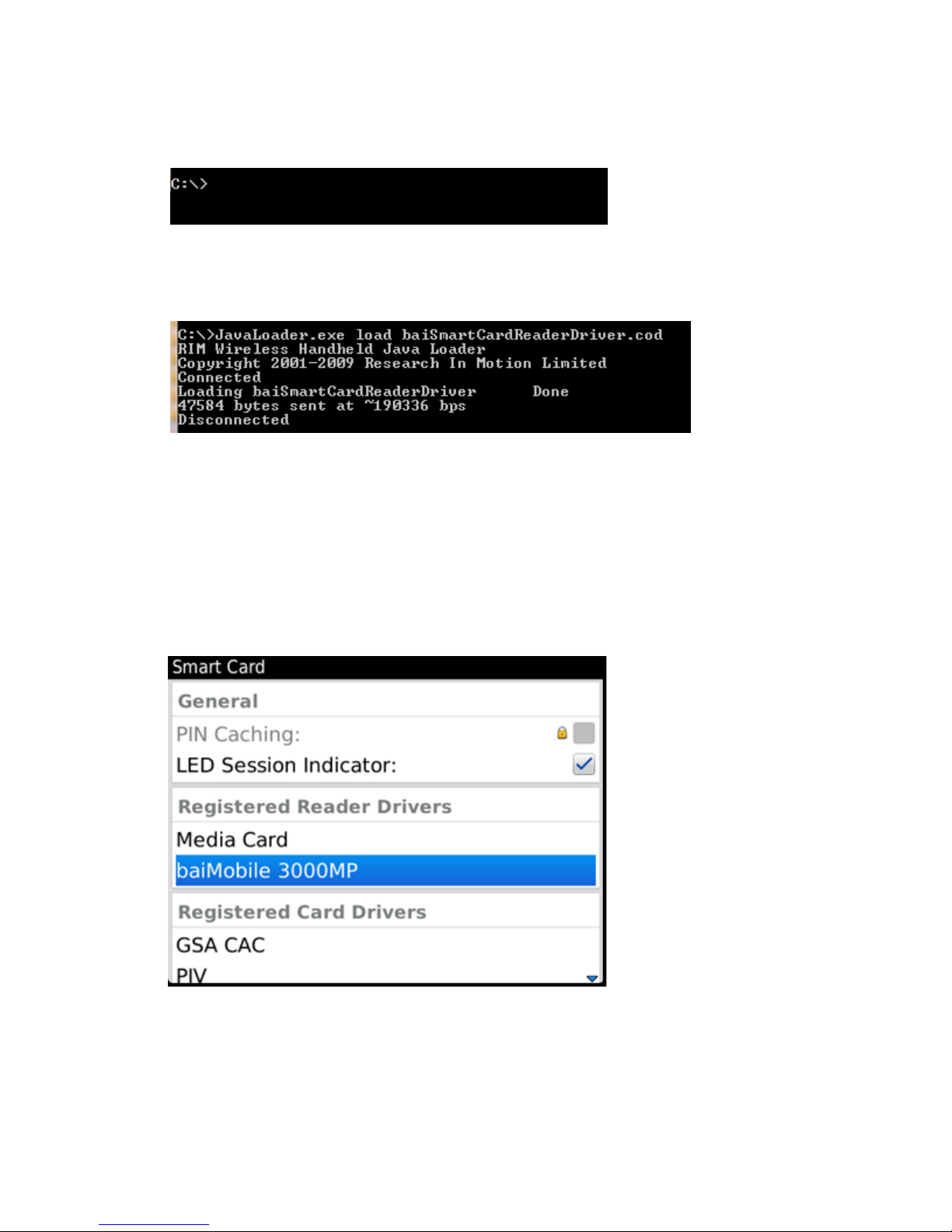

5. Check to see if you are at the C: directory. If not, enter cd\
You should see
6. At the C: prompt, type the following JavaLoader.exe load
baiSmartCardReaderDriver.cod then press Enter.
You should see the following:
7. Un-tether the phone and reboot the BlackBerry phone (if it does not reboot
automatically.
8. Go to Settings > Networks and Connections > Bluetooth Connections. Make
sure that Bluetooth is On. Then following the pairing instructions in the 3000MP User
Guide for BlackBerry 7.

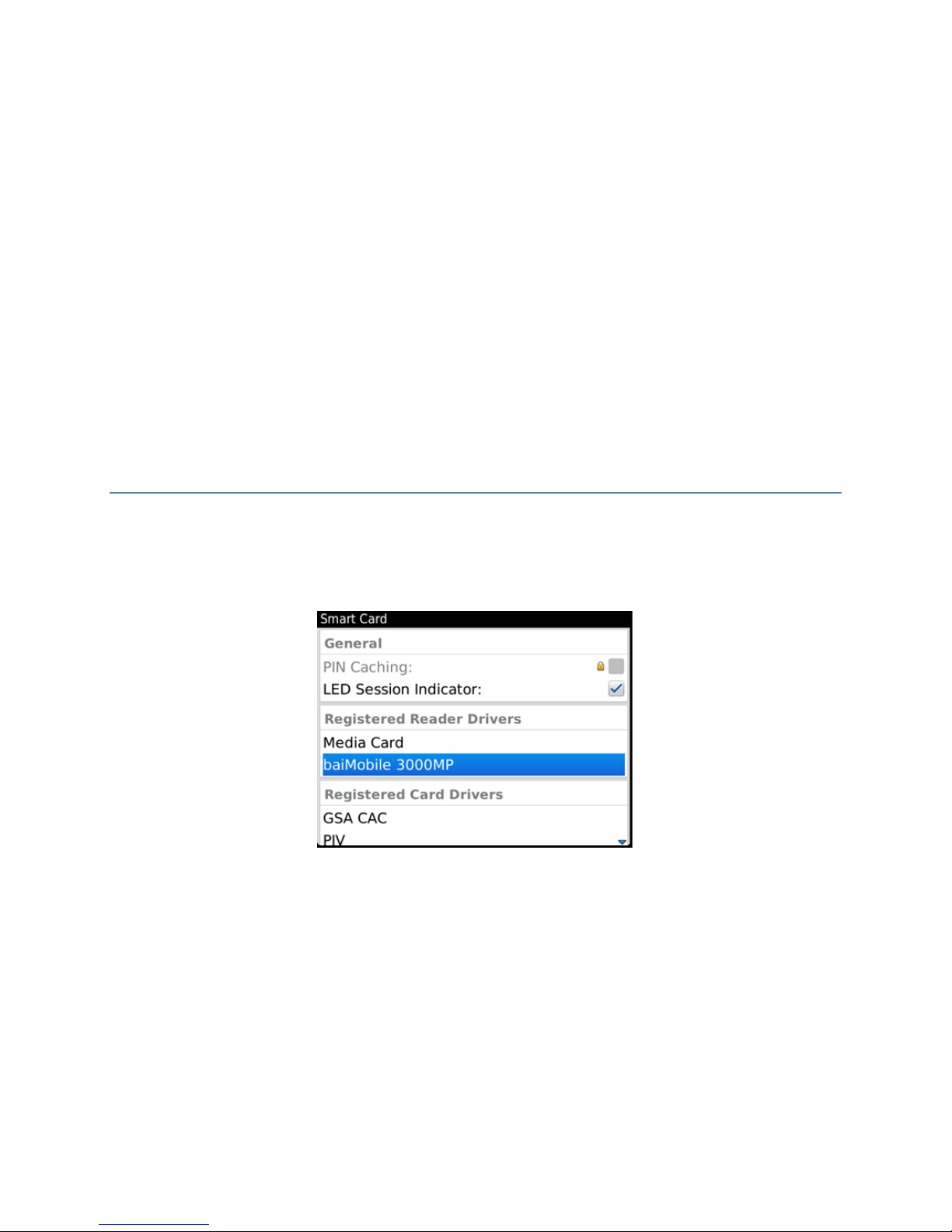

9. Once you have successfully paired the 3000MP, Check Settings > Security >
Smart Card > Registered Reader Drivers
You should see the following:
10. If you see baiMobile 3000MP, highlight it, and press the BlackBerry key and select
Import Smart Card Certs
11. The baiMobile 3000MP Bluetooth smart card reader has been successfully installed
and is ready for use.

17
Pairing
Pairing Basics
Before you can use your baiMobile 3000MP Reader, it must be securely paired with your
BlackBerry OS 7 device. The Bluetooth pairing process involves exchanging a randomly
generated number used by both your BlackBerry OS 7 device and your reader for secure
Bluetooth communications. This and other security measures insure that Bluetooth
communications between your reader and your phone cannot be intercepted by a third
party.
The baiMobile 3000MP Reader utilizes the Secure Simple Pairing Numerical Comparison
model, which is standard in most devices that have Bluetooth version 2.1 and higher.
During pairing, a six digit number will be displayed on your BlackBerry OS 7 device screen
and on the reader’s LED display. You must compare both numbers and confirm that they
match.
Before You Begin
A few things to remember before pairing:
The reader will not support multiple or simultaneous pairings.
Be sure that you have fully charged the BlackBerry and reader before starting
pairing.
Have your CAC/PIV or other smart card handy.

18
Your BlackBerry OS 7 device Your Reader
1. First, verify the Bluetooth is enabled on your
BlackBerry phone go to Settings > Networks
and Connections > Bluetooth Connections >
Bluetooth. You should see Bluetooth = On.
Your BlackBerry OS 7phone will automatically begin
searching for a Bluetooth device within range.
2. Insert your Smart Card into the reader
as shown.

19
Your BlackBerry OS 7 device Your Reader
3. The reader’s LED panel displays
Booting for about 1.7 seconds, then
displays AuthTime for about 1.7 seconds.
4. Next, reader’s LED panel displays the
reader Home Screen.
5. On your reader, press and hold the
OK Button as shown (below). The LED
display now shows the reader firmware
version for about five (5) seconds, then
displays Lift Btn. Now release the OK
Button.

20
Your BlackBerry OS 7 device Your Reader

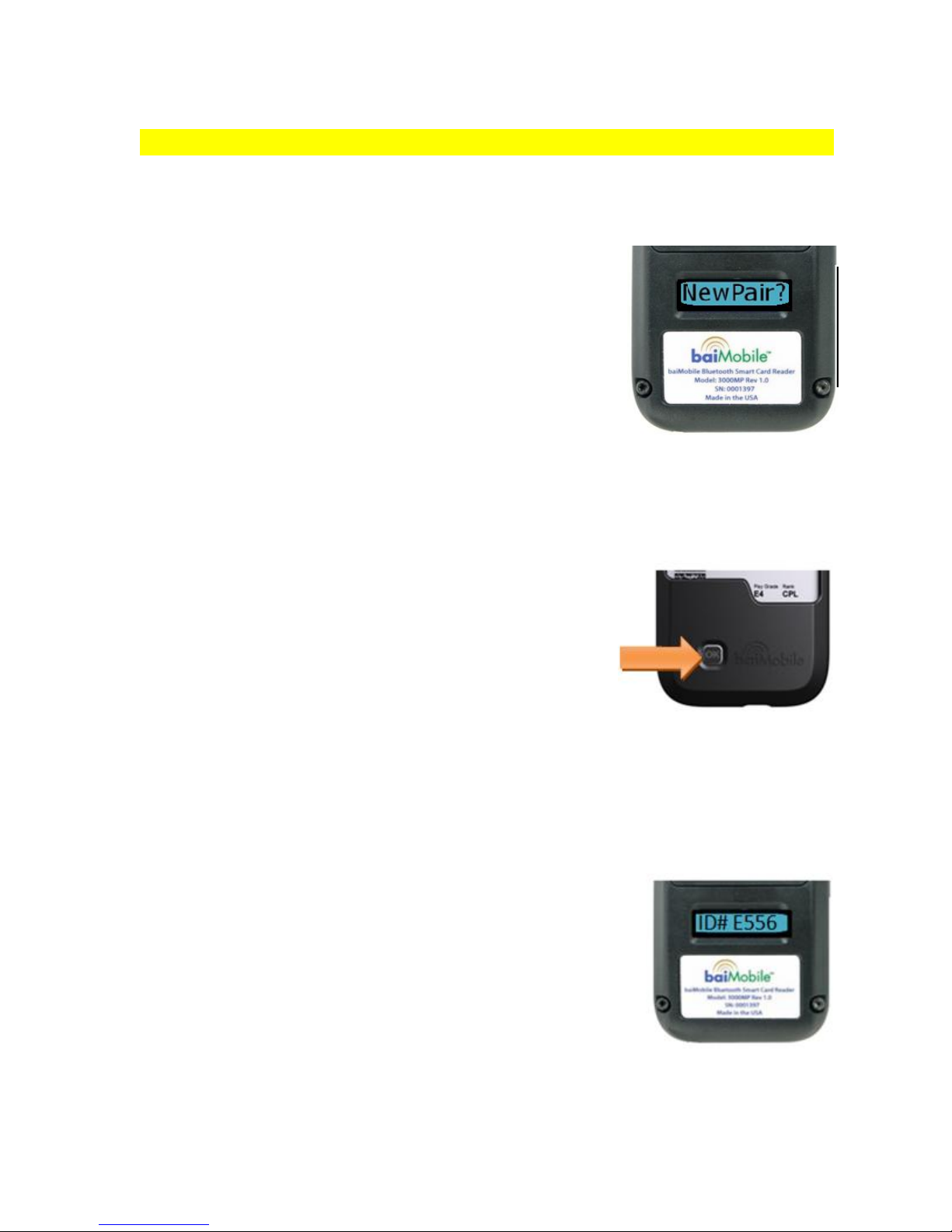

6. The reader’s LED panel will now
display New Pair? for about six (6)
seconds.
7. Now press and release the OK Button
while the NewPair? prompt is displayed
on the LED panel.
8. The reader is now discoverable by the
BlackBerry OS 7 device and will remain in
this state for about ninety (90) seconds.
The LED panel now displays the last four
numbers of the reader’s unique Bluetooth
address.
