Chapter 1. Introduction
Chapter 1. Introduction
The PanaViewTM Plus software application helps the user to configure, calibrate, monitor, and inspect flow meters.
The software assists the user in performing the following tasks:
•Configure flow meter,
•Upload/download flow meter configuration and diagnostic files,
•Monitor flow meter measurements in real-time, and
•Calibrate flow meter I/O and flow measurements.
PanaView Plus is recommended for use only with XMT1000(V4.2.9, V4.3.8, V4.4.0) flow meter. It extends XMT1000
measurement and data storage capabilities enabling the user to capture, store measurement and error data in an
easily accessible format.
1.1 System requirement
The minimum system requirements for installing PanaView Plus are as follows:
1.2 Accessories
PanaView Plus connects to the flow meter using the MODBUS RTU communication protocol over serial port.
USB-RS485 converter must be used as an interface between a Windows PC and the flow meter.
1.3 Language support
PanaView Plus supports both English and simplified Chinese languages.
Component Windows 10
Processor 1.6 GHz
Memory 4 GB RAM
Storage 1 GB hard disk
Available Ports USB 1.x/2.x/3.x
Screen Resolution 1280 x 1024
Chapter 1. Introduction
2PanaViewTM Plus User Manual
1.4 Connect to Meter
After installation, double-click on the PanaView Plus icon on your desktop to open the Connect to Meter window.
PanaView Plus will refer to any connected flow meters as instruments. Select the appropriate flow meter from the
drop-down available under Instrument Models. Update the remainder of the communication settings appropriately
and click the Connect button.
PanaView Plus will display the Instrument Info menu upon successful connection. The Instrument Info menu will
display the General Info, Version Info, System/Board Serial Numbers and Sensor Serial Numbers of the flow meter.
PanaViewTM Plus User Manual 3
Chapter 1. Introduction
1.5 Disconnect
To disconnect the flow meter, click the drop-down button on the top-right corner of the screen and click the
Disconnect button.
Chapter 1. Introduction
4PanaViewTM Plus User Manual
[no content intended for this page]
PanaViewTM Plus User Manual 5
Chapter 2. Getting Started
Chapter 2. Getting Started
This section is intended to help the user understand PanaView Plus menu items, screen structure, and navigation.
2.1 Application Layout
PanaView Plus has a user-friendly menu-driven interface that is split into the following sections:
2.2 Background Processes
All the time-consuming processes in PanaView Plus will be running in the background while the user can continue to
work on other tasks. The ongoing background processes will be indicated on the title bar.
2.2.1 Notifications
The following icons are used by PanaView Plus to display the notification:
- indicates that a background process is currently running.
- indicates that there is an instrument error.
Section Purpose
Notifications To display error notifications or a list of running or pending
background processes
User Access To allow the user to view or change their access level and to
allow them to disconnect the meter
Feature Action Bar To view actions related to the selected menu
Extra Actions To view the additional actions in drop-down list
Quick Actions To view actions applicable for the selected menu (e.g.,
screenshot or search function)
Notifications
User Access
Feature Action Bar
Extra Actions
Quick Actions
Title Bar
Menu
Chapter 2. Getting Started
6PanaViewTM Plus User Manual
2.3 Access Level
The PanaView Plus Access levels are based on the user roles supported by the connected flow meter. For further
details on supported Access levels by the flow meter, refer to the respective flow meter's user manual. The PanaView
Plus software application supports the following access levels for the XMT1000 meter:
The user with the higher access level has access to all the variables and permission to change the parameter values
that are accessible to lower access levels. For example, the user with Admin access can change the variables that
are accessible by the Operator and Viewer.
Some features and configuration parameters are restricted based on the user access level. User must change the
access level to a higher access to gain permission to change the parameters.
The User Access section displays the current access level, along with the Model Serial Number, Firmware Version, and
Model as shown below.
The user can change the access level by using the drop-down button in the User access section. Select the
appropriate access level, enter the password, and click the Change Access Level button.
Instrument type Access Level Description
XMT1000 Viewer User can only view current
measurements
Operator User can configure general settings
Admin Administrator/Supervisor access
Factory Factory-level access
Model Serial Number
Access Level
Firmware Version
Model
PanaViewTM Plus User Manual 7
Chapter 2. Getting Started
2.4 Menu
The menu located to the left of PanaView Plus can be used to navigate between major sections of the application.
Menu Item Description
Dashboard Displays the flow parameters as data cards.
Instrument Info Displays the general instrument info, version info,
system/board serial numbers, and sensor serial numbers.
Configuration Allows the user to view/edit configuration parameters of the
selected flow meter.
Units Allows the user to view or modify the current measurement
units.
Monitor Allows the user to view and/or log real-time flow meter
measurements.
Cal Trim Test Assists the user in Speed of Sound (SOS) and I/O calibration
Note: This menu will be displayed only for the user with
Operator or above access level.
Signals Assists the user in retrieving and saving signal data.
Logs Assists the user in setting up or retrieving an instrument log.
Help Provides information on contact, software version and
copyright policies.
Chapter 2. Getting Started
8PanaViewTM Plus User Manual
[no content intended for this page]
PanaViewTM Plus User Manual 9
Chapter 3. Dashboard
Chapter 3. Dashboard
A Dashboard is a collection of all Key Performance Indicator (KPI) for the connected flow meter. The measured
parameters are collected into individual cards. The user can add or remove cards as per the requirement.
3.1 Adding and Removing cards

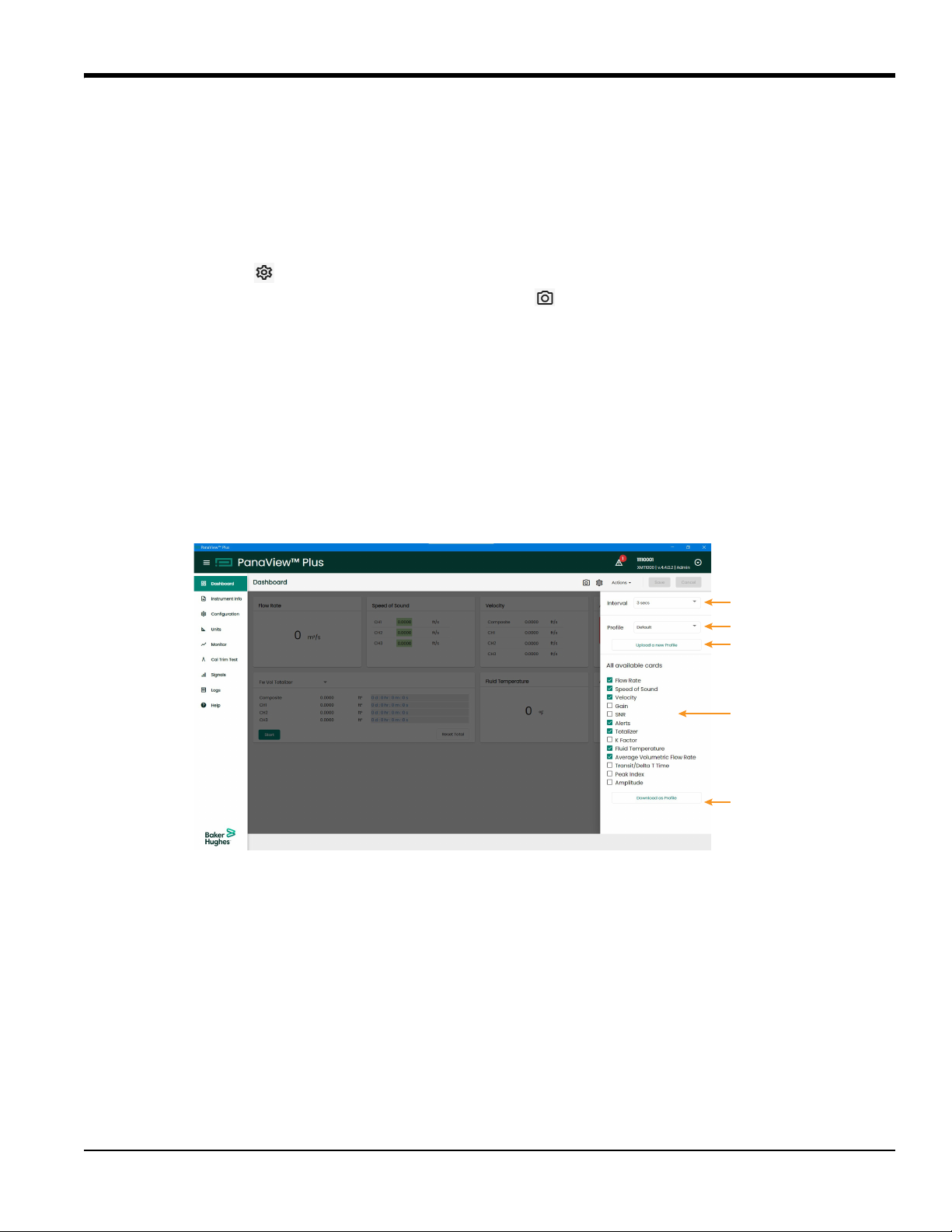

The dashboard can be configured by adding or removing cards. The list of available cards can be opened by clicking
the Dashboard Settings button. This selection is temporary and lasts only until the software is open. The user can
download the dashboard screenshot by clicking the Screenshot button.
3.2 Dashboard Profiles
A list of selected cards is called a Dashboard Profile. A Dashboard profiles can be used to create pre-defined
selection of cards. PanaView Plus has a default dashboard profile which is useful for all users. PanaView Plus also has
a Calibration dashboard profile, which is a collection of cards used during flow calibration.
The user can download the Dashboard Profile and share it with other users. This downloaded profile can be uploaded
to PanaView Plus. The software application will save this uploaded profile as a Custom profile and it will appear as an
option in the dashboard profiles drop-down. Only one Custom Profile can be uploaded at a time. If a new profile is
uploaded, then PanaView Plus will the replace existing profile with the new one.
3.3 Tolerances
Tolerances are used to determine if certain measurements on the dashboard are within the expected range. This
range is called the Tolerance range. If the measurements are within the Tolerance range, then the text background is
changed to “Green”. If it is outside of the expected range, then the text background turns to “Red”. These indications
are convenient for monitoring purposes. The user can download current applied Tolerances from Actions > Save
Tolerance File. These Tolerances can be edited as needed and uploaded back through the Actions > Load Tolerance
File option.
Dashboard Refresh Interval
Available Profiles
Upload a Profile
List of Dashboard Cards
Download selected cards as profiles
Chapter 3. Dashboard
10 PanaViewTM Plus User Manual
Tolerances are specific to the user role and can be uploaded only after logging in with any access level. If an
Operator uploads a Tolerance file, then those files can only be applied for the Operator.
Tolerances are also specific to installation type (clamp-on or wetted). Currently, Tolerances are available for the
parameters listed below:
Category LSL USL Units
SPEED_OF_SOUND (Spread between
channels) 1.5 NA ft/s
SNR 1.5 NA
GAIN 0 35 dB
ACTIVE_TW_UP_DN 78 117 µs
ACTIVE_TW_GAIN -6 20 dB
ACTIVE_TW_SNR 0 NA
PEAK_INDEX 400 700
AMPLITUDE 14 32
PanaViewTM Plus User Manual 11
Chapter 4. Configuration
Chapter 4. Configuration
The Configuration menu allows the user to view and edit the configuration parameters of a connected flow meter.
Once the user writes configuration to the flow meter, changes are immediately reflected in other menu options (like
Monitor, Signal, etc.). The Configuration menu also has other useful tools like Site File download/upload, reset
configuration, etc.
4.1 Reading and Writing Configuration Values
Configuration parameters are categorized under different groups and sections according to their context for easy
navigation. This grouping might be different as compared to the groups on the flow meter Graphical User Interface
(GUI).
When a parameter is edited, it is immediately written (“committed”) to the meter. If the value is successfully written
to the meter, the parameter will be highlighted in yellow to indicate that the value has been changed successfully.
The user must save the configuration change to reflect the change permanently in the flow meter.
The Save and Cancel buttons on the feature tool bar are only enabled if the configuration parameters are changed
by the user. The user must save changed configurations to the flow meter to reflect those changes permanently. If
the meter is disconnected without saving the changes, the changes will be canceled.
Chapter 4. Configuration
12 PanaViewTM Plus User Manual
4.2 Configuration Site File
Site File is a collection of all the configuration parameters compiled into a single file. The user can download the Site
File in the Microsoft Excel format for ease of view.
4.3 Download and Upload Site File
To download the existing configuration as a Site File, go to Actions > Save Site File.
IMPORTANT: The user must save changed configuration before downloading the Site File.
Site Files are very useful to capture a state of flow meter configuration. These captured states can be restored if
needed by uploading these Site Files. To upload a Site File, go to Actions > Load Site File. The user must be logged-in
to upload a site file. Only the parameters accessible to the user are loaded from the Site File and written into the flow
meter.
4.3.1 Partial Site File Upload
If required, the user can upload few parameters from the Site File instead of changing all parameters. To do a partial
upload, open the “All configuration” sheet in a downloaded Site File and change the value of the “Partial Upload”
column cell to “TRUE” against the desired parameters. If Partial Upload parameters exist, then PanaView Plus will only
upload the partial parameters.
Table of contents
