Bakers Pride DANTE CTB-24R User manual

6/00 Note: When ordering, ALWAYS specify Part #, Model #, Serial #, Voltage/Phase & type of Gas. Page 1 of 4
CTB-24R/GS
Gas Char Broiler
PARTS LIST
Serial Number Natural L.P. Other
Model Number: CTB-24R/GS Type of Gas
30 Pine Street • New Rochelle • New York • 10801
914 / 576 - 0200
914 / 576 - 0605
1 - 800 - 431 - 2745
www.bakerspride.com
fax
US & Canada
web address
BAKERS
PRIDE
Dante
SERIES
(CTB-24 Shown)

CTB-24R/GS
Gas Char Broiler
30 Pine Street • New Rochelle • New York • 10801
914 / 576 - 0200
914 / 576 - 0605
1 - 800 - 431 - 2745
www.bakerspride.com
fax
US & Canada
web address BAKERS
PRIDE
Figure A Exterior / Interior
Page 2 of 4 Note: When ordering, ALWAYS specify Part #, Model #, Serial #, Voltage/Phase & type of Gas. 6/00
RATING
PLATE
GB (w/Standard Valves) RB (w/Standard Valves)
GB (w/Opt. Auto. Safety Valves) RB (w/Opt. Auto. Safety Valves)
1
2
3
613
25
26
33
54
8
7
9
11
10
12
14
15
22
23
24 27 28
2930 3132
34
35 36 37
38
39
40
41
43 44
47
45 46
42
48
49
50
51
52
53 54
55
(CTB-60 Shown)
56
15
14
13
12
11
10
9
8
7
6
54
3
21
40
39
38
37
36
35
34
33
32
31
30
29
28
26
25
24
23
22
27
51
50 55
52
53 54
56
41 42
49 48
47
46
45
44
43

30 Pine Street • New Rochelle • New York • 10801
914 / 576 - 0200
914 / 576 - 0605
1 - 800 - 431 - 2745
www.bakerspride.com
fax
US & Canada
web address
BAKERS
PRIDE
Exterior / Interior
Item Part # Description Item Part # Description
CTB-24R/GS
Gas Char Broiler
6/00 Note: When ordering, ALWAYS specify Part #, Model #, Serial #, Voltage/Phase & type of Gas. Page 3 of 4

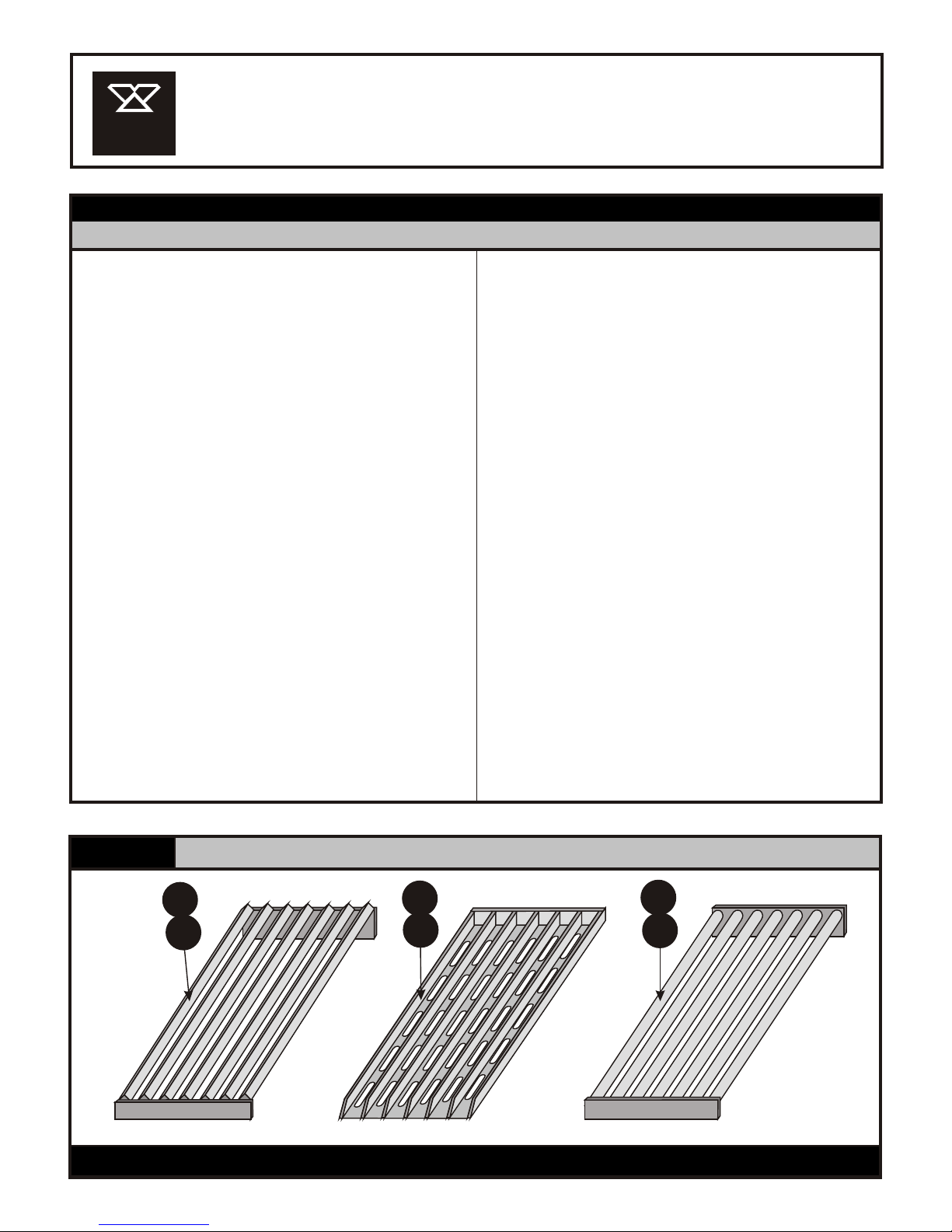

Figure B Grates
16
17
18
19
20
21
1 R3042X Pilot Tube, 7 3/8" w/Nut & Ferrule 29 G5065K Control Panel-24
2 N3068P Pressure Tap Nozzle 30 G5066K Control Panel, CE-24
3 G5073X Radiant S/S (Standard) 31 U1320A Control Panel Overlay-24
4 G5069K Grease Drawer 32 U1325A Control Panel Overlay, CE-24
5 G5070U Grease Shield Assy 33 R1119A Manifold-24
6 G5072K Heat Shield 34 G5058K Front Trim-24
7 G5032U Grease Drain Assy-24 35 G5059K Back Trim-24
8 G5212K Manifold Cover 36 G5042X Top Grate Support, 20 1/2" /1
9 G5060K Side Trim, Left 37 G5050K Outer Back-CTB24
10 G5061K Side Trim, Right 38 G5054K Outer Side, Left-CTB
11 G5205K Rating/Instruction Plate Mount 39 G5055K Outer Side, Right-CTB
12 U1044X Bakers Pride Name Plate, 8" 40 G5067K Drip Pan, 16 1/2" /1
13 G5039K Bottom Grate Support, L or R Side 41 S1014Y Legs, 4" (Standard) each
14 T1047X Glo-Stones, 1/2 Lot (20#) 42 S1014X Legs, 4" (Standard) Set/4
15 T1048X Glo-Stones, Full Lot (40#) 43 G5035K Work Deck-24
16 T1197X Top Roll-A-Grate, 9" (Standard) /1 44 G5031U Front Brace Assy-24
17 T1198X Top Roll-A-Grate, 6" (Standard) /2 45 G5286K Work Deck-24, 10"
18 T1212A Top Grate, 6", Cast Iron (Optional) 46 G5289U Front Brace Assy-24, 10"
19 T1216A Top Grate, 4 1/2", Cast Iron (Optional) 47 G5306K Work Deck-24, 12"
20 T1210X Meat Grate, 6" (Optional) 48 G5307U Front Brace Assy-24, 12"
21 T1211X Meat Grate, 9" (Optional) 49 T1209U Breakfast Griddle, 11"W (Optional)
22 T1213T Fajita Top Grate (Optional) 50 T1206U Wire Rack, 21" /1
23 T1214T Fajita Bottom Grate (Optional) 51 G5131U Left Wire Rack Guide Assy
24 T1201A Bottom Grate, S/S, 20" /1 52 G5132U Right Wire Rack Guide Assy
25 G5040U Bottom Grate Support /3 53 G5180U Smoker Box Assy (No Drawer)
26 G5041U Bottom Grate Support (CE) /3 54 G5187U Drawer, Smoker Box
27 M1009X Pressure Regulator 3/4",10"WC (LP) 55 G5182U Log Support (Optional)
28 M1184X Pressure Regulator 3/4",3.5"WC(Nat) 56 G5186K Bottle Holder, RH (Optional)
21
20 19
18 17
16

CTB-24R/GS
Gas Char Broiler
30 Pine Street • New Rochelle • New York • 10801
914 / 576 - 0200
914 / 576 - 0605
1 - 800 - 431 - 2745
www.bakerspride.com
fax
US & Canada
web address BAKERS
PRIDE
Figure C
Burner / Accessories / Supports
Page 4 of 4 Note: When ordering, ALWAYS specify Part #, Model #, Serial #, Voltage/Phase & type of Gas. 6/00
Item Part # Description
Item Part # Description
1
2
3
4
6
5
7
8
910
11 12
13
19
14
17
16 18
15
Conversion Kit (LP to Nat) Conversion Kit (Nat to LP)
1 R3136X Hood Orifice #54 (LP) 11 G5028U Burner Support Assy, 17" /2
2 R3130X Hood Orifice #44 (Nat) 12 G5044U Radiant Support Assy, Rear 18" /1
3 L5077X Burner, Center Feed 13 G5046U Radiant Support Assy, Front 18" /1
4 R3032X Gas Valve 14 T5018V Spatula, Chef-Aide, 20" Single
5 S1094X Knob, Gas Valve 15 T5017X Wire Brush, Chef-Aide, 18"
6 R3128X Gas Valve (used w/Pilot Safety) 16 G5221U Grate Lifter
7 S1301X Knob, Gas Valve, CE (used w/Pilot Safety) 17 T5016A Meat Fork
8 G5064K Pilot Bracket (used w/Pilot Safety) 18 T5019V Steak Turner
9 M1359X Pilot Burner (used w/Pilot Safety) 19 T5104V Twin Head Grate Brush
10 M1358X Thermocouple, 10" (used w/Pilot Safety)
3 R3130X Hood Orifice #44 (Nat) 3 R3136X Hood Orifice #54 (LP)
1 M1184X Pressure Regulator 3/4",3.5"WC(Nat) 1 M1009X Pressure Regulator 3/4",10"WC (LP)
19
18
17
16
15 14
13 12
11 10
9
8
7
6
5
4
3
2
1
