Balboa bba Operation manual

bba™ - Balboa Bluetooth Audio
(AMP)
Installation & User Guide

2
Introduction:
The bba™ is a four channel, 120 Watts RMS Bluetooth wireless audio amplifier,
capable of delivering up to 30W RMS per channel. It has a compact, water
resistant design that allows for flexible mounting possibilities. It is integrated into
the BP systems and can be controlled via your smart device or a TP800 / TP900 /
spaTouch™ panel.

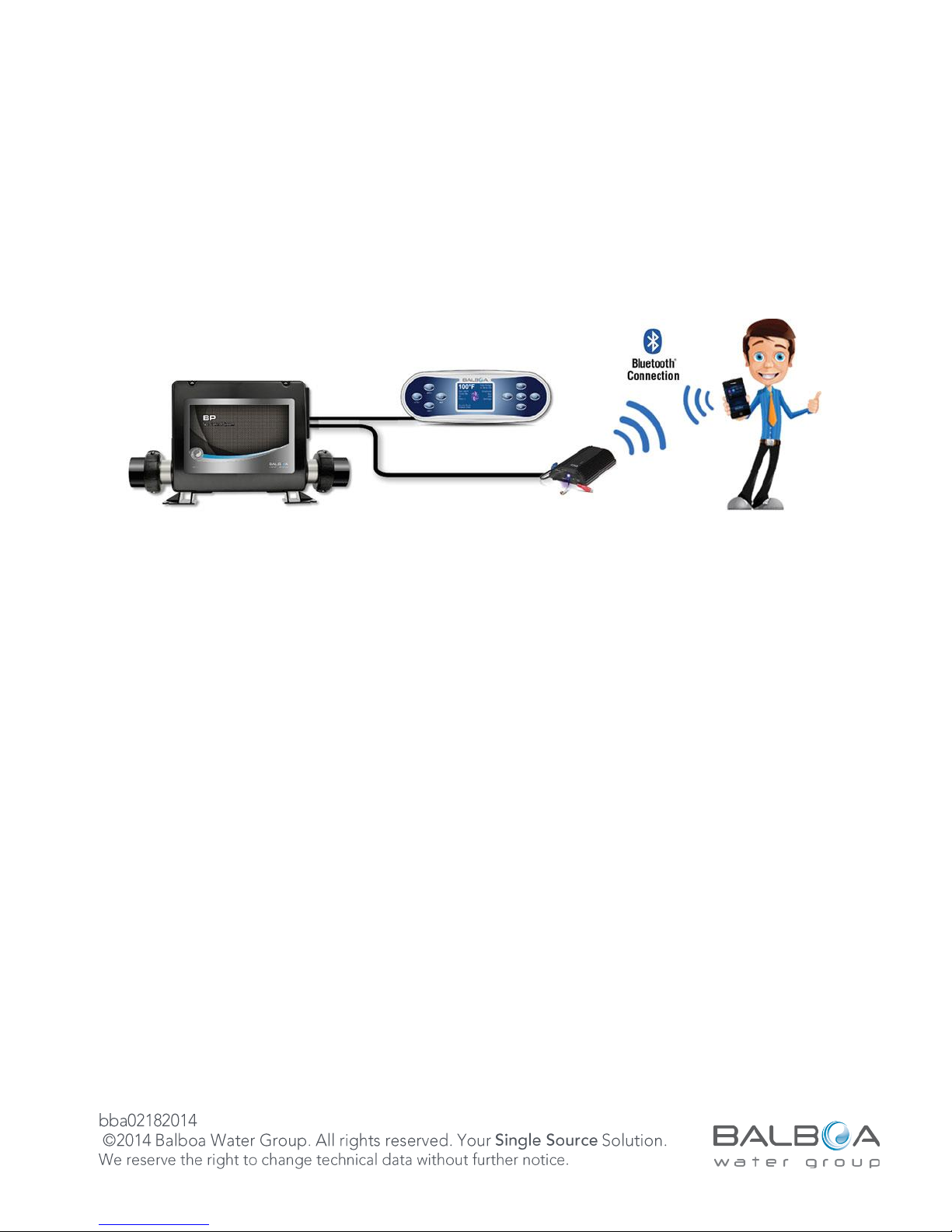

The unit accepts either audio streamed via Bluetooth connection or hard wired
input via RCA input.
Uses:
To add up to four loudspeakers or two pop-up speakers and a subwoofer
to a portable spa
As a stand-alone system amplifier for any audio source (Mp3 player or
standard audio system)
Features:
Powers up to (8) 4ohm speakers
Internal distortion limiting circuits
Rear channels switchable from full range to powered sub out.
Water resistant design

3
INSTALLATION INSTRUCTIONS
Mounting the Amplifier:

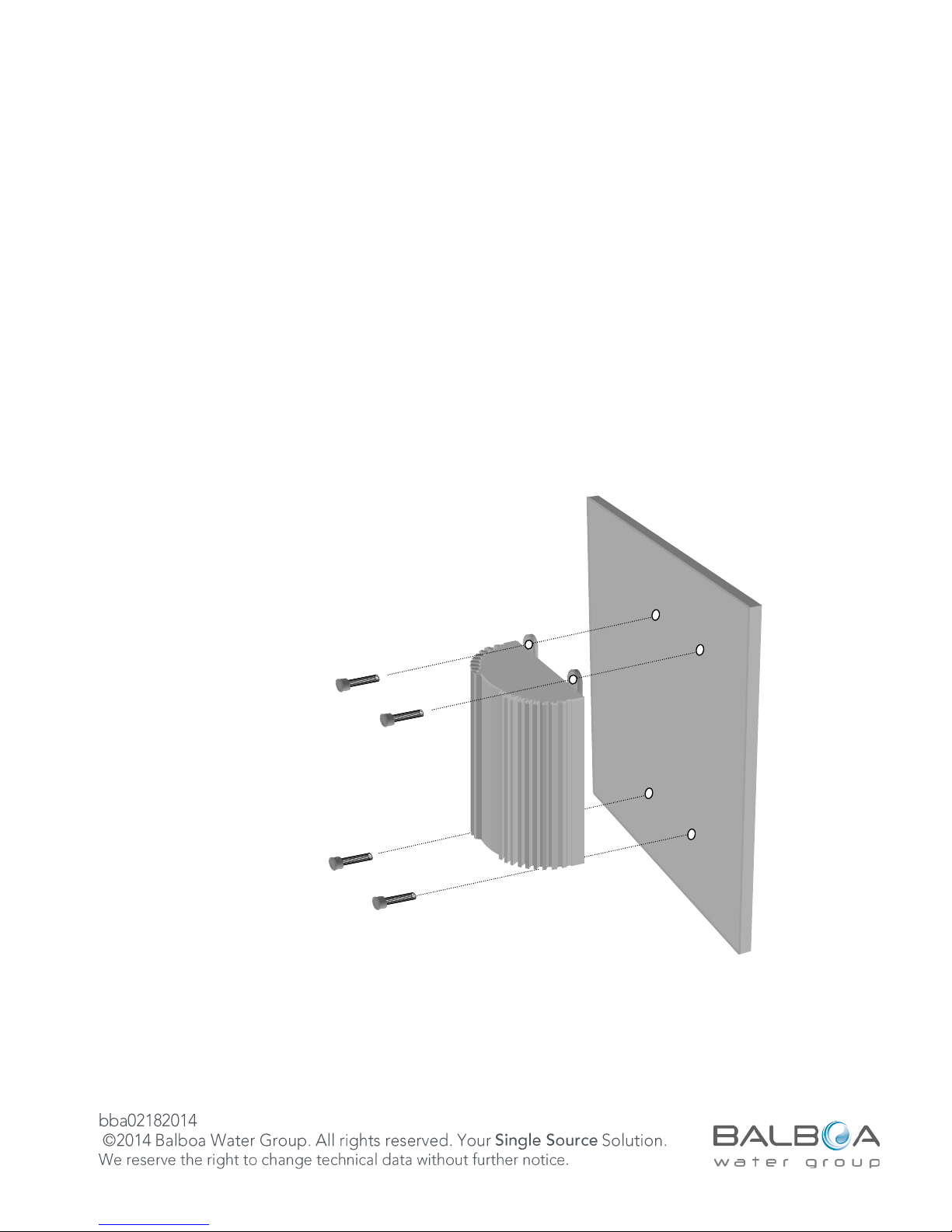

1) Choose a mounting location that is well ventilated. The Amplifier
generates significant heat when operating at high power levels.
2) It is preferable to mount the unit such that the ventilation fins are vertical
or facing upward.
3) Drill 1/8” (or 3mm) pilot holes in the mounting surface corresponding to the
4 mounting flanges of the amplifier. Be sure not to drill into any critical
areas of your spa.
4) Fasten the amplifier to the surface securely using the 4 included tapping
screws.

4
Wiring Details:
Use the wired plug end (Pigtail) provided to make power and speaker
connections according to the diagram below. Using this connector will make it
easy to disconnect the amplifier for adding additional features or service.
Removing the factory plug end will void warranty.
Wire Color Function
Red 1 B+ (+12VDC)
Green w/stripe 2 Rear Left Speaker-
Green 3 Rear Left Speaker+
BLANK 4 BLANK
White w/stripe 5 Front Left Speaker-
White 6 Front Left Speaker+
Blue 7 B+ (+12VDC)
Gray w/stripe 8 Front Right Speaker-
Gray 9 Front Right Speaker+
Black 10 Ground (Neg)
Violet w/stripe 11 Rear Right Speaker-
Violet 12 Rear Right Speaker+
-
-

5
Power Wire Specifications:
Red Wire and Blue Wire - Connect these two wires to a +12V power supply.
Black Wire - Connect this wire to the negative or other good power ground.
Notes:
Use the included plug/wire bundle to connect to the power source and
speakers.
The Red, Blue and Black power wires should be 16AWG or larger
depending on the length to the power supply. NEVER operate the unit
without the proper power and ground wire.
NEVER ground the speaker leads and NEVER allow the speaker leads to
come in contact with each other. The speaker wire should be at least 20
gauge or larger. Be sure to observe the correct polarity on the speaker
connections
Use quality crimp connectors to connect wires together. Seal the
connection well with electrical tape.
NEVER operate the unit without proper fusing. Fuse holder must be
located within 2 feet from the power supply. This fuse is to protect the
vessel, not the electronics. In case of a short, the fuse will blow instead of
the wire burning up. Using other than the recommended fuse ratings at
the power supply and at the unit may cause damage to the unit and will
void your warranty.
Whenever possible, use cable ties, mounting clamps and similar wiring
aids. Adding stress relief loop to wiring is also advisable to prevent
straining or breakage.
If after reading the directions you feel uncomfortable about installing the
unit, or not equipped or competent to do so, you should have this installed
by a professional installer
Connect the white and grey loudspeaker wires to 1 or 2 pairs of
loudspeakers. Pay close attention to polarity (black stripe = negative)
Connect the green and purple loudspeaker wires to 1 or 2 pairs of
loudspeakers or to a subwoofer if the low pass filter switch is depressed

6
Input connections: 59019 –bba™ - Balboa Bluetooth Audio Amp
Standalone
Standalone on/off via AUX panel.
KEYPAD
CONTROL
Line input
White = Left
Red = Right
BASS GAIN TRIM
PWR/ ON/OFF
In standalone mode
Line input cannot be
selected and is
unavailable.
Aux
On/Off Control
50385 (Aux Button)
25718 (Adapter Cable)
Adaptor cable

7
Input connections: 59019 –bba™ - Balboa Bluetooth Audio Amp
Integrated
or
Integrated operation with control via panel.
NOTE:
Power must be supplied to the bba™ at
time of spa power up, so that the bba is
recognized by the BP spa control which
enables the integrated menu.
KEYPAD
CONTROL
Line input
White = Left
Red = Right
BASS GAIN TRIM
PWR/ ON/OFF
Optional Line Input
TV, MP3, Sat Radio or
other audio sources
or
Adaptor cable
BP Series Control
spaTouch™
TP800 panel
TP900 panel
25717 (Adapter Cable)
Optional extension cables
for flexibility in bba
placement:
CABLE EXTENSION TP
PANELS –100 FT 25662-3
CABLE EXTENSION TP
PANELS –25 FT 25662-1
CABLE EXTENSION TP
PANELS –50 FT 25662-2
CABLE EXTENSION TP
PANELS –7 FT 25662

8
Switch & Gain Settings:
1) The switches and gain settings are secure behind a water resistant rubber
seal. Be sure to replace the cover when finished with adjustments.
2) The low Pass Filter switch allows the user to optimize bass performance
in the case a subwoofer is connected to channels 3 and 4. Poly-Planar
recommends use of the Poly-Planar MS55 compact box subwoofer for
excellent bass response. Push the low pass button in when connecting
rear channels to subwoofer. Use potentiometer to adjust subwoofer gain.
3) The Bass Gain Trim adjusts the bass level output of channels 3 and 4
when the LPF switch is depressed. As a rule, keep the gain setting as low
as possible while still insuring that the system will reach full output power.
Amplifier Switch and gain settings
BASS GAIN TRIM

9
BLUETOOTH CONNECTION:
1) Turn on the amplifier,
2) Turn on Bluetooth function of your mobile or music device
3) On your music device, click search for Bluetooth device. Make sure you
are close enough to the amplifier.
4) Select “PPGME60” from the pairing list.
5) Enter “60BT”as the password (if required).
6) Click “Connect”
7) Once connected, you can now start playing your favorite music from your
music device.
8) Operating Range is up to 30’ (will vary, dependent on installation)
LINE INPUT CONNECTION:
This unit can be connected to any portable music devices such as MP3 Player, TV
and DVD through the LINE INPUT. Press LINE INPUT button to change the
mode to LINE INPUT (Line In or Direct light indicator should be on and red).
Please note: In this mode, all controls and functions must be controlled from your
music device.
Line Input cannot be used in standalone mode.

10
BP System & TP800/TP900/spaTouch™ Software Version Requirements
BP system at version 20.0 or later and one of the following:
TP800 at version 1.13 or later
TP900 at version 1.13 or later
spaTouch at version 1.4 or later
The system and panel version numbers can be found using any of these panels
by going to Settings -> Information.
bba™ Specifications:
Speaker Impedance ……………………….…2 –8 ohms
Output Power (2 ohm load) ………………… 30 W RMS per channel
(4 ohm load) ………………… 20 W RMS per channel
Frequency Response ……………………….. 20 Hz –40,000 Hz
Low Pass Crossover ……………………..…. 18 Hz –245 Hz
Operating Voltage ………………….. ……… 13.8V (10V –16V) DC
Maximum current draw (full power) ……….. 8 –10 amps
Dimensions (approx. w/h/d)
Amplifier ………………..…………… 224mm X 106mm X 39mm
8.82 X 4.17 X 1.54 inches
Weight …………………………………..…….. 1.91 lbs
Installation Clearance (recommended)…….. 10 inches free space top
and sides of heat sink

11
