Balcrank 4110-012 Instruction Manual

SERVICE BULLETIN SB 4022
Thoroughly read and understand this manual before
installing, operating or servicing this equipment.
OPERATION, INSTALLATION,
MAINTENANCE AND REPAIR GUIDE
SUPERIOR DUTY DRAIN
Model #4110-012
FOR USED OIL ONLY
Model #4110-017
FOR USED
ANTIFREEZE ONLY
REV. M 8/08
®

ASSEMBLY
The Superior Duty Drain should be fully assembled
before use.
1. Remove all components from shipping carton.
2. Attach rear wheels with washers and cotter pins
provided. Insure the washer is on the side of the
wheel with the cotter pin.
3. Install front casters by inserting bolts up through caster
and weldment then secure with nuts provided.
4. Screw bowl onto riser tube.
Bolts
Nuts
2
GENERAL SAFETY
Thoroughly read and understand this manual before
installing, operating or servicing this equipment.
Terms:
NOTE: Gives more explanation of a
procedure, or a helpful hint.
CAUTION: Alerts user to avoid or correct a
condition, which may or could cause damage
and/or destroy the equipment.
WARNING: Alerts user to avoid or correct
conditions, which could cause bodily injury.
The following precautions should be observed to
lessen the risk of equipment damage and/or personal
injury:
 Check equipment regularly and repair or replace
worn and damaged parts.
 Never alter or modify any parts of this drain. Doing
so may cause damage to drain and/or personal
injury.
 Always read and follow the fluid manufacturer’s
recommendations regarding proper use, handling,
and disposal.
THIS DRAIN CONTAINS ALUMINUM AND ZINC PLATED
PARTS. DO NOT use 1-1-1 Trichloroethane, methylene
chloride or other halogenated hydrocarbon solvents
or uids containing such solvents in this drain. Use of
these slovents/uids may results in a violent chemical
reaction, causing serious bodily injury, property
damage, or death.
All fluids used in this drain must be chemically
compatible with the materials used to manufacture the
“wetted parts” (see TECHNICAL DATA). Consult your
chemical supplier to ensure compatibility.
!
TECHNICAL DATA
Capacity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 gallons
Telescoping Range . . . . . . . . . . . . . . . . . . . .0-27 inches
Wetted Parts . . . . . . . . . . . . . . . . . . . . Zinc Plated Steel,
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Steel, Viton®,PVC
Dry Break (uid outlet) size ................3/4” NPT
Viton is a registered trademark of E.I. Dupont.
!
PRODUCT DESCRIPTION
The Spillguard Superior Duty Drain is designed for fast,
simple waste oil disposal. The tank holds 23 gallons
of waste oil and has a clear visual level gauge. The
bowl telescopes from 45” off the ground to 72”, with a
quick-action locking lever to securely hold the bowl at
any height.
The drain has large diameter rubber wheels for ease of
maneuvering through any shop. This drain is constructed
of heavy gage steel to resist dents and rough handling.

BOWL HEIGHT ADJUSTMENT
To raise the bowl, simply lift up on the bowl or drain pipe.
To lower the bowl, support the bowl with one hand and
with the other hand, lift up on the spring side of the locking
bar on the quick action lock assembly. As the locking bar
is moved toward a horizontal position, the bowl and drain
pipe become free to move.
When the bowl is at the desired position, release the
locking bar to secure the bowl and drain pipe in place.
3
ITEM PART DESCRIPTION QTY.
1 824211 Bowl (Oil) 1
831163 Bowl (Antifreeze) 1
2 831424 Conical Spring* 1
3 831892 Riser Tube 1
4 807624 Pipe Clamp 1
5 831253 Hose Assembly 1
6 825221 Wheel 2
7 832446 Caster 2
8 831240 Tank Weldment (Oil) 1
831279 Tank Weldment (Antifreeze) 1
9 832230 Guide Tube Assembly 1
10 824822 Clevis Pin 1
11 807727 Spring 1
12 4140-004 Dry-Break Nipple (Prior to 3/03) 1
822527 Dry-Break Nipple (After 3/03) 1
13 831174 Locking Handle 1
14 828474 Latch Bracket 1
15 827442 O-Ring/Viton/-223 1
16 830277 O-Ring/Viton/2-031 1
17 827426 Snap-ring 1
OPERATION
NOTE: All uids used in this drain must be chemically
compatible with the materials used to manufacture the
“wetted parts”. Consult your chemical supplier to ensure
compatibility.
1. Place the drain under vehicle and drain oil. When
drain is full (use clear visual level gauge to monitor
level of oil in the tank) move the drain near a waste
oil tank or bulk storage container.
2. Use a waste oil pump to empty the drain into the
waste oil receptacle.

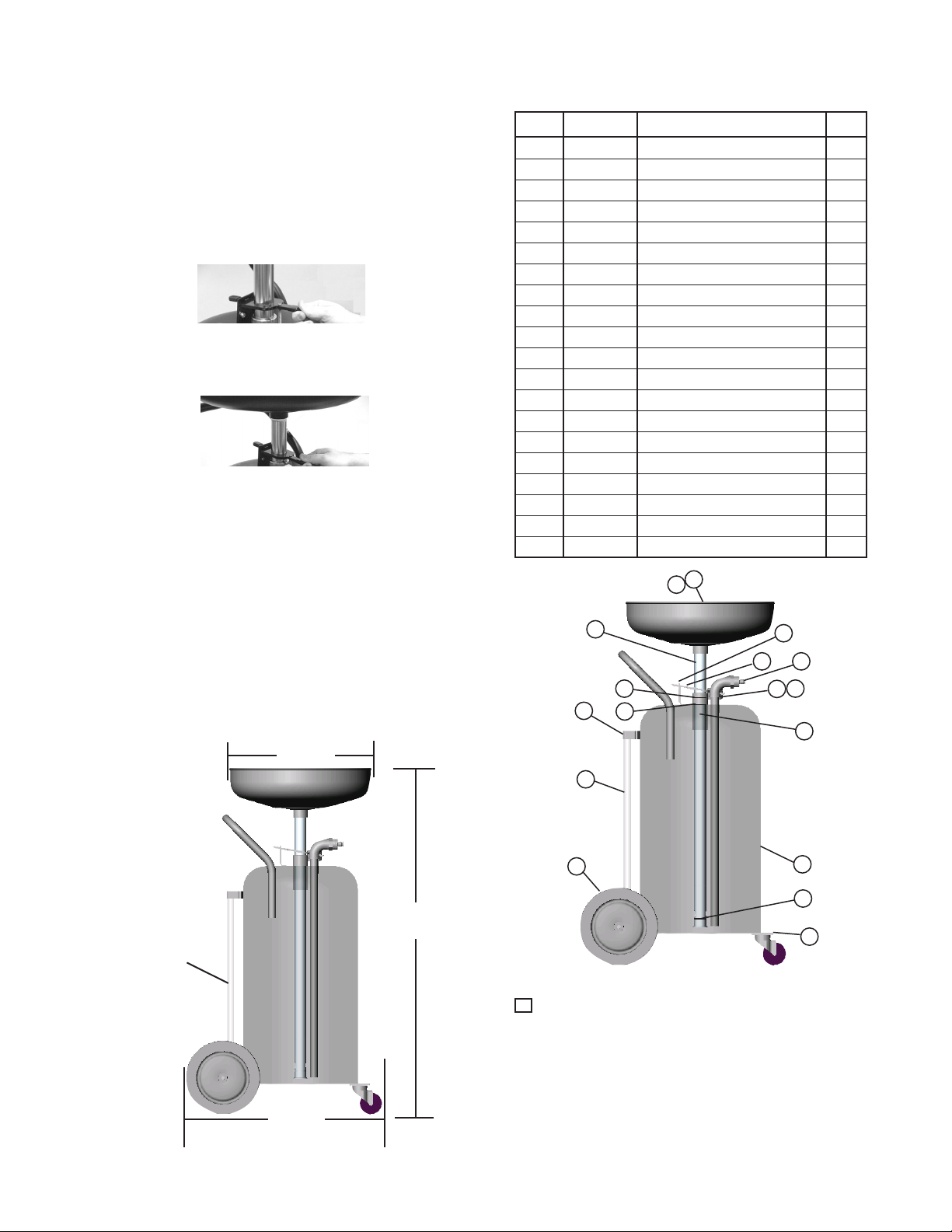

DIMENSIONS
PARTS LIST
Overall depth is 17-1/2”
19 1/4”
45” - 72”
24”
Sight
Gauge
12
3
5
6
7
8
9
10 11
1213
14
4
17
15
16
Quality Checklist
Bill of Material checked for current content.
I ________________________________________ certify that
this product meets or exceeds Balcrank's high quality standards.
Revision Log:
Rev. H - Removed second washer on wheels.
Rev. I - Added Strainer (item 2).
Rev. J - Changed item 3.
Rev. K - Changed to Conical Spring (item 2) &
Changed to 832186 nylock nut
Rev. L - Changed item 9.
Rev. M - Updated Warranty Statement and changed
part number of item 7 (caster)
* Located inside bowl

SERVICE BULLETIN SB4022
Rev M 8/08
829504
Distributed by:
Balcrank®Products Inc.
115 Reems Creek Road
Weaverville, NC 28787
800-747-5300
800-763-0840 Fax
www.balcrank.com
