TS-9210
Radio mirror projection clock manual
1

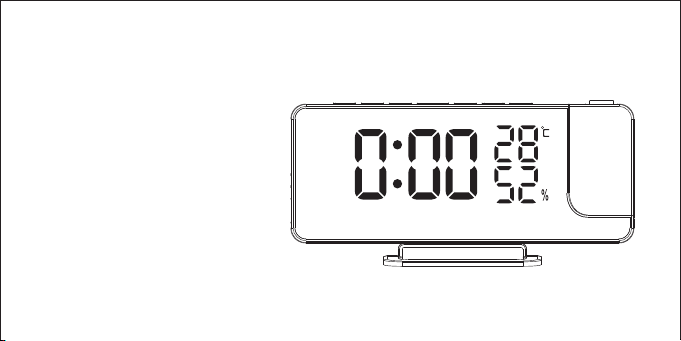

TS-9210 Radio mirror projection clock ：
-- -- ------- -- -- -------
-- -- ------------------- -- -- ------------------- -- -- ------------------- -- -- ---------------
18.5cm
-- -- ------------------- -- -- -----
-- -- ---------
-- -- --------
-- -- ------------------- -- -- ----------- -- -
1.2cm
7.7cm
---------
-- -- --------
-- -- -----
2.4cm
AL1AL2 ME M SL
2

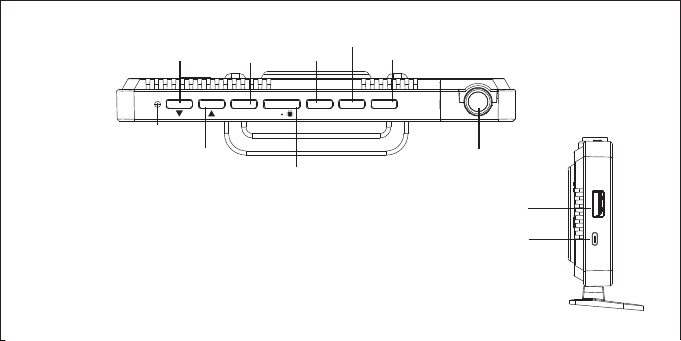

Function and button indication diagram
PM
AL1AL2
PM
TIME
ALARM
TEMPERATURE
HUMIDITY
MEM SL
SAVE RADIO STATIONS RADIO SLEEP
3

CR2032 BATTERY
COMPARTMENT
REMOVABLE SUPPORT FRAME
HORN
4

TYPE-C POWER PORT
USB OUTPUT PORT
proje ct
ZZset
radio
sleep v ol al 1 .2
DOWN/SWITCH
TEMPERATURE UNITS
UP/PROJECTION
RADIO SET
SNOOZE/BRIGHTNESS ADJUSTMENT
/AUTOMATIC SENSITIVITY
ALARM SETTING
PROJECTOR
VOLUME
PHOTOSENSITIVE PORT
5

Thank you for purchasing and using the TS-9210
projection clock, the following is the user's operating guide.
radio mirror
1.Functions：
LED time display
The default is the brightest , six levels of brightness can be adjusted
7 function buttons: , , , , , ,
Projection function, projection can be rotated 180 degrees
Radio function
4-bit time display: hour, minute
12-hour format and 24-hour format can be switched, default 24-hour format
The default display of the clock is 0:00 at power on
Two sets of alarm clock
Snooze function, 5 to 60 minutes adjustable
Automatic light-sensitive function
Temperature and humidity functions (temperature units can be switched °C/°F)
ZZset
sleep vol al 1.2
proje ct ra dio
6

2.Power supply method：
1.Type-c power cord power supply (the LED lights always on when the power cord is powered).
2. CR2032 button batter y (The battery is not powered and is only used to remember the time).
Note: The product is shipped without batteries.
Type-c
(1.5m USB power cord)
Back view Left view
7

3.Power on and reset：
The initial interface display of power-on reset
Default display after power on:
LED white light
Time: 0:00
Default time system:
24-hours format
Default unit:
temperature [℃];humidity [%]
8

4.Time setting：
1. In the time display mode,press the【set】to enter the setting mode,the setting items are
displayed and flashing,and the setting sequence is: hour setting → minute setting → 12/24 hour
system setting → snooze hour setting. (As shown in Figure 1)
2. During setting, short press【▲】to increase the value by 1; long press【▲】to quickly
increase (8 steps/s); short press【▼】to decrease the value by 1;long press【▼】to quickly
decrease (8 steps/s).
3. If there is no operation within 10 seconds during the setting process, the current setting will be
saved automatically and the time setting mode will be exited.
1 2 H / 2 4 H s e t t i n gHour setting Minute setting
Figure 1
AL1
Snooze time setting
9

5.Alarm setting：
1. In the time display mode,press the【al 1.2】 to enter the alarm clock setting mode, and the
setting items are displayed and flashing during the setting process. and the setting sequence
is:AL1 hour setting → AL1 minute setting → AL1 alarm mode selection and off alarm setting →
AL2 hour setting → AL2 minute setting →AL2 alarm mode selection and off alarm setting.
(As shown in Figure 2)
2. When setting alarm 1, AL1 icon is displayed, and when setting alarm 2, AL2 icon is displayed.
3. During setting, short press【▲】to increase the value by 1; long press【▲】to quickly increase
(8 steps/s); short press【▼】to decrease the value by 1;long press【▼】to quickly decrease
(8 steps/s).
4. When setting the alarm mode, the default display is "OFF", press【▲】/【▼】to switch to
display "bu" or "rd", OFF = turn off the alarm clock, bu = BIBIBI sound, rd =radio sound.
Picture 2
10
AL1 hour setting AL1 minute setting AL1 alarm mode selection
and off alarm setting
AL2 hour setting AL2 minute setting Al2 alarm mode selection
and off alarm setting
AL1AL1AL1Al2Al2 Al 2

1. The alarm time is 2 minutes.
2. When the alarm sounds, the alarm symbol "AL1"/"AL2" flashing.
3. Snooze function: When AL1 or AL2 alarms, press 【 】to enter the snooze mode, the
default is 5 minutes.Press other keys except 【 】to stop the alarm.
6.Alarm and snooze：
1. Power on the LED display default brightest gear.
2. press the【 】to switch the sequence of brightness:100%-80%-60%-40%-20%-0%→cycle.
(As shown in Figure 3)
7.Brightness selection and automatic light-sensing：
Figure 3
ZZ
ZZ
ZZ
AL1AL2 AL1AL2 AL1AL2
100% 80% 60% 0%
AL1AL2 AL1AL2
40% 20%
11

3. In the time display mode, long press【 】for 2 seconds, "ON" will be displayed to turn on
the auto-sensitive function; long press【 】again for 2 seconds,"OFF" will be displayed to
turn off the auto-sensitive function.(As shown in Figure 4)
4. Automatic light sensing: the product automatically senses according to the strength of the
ambient light and darkness, the brighter the ambient light, the brighter the product backlight,
the darker the ambient light, the darker the product backlight.
ZZ
Photosensitive port
proje ct
ZZset
radio
sleep v ol al 1 .2
AL1AL2 AL1AL2
Auto-sensing function is on Auto-sensing function is off
Figure 4
ZZ
12

1. In the time mode, press the【project】 to turn on the projection function, and the projection
lamp defaults to high brightness. press the【project】 to switch the brightness of the projection
lamp, the sequence is: high→low→off. (As shown in Figure 5)
2. In the projection function on state, long press【project】, the projection screen will rotate 180°.
The projection column is adjustable: front 90°,back 90°.
8.Projection function：
Projection column
Figure 5
high brightness
low brightness
projec t
ZZset
radio
sleep vo l al 1.2
13

9.FM radio function：
1. In the time mode, press the【radio/sleep】to turn on the radio function. "ON" will be displayed
first, and then the FM frequency will be displayed. (As shown in Figure 6)
2. Press the【radio/sleep】key, after the display shows "ON", press the【radio/sleep】key again to
select the time to turn off the radio. The sequence is: 05, 10, 15, 30, 45, 60, 75, 90. (For example:
select "05", the radio will automatically turn off after playing for 5 minutes)
3.After turning on the radio,press the【▲】/【▼】 to select channels manually. Long press the
【▲】/【▼】 to select channels automatically.

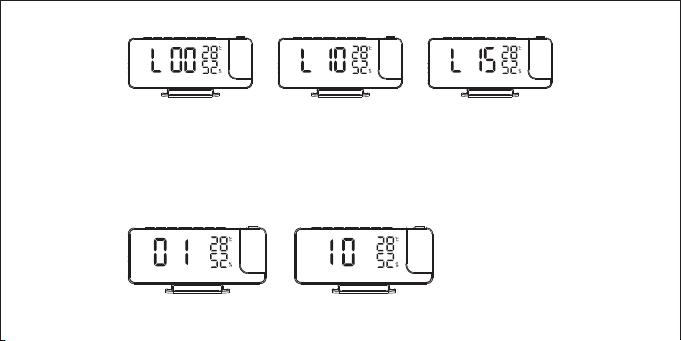

4. After turning on the radio,press the【vol】 to adjust the volume. The screen will display "L10",
press the【▲】/【▼】to adjust the volume from "L00" min to "L15" max. (As shown in Figure 7)
5. After turning on the radio,press 【 】key to directly turn off the radio and return to time
mode.
Figure 6
ZZ
14

Figure 7
10.The radio can store up to 10 stations：
1. Turn on the radio and search for your favorite station.
2. Press and hold the【set】until "01" appears. Press set again to save station 01.(As shown
in Figure 8)
3. Press【▲】/【▼】to select other stations you like. Then press and hold【set】until “01”
appears. Press【▲】/【▼】and “02” appears. Press 【set】 to save station 02.
Figure 8
MEMMEM
15

4. Repeat step 2 to step 3 above to set up station 3 to station 10.
5. In the radio mode, press the 【set】to listen to the saved stations directly.
6. If you want to change a saved station, simply repeat the save station step, and the new selected
station will replace the old one.
11.Temperature and humidity function：
1. Product power on, the default display ℃, long press【▼】switch temperature unit (℃ / ℉)
(As shown in Figure 9)
2. Indoor temperature range: 0-50℃; Indoor humidity range: 20%-95%.
AL1AL2 A L1AL2
Figure 9
16

12.Charging function：
There is a USB output port on the side of the product, which can be used to charge cell phones
or other electronic devices through the USB output with an output voltage of 5V in the state of
using Type-c power cable connection for power supply.(as shown in Figure 10)
Figure 10
USB output port
RoHS
MADE IN CHINA
17

TS-9210
