BANGGOOD ECL-132 User manual

www.banggood.com
http://www.banggood.com/Large-Screen-Remote-Clock-Electronic-DIY-Kit-Aluminum-Cover-p-976385.html
ECL-132 Large-Screen Remote Control Digital Clock
(Plug-In remote control version)
ECL-132 has the following functions: memorize before power-down, accurate time adjustment, on time alarm, 5
independent alarms, automatic error correction, closeable LED display.
1. Kit Manual
Model: ECL-132
Model Name: Large-Screen Remote Control Clock
Dimensions: Length 233 * Width 93 * Height 30mm
Operating voltage: 5V (USB power)
Operating current: 30 ~ 50mA (depending on the displaying color)
2. Principle Of Operation
The system consists of Minimum system, infrared receiver circuit, display circuit, buzzer circuit, clock chip and power
packs.
(1) Minimum system,:
including power-on reset circuit U1 (STC11F04E), C1, R5 composition, C4, C5, Y1 constitute a clock circuit.
(2)The infrared receiver circuit:
U4 is responsible for receiving the signal transmitted from the remote control, after shaping amplified by an output pin,
and transmitted to the microcontroller processing.
(3)Display circuit:
U3 (74HC138N) 3-8 line decoder, Q1-Q4, R1-R4 and 132 LED components.
(4)buzzer circuit:
Including R6, Q5 and LS1, button sounds, hourly chime, the alarm and other sound output from the MCU P3.1 port, via
Q5 driver sound by LS1.
(5)Clock Chip:
U2 (DS1302), Y2, C6, C7 and BT1 composition.
(7)Power section:
J1 extension cords, C2, C3 filtering.
3. Operating Instructions
A. key general features:
Press the middle button to enter the main menu;
1) Adjust Time : LED is blinking is currently selected position, after adjusting the hour and minute, then press "main
button" to save and exit, enter alarm settings submenu.
2) Alarm setup : At first is 5-way total alarm selection, the first position shows C, the other two position will display

www.banggood.com
http://www.banggood.com/Large-Screen-Remote-Clock-Electronic-DIY-Kit-Aluminum-Cover-p-976385.html
flashing ON (on) or OF (off), will switch by the plus or minus key. If you choose OF (off), then press the "main button"
directly into the Error Correction submenu. If you choose 0N (on), then press the "main button" to enter the 5-way alarm
setting, to channel 1 alarm for example. Display C1, the other two position flashing ON (on) or OF (off), on and off the
setting as above, if the press OF (off), then press the "main button" directly into the second channel alarm ON (open) or OF
(off) choice; if yes 0N (on), then press the "main button" to enter the hours and minutes, the settings are consistent with the
method and adjust the time setting is completed and then press the "main button" entry 2-way alarm setting, the first 5-way
alarm settings and then press "main button" entry error correction submenu.
3) Error Correction submenu: the first position shows N, after the other two position flashing ON (open amended) or OF
(closed amendments), switch by the plus or minus key, if you choose OF (closed Amendment), then press the "main button"
then go back to normal working interface; If you select ON (open correction), then press the "main button" entry correction
parameter setting interface, the behind two position displays 01 flashes, means one day (the range of days can switch
between 1-999 days by plus or minus keys), (it can be between -50 seconds to 50 seconds after the number of days selected
number of seconds and then press the "main button" Save settings screen to enter the number of seconds after the two
displays 00 flicker, representing 0 seconds by plus or minus keys to choose, there is a negative sign indicates X minus Y
second day, no negative sign indicates X days plus Y seconds), press the "main button" returned to normal travel time
interface.
B. Key shortcut functions:
1) Under normal working time interface press the "off" to turn off or turn on the digital display.
2) Under normal working time interface press "switch" to switch between hour-minute interface and minute-second
interface.
3) Under normal working time interface press "Speed" to select the entire 5-way alarm on or off (display C, ON or OF),
then press "main button" entry chime on or off selection (display H, ON or OF), after selection press "main button" returned
to normal working time interface.
4) In the minutes and seconds interface to go when the screen displayed by the "time" to show SEC, then the second digits
flash, a few seconds after minute and second flash together, then press "time" again to zero seconds, finally , returns to the
minutes and seconds interface, you can check whether the second is correction precision or not.

www.banggood.com
http://www.banggood.com/Large-Screen-Remote-Clock-Electronic-DIY-Kit-Aluminum-Cover-p-976385.html
Circuit schematics
123456
A
B
C
D
654321
D
C
B
A
Title
Nu mb er Re vis ionSize
B
D ate: 23 -Se p-2 014 Sheet o f
File: F : \设计实训套件1\设 计1组.D db D rawn B y:
RET
1
RXD P3.0
2
TXD P3.1
3
INT0 P3.2
6
INT1 P3.3
7
T0 P3.4
8
T1 P3.5
9
P3.7
11
X1
4
X2
5GND 10
P1.1 A1( +) 13
P1.0 A1( -) 12
P1.2 14 P1.3 15 P1.4 16 P1.5 17 P1.6 18 P1.7 19
VC C 20
U 1
STC1 1F 0 4E
Y2
32 .76 8
V2
1
OSC
2
OSC
3
GND
4RST 5
I/0 6
CLK 7
V1 8
U 2
D S13 02
P3.3 P3.4 P3.5 P3.7
+5 V
BT1
3V
P3.0
P3.0
P3.5 P3.7
P3.2 P3.1
LS1
+5 V
P 3 .1
+5 V
+5 V
R1
10 K
R6
10 K
R5
10 K
R2
10 K R3 10 K R4 10 K
Q 1 85 50 Q 2 85 50 Q 3 85 50 Q 4 85 50
Q 5
90 12
Y1
12 M
C1
10 uF
C4
30 P
C5
30 P
C3
10 4
+5 V
1
2
J1
A
1
B
2
C
3
G 2A
4
G 2B
5
G 1
6
Y7
7
G ND
8Y6 9
Y5 10
Y4 11
Y3 12
Y2 13
Y1 14
Y0 15
VCC 16
U 3 74 HC 138 N
P 3 .3
P 3 .4 L1
L2
L3
L4
+5 V
+5 V
C6
6P
L1 L2 L3 L4
A B C D E F G DP
R8
10 K
R7
10 K
+5 V
1 2 3 4 5 6 7 8
J 3 A
1 2 3 4 5 6 7 8 J 2 A
P 3 .2
C2
10 0uF /16 V
D 1
1N41 48
C7
6P
GND 2
VC C 3
OUT 1
U 4 VS17 38
+5 V
益 奇电 子
1A1 1A2 1A3 1A4
1F 1
1F 2
1F 3
1F 4
1F 5
1G 1 1G 2 1G 3 1G 4
1B1
1B2
1B3
1B4
1B5
1E 1
1E 2
1E 5
1E 3
1E 4
1C1
1C2
1C3
1C4
1C5
1D 1 1D 2 1D 3 1D 4
RG RB
RE
RC
RD
RF
RA
1 2 3 4 5 6 7 8
J 2 B
1 2 3 4 5 6 7 8
J 3 B
A
B
C
G
F
E
D
A B C D E F G D P
V1
V1 V2 V3 V4
1. 只绘出了第一位数 LED 连接方式。
2.LED 限流电阻实际是每一只都配一个。
主控板电路图
显示板电路图
C2
10 1
C1
10 1
C3
22 uF
Y1
45 5
Q 1 80 50
D 1
S1
S2
S3
S4
S5
1
2
3
4
5
6
7
89
10
11
12
13
14
15
16
U 1
BA5104
1 2
J 1 CO N2
遥控器电路图
Parts list
Note: Since the batch is not the same, could lead to some elements out of stock, it will be replaced with
similar functions components
There are some differences between the products and the list! Use the material object as the standard!
01. Remote control lists (plug-in version of the remote control)
Name
Model
Num.
Quantity
Name
Model
Num.
Quantity
IC socket
BA5104
16PIN
U1
2
Battery
CR2025
1
1
Transistor
Crystal
S8050 455E
Q1 Y1
2
Switch
6*6*12
S1~S5
5
Ceramic
capacitors
100PF
C1 C2
2
Screw nut
M3*6 M3
8 4
12
Electrolytic
capacitors
22uF/25V
C3
1
Double-pass
M3*10
4
4
Battery
Holders
CR2025
J1
1
PCB
40*79mm
1
1
Infrared
emission tube
Φ3
D1
1
02. Clock list
Resistance
10K
R1~R8
8
Infrared
receiver
VS1738
U4
1
Ceramic
5P
C6 C7
2
Battery
CR2025
BT1
1

www.banggood.com
http://www.banggood.com/Large-Screen-Remote-Clock-Electronic-DIY-Kit-Aluminum-Cover-p-976385.html
capacitors
Holders
30P
C4 C5
2
Battery
CR2025
BT1
1
104P
C3
1
Female
Header
1*8P
J2A J3A
2
Electrolytic
capacitors
10uF/25V
C1
1
USB
L=80cm
1
1
100uF/16V
C2
1
PCB
FR4 70*43mm
1
1
Diode
1N4148
D1
1
Dashboard list
Transistor
S8550
Q1~Q5
5
Resistance
220R
R1A1~R4G4
130
Crystal
32.768K
Y2
1
330R blue
yellow
220R red
RA~RDP
8
12M
Y1
1
Pin
1*8P
J2B J3B
2
SCM
STC11F04E
U1
1
LED
5mm
1A1~4G4 DP
132
IC
DS1302
U2
1
Pillars
M3*9+6
6
6
74HC138N
U3
1
M3*15
6
6
IC socket
20PIN
U1
1
Screw
M3*5
12
12
8PIN
U2
1
Filter plate
Black
Transparent
228.88*89.2mm
1
16PIN
U3
1
Cover
Aluminum
229.4*89.7mm
1
Buzzer
5V Active
LS1
1
PCB
FR4
229*89mm
1
How to install this kit?
1. 130 resistance welded (130 is the same resistance, remove RA ~ RG and RDP , welded the rest all
resistance)
2. Soldering 8 resistance (RA ~ RG and RDP, the same value resistor).

www.banggood.com
http://www.banggood.com/Large-Screen-Remote-Clock-Electronic-DIY-Kit-Aluminum-Cover-p-976385.html

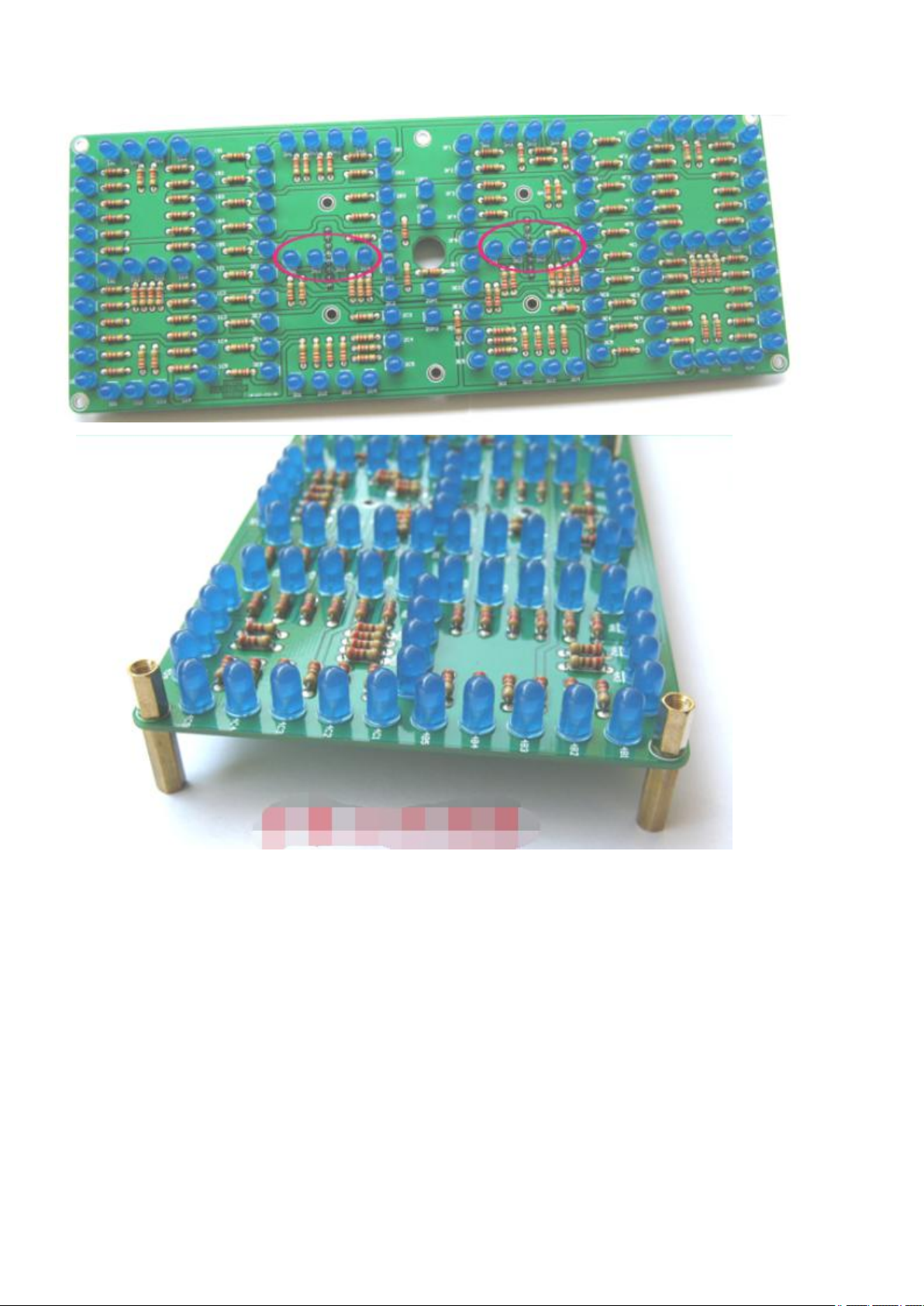

3. 124 LEDs Soldering (the highlight 8 LED NOT Soldering temporarily) long led is positive, short led is negative

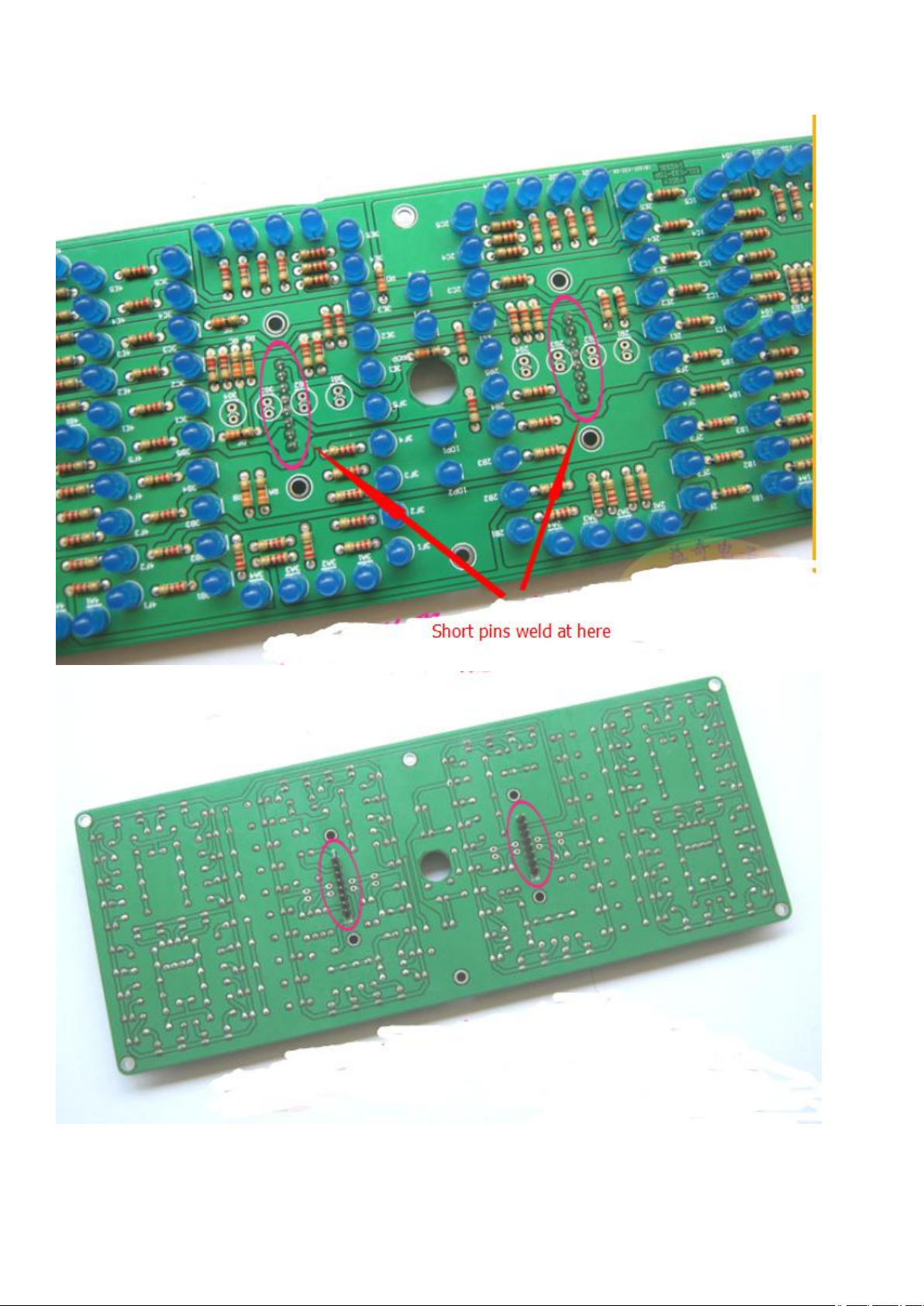

4. Weld the 2 pcs 8P header

www.banggood.com
http://www.banggood.com/Large-Screen-Remote-Clock-Electronic-DIY-Kit-Aluminum-Cover-p-976385.html
5. Weld the 8 LEDs

www.banggood.com
http://www.banggood.com/Large-Screen-Remote-Clock-Electronic-DIY-Kit-Aluminum-Cover-p-976385.html
6.
Main board install:
1. 8 Resistance (with same values)

www.banggood.com
http://www.banggood.com/Large-Screen-Remote-Clock-Electronic-DIY-Kit-Aluminum-Cover-p-976385.html

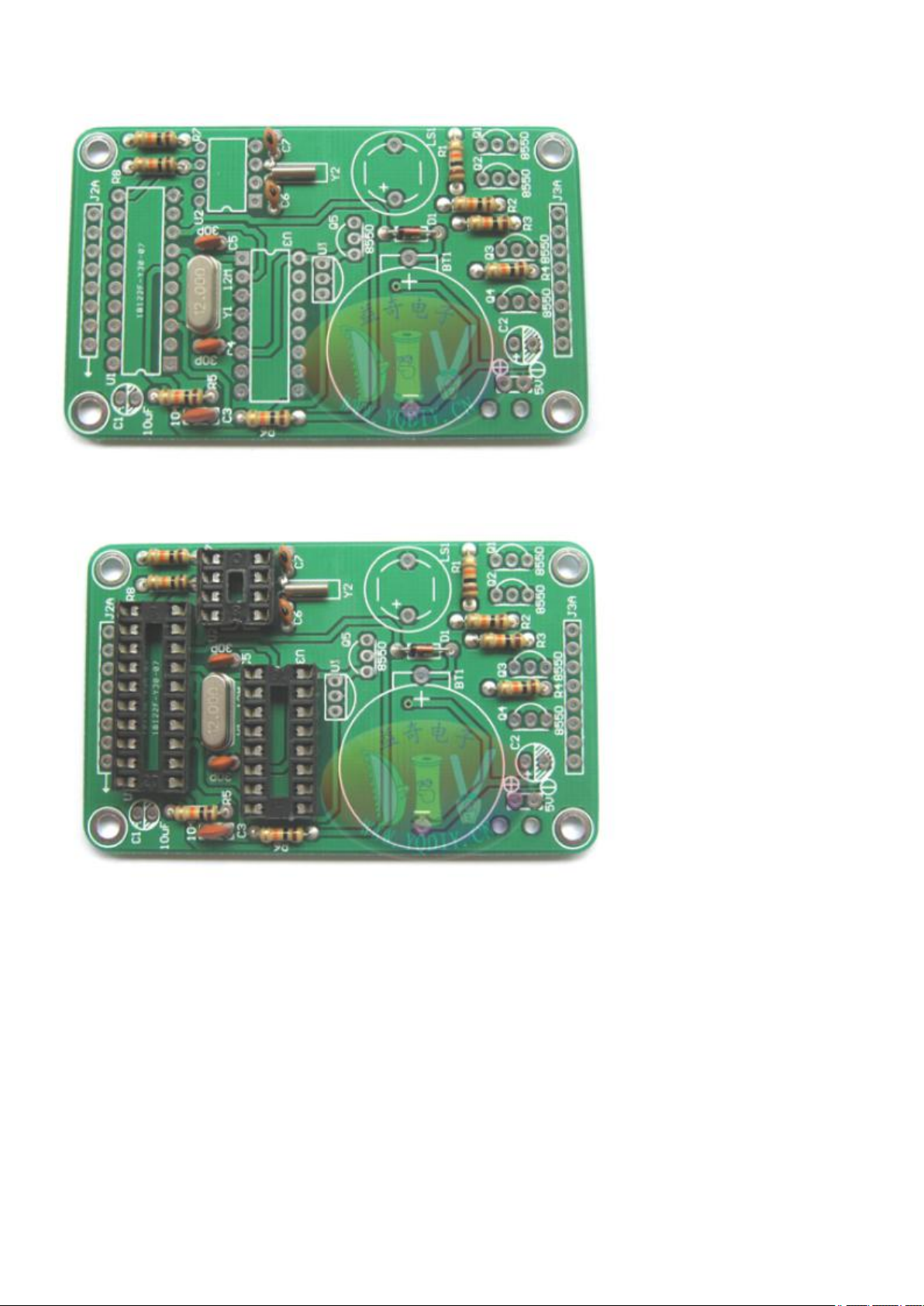

2. Soldering a diode and two crystal
3. Soldering five ceramic capacitors

www.banggood.com
http://www.banggood.com/Large-Screen-Remote-Clock-Electronic-DIY-Kit-Aluminum-Cover-p-976385.html
4. Soldering 3 IC sockets.
5. Soldering five transistors

www.banggood.com
http://www.banggood.com/Large-Screen-Remote-Clock-Electronic-DIY-Kit-Aluminum-Cover-p-976385.html
6. Soldering two electrolytic capacitors, a buzzer and a battery holder
7. Soldering two 8P FEMALE

www.banggood.com
http://www.banggood.com/Large-Screen-Remote-Clock-Electronic-DIY-Kit-Aluminum-Cover-p-976385.html
8. Install three manifold
9. Infrared receiver pin:

www.banggood.com
http://www.banggood.com/Large-Screen-Remote-Clock-Electronic-DIY-Kit-Aluminum-Cover-p-976385.html
The whole assembly:

www.banggood.com
http://www.banggood.com/Large-Screen-Remote-Clock-Electronic-DIY-Kit-Aluminum-Cover-p-976385.html

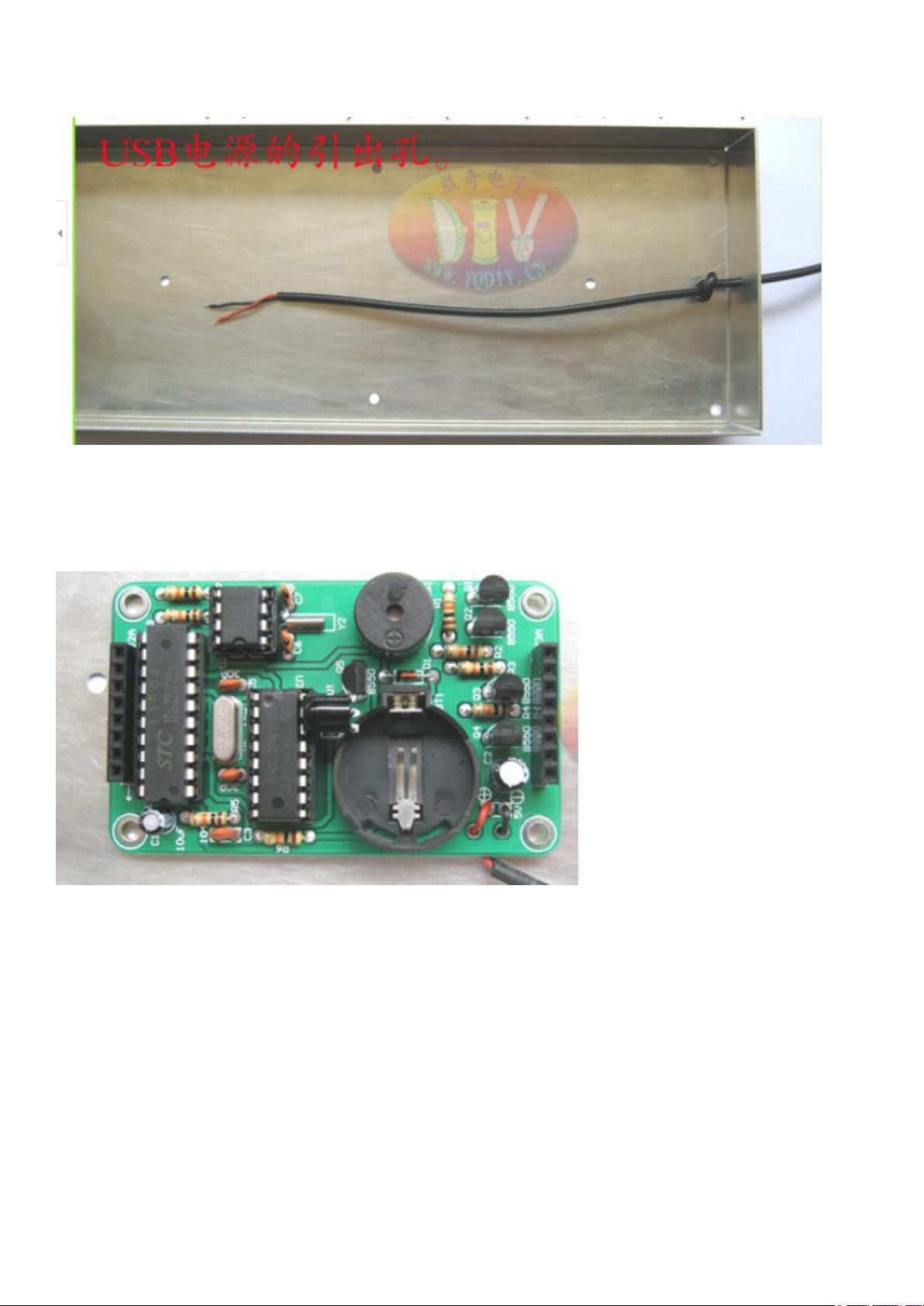

In the main control board Soldering USB power cable

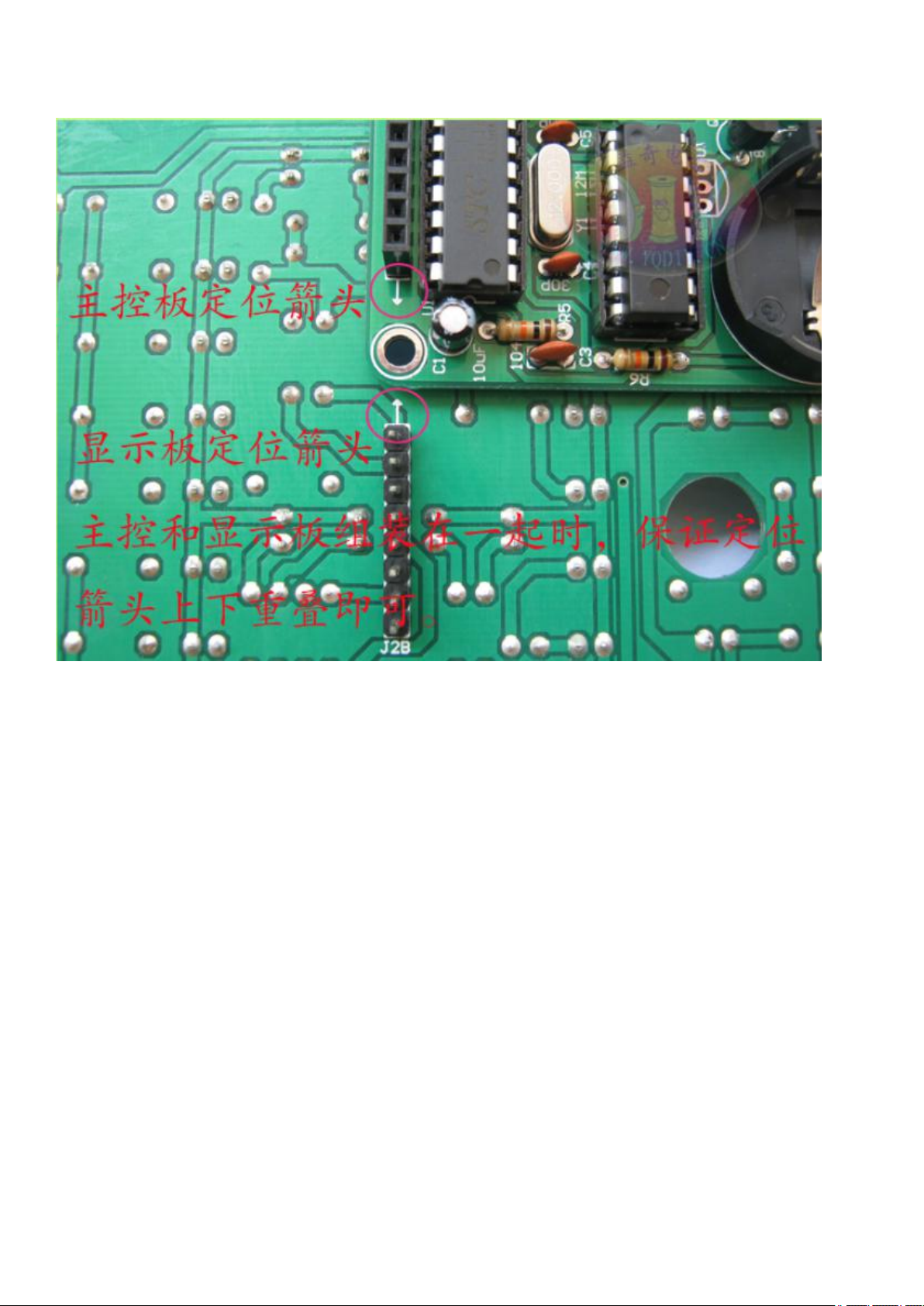

2. First find the positioning arrows control board and the display panel, the two plates are assembled together when stacked
vertically to ensure the positioning arrow

www.banggood.com
http://www.banggood.com/Large-Screen-Remote-Clock-Electronic-DIY-Kit-Aluminum-Cover-p-976385.html
3. Control board and the display panel assembled

www.banggood.com
http://www.banggood.com/Large-Screen-Remote-Clock-Electronic-DIY-Kit-Aluminum-Cover-p-976385.html
4 .. Then you can power it and observe if it can display 00:00 , and then remove the main board and install the button
batteries.

www.banggood.com
http://www.banggood.com/Large-Screen-Remote-Clock-Electronic-DIY-Kit-Aluminum-Cover-p-976385.html

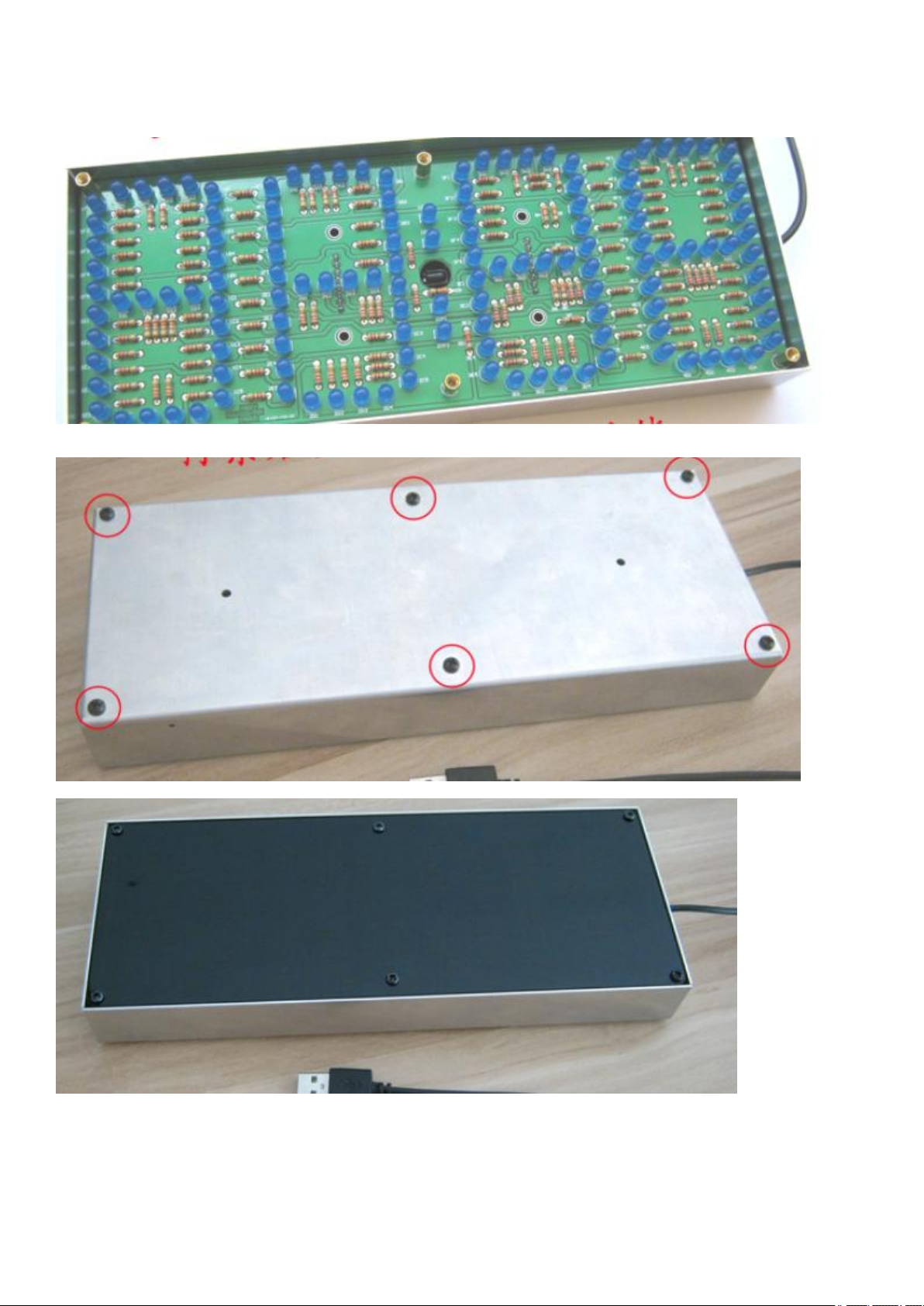

5. Put them all into the case, at this time you can debugging the clock.
6. After debugging, install the backside case.
