Bano 5200/R Maintenance manual

www.bano.co.uk
1-5
brackets
Bano washbasin / brackets / outflow pipe / height adjustable module
Care & maintenance
BANO AS
Utstillingsplassen 3 6823 Sandane-Norge
Phone: [phone]
[email protected]
Rev: 21.december.2018

2-5
Bano washbasin
Care & maintenance
Products:
5202/R
5200/R
7200
7201
7202-02
www.bano.co.uk
5202/R-W (right) and 5202/L-W (left)
Hygienic washbasin with white grab bar
5202/R-B (right) and 5202/L-B (left)
Hygienic washbasin with black grab bar
5202/R (right) and 5202/L (left)
Hygienic washbasin with grey grab bar
5200/R (right) and 5200/L (left)
Standard washbasin with grey grab bar
5200/R-B (right) and 5200/L-B (left)
Standard washbasin with black grab bar
5200/R-W (right) and 5200/L-W (left)
Standard washbasin with white grab bar
7201 Bano universal washbasin with grey grab bar
and fixed mounting brackets
7201-W Bano universal washbasin with white grab bar
and fixed mounting brackets
7202-W-02 Bano universal washbasin with white grab bar
and manual height adjustable brackets
7202-02 Bano universal washbasin with grey grab bar
and manual height adjustable brackets
7201-B Bano universal washbasin with black grab bar
and fixed mounting brackets
7202-B-02 Bano universal washbasin with black grab bar
and manual height adjustable brackets

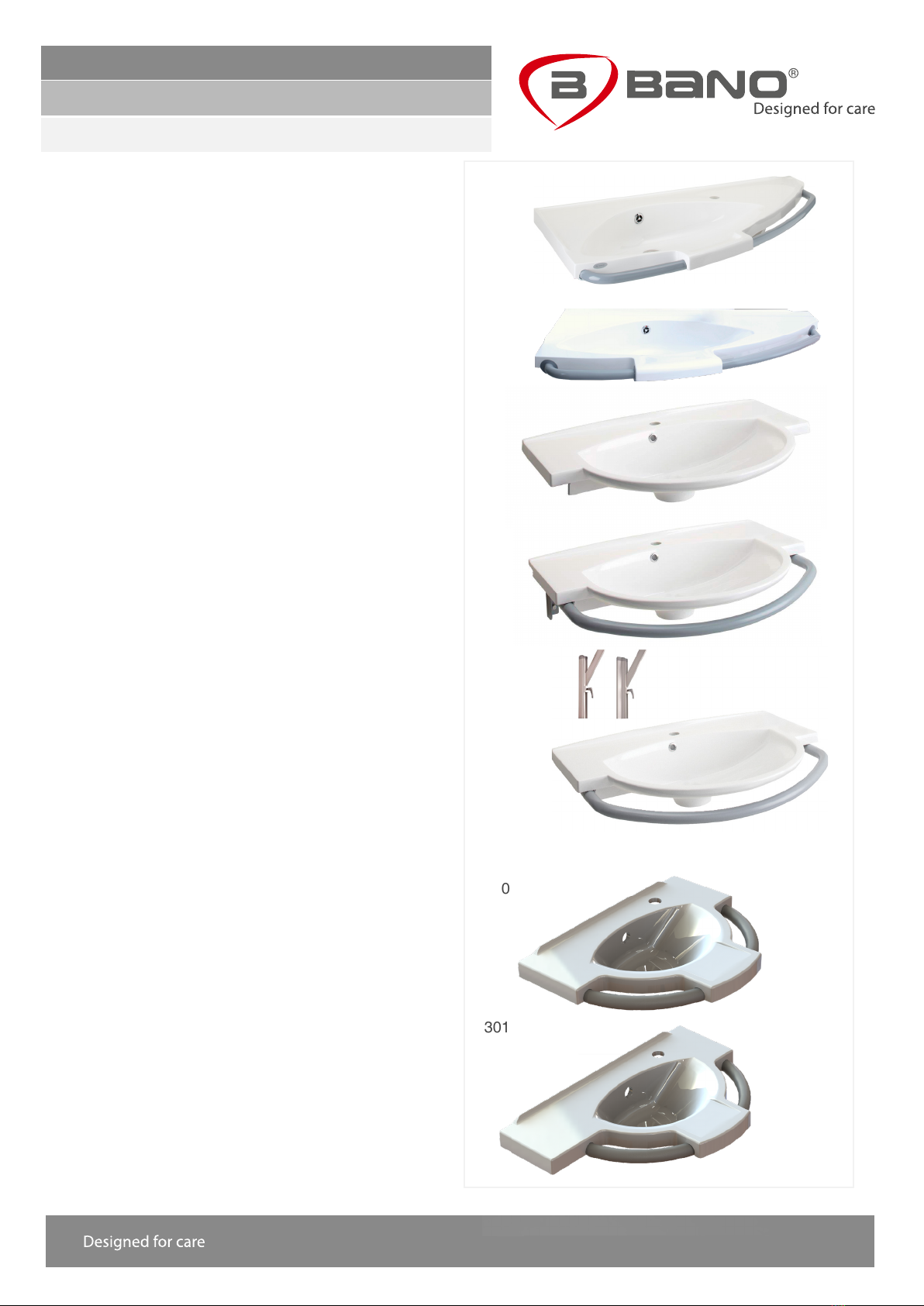

7200 Bano universal washbasin without grab bar
Without height adjustment
6300
6301
6300/R (right) and 6300/L (left) Bano Mini washbasin
with fixed mounting brackets and grey grab bar
6300/R-W (right) and 6300/L-W (left) Bano Mini washbasin
with fixed mounting brackets and white grab bar
6300/R-B (right) and 6300/L-B (left) Bano Mini washbasin
with fixed mounting brackets and black grab bar
6301/R-R, 6301/R-L, 6301/L-R and 6301/L-L
Bano Mini washbasin with fixed mounting brackets
and grey grab bar
6301/R-R-W, 6301/R-L-W, 6301/L-R-W and 6301/L-L-W
Bano Mini washbasin with fixed mounting brackets
and white grab bar
6301/R-R-B, 6301/R-L-B, 6301/L-R-B and 6301/L-L-B
Bano Mini washbasin with fixed mounting brackets
and black grab bar

3-5
Maintenance
Warning
Removing stubborn stains
You can often use stain remover to deal with stubborn stains from hard water or water that contains rust, but make
sure to rinse the washbasin thoroughly after cleaning. Regular cleaning helps to protect the surface of the product
against marks and stains left by water. When needed, use a polishing agent to refresh the appearance of the surface.
Product 8200 Standard HC washbasin
Bano washbasin
Care & maintenance
Production
The material used for the washbasin is easy to shape and features low shrinkage. It is therefore possible to create
ceramic/porcelain washbasin products with a completely straight and even (flat) surface and small tolerances. All the
raw materials are approved for indoor use for sanitary products.
Clean the product with normal liquid cleaning agents. Polish with a fine polishing agent and then apply wax
(use products intended for cars). Do this regularly and the product will last for many years.
Do not use acids, ammonia, drain cleaner or bleach on the product. If the surface should become scratched or matt,
polish and wax as described above. Carefully sand deeper scratches smooth using wet sandpaper with a value of
around 1200.
Maintenance
The washbasin, which is made of porcelain, requires only minimum maintenance. Use a soft cloth or sponge with a
mild cleaning agent. For a shining surface, use a detergent designed for cleaning windows.
www.bano.co.uk
Material spesification
Test
The washbasins are made of mineral powder (crushed marble) and the surface is protected with a 1.0 mm gel coating.
The mineral powder comprises crushed marble compacted and hardened using a synthetic binder. 78% is crushed
marble. 22% is synthetic binder, primarily polyester. The gel coat surface is of the highest quality. It is hard wearing and
does not become discoloured through contact with sunlight or soap.
• Integrated grab bar on the washbasin: powder coated steel.
Tolerances
Length: –1 + 1 mm or 0 + 2 mm.
Flatness tolerance: 0 mm.
The washbasin is shock tested by being sprayed with water at a temperature of 10°C for 1.5 min and then sprayed with
water at a temperature of 80 °C for 1.5 min. The CMI (Cultured Marble Institute) requirement for testing is at least 500
cycles, and tests reveal that the product is unaffected after 2,000 cycles.

4-5
Material specification
52093
5207-02
52088
• Height adjustable brackets: natural anodised aluminium alloy
• Flexible outflow pipe: polypropene plastic
Seal: TPE plastic
Maintenance
Never use scouring agents or cleaning agents that contain strong chemicals. Never use acids, methanol, methylated
spirits, white spirit or lynol.
Warning
www.bano.co.uk
Bano brackets / outflow pipe
Care & maintenance
Products:
5207-02 Bano manual height adjustable brackets- grey
52088 Bano non adjustable fixed brackets
52093 Bano flexible outflow pipe
Standard cleaning agents can be used for cleaning. Use a soft cloth or a sponge with a mild cleaning agent. Spray onto
the unit and wipe off with a moist cloth. Do not use scouring powder or steel wool, as this will damage the finish.
Cleaning agents that contain alcohol and are used in the pharmaceutical industry can be used.
63070 Bano non adjustable fixed brackets

5-5
Product information
Bano høydejusteringsmodul
Care & maintenance
Products:
5207-EL
5207-MA
52070
Care and maintenance
A standard mild detergent can be used for cleaning. Use a soft sponge or cloth together with a mild detergent. Spray
onto object and wipe away with a damp sponge or cloth. Detergents which contain alcohol and are used in the
pharmaceutical industry are OK. Other maintenance of movable parts is not necessary, but Bano recommends regular
use of the height-adjustment. If the height-adjustment is not functioning, please contact Bano for assistance and
guidance.
Warning
Bano height adjustment with electrical engine (5970-EL) is a
wall-bracket for mounting the Bano hygiene washbasin, article
number 5202. The height can be adjusted 200 mm by aid of an
electrical engine. The height-adjustment is operated by a control
panel on the front of the washbasin.
Bano heigh-adjustment (5970-MA) is a wall bracket for mounting
the Bano hygiene washbasin, article number 5202. The height
can be adjusted 200 mm manually. The height-adjustment is
operated by a manual crank which can be removed.
5207-EL/MA and 52070:
Main frame: Corrosion treated steel, El galvanized
Cover: ABS/ PMMA plastic, colour code RAL 9016.
Max static weight load, WC: 300 kg
5207-EL: Power supply: Linak: CB8001T50-0010
U In: 230 V AC /50Hz, I In: Max. 0.63A, U Out: 24V DC, max. 120 VA IPX5
Power connection: wall mounted junction box IP44 min. Connection must be done by en electrician.
Technical information and materials
The product can be recycled. Electrical components can easily be detached and submitted for recycling in accordance
with government requirements. Thank you for taking the time to read these instructions carefully – it is time well spent!
Waste management and recycling
Make sure never to use abrasive cleaners or detergents containing strong chemicals, abrasive powders, chlorine, acids,
methanol, methylated spirits, mineral spirits or toluene.
www.bano.co.uk
5207-MA Bano manual height adjustable modul with crank
for 5202 hygienic washbasin
52070 Bano mounting brackets without height adjustment
for 5202 hygienic washbasin
5207-EL Bano electrical height adjustable modul
for 5202 hygienic washbasin
