Barbarian Basketball Systems Titanium Series Quick start guide

1
ADJUSTABLE BASKETBALL SYSTEM
ASSEMBLY INSTRUCTIONS AND OWNER'S MANUAL
Keep this instruction manual in case you have to contact the manufacturer for replacement parts.
!!
WARNING
FAILURE TO COMPLY WITH ANY OF
THE WARNINGS IN THESE INSTRUCTIONS
MAY RESULT IN SERIOUS PERSONAL
INJURY.
FAILURE TO COMPLY MAY ALSO
RESULT IN PROPERTY DAMAGE.
PLEASE HEED ALL WARNINGS AND
CAUTIONS TO ENSURE YOUR SAFETY.
DO NOT ATTEMPT TO ASSEMBLE
THIS SYSTEM WITHOUT CAREFULLY
READING AND FOLLOWING ALL
INSTRUCTIONS. BEGIN BY IDENTIFYING
AND TAKING INVENTORY OF ALL PARTS
USING THE PARTS LIST PROVIDED.

FAILURE TO DO THESE WARNINGS
MAY RESULT IN SERIOUS INJURY
AND/OR PROPERTY DAMAGE.
Owner must ensure that all players know
and follow these rules for safe operation
of the system.
Only hang from the rim briefly to regain
balance or avoid injuring others.
Release the rim as soon as possible
safely.
During play, especially when
performing dunk type activities, keep
palyer’s face away from the backboard,
and net. Serious injury could occur if
teeth/face come in contact with
backboard, rim, or net.
Do not slide, climb, or play on pole.
When adjusting height, keep hands
and fingers away from moving parts.
Do not allow children to adjust system.
During play, do not wear jewelry (rings,
watches, necklaces, ets.) Objects may
entangle in net.
Keep water and organic material away
from pole. Pole can rust and fail.
Check pole and all metal parts
regularly for rust. completely remove
rust and repaint with exterior enamel. if
rust has penetrated any steel parts,
replace that part immediately.
Check system before each use for
loose hardware, signs of rust and
instability. Repair before each use.
Never play on damaged equipment.
Wear a mouthguard when playing to
avoid dental injuries.
FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN
SERIOUS INJURY AND/OR PROPERTY DAMAGE.
FAILURE TO DO THESE SAFETY INSTRUCTIONS MAY RESULT IN
SERIOUS INJURY, PROPERTY DAMAGE AND WILL VOID WARRANTY.
Owner must ensure that all players know and follow these rules for safe
operation of the system.
To ensure safety, do not attempt to assemble this system without
following the instructions carefully. Proper and complete assembly, use
and supervision is essential for proper operation and to reduce the risk of
accident or injury. A high probability of serious injury exists if this system
is not installed, maintained, and operated properly.
If use a ladder during assembly, use extreme caution.
4 people are recommended for this operation.
Seat the pole sections properly (if applicable). Failure to do so could
allow the pole sections to separate during play.
Before digging, contact utility company to locate underground power
cables, gas and water lines. Ensure there are no overhead power
lines within 20 ft. (7m) radius of pole location.
Climate, corrosion or misuse could result in system failure.
If technical assistance is required, contact us:
2

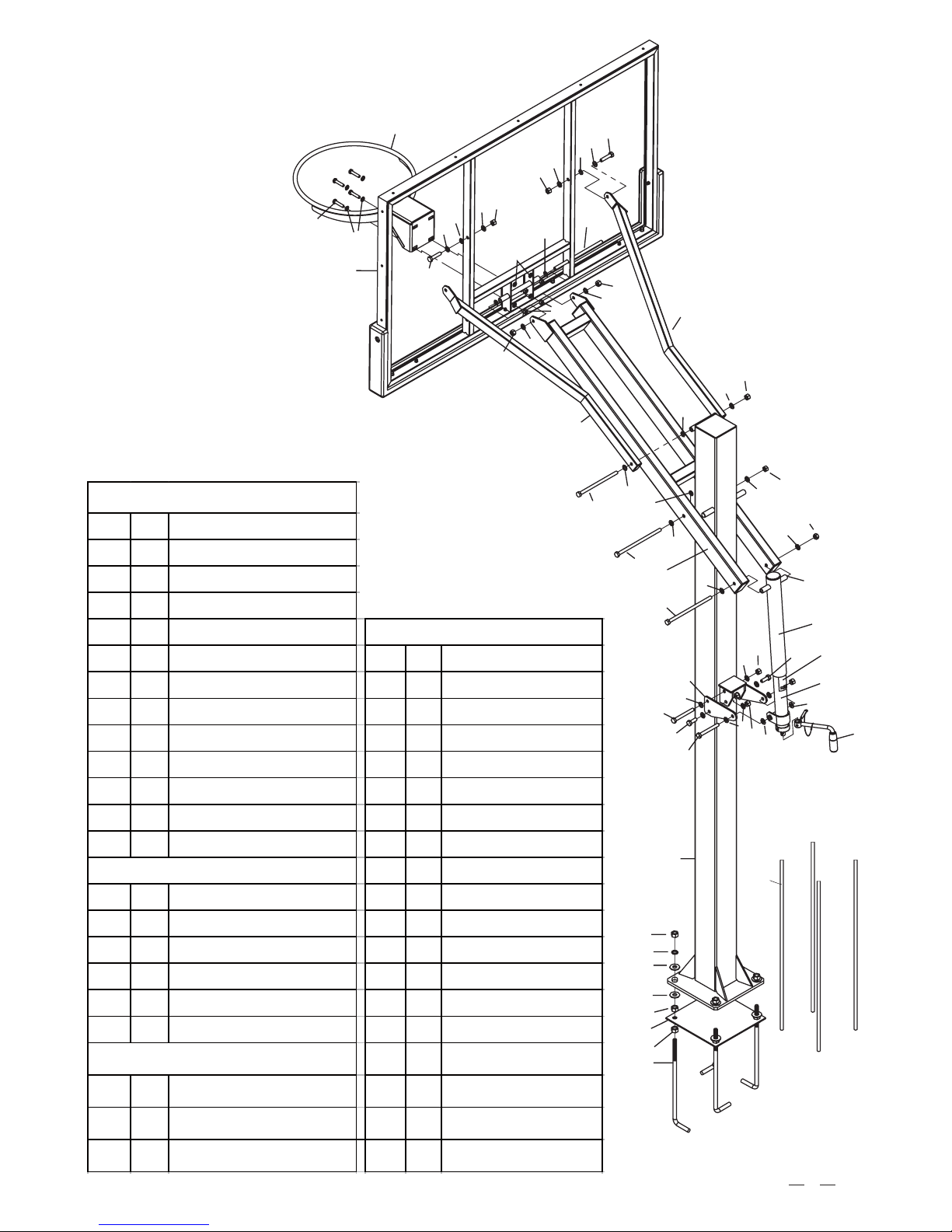

PART LIST
3
ITEM QTY DESCRIPTION
A 1 5"x5"Main Pole
B 1 Actuator
C 1 Actuator plastic sleeve
D 1 Pole/gusset padding
E 2 Mounting plate ITEM QTY DESCRIPTION
F 1 Main Extension Arm 1 10 Nylon Washer M12
G 2 Upper Extension Arm 2 1 Stud M12x265
H 1 Backboard 3 2 Hex bolt M12x240
I 1 Flex rim 4 1 Hex bolt M12x210
J 1 Rim Height Sticker 5 2 Hex Bolt M12x105mm
K 1 Rim Pad (Pre-attached) 6 2 Hex bolt M12x55
L 1 Crank 7 2 Hex Bolt M12x35mm
8 20 Flat washer M12
U1 1 Anchor Template 9 11 Nylon nut M12
U2 4 16mm Anchor J-bolts 10 1 Steel Sleeve
U3 8 Thick washer for J-bolt
U4 12 Hex nut M16
U5 4 Anchor Rebar 36"L
U6 4 Lock Washer M16
11 4 Hex bolt M10x55 mm
12 8 Washer M10
13 4 Flange nut M10
UNDERGROUND PARTS
PARTS LIST
HARDWARE LIST
RIM HARDWARE
U5
A
B
C
E
F
G
G
H
I
J
L
12
11
12
12
6
8
9
8
1
6
8
1
8
9
9
8
8
9
13
9
8
1
8
4
9
8
1
8
3
3
8
89
10
5
5
7
8
891
1
897
9
U4
U3
U3
U1
U2
U4
U4
U6

Tools and materials required for assembly
1. Two Adjustable Wrenches 8. Concrete 12 Bags (80lbs/bag).
2. 1-1/8" Wrench 9. Electric Drill
3. 9/16" Wrench 10. Carpenter’s Level
4. 3/4" Wrench 11. A minimum of two Ladders
5. 11/16" wrench 12. Water Supply
6. 1" Wrench 13. Tape measure
7. Hammer or Mallet 14. Shovel
THREE PEOPLE ARE NEEDED TO ASSEMBLE THIS UNIT
Day 1
INSTALLATION (Day 1 to Day 4)
Prior to anchor system and goal assembly, call utility services for location of underground
utility lines before you dig.
This assembly needs 5 days totally.
Day 1: Anchor system installation.
Day 2-4: Allow concrete to cure.
Day 5: Complete basketball system installation.

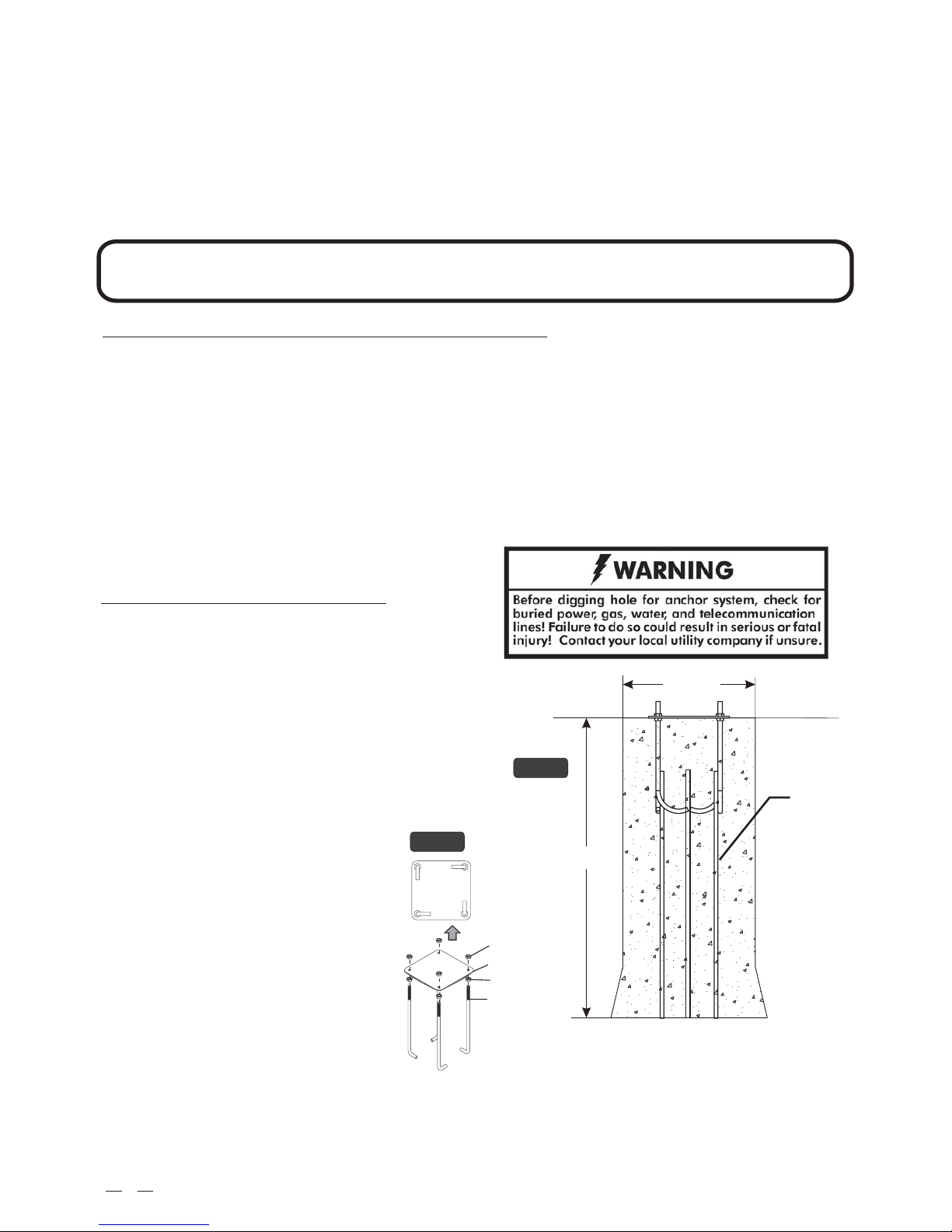

Locate your system close to or on the court. Dig
a hole as shown in figure 1. Bell out the bottom.
Assemble anchor system as shown in fugure2:
Thread nut M16 (U4) all the way to bottom of
threads on J-bolt (U2) insert threads of J-bolt
(U2) through hole on anchor plate (U1) and
secure with nut (U4).
Note: Each leg of anchor bolts should face
the anchor bolt to the right. See Figure 2.
Mix and pour concrete into hole.
follow instructions on concrete
bag. Stop about 8" below playing
surface.
Insert 4 Rebars (U5) into concrete
8" apart making a square in center
on hole.
Continue to pour concrete into hole.
Use a concrete form or wooden form
for top 4", until concrete flush with
playing surface.
Push anchor system into concrete and
agitate to eliminate voids in concrete,
level and square anchor plate (U1) to
playing surface. Clean off any concrete
on anchor plate and exposed threads.
You are finished with anchor system.
Allow concrete cure a minimum of 72hrs.
Warning
Never continue to assemble your
system without following cementing
instructions. Failure to do so may
cause serious personal injury or
property damage.
U1
U4
U4
U2
16" Dia
42"
1.
2.
5.
3.
4.
Figure2
Figure1
U5
4
Play surface
Anchor system installation

INSTALLATION (Day5)
A hammer or mallet may be needed during assembly.
5
Figure4 Figure5
U6
U4
U3
U4assembled
U1
U2
A
U3
Playing
Court
Front side
Back
side

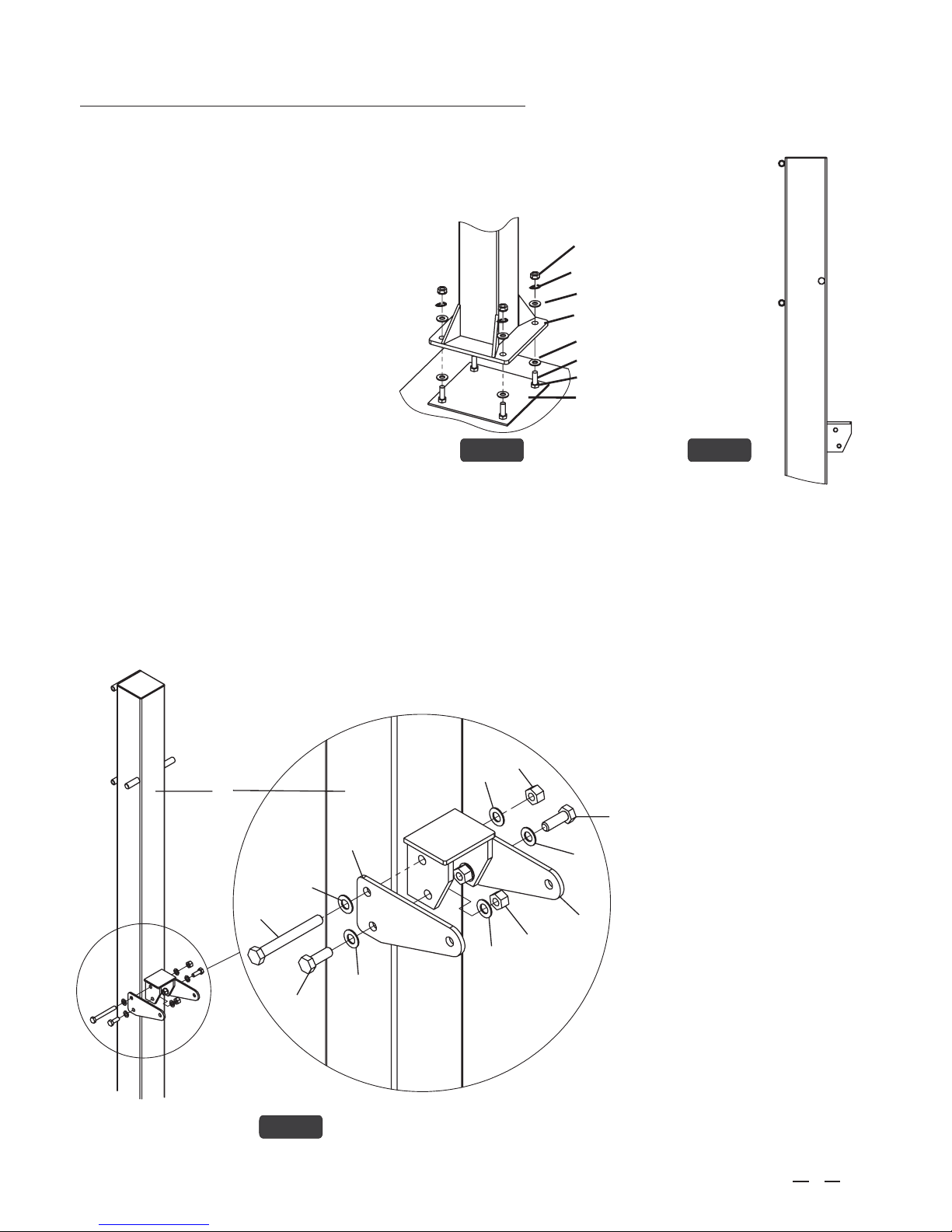

Place the Pole on the Anchor system.
Slide one Thick washer M16 (U3) over
each J-bolt (U2). Lift the Pole (A) onto
Anchor system, secure with one thick
washer (U3), one Lock washer M16 (U6)
and one Hex nut (U4) for each J-bolt.
See Figure 4.
If the Main Post (A) is not exactly
vertical, adjust the 16mm J-Bolt Hex
Nuts (U4) located under the Post base
(A). Tighten all of the Hex Nuts (U4)
Above Post base when Main Post (A) is
vertical.
NOTE: Face the Main Post (A) with Actuator
Bracket facing away from playing court (as
shown in FIGURE 5).
1.
Attach Actuator mounting plate (E) to Pole (A).
Secure Actuator mounting plate to the bracket welded on backside
of Pole (E) with 2 Hex bolts M12x35 (#7), one Hex bolt M12x105mm
(#5), 6 Flat washers M12 (#8), 3 Lock nuts M12 (#9). See .Figure 6
Tighten all three nuts.
2.
Figure6
A
E
5
8
7
8
89
8
7
89
E

INSTALLATION (Day5)
Figure 7
6
Attach Lower Extension arm (F) to Pole
(A), as shown in Figure 7.
Secure it with one Hex bolt M12x240 (#3),
two Flat washers M12 (#8), two Plastic
Washers M12 (#1), one Lock nut M12
(# ).9SeeFigure 7.
Note make sure Plastic washers go:
between Lower Extension and Pole.
3.
F1
A
3
8
8
9
Figure 8
Attached Actuator (B) to Lower extension
Arm (F).
Slide Actuator plastic sleeve (C) over top of
Actuator (B), align the hole in the Plastic sleeve
with the hole in the Actuator, slide one Steel
Sleeve (#10) thru both parts, see Figure 8.
Hold the Actuator assembly, align Steel Sleeve
with the Rear hole of Lower extension Arm (F),
Attached them together with one Hex bolt
M12x240 (#3), two Flat washers M12 (#8), and
one Lock nut M12 (#9).
Attached Actuator (B) to Actuator mounting
plate (E). See Figure 8
Move Actuator between two Mounting plate (E),
secure them together with one Hex bolt
M12x105 (#5), two Flat washer M12 (#8), two
Plastic washers M12 (#1), and one Lock nut
(#9).
Do not over tighten this bolt.
Note make sure Plastic washers go between:
Mounting plate (E) and Actuator (B). It prevents
painted parts from being scratched.
4.
5.
Attach Crank (L) to the bottom of Actuator with
supplied Lock pin.
A
E
E
5
8
1
1
L
89
C
B
10
3
8
89
F
Slide Plastic sleeve
over Actuator
STEP 4
STEP 5

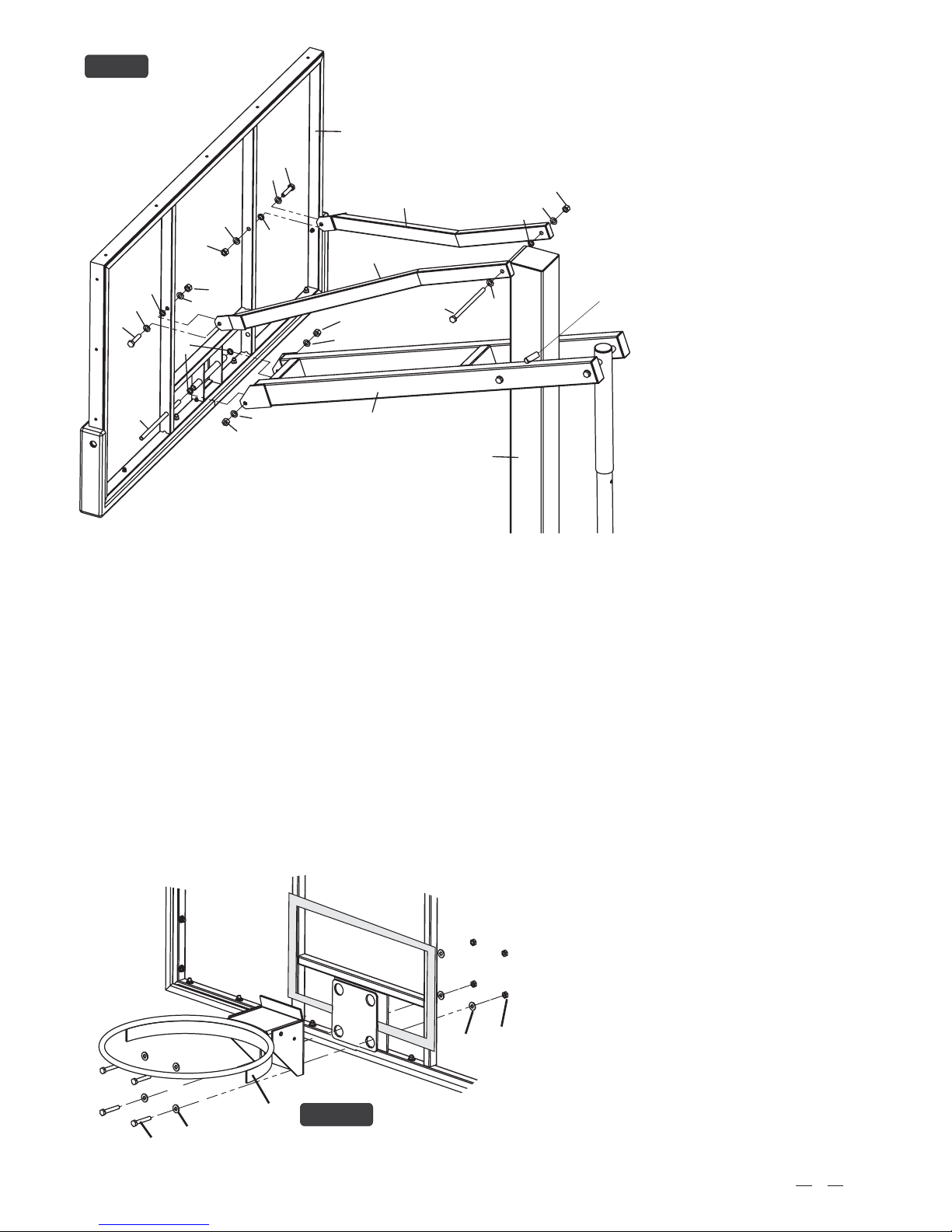

Attach Goal (I) to Backboard (H).
Remove the Rim box cover, put Goal
against Rim pad (Pre-installed), secure it
with 4 Hex bolts M10x55 (#11), 8 Flat
washers M10 (#12), 4 Flange nuts M10
(#13) See Figure 10.
Tighten all four bolts and nuts.
Put Rim box cover back and secure it with
removed screws.
9.
Figure 9
Figure 10
11 12
I
12 13
Attach Upper Extension arm (G)to
Pole (A),
using one Hex bolt M12x210 (#4), two
Flat washers M12 (#8), two Plastic
washers M12 (#1), and one Lock nut
M12 (#9). See .Figure 9
Note: The plastic washer should be placed
between Upper extension arm (G) and Pole
pivot tube (A).
6.
7. Attach Backboard (H) to Lower Extension arm (F).
Turn crank to lower support frame (F) until against
safety stop.
With 3 capable adults, raise the Backboard assembly
up and connect Lower Extension arm (F) to the
Backboard Bracket using one Stud M12x265 (#2), 2
washers M12 (#8), 2 Plastic washers M12 (#1), and 2
Lock nuts M12 (#9).
Tighten this bolt snugly. See Figure 9.
Note:
1. Slide the Stud thru from outside of Vertical tubes. After
the stud is installed, plug end caps into the holes on the
vertical frame, to keep bees from holes. 4pcs plugs can be
found in the hardware pack or manual pack.
2. The plastic washer goes between backboard bracket (H)
Attach Backboard (H) to Upper
Extension arm (G).
Connect Upper board arm (G) to the
Backboard edge using 2 Hex bolts M12x55
(#6), 4 Flat washers M12 (#8), 2 Plastic
washers M12 (#1), and two Lock nuts M12
(#9).
Tighten the two bolts and nuts snugly.
See Figure 9.
8.
7
6889
1
9
8
1
86
H
G
G
8
948
18
9
A
8
9
2
1
F
STEP 8 STEP 6
safety stop
STEP 7

8

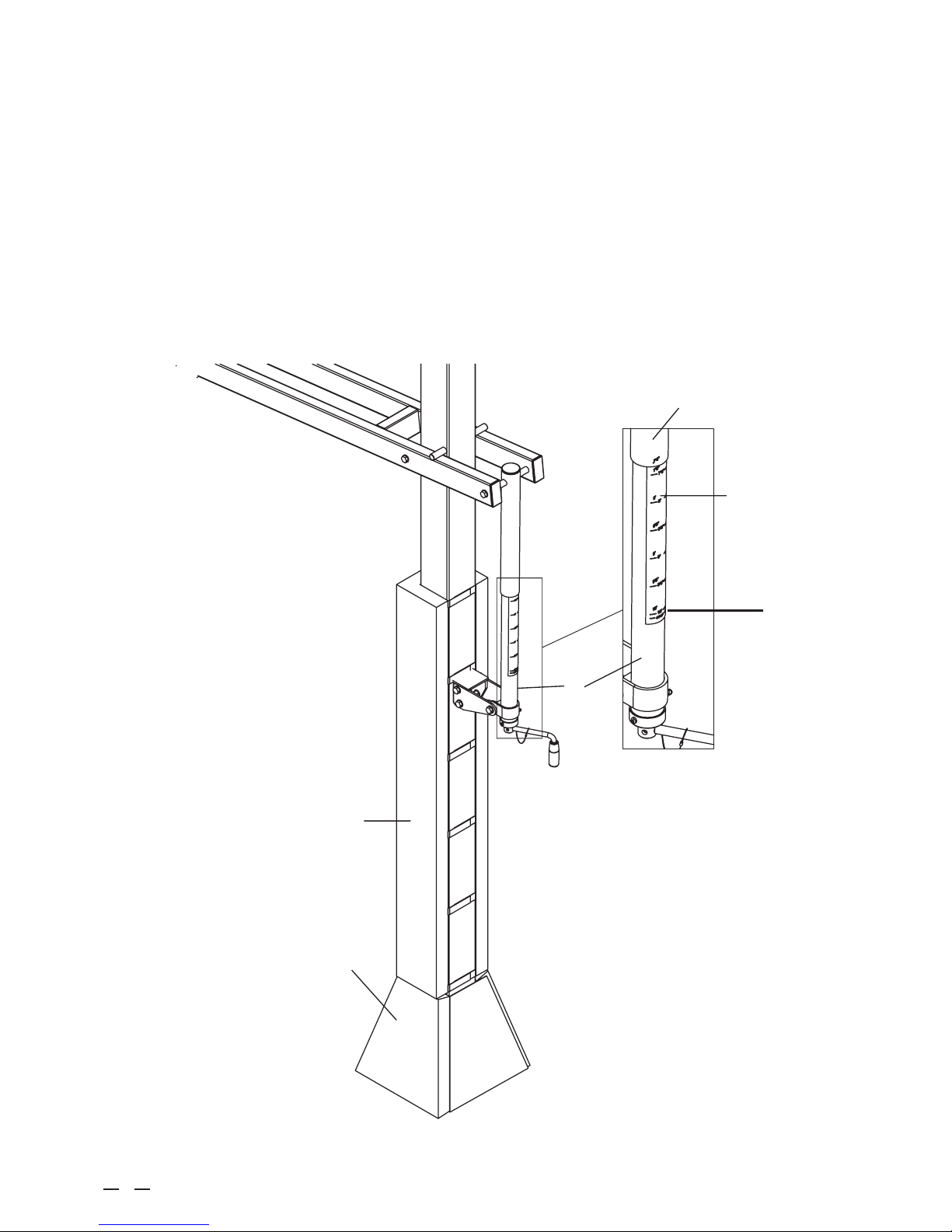

Apply Rim Height Sticker
Use a tape measure to crank rim up to exactly 10' from playing surface. Make a line
mark on the Actuator (B) against bottom edge of Actuator Sleeve (C).
Crank the rim all the way down to the extreme end. Peel and apply Rim Height
sticker to outside of Actuator (B) lining up the mark with the 10' mark on the Rim
Height Sticker.
See Detail B.
Apply Pole pad and
Gusset pad as shown.
10ft
Pole padding
Gusset
padding
Rim Height
sticker
Detail B
Actuator sleeve (C)
B
This manual suits for next models
1
Table of contents
Popular Accessories manuals by other brands

HAUL MASTER
HAUL MASTER 66186 Set up and operating instructions

Fysic
Fysic FD-110 Installation

Nextar
Nextar N1-101 - Key Chain Photo Viewer instruction manual

Decagon
Decagon ECH2O Check quick start guide

Delta Electronics
Delta Electronics Thermocouple Sensors DVP04TC-S instruction sheet

Autani
Autani A05-02-1107-02 Quick installation sheet
