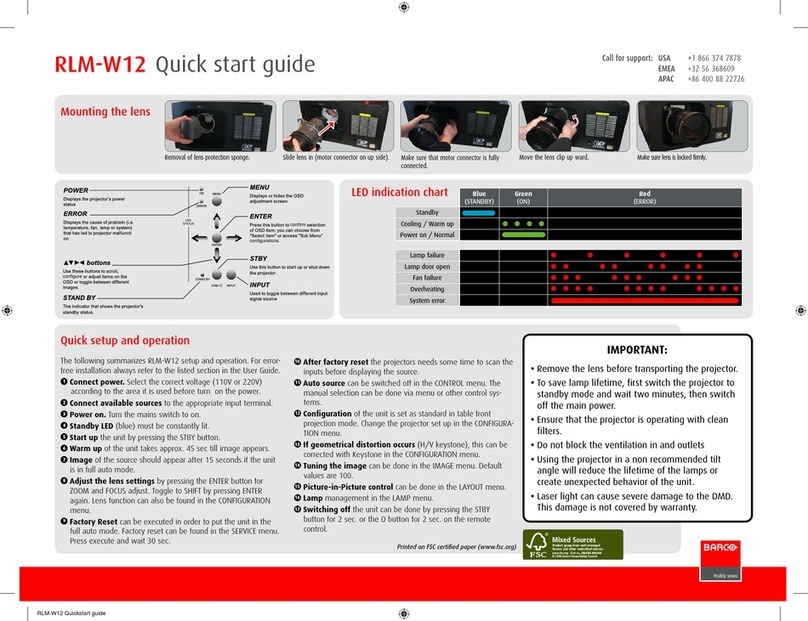

Barco RLM series User manual

RLM series
User Guide
RS232 commands
R5976884/02
04/04/2006

Barco nv Events
Noordlaan 5, B-8520 Kuurne
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
Visit us at the web: www.barco.com
PrintedinBelgium

Table of contents
TABLE OF CONTENTS
1. Serialcommunications Basics...................................................................................5
1.1 Communication Protocol ............................................................................................................. 5
1.2 Data words............................................................................................................................ 6
1.3 Communication settings.............................................................................................................. 7
1.4 Hardware ............................................................................................................................. 7
1.5 Syntax................................................................................................................................. 9
1.6 Serial comms commands ...........................................................................................................10
2. BasicCommands..................................................................................................13
2.1 End of process (EOP)...............................................................................................................13
2.2 Identification Commands............................................................................................................14
2.2.1 Device type, Read ............................................................................................................14
2.2.2 Projector’s Software type, Read..............................................................................................14
2.2.3 Projector’s Software version, Read ..........................................................................................15
2.2.4 Projector’s Serial number, Read..............................................................................................15
2.2.5 Projector’s runtime, Read.....................................................................................................15
2.2.6 Projector address, Write......................................................................................................15
2.2.7 Projector language, Read ....................................................................................................16
2.2.8 Projector language, Write. ....................................................................................................17
2.2.9 Baudrate, Write ...............................................................................................................18
2.3 RCU commands . . ...................................................................................................................18
2.4 Projector ON/OFF, Write ............................................................................................................19
2.5 Projector’s Status, Read ............................................................................................................19
2.6 Lens commands . . ...................................................................................................................20
2.6.1 Lens shift . . ....................................................................................................................20
2.6.2 Lens Zoom . ...................................................................................................................21
2.6.3 Lens Focus . ...................................................................................................................21
2.7 Picture setting .......................................................................................................................21
2.7.1 Contrast, Increment...........................................................................................................21
2.7.2 Contrast, decrement .......................................................................................................... 22
2.7.3 Contrast, write.................................................................................................................22
2.7.4 Contrast, Read................................................................................................................23
2.7.5 Minimum Contrast, Read .....................................................................................................24
2.7.6 Maximum Contrast, Read ....................................................................................................24
2.7.7 Brightness, increment.........................................................................................................25
2.7.8 Brightness decrement ........................................................................................................26
2.7.9 Brightness, Write..............................................................................................................26
2.7.10 Brightness, Read..............................................................................................................27
2.7.11 Minimum Brightness, Read...................................................................................................27
2.7.12 Maximum Brightness, Read ..................................................................................................28
2.7.13 Saturation increment..........................................................................................................29
2.7.14 Saturation, decrement ........................................................................................................29
2.7.15 Write Saturation...............................................................................................................30
2.7.16 Saturation, Read..............................................................................................................30
2.7.17 Minimum Saturation, Read ...................................................................................................31
2.7.18 Maximum Saturation, Read...................................................................................................32
2.7.19 Tint, increment ................................................................................................................33
2.7.20 Tint, decrement ...............................................................................................................33
2.7.21 Tint, Write .....................................................................................................................34
2.7.22 Tint, Read .....................................................................................................................34
2.7.23 Minimum Tint, Read ..........................................................................................................35
2.7.24 Maximum Tint, Read..........................................................................................................36
2.7.25 Gamma, increment............................................................................................................37
2.7.26 Gamma, decrement...........................................................................................................37
2.7.27 Gamma, Write.................................................................................................................38
2.7.28 Gamma, Read ................................................................................................................38
2.7.29 Minimum Gamma, Read......................................................................................................39
2.7.30 Maximum Gamma, Read.....................................................................................................40
2.7.31 Phase, increment ............................................................................................................. 41
2.7.32 Phase, decrement ............................................................................................................41
2.7.33 Phase, Write ..................................................................................................................42
2.7.34 Phase, Read ..................................................................................................................42
2.7.35 Minimum Phase, Read........................................................................................................43
2.7.36 Maximum Phase, Read.......................................................................................................44
2.8 Menu Exit ............................................................................................................................45
2.9 Source selection.....................................................................................................................46
2.10 Scanned inputs, read . ...............................................................................................................47
2.11 Scan inputs ..........................................................................................................................48
2.12 File, Load . . ..........................................................................................................................48
2.13 Orientation, Write.................................................................................................................... 49
2.14 Orientation, Read....................................................................................................................50
2.15 Shutter, Write ........................................................................................................................51
R5976884 RLM SERIES 04/04/2006 1

Table of contents
2.16 Shutter, Read........................................................................................................................52
2.17 Freeze, Write ........................................................................................................................53
2.18 Freeze, Read ........................................................................................................................54
2.19 Logo ON/OFF. . . . . ...................................................................................................................55
2.20 Background, Write ...................................................................................................................55
2.21 Background, Read...................................................................................................................56
2.22 Aspect ratio, Write...................................................................................................................57
2.23 Aspect Ratio, Read..................................................................................................................58
2.24 Show Native resolution (ON/OFF), Write...........................................................................................59
2.25 Show Native resolution (ON/OFF), Read...........................................................................................59
2.26 Full screen representation(ON/OFF), Write ........................................................................................60
2.27 Full screen representation (ON/OFF), Read........................................................................................60
2.28 Keystone, Write. . . ...................................................................................................................60
2.29 Keystone, Read. . . ...................................................................................................................61
2.30 Lamp commands . ...................................................................................................................62
2.30.1 Lamp Mode, Write ............................................................................................................62
2.30.2 Lamp Mode, Read ............................................................................................................63
2.30.3 Lamp Status, Read ...........................................................................................................64
2.30.4 Lamp Warning, Read .........................................................................................................65
2.30.5 Lamp runtime, Read ..........................................................................................................66
2.30.6 Lamps Serial number, Read..................................................................................................66
2.31 Image files ...........................................................................................................................67
2.31.1 File, write......................................................................................................................67
2.31.2 File, read ......................................................................................................................68
2.31.3 File List, read..................................................................................................................68
2.31.4 Active files list, read........................................................................................................... 68
2.32 Color temperature ...................................................................................................................69
2.32.1 Color temperature (Red/Blue), Increment....................................................................................69
2.32.2 Color temperature (Red/Blue), Decrement...................................................................................69
2.32.3 Color temperature Red/Bleu, Write...........................................................................................70
2.32.4 Color temperature Red/Bleu, Read ..........................................................................................70
2.32.5 Color temperature, Read .....................................................................................................71
2.33 Standby Timer, Write . ...............................................................................................................72
2.34 Standby Timer, Read . ...............................................................................................................73
2.35 Switching mode, Write...............................................................................................................74
2.36 Switching mode, Read . . . ...........................................................................................................75
2.37 Filmmode detection, Increment/Decrement ........................................................................................76
2.38 Filmmode detection, Write ..........................................................................................................77
2.39 Filmmode detection, Read ..........................................................................................................77
2.40 Autoimage execute..................................................................................................................78
2.41 Blanking..............................................................................................................................79
2.41.1 Blanking Reset................................................................................................................80
2.41.2 Blanking enable, Write........................................................................................................80
2.41.3 Blanking enable, Read........................................................................................................80
2.41.4 Blanking, Write................................................................................................................81
2.41.5 Blanking, Read................................................................................................................82
2.41.6 Blanking, Increment...........................................................................................................83
2.41.7 Blanking, Decrement..........................................................................................................84
2.41.8 Minimum Blanking, Read.....................................................................................................84
2.41.9 Maximum Blanking, Read ....................................................................................................85
3. AdvancedCommands............................................................................................87
3.1 Lamp Commands....................................................................................................................87
3.1.1 Reset Lamp runtime, Write...................................................................................................87
3.1.2 Lamp History, Read...........................................................................................................88
3.2 Picture In Picture ....................................................................................................................89
3.2.1 PiP Loop Focus...............................................................................................................89
3.2.2 PiP Focus, Read..............................................................................................................90
3.2.3 PiP Focus, Write ..............................................................................................................91
3.2.4 PiP layout , Read .............................................................................................................91
3.2.5 PiP layout, Write ..............................................................................................................92
3.2.6 PiP layout List, Read..........................................................................................................92
3.2.7 PiP current layout, Read......................................................................................................94
3.2.8 PiP select layout, Write .......................................................................................................95
3.2.9 PiP save layout ...............................................................................................................97
3.2.10 PiP save layout as ............................................................................................................97
3.2.11 PiP rename layout . ...........................................................................................................98
3.2.12 PiP remove Layout............................................................................................................99
3.2.13 PiP remove window ..........................................................................................................100
3.2.14 Addable sources List, read . . . ...............................................................................................100
3.2.15 PiP add window ..............................................................................................................101
3.2.16 PiP window size, Write.......................................................................................................102
3.2.17 PiP window size, Read ......................................................................................................103
3.2.18 PiP window size, increment/decrement.....................................................................................104
3.2.19 PiP Window size, Read Min/Max . ...........................................................................................104
3.2.20 PiP free window size, Write. . . ...............................................................................................105
2R5976884 RLM SERIES 04/04/2006

Table of contents
3.2.21 PiP free window size, Read . . ...............................................................................................105
3.2.22 PiP Window free size, Read Min/Max . . . ....................................................................................106
3.2.23 Window horizontal position, Write...........................................................................................106
3.2.24 Window horizontal position, Read...........................................................................................107
3.2.25 Window vertical position, Write..............................................................................................107
3.2.26 Window vertical position, Read..............................................................................................108
3.2.27 Window horizontal position, Increment/decrement .........................................................................108
3.2.28 PiP Window horizontal position, Read Min/Max ............................................................................109
3.2.29 PiP Window vertical position, Read Min/Max . . . ............................................................................110
3.2.30 PiP Priority Write ............................................................................................................110
3.2.31 Priority, Read.................................................................................................................111
3.2.32 PiP List active sources, Read ...............................................................................................111
3.2.33 PiP last added window type, Read . . . . . . ....................................................................................113
3.3 Viewport Active, Write..............................................................................................................113
3.4 Viewport Active, Read..............................................................................................................114
3.5 Viewport Active, Increment/decrement ............................................................................................114
3.6 Viewport Active Min/Max, Read....................................................................................................114
3.7 Viewport Area, Write................................................................................................................115
3.8 Viewport Area, Read ...............................................................................................................115
3.9 Viewport Area Min/Max, Read .....................................................................................................116
3.10 Desktop area, Write ................................................................................................................117
3.11 Desktop area, Read ................................................................................................................117
3.12 Digital Zoom ........................................................................................................................118
3.12.1 Minimum/Maximum window size, Read.....................................................................................118
3.12.2 Minimum/Maximum window X position, Read ..............................................................................119
3.12.3 Minimum/Maximum window Yposition, Read ...............................................................................119
3.12.4 Window size, Write...........................................................................................................120
3.12.5 Window X position (panning), Write . . . . . ....................................................................................120
3.12.6 Window Y position (panning), Write . . . . . ....................................................................................120
3.12.7 Window size, Read ..........................................................................................................121
3.12.8 Window X position (panning), read . . .. . . ....................................................................................121
3.12.9 Window Y position (panning), read . . .. . . ....................................................................................121
3.12.10 Window size, Increment .....................................................................................................122
3.12.11 Window X position, Increment...............................................................................................122
3.12.12 Window Y position, Increment...............................................................................................122
3.12.13 Window size, Decrement ....................................................................................................123
3.12.14 Window X position, Decrement..............................................................................................123
3.12.15 Window Y position, Decrement..............................................................................................123
3.13 Automatic startup, Write............................................................................................................123
3.14 Automatic startup, Read............................................................................................................124
3.15 Startup screen, Write . ..............................................................................................................125
3.16 Startup screen, Read . ..............................................................................................................126
3.17 Input balance .......................................................................................................................127
3.17.1 Input black balance, Increment..............................................................................................127
3.17.2 Input black balance, Decrement. . ...........................................................................................128
3.17.3 Input black balance, Write ...................................................................................................128
3.17.4 Input black balance, Read ...................................................................................................128
3.17.5 Input white balance, Increment..............................................................................................130
3.17.6 Input white balance, Decrement. ............................................................................................130
3.17.7 Input white balance,Write ...................................................................................................130
3.17.8 Input white balance, Read ...................................................................................................131
3.18 AutoImage setup, Write ............................................................................................................132
3.19 AutoImage setup, Read ............................................................................................................133
3.20 Automatic Gain Control, write......................................................................................................134
3.21 Automatic Gain Control, Read .....................................................................................................135
3.22 Manual Gain Control value, Write .................................................................................................136
3.23 Manual Gain Control value, Read..................................................................................................137
3.24 Gain Control, Increment/Decrement...............................................................................................138
3.25 Minimum/Maximum AGC value, Read.............................................................................................138
3.26 Automatic Gain Control interval, Write.............................................................................................139
3.27 Automatic Gain Control Interval, Read ............................................................................................139
3.28 Data input format, Increment/Decrement..........................................................................................140
3.29 Data input format, write.............................................................................................................141
3.30 Data input format, Read ...........................................................................................................141
3.31 Image files ..........................................................................................................................142
3.31.1 Delete File(s) ................................................................................................................142
3.31.2 Copy File ....................................................................................................................143
3.31.3 Rename File . . . ..............................................................................................................143
3.31.4 Move File ....................................................................................................................143
3.31.5 Image files settings, Write ...................................................................................................144
3.31.6 Image files settings, read....................................................................................................145
3.31.7 Image files settings,Increment...............................................................................................146
3.31.8 Image files settings, Decrement.............................................................................................147
3.31.9 Read Minimum/Maximum Image files settings..............................................................................148
3.31.10 VCO, Increment..............................................................................................................149
3.31.11 VCO, decrement .............................................................................................................149
R5976884 RLM SERIES 04/04/2006 3

Table of contents
3.31.12 VCO,write ....................................................................................................................150
3.31.13 VCO, Read...................................................................................................................150
3.31.14 Minimum VCO, Read ........................................................................................................151
3.31.15 Maximum VCO, Read .......................................................................................................151
3.31.16 Charge pump current, Increment/Decrement...............................................................................151
3.31.17 charge pump current, Write..................................................................................................152
3.31.18 charge pump current , Read.................................................................................................152
3.31.19 Minimum/Maximum charge pump current, Read ...........................................................................152
3.31.20 Clamp position, Increment/Decrement......................................................................................153
3.31.21 Clamp position, Write........................................................................................................153
3.31.22 Clamp position, Read........................................................................................................153
3.31.23 Minimum/Maximum clamp position, Read ..................................................................................153
3.31.24 Comb filter, Increment/Decrement...........................................................................................154
3.31.25 comb filter, Write .............................................................................................................154
3.31.26 Comb filter, Read ............................................................................................................155
3.31.27 Minimum/Maximum comb filter, Read.......................................................................................156
3.31.28 Horizontal sync polarity, Increment/Decrement.............................................................................156
3.31.29 Minimum/Maximum Horizontal sync polarity, Read.........................................................................156
3.31.30 Horizontal sync polarity, Read...............................................................................................157
3.31.31 Horizontal sync polarity, Write...............................................................................................157
3.31.32 Sync locking, Increment/Decrement ........................................................................................157
3.31.33 Minimum/Maximum Horizontal Sync locking, Read ........................................................................158
3.31.34 Sync locking, Read ..........................................................................................................158
3.31.35 Sync locking, Write...........................................................................................................158
3.32 I2C diagnosis, Read . ..............................................................................................................158
3.33 Panel size, Read . ..................................................................................................................159
3.34 Logo status, Read . . . ..............................................................................................................160
3.35 Take screenshot (Logo) . . ..........................................................................................................160
3.36 Save screenshot (Logo) . . ..........................................................................................................161
3.37 Abort saving screenshot (Logo). ...................................................................................................161
3.38 Load logo . . .........................................................................................................................162
4. RCUcommands ................................................................................................. 165
4.1 Overview............................................................................................................................165
4R5976884 RLM SERIES 04/04/2006

1. Serial communications Basics
1. SERIAL COMMUNICATIONS BASICS
Overview
• Communication Protocol
• Data words
• Communication settings
• Hardware
• Syntax
• Serial comms commands
1.1 Communication Protocol
Communication protocol summary
Like every communication method the serial communication uses a particular protocol (ANSI) which must be respected in order to
allow communication to take place, following table gives a summary of the predefined communication terms.
Start byte \xfe
Projector address
Command byte(s)
Data bytes1
Checksum byte
Stop byte \xff
ANSI
American National standards Institute
Start byte
The “Start byte” informs the projector (in case of transmission) or the computer (in case of reception) that a new data transfer will
take place
Projector address
The “projector address” defines the address of the computer the projector wants to talk to (in case of transmission) or the address
of the projector that answers (in case of reception).
The maximum number of projectors that can be addressed by one computer is 256.
Command byte(s)
There is at least one command byte to define the action to be performed. Commands that are not often used or complex commands
can take more than one byte. All command bytes that are sent by the computer to get information out of the projector are repeated
in the answer-data-transfer of the projector.
Data bytes (optional)
Whether the command bytes are followed by one or more data bytes depends on the contents of the command bytes.
Data which contains more than one byte is called a word and can also be signed or unsigned.see "Data words", page 6
1. optional
R5976884 RLM SERIES 04/04/2006 5

1. Serial communications Basics
Some commands do not require a data field(s)
Checksum byte
The “Checksum byte” is used to detect errors during transmission or reception
Checksum byte = (projectoraddress + command bytes + Data bytes) Modulo \x100
Stop byte
The “Stop byte” informs the projector (in case of transmission) or the computer (in case of reception) that the data transfer is complete
and that the interpretation of the command and data bytes can start.
Acknowledge (ACK)
If the communication link and if the sent commands can be interpreted by the projector an “ACK” command is sent back. In case the
commands cannot be interpreted a “NACK” command is sent back.
End of process (EOP)
When the end of process command is activated, an EOP is send after the ACK command to signify the completion of the process.
for more information about this, see the EOP command.
Note
Any command byte, data byte or checksum byte that equals \x80, \xfe, \xff hastobeconverted!
1. Transmission
- instead of \x80, send \x80 followed by \x00
- instead of \xfe, send \x80 followed by \x7e
- instead of \xff, send \x80 followed by \x7f
2. Reception
- replace \x80 followed by \x00 with \x80
- replace \x80 followed by \x7e with \xfe
- replace \x80 followed by \x7f with \xff
1.2 Data words
msb
The most significant byte, is the byte with the greatest weight (value).
lsb
The less significant byte, is the byte with the smallest weight (value).
Description
A word contains more than one byte, the first byte is the msb, the last byte is the lsb.
Examples of data words
• The projector runtime parameter is described using an unsigned double word where 2 bytes (msb ...lsb) represent the value of
the runtime in seconds.
How to calculate the value of a word ?
Lets take the example of a double word returned by the “projector runtime, read” commando.
6R5976884 RLM SERIES 04/04/2006

1. Serial communications Basics
returned data = Data[0]....Data[3]
value = Data[0]*2563+ Data[1]*2562+ Data[2]*256 + Data[3].
1.3 Communication settings
Baud rate
Defines the speed of the data transfer. The baud rate can be set using the menu structure.
Consult the Owner’s manual of the projector on how to change the baud rate setting.
Data Bits
Eight data bits are used for each character of the data transfer.
Parity
There is no parity bit used to perform error checking.
Stop Bits
One stop bit is used to define the end of a character.
1.4 Hardware
Overview
• Female D9–pin connector labelled “RS232 IN” used to connect the projector with the computer.
Pin out of the D9 connector:
Pin Name Full Name
1CD Carrier Detect
2RxD Received Data
3TxD Transmitted Data
4DTR Data Terminal Ready
5GND Signal Ground
6DSR Data Set Ready
7RTS Request To Send
8CTS Clear To Send
9RI Ring Indicator
• Standard serial Cable
- order number R9827560 (cable length = 15m )
- order number R9827570 (cable length = 30m )
R5976884 RLM SERIES 04/04/2006 7

1. Serial communications Basics
1
CD
2
RxD
3
TxD
4
DTR
5
GND
6
DSR
7
RTS
8
CTS
9
RI
1
CD
2
RxD
3
TxD
4
DTR
5
GND
6
DSR
7
RTS
8
CTS
9
RI
D9
female
D9
male
Image 1-1
connection: IBM PC or compatible →projector
1
HSKo
2
HSKi
3
TxD-
4
GND
5
RXD-
6
TXD+
7
n.c.
8
RXD+
4
DTR
8
CTS
3
TxD
5
GND
2
RxD
DIN
mini 8
D9
male
Image 1-2
connection: MAC →projector
Signal levels
Following table gives the signal levels corresponding to the different states:
State Voltage
Off = 1 -9V
On = 0 +9V
8R5976884 RLM SERIES 04/04/2006

1. Serial communications Basics
1.5 Syntax
Characters
In this manual, all characters are expressed using the C- language syntax:
decimal values ddd2
hexadecimal values \xhh3
The characters that can be used are
For text fields: "ABCDEFGHIJKLMNOPQRSTUVWXYZ0123456789+-/&@#_:;abcdefghijklmnopqrstuvwxyz”
For filenames: "?*ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz0123456789_ -"
Negative values /numbers
The 2s complement number system is used to express negative numbers
Pascal- language string
A Pascal-language string consists of one or more characters. The first character of the string contains the length of the string.
Therefore, a Pascal-language string is limited to 255 characters.
Pascal string ’Hello world”
length \x0b
’h’ \x68
’e’ \x65
’l’ \x6c
’l’ \x6c
’o’ \x6f
”\x20
’w’ \x77
’o’ \x6f
’r’ \x72
’l’ \x6c
’d’ \x64
C-language string
A C-language string consists of one or more characters. The last character of the string is always the NULL character \x00.There-
fore, the length of a C-language string is determined by the position of the NULL character..
C string ’Hello world”
’h’ \x68
’e’ \x65
’l’ \x6c
’l’ \x6c
’o’ \x6f
”\x20
’w’ \x77
2. ddd=0...255
3. hh=00...ff
R5976884 RLM SERIES 04/04/2006 9

1. Serial communications Basics
’o’ \x6f
’r’ \x72
’l’ \x6c
’d’ \x64
NULL \x00
standard file
Predefined file stored in read-only memory
custom file
File created by the user and stored in non-volatile read write memory
Filename
A filename is specified as a C-language string. This string has to follow some rules:
x x x x x x x x . y z z NULL
1. length string = 12
2. x = character of the base name formed by max 8 characters
3. y = kind of file (= 1 character)
’s’ standard file
’c’ custom file
4. z = file index (= 2 characters: 0..9)
zz specifies the location in memory where the file is stored.
- for standard files: zz = 00...maximum standard files
- for custom files: zz = 00...63 where 00 is reserved for the file ’none .c00’ (file which is loaded when no signal is applied)
5. yzz is a unique combination. In other words, no two files can exist with the same extension yzz.
To specify more than one file you can use the question mark (?) and (*) wildcard character for x, y and z (or
any other character).
?: This wildcard character can represent any possible character on a particular location.
* : This wildcard character can represent any possible character(s) following the wildcard’s position in the
string.
•”ntsc .c01”
•”svga_60v.s?7”
•”????????.???”
• ”sv*.*”
1.6 Serial comms commands
Basic Commands
Basic commands are the commands used to control the basic parameters of the projector.
The Contrast increment command is a basic command.
Advanced Commands
Advanced commands are used to control advanced parameters of the projector.
The Pip loop focus is an advanced parameter
10 R5976884 RLM SERIES 04/04/2006

1. Serial communications Basics
This manual is divided in two parts, the first part contains the basic (elementary) commands while the second
part gives an overview of the available advanced commands.
Some commands are illustrated with an example.
R5976884 RLM SERIES 04/04/2006 11

1. Serial communications Basics
12 R5976884 RLM SERIES 04/04/2006

2. Basic Commands
2. BASIC COMMANDS
Overview
• End of process (EOP)
• Identification Commands
• RCU commands
• Projector ON/OFF, Write
• Projector’s Status, Read
• Lens commands
• Picture setting
• Menu Exit
• Source selection
• Scanned inputs, read
• Scan inputs
• File, Load
• Orientation, Write
• Orientation, Read
• Shutter, Write
• Shutter, Read
• Freeze, Write
• Freeze, Read
• Logo ON/OFF
• Background, Write
• Background, Read
• Aspect ratio, Write
• Aspect Ratio, Read
• Show Native resolution (ON/OFF), Write
• Show Native resolution (ON/OFF), Read
• Full screen representation(ON/OFF), Write
• Full screen representation (ON/OFF), Read
• Keystone, Write
• Keystone, Read
• Lamp commands
• Image files
• Color temperature
• Standby Timer, Write
• Standby Timer, Read
• Switching mode, Write
• Switching mode, Read
• Filmmode detection, Increment/Decrement
• Filmmode detection, Write
• Filmmode detection, Read
• Autoimage execute
•Blanking
2.1 End of process (EOP)
Description
When activated returns an EOP whenever a command has been executed (processed).
An activation byte has to be sent in order to activate or disactivate the end of process function.
R5976884 RLM SERIES 04/04/2006 13

2. Basic Commands
Command
Command [0] \x00
Command [1] \x01
Sent Data
Data[0] = activation byte : \x00 = OFF ; \x01 = ON
Returned data
When you send a particular command (for example projector ON), the EOP will be returned when the command has been executed
Command [0] \x00
Command [1] \x01
The EOP will be sent after the ACK.
In case of a read command there is no EOP returned by the projector.
2.2 Identification Commands
2.2.1 Device type, Read
Description
Reads the device (projector) type, the returned string is a Pascal-language string.
Command
Command [0] \x6b
Returned Data
Data[0] = byLength = 1 byte describing the length of the string.
Data[1] = strDeviceType = pascal-language string describing the device type.
An example of device type is “RLM”
2.2.2 Projector’s Software type, Read
Description
Reads the Projector’s Software type, the returned string is a Pascal-language string.
Command
Command [0] \x6a
Returned Data
Data[0] = byLength = 1 byte describing the length of the software version string.
Data[1] = strSoftwareType = pascal-language string describing the software type.
An example of software type is “Standard”
14 R5976884 RLM SERIES 04/04/2006

2. Basic Commands
2.2.3 Projector’s Software version, Read
Description
Reads the Projector’s Software version, the returned string is a Pascal-language string.
Command
Command [0] \x60
Returned Data
Data[0] = byLength = 1 byte describing the length of the software version string.
Data[1] = strSoftwareVersion
2.2.4 Projector’s Serial number, Read
Description
Reads the Projector’s serial number, the returned string is a Pascal-language string.
Command
Command [0] \x61
Returned Data
Data[0] = \x07 = length of the serial number = 7 characters
Data[1] = string of length 7
2.2.5 Projector’s runtime, Read
Description
Reads the Projector’s runtime in seconds
Command
Command [0] \x62
Returned Data
unsigned double word (4 bytes).
Data[0] = msb
Data[1]
Data[2]
Data[3] = lsb
2.2.6 Projector address, Write
Description
