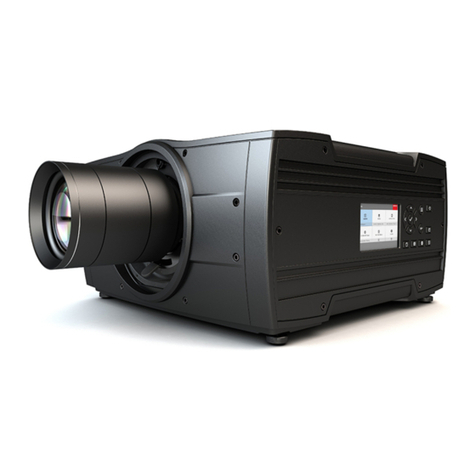

Compact DLP Barco Alchemy Cinema projector for screens up to 12m (39ft)
The Barco Alchemy DP2K12C is a compact
andfullyintegrateddigitalcinemaprojector,
based on Texas Instruments' proven 0.98”
DLP Cinema® chip. It ensures a firstclass
movie experience with consistent picture
brightness, rich contrast and vibrant colors.
By merging the projector and media server
functionalities into one module, the
DP2K12C Barco Alchemy projector is a
fullfledged, DCIcompliantprojector and
mediaserver solution that includes
onboard storage. Reducing the required
hardware, it increases simplicity and
reliability.Thesmartprojectorevendetects
potentialoperationalerrorsandwarnsusers
if,forinstance,ascheduledshowismissing
assets or KDMs. Great in TMS
environments, it operates standalone in
singlescreen applications. Thanks to the
embedded Barco Web Commander user
interface, shows can be created and
scheduledremotely.
Lowcostofownership
GearedwiththeintegratedBarcoAlchemytechnologythatdrivesoperational
andmaintenancecostsdown,theDP2K12Cofferssuperiorimageprocessing,
pristineimagesandultimatereliabilityatalowTCO.
Easyoperationandmaintenance
TheDP2K12Ccomeswiththe‘BarcoWebCommander’screenmanagement
system featuring an intuitive user interface. The projector detects potential
operational errors and warns users if, for instance, a scheduled show is
missingassetsorKDMs.Italsohasaneasytouse,fullymodulararchitecture
forsimpleserviceabilityandhigheruptime.
TheDP2K12Cprojectorisalsoavailableinapackagewithathirdpartymedia
serveranditcanbeorderedwithouttheBarcoAlchemymoduleaswell.
UniquebenefitsofBarcoAlchemytechnology
⋅Combinesmediaserverfunctionalitieswithcinemaprocessingelectronics
⋅Fewerboxesleadtomorereliabilityandeaseofuse
⋅Simpleoperationthankstointuitive‘BarcoWebCommander’userinterface
⋅EasyupgradingofSeries2projectorswithBarcoAlchemymodule

Productspecifications DP2K12C
DigitalMicroMirrorDevice™ 3x0.98”DC2Kdarkmetaldevices
Nativeresolution 2,048x1,080pixels
Housing HermeticallysealedDMDsandopticalassembly
Lamp 1.2kW2kW
Lightoutput 9,500lumens
Screensize Upto12m/39ftwide(screengain1.2@14ftl)
Primelenses 1.21.8
1.42.05
1.62.5
1.953.2
2.43.9
ControlI/O 3xEthernet
8xGPIO(DB25)
3Dinterface
USBRS232interface(DB9)
IntegratedCinemaMediaProcessor JPEG20002K&4KDCIplayout
HighFrameRates3Dupto120fps(60fpspereye)
JPEG2000bitratesupto625Mbps
Dualchannelcolorcorrection
MPEG2(4:2:0and4:2:2upto60fps)
H.264**
2xDisplayPort1.1a
2x3GSDIinputs*
1xmultimediaHDMI1.4ainput(BluRay3D/4K)*
16xAES/EBUaudiochannels(2xRJ45)
8xGPI,8xGPO(4xRJ45)
2xETHforcontentconnectivity&ingest
2xfrontaccessibleUSB3.0forfastingest
2xfrontaccessibleUSB2.0
*intesting
**softwareroadmap
Integratedstorage 1.9TBeffectivestorage(RAID5)
3x1TBHotswappable2.5"harddrives
BarcoWebCommander ProjectorDashboard
ProjectorControlBoard
ShowPlayer/Editor/Scheduler
Automation,3D,Ingest
TMSintegration
SmartProjectorStatus
ViaHTML5webbrowsersincludingiOS&Androidtablets.
BarcoCommunicator Projectorinstallation&configuration
Projectorupdate&maintenance
Projectordiagnostics viaIntegratedMediaServer
viaCommunicatorcontrolsoftware
viaSNMPagent
Powerrequirements 220V
Dimensions 558(H)x694(W)x1034(D)mm
22.0(H)x27.3(W)x40.7(D)inch
NB.:min.5cmofairinletspacingrequiredatthebottomofprojector
Weight 100kg(220lbs)
Ambienttemperature 35°C/95°FMax.
Options BarcoCineMateApp(iOS&Android)free
ACS2048
3Daddons
Touchscreenmonitor,inc.BarcoCommander&Communicator
Pedestal
CineCareWeb
Auro11.1license**
Live3D***
Ghostbusting***
**Intesting
***Softwareroadmap
Generatedon:05Jun2014
Technicalspecificationsaresubjecttochangewithoutpriornotice.
Pleasecheckwww.barco.comforthelatestinformation.
