Barco D320 User manual

MEDIA
D320 DIGITIZER
R9850710
OWNER’S MANUAL
18102002 R5976388/02

Barco nv Media
Noordlaan 5, 8520 Kuurne
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
Visit us at the web: www.barco.com
Printed in Belgium

Copyright ©
All rights reserved. No part of this document may be copied, reproduced or translated. It shall not otherwise be recorded, transmitted or
stored in a retrieval system without the prior written consent of BARCO.
Guarantee and Compensation
Barco provides a guarantee relating to perfect manufacturing as part of the legally stipulated terms of guarantee. On receipt, the purchaser
must immediately inspect all delivered goods for damage incurred during transport, as well as for material and manufacturing faults Barco
must be informed immediately in writing of any complaints.
The period of guarantee begins on the date of transfer of risks, in the case of special systems and software on the date of commissioning,
at latest 30 days after the transfer of risks. In the event of justified notice of compliant, Barco can repair the fault or provide a replacement
at its own discretion within an appropriate period. If this measure proves to be impossible or unsuccessful, the purchaser can demand a
reduction in the purchase price or cancellation of the contract. All other claims, in particular those relating to compensation for direct or
indirect damage, and also damage attributed to the operation of software as well as to other services provided by Barco, being a component
of the system or independent service, will be deemed invalid provided the damage is not proven to be attributed to the absence of properties
guaranteed in writing or due to the intent or gross negligence or part of Barco.
If the purchaser or a third party carries out modifications or repairs on good delivered by Barco, or if the goods are handled incorrectly,
in particular if the systems are commissioned operated incorrectly or if, after the transfer of risks, the goods are subject to influences not
agreed upon in the contract, all guarantee claims of the purchaser will be rendered invalid. Not included in the guarantee coverage are
system failures which are attributed to programs or special electronic circuitry provided by the purchaser, e.g. interfaces. Normal wear as
well as normal maintenance are not subject to the guarantee provided by Barco either.
The environmental conditions as well as the servicing and maintenance regulations specified in the this manual must be complied with by
the customer.
Changes
Barco provides this manual “as is” without warranty of any kind, either expressed or implied, including but not limited to the implied war-
ranties or merchantability and fitness for a particular purpose. Barco may make improvements and/or changes to the product(s) and/or the
program(s) described in this publication at any time without notice.
This publication could contain technical inaccuracies or typographical errors. Changes are periodically made to the information in this
publication; these changes are incorporated in new editions of this publication.
Trademarks
Brand and product names mentioned in this manual may be trademarks, registered trademarks or copyrights of their respective holders.
All brand and product names mentioned in this manual serve as comments or examples and are not to be understood as advertising for
the products or their manufactures.
Federal Communication Commission (FCC Statement)
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user is encouraged to try to correct the interference by one or more of the following measures.
Introduction to the user :
If this equipment does cause interference to radio or television reception, the user may try to correct the interference by one or more of the
following measures :
• Re-orientation of the receiving antenna for the radio or television.
• Relocate the equipment with respect to the receiver.
• Plug the equipment into a different outlet so that the equipment and receiver are on different branch circuits.
• Fasten cables connectors to the equipment by mounting screws.
The use of shielded cables is required to comply within the limits of Part 15 of FCC rules and EN55022.

Revision Sheet
To:
Barco nv Media/Documentation
Noordlaan 5, B-8520 Kuurne
Phone: [phone], Fax: [phone]
E-mail: [email protected], Web: www.barco.com
From:
Date:
Please correct the following points in this documentation (R5976388/02):
page wrong correct
R5976388 D320 DIGITIZER 18102002

Table of contents
TABLE OF CONTENTS
1. Safety..................................................................................................................3
1.1 Important Safety Instructions ........................................................................................................... 3
1.2 Important Warnings ..................................................................................................................... 4
2. Introduction .......................................................................................................... 5
2.1 General functionality .................................................................................................................... 5
2.2 OrderinfoD320Digitizer ............................................................................................................... 5
2.3 Technicalsummary ..................................................................................................................... 5
2.4 DimensionsoftheD320Digitizer....................................................................................................... 6
3. Physical Installation ................................................................................................ 7
3.1 Installation requirements................................................................................................................ 7
3.2 Connections............................................................................................................................. 7
3.3 Removing and inserting a D320 input module ......................................................................................... 8
4. Input modules.......................................................................................................11
4.1 DVI input module.......................................................................................................................11
4.2 SDI input module.......................................................................................................................11
4.3 HDSDI input module ...................................................................................................................12
4.4 CVBS / S-VID input module ...........................................................................................................13
4.5 YUV / RG(s)B input module ...........................................................................................................13
4.6 RGB analog input module .............................................................................................................14
4.7 Dummy input module ..................................................................................................................15
5. ControlSoftware ...................................................................................................17
5.1 XLitetoolset............................................................................................................................17
5.2 Signam!cs..............................................................................................................................17
6. Maintenance.........................................................................................................19
6.1 Cleaning the dust filter.................................................................................................................19
6.2 Cleaning the cabinet ...................................................................................................................19
7. Options...............................................................................................................21
7.1 Overview ...............................................................................................................................21
Index......................................................................................................................23
R5976388 D320 DIGITIZER 18102002 1

Table of contents
2R5976388 D320 DIGITIZER 18102002

1. Safety
1. SAFETY
1.1 Important Safety Instructions
Instructions:
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do NOT submerge fully or partly in water or other liquids.
• Clean only with materials or chemicals that are inert, nonabrasive, noncorrosive and non-marking. Consult the manufacturer
for further advice should any doubts exist regarding any cleaning procedure.
• Do not block ventilation openings. Install in accordance with the manufacturers instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that
produce heat.
• Do not defeat the safety purpose of the polarized or grounding type plugs/sockets. If the provided sockets / plugs are damaged
then replacement of the defective parts must be undertaken immediately.
• Protect the power/data cords from being walked on or pinched particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus. Replace damaged power/data cords immediately.
• Only use attachments/accessories specified by the manufacturer.
• Disconnect the power to this apparatus during lightning storms or provide suitable additional lightning protection. Unplug this
apparatus when unused for long period of time.
• Refer all servicing to qualified service technicians/personnel. Servicing is required when the apparatus has been damaged in
any way, such as power-supply cord or plug is damaged, the apparatus does not operate normally, or has been dropped.
• Use only with systems or peripheralsspecified by the manufacturer, or sold with the apparatus. Use caution during lifting/moving
or transporting to avoid damage by possible tipping.
R5976388 D320 DIGITIZER 18102002 3

1. Safety
1.2 Important Warnings
Important Warnings:
•Risk of electric shock:
Image 1-1
Risk of electrical shock
Risk of electric shock. Do not open. To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable
parts inside. Refer servicing to qualified service personnel.
The lightning flash with an arrowhead within a triangle is intended to tell the user that parts inside this product may cause a risk
of electrical shock to persons.
The exclamation point within a triangle is intended to tell the user that important operating and/or servicing instructions are
included in the technical documentation for this equipment.
•Maximum ambient temperature:
The maximum recommended ambient temperature for this equipment is 40 C.
•Flammable materials:
Keep flammable materials away from the installation (such as curtains). A lot of energy is transferred into heat. The installation
should be such that the amount of air flow required for safe operation of the equipment is not compromised. Proper ventilation
must be provided.
•This equipment MUST be earthed:
In order to protect against risk of electric shock, the installation should be properly grounded. Defeating the purpose of the
grounding type plug will expose you to the risk of electric shock. This apparatus must be grounded (earthed) via the supplied
3 conductor AC power cord. (If the supplied power cord is not the correct variant, consult your dealer.)
•Power system:
It is recommended to use a TN-S power distribution system (a power distribution system with a separate neutral and grounding
conductor) in order to avoid large ground currents loops due to voltage differences in the neutral conductor. The total electrical
installation should be protected by an appropriate rated disconnect switch, circuit breakers and Ground Fault Current Inter-
rupters. The installation shall be done according to the local electrical installation codes. In Europe special attention should be
given to EN 60364, the standard for electrical installation of buildings. In Germany VDE 0100 should be adhered to.
•Mains cords:
The power cords delivered with this system have special properties for safety. They are not user serviceable. If the power cords
are damaged, replace only with new ones. Never try to repair a power cord.
•Use of an extension cord:
If an extension cord is used with this product, make sure that the total of the ampere ratings on the products plugged into the
extension cord does not exceed the extension cord ampere rating. Also make sure that the total of all products plugged into
the wall outlet does not exceed 15 amperes.
•Cabinet openings:
Never push objects of any kind into this product through cabinet slots as they may touch dangerous high voltage points or short
out parts that could result in a risk of fire or electrical shock.
Never spill liquid of any kind on the product. Should any liquid or solid object fall into the cabinet, unplug the set and have it
checked by qualified service personnel before resuming operations.
4R5976388 D320 DIGITIZER 18102002

2. Introduction
2. INTRODUCTION
2.1 General functionality
Overview
The D320 allows you to control up to 4 sources on one display. Seamless switch from source to source or display sources together,
overlay them, customize them. With analog and digital outputs which allow for the control of displays, as well as built-in-control
software, the D320 gives you control over everything from basic set-up to configuration and advanced feature control.
2.2 Order info D320 Digitizer
Order info:
Article No. Description
R9850710 D320 Digitizer
2.3 Technical summary
Summary
Type Value
Input slots 4 input slots, front accessible, auto sensing and hot swappable
Compatibility Barco Daylight Displays
Output DVI-A, DVI-D, RGB
Scalability Chaining for more inputs, stacking for more displays
Flexibility User defined input
Scaler 4 input channels [Data-Video] fully independent scalable to desired output
resolution
Z-order control Instant modification of Z-order control, for each output window
Window Positioning Intuitive positioning interface
Connectors RS 232 [RJ 11] — Ethernet [RJ 45]
Effects Anamorphic imaging, Chroma keying [per input], Alpha keying [per input], Z-order
control, Windowing/ View ports
Ruggedness IP 10
Dimensions D320 486 x 482 x 53 (W x D x H)
Dimensions D320 Input Units 41 x 181 x 103 (W x D x H)
Weight ±7kg
Operating Temperature 0ºC<>45ºC
Power consumption 120 Watt max at 90–264 Volt (50–60 Hertz)
Stacking Up to 64 units (for 64 different displays)
Chaining Up to 64 units (for 256 inputs)
R5976388 D320 DIGITIZER 18102002 5

2. Introduction

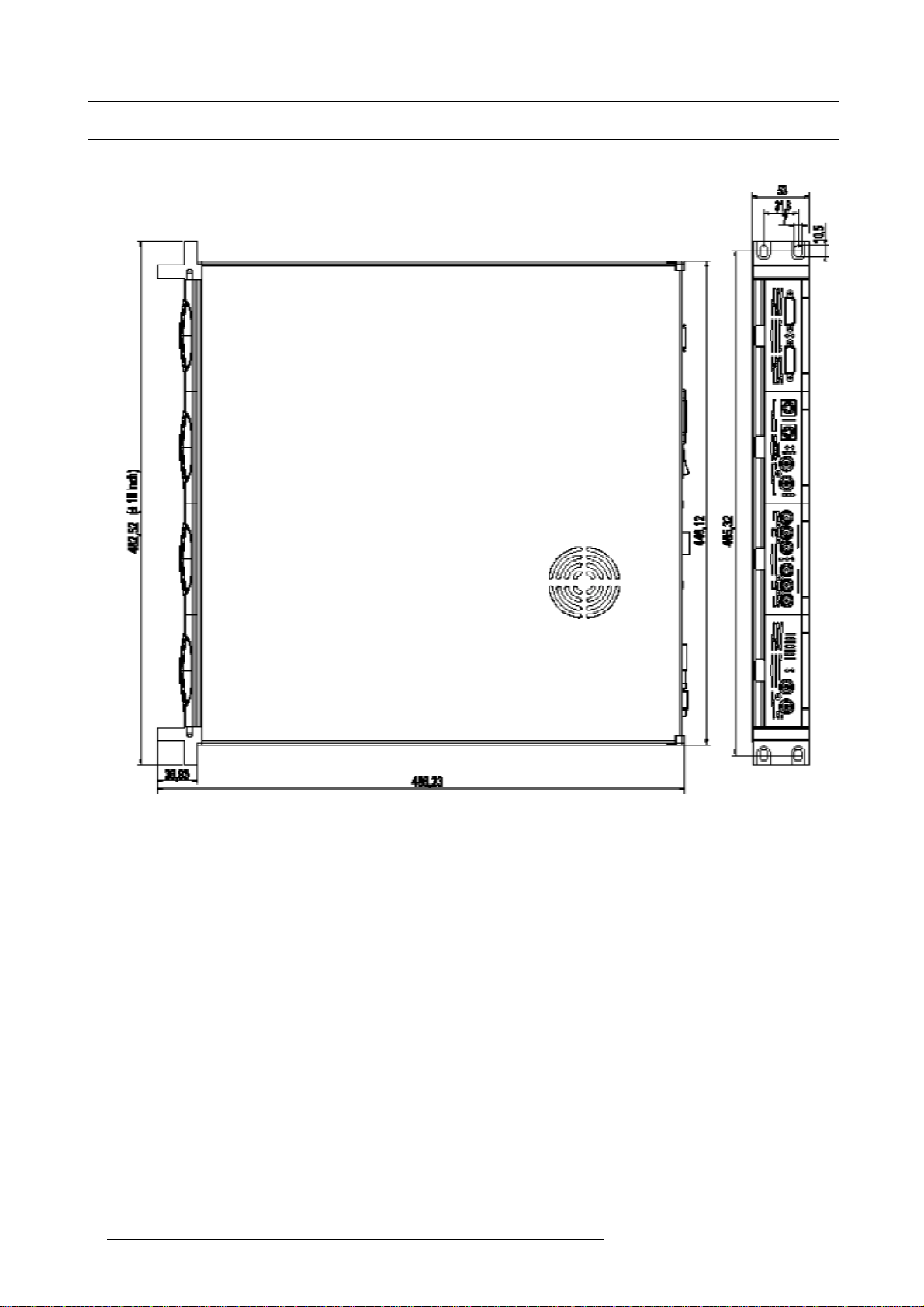

2.4 Dimensions of the D320 Digitizer
Dimensions
Image 2-1
6R5976388 D320 DIGITIZER 18102002

3. Physical Installation
3. PHYSICAL INSTALLATION
3.1 Installation requirements
Requirements
• The Digitizer should not be placed in a built-in installation or enclosure unless proper ventilation is provided.
• When using the unit in a multi-unit rack assembly or closed assembly, the ambient temperature inside the assembly may not
exceed the maximum rated ambient temperature of the Digitizer. The installation should be such that the amount of air flow
required for safe operation of the equipment in not compromised.
• When building in the Digitizer into a rack with cover door, be aware that a space of 8,5 cm is needed between the indicated
reference and the cover door. This space is needed to guide the input cables to the inputs.

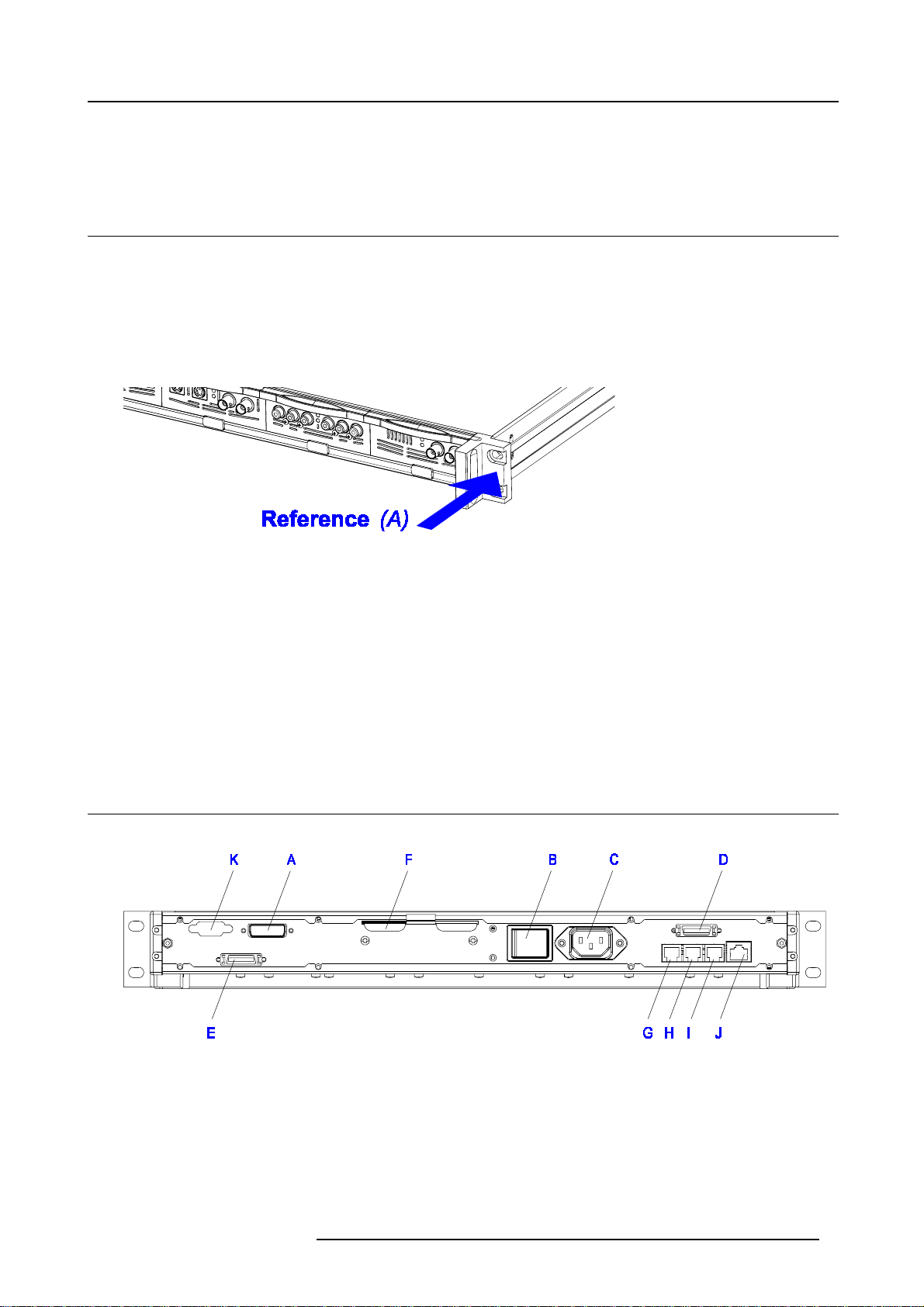

Image 3-1
A Reference
• The Digitizer will require that air flows freely in vent holes. Blocking these holes will greatly reduce the reliability of the unit and
lead to the possibility of overheating.
• The Digitizer should operate from an AC power source. The Digitizer is equipped with Power Supply Autoranging from 90 to
264 volt (50–60 Hertz).
• When installed in a rack, the mounting should be such that no hazardous condition is achieved due to uneven mechanical
loading.
• When the mains switch located on the back of the Digitizer is not accessible due to rack mounting, the socket outlet supplying
the rack shall be installed near the equipment and be easily accessible or a readily accessible disconnect device shall be
incorporated in the fixed wiring. When using a rack in an installation is advisable to log the serial number of the device and to
activate the warranty figure by registering utilizing the included form.
• Do not place the Digitizer on an unstable cart, stand or table. The device may fall, causing serious damage to it.
3.2 Connections
Rear panel inputs/outputs
Image 3-2
A Led-wall out
B Power Switch
C Power input
D Loop in
E Loop out
F Retractable dust filter
G RS232 in
H Reserved
I RS232 out
J Ethernet LAN connector
K Monitor out
R5976388 D320 DIGITIZER 18102002 7

3. Physical Installation
•A : Led-wall out
-DVI.
- Data output source to drive ILite / DLite display wall.
•B : Power switch
- The power ON/OFF switch is provide on the rear side of the Digitizer.
oSwitch pressed to 1 = the unit starts.
oSwitch pressed to 0 = unit totally switched off.
•C : Power input
- Autoranging from 90 to 260 VAC / 130 Watt.
•D : Loop in
- From previous Digitizer.
- Panel Link MDR26.
- Used for chaining multiple digitizer to increase the number of usable input sources.
•E : Loop out
- To next Digitizer.
- Panel Link MDR26.
- Used for chaining multiple digitizer to increase the number of usable input sources.
•F : Retractable dust filter
- The fan intake grill of the Digitizer has a retractable dust filter. This filter can be retracted from the back of the unit. Check
the filter for good functionality on a regular basis. Never allow this filter to become blocked up and never operate the unit
without a good working air filter in place.
•G : RS232 in
- Direct master.
- RS232 input port for communication links with local PC.
•H : Reserved communication port
•I : RS232 out
- RS232 output port for communication links from a PC or to other Digitizers in chain.
•J : Ethernet LAN connector
- For future use.
•K : Monitor out
- RGBHV (DD15)
oRed (75 Ohm output impedance)
oDefault: 0,7 Vpp
oAdjustable: 0,5 Vpp to 1,0 Vpp via user interface
oGreen (75 Ohm output impedance)
oDefault: 0,7 Vpp
oAdjustable: 0,5 Vpp to 1,0 Vpp via user interface
oBlue (75 Ohm output impedance)
oDefault: 0,7 Vpp
oAdjustable: 0,5 Vpp to 1,0 Vpp via user interface
- H (TTL output)
oSet TTL-Level polarity via user interface.
- V (TTL output)
oSet TTL-Level polarity via user interface.
The “Led-wall out” connector is property to Barco LED walls. Do not connect to other devices than a Barco
LED wall.
3.3 Removing and inserting a D320 input module
There is no need to switch off the D320 Digitizer to remove or insert an input module. The input modules are
hot swappable.
8R5976388 D320 DIGITIZER 18102002

3. Physical Installation
How to remove an input module from the D320 Digitizer
1. Push in the release button underneath the input module which you want to remove. At the same time pull out the input module
by the grip handle. (image 3-3)
Image 3-3
How to insert an input module into the D320 Digitizer
1. Gently slide in the input module into a free input slot with the grip handle at the top.
2. Locking in the module by pushing the input module completely into the Digitizer until a definite click is audible.
R5976388 D320 DIGITIZER 18102002 9

3. Physical Installation
10 R5976388 D320 DIGITIZER 18102002

4. Input modules
4. INPUT MODULES
Overview
• DVI input module
• SDI input module
• HDSDI input module
• CVBS / S-VID input module
• YUV / RG(s)B input module
• RGB analog input module
• Dummy input module
4.1 DVI input module
Technical info:
• Computer generated graphical source.
• DVI data in (DVI-I connector).
• Maximum 162 Mbit/s transmission.
• Resolution from VGA to UXGA.
• DVI compliant.
• DVI loop through (DVI-I connector).
• Amber LED (upper LED on the front side) will be lit indicating module start up.
• When placed in an input slot the green LED (lower LED on the front side) will be lit indicating that the system acknowledge the
module.
Image 4-1 Image 4-2
Order info:
Article No. Description
R9850960 D320 DVI input module
4.2 SDI input module
Technical info:
• SDI data in.
• SDI loop through.
• 270Mbit/s transmission (SMPTE 259M-C).
• 525/625 interlaced.
• Coax (75 Ohm).
• Amber LED (upper LED on the front side) will be lit indicating recognition of film, either continuous or intermittent film detection.
• When placed in an input slot the green LED (lower LED on the front side) will be lit indicating that the system acknowledge the
module.
R5976388 D320 DIGITIZER 18102002 11

4. Input modules
Image 4-3 Image 4-4
Order info:
Article No. Description
R9850970 D320 SDI input module
4.3 HDSDI input module
Technical info:
• HDSDI data in (SMPTE292M).
• HDSDI loop through (SMPTE292M).
• Coax (75 Ohm).
• Amber LED (upper LED on the front side) will be lit indicating recognition of film, either continuous or intermittent film detection.
• When placed in an input slot the green LED (lower LED on the front side) will be lit indicating that the system acknowledge the
module.
• Supported HDSDI standards:
- Progressive:
o1280x720/60/1:1/ (SMPTE 296M)
o1280x720/59.94/1:1/ (SMPTE 296M)
o1920x1080/30/1:1/ (SMPTE 274M)
o1920x1080/29.97/1:1/ (SMPTE 274M)
o1920x1080/25/1:1/ (SMPTE 274M)
o1920x1080/24/1:1/ (SMPTE 274M)
o1920x1080/23.98/1:1/ (SMPTE 274M)
- Interlaced:
o1920x1035/60/2:1/ (SMPTE 260M)
o1920x1035/59.94/2:1/ (SMPTE 260M)
o1920x1080/60/2:1/ (SMPTE 274M)
o1920x1080/59.94/2:1/ (SMPTE 274M)
o1920x1080/50/2:1/ (SMPTE 274M)
o1920/1080/50/2:1 (1250)/ (SMPTE 295M)
o1920x1080/24/Segmented/ (SMPTE 274M)
o1920x1080//23.98/Segmented/ (SMPTE 274M)
Image 4-5 Image 4-6
12 R5976388 D320 DIGITIZER 18102002

4. Input modules
Order info:
Article No. Description
R9850980 D320 HDSDI input module
4.4 CVBS / S-VID input module
Technical info:
• Video (BNC)
- CVBS : 1Vpp ±3dB (0,7V Video +0,3V Sync) 75 Ohm termination.
- BNC loop through connector.
• S-Video (4 pins DIN)
- Y : 1Vpp ±3dB (0,7V Video +0,3V Sync) 75 Ohm termination.
- U/V : 0,7Vpp ±3dB 100% color base, 75 Ohm termination.
- Chroma : Multi-Standard (PAL / SECAM / NTSC).
- 4 pins DIN loop through connector.
• Amber LED (upper LED on the front side) will be lit indicating recognition of film, either continuous or intermittent film detection.
• When placed in an input slot the green LED (lower LED on the front side) will be lit indicating that the system acknowledge the
module.
Image 4-7 Image 4-8
Order info:
Article No. Description
R9850920 D320 CVBS / S-VID input module
4.5 YUV / RG(s)B input module
Technical info:
• Component Video (BNC)
- R-Y : 0,7Vpp ±3dB 75 Ohm termination.
- Ys : 1Vpp ±3dB (0,7V Luma +0,3V Sync) 75 Ohm termination.
- B-Y : 0,7Vpp ±3dB 75 Ohm termination.
•RG(s)B(BNC)
- R : 0,7Vpp ±3dB 75 Ohm termination.
- G(s) : 1Vpp ±3dB (0,7Vpp G + 0,3Vpp Sync) 75 Ohm termination.
- B : 0,7Vpp ±3dB 75 Ohm termination.
• 3 BNC’s loop through connectors.
• Amber LED (upper LED on the front side) will be lit indicating recognition of film, either continuous or intermittent film detection.
• When placed in an input slot the green LED (lower LED on the front side) will be lit indicating that the system acknowledge the
module.
R5976388 D320 DIGITIZER 18102002 13

4. Input modules
Image 4-9 Image 4-10
Order info:
Article No. Description
R9850940 D320 YUV / RG(s)B input module
4.6 RGB analog input module
Technical info:
• Sub D15 connector for input and loop through.
• R, G, B, Hsync, Vsync : 0 to 1 Vpp ±3dB 75 Ohm termination.
• Black level : 300mV.
•Sync-tip:0V
• Resolution : SXGA and UXGA version available.
• Amber LED (upper LED on the front side) will be lit indicating recognition of film, either continuous or intermittent film detection.
• When placed in an input slot the green LED (lower LED on the front side) will be lit indicating that the system acknowledge the
module.
Image 4-11 Image 4-12
Order info:
Article No. Description
R9850950 D320 RGB analog SXGA input module
R9851710 D320 RGB analog UXGA input module
14 R5976388 D320 DIGITIZER 18102002
