Barco VRWF-3200 User guide

Barco VR Workroom
System Installation Manual
R9898370 (VRWF-3200) - R9898371 (VRWR-3200)
R9898372 (VRWF-3201) - R9898373 (VRWR-3201)
R9898374 (VRWR-3202)
R5976989/0A
22/09/2006

Product revision
Software version: 1.25
Barco nv Simulation Products
Noordlaan 5, B-8520 Kuurne
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
Visit us at the web: www.barco.com
PrintedinBelgium

Changes
Barco provides this manual ’as is’ without warranty of any kind, either expressed or implied, including but not limited to the implied war-
ranties or merchantability and fitness for a particular purpose. Barco may make improvements and/or changes to the product(s) and/or the
program(s) described in this publication at any time without notice.
This publication could contain technical inaccuracies or typographical errors. Changes are periodically made to the information in this
publication; these changes are incorporated in new editions of this publication.
Copyright ©
All rights reserved. No part of this document may be copied, reproduced or translated. It shall not otherwise be recorded, transmitted or
stored in a retrieval system without the prior written consent of Barco.
End User License agreement (EULA)
You have acquired a device that includes software licensed by Barco from Microsoft Licensing Inc. or its affiliates (“MS”). Those installed
software products of MS origin, as well as associated media, printed materials, and “online” or electronic documentation (“SOFTWARE”)
are protected by international intellectual property laws and treaties. The SOFTWARE is licensed, not sold. All rights reserved.
IF YOU DO NOT AGREE TO THIS END USER LICENSE AGREEMENT (“EULA”), DO NOT USE THE DEVICE OR COPY THE SOFT-
WARE. INSTEAD, PROMPTLY CONTACT BARCO FOR INSTRUCTIONS ON RETURN OF THE UNUSED DEVICE(S) FOR A REFUND.
ANY USE OF THE SOFTWARE, INCLUDING BUT NOT LIMITED TO USE ON THE DEVICE, WILL CONSTITUTE YOUR AGREEMENT
TO THIS EULA (OR RATIFICATION OF ANY PREVIOUS CONSENT).
This EULA grants you the following license:
• You may use the SOFTWARE only on the DEVICE
•NOT FAULT TOLERANT: THE SOFTWARE IS NOT FAULT TOLERANT. BARCO HAS INDEPENDENTLY DETERMINED HOW TO
USE THE SOFTWARE IN THE DEVICE, AND MS HAS RELIED UPON BARCO TO CONDUCT SUFFICIENT TESTING TO DETER-
MINETHATTHESOFTWAREISSUITABLEFORSUCHUSE
•NO WARRANTIES FOR THE SOFTWARE: THE SOFTWARE is provided “AS IS” and with all faults. THE ENTIRE RISK AS TO
SATISFACTORY QUALITY, PERFORMANCE, ACCURACY, AND EFFORT (INCLUDING LACK OF NEGLIGENCE) IS WITH YOU.
ALSO, THERE IS NO WARRANTY AGAINST INTERFERENCE WITH YOUR ENJOYMENT OF THE SOFTWARE OR AGAINST
INFRINGEMENT. IF YOU HAVE RECEIVED ANY WARRANTIES REGARDING THE DEVICE OR THE SOFTWARE, THOSE WAR-
RANTIES DO NOT ORIGINATE FROM, AND ARE NOT BINDING ON, MS.
•No Liability for Certain Damages: EXCEPT AS PROHIBITED BY LAW, MS AND BARCO SHALL HAVE NO LIABILITY FOR ANY
INDIRECT, SPECIAL, CONSEQUENTIAL OR INCIDENTAL DAMAGES ARISING FROM OR IN CONNECTION WITH THE USE
OR PERFORMANCE OF THE SOFTWARE. THIS LIMITATION SHALL APPLY EVEN IF ANY REMEDY FAILS OF ITS ESSENTIAL
PURPOSE. IN NO EVENT MS AND BARCO SHALL BE LIABLE FOR ANY AMOUNT IN EXCESS OF U.S. TWO HUNDRED FIFTY
DOLLARS (U.S.$250.00).
•Limitations on Reverse Engineering, Decompilation, and Disassembly: You may not reverse engineer, decompile, or disassem-
ble the SOFTWARE, except and only to the extent that such activity is expressly permitted by applicable law notwithstanding this
limitation.
•SOFTWARE TRANSFER ALLOWED BUT WITH RESTRICTIONS: You may permanently transfer rights under this EULA only as
part of a permanent sale or transfer of the Device, and only if the recipient agrees to this EULA. If the SOFTWARE is an upgrade, any
transfer must also include all prior versions of the SOFTWARE.
•EXPORT RESTRICTIONS: You acknowledge that SOFTWARE is of US-origin. You agree to comply with all applicable international
and national laws that apply to the SOFTWARE, including the U.S. Export Administration Regulations, as well as end-user, end-use
and country destination restrictions issued by U.S. and other governments. For additional information on exporting the SOFTWARE,
see http://www.microsoft.com/exporting/.
•Installation and Use: The SOFTWARE may not be used by more than two (2) processors at any one time on the DEVICE. You
may permit a maximum of ten (10) computers or other electronic devices (each a “Client”) to connect to the DEVICE to utilize the
services of the SOFTWARE solely for file and print services, internet information services, and remote access (including connection
sharing and telephony services). The ten (10) connection maximum includes any indirect connections made through “multiplexing”
or other software or hardware which pools or aggregates connections. Except as otherwise permitted in the NetMeeting/Remote
Assistance/Remote Desktop Features terms below, you may not use a Client to use, access, display or run the SOFTWARE, the
SOFTWARE’s user interface or other executable software residing on the DEVICE.
• If you use the DEVICE to access or utilize the services or functionality of Microsoft Windows Server products (such as Microsoft
Windows NT Server 4.0 (all editions) or Microsoft Windows 2000 Server (all editions)), or use the DEVICE to permit workstation or
computing devices to access or utilize the services or functionality of Microsoft Windows Server products, you may be required to
obtain a Client Access License for the Device and/or each such workstation or computing device. Please refer to the end user license
agreement for your Microsoft Windows Server product for additional information.

•Restricted Uses: The SOFTWARE is not designed or intended for use or resale in hazardous environments requiring fail-safe perfor-
mance, such as in the operation of nuclear facilities, aircraft navigation or communication systems, air traffic control, or other devices
or systems in which a malfunction of the SOFTWARE would result in foreseeable risk of injury or death to the operator of the device
or system, or to others.
•Restricted Functionality: You are licensed to use the SOFTWARE to provide only the limited functionality (specific tasks or pro-
cesses) for which the DEVICE has been designed and marketed by BARCO. This license specifically prohibits any other use of the
software programs or functions, or inclusion of additional software programs or functions, on the DEVICE.
•Security Updates: Content providers are using the digital rights management technology (“Microsoft DRM”) contained in this SOFT-
WARE to protect the integrity of their content (“Secure Content”) so that their intellectual property, including copyright, in such content
is not misappropriated. Owners of such Secure Content (“Secure Content Owners”) may, from time to time, request MS, Microsoft
Corporation or their subsidiaries to provide security related updates to the Microsoft DRM components of the SOFTWARE (“Security
Updates”) that may affect your ability to copy, display and/or play Secure Content through Microsoft software or third party applications
that utilize Microsoft DRM. You therefore agree that, if you elect to download a license from the Internet which enables your use of Se-
cure Content, MS, Microsoft Corporation or their subsidiaries may, in conjunction with such license, also download onto your DEVICE
such Security Updates that a Secure Content Owner has requested that MS, Microsoft Corporation or their subsidiaries distribute.
MS, Microsoft Corporation or their subsidiaries will not retrieve any personally identifiable information, or any other information, from
your DEVICE by downloading such Security Updates
•NetMeeting/Remote Assistance/Remote Desktop Features: The SOFTWARE may contain NetMeeting, Remote Assistance, and
Remote Desktop technologies that enable the SOFTWARE or other applications installed on the Device to be used remotely between
two or more computing devices, even if the SOFTWARE or application is installed on only one Device. You may use NetMeeting,
Remote Assistance, and Remote Desktop with all Microsoft products; provided however, use of these technologies with certain Mi-
crosoft products may require an additional license. For both Microsoft products and non-Microsoft products, you should consult the
license agreement accompanying the applicable product or contact the applicable licensor to determine whether use of NetMeeting,
Remote Assistance, or Remote Desktop is permitted without an additional license
•Consent to Use of Data: You agree that MS, Microsoft Corporation and their affiliates may collect and use technical information
gathered in any manner as part of product support services related to the SOFTWARE. MS, Microsoft Corporation and their affiliates
may use this information solely to improve their products or to provide customized services or technologies to you. MS, Microsoft
Corporation and their affiliates may disclose this information to others, but not in a form that personally identifies you
•Internet Gaming/Update Features: If the SOFTWARE provides, and you choose to utilize, the Internet gaming or update features
within the SOFTWARE, it is necessary to use certain computer system, hardware, and software information to implement the features.
By using these features, you explicitly authorize MS, Microsoft Corporation and/or their designated agent to use this information solely
to improve their products or to provide customized services or technologies to you. MS or Microsoft Corporation may disclose this
information to others, but not in a form that personally identifies you.
•Internet-Based Services Components:TheSOFTWAR
E may contain components that enable and facilitate the use of certain
Internet-based services. You acknowledge and agree that MS, Microsoft Corporation or their affiliates may automatically check the
version of the SOFTWARE and/or its components that you are utilizing and may provide upgrades or supplements to the SOFTWARE
that may be automatically downloaded to your Device.
•Links to Third Party Sites: The SOFTWARE may provide you with the ability to link to third party sites through the use of the
SOFTWARE. The third party sites are not under the control of MS, Microsoft Corporation or their affiliates. Neither MS nor Microsoft
Corporation nor their affiliates are responsible for (i) the contents of any third party sites, any links contained in third party sites, or
any changes or updates to third party sites, or (ii) webcasting or any other form of transmission received from any third party sites. If
the SOFTWARE provides links to third party sites, those links are provided to you only as a convenience, and the inclusion of any link
does not imply an endorsement of the third party site by MS, Microsoft Corporation or their affiliates.
•Additional Software/Services: The SOFTWARE may permit BARCO, MS, Microsoft Corporation or their affiliates to provide or make
available to you SOFTWARE updates, supplements, add-on components, or Internet-based services components of the SOFTWARE
after the date you obtain your initial copy of the SOFTWARE (“Supplemental Components”). If BARCO provides or makes available to
you Supplemental Components and no other EULA terms are provided along with the Supplemental Components, then the terms of
this EULA shall apply. If MS, Microsoft Corporation or their affiliates make available Supplemental Components, and no other EULA
terms are provided, then the terms of this EULA shall apply, except that the MS, Microsoft Corporation or affiliate entity providing the
Supplemental Component(s) shall be the licensor of the Supplemental Component(s). BARCO, MS, Microsoft Corporation and their
affiliates reserve the right to discontinue any Internet-based services provided to you or made available to you through the use of the
SOFTWARE. This EULA does not grant you any rights to use the Windows Media Format Software Development Kit (“WMFSDK”)
components contained in the SOFTWARE to develop a software application that uses Windows Media technology. If you wish to
use the WMFSDK to develop such an application, visit http://msdn.microsoft.com/workshop/imedia/windowsmedia/sdk/wmsdk.asp,
accept a separate license for the WMFSDK, download the appropriate WMFSDK, and install it on your system.
•PATENT INFRINGEMENTS: Barco disclaims any warranty that its Products do not infringe any patent, copyright or trademark; but
agrees to indemnify you regarding such claims if you promptly notify BARCO in writing and if Barco shall have sole control of the
defense of the action and its settlement or compromise. If the use of a Product is enjoined, or a settlement prevents continued use
oftheProduct,Barcoshallhavetheoptiontoprocureforyoutheright to continue use, or replace or modify the Product to remove
the infringement. Barco shall have no liability or duty to indemnify you if the infringement or claim is based on use of the Product in
combination with other products or software not furnished by Barco, where such claim would not have arisen if such Product were
used independently. You will hold Barco harmless against any expense or loss resulting from any infringement caused by compliance
with your designs, specifications, or instructions. The foregoing paragraph states Barco’s entire liability with regard to infringement of
patents, copyrights, or trademarks. This warranty on IP infringement only is valid within US, Canada, EC, Austria, Norway and Japan.

Trademarks
Brand and product names mentioned in this manual may be trademarks, registered trademarks or copyrights of their respective holders.
All brand and product names mentioned in this manual serve as comments or examples and are not to be understood as advertising for
the products or their manufactures.

Table of contents
TABLE OF CONTENTS
1. Safety.................................................................................................................3
1.1 Safety guidelines ..................................................................................................................... 3
2. Introduction .........................................................................................................5
2.1 Introduction ........................................................................................................................... 5
3. Packaging............................................................................................................7
3.1 Packaging............................................................................................................................. 7
4. System overview ..................................................................................................11
4.1 Principle.............................................................................................................................. 11
4.2 Configurations .......................................................................................................................12
5. Mechanical Installation...........................................................................................15
5.1 Installation guidelines ...............................................................................................................15
5.2 Front installation.....................................................................................................................16
5.2.1 Ceiling mount installation.....................................................................................................18
5.2.2 Installing the ceiling mount (top parts of the ceiling mounts) . ...............................................................18
5.2.3 Preparation for the assembly mounting .....................................................................................20
5.2.4 Fixation of the assembly......................................................................................................21
5.3 Rear installation .....................................................................................................................22
5.3.1 Positioning ....................................................................................................................23

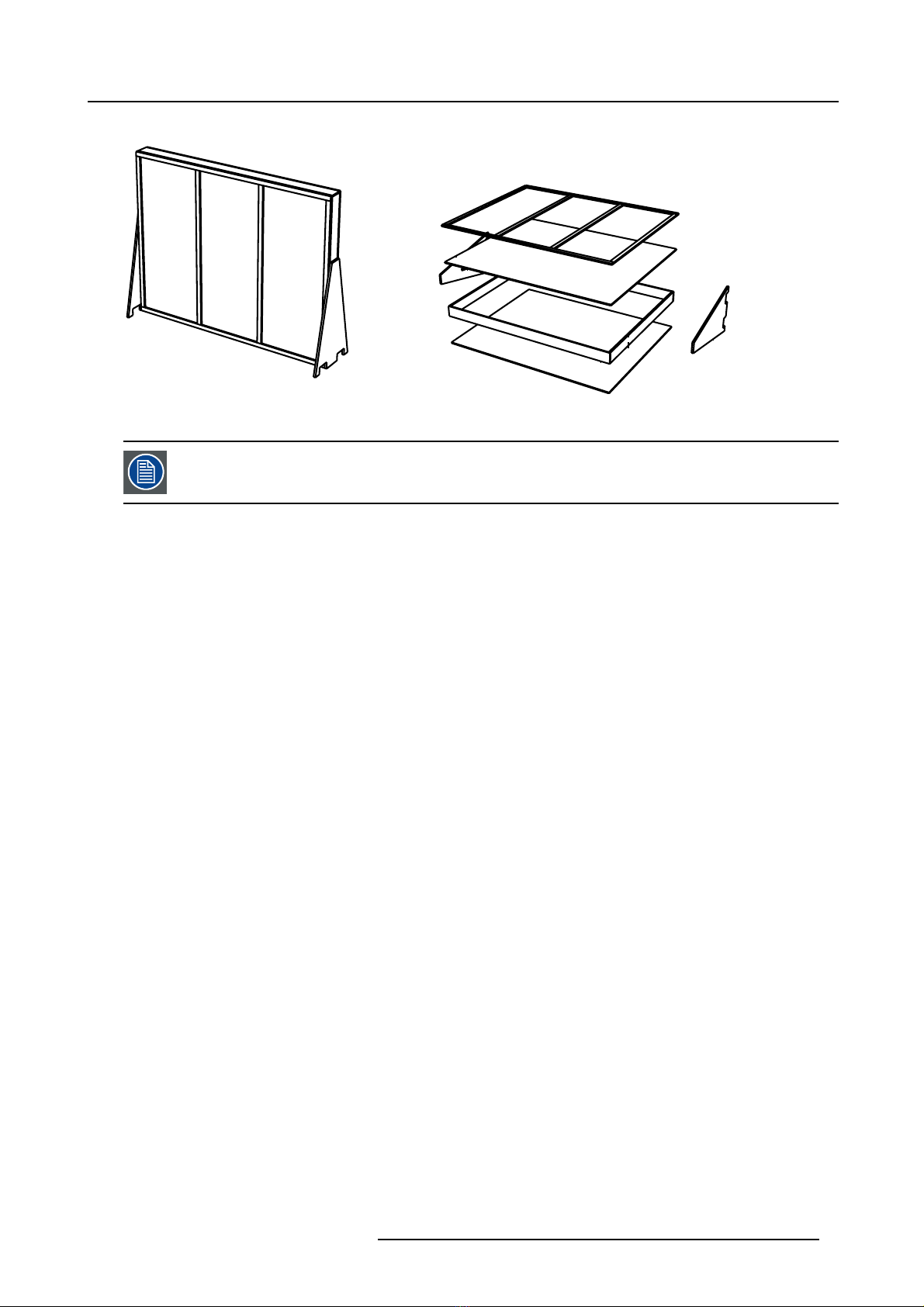

5.3.2 Screen mounting .............................................................................................................24
5.3.3 The support table .............................................................................................................26
5.3.4 Polar adjustments.............................................................................................................27
6. Fineadjustments..................................................................................................29
6.1 Overview.............................................................................................................................29
7. Connections........................................................................................................31
7.1 Connections Setup ..................................................................................................................31
7.2 Connecting the sources ............................................................................................................32
8. Setup ................................................................................................................35
8.1 Factory settings .....................................................................................................................35
8.1.1 Desktop integration settings..................................................................................................35
8.1.2 iCon Server settings ..........................................................................................................37
8.1.3 Projector communications settings...........................................................................................38
8.1.4 Firewall settings...............................................................................................................39
9. Gettingstarted.....................................................................................................43
9.1 Start up...............................................................................................................................43
9.2 Projector shutdown..................................................................................................................44
9.3 Full system shutdown ...............................................................................................................45
9.4 source selection .....................................................................................................................46
10. Maintenance........................................................................................................49
10.1 Dust filter cleaning/replacement ....................................................................................................49
10.2 Lamp replacement...................................................................................................................51
10.3 Projector removal....................................................................................................................52
A. The support table ..................................................................................................53
A.1 Assembling the support table .......................................................................................................53
B. Dimensions .........................................................................................................57
B.1 Front system.........................................................................................................................57
B.2 Rear system .........................................................................................................................58
C. Troubleshoot ........................................................................................................59
C.1 Troubleshoot . . . . . ...................................................................................................................59
Glossary.................................................................................................................61
Index......................................................................................................................63
Listofimages...........................................................................................................65
R5976989 BARCO VR WORKROOM 22/09/2006 1

Table of contents
2R5976989 BARCO VR WORKROOM 22/09/2006

1. Safety
1. SAFETY
1.1 Safety guidelines
Safety guidelines related to the projector
Before using this system, read first the safety instructions related to the projector in the safety manual (R5975258) delivered with
the projector. Insure that the system is installed in an easy to evacuate room in case of a lamp explosion.
WARNING:Always respect the safety warnings and cautions present in this manual.
R5976989 BARCO VR WORKROOM 22/09/2006 3

1. Safety
4R5976989 BARCO VR WORKROOM 22/09/2006

2. Introduction
2. INTRODUCTION
About this manual
This manual handles the VR Workroom system and will help you to install and use the VR Workroom.
Related documentation
For more information on the Barco iCon H600 see the delivered owners manual R5976821.
A Quick user guide is also delivered with the VR Workroom.
2.1 Introduction
VR Workroom Concept
Image 2-1
The VR Workroom allows multi source (mono and 3D) visualization in a Desktop integrated environment. A master/slave system and the network integration allows perfect
synchronization between the 2 displays.
Convention
The left side is chosen to be the left side from a viewer’s point of view i.e. when looking at the screen in a front configuration. The
left projector is thus on the left side.
LEFT RIGHT
Image 2-2
Convention
The left (or right) projector does not necessarily mean the left (or right) channel projector which displays the
left (or right) eye image.
R5976989 BARCO VR WORKROOM 22/09/2006 5

2. Introduction
6R5976989 BARCO VR WORKROOM 22/09/2006

3. Packaging
3. PACKAGING
Overview
• Packaging
3.1 Packaging
Front VR Workroom : Delivered material
Description Partnumber
VR Workroom front assembly
containing 2 x iCon H600 (Customized) and the necessary cables
R9898370 (assembly)
R9211114 (iCon)
Lens QHD(1.4-2.1:1) R9849930
VR Workroom Front screen R9898372
Luxury Circular 3D glasses II (10 pcs) R9840625
2
1
3
4
5
Image 3-1
Front system packaging
1 cover
2box
3 cardboard top
4 cardboard bottom
5pallet
R5976989 BARCO VR WORKROOM 22/09/2006 7

3. Packaging
Rear VR Workroom : Delivered material
Description Partnumber
VR Workroom rear assembly
containing 2 x iCon H600 (Customized) and the necessary cables
R9898371 (assembly)
R9211114 (iCon)
VR Workroom Rear screen R9898373
Luxury Circular 3D glasses II (10 pcs) R9840625
2
1
3
4
5
Image 3-2
Rear system packaging
1cover
2 box
3 cardboard top
4 cardboard bottom
5 pallet
8R5976989 BARCO VR WORKROOM 22/09/2006

3. Packaging
Image 3-3
Screen packaging
With the rear configuration, an optional support table can be ordered (product number : R9898374). The table
and its packaging are described in Appendix A.
R5976989 BARCO VR WORKROOM 22/09/2006 9

3. Packaging
10 R5976989 BARCO VR WORKROOM 22/09/2006

4. System overview
4. SYSTEM OVERVIEW
4.1 Principle
iCon Server
This is the internal Single Board Computer residing in the Barco iCon projector. The Barco iCon Server takes care of
(among other things) the desktop source management.
VR Workroom system principle
The VR Workroom uses 2 Barco iCon LCD projectors to display a desktop generated by the internal iCon Server of one of the
projectors. This projector is set as the Master and controls the other projector set as the Slave. In reality, the desktop image is
generated by the Master and projected by both projectors.
On this desktop, multiple source windows can be added and configured to set up a collaborative working environment. Passive
Stereoscopic projection is obtained by projecting the left eye image on one projector (here the Master ) and the right eye image
channel on the other projector (here the Slave). The interaction with the user is done by the Master i.e. the keyboard and the mouse
are connected to the master.
SLAVE
MASTER
Desktop link
Control link
L : LEFT Channel
RECORD
POWER
VHS
R: RIGHT Channel
Image Generator
(stereo source)
M1 : Mono source1
M2: Mono source2
M1 M2
L
R
Save
Projection
Master
Prpojection
Ethernet
STEREO
Desktop master
Desktop slave*
Screen
*Deskto
p
Slave = co
py
of Deskto
p
Maste
r
IR
WiFi
RCU
Keyboard/Mouse
PROJECTED
CONTENT
User
Image 4-1
VR Workroom principle.
R5976989 BARCO VR WORKROOM 22/09/2006 11

4. System overview
In both configurations (front/rear) the stereoscopic projectionisobtainedwithpolarizingfoilsattheoutputof
the projections lens.
4.2 Configurations
Configurations overview
Two configurations are possible, both systems are pre-aligned for easy ceiling or tabletop installation :
R9898373 R9898371
VR Workroom Rear setup VR Workroom Front setup
R9898370
R9898372
Image 4-2
Configurations
Art.Number Name Configuration Projectors Screen to be used Lens Image
R9898370 VRWF-3200 Front side by side front metallic 16:9 (3.2m
x1.8m
1)
QHD (1.4-2.1) im-
age 4-3
R9898371 VRWR-3200 Rear stacked rear flexible 16:9 (3.2m
x1.8m)
QHD (0.86) im-
age 4-4
In the front configuration, one projector is set in table mode and the other in ceiling mode. This is done for
optimal geometrical alignment.
Image 4-3
Front assembly VRWF-3200
Image 4-4
Rear assembly VRWR-3200
1. (10.5 x 5.9Ft)
12 R5976989 BARCO VR WORKROOM 22/09/2006

4. System overview
Available Screens
Art.Number Name Configuration Description
R9898372 VRWF-3201 Front front metallic 16:9 (3.2m x 1.8m)
(10.5Ft x 5.9Ft)
R9898373 VRWR-3201 Rear rear flexible 16:9 (3.2m x 1.8m)
(10.5Ft x 5.9Ft)
Other material
Art.Number Configuration Description
-All 10 Luxury Circular polarization glasses
-All SUBD9 male/female serial coms cable (1.8m)
-DVI cable (0.9m)
-Crossed cable RJ45/RJ45 (3m)
R5976989 BARCO VR WORKROOM 22/09/2006 13

4. System overview
14 R5976989 BARCO VR WORKROOM 22/09/2006
