Barranca Diamond BD-2321WR Manual

BD-2321WR
Pneumatic Wet Polisher
Owner’s Manual and Operating Instructions
Caution: Read all safety and operating
instructions before using this equipment.
This manual MUST accompany the
equipment at all times.
Revision 100
Manual Part # 160458-OM
11. 2 017
Barranca Diamond Products, Inc.
1315 Storm Parkway
Torrance, CA 90501
Toll-Free: [phone]
Phone: [phone]
Fax: [phone]
www.barrancadiamond.com

2
INTRODUCTION
Congratulations on your purchase of a BD-2321WR Wet Stone Polisher. We are certain that you will
be pleased with your purchase. Barranca Diamond takes pride in producing the nest construction
power tools and diamond blades in the industry.
In order to help you, we have included this manual. This owners manual contains information neces-
sary to operate and maintain your BD-2321WR safely and correctly. Please take the time to familiar-
ize yourself with the BD-2321WR by reading and reviewing this manual.
Read and follow all safety, operating and maintenance instructions. If you should have questions,
please feel free to call our friendly customer service department at [phone].
Regards,
Barranca Diamond
TABLE OF CONTENTS
SAFETY
Safety Precautions 3-6
California Proposition 65 Warning 7
Product Specications 8
ASSEMBLY
Unpacking 9
Contents 9
Assembly 10
MAINTENANCE
Maintenance 11
THEORY
Theory of Polishing Pads 12
ACCESSORIES
Accessories 13
RETURN, & CUSTOMER SERVICE
Return & Customer Service 14-15

3
BD-2321WR SAFETY
Read and follow all safety, operating and maintenance instructions. Failure to read and follow
these instructions could result in injury or death to you or others. Failure to read and follow these
instructions could also result in damage and/or reduced equipment life. Safety warnings and
guidelines do not by themselves eliminate danger. They are not substitutes for proper accident
prevention procedures and good judgement.
SAFETY MESSAGES
A Damage Prevention Message is to inform the user of important information and/or instructions that
could lead to equipment or other property damage if not followed. Information Messages convey
information that pertains to the equipment being used. Each message will be preceded by the word
NOTE, as in the example below.
DAMAGE PREVENTION AND INFORMATION MESSAGES
NOTE: Equipment and/or property damage may result if these instructions are not followed.
GENERAL SAFETY PRECAUTIONS AND HAZARD SYMBOLS
A safety message alerts you to potential hazards that could hurt you or others. Each safety message is
preceded by a safety alert symbol ( ) and one of three words: DANGER, WARNING, or CAUTION.
DANGER You WILL be KILLED or SERIOUSLY INJURED if you DO NOT follow directions.
WARNING You CAN be KILLED or SERIOUSLY INJURED if you DO NOT follow directions.
CAUTION You CAN be INJURED if you DO NOT follow directions. It may also be used to
alert against unsafe practices.
ALWAYS read this Owner’s Manual before operating the machine. DO NOT operate or
service this equipment before reading this entire manual. Read and understand all warn-
ings, instructions and controls on the machine. Know how to stop the equipment quickly in
case of emergency. It is the operators responsibility to use this machine under safe work-
ing conditions and conform with federal, state and local codes or regulations pertaining to
safety, air, pollution, noise etc...
ALWAYS keep the Blade and Belt Guards in place. DO NOT operate this machine with any
guard or safety device removed. A Guard, or any damaged part should be repaired or
replaced immediately.
NEVER operate this equipment without proper protective clothing, shatterproof
glasses, steel-toed boots and other protective devices required by the job. Non-slip
foot wear is recommended.
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
((
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
In order to prevent injury, the following safety precautions and symbols should be followed at all times!

4
ON
(
(
))
ON
(
(
))
All visitors and children should be kept a safe distance from work area. Maintain a safe
operating distance to other personnel.
KEEP CHILDREN AWAY
MAKE THE WORKSHOP KID PROOF
Make the workshops kid proof by using padlocks, master switches or by removing starter keys.
ROTATING PARTS
Keep hands, feet, hair, and clothing away from all moving parts to prevent injury. Never oper-
ate the motor with covers, shrouds, or guards, removed.
OVER SPEED
NEVER tamper with the components or settings to increase the maximum speed. Severe per-
sonal injury and damage to the equipment can result if operated at speeds above maximum.
ALWAYS avoid inhalation of and skin contact with silica dust and/or mist. Provide proper
dust removal. Use dust-collection system when applicable.
NEVER operate the machine in an explosive atmosphere or near combustible materials.
Sparks from the cutting-action of this machine can ignite flammable materials, liquids, gases
or dust.
This equipment should not be operated by persons under 18 years of age.
ALWAYS wear approved respiratory, head, ear and eye protection
when operating this machine.
Before starting the engine/motor, be sure the ON/OFF switch is in the OFF position to pre-
vent accidental starting. Place the ON/OFF switch in the OFF position before performing any
service operation. ALWAYS place the power ON/OFF switch in the OFF position when the
machine is not in use.
ACCIDENTAL STARTS!
PERSONAL PROTECTIVE EQUIPMENT
Engine components can become extremely hot from operation. To prevent severe burns,
do not touch these areas while the engine is running, or immediately after it is turned off.
Never operate the engine with heat shields removed.
HOT PARTS!
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
DO NOT FORCE THE TOOL
A power tool will do a job better and safer operating at the rate for which it was designed.
DO NOT force a tool or an attachment to do a job that it was not designed to do.
ON
(
(
))
BD-2321WR SAFETY
USE PROPER APPAREL
DO NOT wear loose clothing, gloves, neckties, rings, bracelets, or other jewelry that may
be caught in moving parts. Non-slip footwear is recommended. Wear protective hair cover-
ing to contain long hair.
ON
(
(
))

5
Consult the owner’s manual for recommended accessories. Using improper accessories
may increase the risk of personal or by-stander injury. Unauthorized equipment
modifications will void all warranties. Manufacturer does not assume responsibility for any
accident due to equipment modifications.
USE RECOMMENDED ACCESSORIES
Form a habit of checking to see that keys and adjusting wrenches are removed from
the power tool before it is turned on.
Cluttered work areas and benches invite accidents. Keep area around machine clear of
obstructions which could cause persons to fall.
DO NOT operate equipment in dangerous or hazardous environments. DO NOT use power
tools in damp or wet locations nor expose them to rain. Always keep the work area well
lighted.
REMOVE ADJUSTING KEYS AND WRENCHES
KEEP WORK AREA CLEAN
DO NOT USE IN DANGEROUS PLACES
MAINTAIN TOOLS WITH CARE
Keep tools clean and maintained for the best and safest performance. Always follow
maintenance instructions and examine the machine before use. If any abnormal vibrations
or noises occurs, turn off machine immediately and have the problem corrected before
further use.
DISCONNECT TOOLS
Power tools should always be disconnected before servicing, adjusting or when changing
accessories, such as blades, bits, cutters, and the like.
DO NOT OVERREACH
Keep proper footing and balance at all times by not overreaching.
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
SECURE WORK
Clamps or a vise should be used to hold work whenever practical. Keeping your hands free
to operate a power tool is safer.
ON
(
(
))
BD-2321WR SAFETY
Before using a power tool, check for damaged parts. A guard or any other part that is
damaged should be carefully checked to determine if it would operate properly and
perform its intended function. Always check moving parts for proper alignment or binding.
Check for broken parts and mountings and all other conditions that may affect the
operation of the power tool. A guard, or any damaged part, should be properly repaired or
replaced. Always check the machine for loose bolts before starting.
CHECK FOR DAMAGED PARTS
ON
(
(
))
A blade or cutter should always be installed so that rotation is in the direction of the
arrow imprinted on the side of the blade or cutter. It should correspond with the rotational
direction of the motor. Always feed work into a blade against the direction of rotation.
DIRECTION OF ROTATION
ON
(
(
))

6
TURN POWER OFF - Do not leave a tool until it comes to a complete stop. ALWAYS
turn a power tool OFF when leaving the work area, or, when a cut is finished.
NEVER LEAVE A TOOL UNATTENDED
NEVER disconnect any "emergency or safety devices". These devices are intended for
operator safety. Disconnection of these devices can cause severe injury, bodily harm, or
even death! Disconnection of any of these devices will void all warranties. Unauthorized
equipment modifications will void all warranties. Manufacturer does not assume
responsibility for any accident due to equipment modifications.
NEVER operate this equipment under the influence of drugs or alcohol.
NEVER operate this equipment when not feeling well due to fatigue, illness or taking medicine.
NEVER use this machine with any cutter designed for woodworking.
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
Whenever necessary, replace nameplate, operation and safety decals when they become
difcult to read.
ALWAYS store equipment properly when it is not being used. Equipment should be stored in
a clean, dry location out of the reach of children
DO NOT lend or rent this equipment without including the Owner's Manual
Check the chemical properties of the material to be cut/grinded and follow all EPA/OSHA
Regulations.
BD-2321WR SAFETY

7
Sawing, grinding and drilling generate dust. Excessive airborne particles may cause irritation to eyes,
skin and respiratory tract. To avoid breathing impairment, always employ dust controls and protection
suitable to the material being sawed or drilled; See OSHA (29 CFR Part 1910.1200).
WARNING
CALIFORNIA PROPOSITION 65 MESSAGE
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities con-
tain chemicals known (to the State of California) to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• Lead, from lead-based paints
• Crystalline silica from bricks, cement and other masonry products
• Arsenic and chromium, from chemically treated lumber
For further information, consult the following sources:
http://www.osha.gov/dsg/topics/silicacrystalline/index.html
http://www.cdc.gov/niosh/docs/96-112/
http://oehha.ca.gov/prop65/law/P65law72003.html
http://www.dir.ca.gov/Title8/sub4.html
Your risk from these exposures varies depending on how often you do this type of work. To reduce
your exposure to these chemicals, work in a well-ventilated area, and work with approved safety
equipment, such as dust masks that are specially designed to lter out microscopic particles. Where
use of a dust extraction device is possible, it should be used. To achieve a high level of dust collec-
tion, use an industrial HEPA vacuum cleaner. Observe OSHA 29 CFR part 1926.57 and 1926.103.
SILICA DUST WARNING
Grinding/cutting/drilling of masonry, concrete, metal and other materials with silica in their composition
may give off dust or mists containing crystalline silica. Silica is a basic component of sand, quartz,
brick clay, granite and numerous other minerals and rocks. Repeated and/or substantial inhalation of
airborne crystalline silica can cause serious or fatal respiratory diseases, including silicosis. In ad-
dition, California and some other authorities have listed respirable crystalline silica as a substance
known to cause cancer. When cutting such materials, always follow respiratory precautions.
Use appropriate NIOSH-approved respiratory protection where dust hazard may occur. Paper masks
or surgical masks without a NIOSH approval number are not recommended because they do little to
protect the worker. For more information about respirator programs, including what respirators have
received NIOSH approval as safe and effective, please visit the NIOSH website at:
http://www.cdc.gov/niosh/topics/respirators
Observe OSHA regulations for respirator use (29 C.F.R.§1910.134).
Visit http://www.osha.gov for more information.
ON
(
(
))
BD-2321WR SAFETY

8
BD-2321WR SAFETY
PRODUCT SPECIFICATIONS
The Barranca Diamond BD-2321WR pneumatic wet polishing tool is designed for continuous produc-
tion applications and improved safety. Cast from aircraft aluminum, the BD-2321WR is one of the
most durable tools of its kind on the market for polishing stone. The watertight sealed bearings pro-
vide long life and smooth rotational speeds. The water and air controls are simple to use and conve-
niently located. Rear air vent removes exhaust through a hose protector, away from operator’s hands.
It consumes 16 CFM at 90 PSI, requiring a 5 HP compressor. Maximum disc size is 5”. The BD-
2321WR comes with 25' water hose, 5' air hose, 3' air/water hose protector, D-handle and wrenches.
Ninety day limited warranty.
Motor Specications
Motor specications for the BD-2321WR are listed in the table below.
Air Pressure 90 psi
RPM 5,500 (free speed)
Shaft Thread 5/8"-11
Air Inlet 1/4" Npt
Output 320 W
Length 10-1/4 in.
Air Consumption 16 cfm (min)
Air Compressor Required 5 hp min.
Max. Disc Size 5"
Weight 2.7 lbs.
Part # 160458

9
BD-2321WR UNPACKING
UNPACKING
Your BD-2321WR Wet Stone Polisher has been shipped from the factory thoroughly inspected. Only
minimal assembly is required.
In your container, you will nd one (1) BD-2321WR, one (1) D-Handle w/screws, one (1) Air, Water &
Exhaust Hoses, one (1) Hose Fastener, one (1) Spindle Oil, one (1) Spanner Wrench, one (1) Own-
er's Manual and one (1) Warranty Card.

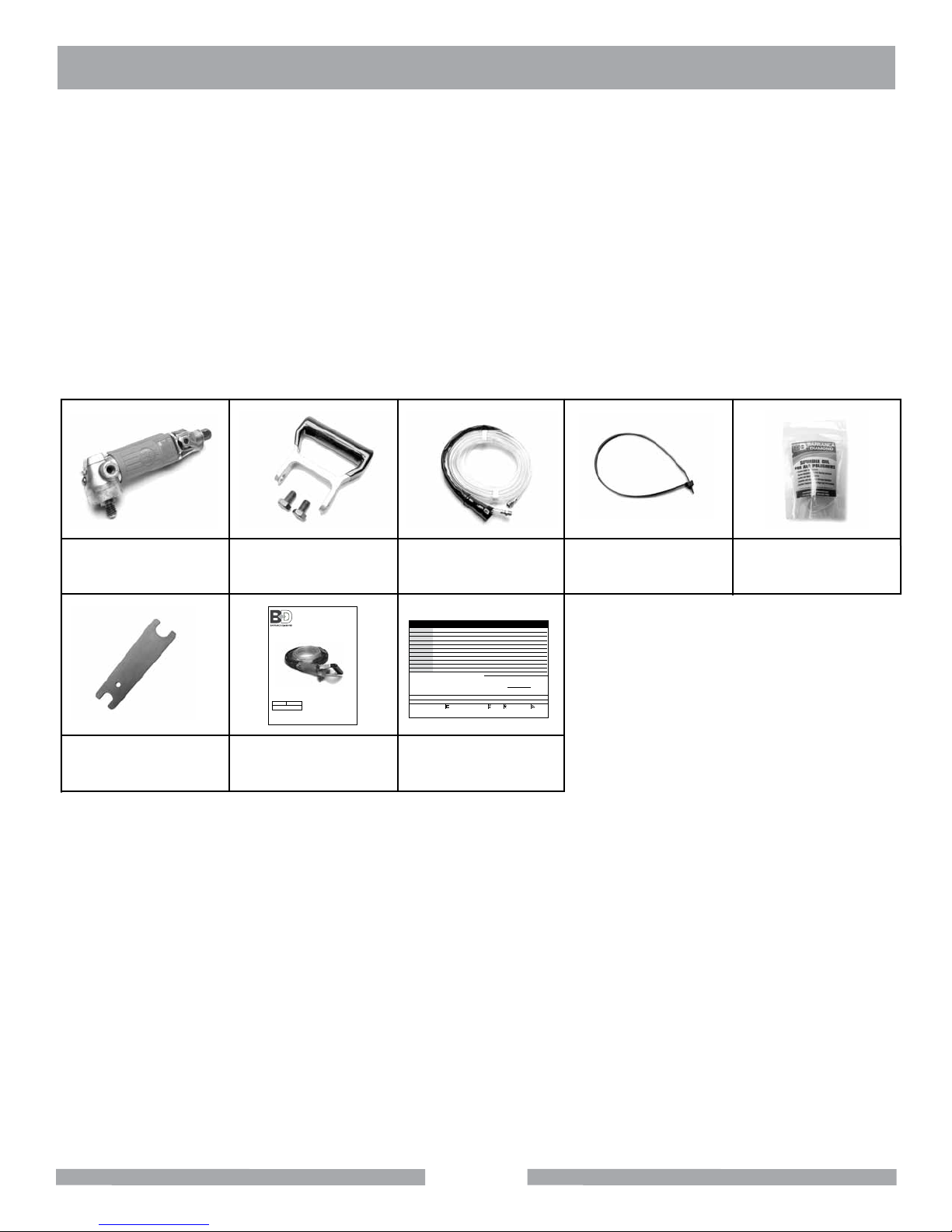

CONTENTS
BD-2321WR Air, Water &
Exhaust Hoses
D-Handle
w/screws
Owner's
Manual
Spanner Wrench Warranty
Card
Spindle OilHose Fastner
BD-2321WR
Pneumatic Wet Polisher
Owner’s Manual and Operating Instructions
Caution: Read all safety and operating
instructions before using this equipment.
This manual MUST accompany the
equipment at all times.
Revision 100
Manual Part #
11.2 017
Barranca Diamond Products, Inc.
1315 Storm Parkway
Torrance, CA 90501
Toll-Free: [phone]
Phone: [phone]
Fax: [phone]
www.barrancadiamond.com
Name
address
City
state
Zip COde
phONe
Fax
e-mail
prOduCt mOdel
part NumBer
maChiNe serial#
BARRANCA DIAMOND WARRANty CARD
qtile distriButOr qequipmeNt supply hOuse qlapidary distriButOr
qtOOl supply qBldg material supply qreNtal equipmeNt hOuse
Or CONtraCtOr q IFsO, what type? tile q masONry q Other
what Criteria was impOrtaNt iN ChOOsiNg this saw? (rate FrOm 1 tO 5, 5 BeiNg the mOst impOrtaNt)
pOwer preCisiON pOrtaBility availaBlity Other
If within one (1) Year from the date of pu
rchase, this Barranca Diamond saw fails due to defect in material or workmanship, Barranca will repair it, free of charge when the unit is returned to the
dealer where it was purchased. This warranty DOES NOT cover normal wear or damage resulting from operator abuse. In no event shall Barranca Diamond be liable for consequential damages arising out
of the failure of any product if operated improperly. Barranca Diamond Products may act as a warranty station for motor/engine repairs based on an individual agreement with the manufacturer. This war
-
ranty is in lieu of all other warranties express or implied.
© 2008 All Rights reserved. Barranca Diamond • P/N 166528 BD Warranty Card (03/08)
BarraNCa diamONd warraNty 22815 Frampton Ave.,Torrance,CA 90501 USA 1.800.630.7682 www.barrancadiamond.com 1.310.257.3063
where did yOu purChase this saw FrOm? date purChased
COmmeNts Or suggestiONs:
priCe

10

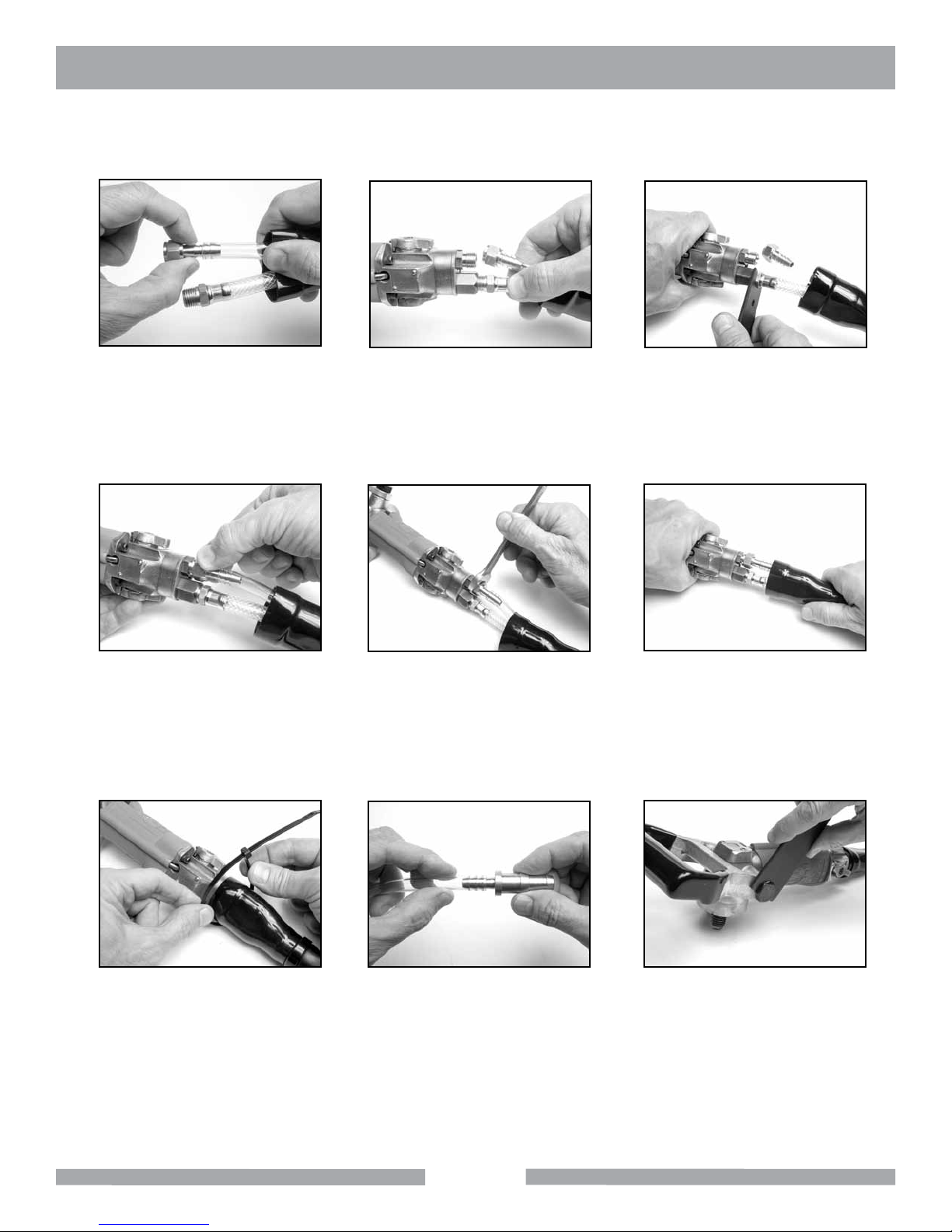

BD-2321WR ASSEMBLY
(A)
Attach the hose nipple to the
water hose.
(D)
Thread the water hose to the
water hose tting.
(G)
Use the fastener to secure
exhaust hose to polisher.
(E)
Tighten the water hose
nut.
(H)
Attach water hose joint to
end of water hose.
(F)
Slide the exhaust hose
over the water and air
hoses.
(I)
Attach D-handle, tightening
both bolts with wrench.
(B)
Thread the air hose to the
polisher air hose tting.
(C)
Tighten the air hose nut.

11

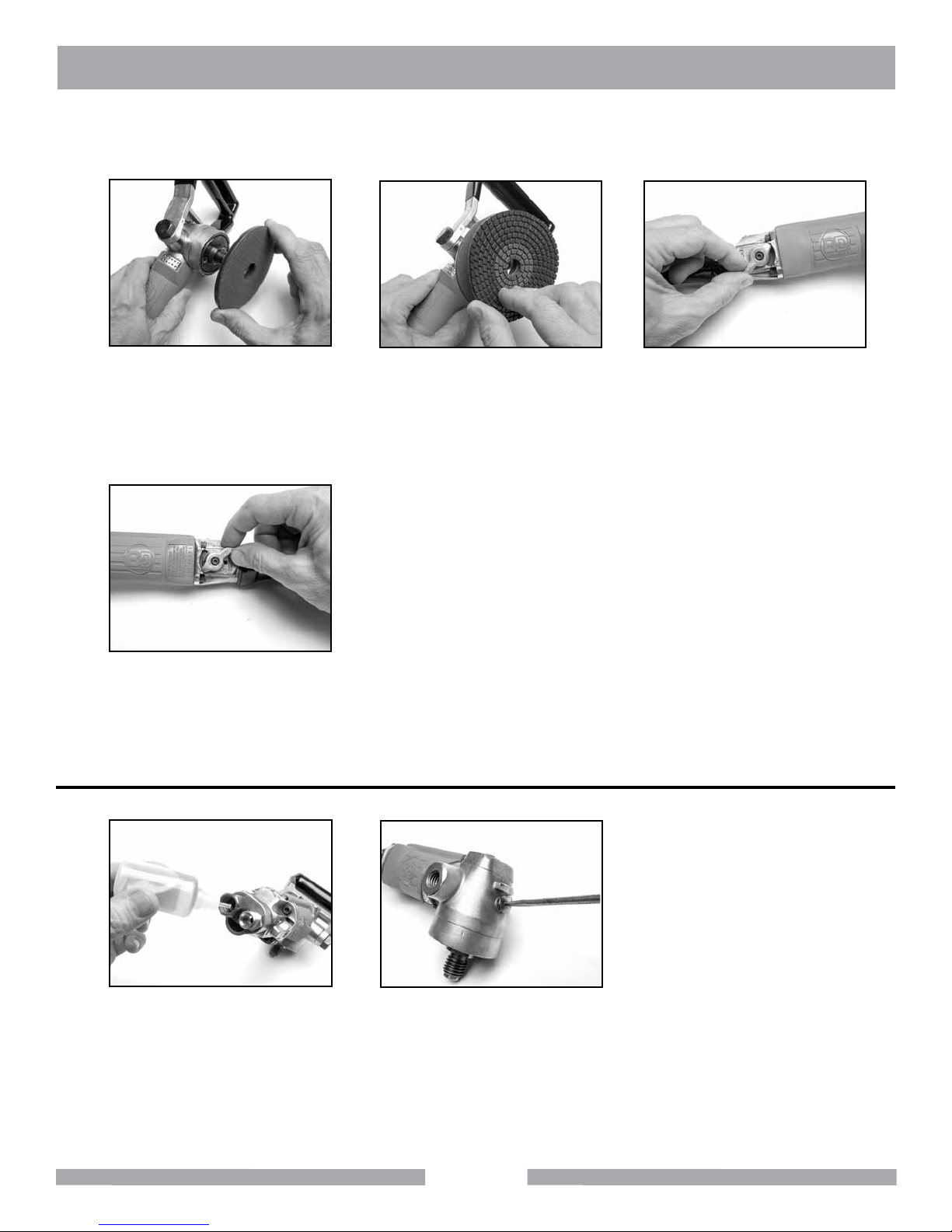

Maintenance
(A)
Use 3-4 drops of spindle/machine
oil in the air intake valve. The pol-
isher must be oiled daily.
(J)
Screw on backer plate.
(M)
Turn the air on to the
desired rotation speed.
Beginning polishing.
(B)
Grease gears as needed using a
multi-purpose EP lithium grease
or moly EP lithium grease.
DO NOT use oil.
(K)
Place polishing pad on
backer plate.
(L)
Turn the water on to desired
water volume.
BD-2321WR SETUP

12
BD-2321WR TROUBLESHOOTING
(A)
Wear in front plate due to
worn bearings.
(B)
Wear in the bevel gear is
due to using the polisher as
a grinder and applying heavy
pressure and hammering the
tool onto the material.
(C)
Wear in pinion gear is
due to using polisher as a
grinder, hammering the tool
onto the material.
NOTE:
• Do not submerge the polisher in water. Water and moisture will harm and rust the inner parts
of the polisher.
• Remove backer pads after each use and use a drop of oil on the spindle to prevent rust.
• Excessive downward force on polisher will result in premature failure of gears and bearing.
(D)
Wear in rear plate due to
worn bearings.
(E)
A broken rotor blade is due to
excessive downward pressure on the
polisher and lack of regular oiling.
NEW NEW NEW
NEW
WORN WORN WORN
WORN

13

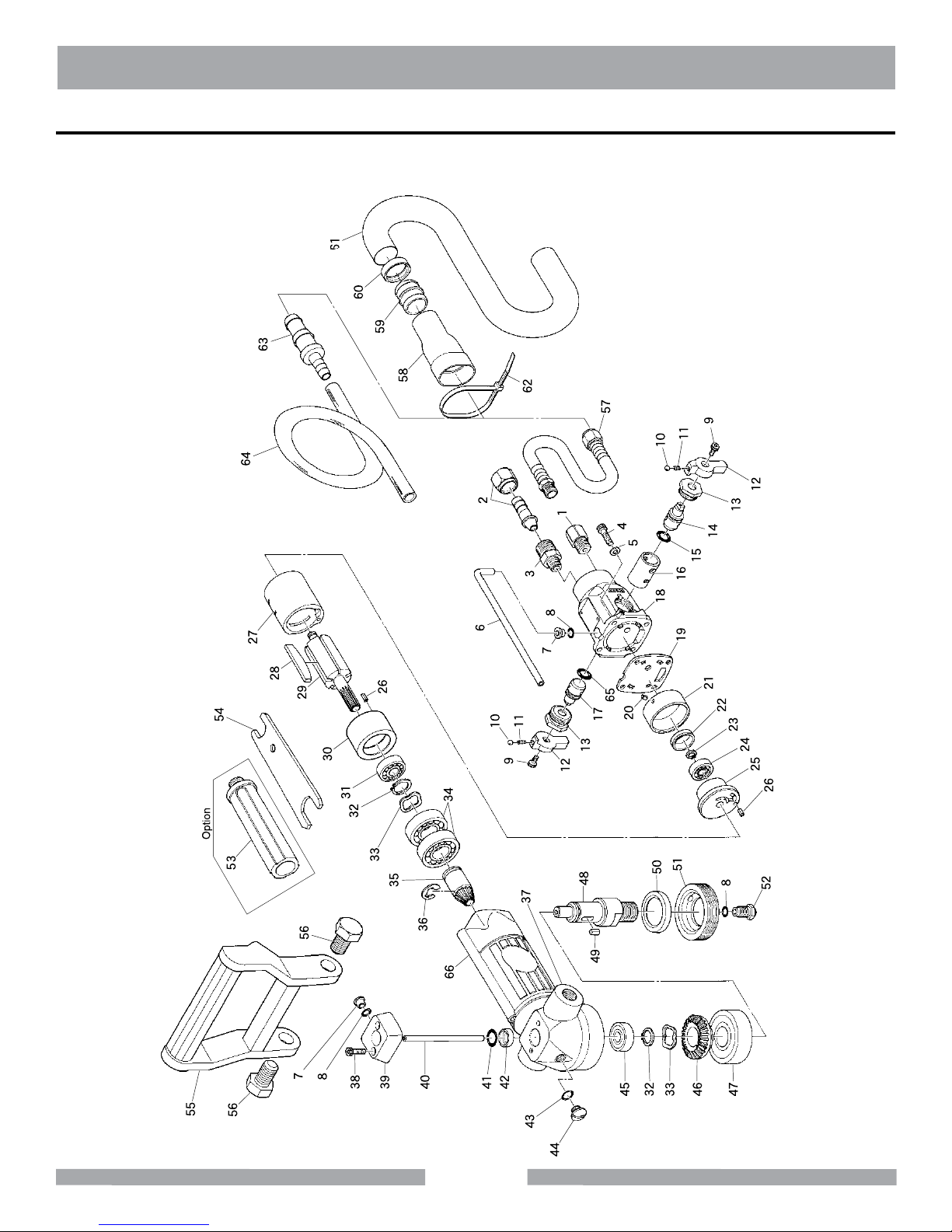

BD-2321WR EXPLODED VIEW
BD-2321WR WET POLISHER P/N 160458

14
ITEM DESCRIPTION PART# QTY.
1INLET BUSHING 180-1 161461 1
2NIPPLE HOSE #1110A-62 161690 1
3ADAPTER,HOSE,1110A-22 161320 1
4SCREW, CAP, #Z832-160 161850 4
5WASHER,HSW-40 162004 4
6PIPE, OUTER # 1110-9 161749 1
7BUSHING, PIPE, #1110-1 161451 2
8O-RING, #P-4 161732 3
9SCREW,CAP,#Z-M30-80 161851 2
10 STEEL BALL, #SB-1/8 161932 2
11 SPRING, REGULATOR, #450-45 161931 2
12 LEVER, 1110-4 161659 2
13 VALUE, NUT, 1110-21 161695 2
14 VALUE, AIR, 1110A-18 161730 1
15 O-RING, P-7 161731 1
16 BUSHING, VALVE, 1110A-20 161452 1
17 WATER VALVE,1110A-19 161993 1
18 VALVE HOUSING, 1110R-2 161639 1
19 GASKET, 1110R-3 161559 1
20 PIN,ROLL 25-4 161742 1
21 CASE,REAR #1110A-5 161474 1
22 BEARING COVER, 680-34 161467 1
23 RING, RETAINING JS-6 161809 1
24 BEARING, BALL, 626 2RS 161359 1
25 PLATE REAR, 1110-26A 161755 1
26 PIN, ROLL #25-5 161743 2
27 CYLINDER, #1110A-24A 161553 1
28 ROTOR BLADE, 1110R-8 161421 5
29 ROTOR, THICK, 1110R-7 161843 1
30 PLATE, FRONT,1110R-6 161752 1
31 BEARING, BALL, TYPE 608ZZ 161353 1
32 RING, RETAINING, #JS-15 161813 2
33 WASHER,WAVE,#WW-150 162005 2
34 BEARING, BALL, #6002 ZZEC3 161352 2
35 GEAR, PINION #1110A-12 161571 1
36 RING, RETAINING 1E-8 161812 1
37 HOUSING, MOTOR REAR 1110R-1A 161637 1
38 SCREW, CAP #Z832-160 161850 2
39 CONNECTOR, PIPE, #1110-3A 161503 1
40 PIPE, INNER, #1110-23 161748 1
41 O-RING, S-12 161733 1
42 OIL SEAL, G8-14-4 161720 1
BD-2321WR PARTS LIST
BD-2321WR WET POLISHER P/N 160458

15
ITEM DESCRIPTION PART # QTY.
43 O-RING, S-7 161734 1
44 PLUG, GREASE, #1110A-6 161760 1
45 BEARING, BALL, #608LLU 161354 1
46 GEAR, BEVEL, #110A-13 161569 1
47 BEARING BALL # 6302LLU 161360 1
48 SPINDLE, 5/8-11, #1110A-11U 161928 1
49 Key, 940-46 161647 1
50 OIL SEAL, #G23-32-7 161719 1
51 CAP, SPINDLE, #1110-15 161470 1
52 NOZZLE, #1110A-16 161692 1
53 HANDLE, DEAD, 240B-2 161615 1
54 WRENCH,SPANNER 5/8-2"-350-28 168888 1
55 HANDLE, #1110R-4 161609 1
56 SCREW,#1110R-5 161430 2
57 HOSE, WIPE,#106-3 161635 1
58 COVER, EXHAUST #106-5 161524 1
59 CONNECTOR, #106-6 161499 1
60 URETHANE BAND, 106-1 161341 1
61 HOSE, EXHAUST, #106-2 161630 1
62 HARNESS BAND,#106-10 161338 1
63 JOINT, WATER HOSE, 1110A-61 161644 1
64 HOSE, WATER, 1110A-64 161634 1
65 O-RING, S-8 161735 1
66 HOUSING COVER, 1110A-67 165666 1
BD-2321WR PARTS LIST
BD-2321WR WET POLISHER P/N 160458

16
Polishing pads are designed to achieve a monument quality nish on all straight or shaped surfaces.
The unique design of the polishing pads allows for rapid and even surface removal rates of the mate-
rial being polished with minimal effort. When used correctly, these pads provide a clear advantage
over all other polishing methods.
Important Points in the Polishing Process
Polishing pads are designed for use with water only, to minimize the wear on the pads and prevent
hazardous dust. Water acts to cool the polishing pad material, ush away grindings, and eliminate
hazardous dust.
Never skip grit sizes during the polishing process. Skipping polishing pads of different grit sizes will
result in an unsatisfactory nish to the polished surface.
Diamond polishing pads wear out prematurely due to the overworking of the material or by not us-
ing a sufcient amount of water. Failure to spend adequate time polishing with each grit size pad will
result in an unsatisfactory nish.
Selection of the exible Velcro™ (rubber) backer pads for shaping and curved work is highly recom-
mended. Use the rigid backer pad for the straight edge and at face material.
BD-2321WR THEORY

17
BD-2321WR ACCESSORIES
ACCESSORIES
ITEM NUMBER DESCRIPTION PRODUCT
1
Various, see Catalog or visit
our web site at:
www.barrancadiamond.com
or call 800.421.5830
Polishing Discs
2370050 BD-370BP
5" Rubber Backer Plate
3370052 BD-370BP
5" Aluminum Backer Plate
4370051 BD-370BP
5" Rigid Backer Plate

18
Barranca Diamond warrants to the original retail purchaser for a period of 90 days except as noted, from the
date of purchase all products covered by this Warranty to be free of defects in materials and workmanship.
This Warranty shall not apply to any parts that have been subjected to misuse or improper service, that had
been damaged in transit or handling, or that have been altered or repaired by unauthorized representatives.
This Warranty does not cover defects caused by or resulting from misuse, abuse, neglect or damage caused
by accident or the failure to provide reasonable maintenance. This Warranty is void if the product or any of its
individual components is altered or modied by the purchaser or if the product is used in a manner or with a
blade not recommended by the manufacturer.
Any claim arising under this Warranty must be submitted by the original purchaser within the warranty period
specied above, and shall include proof of purchase. During said warranty period Barranca Diamond shall,
at its option, either replace or repair, at no charge to the original purchaser, any parts or components that are
found to be defective by Barranca Diamond. Barranca Diamond shall not be responsible for or obligated to
pay for freight or other transportation related costs or expenses in connection with any defective products or
components that are either returned to Barranca Diamond’s facility or any authorized repair station and/or any
replacement products or components that are shipped from Barranca Diamond pursuant to this Warranty.
Parts and labor needed to maintain products and the replacement of components due to normal wear and tear
are the purchaser’s responsibility and are not covered by this Warranty. All products or components replaced
under warranty become the property of the manufacturer. All replacement parts will be considered to be part of
the original product and any warranty on such parts will expire coincidentally with the original Warranty. Barran-
ca Diamond will pay for parts and labor in connection with warranty repairs conducted by Barranca Diamond
or its authorized repair centers. Replacement part(s) installed by anyone else will be provided without a charge
for such replacement part(s), but this Warranty will not apply to labor charges in connection therewith.
IN NO EVENT SHALL ANY LIABILITY UNDER THIS WARRANTY EXCEED THE REPLACEMENT COST OF
ANY DEFECTIVE PRODUCT OR COMPONENT THEREOF, AND BARRANCA DIAMOND SHALL NOT BE LI-
ABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES OR FOR ANY OTHER DAMAGE OR LOSS
NOT EXPRESSLY ASSUMED AS SET FORTH HEREIN.
The foregoing constitutes an expressed warranty on the terms set forth above and is the only warranty or
warranties applicable to the products it covers. All other warranties, including, without limitation, the implied
warranty of merchantability and/or tness for a particular purpose or use being denied. This limited warranty is
expressly in lieu of all other warranties, whether expressed or implied.
Barranca DiamonD LimiteD Warranty
Please complete the warranty registration card and return. Any problems encountered should be directed to
Barranca Diamond Customer Service department at [phone] M-F 8am - 5pm PST.
NOTE THIS INFORMATION FOR FUTURE USE:
MODEL NUMBER:
SERIAL NUMBER:
PURCHASE PLACE:
PURCHASE DATE:
BD-2321WR LIMITED WARRANTY

19
BD-2321WR ORDERING & RETURN
rePLacement PartS
Replacement parts for this tool may be ordered from your Barranca Diamond distributor or directly from Bar-
ranca Diamond. Please have the following information ready before calling:
• Model and serial number of the machine
• Date of purchase
• Description of parts being ordered (see parts list)
retUrn materiaLS ProceDUre
To expedite the service relative to the return of a product purchased through Barranca Diamond, please have
the following information available:
• Model and serial number of the machine
• Date of purchase
• Distributor’s name
Then please call Barranca Diamond at [phone] or toll free at 800-630-7682 to obtain a Return Goods
Authorization number (RGA) authorizing the return.
Please Note:
• Ensure your item(s) are prepaid to the destination
• Return items must have been purchased within the previous twelve (12) months
• Follow the packaging instructions in the following section
• Be sure to include the RGA number, return address and your phone number on or within the
return shipping box.
PacKaGinG inStrUctionS
Ship the equipment using its original shipping crate if possible. Secure inside the shipping crate. Ensure all
parts are secured in the packaging to prevent movement. Do not ship the equipment partially exposed.

Barranca Diamond Products, Inc.
1315 Storm Parkway
Torrance, CA 90501
Toll-Free: [phone]
Phone: [phone]
Fax: [phone]
www.barrancadiamond.com
