Read this instruction manual before using and
keep them available at all times!
This instruction manual contains information about the installation, operation
and maintenance of the device and should be consulted as an important source
of information and reference guide.
Awareness of the safety instructions and instructions for use in this manual will ensure
the safe and correct use of the device.
In addition to the information given here, you should comply with any local Health and
safety Controls and generally applicable safety regulations.
The instruction manual forms part of the product and should be kept near the device
and easily accessible for anyone carrying out the installation, servicing, maintenance
or cleaning.
Please keep these instructions and give them to future owners of the device.
1. Safety
This device is designed in accordance with the presently applicable technological
standards. However, the device can pose a danger if handled improperly and
inappropriately.
All persons using the device must follow the recommendations and instructions
in this instruction manual.
1.1 Key to symbols
In this manual, symbols are used to highlight important safety instructions and any
advice relating to the device. The instructions should be followed very carefully to avoid
any risk of accident, personal injury or material damage.
DAN ER!
This symbol highlights hazards which could lead to injury.
WARNIN !
This symbol highlights dangerous situations which could lead to injury or death.

- 3 -

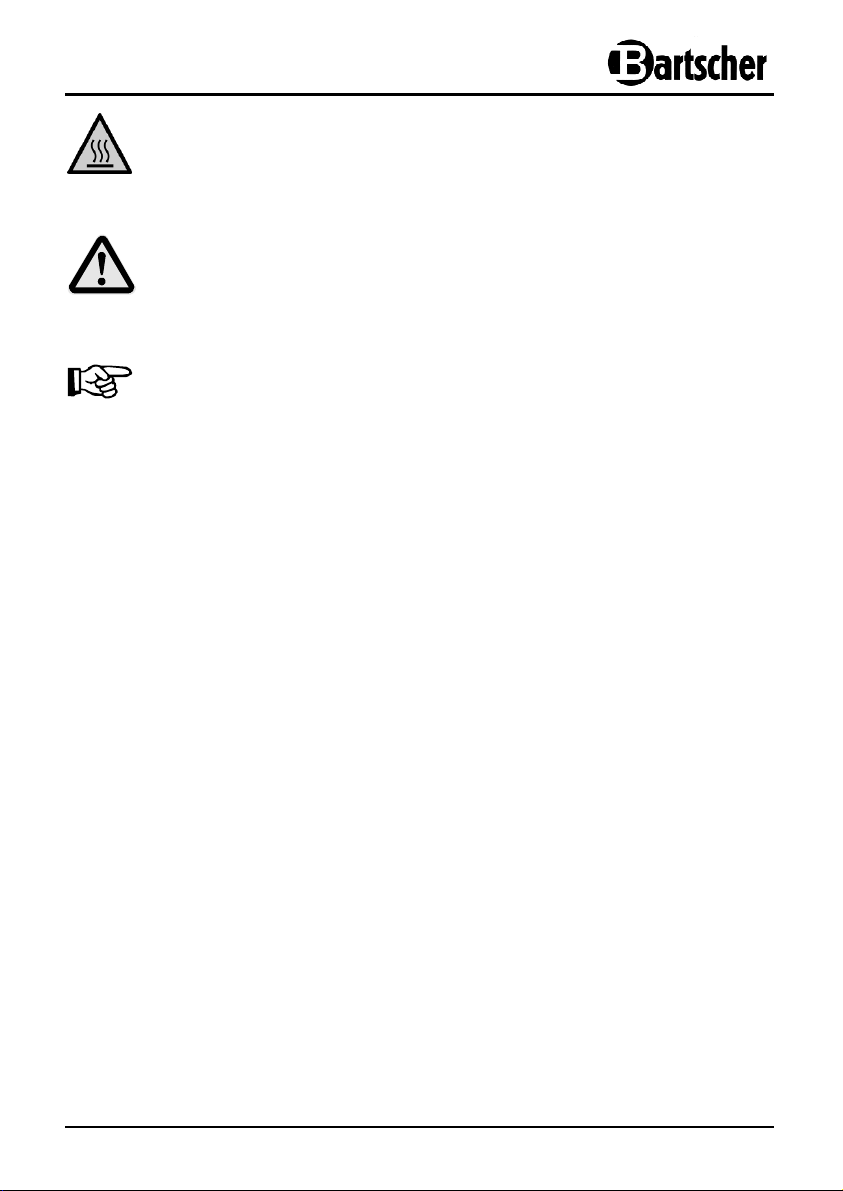

HOT SURFACE!
This symbol is a warning that the device surface is hot when in use.
Ignoring this warning may result in burns!
CAUTION!
This symbol highlights dangerous situations which could lead to light
injuries, or damage, malfunction, and/or destruction of the device.
NOTE!
This symbol highlights recommendations and information aimed for effective
and trouble-free device operation.
1.2 Safety instructions
• The device is not intended for use by individuals (including
children) with physical or mental disabilities, insufficient
experience, and/or insufficient knowledge unless such persons
are under the care of a person responsible for their safety or
have received instructions regarding appropriate use of the
device.
• Children should be observed to ensure that they are not playing
with or starting the device.
• Prevent access of children to the package materials like plastic
bags and foamed polystyrene elements. Suffocation hazard!
• Never leave the device unattended when in use.
• Only use the device indoors.

- 4 -
•
The device must be operated in correct and safe technical
condition only. In case of operational problems disconnect the
device from the power supply (pull the plug from the socket) and
contact the service company.
• Only a qualified technician and using original spare parts and
accessories should carry out repairs and maintenance of the
device. Do not attempt to repair the device yourself.
• Do not use any accessory or spare parts that have not been
recommended by the manufacturer. These can be dangerous
for the user or lead to damages of the device or personal injury,
and further, the warranty expires.
• To prevent hazards and to ensure optimum efficiency, no
modifications or alterations to the device that are not explicitly
approved by the manufacturer may be undertaken.
DAN ER! Electric shock hazard!
To avoid the hazard results please follow the instructions below.
• Never allow the power cable to come into contact with heat
sources or sharp edges. The power cable should not hang over
the side of the working surface. Ensure that no one can step
on or trip over the cable.
• The power cable must not be folded, bent or tangled, and must
always remain fully unrolled. Never place the device or other
objects on the power cable.
• Do not cover the cable. Keep away the cable from operating
range and do not immerse it into water or other liquids.

- 5 -
•
Check the power cord regularly for damage. Do not use the
appliance if the power cord is damaged. If this cable is damaged,
it must be replaced by customer service or a qualified electrician
in order to avoid dangers.
• The supply cable must be disconnected from the socket
only by pulling the plug.
• Never carry or lift the device by the supply cable.
• In any case do not open the device housing. In case of
electrical or mechanical modifications the electric shock
hazard will occur.
• Do not use any acid agents and make sure no water ingresses
the device.
• Never operate the device with moist hands or standing on wet
floor.
• Remove the plug from its socket:
- when the device is not used,
- in case of anomalies during operation,
- before cleaning.
WARNIN ! Risk of burns!
Follow the safety indications listed below in order to avoid hazards.
• During operation the surface of the appliance is very hot!
Do not touch hot surface with bare hands! During operation of the
appliance touch only handles and control elements designed
to this end.
• Also, after switching off, the surface of the appliance, as well as
the chamber and baked goods in containers, and the very containers,
too, remain hot for a long time. In order to take the baked goods out
of the chamber, always wear safety gloves.
• hen opening the appliance door, exercise special caution, as hot
steam may escape.

- 6 -
•
Leave the appliance to cool down sufficiently before commencing
cleaning.
WARNIN ! Risk of fire or explosion!
Follow the safety indications listed below in order to avoid hazards.
• Before starting to operate the appliance, make sure that there are
no objects in the oven chamber, like plastic bags, operation manual,
or accessories. During operation, never place any kitchen utensils,
towels, paper, etc., in the oven chamber nor on the appliance.
• Make sure that the steam outlet is not covered nor clogged.
• Never use the appliance near flammable materials (such as petrol,
spirits, alcohol, etc.). High temperatures may cause them to evaporate,
and as an outcome of contact with ignition sources deflagrations can
occur, which can lead to serious personal injuries and property
damages.
• Clean the oven chamber regularly, so that it is always clean: left-over
fats and roasting left-overs may incinerate.
• In the case of fire and before taking relevant fire extinguishing action,
disconnect the appliance from the electric power supply (pull the plug
out). Attention: Do not sprinkle the appliance with water, when it is
still live: Electric shock hazard!

- 7 -
1.3 Use as intended
CAUTION!
The device has been designed and built for commercial use and should
be operated only by qualified personnel in kitchen facilities.
Every use of the device for a different purpose and/or in a way that diverges from the
intended use is not allowed and is assumed as the use against the intended purpose.
Any claims against the manufacturer or their authorized representatives as a consequence
of experiencing damage resulting from the use against the intended purpose are
inadmissible.
The liability for damage occurred during the use of the device against its intended
purpose is borne solely and exclusively by the user.
Safety operation of the device is guaranted only when it is used for its intended purpose
and according to the instructions included in this manual.
The fermenting cupboard is designed only for the purpose of accelerating the
growth of fresh and frozen baked goods in a bakery.
1.4 Use against the intended purpose
Any use other than those mentioned in point “1.3 Use as intended“ is assumed as the
use against the intended purpose and is not allowed.
The use against the intended purpose may lead to severe injury or damage caused by
hazardous voltage, fire or high temperature. It is allowed to use the device to perform
only the work described in the instruction manual. Improper use may cause the device
damage.
Any manipulation with the device, assembly or maintenance work may be performed
exclusively by the authorized service staff.

- 8 -
2. eneral information
2.1 Liability and Warrantees
All the information and instructions in this manual take into account standard safety
regulations, current levels of technical engineering as well as the expertise and
experience we have developed over the years.
The instruction manual was translated with all due care and attention. However, we do
not accept liability for any translation errors. The German version of this instruction
manual is definitive.
If the delivery consists of a special model, the actual scope of delivery may differ from
the descriptions and illustrations in this manual. This is also the case for special orders
or when the device has been modified in line with new technology.
CAUTION!
Read this manual carefully and thoroughly before any operation of the device,
and especially before turning it on!
Manufacturer is not liable for any damages or faults caused by:
- violation of advice concerning operation and cleaning;
- use other than designed;
- alterations made by user;
- use of inadequate spare parts.
e reserve the right to make technical changes for purposes of developing and improving
the useful properties.
2.2 Copyright protection
The instruction manual including any texts, drawings, images or other illustrations
is copyright. No part of this publication may be reproduced, transmitted or used in any
form or by any means without permission in writing from the manufacturer. Any person
who commits any unauthorized act in relation to this publication shall be liable to claims
for damages. All rights reserved.
NOTE!
The contents, texts, drawings, pictures and any other illustrations are
copyright and subject to other protection rights. Any person unlawfully
using this publication is liable to criminal prosecution.
2.3 Declaration of conformity
The device complies with the current standards and directives of the EU.
e certify this in the EC declaration of conformity. If required we will be
glad to send you the according declaration of conformity.

- 9 -
3. Transport, packaging and storage
3.1 Delivery check
Please check the delivery upon completeness and transport damage immediately
after receipt. In case of visible damage do not accept or accept the delivery with
reservation only.
Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint.
Hidden damages should be reclaimed immediately after notice, as claims for damages
can only be asserted within the effective period for complaints.
3.2 Packaging
Please do not throw away the covering carton of your device as it might be useful for
storage purposes, when moving or, in case of damages, when the device must be sent
back to a repair center. The outer and inner packing material should be removed
completely from the device before installation.
If you liked to dispose the packing, consider the regulations applicable
in your country. Supply re-usable packing materials to the recycling.
Please inspect the device upon completeness. In case any part is missing please
contact our customer service center immediately.
3.3 Storage
Keep the package closed until installation and under consideration of the outside
indicated positioning- and storage markings.
Packages should be stored under consideration of the following:
- do not store outdoors,
- keep it dry and dust-free,
- do not expose it to aggressive media,
- do not expose it to direct sunlight,
- avoid mechanical shocks and vibration,
- in case of longer storage (> 3 months) make sure you check the state
of the packaging and the parts regularly, if required refresh or renew.

- 10 -
4. Technical data
4.1 Overview of parts

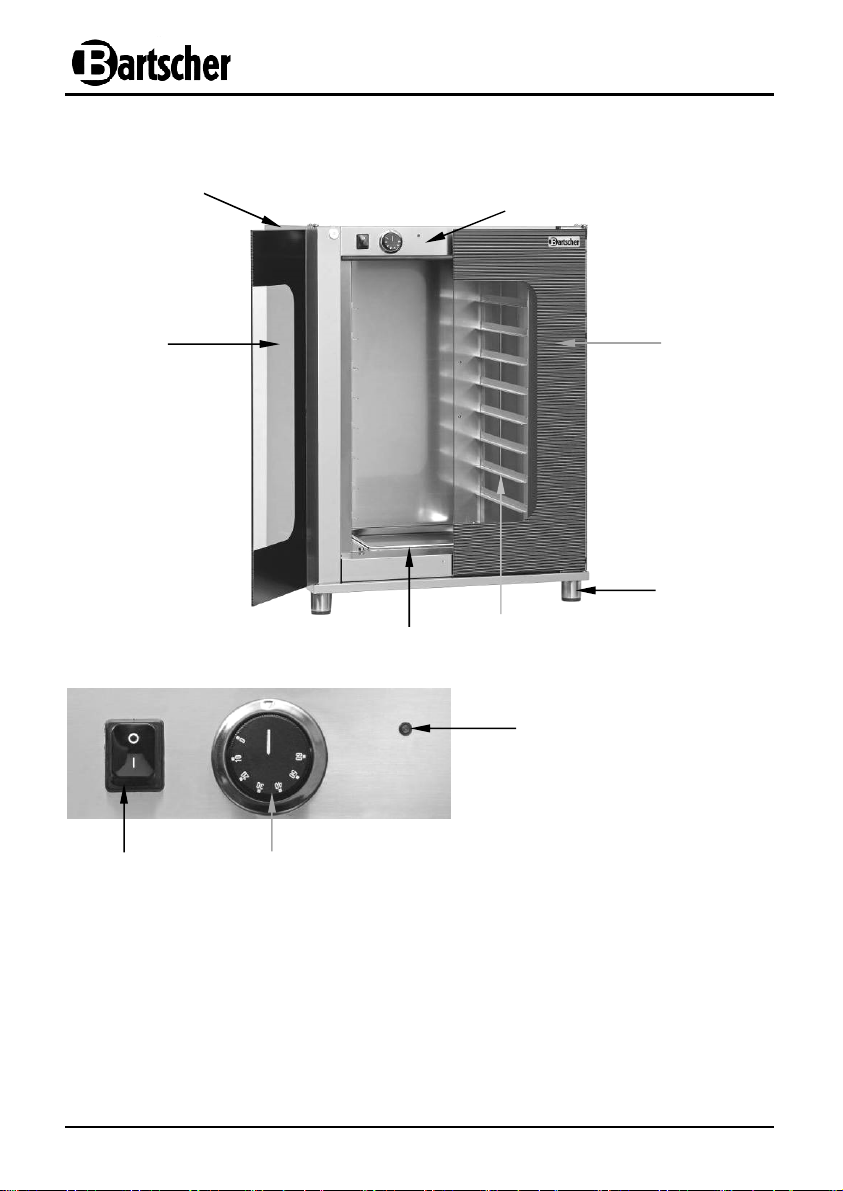

Control Elements
1Housing 6
ater pan
2Control panel 7
ON/OFF switch
3Glass pane door (2) 8
Temperature control knob
4Feet 9
Heating-up indicator (orange)
5Guide rails (8)
3
2
1
4
5
6
3
9
7 8

- 11 -
4.2 Technical specification
Name
Fermenting cupboard 823HO
with water pan for air moistening
Art. no.:
116550
Material: nickel-chrome steel 18/10
Guide rails: 8 x 2/3 GN or 442 x 320 mm trays
Distance between trays: 75 mm
Temperature range: 0 °C – 60 °C
Power supply: 2.0 k / 230 V 50–60 Hz
Dimensions: 700 x D 600 x H 960 mm
eight: 44.0 kg
e reserve the right to make technical changes!
5. Installation and operation
5.1 Installation
CAUTION!
Any operation connected with installation, assembly, control and maintenance
must be executed by specialised personnel, with necessary professional
training (approved by the manufacturer's company or vendor) and with
consideration for the regulations in force in the country of installation, as well
as safety regulations for the product and occupational health and safety
regulations.
5.1.1 Installation Instructions
• Before starting installation works and prior to commencing operation, read this
instruction manual carefully.
• Defective installation, operation errors and maintenance and cleaning mistakes as well
as any modifications may cause the incorrect operation, damage and injuries.
• The manufacturer is not responsible for injuries or damages resulting from non-
observance of the above regulations or tampering and using non-original spare
parts.
• Immediately following the reception of the appliance, make sure there are no transport
damages, and the packaging is not damaged. In case there are damages observed or
elements missing, immediately notify the transportation company or the

- 12 -
vendor/manufacturer and provide them with article number and serial number (type
plate at the back of the appliance), as well as photo documentation.
• Make sure that there are no elements hindering passages through doors, corridor or
other communication paths when moving the appliance to the installation location.
• ATTENTION: The appliance may turn over during transport, which may result in
damage to the appliance itself, other objects or personal injuries. During
transportation, use transportation measures adequate for the weight of the
appliance. The appliance should not be dragged nor tilted, but lifted perpendicularly
to the ground and handled in horizontal direction.
5.1.2
Place of Installation
• The appliance must be located in a closed and well-ventilated room (not outside).
• The surface under the appliance must feature load-bearing capacity suitable for the
appliance's weight with maximum load.
• The appliance must be positioned on even surface to avoid its slipping or turning
over.
• Remember, that after placing the appliance, there must be enough room to fully
open the door of the appliance.
• Place the appliance on a stable and dry surface that features water resistance and
high temperature resistance. The place of installation must be easily accessible and
sufficiently spacious to allow for easy operation of the device and good air circulation.
• Never position the appliance directly next to walls, furniture, or other objects made
of flammable materials. Follow fire protection regulations in force.
• Never place the appliance in the vicinity of flammable materials or containers
with flammable materials (walls, furniture, partition walls, gas cylinders): this may
pose a fire hazard. If it is impossible, flammable elements should be isolated with
non-flammable thermal insulation materials, paying the highest attention to the
conformity with fire prevention regulations.
• The appliance is not designed for installation inside a furniture piece.

- 13 -
5.1.3
Preparation for Installation
• Remove external packaging (wooden crate and/or carton box) and utilize it
according to the regulations in force in the country of installation.
• Remove the protective film before starting the appliance. Remove the film slowly, so
that there are no traces of adhesive left on the appliance. Any traces of an adhesive
may be removed with a suitable solvent.
• Remove all accessories, information materials, and plastic bags from the inside of
the appliance.
CAUTION!
Never remove the rating plate and any warning signs from the
appliance.
Adjustment of Feet

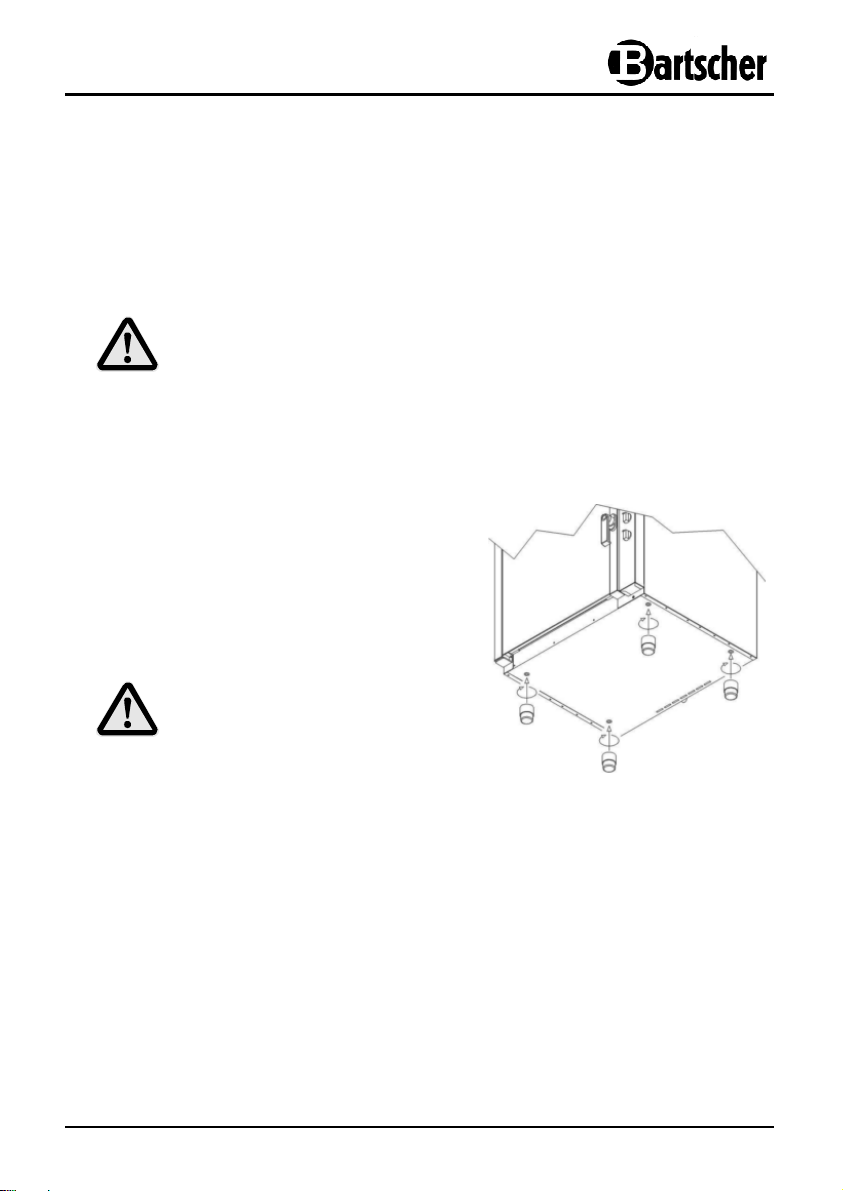

• Adjustable feet are delivered with
the appliance and must be screwed to its
bottom.
Correct levelling of the appliance provides for
correct operation. The appliance is levelled
with the use of feet and verified with a spirit
level. In order to level the appliance, it is
enough to screw the feet in or out.
CAUTION!
Never use the appliance without feet!
• If the appliance is used without feet, air flow is obstructed and electronic
components and external housing walls may not be cooled; this in turn may lead
to overheating and damage to the appliance components.

- 14 -
5.1.4
Connection
DAN ER! Electric shock hazard!
The device can cause injuries due to improper installation!
Before installation and connecting the local power grid specification should
be compared with that of the device (see rating plate). Connect the device only
in case of compliance!
• Before connecting the appliance to the power supply, make sure that voltage and
frequency values on the rating plate are conforming to the characteristics of the
existing electric installation.
The allowable voltage deviation is ±10%.
• Connect the appliance to an electric mains installation according to the international,
national, and local regulations in force.
• The appliance must be connected to a potential equalization circuit (ground). The
clamp is located at the back of the appliance, next to the marking .
• Position the appliance in such way that the plug is always easily accessible
for quick disconnecting when required.
• Current circuit of the mains socket must feature at least 16 A protection. Only
connect the appliance directly to a wall socket; do not use any extension cords nor
power strips.
5.1.5 First Start-Up
Before the first start-up electric appliances must be thoroughly inspected in order to
confirm the consistency of the appliance and its installation with regulations in force,
technical data, and recommendations for safety.
Carefully check the following:
→ temperature in the installation location must be higher than +4°C.
→ the chamber must be empty.
→ all packaging elements must be fully removed, including the protective
film on external walls.
→ do not block nor obstruct ventilation openings.
Execute a test run, without filling the appliance with food products. Follow indications
in section 5.2 'Indications for the User'.

- 15 -
5.2 Indications for the User
CAUTION!
Read this instruction manual carefully, as it contains important safety
and operation indications for the convection oven.
Store the instruction manual properly, to be able to use it at any moment.
The defective installation, operation errors and maintenance and cleaning
mistakes as well as any modifications may cause the incorrect operation,
damage and injuries.
5.2.1 Safety Indications
• Neverinstall the appliance in the vicinity of heat sources, such as a grill or a deep-
fryer.
• Flammable materials should never be left in the vicinity of the appliance. Fire
hazard!
• hen cooking or after its finish, the containers for food articles or other containers
may be very hot; pay particular attention when handling them in order to avoid
burns. They may be touched only in suitable protective gloves. Risk of burns!
• Be particularly cautious when opening the appliance door. Risk of burns due to
escaping hot steam.
• hen glass parts of the door get damaged or broken, they should be immediately
replaced (contact the service company).
• If the appliance is not to be used (e.g. for 12 hours), leave the appliance door open.
• If the appliance is not to be used for a prolonged period of time (e.g., a number of
days) disconnect the appliance from mains power supply.
5.2.2 Operation
• Before use clean the device according to instructions in section 6 'Cleaning
and Maintenance'.
• Water pan for moistening baked goods should be
placed at the bottom of the appliance (Fig. to the right).
• To prevent products from drying during fermentation,
fill the water pan with cold water. Mind the marking for
full filling of the water pan.
• Heat and humidity accelerate fermentation and thus
they greatly shorten the time baking time.
• Connect the appliance to a grounded socket and switch it with the ON/OFF switch, by
moving it to the up ('I') position.

- 16 -
• Set the temperature suitable for a given type of dough for baking, by rotating the
temperature controller clockwise to the required position in the range of 30°C – 60°C.
• The orange heating indicator light will be lit, thus indicating the heating up process of
the appliance. hen the desired temperature has been reached, the orange heating
control light goes off. The appliance is ready for fermentation process.
• The prepared, raw baked goods placed on trays are inserted into the appliance on
guide rails. Close the glass pane door.
• hen the temperature inside the appliance drops, the thermostat should switch the
heating on again and the appliance will heat up to the set temperature anew, and thus
the temperature in the chamber remains constant.
• Supervise the fermentation process.
• hen the expected results are obtained, take the baked goods from the appliance
and keep them baking in an oven.
WARNIN ! Hot surface!
When the temperature setting is high, the trays heat up considerably.
To avoid burns, always take the trays with protective gloves.
• After operation set the appliance's temperature controller to '0', flip the ON/OFF
switch to 'O' position and disconnect the appliance from electric mains supply (pull
the plug out).
5.2.3 Indications and Advices
• The fermenting cupboard should never be used for inducing growth of frozen dough;
before the fermentation process dough must be completely defrosted.
• Make sure that the dough does not dry too extensively during defrosting, for
otherwise it will not grow enough and may crack.
• Do not allow for excessive growth of the dough. Excessive growth may cause the
dough to drop after baking. Optimum effects are obtained when the baked goods are
grown in the fermenting cupboard to approx. 75–80% of final size; following this they
are placed in an oven in order to finish the baking process.
• If the dough grows too little, the baked goods will not reach the expected size
during baking, and will feature too dense (stiff) a structure.

- 17 -
6. Cleaning and Maintenance
WARNIN !
Before cleaning, disconnect the electric power supply
and wait for the device to cool down.
Never use a pressurised water stream nor steam jet for
cleaning.
Make sure water does not enter the appliance.
CAUTION!
Do not use corrosive substances nor abrasive agents or cloths/sponges,
which could damage the surface of the appliance.
Do not use agents containing chlorine, such as, for example, bleaches,
hydrochloric acid, etc.
Regular Cleaning by User
o In order to assure reliable operation, hygiene and efficiency the appliance should be
cleaned everyday after work.
o Before cleaning disconnect the electric power supply from the appliance and wait
for the fermenting chamber to cool down.
o Remove the water pan and wash it in warm water with mild cleaning agent. Rinse
the water pan with fresh water and dry afterwards.
o Clean the appliance inside and outside with the use of a damp cloth (sponge) and a
commercially available mild cleaning agent. Then use fresh water to wipe it, in order
to remove the remains of a washing agent and prevent its flavour to be transferred
onto the baked goods.
o Use a soft, damp cloth to wipe the glass pane door.
o hen the surfaces are clean, dry them and polish with a dry cloth.
Maintenance
o Regularly (at least once a year), have a qualified and authorized technician verify the
appliance. To this end, contact the service company.
o Before executing any maintenance works, switch the electric mains supply off. ait
for the appliance to cool down completely.

- 18 -
o Before moving the appliance into another location, make sure it has been correctly
disconnected from mains power supply.
o If the appliance is on a wheeled base, make sure that the electric cords will not be
damaged during moving.
o hen finished with the operation and after placing the appliance in a new location,
make sure that the electric installation has been connected according to standards in
force.
7. Possible Malfunctions
In case of malfunction, disconnect the device from its power source. Before contacting
the service or sales agent, verify - based on the table below - whether it is possible to
eliminate disruption in operation.
Problem Cause Solution
Fermenting cupboard
does not heat up
• Plug improperly inserted
into a socket.
• Current circuit fuse
tripped.
• Heating element
damaged.
• Thermostat broken.
• Pull the plug and re-insert it
correctly.
• Check the fuse, connect the
appliance to another socket
and check it.
• Contact the vendor.
• Contact the vendor.
Temperature is set,
but the orange
heating-up indicator
light is not lit.
• Damaged indicator light. • Contact the vendor.
If you cannot remove the malfunctions:
- do not open the body,
- notify the customer service point or contact the sales
agent, while providing the following information:
 type of malfunction;
 article and serial number (rating plate at the
rear of the device).
