Hach sensION+ pH3 User manual

DOC022.98.90248
sensION™+ pH3
12/2015, Edition 4
User Manual
Bedienungsanleitung
Manuale dell'utente
Manuel d'utilisation
Manual del usuario
Manual do utilizador
Uživatelská příručka
Brugsanvisning
Gebruikershandleiding
Instrukcja obsługi
Bruksanvisning
Käyttäjän käsikirja
Ръководство на потребителя
Használati útmutató
Manual de utilizare
Naudotojo vadovas
Руководство пользователя
Kullanım Kılavuzu
Návod na obsluhu
Navodila za uporabo
Korisnički priručnik
Εγχειρίδιο χρήσης
Kasutusjuhend

English...................................................................................................................................................................................................3
Deutsch...............................................................................................................................................................................................15
Italiano................................................................................................................................................................................................. 27
Français.............................................................................................................................................................................................. 39
Español............................................................................................................................................................................................... 51
Português.......................................................................................................................................................................................... 63
Čeština................................................................................................................................................................................................ 75
Dansk...................................................................................................................................................................................................87
Nederlands........................................................................................................................................................................................ 99
Polski................................................................................................................................................................................................. 111
Svenska............................................................................................................................................................................................ 123
Suomi.................................................................................................................................................................................................135
български....................................................................................................................................................................................... 147
Magyar.............................................................................................................................................................................................. 160
Română............................................................................................................................................................................................ 172
lietuvių kalba...................................................................................................................................................................................184
Русский............................................................................................................................................................................................ 196
Türkçe................................................................................................................................................................................................208
Slovenský jazyk............................................................................................................................................................................ 219
Slovenski.......................................................................................................................................................................................... 231
Hrvatski............................................................................................................................................................................................. 242
Ελληνικά........................................................................................................................................................................................... 254
eesti keel.......................................................................................................................................................................................... 267
2

Specifications
Specifications are subject to change without notice.
Specification Details
Dimensions 35 x 20 x 11 cm (13.78 x 7.87 x 4.33 in.)
Weight 1100 g (2.43 lb)
Meter enclosure IP42
Power requirements
(external) 100–240 V, 0.4 A, 47-63 Hz
Meter protection class Class II
Storage temperature –15 to +65 °C (5 to +149 °F)
Operating temperature 0 to 40 °C (41 to 104 °F)
Operating humidity < 80% (non-condensing)
Resolution pH: 0.01, ORP: 1 mV, temperature: 0.1 ºC
(0.18 ºF)
Measuring error (± 1 digit) pH: ≤ 0.01, ORP: ≤ 1 mV, temperature: ≤ 0.2 ºC (≤
0.36 ºF)
Reproducibility (± 1 digit) pH: ± 0.01, ORP: ± 1 mV, temperature: ± 0.1 ºC (±
0.18 ºF)
Connections Combined or indicator probe: BNC connector
(Imp. >1012Ω); Reference electrode: banana
connector; A.T.C. type Pt 1000: banana or
telephonic connector; magnetic stirrer: RCA
connector
Temperature correction Manual, Pt 1000 temperature probe (A.T.C.), NTC
10 kΩ probe
Measurement display lock Continuous measurement, by stability
Display Liquid crystal, backlit, 128 x 64 dots
Specification Details
Keyboard PET with protective treatment
Certification CE
General information
Revised editions are found on the manufacturer’s website.
Safety information
NOTICE
The manufacturer is not responsible for any damages due to misapplication or
misuse of this product including, without limitation, direct, incidental and
consequential damages, and disclaims such damages to the full extent permitted
under applicable law. The user is solely responsible to identify critical application
risks and install appropriate mechanisms to protect processes during a possible
equipment malfunction.
Please read this entire manual before unpacking, setting up or operating
this equipment. Pay attention to all danger and caution statements.
Failure to do so could result in serious injury to the operator or damage
to the equipment.
Make sure that the protection provided by this equipment is not impaired.
Do not use or install this equipment in any manner other than that
specified in this manual.
Use of hazard information
DANGER
Indicates a potentially or imminently hazardous situation which, if not avoided, will
result in death or serious injury.
W A R N I N G
Indicates a potentially or imminently hazardous situation which, if not avoided,
could result in death or serious injury.
English 3

CAUTION
Indicates a potentially hazardous situation that may result in minor or moderate
injury.
NOTICE
Indicates a situation which, if not avoided, may cause damage to the instrument.
Information that requires special emphasis.
Precautionary labels
Read all labels and tags attached to the instrument. Personal injury or
damage to the instrument could occur if not observed. A symbol on the
instrument is referenced in the manual with a precautionary statement.
This symbol, if noted on the instrument, references the instruction
manual for operation and/or safety information.
Electrical equipment marked with this symbol may not be disposed of
in European domestic or public disposal systems. Return old or end-
of-life equipment to the manufacturer for disposal at no charge to the
user.
Product overview
The sensION™+ meters are used with probes to measure various
parameters in water.
The sensION™+ PH3 meter measures pH, ORP (mV) or temperature.
Product components
Refer to Figure 1 to make sure that all components have been received.
If any items are missing or damaged, contact the manufacturer or a
sales representative immediately.
Figure 1 Meter components
1 Electrolyte for the probe 5 Power supply
2 Buffer solutions (pH 4.01, pH
7.00 and pH 10.01)
6 Rod with o-ring
3 Calibration beakers (with magnetic
bar inside)
7 Probe (included with kits only)
4 Probe holder 8 Meter
Installation
Assemble the probe holder
Follow the numbered steps to assemble the probe holder and to connect
the magnetic stirrer.
4 English

1 2
3 4
English 5

Connect to AC power
DANGER
Electrocution hazard. If this equipment is used outdoors or in
potentially wet locations, a Ground Fault Circuit Interrupt (GFCI/GFI)
device must be used to connect the equipment to its main power
source.
The meter can be powered by AC power with the universal power
adapter.
1. Select the correct adapter plug for the power outlet from the adapter
kit.
2. Connect the universal power adapter to the meter (Figure 2).
3. Connect the universal power adapter to an AC receptacle (Figure 3).
4. Turn the meter on.

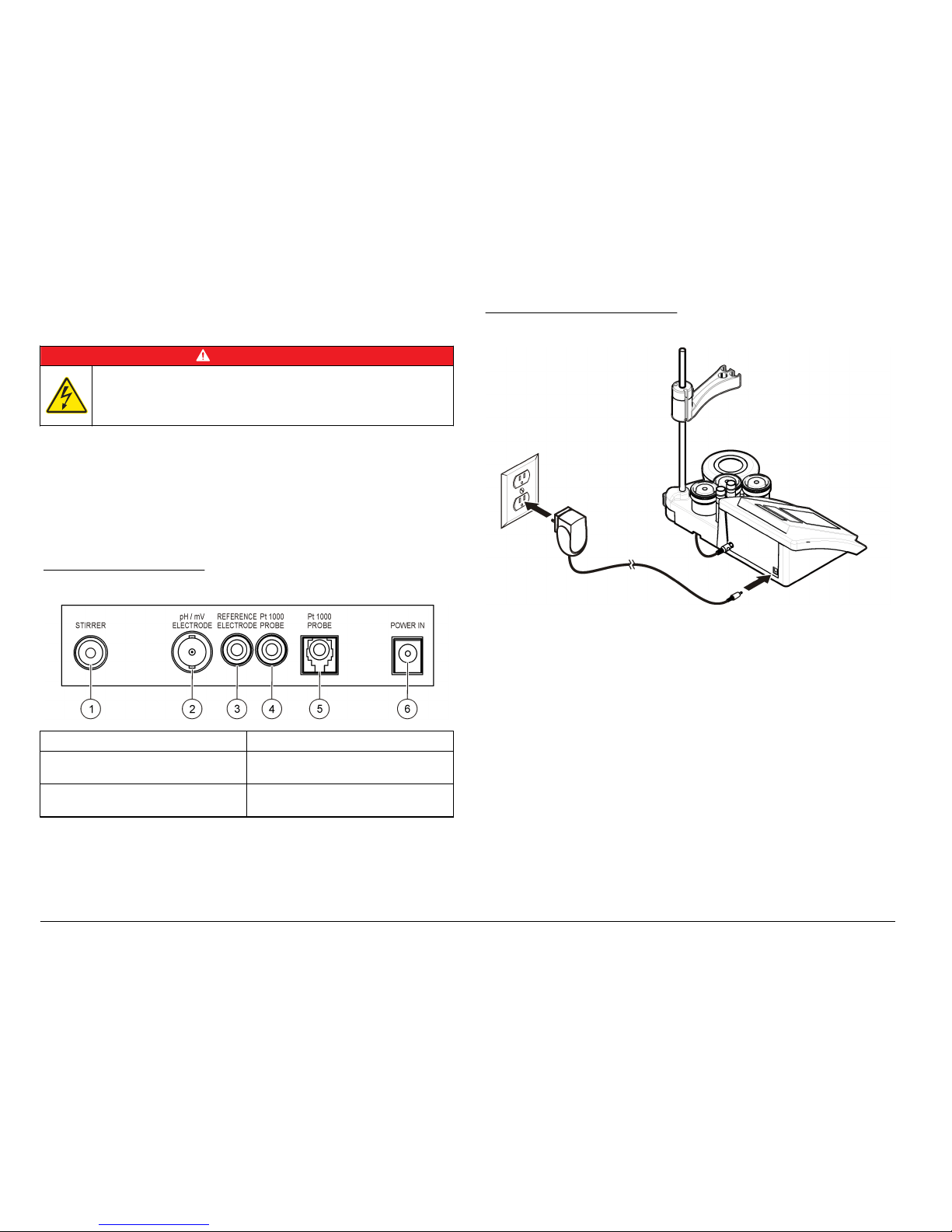

Figure 2 Connector panel
1 Magnetic stirrer connector 4 Temperature probe connector
2 Combined pH electrode (or
indicator) connector
5 Separated temperature probe
connector
3 Reference electrode (separated
electrodes) connector
6 Power supply
Figure 3 AC power connection
6 English

User interface and navigation
User interface
Keypad description
1 CALIBRATION key: start a
calibration , view calibration data
and change the calibration
frequency
5 DOWN key: scroll to other options,
change a value
2 TEMPERATURE and STIRRER
key: change the temperature (°C,
°F) or the stirring speed
6 ON/OFF: turn on or turn off the
meter
3 UP key: scroll to other options,
change a value
7 mV measurement key: start a ORP
(mV) measurement
4 pH measurement key: start a pH
measurement
Display description
The meter display shows the concentration, units, temperature,
calibration status, date and time.
Figure 4 Single screen display
1 Measurement unit and value (pH,
ORP (mV))
3 Sample temperature (ºC or ºF)
2 Measurement mode or time and
date
4 Visual measurement timer
Navigation
Use the calibrate key to calibrate the probe. Use the parameter key
to take a sample measurement. Use the TEMPERATURE and STIRRER
key to change the temperature (°C, °F) or the stirring speed. Use
the arrow keys to scroll to other options or to change a value.
Be sure to look at the display during tasks as the screens change
quickly. Refer to each task for specific instructions.
Startup
Turn the meter on and off
NOTICE
Make sure that the probe is connected to the meter before the meter is turned on.
Push to turn on or turn off the meter. If the meter does not turn on,
make sure that the AC power supply is properly connected to an
electrical outlet.
Change the language
The display language is selected when the meter is powered on for the
first time.
English 7

Use the or to select a language from a list. The meter returns
automatically to the measurement screen after 3 seconds.
Note: To change the language from the main menu, push .
Standard operation
Calibration
DANGER
Chemical exposure hazard. Obey laboratory safety procedures and
wear all of the personal protective equipment appropriate to the
chemicals that are handled. Refer to the current safety data sheets
(MSDS/SDS) for safety protocols.
Calibration procedure
This procedure is for general use with liquid calibration solutions. Refer
to the documents that are included with each probe for additional
information.
Note: Solutions should be stirred during calibration. For more information about the
stirring settings, refer to Change the stirring settings on page 9.
1. Pour the buffers or calibration solutions into the labeled calibration
beakers.
2. From the main menu push to select pH or mV calibration.
3. Rinse the probe with deionized water and put the probe into the first
calibration beaker. Be sure that there are no air bubbles in the
membrane.
4. Push to measure the first calibration solution.
The next calibration solution is shown.
5. Rinse the probe with deionized water and put the probe into the
second calibration beaker. Be sure that there are no air bubbles in
the membrane.
6. Push to measure the second calibration solution.
The next calibration solution is shown.
7. Rinse the probe with deionized water and put the probe into the third
calibration beaker. Be sure that there are no air bubbles in the
membrane.
8. Push to measure the third calibration solution.
When the calibration is good, the display briefly shows 3rd Buffer OK
and then returns to the main menu.
View the calibration data
Data from the most recent calibration can be shown.
1. From the main menu push .
2. Use the to view the last calibration data. The meter returns
automatically to the measurement screen after 3 seconds.
Set the calibration reminder
The calibration reminder can be set between 0 to 23 hours or 1-7 days
(default 1 day). The display shows the remaining time to the new
calibration.
Note: When 0 days is selected, the calibration reminder is turned off.
1. From the main menu push and then push until the display
shows Cal. frequency.
2. Use the or to change the value.
The meter returns automatically to the measurement screen after
3 seconds.
Sample measurements
Each probe has specific preparation steps and procedures for taking
sample measurements. For step-by-step instructions, refer to the
documents that are included with the probe.
Note: Solutions should be stirred during measurement. For more information about
the stirring settings, refer to Change the stirring settings on page 9.
Note: The temperature is not shown during an ORP (mV) measurement when the
temperature probe is not connected.
Push pH or ORP (mV) to take a sample measurement. During
measurements, the parameter flashes and the timer shows the
8 English

stabilization time. To change the measurement parameter (if applicable),
push and hold pH or ORP (mV).
To measure the sample continuously, push pH or ORP (mV) to start a
measurement and push pH or ORP (mV) again during the stabilization.
The parameter flashes to indicate the continuous measurement mode.
Advanced operation
Change the date and time
The date and time can be changed from the Date and Time menu.
1. Use the to enter the Date and Time menu. The date and time
format: dd-mm-yyyy 24h.
The attribute to be changed will be automatically highlighted and will
advance to the next attribute if no or is pushed.
2. To change an attribute, push or when the highlighted
attribute is selected.
The current date and time will be shown on the display.
Adjust the display contrast
1. Push the and at the same time to enter the Display contrast
menu.
2. Use the or to adjust the contrast of the display. The meter
returns automatically to the measurement screen after 3 seconds.
Change the stirring settings
The stirring speed can be changed during calibration and during a
measurement.
1. Push during a calibration or during a measurement to enter the
stirring menu.
2. Use the or to change the stirring speed in %.
Change the temperature units
The temperature units can be changed to Celsius or Fahrenheit.
1. From the main screen push .
2. Push to select between Celsius or Fahrenheit.
Maintenance
CAUTION
Multiple hazards. Only qualified personnel must conduct the tasks
described in this section of the document.
NOTICE
Do not disassemble the instrument for maintenance. If the internal components
must be cleaned or repaired, contact the manufacturer.
Clean the instrument
NOTICE
Never use cleaning agents such as turpentine, acetone or similar products to
clean the instrument including the display and accessories.
Clean the exterior of the instrument with a moist cloth and a mild soap
solution.
Clean the probe
Clean the probe as needed. Refer to Troubleshooting on page 12 for
more information about cleaning. Refer to the probe documentation for
information about the probe maintenance.
Use the cleaning agents listed in Table 1 for contaminations on the pH
probe.
English 9

Table 1 Cleaning agents for the pH probe
Contamination Cleaning agent
Proteins Pepsin cleaning solution
Grease, oils, fats Electrode cleaning solution
Limescale 0.1 N HCl solution
Replace the magnetic stirrer
If the magnetic stirrer does not start, follow the numbered steps to
replace the magnetic stirrer.
10 English

1 2
English 11

Troubleshooting
Refer to the following table for common problem messages or
symptoms, possible causes and corrective actions.
Table 2 Calibration warnings and errors
Error/Warning Solution
Asymmetry >
58 mV Slope out of range (accepted values ± 58 mV).
Repeat with .
Connect a new probe.
Buffer or electrode
in poor conditions. Repeat with .
Examine the probe: Clean the probe (refer to Clean the
probe on page 9 for more information); make sure that
there are no air bubbles in the membrane. Shake the
probe like a thermometer; Connect a different probe to
verify if problem is with probe or meter.
Examine the buffer solution: Make sure that the buffer
used matches the buffer specified in configuration; make
sure of the temperature specification in configuration; use
new buffer solution.
Sens. (a) < 70%
BUFFER NOT
RECOGNIZED
UNSTABLE
READING
Time t> 100 s
Repeat with .
Examine the probe: Clean the probe (refer to Clean the
probe on page 9 for more information); make sure that
there are no air bubbles in the membrane. Shake the
probe like a thermometer; connect a different probe to
verify if problem is with probe or meter.
Make sure that the membrane and the diaphragm are
properly immersed in the sample.
Table 2 Calibration warnings and errors (continued)
Error/Warning Solution
Electrode in poor
conditions. Examine the probe: Clean the probe (refer to Clean the probe on page 9 for more information); make sure that
there are no air bubbles in the membrane. Shake the probe
like a thermometer; connect a different probe to verify if
problem is with probe or meter.
Check the
electrode
SAME BUFFERS Repeat with .
Examine the probe: Clean the probe (refer to Clean the
probe on page 9 for more information); make sure that
there are no air bubbles in the membrane. Shake the
probe like a thermometer; connect a different probe to
verify if problem is with probe or meter.
Examine the buffer solution: Use new buffer solution.
Table 3 Measurement warnings and errors
Error/Warning Solution
pH 12.78 19°C Repeat with .
pH out of range Examine the probe: Clean the probe (refer to Clean the
probe on page 9 for more information); make sure that
there are no air bubbles in the membrane. Shake the
probe like a thermometer; connect a different probe to
verify if problem is with probe or meter.
Temp out of range °C Examine the temperature sensor.
Connect a different probe to verify if problem is with
probe or meter.
Time > 150 s Make sure that the membrane and the diaphragm are
properly immersed in the sample.
Examine the temperature.
Examine the probe: Clean the probe (refer to Clean the
probe on page 9 for more information); make sure that
there are no air bubbles in the membrane. Shake the
probe like a thermometer; connect a different probe to
verify if problem is with probe or meter.
12 English

Replacement parts and accessories
Note: Product and Article numbers may vary for some selling regions. Contact the
appropriate distributor or refer to the company website for contact information.
Replacement parts
Description Item no.
sensION+ PH3 Lab pH-meter with accessories, without
probe LPV2000.98.0002
sensION+ PH31 Lab pH-meter, GLP, with accessories,
without probe LPV2100.98.0002
sensION+ MM340 Lab pH & Ion-meter, GLP, 2 channels,
with accessories, without probe LPV2200.98.0002
sensION+ EC7 Lab conductivity meter, with accessories,
without probe LPV3010.98.0002
sensION+ EC71 Lab conductivity meter, GLP, with
accessories, without probe LPV3110.98.0002
sensION+ MM374, 2 channel Lab meter, GLP,
accessories, without probes LPV4110.98.0002
Consumables
Description Item no.
pH buffer solution 4.01, 125 mL LZW9460.99
pH buffer solution 7.00, 125 mL LZW9461.98
pH buffer solution 10.01, 125 mL LZW9470.99
pH buffer solution 4.01, 250 mL LZW9463.99
pH buffer solution 7.00, 250 mL LZW9464.98
pH buffer solution 10.01, 250 mL LZW9471.99
pH buffer solution 4.01, 1000 mL LZW9466.99
pH buffer solution 7.00, 1000 mL LZW9467.98
Consumables (continued)
Description Item no.
pH buffer solution 10.01, 1000 mL LZW9472.99
Electrolytic solution (KCl 3M), 125 mL LZW9510.99
Electrolytic solution (KCl 3M), 250 mL LZW9500.99
Electrolytic solution (KCl 3M), 50 mL LZW9509.99
Electrolytic solution 0.1 M, 125 mL LZW9901.99
Enzyme solution 2964349
Pepsin Cleaning Solution 2964349
Electrode cleaning solution 2965249
0.1 N HCl solution 1481253
Accessories
Description Item no.
Magnetic stirrer with sensor holder, for sensION+ MM
benchtop LZW9319.99
3x50 mL printed beakers for benchtop pH calibration LZW9110.98
Three-sensor holder, for sensION+ benchtop instruments LZW9321.99
Holder and clamp for three sensors LZW9155.99
Pyrex glass chamber, continuous flow measurements LZW9118.99
PP protector, electrode storage LZW9161.99
Standard solutions
Technical buffer solutions (DIN 19267)
Refer to Table 4 pH and ORP (mV) values of specific buffer sets at
varying temperatures.
English 13

Table 4 pH, ORP (mV) and temperature values
Temperature pH mV
°C °F
0 32 2.01 4.01 7.12 9.52 10.30 —
10 50 2.01 4.00 7.06 9.38 10.17 245
20 68 2.00 4.00 7.02 9.26 10.06 228
25 77 2.00 4.01 7.00 9.21 10.01 220
30 86 2.00 4.01 6.99 9.16 9.96 212
40 104 2.00 4.03 6.97 9.06 9.88 195
50 122 2.00 4.06 6.97 8.99 9.82 178
60 140 2.00 4.10 6.98 8.93 9.76 160
70 158 2.01 4.16 7.00 8.88 — —
80 176 2.01 4.22 7.04 8.83 — —
90 194 2.01 4.30 7.09 8.79 — —
14 English
