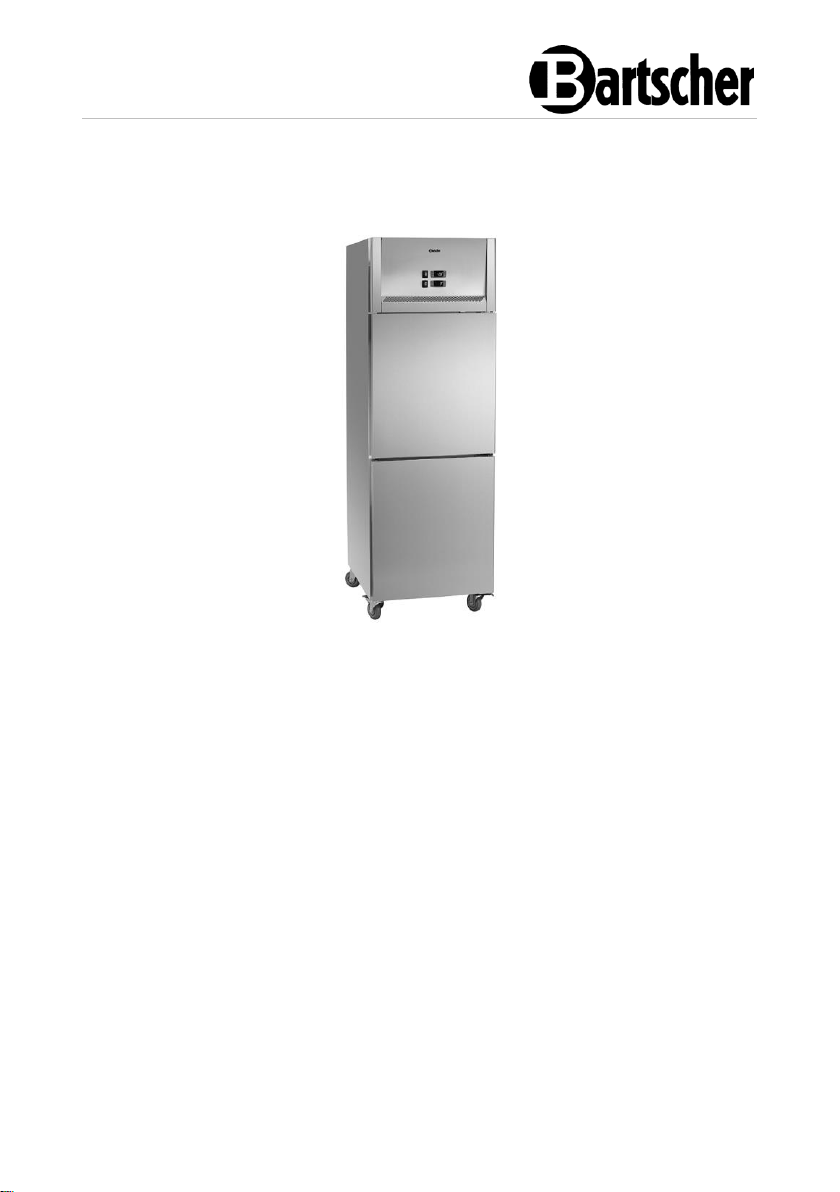

Bartscher 484L GN210 User guide

484L GN210
700826

Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten
Germany
Phone: [phone]
Fax: [phone]
Technical Support Hotline: [phone]
www.bartscher.com
Version: 1.0
Date of preparation: 2022-10-19
EN
2

700826 1 / 24
Original instruction manual
1Safety............................................................................................................2
1.1 Explanation of Signal Words....................................................................2
1.2 Safety instructions....................................................................................3
1.3 Intended Use ...........................................................................................6
1.4 Unintended Use.......................................................................................6
2General information.......................................................................................7
2.1 Liability and Warranty ..............................................................................7
2.2 Copyright Protection ................................................................................7
2.3 Declaration of Conformity ........................................................................7
3Transport, Packaging and Storage................................................................8
3.1 Delivery Check.........................................................................................8
3.2 Packaging................................................................................................8
3.3 Storage....................................................................................................8
4Technical Data...............................................................................................9
4.1 Technical Specifications ..........................................................................9
4.2 List of Components of the Appliance .....................................................11
4.3 Functions of the Appliance.....................................................................12
5Installation and operation ............................................................................13
5.1 Installation..............................................................................................13
5.2 Operation...............................................................................................15
6Cleaning and Maintenance..........................................................................20
6.1 Safety Instructions for Cleaning.............................................................20
6.2 Cleaning.................................................................................................21
7Possible Malfunctions..................................................................................22
8Disposal....................................................................................................... 24

Safety
2 / 24 700826
EN
Diese Bedienungsa nleitung beschreibt di eI nstallation, Bedienu ngu nd Wartung des Geräts u ndg ilt als wichtige Infor mationsquelle un dN achschlagewer k.Di e Kenntnis aller enthalt enenSic herheitshinw eiseu ndH andlungs anweisungen schafft die V oraussetzung für d as sichere und sac hgerechte Arbeite n mitd emG erät.D arüber hin aus müssen die für den Eins atzbereich des Geräts gelt enden örtlichen Un fallverhütungsvorsc hriften und allgemein en Sicherheitsb estimmungen eingehalt en werden. Diese Bedi enungsanleitung ist Bestandt eild es Produkts und muss i n unmittelbarer Nähe d es Geräts für das In¬stall ations-, Bedienungs- , Wartungs- und Reinigu ngspersonal jederzeit z ugänglich auf¬b ewahrt werden. Wenn das Ger ät an eine dritte Person
weitergegeben wird , muss die Bedienungsa nleitung mit ausgehä ndigt werden.
Read this instruction manual before using and keep it available
at all times!
This instruction manual contains information about installation, operation and
maintenance of the appliance and constitutes an important source of information
and reference guide. The knowledge of all operational and safety instructions
included in this manual is a prerequisite for safe and proper handling of the
appliance. Additionally, accident prevention, occupational health and safety, and
legal regulations in force in the area the appliance is used apply.
Before you start using the appliance, especially before turning it on, read this
instruction manual in order to avoid personal injuries and property damages.
Improper use may cause damage.
This instruction manual forms and integral part of the product and must be stored in
an immediate vicinity of the appliance and be available at all times. The instruction
manual should be transferred together with the appliance.
1 Safety
This appliance has been manufactured in accordance with technical standards
currently in force. However, the appliance may be a source of hazards if used
improperly or contrary to its intended purpose. All persons using the appliance must
consider information included in this instruction manual and observe safety
instructions.
1.1 Explanation of Signal Words
Important safety instructions and warning information are indicated in this
instruction manual with appropriate signal words. You must strictly follow the
instructions, to prevent accidents, personal injuries and property damages.
DANGER!
The signal word DANGER warns against hazards that lead to severe
injuries or death if the hazards are not avoided.

Safety
700826 3 / 24
EN
WARNING!
The signal word WARNING warns against hazards that may lead to
moderate or severe injuries or death if the hazards are not avoided.
CAUTION!
The signal word CAUTION warns against hazards that may lead to
light or moderate injuries if the hazards are not avoided.
,di e
IMPORTANT!
The signal word IMPORTANT indicates possible property damages,
which may occur if safety instructions are not observed.
NOTE!
The symbol NOTE indicates subsequent information and guidelines
for the user on usage of the appliance.
1.2 Safety instructions
Electrical Current
•Too high a mains voltage or incorrect installation may cause electric shock.
•The appliance may be connected only if data on the rating plate correspond with
the mains voltage.
•To avoid short-circuit, the appliance should be kept dry.
•If there are malfunctions during operation, disconnect the appliance from the
power supply.
•Do not touch the appliance’s plug with wet hands.
•Never take hold of the appliance if it has fallen into water. Immediately
disconnect the appliance from the power supply.
•Any repairs or housing opening may be carried out by professionals and
relevant workshops only.
•Do not transport the appliance, holding it by the power cord.
•Do not allow the power cord to come into contact with heat sources or sharp
edges.
•Do not bend, pinch nor knot the power cord.

Safety
4 / 24 700826
EN
•Always completely unwind the power cord.
•Never place the appliance or other objects on the power cord.
•Always take hold of the plug to disconnect the appliance from the power supply.
•Check the power cord regularly for damage. Do not use the appliance if the
power cord is damaged. If this cable is damaged, it must be replaced by
customer service or a qualified electrician in order to avoid dangers.
Incorrect operation of th e appliance may cause fire or explosion hazard d uet oig nition of its content.
Fire hazard / flammable materials hazard / explosion hazard!
•Do not use any electric devices in the appliance.
•Do not store nor use petrol or other flammable liquids and gases in the vicinity of
this or any other appliance. Those gases may cause fire or explosion hazard.
•Do not put into the appliance any explosive materials, like sprays filled with
flammable propellants. Contents of containers filled with flammable gases and
liquids may leak in low temperatures, and the contents may catch fire from
sparks generated by an electric appliance. Explosion hazard!
•In the case of coolant leakage, pull the plug from the socket. Remove all
sources of ignition in the vicinity, ventilate room and contact technical service.
Avoid coolant getting in contact with eyes, as it may cause serious eye damage.
•Never use any flammable liquids for cleaning the appliance or its parts. Gases
released may cause fire or explosion hazard.
•In the case of fire, disconnect the appliance from the power supply before
attempting adequate fire-extinguishing actions.
•Never attempt to extinguish fire with water if the appliance is connected to the
power supply. Following extinction of fire, ensure sufficient fresh air inflow.
•Defrosting process may not be sped up with mechanical means or heat energy
sources (candles or heaters) nor with any other means. Vapour produced may
cause short-circuit and too high temperatures may damage the appliance.
•All ventilation slots should not be obstructed during operation.
•Never attempt to damage cooling installation of the appliance.
Operating personnel
•This appliance is not intended to be used by persons (including children) with
limited physical, sensory or mental capabilities, nor by persons with limited
experience and/or limited knowledge.
•Children should be supervised to ensure that they are not playing with or
switching the appliance on.
Improper Use

Safety
700826 5 / 24
EN
•Unintended or prohibited use may cause damage to the appliance.
•The appliance may only be used when its technical condition is flawless and
allows for safe operation.
•The appliance may only be used when all connections are executed according
to rules of law in force.
•The appliance may only be used when it is clean.
•Use only original spare parts. Never attempt to repair the appliance on your own.
•Do not introduce any changes in the appliance nor modify it.
•Do not drill hole in the appliance nor install any objects on it.
•Do not place any heavy objects on the appliance.

Safety
6 / 24 700826
EN
1.3 Intended Use
As described below, every use of the appliance for a purpose differing and/or
diverging from its intended standard use, is prohibited and considered to be an
unintended use.
The following is an intended use:
–Cooling, freezing and storing suitable food products and food
preparation.
The appliance is intended for operation in maximum ambient temperature of 32°C
and relative humidity of 65%.
1.4 Unintended Use
An unintended use may lead to personal injuries or property damages caused by
hazardous voltage, fire or high temperature. The appliance may only be used to
perform tasks described in this instruction manual.
The following is an unintended use:
–Storing flammable or explosive objects and liquids, such as ether,
petroleum or adhesives;
–Storing explosive materials, like sprays filled with flammable propellants;
–Storing pharmaceutical products or preserved blood;
–Storing live pets.

General information
700826 7 / 24
EN
2 General information
2.1 Liability and Warranty
All information and instructions in this instruction manual account for legal
regulations in force, current level of technical engineering knowledge as well as our
expertise and experience, developed over the years. If special models or additional
options are ordered, or state-of-the-art technical solutions were implemented, the
actual scope of delivery of the appliance may, in some circumstances, differ from
descriptions and numerous drawings in this instruction manual.
The manufacturer is not liable for any damages nor faults stemming from:
–failure to observe instructions,
–unintended use,
–technical alterations introduced by the user,
–usage of unapproved spare parts.
We reserve the right to introduce technical modifications to the product, intended for
improvement of the appliance and its performance.
The warranty period for this appliance is 24 months, counted from the purchase
date.
2.2 Copyright Protection
This instruction manual, and texts, drawings and images included in it, as well as its
other components are copyright protected. It is prohibited to reproduce this
instruction manual (including its excerpts), in any form and by any means, and to
use and/or transfer its content to third parties without manufacturer’s written
permission. Violation of the above results in obligation to pay compensation. We
reserve the right to claim further damages.
2.3 Declaration of Conformity
The appliance meets the currently applicable standards and guidelines of the
European Union. We confirm the above in the EC Declaration of Conformity. We
may provide relevant Declaration of Conformity upon request.

Transport, Packaging and Storage
8 / 24 700826
EN
3 Transport, Packaging and Storage
3.1 Delivery Check
Immediately upon reception, check the delivery for completeness and possible
shipping damage. In the case of visible transport damage refuse to accept the
appliance or accept it conditionally. Mark and note the scope of damage in shipping
documents/consignment list of the shipping company and lodge a complaint.
Concealed damage must be reported immediately upon its discovery, as
compensation claims may only be filed within applicable time limits.
If you find that parts or accessories missing, please contact our Customer Service
Department.
3.2 Packaging
Do not dispose of the appliance cardboard box. It may be used to store the
appliance when relocating or when shipping the appliance to our service point in the
case of any damages.
The packaging and its elements are made of recyclable materials. Particularly,
these are: plastic films and bags, cardboard box.
When disposing of the packaging, observe applicable domestic regulations.
Recyclable packaging materials should be recycled.
3.3 Storage
Leave the packaging closed until installation of the appliance; observe external
indications concerning method of placing and storage. Store the packaging in the
following conditions only:
–in closed rooms;
–in dry and dust-free surrounding;
–away from aggressive agents;
–in a location protected against sunlight;
–in a location protected against mechanical shocks.
In the case of extended storage (over three months), make sure you check the
condition of the packaging and the parts regularly. If needed, replace the packaging
with a new one.

Technical Data
700826 9 / 24
EN
4 Technical Data
4.1 Technical Specifications
Name:
Combination fridge/freezer 484L
GN210
Art. No.:
700826
Material:
stainless steel
Inner material:
stainless steel
Volume, in l:
484
Gastronorm:
2/1 GN, 1/1 GN
Freezer / fridge temperature range, min.–
max., in °C:
0 - 10 / -18 - -22
Temperature control in °C increments:
1
Ambient temperature, min.–max., in °C:
16 - 32
Amount of coolant, in kg:
R290 / 0,075
Climate class:
N
Energy consumption, in kWh/year:
2.555
Number of doors:
2
Number of shelves:
4
Shelf dimensions (W x D), in mm:
525 x 640
Connected load:
0,533 | 230 V | 50 Hz
Dimensions (W x D x H), in mm:
660 x 835 x 2025
Weight, in kg:
132,0
We reserve the right to implement technical modifications.

Technical Data
10 / 24 700826
EN
Version / Characteristics
•Colour: silver
•Cooling: circulating air
•Temperature control: in 1°C increments
•Thermostat
•Control: electronic
•Digital display
•ON/OFF switch
•Indicator light: ON/OFF
•Automatic defrost function
•Evaporation of condensed water
•Insulation: cyclopentane, 50 mm
•Type of shelves:
–guide rails
–grate, plastic-coated
•4 guide rail pairs:
–designed for grates
–designed for GN 2/1 and GN 1/1 containers
–adjustable height
•Height-adjustable shelves
•Door type: leaf door
•Right-hand side door, with the possibility for door hinge to be changed
•Features:
–1 ON/OFF switch per fridge and freezer
–freezing at the top | cooling at the bottom
–for sliding in GNB containers
–4 swivel castors, 2 with brakes

Technical Data
700826 11 / 24
EN
4.2 List of Components of the Appliance
The delivery does not include decorations!
Fig. 1
1. Control panel
2. Appliance door, freezer
3. Appliance door, fridge
4. Swivel castors (4 pcs, 2 with
brakes)
5. Guide rails (4 pairs)
6. Grate (4 pcs)
7. Fridge
8. Housing
9. Freezer
10.Ventilation openings of the
refrigerating unit chamber
11.Refrigerating unit chamber

Technical Data
12 / 24 700826
EN
Control Panel
Fig. 2
12.ON/OFF switch with integrated
freezer power indicator light (green)
13.Freezer digital temperature
controller
14.ON/OFF switch with integrated
fridge power indicator light (green)
15.Fridge digital temperature
controller
4.3 Functions of the Appliance
The appliance combines cooling and freezing functions, providing for rapid access
to chilled or frozen products in small space. The GN format guide rails allow for
using any type of grates, e.g. GN containers.

Installation and operation
700826 13 / 24
EN
5 Installation and operation
5.1 Installation
•Do not place the applianc ein h ote nvironment or in the vicinit yo ffl ammable materials .
•The appliance requir ess ufficient airflow for proper operation. Assure a minimum lateral cl earance of the appliance of 10 c m.
•Never cover nor bloc kve ntilation openings of the appli ance.
Unpacking / Positioning
•Remove the appliance from the packaging and discard all the packing materials,
excluding the pallet.
CAUTION!
Choking hazard!
Prevent children from accessing packaging materials, for instance: plastic
bags and EPS elements.
•To install the appliance, perform the following steps:
–The appliance may only be transported to installation location in vertical
position. In order to avoid damage to the compressor, do not tilt the
appliance more than 45° when positioning or transporting it.
–Lift the appliance with the lift truck and move it to the planned installation
location. Be careful not to damage the appliance. Control the stability in
order not to lose the balance of the appliance.
–Do not drag nor push the appliance, as it may fall down. This may also
cause the damage to external elements or swivel castors.
–Remove the appliance from the pallet in the installation location and
install it.
–Attach swivel castors with brakes.
•If the appliance is covered with a protective film, remove it. Remove the film
slowly, so no glue residues are left. Remove any glue residues with the use of a
suitable solvent.
•Be careful not to damage the rating plate and warning labels affixed to the
appliance.
•Never place the appliance in humid or wet environment.
•Place the appliance in a way making the connections easily accessible, so that
they may be quickly disconnected if such a need arises.
•The appliance should be placed on a surface that is:
–even, with sufficient load-bearing capacity, resistant to water, dry and
resistant to high temperatures;
–sufficiently large, and thus enabling usage of the appliance with no
problems;

Installation and operation
14 / 24 700826
EN
–easily accessible;
–well ventilated.
•The electric socket sho uldb e easily accessible so it is possible to quickly disco nnect the power cord when necessar y. The electric socket sho uldb e easily accessible so it is possible to quickly disco nnectt he power cord whenn ecessary. The electric socket sho uldb e easily accessible so it is possible to quickly disco nnect the power cord when necessar y.
•Nie należy umieszcz ać urządzeni a w gorącym o toczeniu ani w pobliżu materiał ów łatwopaln ych.
•The appliance requir ess ufficient airflow for proper operation. Assure a minimum lateral cl earance of the appliance of 10 cm .
•DieÖ ffnungen am Gerät niemals abdec keno der blockieren.
•Do not place the appliance in direct sunlight or in the vicinity of heat sources
(cooker, radiator, heating devices, etc.). Heat sources may negatively affect
power consumption, and restrict functions of the appliance, too.
•The electric socket sho uldb e easily accessibl es oit is possible to quickly disco nnect the power cord when necessar y. The electric socket sho uldb e easily accessible so it is possible to quickly disco nnectt he power cord whenn ecessary. The electric socket sho uldb e easily accessible so it is possible to quickly disco nnect the power cord when necessar y.
•Leave at least 10 cm clearance from flammable walls and items.
HINWEIS IMPORTANT!
The appliance is not suitable for built-in installation.
Power supply connection
•Verify if technical data of the appliance (see rating plate) correspond with the
local electric power grid specification.
•Connect the appliance to a single, properly grounded mains socket with
protective contact. Do not connect the appliance to a multi-socket.
•The power cord should be laid in a way preventing anyone from threading on it
or tripping against it.
•If the appliance was stored or transported vertically, leave it standing
horizontally for 12 hours before it is connected to electric power.
•Following an electric power outage, wait at least 3 minutes before reconnecting
the appliance to prevent a damage to the compressor.

Installation and operation
700826 15 / 24
EN
5.2 Operation
Indications for User
•Guide rails may be positioned at various heights. Arrange them adequately to
the size of GN containers, so that the inner space is used optimally.
•Place foods packed in containers on shelves or slide them onto guide rails if put
in suitable GN containers so that proper clearances between them allow for
sufficient air circulation inside the appliance. Insufficient clearance hinder the
cooling effect.
•In order to reduce the loss of cool air from the cooling compartment, the door
opening time should be as short as possible and the door should not be opened
too frequently.
•If possible, in the event of a sudden power failure, avoid leaving door open in
order to avoid loss of cool air from the cooling compartment.
•The power supply to the appliance should never be interrupted for more than 10
minutes.
•If the appliance is being switched off and will not be used for a longer period,
clean it thoroughly according to instructions in section 'Cleaning' and leave the
appliance door open, to prevent formation of mould.
Storing food in the refrigerator
For your appliance to operate the best way, follow the indications below:
•When inserting the food products, pay attention to free air circulation inside the
appliance.
•Food products or beverages should first be cooled to the suitable storage
temperature.
•If the food products are not cooled sufficiently prior to storing, the operating
efficiency of the appliance deteriorates and it may negatively influence the
cooled food products. Thus, avoid storing food products in rooms that are not
cool, for the cold might be lost when they are inserted in the refrigerator.
•The food products stored in the refrigerator should be packaged or covered.
•The food products with specific aromas, e.g.: fresh fish, foie gras, cheese,
should be stored in properly closed containers.
•Do not store bananas in the refrigerator because they are sensitive to low
temperatures.

Installation and operation
16 / 24 700826
EN
Tips for the user
•Shelves may be positioned at various heights. Arrange them adequately to
containers with meals and food product packages, so that the inner space of the
appliance is used optimally.
•To limit loss of cold air minimize the opening time of door during operation. Also,
do not open the door too frequently.
•If possible, in the event of a sudden power failure, avoid opening doors in order
to avoid loss of cool air.
•The power supply to the appliance should never be interrupted for more than 10
minutes.
•If the appliance is switched off for a longer period of time, the door of the deep
freezer should remain open.

Installation and operation
700826 17 / 24
EN
Before First Use
1. Before use, clean the appliance observing instructions in section 6 'Cleaning'.
2. Then dry the appliance thoroughly.
3. Close the appliance door.
4. Plug the device into a suitable single socket.
6. Using suitable ON/OFF switches, switch the freezer/fridge on.
Green power indicator lights in ON/OFF switches light up.
Digital displays show current temperatures inside the appliance.
5. To set the temperature, follow indications provided in subsequent sections.
Descriptions pertain to both digital temperature controllers of the appliance.
NOTE!
The optimum temperature for cooling food is 6°C, and -18°C for freezing it.
If the right temperature for storing food is not maintained, the food may
turn.
Control elements and displayed messages
Button
Functions
Showing the set value, selection of parameters in the
programming mode or confirmation of the process
Manual starting of the defrosting
Selection of the parameter code in the programming
mode, increase of the displayed value
Selection of the parameter code in the programming
mode, decrease of the displayed value

Installation and operation
18 / 24 700826
EN
LED indicators
The LED indicators in the digital display show the status of the active function:
LED
Status of the
active function
Meaning
illuminates
activated compressor
flashes
in delay
illuminates
defrosting in progress
flashes
defrosting delay
illuminates
fan activated
flashes
delay after defrosting
illuminates
degrees Celsius temperature unit indicator
flashes
in the programming mode
illuminates
degrees Fahrenheit temperature unit indicator
flashes
in the programming mode
Displaying the set value
1. Press the button shortly, to display the set value.
2. Press the button again or wait 5 seconds, to return to the previous
message.
Changing the set value (i.e. the required temperature)
1. Press the button and hold it pressed for at least 3 seconds.
The set value is displayed and the or LED indicator flashes on the digital
display.
2. The value may be increased or decreased with or button until the
digital display shows the required value.
3. Confirm the new value with the button or wait 10 seconds —then, the
value will be stored automatically.
