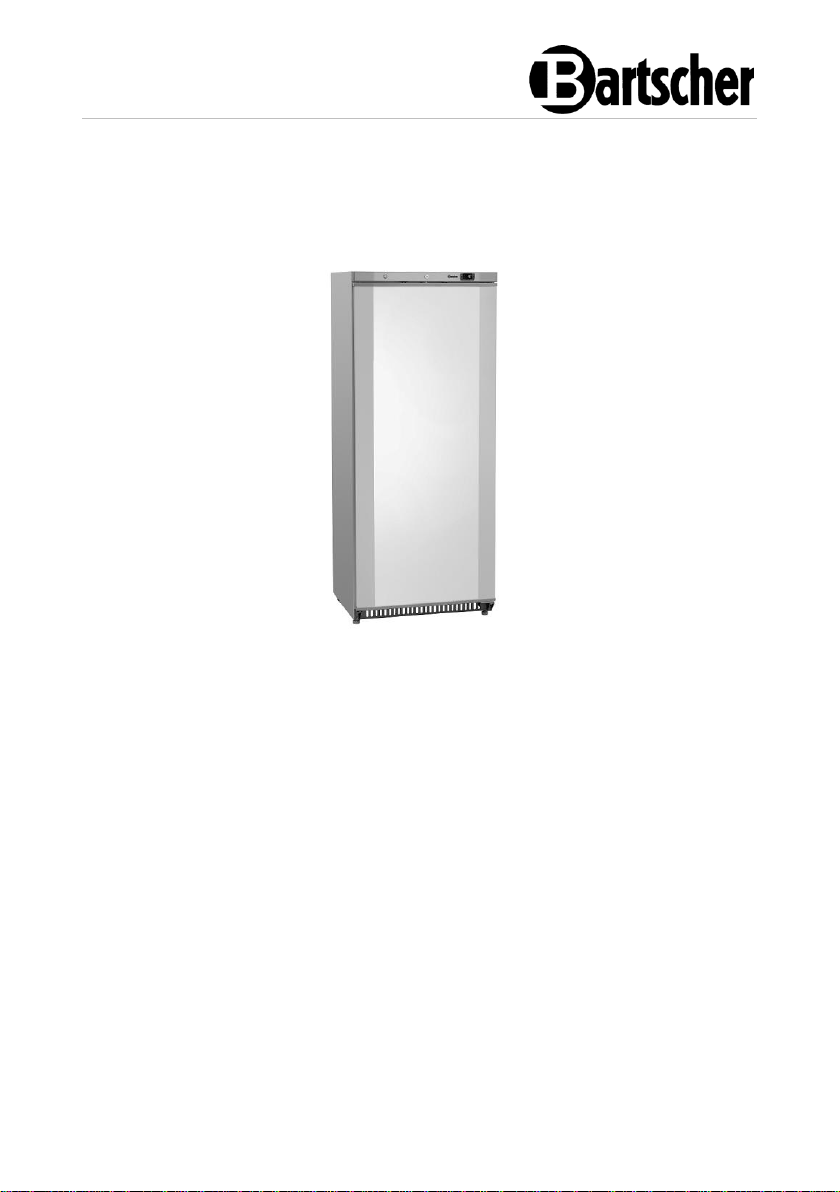

Bartscher 590LW User guide

590LW
700807

Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten
Germany
Phone: [phone]
Fax: [phone]
Technical Support Hotline: [phone]
www.bartscher.com
Version: 1.0
Date of preparation: 2019-11-26
EN

700807 1 / 24
Original instruction manual
1Safety............................................................................................................2
1.1 Explanation of signal words.....................................................................2
1.2 Safety instructions....................................................................................3
1.3 Intended use............................................................................................6
1.4 Unintended use........................................................................................6
2General information.......................................................................................7
2.1 Liability and warranty...............................................................................7
2.2 Copyright protection.................................................................................7
2.3 Declaration of conformity.........................................................................7
3Transport, packaging and storage.................................................................8
3.1 Delivery check .........................................................................................8
3.2 Packaging................................................................................................8
3.3 Storage....................................................................................................8
4Technical data...............................................................................................9
4.1 Technical specifications...........................................................................9
4.2 List of components of the appliance.......................................................10
4.3 Functions of the appliance..................................................................... 11
5Installation and operation ............................................................................11
5.1 Installation..............................................................................................11
5.2 Operation............................................................................................... 13
6Cleaning and Maintenance..........................................................................18
6.1 Safety Instructions for cleaning.............................................................. 18
6.2 Cleaning.................................................................................................19
6.3 Maintenance ..........................................................................................19
7Possible Malfunctions..................................................................................20
8Disposal....................................................................................................... 22

Safety
2 / 24 700807
EN
Diese Bedienungsa nleitung beschreibt di eI nstallation, Bedienu ngu nd Wartung des G erätsu ndg ilt als wichtige Infor mationsquelle und Nach schlagewerk. Di e Kenntnis aller enthalt enenSic herheitshinw eiseu nd Handlungs anweisungen schafft die V oraussetzung für das sich ere und sachg erechte Arbeite n mitd emG erät. Darüber hin aus müssen die für den Eins atzbereich des Geräts gelt enden örtlichen Unfall verhütungsvorsc hriften und allgem einen Sicherheitsb estimmungen eingeh alten werden. Diese Bedi enungsanleitung ist Bestandteil des Prod ukts und muss i n unmittelbarer Nähe d es Geräts für das In¬stall ations-, Bedienungs-, Wartungs- und Reinigu ngspersonal jed erzeitz ugänglich auf¬b ewahrt werden. Wenn d as Gerät an eine dritte Pers on
weitergegeben wird , muss die Bedienungsa nleitung mit ausgehä ndigt werden.
Read this instruction manual before using and keep it available
at all times!
This instruction manual contains information about installation, operation and
maintenance of the appliance and constitutes an important source of information
and reference guide. The knowledge of all operational and safety instructions
included in this manual is a prerequisite for safe and proper handling of the
appliance. Additionally, accident prevention, occupational health and safety, and
legal regulations in force in the area the appliance is used apply.
Before you start using the appliance, especially before turning it on, read this
instruction manual in order to avoid personal injuries and property damages.
Improper use may cause damage.
This instruction manual forms and integral part of the product and must be stored in
an immediate vicinity of the appliance and be available at all times. The instruction
manual should be transferred together with the appliance.
1 Safety
This appliance has been manufactured in accordance with technical standards
currently in force. However, the appliance may be a source of hazards if used
improperly or contrary to its intended purpose. All persons using the appliance must
consider information included in this instruction manual and observe safety
instructions.
1.1 Explanation of signal words
Important safety instructions and warning information are indicated in this
instruction manual with appropriate signal words. You must strictly follow the
instructions, to prevent accidents, personal injuries and property damages.
DANGER!
The signal word DANGER warns against hazards that lead to severe
injuries or death if the hazards are not avoided.

Safety
700807 3 / 24
EN
WARNING!
The signal word WARNING warns against hazards that may lead to
moderate or severe injuries or death if the hazards are not avoided.
CAUTION!
The signal word CAUTION warns against hazards that may lead to
light or moderate injuries if the hazards are not avoided.
,di e
IMPORTANT!
The signal word IMPORTANT indicates possible property damages,
which may occur if safety instructions are not observed.
NOTE!
The symbol NOTE indicates subsequent information and guidelines
for the user on usage of the appliance.
1.2 Safety instructions
Electrical current
•Too high a mains voltage or incorrect installation may cause electric shock.
•The appliance may be connected only if data on the rating plate correspond with
the mains voltage.
•To avoid short-circuit, the appliance should be kept dry.
•If there are malfunctions during operation, disconnect the appliance from the
power supply.
•Do not touch the appliance’s plug with wet hands.
•Never take hold of the appliance if it has fallen into water. Immediately
disconnect the appliance from the power supply.
•Any repairs or housing opening may be carried out by professionals and
relevant workshops only.
•Do not transport the appliance, holding it by the power cord.
•Do not allow the power cord to come into contact with heat sources or sharp
edges.
•Do not bend, pinch nor knot the power cord.
•Always completely unwind the power cord.

Safety
4 / 24 700807
EN
•Never place the appliance or other objects on the power cord.
•Always take hold of the plug to disconnect the appliance from the power supply.
Incorrect operation of th e appliance may cause fire or explosion hazard d uet oig nition of its content.
Fire hazard / flammable materials hazard / explosion hazard!
•Do not use any electric devices in the appliance.
•Do not store nor use petrol or other flammable liquids and gases in the vicinity of
this or any other appliance. Those gases may cause fire or explosion hazard.
•Do not put into the appliance any explosive materials, like sprays filled with
flammable propellants. Contents of containers filled with flammable gases and
liquids may leak in low temperatures, and the contents may catch fire from
sparks generated by an electric appliance. Explosion hazard!
•In the case of coolant leakage, pull the plug from the socket. Remove all
sources of ignition in the vicinity, ventilate room and contact technical service.
Avoid coolant getting in contact with eyes, as it may cause serious eye damage.
•Never use any flammable liquids for cleaning the appliance or its parts. Gases
released may cause fire or explosion hazard.
•In the case of fire, disconnect the appliance from the power supply before
attempting adequate fire-extinguishing actions.
•Never attempt to extinguish fire with water if the appliance is connected to the
power supply. Following extinction of fire, ensure sufficient fresh air inflow.
•Defrosting process may not be sped up with mechanical means or heat energy
sources (candles or heaters) nor with any other means. Vapour produced may
cause short-circuit and too high temperatures may damage the appliance.
•All ventilation slots should not be obstructed during operation.
•Never attempt to damage cooling installation of the appliance.
Operating personnel
•The appliance may only be operated by qualified personnel and trained
specialist personnel.
•This appliance may not be operated by persons (including children) with limited
physical, sensory or mental capabilities, nor by persons with limited experience
and/or limited knowledge.
•Children should be supervised to ensure that they are not playing with or
switching on the appliance.
Improper use
•Unintended or prohibited use may cause damage to the appliance.
•The appliance may only be used when its technical condition is flawless and
allows for safe operation.

Safety
700807 5 / 24
EN
•The appliance may only be used when all connections are executed according
to rules of law in force.
•The appliance may only be used when it is clean.
•Use only original spare parts. Never attempt to repair the appliance on your
own.
•Do not introduce any changes in the appliance nor modify it.
•Do not drill hole in the appliance nor install any objects on it.
•Do not place any heavy objects on the appliance.

Safety
6 / 24 700807
EN
1.3 Intended use
As described below, every use of the appliance for a purpose differing and/or
diverging from its intended standard use, is prohibited and considered to be an
unintended use.
The following is an intended use:
–Cooling and preparation of suitable beverages and food products.
1.4 Unintended use
An unintended use may lead to personal injuries or property damages caused by
hazardous voltage, fire or high temperature. The appliance may only be used to
perform tasks described in this instruction manual.
The following is an unintended use:
–Storing flammable or explosive objects and liquids, such as ether,
petroleum or adhesives;
–Storing explosive materials, like sprays filled with flammable propellants;
–Storing pharmaceutical products or preserved blood;
–Storing live pets.

General information
700807 7 / 24
EN
2 General information
2.1 Liability and warranty
All information and instructions in this instruction manual account for legal
regulations in force, current level of technical engineering knowledge as well as our
expertise and experience, developed over the years. If special models or additional
options are ordered, or state-of-the-art technical solutions were implemented, the
actual scope of delivery of the appliance may, in some circumstances, differ from
descriptions and numerous drawings in this instruction manual.
The manufacturer is not liable for any damages nor faults stemming from:
–failure to observe instructions,
–unintended use,
–technical alterations introduced by the user,
–usage of unapproved spare parts.
We reserve the right to introduce technical modifications to the product, intended for
improvement of the appliance and its performance.
2.2 Copyright protection
This instruction manual, and texts, drawings and images included in it, as well as its
other components are copyright protected. It is prohibited to reproduce this
instruction manual (including its excerpts), in any form and by any means, and to
use and/or transfer its content to third parties without manufacturer’s written
permission. Violation of the above results in obligation to pay compensation. We
reserve the right to claim further damages.
2.3 Declaration of conformity
The appliance meets the currently applicable standards and guidelines of the
European Union. We confirm the above in the EC Declaration of Conformity. We
may provide relevant Declaration of Conformity upon request.

Transport, packaging and storage
8 / 24 700807
EN
3 Transport, packaging and storage
3.1 Delivery check
Immediately upon reception, check the delivery for completeness and possible
shipping damage. In the case of visible transport damage refuse to accept the
appliance or accept it conditionally. Mark and note the scope of damage in shipping
documents/consignment list of the shipping company and lodge a complaint.
Concealed damage must be reported immediately upon its discovery, as
compensation claims may only be filed within applicable time limits.
If you find that parts or accessories missing, please contact our Customer Service
Department.
3.2 Packaging
Do not dispose of the appliance cardboard box. It may be used to store the
appliance when relocating or when shipping the appliance to our service point in the
case of any damages.
The packaging and its elements are made of recyclable materials. Particularly,
these are: plastic films and bags, cardboard box.
When disposing of the packaging, observe applicable domestic regulations.
Recyclable packaging materials should be recycled.
3.3 Storage
Leave the packaging closed until installation of the appliance; observe external
indications concerning method of placing and storage. Store the packaging in the
following conditions only:
–in closed rooms;
–in dry and dust-free surrounding;
–away from aggressive agents;
–in a location protected against sunlight;
–in a location protected against mechanical shocks.
In the case of extended storage (over three months), make sure you check the
condition of the packaging and the parts regularly. If needed, replace the packaging
with a new one.

Technical data
700807 9 / 24
EN
4 Technical data
4.1 Technical specifications
Name:
Refrigerator 590LW
Art. No.:
700807
Material:
Steel, painted
Inner material:
Plastic ABS
Volume, in l:
590
Gastronorm:
2/1 GN
Temperature range in °C:
0 - 8
Ambient temperature, min.–max., in °C:
10 - 25
Coolant, amount in kg:
R600a / 0,065
Climate class:
3
Energy consumption, in kWh/year:
328,5
Energy efficiency class:
A
Number of doors:
1
Number of shelves:
4
Shelves dimensions (W x D), in mm:
660 x 530
Load-bearing capacity of each shelf in kg:
20
Power supply:
0,25 kW / 220 - 240 V / 50 Hz
Dimensions (W x D x H) in mm:
780 x 770 x 1.900
Weight in kg:
95,2
We reserve the right to implement technical modifications!
Version / Characteristics
•Cooling: circulating air
•Temperature control: digital
•Control: touch
•Automatic defrost function
•Evaporation of condensed water
•Insulation: cyclopentane C5
•Digital display
•ON/OFF button

Technical data
10 / 24 700807
EN
•Indicator light: ON/OFF
•Door type: leaf door
•right side, changeable door hinge
•self-closing door
•Type of shelves: grille, steel, coated with plastic
•Height-adjustable shelves
•Appliance locked with a key
4.2 List of components of the appliance
Delivery without the contents!
1. ON/OFF button
2. Lock
3. Digital temperature regulator
4. Door seal
5. Door
6. Feet (4x)
7. Shelves (4x)
8. Shelf guides
9. Housing
10.Fan

Installation and operation
700807 11 / 24
EN
4.3 Functions of the appliance
The appliance is designed for cooling and storage of suitable beverages and food
products.
5 Installation and operation
5.1 Installation
Unpacking / Positioning
•Unpack the appliance, remove all external and internal packaging elements and
shipment safeguards.
CAUTION!
Choking hazard!
Prevent children from accessing package materials, for instance: plastic
bags and EPS.
•If the appliance is covered with a protective film, remove it. Remove the film
slowly, so no glue residues are left. Remove any glue residues with the use of a
suitable solvent.
•Be careful not to damage the rating plate and warning labels fixed on the
appliance.
•Never place the appliance in humid or wet environment.
•Place the appliance in a way making the connections easily accessible, so that
they may be quickly disconnected if such a need arises.
•The appliance should be placed on surfaces that are:
–even, with sufficient bearing capacity, resistant to water, dry and resistant
to high temperatures;
–sufficiently large, and thus enabling usage of the appliance with no
problems;
–easily accessible;
–well ventilated.
•Nie należy umieszcz ać urządzeni a w gorącym o toczeniu ani w pobliżu materiał ów łatwopalnych.
•The appliance requir ess ufficient airflow for proper operation. Assure a minimum lateral cl earance of the appliance of 10c m.
•DieÖ ffnungen am Gerät niemals abdecken o derbl ockieren.
•Do not place the appliance in direct sunlight or in the vicinity of heat sources
(cooker, radiator, heating devices, etc.). Heat sources may negatively affect
power consumption, and restrict functions of the appliance, too.
•Place the appliance so that sufficient air circulation is ensured. Leave 10 cm
clearance from walls and other objects.

Installation and operation
12 / 24 700807
EN
•In order to avoid damage to the compressor, do not tilt the appliance more than
45° when positioning or transporting it.
•If the appliance is to be relocated, follow the instructions below:
–switch the appliance off;
–disconnect the plug from the socket;
–take out contents of the appliance;
–tape firmly all loose elements in the internal chamber and tape the door;
–the appliance may only be transported in vertical position.
•The electric socket sho uldb e easily accessible so it is possible to quickly discon nectt he power cord whenn ecessary. The electric socket sho uldb e easily accessibl es oit is possible to quickly disco nnectt he power cord whenn ecessary. The electric socket sho uldb e easily accessible so it is pos sible toq uickly discon nectt he power cord whe nnec essary.
•Do not position the appliance in high humidity locations. Air relative humidity in
the place of installation should not exceed 60%. Excessive humidity may cause
rust and influence negatively the refrigerating efficiency of the device.
•The appliance should be installed only in rooms, in which ambient temperature
falls within the range of 10°C –25°C.
Changing the hinge side
WARNING!
Before changing the door's hinge side, disconnect the appliance and pull
the plug out of the socket.
Do not place the appliance in horizontal position in order to change the
door's hinge side.
The hinges may be changed from right to left, as needed. Engage at least one more
person to change the door's hinge side.
NOTE!
Detailed instruction of changing the hinge side may be requested. Please
contact our technical service.

Installation and operation
700807 13 / 24
EN
Power supply connection
•Verify if technical data of the appliance (see rating plate) correspond with the
local electric power grid specification.
•Connect the appliance to a single, properly grounded mains socket with
protective contact. Do not connect the appliance to a multi-socket.
•The power cord should be laid in a way preventing anyone from threading on it
or tripping against it.
•Prior to first use, the appliance should be installed and left standing upright for at
least 12 hours, before it is connected to power supply.
•After a power failure or when the plug is removed from the socket, do not
reconnect the appliance to power supply for at least 5 minutes.
5.2 Operation
Tips for the user
•Shelves may be positioned at various heights. Arrange them adequately to the
size of beverage/containers with food product, so that the inner space of the
appliance is used optimally.
•Beverages and food products in containers should be arranged on the shelves
so that proper distances between them allow for sufficient air circulation inside
the appliance. Insufficient distances hinder the cooling effect.
•To limit loss of cold air minimize the opening time of door during operation. Also,
do not open the door too frequently.
•If possible, in the event of a sudden power failure, avoid opening doors in order
to avoid loss of cool air.
•The power supply to the refrigerator should not be interrupted for more than 10
minutes.
•If the appliance is switched off for a longer period of time, the door of the
refrigerator should remain open.

Installation and operation
14 / 24 700807
EN
Storing food in the refrigerator
For your appliance to operate the best way, follow the indications below:
•When inserting the food products, pay attention to free air circulation inside the
appliance.
•The more items in the refrigerator, and the longer the door kept open, the higher
the energy consumption.
•Food products or beverages should first be cooled to the suitable storage
temperature.
•If the food products are not cooled sufficiently prior to storing, the operating
efficiency of the appliance deteriorates and it may negatively influence the
cooled food products. Thus, avoid storing food products in rooms that are not
cool, for the cold might be lost when they are inserted in the refrigerator.
•The food products stored in the refrigerator should be packaged or covered.
•The food products with specific aromas, e.g.: fresh fish, foie gras, cheese,
should be stored in properly closed containers.
•Do not store bananas in the refrigerator because they are sensitive to low
temperatures.
Preparation of the appliance
1. Prior to first operation, clean the appliance and its equipment according to
instructions in section 6 “Cleaning”.
2. Finally, dry the appliance and accessories thoroughly.
3. Introduce the shelves into the appliance at the selected height.
4. Level the device with the height-adjustable feet.
5. Close the appliance door.
6. Plug the appliance into a suitable single socket.

Installation and operation
700807 15 / 24
EN

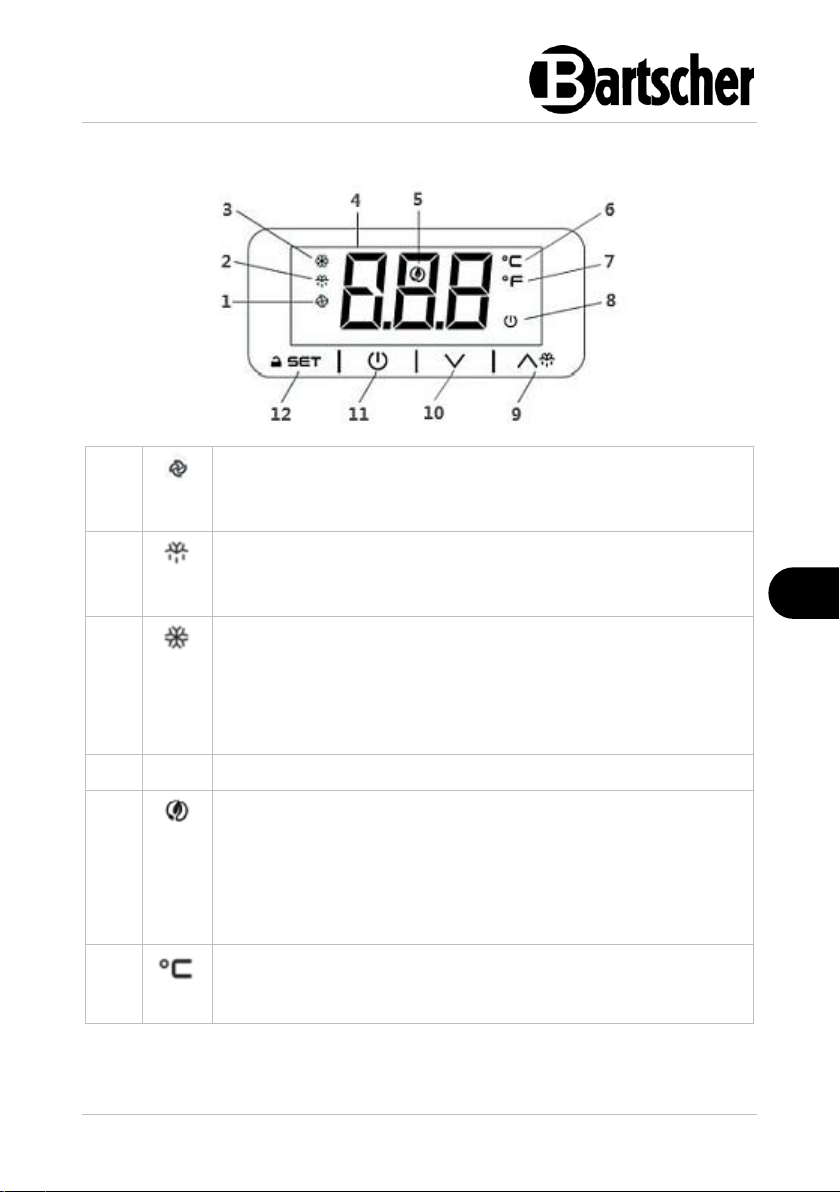

Functions of operating elements and displays
1.
LED fan indicator
LED on: the fan is operating
LED blinks: delay after defrosting
2.
LED defrosting process indicator
LED on: defrosting in progress
LED blinks: dripping in progress
3.
LED compressor indicator
LED on: compressor off
LED blinks:
–setting the parameters of cooling mode in progress
–compressor fuse triggered
4.
Digital display
5.
LED energy-saving mode indicator
LED and digital display are on: the energy-saving mode is
activated
LED and digital display are off: the appliance is in a "Standby"
mode
Press the button to activate the display
6.
LED indicator of Celsius scale
LED on: the temperature measurement unit are degrees
Celsius

Installation and operation
16 / 24 700807
EN
7.
LED indicator of Fahrenheit scale
LED on: the temperature measurement unit are degrees
Fahrenheit
8.
LED ON/Standby indicator
LED on: the appliance is off (Standby)
9.
Setting value increase button —manual defrosting
10.
Setting value decrease button
11.
ON/OFF / Standby switch
12.
Programming Button
General information
The appliance may feature the following status:
–ON: The appliance is connected to the power supply and switched on
with the ON/OFF switch. The temperature regulator may be activated
then.
–Standby: The appliance is connected to the power supply, but the very
appliance is switched off by the software; the temperature regulator is
switched off.
–OFF: The device is not connected to the power supply.
Switching the appliance ON/OFF
1. Plug the appliance into a suitable single socket.
2. Switch the appliance on using the ON/OFF switch at the front of the appliance.
The switch integrated operation indicator light (green) comes on.
3. Make sure that the digital temperature controller buttons are not blocked and
there are no on-going processes (defrosting, cooling, etc.).
4. Press and keep the button pressed for 4 seconds.
The LED control light flashes and the appliance switches to the Standby mode.
The LED control is on for as long as the appliance remains in this mode.
5. Again, press and keep the button pressed for 4 seconds, to switch the
appliance to the ON mode.

Installation and operation
700807 17 / 24
EN
Button locking/unlocking
Button locking:
1. Make sure, there is no process in progress.
2. Do not enter any data for 30 seconds: the 'Loc' message will be shown in the
digital display for 1 second and the keypad will be automatically locked.
When the keypad is locked, the following functions are not available:
–switching the appliance ON/OFF
–displaying the temperature measured by the probe
–activating the manual defrosting process
–setting the working temperature
If you attempt to introduce these settings, there will be the 'Loc' message shown on
the display for 1 second.
3. Unlock the buttons before you attempt to introduce the data.
4. To unlock the buttons, press and hold one of the buttons for 2 seconds.
The 'UnL' message will be shown on the display for 1 second.
Digital display
When the appliance is switched on and in standard work mode, the digital display
shows the temperature inside the appliance. This is not the case for the defrosting
process, when the digital display shows the 'dEF' message.
When the appliance is switched off with the ON/OFF switch, the digital display is
also OFF.
When the appliance is in the 'sleep' mode, the LED indicator light is on.
Automatic defrosting
The defrosting process is carried out automatically through evaporation of water. By
factory default setting, the appliance is set to execute the defrosting cycle every 6
hours.
The first defrosting cycle is commenced, when the appliance is switched on for the
first time.
The defrosting lasts for 20 minutes. The next defrosting cycle is commenced after 6
hours.
Manual defrosting activation

Cleaning and Maintenance
18 / 24 700807
EN
1. Make sure that the buttons are not blocked and there is no process in progress.
2. Press and keep the button pressed for 5 seconds.
The defrosting is activated immediately.
The defrosting LED indicator light is lit and remains on as long as the defrosting
process lasts.
The next defrosting process is commenced after 6 hours.
Modification/setting of the set temperature
1. Make sure that the buttons are not blocked and there is no process in progress.
2. Press the picture briefly.
The LED indicator light blinks.
3. Within 15 seconds, press the or button briefly.
The digital display shows the parameters: r1 (min. temperature) and r2 (max.
temperature).
4. To confirm, press the button briefly or refrain from inputting any data for
15 seconds.
The LED indicator light goes off and the appliance finishes the settings.
NOTE!
If additional parameter settings are necessary, contact technical service.
6 Cleaning and Maintenance
6.1 Safety Instructions for cleaning
•Before cleaning, disconnect the appliance from the power supply.
•Leave the appliance to cool down completely.
•Make sure water does not enter the appliance. Do not immerse the appliance in
water or other liquids during cleaning. Do not clean the appliance with a
pressurized water jet.
•Do not use any sharp or pointed, nor metal implements (knife, fork, etc.). Sharp
or pointed implements may damage the appliance, and when in contact with live
parts, they may cause electric shock.
•For cleaning, do not use any scouring agents that contain solvents nor corrosive
cleaning agents. They may damage the surface.
