Bartscher 1100-WD2000 User guide

1100-WD2000
221205

Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten
Germany
Phone: [phone]
Fax: [phone]
Technical Support Hotline: [phone]
www.bartscher.com
Version: 1.0
Date of preparation: 2020-10-15
EN

221205 1 / 24
Original instruction manual
1Safety............................................................................................................2
1.1 Explanation of Signal Words....................................................................2
1.2 Safety instructions....................................................................................3
1.3 Intended Use ...........................................................................................5
1.4 Unintended Use.......................................................................................5
2General information.......................................................................................6
2.1 Liability and Warranty ..............................................................................6
2.2 Copyright Protection ................................................................................6
2.3 Declaration of Conformity ........................................................................6
3Transport, Packaging and Storage................................................................7
3.1 Delivery Check.........................................................................................7
3.2 Packaging................................................................................................7
3.3 Storage....................................................................................................7
4Technical Data...............................................................................................8
4.1 Technical Specifications ..........................................................................8
4.2 List of Components of the Appliance .......................................................9
4.3 Functions of the Appliance.....................................................................10
5Installation and operation ............................................................................10
5.1 Installation..............................................................................................10
5.2 Operation...............................................................................................18
6Cleaning and Maintenance..........................................................................19
6.1 Safety Instructions for Cleaning.............................................................19
6.2 Cleaning.................................................................................................19
6.3 Maintenance ..........................................................................................20
7Possible Malfunctions..................................................................................21
8Disposal....................................................................................................... 22

Safety
2 / 24 221205
EN
Diese Bedienungsa nleitung beschreibt di eI nstallation, Bedienu ngu nd Wartung des G erätsu ndg ilt als wichtige Infor mationsquelle und N achschlagewer k.Die Ke nntnis aller enthaltene nSic herheitshin weise und Handlungs anweisungen schaf ft dieV oraussetzung f ürd as sichere und sachger echte Arbeiten mit d emG erät.D arüber hin aus müssen die für den Eins atzbereich des Geräts gelt enden örtlichen Unfall verhütungsvorsc hriften und allgemeine n Sicherheitsbesti mmungen eing ehalten werden. Diese Bedi enungsanleitung is t Bestandteil des Prod ukts und muss in unmitt elbarerN ähe des Geräts für das In¬stall ations-, Bedienungs- , Wartungs- und Reinigu ngspersonal jederzeit z ugänglich auf¬b ewahrt werden. Wenn das Ger ät an eine dritte Person
weitergegeben wird , muss die Bedienungsa nleitung mit ausgehä ndigt werden.
Read this instruction manual before using and keep it available
at all times!
This instruction manual contains information about installation, operation and
maintenance of the appliance and constitutes an important source of information
and reference guide. The knowledge of all operational and safety instructions
included in this manual is a prerequisite for safe and proper handling of the
appliance. Additionally, accident prevention, occupational health and safety, and
legal regulations in force in the area the appliance is used apply.
Before you start using the appliance, especially before turning it on, read this
instruction manual in order to avoid personal injuries and property damages.
Improper use may cause damage.
This instruction manual forms and integral part of the product and must be stored in
an immediate vicinity of the appliance and be available at all times. The instruction
manual should be transferred together with the appliance.
1 Safety
This appliance has been manufactured in accordance with technical standards
currently in force. However, the appliance may be a source of hazards if used
improperly or contrary to its intended purpose. All persons using the appliance must
consider information included in this instruction manual and observe safety
instructions.
1.1 Explanation of Signal Words
Important safety instructions and warning information are indicated in this
instruction manual with appropriate signal words. You must strictly follow the
instructions, to prevent accidents, personal injuries and property damages.
DANGER!
The signal word DANGER warns against hazards that lead to severe
injuries or death if the hazards are not avoided.

Safety
221205 3 / 24
EN
WARNING!
The signal word WARNING warns against hazards that may lead to
moderate or severe injuries or death if the hazards are not avoided.
CAUTION!
The signal word CAUTION warns against hazards that may lead to
light or moderate injuries if the hazards are not avoided.
,di e
IMPORTANT!
The signal word IMPORTANT indicates possible property damages,
which may occur if safety instructions are not observed.
NOTE!
The symbol NOTE indicates subsequent information and guidelines
for the user on usage of the appliance.
1.2 Safety instructions
Electrical Current
•Too high a mains voltage or incorrect installation may cause electric shock.
•The appliance may be connected only if data on the rating plate correspond with
the mains voltage.
•To avoid short-circuit, the appliance should be kept dry.
•If there are malfunctions during operation, disconnect the appliance from the
power supply.
•Do not touch the appliance’s plug with wet hands.
•Never take hold of the appliance if it has fallen into water. Immediately
disconnect the appliance from the power supply.
•Any repairs or housing opening may be carried out by professionals and
relevant workshops only.
•Do not transport the appliance, holding it by the power cord.
•Do not allow the power cord to come into contact with heat sources or sharp
edges.
•Do not bend, pinch nor knot the power cord.

Safety
4 / 24 221205
EN
•Always completely unwind the power cord.
•Never place the appliance or other objects on the power cord.
•Always take hold of the plug to disconnect the appliance from the power supply.
•Check the power cord regularly for damage. Do not use the appliance if the
power cord is damaged. If this cable is damaged, it must be replaced by
customer service or a qualified electrician in order to avoid dangers.
Operating Personnel
•The appliance may only be operated by qualified personnel and trained
specialist personnel.
•This appliance may not be operated by persons (including children) with limited
physical, sensory or mental capabilities, nor by persons with limited experience
and/or limited knowledge.
•Children should be supervised to ensure that they are not playing with or
switching on the appliance.
Improper Use
•Unintended or prohibited use may cause damage to the appliance.
•The appliance may only be used when its technical condition is flawless and
allows for safe operation.
•The appliance may only be used when all connections are executed according
to rules of law in force.
•The appliance may only be used when it is clean.
•Use only original spare parts. Never attempt to repair the appliance on your own.
•Do not introduce any changes in the appliance nor modify it.

Safety
221205 5 / 24
EN
1.3 Intended Use
As described below, every use of the appliance for a purpose differing and/or
diverging from its intended standard use, is prohibited and considered to be an
unintended use.
The following is an intended use:
–Venting and exhausting steams and vapours from appliances used for
preparing food,
–Fresh air supply with a fresh air supply motor.
1.4 Unintended Use
An unintended use may lead to personal injuries or property damages caused by
hazardous voltage, fire or high temperature. The appliance may only be used to
perform tasks described in this instruction manual.

General information
6 / 24 221205
EN
2 General information
2.1 Liability and Warranty
All information and instructions in this instruction manual account for legal
regulations in force, current level of technical engineering knowledge as well as our
expertise and experience, developed over the years. If special models or additional
options are ordered, or state-of-the-art technical solutions were implemented, the
actual scope of delivery of the appliance may, in some circumstances, differ from
descriptions and numerous drawings in this instruction manual.
The manufacturer is not liable for any damages nor faults stemming from:
–failure to observe instructions,
–unintended use,
–technical alterations introduced by the user,
–usage of unapproved spare parts.
We reserve the right to introduce technical modifications to the product, intended for
improvement of the appliance and its performance.
2.2 Copyright Protection
This instruction manual, and texts, drawings and images included in it, as well as its
other components are copyright protected. It is prohibited to reproduce this
instruction manual (including its excerpts), in any form and by any means, and to
use and/or transfer its content to third parties without manufacturer’s written
permission. Violation of the above results in obligation to pay compensation. We
reserve the right to claim further damages.
2.3 Declaration of Conformity
The appliance meets the currently applicable standards and guidelines of the
European Union. We confirm the above in the EC Declaration of Conformity. We
may provide relevant Declaration of Conformity upon request.

Transport, Packaging and Storage
221205 7 / 24
EN
3 Transport, Packaging and Storage
3.1 Delivery Check
Immediately upon reception, check the delivery for completeness and possible
shipping damage. In the case of visible transport damage refuse to accept the
appliance or accept it conditionally. Mark and note the scope of damage in shipping
documents/consignment list of the shipping company and lodge a complaint.
Concealed damage must be reported immediately upon its discovery, as
compensation claims may only be filed within applicable time limits.
If you find that parts or accessories missing, please contact our Customer Service
Department.
3.2 Packaging
Do not dispose of the appliance cardboard box. It may be used to store the
appliance when relocating or when shipping the appliance to our service point in the
case of any damages.
The packaging and its elements are made of recyclable materials. Particularly,
these are: plastic films and bags, cardboard box.
When disposing of the packaging, observe applicable domestic regulations.
Recyclable packaging materials should be recycled.
3.3 Storage
Leave the packaging closed until installation of the appliance; observe external
indications concerning method of placing and storage. Store the packaging in the
following conditions only:
–in closed rooms;
–in dry and dust-free surrounding;
–away from aggressive agents;
–in a location protected against sunlight;
–in a location protected against mechanical shocks.
In the case of extended storage (over three months), make sure you check the
condition of the packaging and the parts regularly. If needed, replace the packaging
with a new one.

Technical Data
8 / 24 221205
EN
4 Technical Data
4.1 Technical Specifications
Name:
Infusion hood 1100-WD2000
Art. No.:
221205
Material:
stainless steel
Flame protection filters:
Typ A
Number of filters:
4
Filter material:
stainless steel
Max. air throughput, in m³/h:
3.700
Degree of protection:
IP55
LED Lighting:
1 x 8 W
Power supply:
0,008 kW / 230 V / 50 Hz
Dimensions (W x D x H), in mm:
2.000 x 1.100 x 500
Weight, in kg:
90
We reserve the right to implement technical modifications.
Version / Characteristics
•Operating mode: fresh and exhaust air
•Mounting type: wall and ceiling
•Lighting:
–LED
–integrated by means of non-dazzle installation
–with grease protection cover
•Fully isolated air inlet chamber
•Filter carrier
•Welded-on grease collection channel with discharge tap
•Important Indications:
–Can only be put into operation with a fresh air supply motor, exhaust air
motor and two additional controllers
–For kitchens with combined appliance power exceeding 25 kW

Technical Data
221205 9 / 24
EN
–Combined wall and ceiling mounting required
•The set includes: fastening material (chains are not part of the delivery)
4.2 List of Components of the Appliance

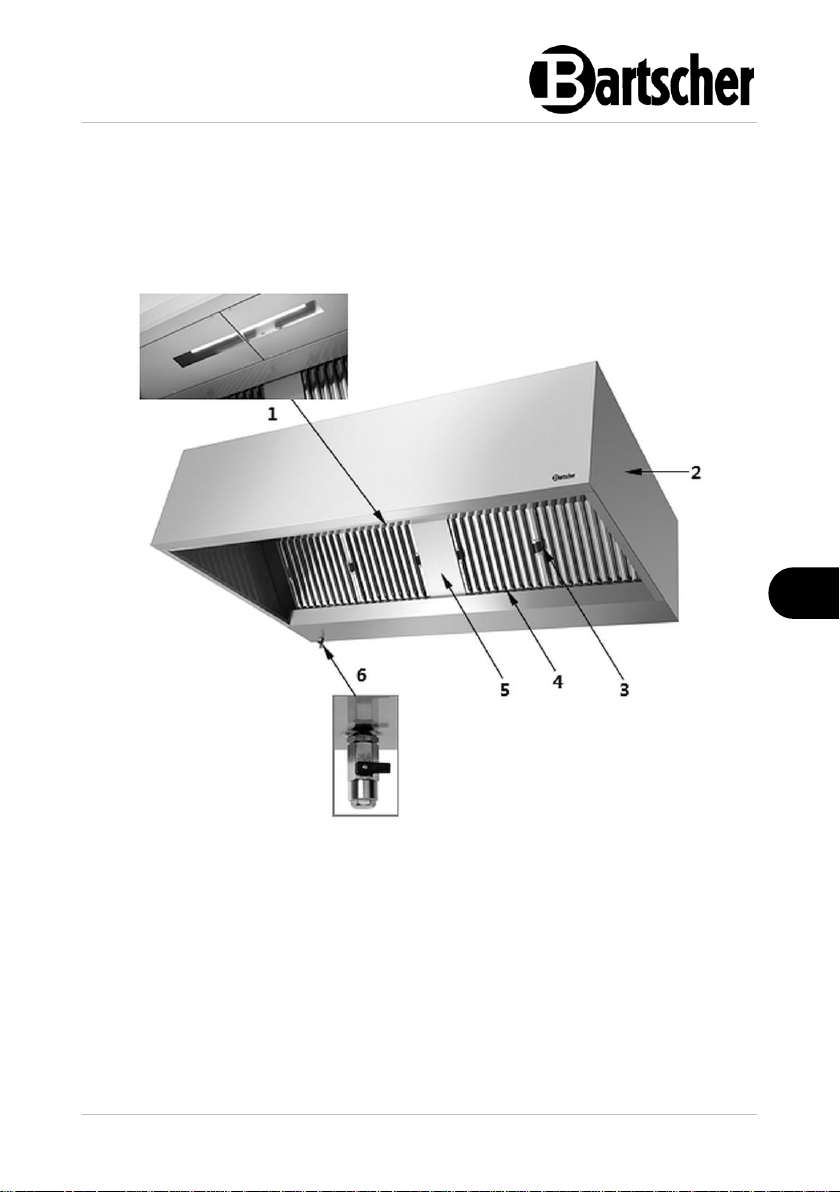

Fig. 1
1. LED lighting
2. Housing
3. Flame protection filter holder
4. Flame protection filter
5. Crossbar
6. Drain tap

Installation and operation
10 / 24 221205
EN
4.3 Functions of the Appliance
Owing to both optional motors, the infusion extractor hood is capable of providing
maximum air throughput at the level of 3,700 m³/h, and thus becoming a highly
efficient solution also in large kitchens. The combination of fresh air and exhaust air
reduces impurities and vapours in a room. The appliance has been designed for
wall and ceiling mounting and equipped with LED lighting.
5 Installation and operation
5.1 Installation
CAUTION!
Incorrect installation, positioning, operation, maintenance or misuse of
the appliance may lead to personal injury or property damage.
Positioning and installation, as well as repairs may be performed by
authorised technical service only and in compliance with the applicable
national law.
NOTE!
The manufacturer disclaims all liability and provides no warranty for
damages, which may be attributed to non-observance of regulations or
incorrect installation.

Installation and operation
221205 11 / 24
EN
Unpacking / Mounting
•Unpack the appliance, remove all external and internal packaging elements and
shipment safeguards.
CAUTION!
Choking hazard!
Prevent children from accessing packaging materials, for instance: plastic
bags and EPS elements.
•If the appliance is covered with a protective film, remove it. Remove the film
slowly, so no glue residues are left. Remove any glue residues with the use of a
suitable solvent.
•Be careful not to damage the rating plate and warning labels affixed to the
appliance.
•The appliance should be installed in a room, in which ambient temperature falls
in the range of +5°C –+60°C.
•Place the appliance in a manner making the connections easily accessible, so
that they may be quickly disconnected if such a need arises.
•During installation, make sure ventilation openings are not covered nor blocked.
•Install the appliance in rooms with sufficient air circulation.
•When installing extractor hoods over gas or open-flame appliances, provide for
sufficient air inflow.
•Maintain sufficient cl earance from both sides an dt he back oft he appliance ag ainst walls or other objects t o avoid exposure to heat . Should this not be possibl e,i nstall protective de vices,f or example films made o f heat-resistant material.
Wall Mounting
The infusion extractor hood must be located over an appliance (e.g. an oven, a grill
plate, etc.).
The external side of the infusion extractor hood must protrude 200–400 mm beyond
a heating field.
The infusion extractor hood must be located at the height of 1,900–2,000 mm
over a floor and the distance to a heating field must be 1,000 mm.

Installation and operation
12 / 24 221205
EN
The infusion extractor hood is mounted to the wall with a specially enclosed
installation brackets. During transportation, they are affixed to the housing of the
appliance. Unscrew the installation brackets from the housing.

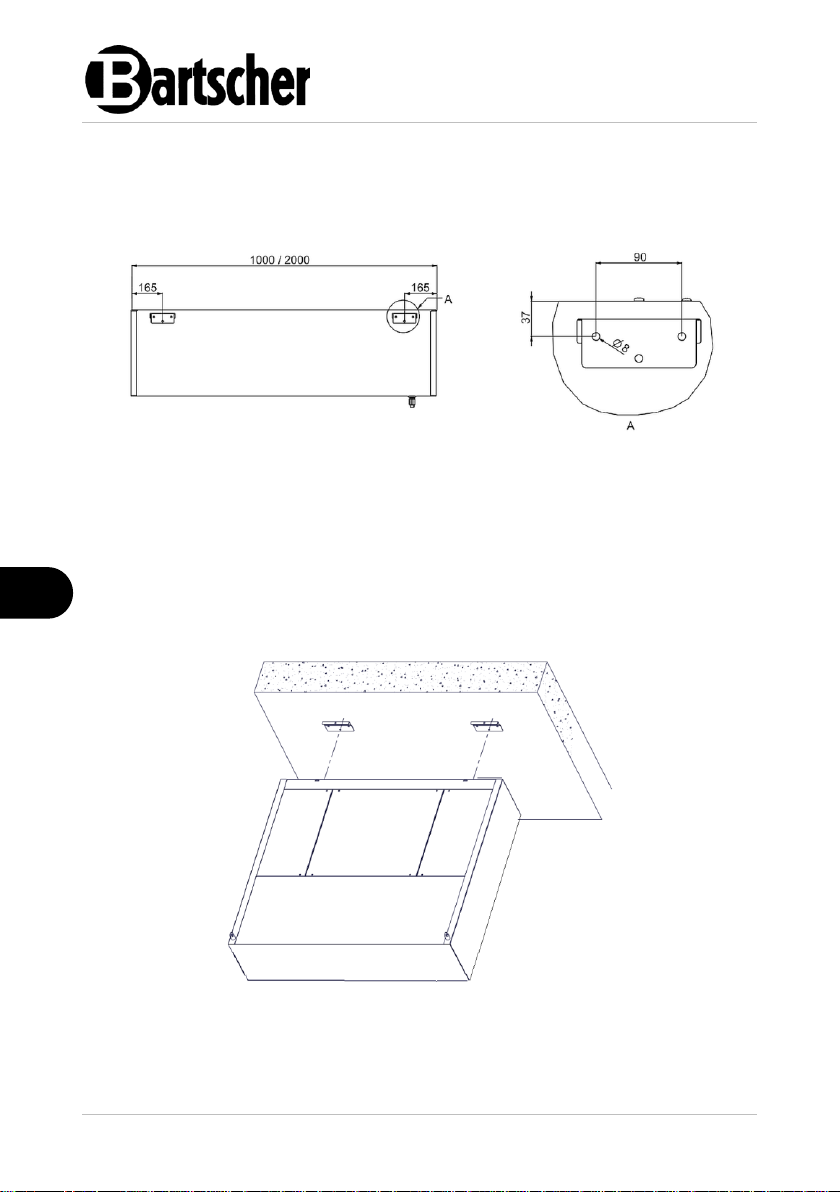

The below figure presents a schematic view of the number and location of brackets.
Fig. 2
1. Using information provided in the figure, mark points on the wall for boreholes.
2. Bore the holes.
3. Insert the studs into the bored holes.
4. Screw the appropriate number of installation brackets to the wall.
5. Hang the infusion extractor hood on the installation brackets.
Fig. 3

Installation and operation
221205 13 / 24
EN
Ceiling Mounting

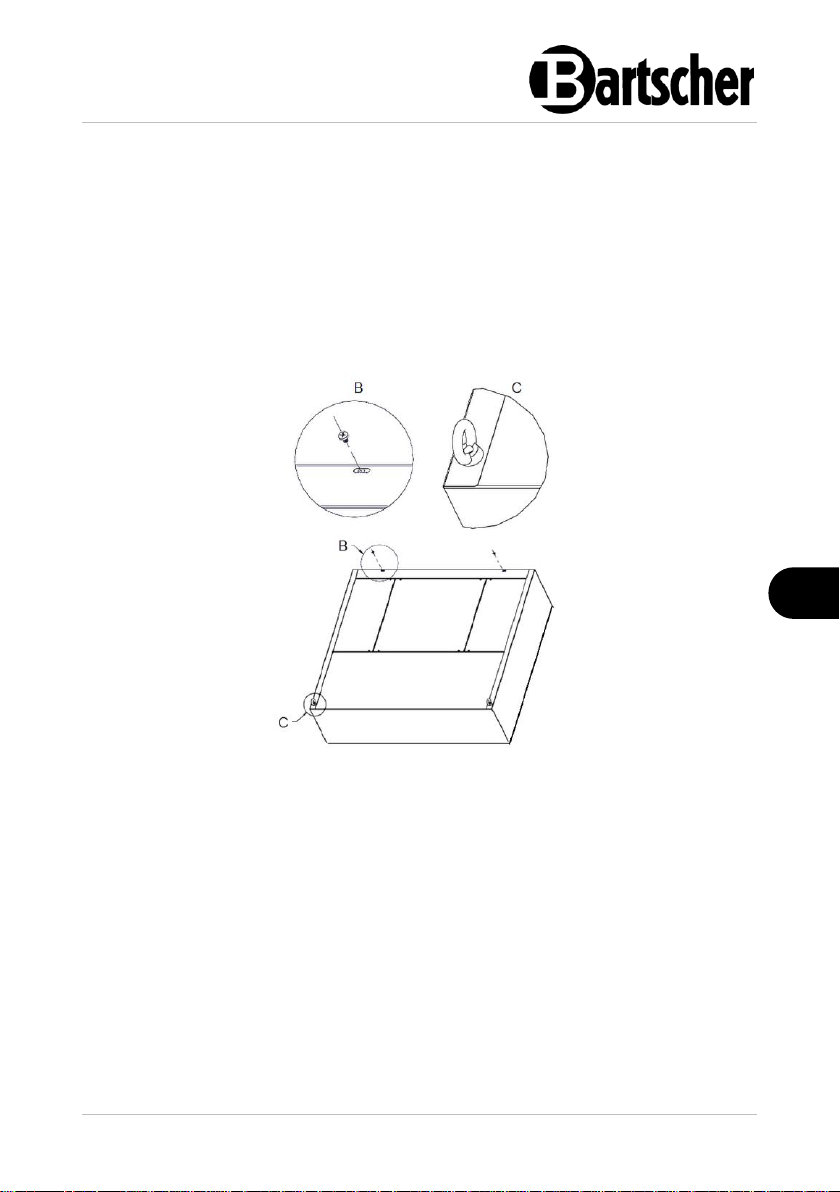

The infusion extractor hood must be additionally fastened to the enclosed eye bolts
with four chains or cords (not part of the delivery) and anchored to ceiling (Fig.
below).
1. For each fastening holder use M5 bolt, as presented in the figure (detail B).
2. Screw the enclosed eye bolts directly into the pre-prepared openings at the top
edge of the infusion extractor hood.
3. Anchor the infusion extractor hood in the ceiling, using chains or cords (not in
the set) and the enclosed eye bolts (detail C).
Fig. 4

Installation and operation
14 / 24 221205
EN
Drain Tap Installation
To facilitate transportation of the appliance, the drain tap is
installed at the internal side of the housing.
1. Undo the drain tap.
2. Screw it to the external side of the housing.
Fig. 5
Flame Protection Filters Installation
1. Unpack the delivered flame protection filters and, if needed, partitions.
Flame protection filters are fitted in a specially formed fat collection element. The
internal profile of the extractor hood is formed in a way making it possible for
condensate/fat to accumulate in the fat collection channel and are delivered to the
drain tap.
2. After installing the extractor hood on the
wall, fit the appliance with flame
protection filters and partitions (if
needed):
–use the holders to fit the flame
protection filters in the top guide-rail of
the available opening first, then move
them upwards as far as possible and let
them slide to the bottom guide-rail.
–fit the partition between flame protection
filters.
Fig. 6

Installation and operation
221205 15 / 24
EN
Power supply connection
•Verify if technical data of the appliance (see rating plate) correspond with the
local electric power grid specification.
•Connect the appliance to a single, properly grounded mains socket with
protective contact. Do not connect the appliance to a multi-socket.
•The power cord should be laid in a way preventing anyone from threading on it
or tripping against it.
Connection —Electrical Power
•Verify if the technical specification of the appliance (see the rating plate)
corresponds to the local electricity grid.
•The power cord should be laid in a way preventing anyone from threading on it
or tripping against it.
•The appliance is supplied with a connection cable without a plug.
•It is of utmost necessity to install proper disconnector of all poles upstream of
the appliance, so that —when needed —the appliance is quickly disconnected
from power supply.
•Moreover, establish a correct grounding connection, according to safety
regulations pertaining to electrical installation.
The infusion extractor hood can only operate with a fresh air supply motor, exhaust
air motor and two additional controllers.
1. Place the motors beyond the stream of air in the extractor hood.
2. Install the fan speed regulator externally, on a wall next to the extractor hood, in
an easily accessible location.
3. Connect the proper exhaust air motor and fresh air supply motor with respective
fan speed regulators. Follow information in section 'Auxiliary Equipment' and
indications in manufacturers' instruction manuals of these motors.
4. Connect fan speed regulators to the power supply.
The power of motors is controlled with fan speed regulators.
5. Connect the LED lighting to the power supply.

Installation and operation
16 / 24 221205
EN
Fan speed regulators and motors are not part of the delivery!
3-0750 Fan Speed Regulator
Designed for:
–1100-WD2000 fresh air supply motor
–1100-WD2000 infusion extractor hood
Output control:
–manual
–4 levels
–up to 0.75 kW / 400 V, 50 Hz, 3 NAC
(2 A, three-phase current)
Dimensions: W 370 x D 195 x H 500 mm
Weight: 18.4 kg
Art. No. 220121
Fig. 7
3-1500 Fan Speed Regulator
Designed for:
–1100-WD2000 exhaust air motor
–1100-WD2000 infusion extractor hood
Output control:
–manual
–4 levels
–up to 1.5 kW / 400 V, 50 Hz, 3 NAC (4 A,
three-phase current)
Dimensions: W 370 x D 195 x H 500 mm
Weight: 23.4 kg
Art. No. 220122
Fig. 8

Installation and operation
221205 17 / 24
EN
1100-WD2000 Fresh Air Supply Motor
Version: Asynchronous motor, 3 phases
Number of blower motors: 1
Number exhaust air outputs: 1
Air filter: 1, removable
Motor output: 0.75 kW
Motor position: beyond the stream of air
Output control: with 220121 external fan
speed regulator
Power supply: 0.75 kW / 400 V 50 Hz
Dimensions: W 640 x D 900 x H 600 mm
Weight: 61.8 kg
Art. No. 220125
Fig. 9
1100-WD2000 Exhaust Air Motor
Version: Asynchronous motor, 3 phases
Number of blower motors: 1
Number exhaust air outputs: 1
Motor output: 1.1 kW
Motor position: beyond the stream of air
Output control: with 220122 external fan
speed regulator
Power supply: 1.1 kW / 400 V 50 Hz
Dimensions: W 660 x D 800 x H 625 mm
Weight: 65.6 kg
Art. No. 220126
Fig. 10

Installation and operation
18 / 24 221205
EN
5.2 Operation
•Przed pierwszym u życiem w yczyścić urządzeni e i wyposażenie zg odnie ze ws kazówkami za wartymi w pu nkcie 6 „Czyszc zenie”. Uw ażać, aby do ins talacji elektr ycznej i skrzyn ki rozdzielczej nie do stała się wo da. Następnie d okładnie osuszyć urządzenie i elementy wypos ażenia.
•Insertt he bottom co verint o the appliance. The co ver acts as a spacer between t heh eating element and left -over food tray.
•Carefully insert the con nection box with the heating element at the back edge oft he appliance. A pin in b ottom part of the connecti onb ox must enter a hole in the main ap pliance. This way t heco nnection box is prop erly mounted.
Preparation of the Appliance
1. Before use, clean the appliance, observing instructions in section 6 'Cleaning'.
2. Dry the appliance thoroughly.
Operation of the Appliance
1. Activate the installed disconnector.
2. Set the fan speed regulators for the exhaust air motor and fresh air supply
motor.
Fig. 11
3. In order to switch the fan speed regulator on, rotate the ON/OFF switch (at the
right-hand side at the control panel) to ON position.
4. Set the motor speed with the controller to the left, within the range of 1–4.
The infusion extractor hood is switched on.
Vapours are vented during preparation of food and exhausted by the exhaust air
installation. The fresh air supply motor provides for inflow of fresh air.
5. Switch the LED lighting when needed.
Switching the Appliance Off
1. When the appliance is not to be used any more, it should be switched off with
the disconnector.
