Basil 9500 User manual

UNCRATING/INSTALLATIONINSTRUCTIONS
BASIL®9500 Cage and Rack Washer
(05/23/02) P-122998-049
Rev. 4

LIMITATIONS OF LIABILITY AND INDEMNITY
IN NO CASE, WHETHER AS A RESULT OF A BREACH OF CONTRACT, BREACH OF WARRANTY,
OR TORT (INCLUDING STERIS’S OR CUSTOMER’S WILLFUL ACTS, NEGLIGENCE, OR STRICT
LIABILITY) SHALL STERIS OR CUSTOMER BE LIABLE TO THE OTHER FOR ANY CONSEQUEN-
TIAL OR INCIDENTAL DAMAGES INCURRED BY THE OTHER, INCLUDING, BUT NOT LIMITED
TO, LOSS OF REVENUE, PROFITS, OR GOODWILL. HOWEVER, NOTHING CONTAINED IN THIS
MANUAL IS INTENDED TO RELIEVE EITHER STERIS OR CUSTOMER FROM CLAIMS, LIABILITY,
DAMAGES, OR EXPENSES RESULTING FROM BODILY INJURY, INCLUDING DEATH, OR
FROM PROPERTY DAMAGE INCURRED DUE TO THE WILLFUL ACTS, NEGLIGENCE, OR
STRICT LIABILITY OF THAT PARTY.
STERIS AGREES TO DEFEND, INDEMNIFY, AND HOLD CUSTOMER HARMLESS FROM ANY
AND ALL CLAIMS, LIABILITY, DAMAGES, OR EXPENSES DUE TO PERSONAL INJURIES,
INCLUDING DEATH, TO EMPLOYEES OF STERIS AND CUSTOMER AND TO THIRD PARTIES
AND FOR PROPERTY DAMAGE TO THE EXTENT CAUSED BY THE WILLFUL ACTS, NEGLI-
GENCE, OR STRICT LIABILITY OF STERIS . CUSTOMER AGREES TO DEFEND, INDEMNIFY,
AND HOLD STERIS HARMLESS FROM ANY AND ALL CLAIMS, LIABILITY, DAMAGES, OR
EXPENSES DUE TO PERSONAL INJURIES, INCLUDING DEATH, TO EMPLOYEES OF CUS-
TOMER AND STERIS AND TO THIRD PARTIES AND FOR PROPERTY DAMAGE TO THE EXTENT
CAUSED BY THE WILLFUL ACTS, NEGLIGENCE, OR STRICT LIABILITY OF CUSTOMER.
WARNING - COPYING PROHIBITED
This manual is protected by Federal Copyright Law, which
provides for damages of up to USD $20000, as well as
criminal fines and imprisonment, for unauthorized copying.

i
Table of Contents Uncrating/InstallationInstructions 122998-049
A WORD FROM STERIS CORPORATION
Followeachstepofthe uncrating/installationinstructions intheorderpresented.
Toavoid equipment damage, carefully open the carton. If you find any
indicationequipmentdamage(nomatterhowslight),showittoyoursupervisor.
Toproperlyinstallthisunit,youwillneedtheEquipmentDrawings(previously
furnished), showing all utility service and space requirements. If drawings
cannotbelocated,replacementcopiesmaybeobtainedbywriting,faxingor
telephoningSTERISgivingtheserialandmodelnumbersofyourequipment.
Once installed, equipment operation should be tested by a qualified service
technician(as outlined in Section 5) prior to equipment usage.
IfSTERISsupervisionisdesired,forinstallingandstartingupthisequipment,
contact your local STERIS representative.
The Basil®9500 Cage and Rack Washer is intended for use in the sanitation
of soiled, reusable animal care devices (such as cages, racks, debris pans,
feederbottles)andothermiscellaneousitemsbyprovidingthoroughcleaning
and optimal drying. Safety hazards may occur if unit is used for other
purposes than stated above.
Alistingofsafety precautions to beobservedwhenuncrating,installing,and
testingthisequipmentcan befoundinSection1oftheseinstructions.Donot
beginuncrating/installingthisequipmentuntilyouhavebecomefamiliarwith
thisinformation.
AnyalterationofthewashernotauthorizedorperformedbySTERISEngineering
Servicewhichcouldaffectitsoperationwillvoidthewarranty,couldadversely
affectwashingefficacy,couldviolatenational,stateandlocalregulations,and
could jeopardize your insurance coverage.
IMPORTANT:Checklocaloccupationalhealthandsafetyregulations,aswell
aselectricandplumbingcodes,foranyspecialrequirementsthatmaypertain
to installation of this unit.
Indications for Use
Advisory
©2002, STERIS Corporation. All rights reserved. Printed in Canada.

ii
122998-049 Uncrating/InstallationInstructions Table of Contents
A thorough preventive maintenance program is essential to safe and proper
equipmentoperation.YouareencouragedtocontactyourSTERISrepresenta-
tiveconcerningextendedservicemaintenanceagreementstogiveyourwasher
plannedmaintenance,assuringequipmentperformanceaccordingtofactory
specifications. A global network of skilled service specialists can provide
periodic inspections and adjustments to assure low-cost peak performance.
STERIS representatives can provide information regarding Annual Mainte-
nanceAgreements.
STERIS carries a complete line of accessories for use in this equipment. A
STERIS representative will gladly review these with you.
Seeinsidebackcover for contact information.
ThisBasil9500CageandRackWashercomplieswiththefollowingstandards:
••
••
•American and Canadian Standards:American and Canadian Standards:
American and Canadian Standards:American and Canadian Standards:
American and Canadian Standards:
Conformto ANSI/UL Std. 3101-1 conform to CAN/CSA Std. C22.2 1010.1
••
••
•Governing Directive for the Affixing of the CE Mark:Governing Directive for the Affixing of the CE Mark:
Governing Directive for the Affixing of the CE Mark:Governing Directive for the Affixing of the CE Mark:
Governing Directive for the Affixing of the CE Mark:
Machinery Directive (98/37/CE).
••
••
•Conformity to Other Applicable Directives:Conformity to Other Applicable Directives:
Conformity to Other Applicable Directives:Conformity to Other Applicable Directives:
Conformity to Other Applicable Directives:
Electromagnetic Compatibility Directive (89/336/EEC) and amendments
(92/31/EEC,93/68/EEC);LowVoltageDirective(73/23/EED)andamendment
(93/68/EC).
••
••
•Standards applied to demonstrate conformity to the directives:Standards applied to demonstrate conformity to the directives:
Standards applied to demonstrate conformity to the directives:Standards applied to demonstrate conformity to the directives:
Standards applied to demonstrate conformity to the directives:
IEC1010-1(1990);A1(1992)A2(1995);EN50081-2;EN55011;CISPR11;
EN 50082-2; EN 61000-4-2; EN 61000-4-3/ENV 50140; ENV 50204;
EN 61000-4-4;EN61000-4-6/ENV50141.
Service Information
Certification

iii
Table of Contents Uncrating/InstallationInstructions 122998-049
TABLE OF CONTENTS
Section Title Page
1 LISTING OF WARNINGS, CAUTIONS, AND SYMBOLS ..................1-1
1.1 Symbols ....................................................................................................................... 1-4
2 SITE PREPARATION ......................................................................... 2-1
2.1 Before Installing Equipment......................................................................................... 2-1
3 UNCRATING/INSTALLATION INSTRUCTIONS ................................. 3-1
3.1 Open Crates ................................................................................................................ 3-1
3.1.1 Assembled Unit ................................................................................................... 3-1
3.1.2 Disassembled Unit .............................................................................................. 3-5
3.2 Disassembled Unit Assembly...................................................................................... 3-7
3.2.1 Crate A ................................................................................................................ 3-7
3.2.2 Sump ................................................................................................................... 3-7
3.2.3 Non-Service Side Walls ....................................................................................... 3-9
3.2.4 Service Side Panels........................................................................................... 3-11
3.2.5 Control Configuration......................................................................................... 3-11
3.2.6 Temporary Roof Support ................................................................................... 3-13
3.2.7 Roof ................................................................................................................... 3-15
3.2.8 Crate B .............................................................................................................. 3-17
3.2.9 Roof End............................................................................................................ 3-19
3.2.10 Door Rail Holders ............................................................................................ 3-21
3.2.12 Roof Components............................................................................................ 3-23
3.2.13 Single-Door Washer Back Panel Installation (option) ...................................... 3-25
3.2.14 Emergency Guard Rails .................................................................................. 3-27
3.2.15 Spray Headers ................................................................................................ 3-29
3.2.16 Cabinet Corners .............................................................................................. 3-31
3.2.17 Control Panel Adjustment ................................................................................ 3-31
3.2.18 Door Frames.................................................................................................... 3-33
3.2.19 Roller Stoppers................................................................................................ 3-35
3.2.20 Door Panels ..................................................................................................... 3-37
3.2.21 Ventilation Duct................................................................................................ 3-39
3.2.22 Pulley Guards ................................................................................................... 3-41
3.2.23 Traveler Driver Cable........................................................................................ 3-43
3.2.24 Traveler Safety Cable ....................................................................................... 3-45
3.2.25 Crate C ............................................................................................................. 3-47
3.3 Move and Remove Skid............................................................................................. 3-47
3.3.1Mobile Mechanical Core.......................................................................................3-47
3.3.2 MechanicalCore .................................................................................................3-51
3.3.3 Flexible Utility Hoses and Quick-Disconnect System (Option) ............................3-53
3.3.4Leveling Legs (Accessory) ..................................................................................3-53
3.3.5 Crate D ...............................................................................................................3-55
3.3.6 Drying Option Disassembled Units.....................................................................3-55
3.3.7Pneumatic Connections .......................................................................................3-57

iv
122998-049 Uncrating/InstallationInstructions Table of Contents
3.3.8Door Links............................................................................................................3-61
3.3.9Electrical Connections .........................................................................................3-63
3.4Connect Utilities ..........................................................................................................3-67
3.5Service Panels.............................................................................................................3-69
3.6 Ramp (Accessory) (All Units)......................................................................................3-71
3.7 Service Access Panels ...............................................................................................3-73
3.8 Move and Remove Skid ..............................................................................................3-75
4 INSTALLATION CHECKLIST ............................................................ 4-1
5 START-UP TEST ............................................................................... 5-1
5.1 Installation of pH Probe ............................................................................................... 5-2
5.2 How to Enter Factory Set-Up Mode ............................................................................. 5-3
5.2.1 How to Verify Indicator Lights.............................................................................. 5-5
5.2.2 How to Verify Door Configuration ........................................................................ 5-6
5.3 How to Enter Service Mode ....................................................................................... 5-10
5.3.1 How to Activate Digital Outputs ........................................................................ 5-11
5.3.2 How to Verify Suction Pump Rotation (Option) .................................................. 5-12
5.3.3 How to Verify Drying Fan Rotation (Option)...................................................... 5-13
5.3.4 Air/Oil Tanks....................................................................................................... 5-15
5.4 Calibration ................................................................................................................. 5-17
5.4.1 How to Calibrate Chemical Injection Rate ......................................................... 5-17
5.4.2 How to Set Descaler Rate ................................................................................. 5-20
5.5 How to Set pH Ratios................................................................................................. 5-21
5.5.1 STERIS Chemicals ..............................................................................................5-21
5.5.2Non-STERIS Chemicals........................................................................................5-24
5.5.3 Howto Calibrate Chemical Neutralizing (pH)System (Option) ...........................5-25
5.6Miscellaneous Verificationsin Automatic Mode ..........................................................5-29
5.6.1 Safety Features ...................................................................................................5-29
5.6.2 Automatic Floor Tilt (Option) ...............................................................................5-31
5.6.3 Piping and Ventilation .........................................................................................5-31
5.6.4 Manifold Coupling System (Option) ....................................................................5-32
5.6.5 Clean Steam Supply Valve..................................................................................5-32
TABLE OF CONTENTS (CONT'D)
Section Title Page

v
Table of Contents Uncrating/InstallationInstructions 122998-049
2-1. Utility Service Connections...............................................................................................................2-1
3-1. Crates ...............................................................................................................................................2-2

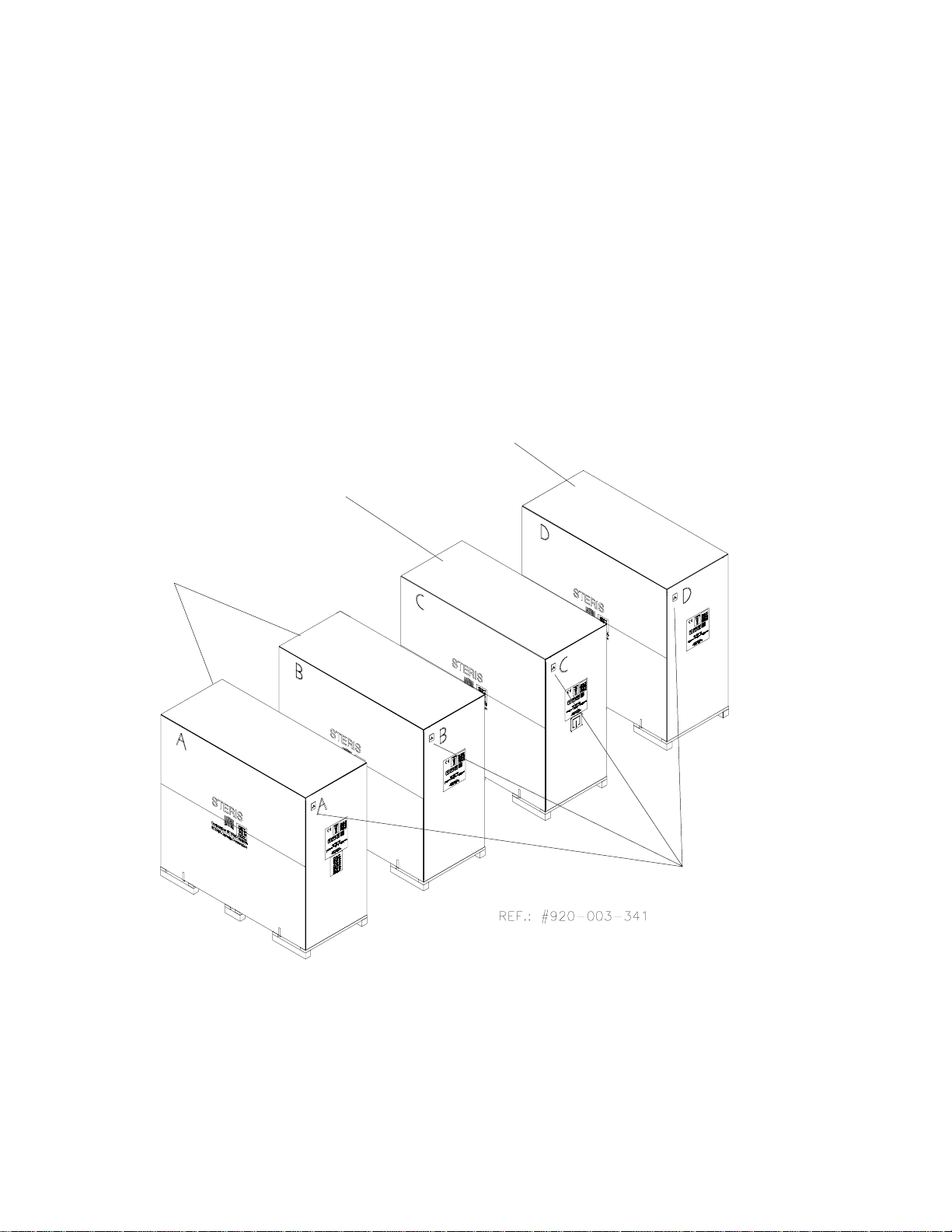

3-2. Basil®9500 Cage and Rack Washer, Reference View Point for All Installation Locations .................3-4
3-3. Pit Mounted Unit ...............................................................................................................................3-6
3-4. Non-ServiceSideWalls ....................................................................................................................3-8
3-5. Service Side Panels ........................................................................................................................3-10
3-6. TemporaryRoofSupport ..................................................................................................................3-12
3-7. Roof.................................................................................................................................................3-14
3-8. RoofEnd..........................................................................................................................................3-18
3-9. DoorRailHolders .............................................................................................................................3-20
3-10. RoofComponents ............................................................................................................................3-22
3-11. Single-DoorWasherBackPanel(Option).........................................................................................3-24
3-12. CrateD:InsideChamberComponents .............................................................................................3-26
3-13.SprayHeaders ...................................................................................................................................3-28
3-14. CabinetCorners ...............................................................................................................................3-30
3-15. DoorFrames ....................................................................................................................................3-32
3-16. RollerStoppers ................................................................................................................................3-34
3-17. DoorPanels .....................................................................................................................................3-36
3-18. VentilationDuct ...............................................................................................................................3-38
3-19. PulleyGuards ..................................................................................................................................3-40
3-20. TravelerCable.................................................................................................................................. 3-42
3-21. TravelerDriveCable ........................................................................................................................3-44
3-22 Slide MechanicalCore ..................................................................................................................... 3-46
3-23. MobileMechanical Core - Center of Gravity .....................................................................................3-48
3-24. MechanicalCorePiping ...................................................................................................................3-49
3-25 pHProbeLocation ...........................................................................................................................3-50
3-26 Flexible Utility Hoses ....................................................................................................................... 3-52
3-27. DryingOption...................................................................................................................................3-54
3-28. BottomPneumaticConnections.......................................................................................................3-56
3-29. TopofWasher, PneumaticConnections ..........................................................................................3-58
3-30. DoorLinks .......................................................................................................................................3-60
3-31. ElectricalConnections .....................................................................................................................3-62
3-32. SupplyLineConnections .................................................................................................................3-66
FIGURE TITLE PAGE
TABLE OF ILLUSTRATIONS

vi
122998-049 Uncrating/InstallationInstructions Table of Contents
3-33. Service Panels ................................................................................................................................3-68
3-34. Ramp (Accessory) (All Units)...........................................................................................................3-70
3-35. Service Access Panels.................................................................................................................... 3-72
3-36. Service Access Panels (cont'd) .......................................................................................................3-74
5-1. pHProbe...........................................................................................................................................5-2
5-2. ControlPanelandPrinter ..................................................................................................................5-3
5-3. TypicalConfigurationPrintout ..........................................................................................................5-14
5-4. Air/Oil Tanks....................................................................................................................................5-13
5-5. Chemical Injection Port.................................................................................................................... 5-16
5-6. Emergency Exit Safety Doors..........................................................................................................5-28
5-7. DamperAdjustment .........................................................................................................................5-33
FIGURE TITLE PAGE
TABLE OF ILLUSTRATIONS (CONT'D)
LIST OF TABLES
TABLE TITLE PAGE
5-1. I/O Board Outputs Test ....................................................................................................................5-7
5-2. I/O Board Inputs Test .......................................................................................................................5-8
5-3. Control Board Analog Inputs Test.....................................................................................................5-8
5-4 Interlock Features.............................................................................................................................5-9

1-1
Listing of Warnings, Cautions, and Symbols Uncrating/InstallationInstructions 122998-049
Thefollowingisalistingofthesafetyprecautionswhichmustbeobservedwhenuncrating,installingandservicingthis
equipment. WARNINGS indicate the potential for danger to personnel, and CAUTIONS indicate the potential for
damagetoequipment.Theseprecautionsarerepeated(inwholeorinpart),whereapplicable,throughoutthemanual.
WARNING – PERSONAL INJURY AND/OR EQUIPMENT DAMAGE HAZARD:
When moving the unit, use a forklift.
Only fully qualified service personnel should assemble and/or make adjustments to this equipment.
Assemblyoradjustmentsdonebyinexperienced,unqualifiedpersonnelcouldcausepersonalinjuryorresultin
costly damage. Contact your STERIS sales or service representative regarding service options.
Do not remove protective paper covering from front of doors until door installation is complete. Paper
secures exterior glass in place during transport and installation.
TotestordemonstrateEmergencyExitSafetyDoors,firstpressEmergencyStopPushbutton(locatedunder
control) or Emergency Safety Guard Rails (inside wash chamber) to turn power OFF. If power is still on while
adjustingorservicingdoors,thePhotoelectricSensorwilldetectthemovementofthedoorpanelsanddoorswill
openautomatically.
DonotassembleDryingSystemcomponents(frame, fan and heat exchanger) prior to installation on the
mechanical core. Lifting assembled Drying System may result in back injury or equipment damage.
WARNING – LACERATION/EYE INJURY HAZARD:
Whenremovingbands, wearglovesandeyeprotection,and alwaysuseatoolspecificallydesignedtocutthe
bands. The bands used to secure these crates can cause personal injury when cut and tension is released.
WARNING – LACERATION HAZARD:
When removing bolts, wear gloves to protect your hands.
WARNING – PERSONAL INJURY HAZARD:
Doors are heavy. Installation of doors requires two people.
When doors areclosing apinchpointiscreated atthehinges.Keepfingersawayfromdoor hingestoprevent
pinching.
Keep hands/fingers away from closing doors to prevent crushing between the two doors.
To open doors from inside wash chamber, press Emergency Safety Guard Rails. Washer operation will
automaticallystop.Thenpushfirmlybetween door panels using shoulder andupperarm,applyingupperbody
force. Do not push between the doors, but between door panels.
Twopeoplearerequiredto install the roof end sections. Usingastepladder,firstsetroofendontemporary
roof end support brackets, then lift up and sit into position.
LISTING OF WARNINGS, CAUTIONS, AND
SYMBOLS 1
(See next page for additional warnings and cautions)

1-2
122998-049 Uncrating/InstallationInstructions Listing of Warnings, Cautions, and Symbols
WARNING – BURN HAZARD:
Exceptforemergency,donotopendoorswhencycleisinprogress.Inanemergency,firststopcyclebypressing
theEmergencyStoppushbuttonandwaitforwaterflowtostop.Wearappropriatepersonalprotectiveequipment
(PPE) whenever reaching into or entering wash chamber.
Allowunit tocooldown beforeperforminganyserviceonpump.Surfaceofmotorandpipingbecomeveryhot
during unit operation.
Allowunittocooldownbeforeperforminganyserviceonmechanicalcomponentsandonpiping.Components
and piping become very hot during unit operation.
Allow piping to cool down before inspecting and/or cleaning supply line strainers.
When inspecting and/or cleaning supply line strainers, hot water/steam may be sprayed through door
opening. Wear appropriate Personal Protective Equipment (PPE).
Inner surfaces of washer are very hot after cycle completion. Operator should wear appropriate Personal
Protective Equipment (PPE) and avoid all contact with inner surfaces when entering wash chamber to unload
washer.
WARNING – FALL HAZARD:
To prevent falls, keep floors dry. Promptly clean up any spills or drippage.
WARNING – ELECTRICAL SHOCK AND/OR BURN HAZARD:
Fastenersandstarwashers areusedtoensureprotectivebondingcontinuity.Alwaysreinstallanystarwasher
which may have been removed during installation or servicing.
WARNING – CHEMICAL BURN/EYE INJURY HAZARD:
Washer chemicals are caustic andcan cause adverseeffects to exposed tissues. Donot get ineyes, on skin,
or attempt to ingest by mouth.
• Read and follow the precautions and instructions on the chemical label and in the Material Safety Data Sheet
(MSDS) prior to handling the chemical, refilling the chemical containers, or servicing the chemical injection
pumps and lines.
• RefertoMSDSforappropriatePersonalProtectiveEquipment(PPE)wheneverhandlingchemicalsorservicing
chemical injection pump and lines.
CAUTION– POSSIBLE EQUIPMENT DAMAGE:
After utilities are connected to washer, slowly remove the protective adhesive paper from the exterior cabinet
panels to reduce the risk of static discharge.
When removing adhesives from stainless steel, use a small amount of non-flammable cleaning solvent. Rub in
aback-and-forthmotion(insamedirectionassurfacegrain).Solventrubbedinacircularmotionorappliedwith
awirebrushorsteelwoolondoorandchamberassembliescanbeharmfultostainlesssteel.Donotusesolvents
on painted surfaces.
Once three-phase power is connected, check pump for correct rotation (indicated by arrow on pump motor).
Incorrect pump rotation may result in pump damage and improper cleaning action.

1-3
Listing of Warnings, Cautions, and Symbols Uncrating/InstallationInstructions 122998-049
CAUTION– POSSIBLE EQUIPMENT DAMAGE (cont'd):
Always position Bottle Washing Cart (option) over the manifolded coupling system before operating unit. If
manifold is not positioned correctly, damage may result and unit will be unable to effectively wash load.
Always position Central Header Manifold (option) over the manifolded coupling system before operating unit.
If manifold is not positioned correctly, damage may result and unit will be unable to effectively wash load.
Alwaysleave plenty ofspace between loadand doors. Leaningload against doorswill damage doorsand also
prevent doors from opening.
Handle pH Probe with care: pH Probe is fragile. Hitting or rubbing pH probe may damage probe sensor.
Use clamps to tighten quick disconnect clamps. Pump damage may result if air passes through union.
Do not remove adhesive tape from corner spring traps before installation of doors is completed.
Before operating equipment, make sure that pump motor is rotating in proper direction.
Before removing plugs on Air/Oil tanks, make sure doors are in closed position and all door outputs are de-
activated.
IMPORTANT: Checkthelocaloccupationalhealthandsafetyregulations,aswellaselectricandplumbingcodes,for
any special requirements that may pertain to installation of this unit.

1-4
122998-049 Uncrating/InstallationInstructions Listing of Warnings, Cautions, and Symbols
Symbols Symbols on the Crate:
Symbol Definition
TIP 'N TELL Indicator. "If TIP 'N TELL arrow point is
blue, this package has been on its side or tipped over
in transit. Make note on the bill of lading and check
for damage. Any claims for dripping on this notation.
Maximum Relative Humidity.
This Side Up.
Keep Dry.
Fragile.
Do Not Stack.
MaximumTemperature.
Open This Side.
Symbols on the Unit:
Symbol Definition
Transfer of Heat, Hot Surface.
Protective Earth (Ground).
Warning! Risk of Electrical Shock.
Attention, Consult Manual for Further Instructions.
Warning! Do Not Step Here.
Fork Lift: Place Forks of the Fork Lift Here.

1-5
Listing of Warnings, Cautions, and Symbols Uncrating/InstallationInstructions 122998-049
Symbols (cont'd) Symbols on the Unit (cont'd):
Symbol Definition
Safety Exit: Push Here in Case of Emergency.
Rotation: Direction of the Rotation Device.
Emergency Stop Guard Rails: Push to Stop Washer
and De-energize Control.
Load Delimitation: Do not Place Load Over Marks.
Factory Adjustment: Do Not Adjust.
Information on the Nameplate:
Symbol Definition
MOD. Model Number of the Unit
SER. Serial Number of the Unit
kW Power Rating of the Unit.
VOLTS Voltage Rating of the Unit.
AMPS Amperage Rating of the Unit.
PH/Hz Phase/Hertz — Frequency of the Unit.
YEAR Year of Manufacturing of the Unit.

1-6
122998-049 Uncrating/InstallationInstructions Listing of Warnings, Cautions, and Symbols
This Page Intentionally Left Blank

2-1
SitePreparation Uncrating/InstallationInstructions 122998-049
2.1 Before Installing
Equipment
SITE PREPARATION
1. Review permissible environmental conditions: This washer is designed to
give optimal results in an environment where maximum relative humidity is
less than 85% and maximum operating temperature is 104°F (40°C).
2. An optional seismic anchorage system is available for high risk seismic
zones.
3. Review installation requirements:
a. Clearance - Clearance space shown on Equipment Drawing is neces-
sary for easy installation and proper operation and maintenance of
washer (see Equipment Drawing 122998-061).
b. Barrier wall flange(s) installation - Refer to Equipment Drawing 122998-
061 for installation.
c. Utility service lines:

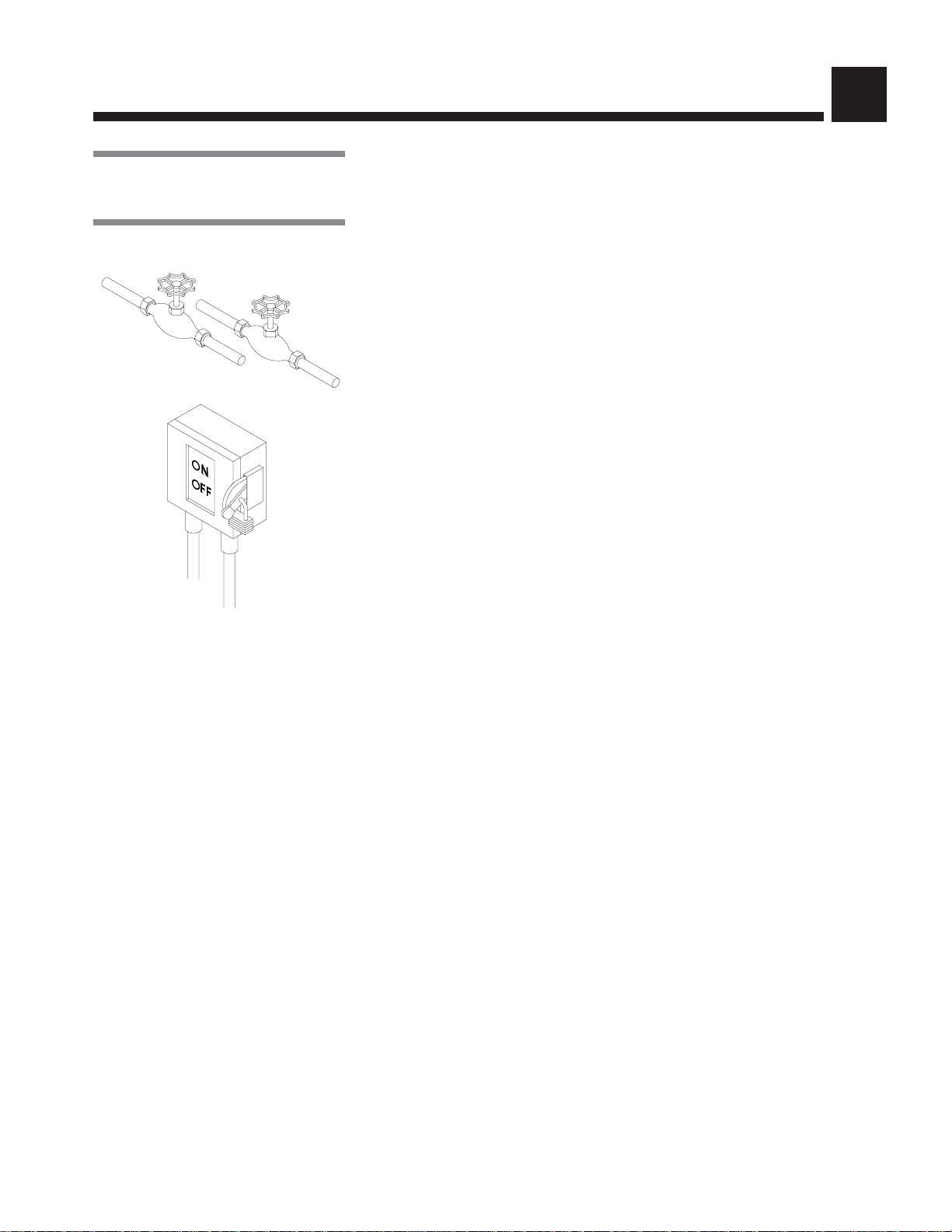

• Toallowserviceonunitwithoutshuttingoffbuildingsupplylines,shutoff
valves(notbySTERIS)shouldbeinstalledonsteam,airandwaterlines
tounit(seeFigure 2-1). Shutoffvalvesmustbecapableofbeinglocked
in OFF position only.
• Disconnectswitch (not by STERIS) mustbe installedon electric supply
line (see Figure 2-1).
• Disconnect switches must be marked as the disconnecting device for
the equipment and must be capable of being locked in OFF position
only.
• If machine is installed next to other equipment, shutoff valves and
disconnect switches should be located so that service can be shut off
to one piece of equipment at a time.
• Thedisconnectdeviceoftheequipmentmustbewithineasyreachofthe
operator (preferably no more than 3 feet [1 m] away from equipment).
• Utility service requirements are shown on Equipment Drawing.
d. Electricity:
• Unit requires either 208 V, 60 Hz, 3-phase, 3-wire; 380/400/415 V,
50 Hz, 3-phase, 3-wire; or 480 V, 60 Hz, 3-phase, 3-wire power.
For 208 V,60 Hz,a50 Adisconnectswitch andAWG#6 (16 mm)wire
is recommended.
For 480 V, 60 Hz, a 30 A disconnect switch and AWG #10 (6 mm) wire
is recommended.
For 380/400/415 V, 50 Hz, a 20 A disconnect switch and AWG #12
(4 mm2) wire is recommended.
If electrical supply is 380 V or 400 V, locate the 1000 VA transformer,
inside the main electrical box, and connect red wire of primary side to
380 V (H2) tap connection.
2
Figure 2-1. Utility Service
Connections

2-2
122998-049 Uncrating/InstallationInstructions SitePreparation
• Check Equipment Drawing or Identification nameplate (located on
frameofmobilemechanicalcore,abovemainelectricalbox,(seeFigure
3-2) for proper voltage and amperage.
• This unit is overvoltage (Installation Category II).
• Thisequipmentisnotintendedtobeconnectedclosetothemainsupply
of the building.
• Thisequipmentneedstobeinstalledaccordingtolocalelectricalcodes.
4. This is a Class 1 equipment
A protective conductor connection is essential for the safe operation of the
equipment.Checkforpresenceofprotectiveconductoratequipmentterminal
and verify if connection is well secured inside terminal with proper torque
requirement.
• Torque requirement for supply conductor terminals:
(L1-L2-L3): 0.89 -1.03 lb/ft (1,2 - 1,4 N•m)
• Protective conductor terminal:
16.96 - 29.50 lb/ft (23 - 40 N•m)
5. Make sure washer is placed, as shown on Equipment Drawing, in correct
relation to building supply lines. If unit is not at installation site, refer to
Section 3 for proper moving instructions.
6. If washer is pit-mounted:
• Pit must be clean.
• Pit drain piping should be level with pit floor to allow water to drain.

3-1
Uncrating/InstallationInstructions Uncrating/InstallationInstructionsl 122998-049
3.1 Open Crates
UNCRATING/INSTALLATION INSTRUCTIONS
NOTE: Use a forklift to move crates.
NOTE: Uncrate on level floor as close to installation site as possible.
IMPORTANT::
::
: Bring in and uncrate only one crate at a time (see Figure 3-1).
A fully equipped, assembled unit should consist of two or more crates:
•CrateA: Sump,floor,roof,non-servicesidepanels,hardwarebox,control
panel(s), doors;
Dimensions: 89" W x 117" H x 109" L (2260 x 2972 x 2769 mm);
Max. Weight: 4000 lb (1818 kg).
• Crate C: Mechanical core;
Dimensions: 49" W x 85" H x 108" L (1245 x 2159 x 2743 mm);
Max. Weight: 2000 lb (909 kg).
• Crate D: Drying package (option) and/or enclosure wall option and/or
ramp (option):
Dimensions: 48" W x 44" H x 60" L (1229 x 1118 x 1524 mm).
Max. weight: 550 lb (250 kg).
NOTE: There is no Crate B for assembled units.
1. Bring washer as close as possible to installation site.
2. Positionunit to open wooden crate from topandside. Provideaclearwork
area on all sides.
3. Remove transparent plastic wrap from around crate.
4. CheckTipIndicator,locatedon upper left sideofcrates (see Figure 1).Tip
Indicatorcontainsabluecompoundatthebottomoftheindicator.Ifunithas
beentipped,residuefromthebluecompoundwillbefoundhigherupinthe
indicator. If unit has been tipped, notify your STERIS regional office. A
service technician will review the equipment and determine if unit was
damaged.
5. Remove wood panels from top and sides of washer.
6. With skid under washer, lift and bring washer close to installation site.
7. Lift washer and remove skid from under washer.
8. Placewasher into pitatfinalinstallationsite.SeeEquipmentDrawing(122-
998-061)andseismic anchoragereportifoptionapplies(122-997-987)for
properinstallation.
IMPORTANT: Be sure that suction piping is located on service side.
9. Floor mounted units:
• Use a 24" spirit level, level sump, end-to-end and side-to-side, to adjust
the four leveling legs (one at each corner of sump).
• Distance from door sill and floor can be adjusted between 7" and 9" (18
cm to 23 cm).
• Make sure washer is flush with floor.
3.1.1 Assembled Unit
3
WARNING – PERSONALIN-
JURYAND/OREQUIPMENT
DAMAGE HAZARD: When
moving the unit, use a fork-
lift.
WARNING – LACERATION/
EYE INJURY HAZARD:
Whenremovingbands,wear
gloves and eye protection,
and always use a tool spe-
cificallydesigned to cut the
bands. The bands used to
secure these crates can
causepersonalinjurywhen
cutand tension is released.

3-2
122998-049 Uncrating/InstallationInstructions Uncrating/InstallationInstructions
Figure 3-1. Crates
Mechanical Core
Basil 9500 Cage and Rack Washer
Drying Option
Tip Indicators

3-3
Uncrating/InstallationInstructions Uncrating/InstallationInstructionsl 122998-049
10. Pit-mounted units:
• Use a 24”spirit level, level sump, end-to-end and side-to-side, to adjust
four leveling legs (one at each corner of sump).
• Toaccesslevelinglegs,externalcabinetcornersandfrontservicepanels
may have to be removed:
a) Removescrewsholdingfrontservicepanelinplace,andremovepanel.
b) Remove screws holding non-control side external cabinetcorner
panel in place and remove panel.
NOTE:levelinglegsoncontrolsidepanelscanbereachedfrombehindcontrol
side panel without having to be removed.
11. Inside wash chamber: Cut bands and remove control(s) from bottom of
wash chamber.
12. Install controls on service side cabinet corner (5, 7) using hardware
provided on controls (97, 98), tighten all hardware (see Figure 3-4).
NOTE: Always verify with customer if the location of main control with printer
corresponds to configuration required.
NOTE: Control Configuration. If controls have been changed from one end to
the other, align control with control door window as follows:
1. Close locks on control door.
2. Place control next to transparent membrane as if to operate control touch
pad.
3. Align control with control door window.
4. Tighten nuts.
5. Use Blank Sticker to cover printer window on secondary control side (see
Figure 3-14, detail "A").
• Remove bolts holding pieces of wood securing spray headers in place.
• Remove bolts and remove wooden floor frame inside wash chamber.
• Remove pieces of wood securing doors in place.
Onceunitisinplace,seeSection3.2.25(CrateC)andSection3.3.5(CrateD)
to complete washer installation.

3-4
122998-049 Uncrating/InstallationInstructions Uncrating/InstallationInstructions

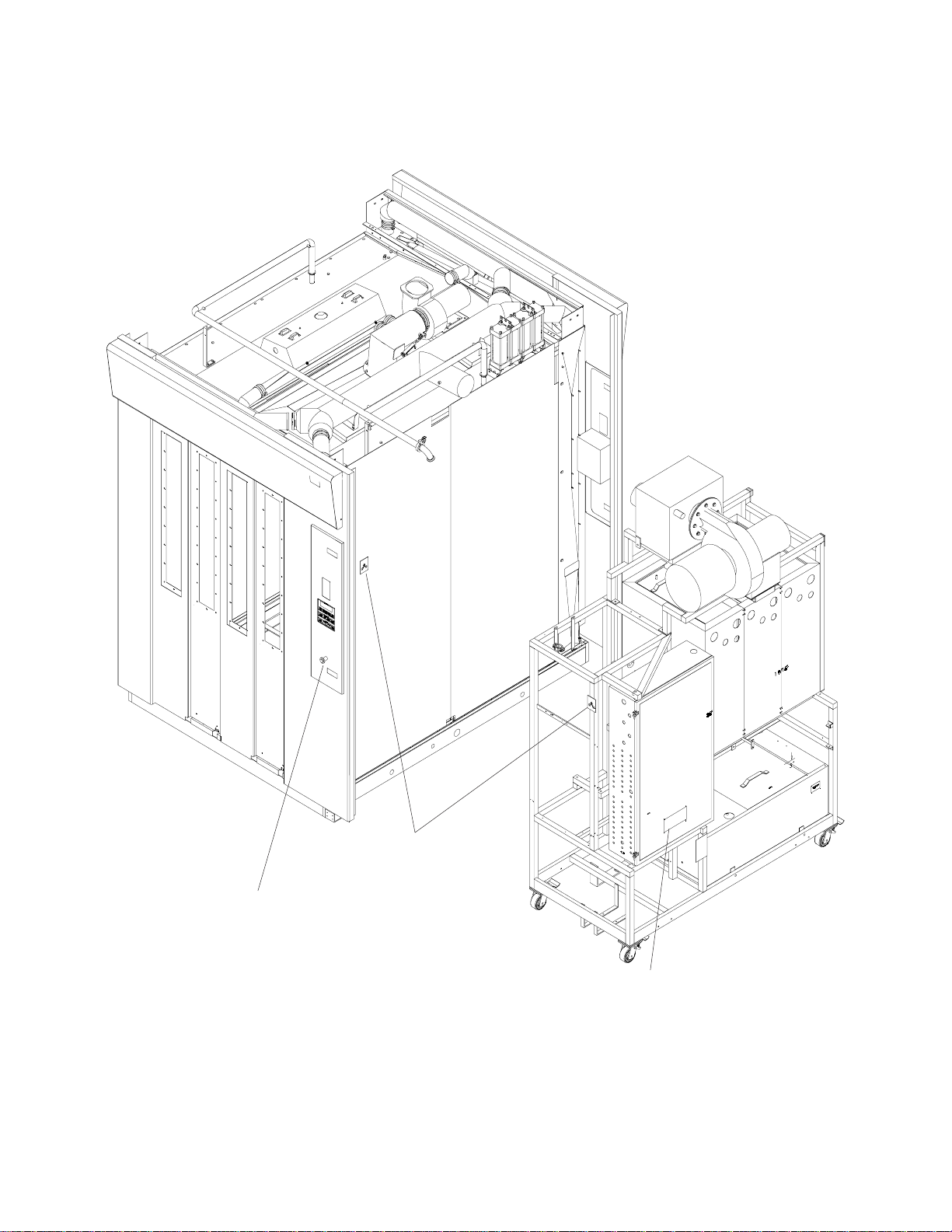

Figure 3-2. Basil®9500 Cage and Rack Washer, Reference View Point for All
Installation Locations
Non-Service Side
Emergency Stop Pushbutton
Tip Indicators
Mechanical Core
Nameplate
Service Side
Left Side
Right Side
Ref.: 920-003-135
