Chapter 1 : General Information
Chapter 2.Product Feature .............................................................. 4
Chapter 3. Safety Precautions .......................................................... 6
Chapter 4. Installation and accessory parts ............................................. 8
Chapter 5. Parts and functions .........................................................13
Chapter 7. Maintenance service and trouble shooting .................................... 16
Chapter 8. Wiring diagram...............................................................20
Chapter 6. Operating Instruction ....................................................... 14
1-1. Table of Contents
Chapter 1. General Information ....................................................................................2
1-1. Table of Contents 2
1-2. General Guidelines 3
1-3. Caution and Warning symbols 3
1-4. Function indication symbols 3
2-1. Features 4
2-2. Specification 5
3-3.Net dimension 8
3-1. Safety 6
3-2. Warning and cautions 7
4-1. Key points in installation 8
7-1.Trouble-shooting charts
7- - . 61 1 No action(The indicator is off) 1
7- - 71 2.No draining 1
7- - 71 3.Keep filling water 1
7- - 81 4.No spinning 1
7- -1 5.Too much noise in spinning
7- - 81 6.Too much noise in washing 1
7-2. Trouble alarm and solve method 19
7-3.Common phenomena
16
18
19
4-2. Install the bottom plate 8
4 3.Adjust the installation position 9-
4. -4 How to change the direction of the drain hose 9
4. the drain hoses 10-5 Usage
4. the water faucet 10-6 Confirm
4. -7 Connection between the water inlet hose jointer and the water faucet 11
4. -8 Connection between the water inlet hose and the water 11
4. -9 Connection between the jointer of the water inlet hose and the water inlet hose 12
4.-10 Check the connection between the water inlet hose jointer and the water faucet
4. -11 Dismantle the water inlet hose 12
12

Model No.: HWM110-9188/HWM110-9188DD
Issue
Rev.
1-2. General Guidelines
1-3. Caution and Warning symbols
When servicing, observe the original lead dress. If a short circuit is found, replace all parts
which have been overheated or damaged by the short circuit. After servicing, see to it
that all the protective devices such as insulation barriers, insulation papers shields are
properly installed. Confirm that the screws parts and wiring which were removed in
(You will see them in “Matters needing attention”)
order to service are put in the original positions, or whether there are the portions which
are deteriorated around the service places serviced or not. And be sure safety of that
Any instructions in this service manual with this “Warning” sign must be
followed strictly.
To prevent damage to the washing machine, any instructions in this service
manual with this “Stop” sign must be followed strictly.
1-4.Function indication symbols
(You will see them in the specification table)
Signify the washing machine has this function.
Signify the washing machine doesn′t have this function.
-3-

Order No.TL1101S001V1
● Shift washing, shift spinning
●
●
●
●
●
Cold & warm water inlet selection
Drain up function
Cabinet with the door open in the front:
Super capacity for more clothes
Pulsator type for wash efficiency, twist free and low wear
-4-
Chapter 2.Product Feature
2-1. Features

Order No.TL1101S001V1
-5-
2-2. Specification
M od el H W M 1 1 0 - 9 1 8 8
Free standing √
Built under ×
EAN code
Energy efficie ncy class
Features for use
W ash capacity kg 11
Spin ca pacity kg 11
Level/Volum e L 1/21，2/3 2，6/42，4/5 1，5/60，6/69，7/77，8 /94
Preset H √
Residua l dam pness % <115
C o ntr a l m o d el
contraller ×
Norm al co m puterized ×
Fuzzy com puterized √
Frequency conversion ×
Service features
Program s 8
Short cycle ?
Inlet heating select √
Heating selection ×
Spinning cycle (s ele ctor) ×
Spinning cycle (variable) ×
Start/P ause √
Autom atic balncing ?
Aes thetics
Cabinet m aterial（P = P lastic/Z=Z incking/C= C old ) Z
Rolled stainless steel
Inner drum (stainl. steel=s / plastic=p) S
D rain type（U = drain up D=d rain down ）drain down
Door (g lass=g / pla stic= p) ×
Adjustable feet √
Tech n ical d ata
Voltage/frequ ency V/Hz 22 0 V-240V /50HZ
W ash pow e r W 550
Spin pow e r W 360
Special function －
Air-B ubble ×
Feet whe el ×
W ater fall current ×
Dim ension s (m eas u rem en ts)
Height / built under m m 1055
W idth m m 660
Depth / w ith open doo r m m 660
Dim ension s pack ed ( m easu rem ents pack ed)
Height m m 1140
W idth m m 727
Depth m m 727
Net weight kg 57
G ro ss w eigh t kg 70
20'Container lo ad Sets 42
40’Containe r lo a d Sets 90
40H ’Container load Sets 90
NOTE: "√" FOR AVALIABLE, " ×" FOR NOT AVALIABLE “-”FOR NOT AVAILABLE
Product Specification
" -" F O R B E A P P L IC A B LE

Order No.TL1101S001V1

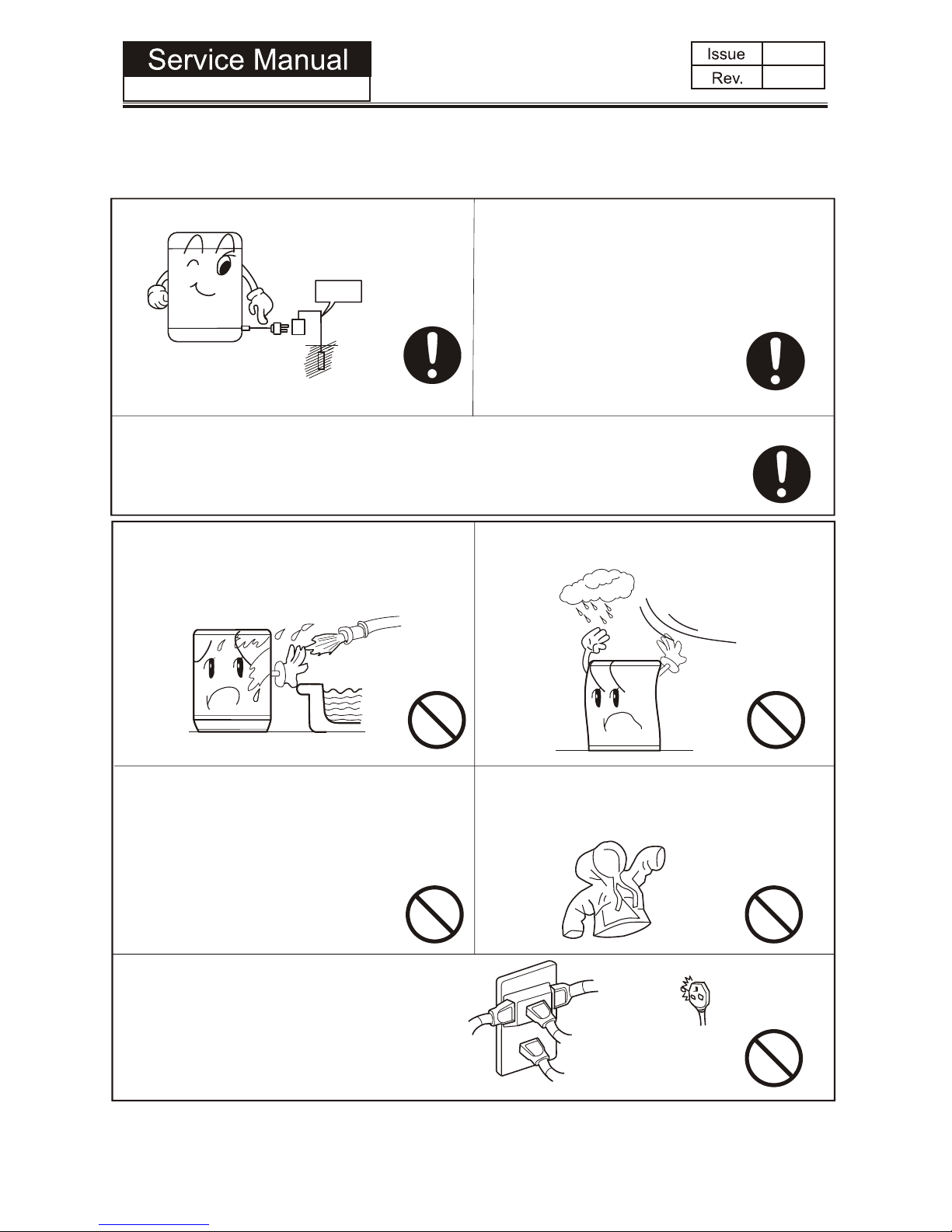

Do not share one receptacle with other
electric appliances. Do not use it in
case that the power plug is damaged
or the inserting into the receptacle is
loose.
Earth
Do not wash water-proof laundries such
as the raincoat, bicycle shelter etc. To
avoid abnormal vibration during spinning.
If the power cord is bad, to avoid risk it is required to replace it by the technicians
of our special shop or the after-sale service department. Keep the pin of the power
plug clean.
Be sure to earth the earthing wire reliably.
Do not put the machine at damp place like
the bathroom. Never wash it with water.
Do not let the machine share one receptacle
with other electric appliances. If the power
plug is damaged, or the plugging into the
receptacle is loose, do not use the plug any
more.

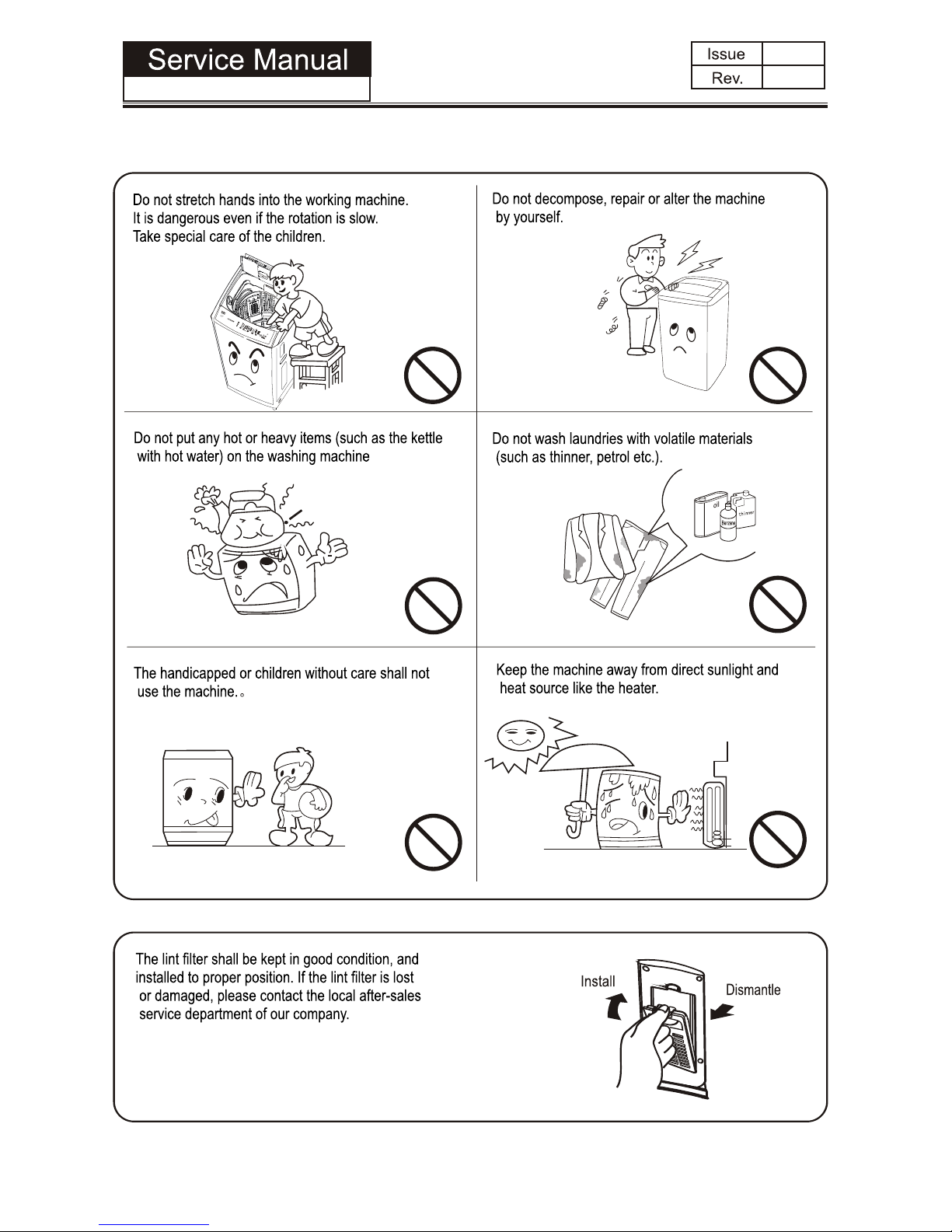

Do not install or store the washer where
it will be exposed to the weather.
The power cord plug should be convenient
to be pluged in or pluged out with hand while
the washing machine runs normally. Be sure to
pull the plug out and close the water tap when
the machine is idle, when moving the machine,
or when cleaning the machine.Do not use wet
hand to insert or pull out the power plug.
-6-
Chapter 3. Safety Precautions
3-1. Safety

Order No.TL1101S001V1
-7-
3-2. Warning and cautions

Order No.TL1101S001V1
Unit（mm）

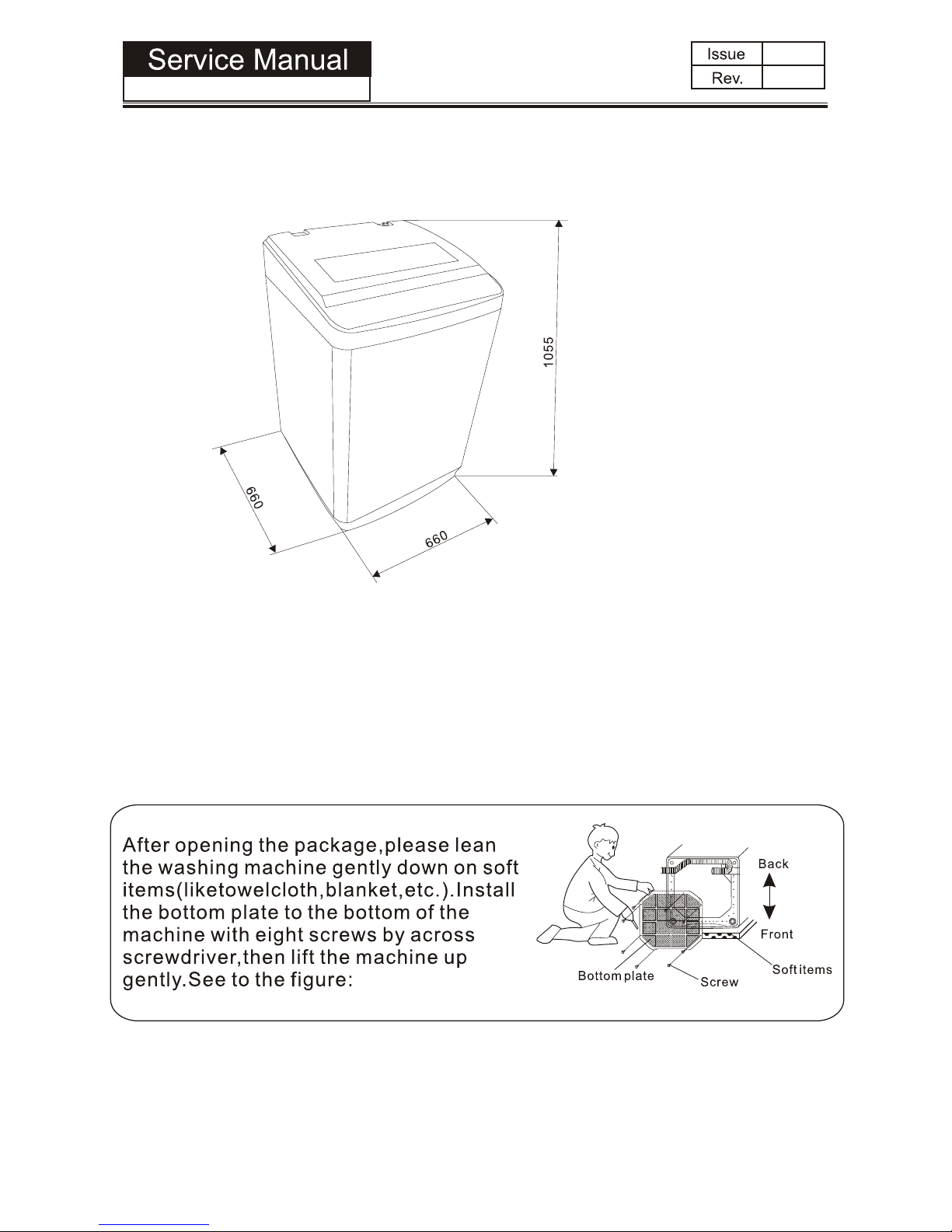

4-2. Install the bottom plate
Please install and adjust the machine according to the requirement of the manual.
It is very important to your security and correct operating the machine.
-8-
4-1. Key points in installation
3-3.Net dimension
Chapter 4. Installation and accessory parts

Order No.TL1101S001V1

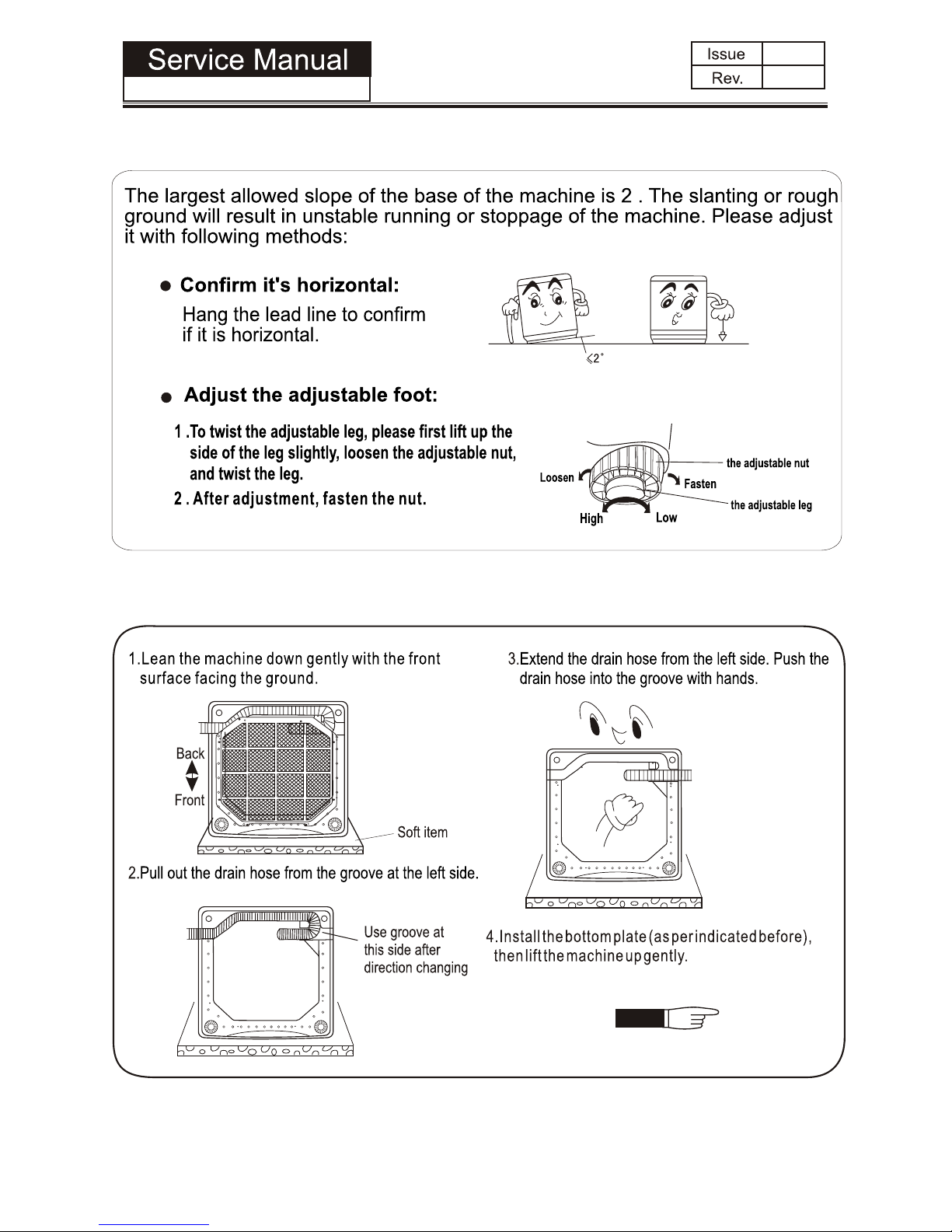

4.-4 How to change the direction of the drain hose
4 3.Adjust the installation position-
-9-
°
Page 4

Order No.TL1101S001V1
-10-
4. the drain hoses-5 Usage
4. the water faucet-6 Confirm

Order No.TL1101S001V1
-11-

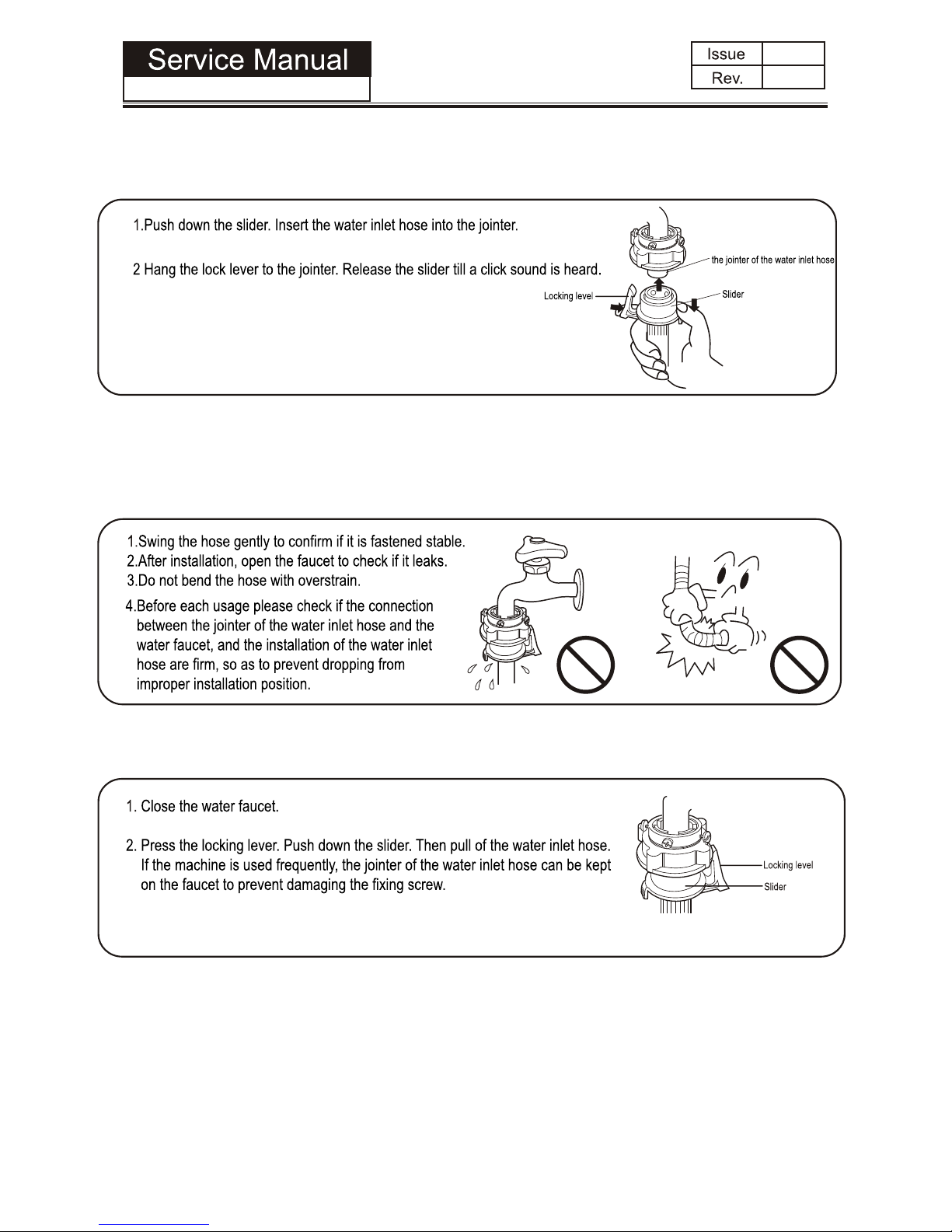

4.-7 Connection between the water inlet hose jointer and the water faucet
4.-8 Connection between the water inlet hose and the water

Order No.TL1101S001V1
-12-
4.-9 Connection between the jointer of the water inlet hose and the
water inlet hose
4.-10 Check the connection between the water inlet hose jointer and
the water faucet
4.-11 Dismantle the water inlet hose

Order No.TL0910001V0
-13-
Chapter 5. Parts and functions

Order No.TL1101S001V1
-14-
Chapter 6. Operating Instruction

Order No.TL1101S001V1
-15-

Order No.TL1101S001V1
-16-
If you replace the computer sequencer without checking the other components carefully,
the computer sequencer may be damaged again. Therefore, please first check
if the other components working normally before replacing the sequencer in maintenance.
C
7-1.Trouble-shooting charts
7 1 1 No action(The indicator is off)--.
Confirm that there's no power failure,
and the power plug is inserted reliably.
The power switch is at "On" mode.
Measure the voltage
of the two ends of the power input
of the sequencer.
Measure the resistance
between the white wire terminal
in the white plug on top of the wire unit
and the N pin on the power
receptacle.
Replace the sequencer.
Replace the
power cord.
Replace the wire unit.
Replace the computer
sequencer.
Connect the fuse and the
wires of the two ends.
The resistance
is 0.
The resistance
is 0.
The resistance
is 0.
Infinite
Infinite
Yes
Infinite
No
Pull off
the power
plug Not exist
Exist
Check if the connection
between the fuse and the wires
of the two ends are well?
Measure the resistance
between the brown wire terminal
in the white plug on top of the wire
unit and the brown wire of
the lower part.
Measure the resistance
between the light blue wire terminal
in the red plug on top of the wire unit
and the light blue wire of
the lower part.
Chapter 7. Maintenance service and trouble shooting

Order No.TL1101S001V1
7- -1 2.No draining
No
No
After insert the plug, turn the
sequencer knob to the drain location
Check the inset is normal
and measure the voltage of two ends of
the drain pump
Check the inset is normal
and measure the voltage of two ends of
the drain motor
Replace the drain pump
Check if the drain pump acts.
Check if the drain motor is normal
Check if the wire unit is normal
No
Yes
No
No
Check if the wire unit is normal?
Replace the sequencer
Replace the sequencer
Repair or replace the wire unit
Yes
Yes
Yes

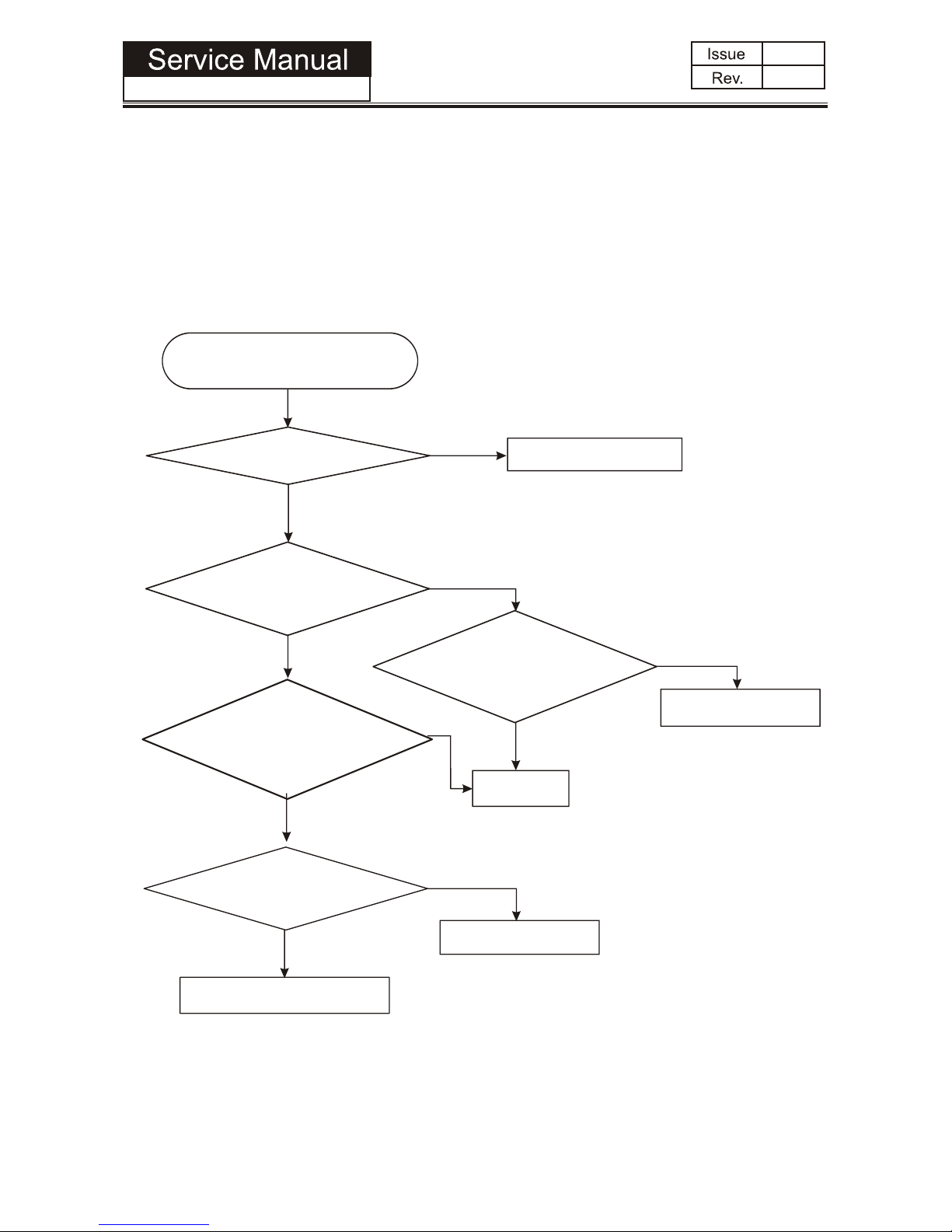

7- -1 3.Keep filling water
Open the water faucet without switching on the power.
If the water can fill into the water inlet valve.
check if the gas guide system such
as gas cell leaks gas
Replace the water inlet valve.
Replace the water level sensor.
It leaks gas. Please check and repair the gas guide system.
Please smear 801 glue in installation of the connecting pipe.
Please smear 801 glue in installation of the gas cell cover.
No
No
Exist
Exist
Exist
-17-

Order No.TL1101S001V1
The washing and
draining are normal.
Check the On/Off point of the
microswitch and stop switch.
Check if the clutch pawl
is pulled enough.
Replace the microswitch
or stop switch.
Replace the drain motor.
Replace the retarder clutch. At this time please check
if the drain motor is well.
No On/Off point
No
Yes
Normally
7-1-5.Too much noise in spinning
No
No
Yes
Yes
Yes
Yes
No
No
No
If the washing machine is set horizontally.
If the noise of the gear case is large.
If the hanger is wrongly used.
If the noise of the motor is too much.
If the motor is fastened tightly.
Set the machine horizontally.
Replace the retarder
Replace the hanger.
Replace the motor.
Fasten the motor.
No
No
Yes
Yes
Yes
7- -1 6.Too much noise in washing
If the noise of the motor is too much.
If the pulsator is rubbing the
bottom of the inner tub.
If the motor fastened tightly.
If the noise of the retarder is too large.
If the belt is too tight or loose.
Fasten the motor.
Replace the retarder.
Adjust the belt.
Replace the motor.
Adjust the gap between the
pulsator and inner tub
7-1-4.No spinning
-18-

Order No.TL1101S001V1
-19-
7-2. Trouble alarm and solve method

Order No.TL1101S001V1
There is overload protector installed in the motor. In case that the motor is overload or meets
breakdown in working, the protector will act and stop the motor. When the breakdown is
removed, the motor will resume normal working.
-20-

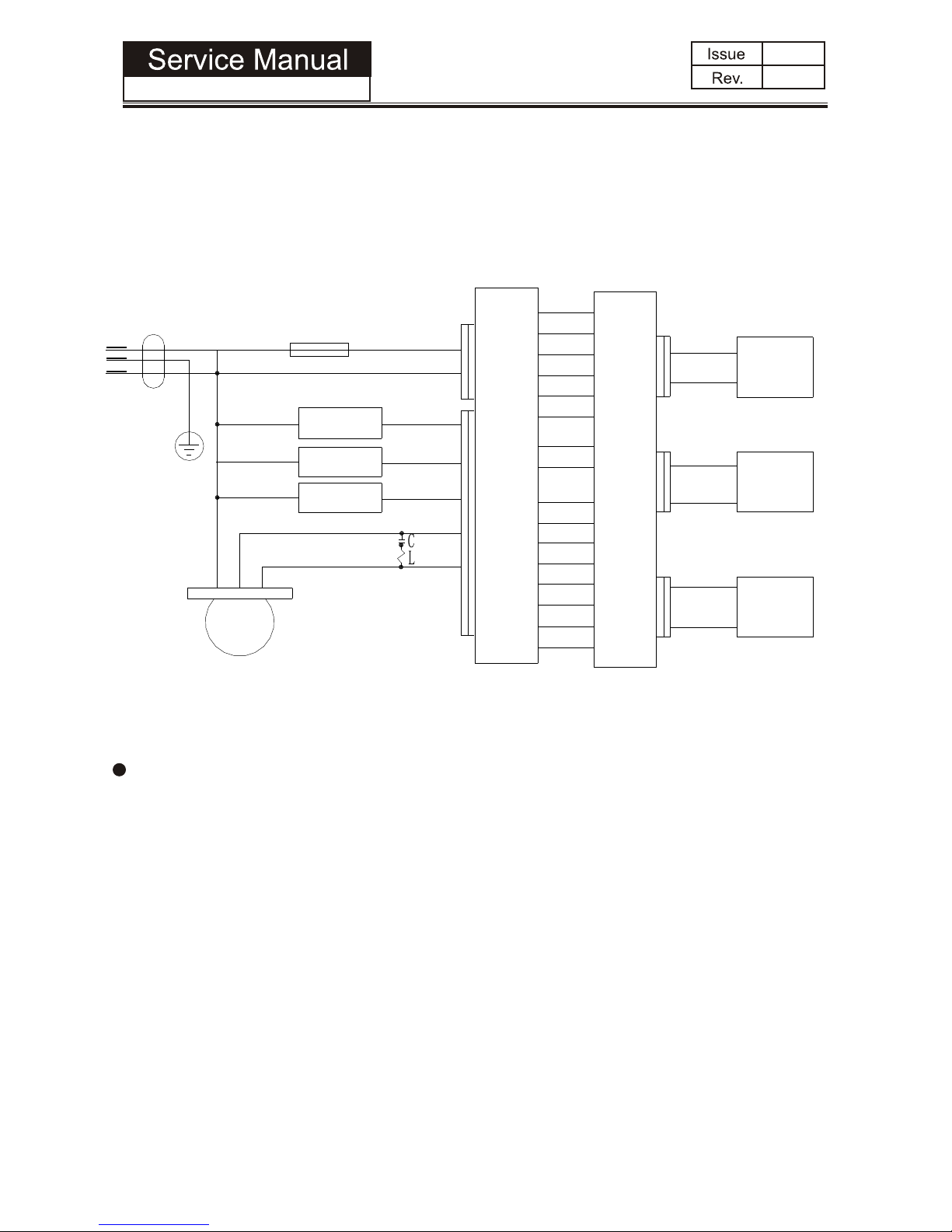

Chapter 8. Wiring diagram
Life Line
Brown
Blue
Program Control Unit
Wiring Diagram
Green/Yellow
Fuse Brown
Door Switch
Water Level
Sensor
Balance
Switch
Red/White
Red/White
Retractor Yellow
Yellow
Yellow
Orange
Orange
Motor
Water Inlet Valve
White
Red
Grey
Green/White
Blue
Blue
Blue
Blue
Softener Valve
Program Display Unit
Life Line
