BassBoss SSP215 User manual

SSP215 Profundo Powered Subwoofer
Owner’s Manual

www.bassboss.com
©®2018 True Lee Loudspeakers, LLC – [email protected] – 512-368-3268 855-8-BASS-70 Toll Free
SSP215 Profundo Powered Subwoofer
TABLE OF CONTENTS
Overview....................................................................................... 3
Technical Specifications............................................................ 4
Frequency Response Graph...................................................... 4
Photos & Dimension Drawings............................................... 5
Safety Information..................................................................... 6
Setup Instructions...................................................................... 7
Cardioid Setup............................................................................. 8
Troubleshooting......................................................................... 9
Warranty....................................................................................... 9
FCC Compliance Notice.............................................................. 10
Need more assistance? Support is available via phone or email.
Email: [email protected]
Phone: [phone] toll free or 512-368-3268
Web Site: www.bassboss.com
SSP215 Profundo Powered Subwoofer
Owner’s Manual

www.bassboss.com
©®2018 True Lee Loudspeakers, LLC – [email protected] – 512-368-3268 855-8-BASS-70 Toll Free Page 3

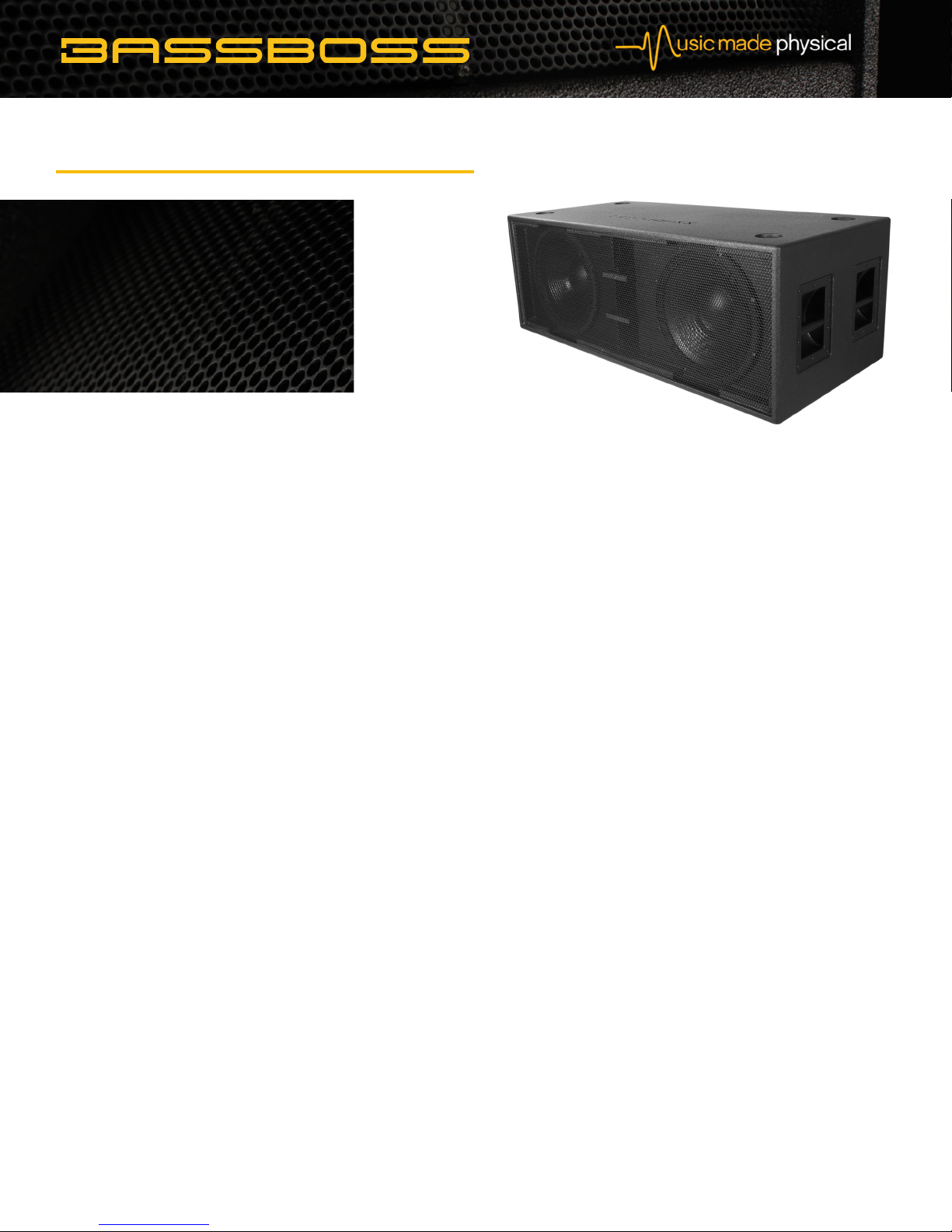

The BASSBOSS SSP215 Profundo Low-Profile Subwoofer delivers
output to frequencies lower than many double 18” cabinets.
It does so with nearly half the space and considerably less weight.
Ideal for the mobile professional who needs significant bass output
but has limited transport space. The SSP215 will comfortably take the
place of double 18” boxes without loss of output or diminished frequency
range. For venues, the low-profile box can fit under the smallest of stages, and
easily power full-on dance floors with full and punchy bass.
Providing massive output at and above 35Hz, reliably, consistently
and with great fidelity. Feel the kick drum, and realize the power of dance
tracks. Reproduce modern country, blues, rock, R&B and rap with a presence
not felt from many double 18” subs.
The SSP215 is powered by a 2400W RMS amplifier. This is a
continuous sine wave rating, not a peak, burst or EIAJ 8ms rating. Each 15”
woofer has a 4” voice coil and a power handling rating of 1500W rms and
3000W program.
The smallest frontal dimension is only 17.5”, making it very versatile
for placement options. The SSP215 can fit under low stages, be flown in
low ceilings and can be tucked in corners or between furniture where larger
boxes would not fit. Its large dimension is 48”, making it useful as a stack
platform for getting the top boxes up above the audiences’ heads. It’s only
22.5” deep, making it a perfect truck-pack size.
Practically impossible to blow. The combination of extremely rugged,
very high power handling, long excursion drivers, carefully optimized cabinet
and port design and several effective but transparent protection systems. The
protection systems effectively prevent thermal overload of the voice coils and
minimize long-term thermal compression while having virtually no effect on
the transient response and peak output of the loudspeakers.
It’s tuned low, for use as a real subwoofer. With long-excursion, low
distortion 15” woofers, and lower mass 15” cones it delivers the tight,
punchy sound as well as deep, rolling bass.
Extremely flat, delivering response that is ±3dB from 35Hz to
100Hz. No equalization is required to achieve this response. Unlike designs
that require equalization, the SSP215’s tone, response and sensitivity
are native to the design. Systems that require processing to achieve
their stated response are still subject to the physical excursion and
thermal limits of their drivers. Boosting low frequency EQ to achieve
extended low-frequency response results in excessive distortion or woofer
damage at full power unless limiting is applied. The limiting necessary to
prevent failure also prevents the realization of their claimed frequency
response at full power. The SSP215 does not suffer from these limitations.
It faithfully delivers the low bass where most others either fade or fail.
Versatile and Durable. Finished in extremely tough black textured
weatherproof polyurethane coating, with a top-mounted pole socket,
the SSP215 provides for mid-high loudspeakers to be mounted on a
straight speaker pole above the subwoofer. The enclosures also feature
four large rubber feet and corresponding recesses in their tops to facilitate
interlocking the boxes when stacked. The woofers’ cones are made from
a waterproof fiber matrix.
Engineered to work hard and continue to work where others fail.
The BASSBOSS warranty provides 6 years of coverage against defects
in materials and workmanship. The warranty DOES cover failed drivers,
including burned voice coils, for 2 years from the date of purchase. If a
voice coil, or anything else, fails within the warranty period, replacement parts
will be provided without charge. (See warranty documentation for complete
details).
SSP215 Profundo Powered Subwoofer
• Half the Size of the 218 Boxes
• Tall for Stacking Tops
• Low Profile – Under Stages or Low Ceilings
• Output Matches or Beats Most Double 18s
• Convenient Shape, Truck Pack for Touring

Page 4
Our proactive philosophy causes specifications to be subject to change whenever improvements are made.
Performance
Loudspeaker Description: Double 15” Subwoofer
Frequency Response (±3 dB): 35-100Hz
Maximum Sustained Output: 129 dB SPL, 1m, 2pi, half-space, (ground stacked)
Nominal Dispersion (°Hx°V): 360 x 360 - Cardioid mode available with multiple boxes
Response Graph
Amplification: 2400 Watt Continuous RMS Class D Amplifier
Processing: Integrated Comprehensive DSP for HP, LP and Limiting
Electrical Connectors: Neutrik Powercon
Electrical Connector, Mains: Standard US 3-pin 120V electrical plug: NEMA 5-15.(Edison) Optional electrical plugs available, including L5-30 and others, on request.
Voltage Operating Range: 90-130V
Current Draw, Nominal: 3A @ 120 volts (typical, 1/8 max power)
Signal Input Connector: XLR-F
Signal Output Connector: XLR-M pass-through only
Power
Enclosure Type: Direct radiating, vented enclosure, optimally tuned for low frequency response with high sensitivity and high power handling
Transducer: 2 x 15 “ dia (380 mm) neodymium motor woofer with 4” (100mm) copper winding voice coil and 46mm peak to peak
excursion. Waterproof fiber composite cone
Dimensions (HxWxD): 17.25” x 48” x 22.5”
Net Weight: 165 lbs
Shipping Weight: 176 lbs
Exterior Finish: Weatherproof bonded high-pressure polyurethane
Grill: Perforated, powder-coated steel
Physical
Suspension System: 16x 3/8-16 threaded flypoints
Cover: Heavy-duty padded nylon transport cover
Dolly Cart: Rolling cart with 4 locking casters
Compatible Top Boxes: BASSBOSS BOSSMon Monitors and Attuned Tops
Online Information: bassboss.com/ssp215
Optional

www.bassboss.com
©®2018 True Lee Loudspeakers, LLC – [email protected] – 512-368-3268 855-8-BASS-70 Toll Free Page 5

www.bassboss.com
©®2018 True Lee Loudspeakers, LLC – [email protected] – 512-368-3268 855-8-BASS-70 Toll Free Page 6
SAFETY INFORMATION
Important information regarding safety and the use of your loudspeakers:
Never stand in the immediate vicinity of loudspeakers driven at a high level. Professional loudspeaker systems are capable of causing
a sound pressure level detrimental to human health. Seemingly non-critical sound levels (from approx. 95 dB SPL) can cause hearing
damage if people are exposed to it over a long period. To prevent potentially dangerous exposure to high levels of acoustic pressure,
anyone who is exposed to these levels should use adequate protection devices.
When a transducer capable of producing high sound levels is being used, it is therefore necessary to wear ear plugs or protective
earphones.
See the manual technical specifications to know the maximum sound pressure level.
In order to prevent accidents when setting up the loudspeakers or loudspeaker stands, make sure they are standing on a firm surface.
Ensure that all additional hardware, fixings and fasteners used for installation or mobile deployment are of an appropriate size
and load safety factor.
Pay attention to the manufacturers’ instructions and to the relevant safety guidelines.
Regularly check the loudspeaker housings and accessories for visible signs of wear and tear, and replace them when necessary.
Regularly check all load bearing bolts in the mounting devices.
Caution: Loudspeakers produce a static magnetic field even if they are not connected or are not in use. Therefore make sure when
erecting and transporting loudspeakers that they are nowhere near equipment and objects which may be impaired or damaged by an
external magnetic field. A distance of 3 feet (1m) should be maintained between loudspeakers and sensitive equipment such as CRT
monitors or magnetic storage media.
Never attempt to carry out any operations, modifications or repairs that are not expressly described in this manual.
Contact your dealer or BASSBOSS support if the product is not functioning properly.
BASSBOSS strongly recommends this product be installed by a qualified, professional installer who can ensure correct installation and
certify that it is installed in compliance with the regulations in force.
The entire audio system must comply with the current local standards and regulations regarding electrical systems.
IMPORTANT NOTES
To prevent the occurrence of noise on signal cables, use shielded cables only. Avoid routing signal cables close to equipment that
produces high-intensity electromagnetic fields such as transformers, power cables and loudspeaker wires. Do not coil excess power
cable. Do not coil or wrap power cables and signal cables together.

www.bassboss.com
©®2018 True Lee Loudspeakers, LLC – [email protected] – 512-368-3268 855-8-BASS-70 Toll Free Page 7
SET UP INSTRUCTIONS
1. Place loudspeaker in the desired location. Ensure that it is secure and stable.
2. Rotate the input attenuator knob counterclockwise to the lowest setting.
3. Connect signal from the sound source (mixer) via the XLR female input jack.
4. Connect the XLR male output to the next available loudspeaker input via an XLR cable (if applicable.) This is a full-range pass-through
connection and no processing is applied tothis output.
5. Connect the Neutrik PowerCON (blue) connector to the blue power inlet socket. Do not force. To insert, align the indexing tabs on the
connectors, insert the plug fully into thesocket and rotate clockwise until the latches catch. To remove, pull back on the latch tab and
rotate the connector counterclockwise to the index stop, then pull outwards.
6. Work backwards from the speakers to the outlets, making all PowerCON connections before plugging in to mains power.
7. Connect the electrical plug to a power source.
8. Move the POWER switch to the ON position.
9. Rotate the input attenuator clockwise to achieve the desired sound level.
The integrated DSP includes all the required processing for safe operation and alignment with the accompanying BASSBOSS top boxes. It
is not necessary nor advisable to use any third-party outboard processing with BASSBOSS powered loudspeakers. When connecting multiple
BASSBOSS loudspeakers in a system, signal can be passed through from one poweredloudspeaker to another using XLR cables. No processing
is applied to the signal as it passes through from the input to the output connectors in each loudspeaker. Signal can be routed inany sequence
because each loudspeaker receives a full-range signal and applies the necessary processing in order to operate as part of the overall system.
It is recommended to run signalto the nearest box first and patch to the next nearest box in sequence. When connecting BASSBOSS speakers
in a system including other brands of loudspeakers, it’s recommended toconnect the BASSBOSS speakers first in sequence, then connect other
speakers to the pass-through outputs. This ensures that no inappropriate processing is applied to either loudspeaker.
The typical power draw of one BASSBOSS 2400W amplifier module is approximately 5A. With heavy demand, the current draw can peak at 20A
for brief periods but under NEMA code, a 20A breaker should sustain a peak draw of 40A for several seconds without tripping.
It’s recommended to connect no more than two 2400W amplifier to an individual 20A circuit. In situations where circuits must be shared with
other equipment or other brands, it’s recommended to power combinations of a BASSBOSS subwoofer and a top on a circuit and to power each
subwoofer and top combination on a separate circuit to reduce the chances of overdrawing a circuit and tripping a breaker.
OPERATION and CONTROLS
There are 2 control knobs on the amplifier.
1: GAIN
Provides attenuation of the input from off to full output. Use appropriate gain structure to ensure the output feeding the subwoofer doesn’t
reach clipping and distortion before maximumdesired sound level is achieved.
The amplifier has a complement of limiters and safeties to protect itself and the driver however, if audible distortion occurs, lower the level
of the incoming signal.
2: EXO ADJUST
This control adjusts the effective crossover frequency allowing the subwoofer to be used with multiple sizes and styles of top boxes while
minimizing out-of-bandwidth noise and phaseshift in the crossover region. Rotating the EXO knob fully counterclockwise (left) results
in an effective crossover frequency of 80Hz. Rotating it fully clockwise (right) results in an effectivecrossover frequency of 100Hz.

Page 8
3: CARDIOID SWITCH
Toggle Switch allows selection between NORMAL mode and CARDIOID mode.
With the switch in the NORMAL (up) position, the speaker is in normal operating mode and any number of cabinets can be arrayed side-by-side
facing the same way when they are all inNORMAL mode.
When CARDIOID operation is desired, one or two cabinets must be used in NORMAL mode and at least one cabinet must be placed in CARDIOID
mode and its position reversed relative to the other cabinet(s) The ideal ratio is 2 cabinets in NORMAL with one CARDIOID cabinet between
them vertically or horizontally.
Reduced NORMAL  >> Audience
Level << CARDIOID Audience
Area NORMAL  >> Audience
The NORMAL mode cabinet(s) are used with the woofer facing towards the audience. The CARDIOID mode cabinet is rotated with the woofer
away from the audience and the CARDIOIDSELECT SWITCH in the CARDIOID (down) position.
The cabinet in CARDIOID mode should have the EXO knob at the lowest level, rotated fully counterclockwise.
The EXO setting on the NORMAL mode cabinet(s) can be set to taste but all cabinets in NORMAL mode should be set the same.
Note:  When the speaker is in CARDIOID mode, the green PWR LED is disabledbecause it will be facing the audience.. The speaker will still power up and play.
When only two cabinets are used, the cabinet in CARDIOID mode can be placed on top of the cabinet in NORMAL mode.The cabinet in
CARDIOID mode can also be placed adjacent to the NORMAL mode cabinet, with the NORMAL mode cabinets placed farther from the stage
or area where reduced level is desired.When only 2 cabinets are in use, the CARDIOID mode cabinet GAIN should be reduced by 3dB.The
greatest level reduction occurs on axis with a line drawn from the center of the NORMAL cabinet’s baffle, through the center of the CARDIOID
cabinet’s baffle.
Reduced
Level << CARDIOID (-3dB) Audience
Area NORMAL  >> Audience
Audience
Three-dimensional representation of cardioid output pattern.

www.bassboss.com
©®2018 True Lee Loudspeakers, LLC – [email protected] – 512-368-3268 855-8-BASS-70 Toll Free Page 9
Thanks for your BASSBOSS purchase!
WARRANTY INFORMATION
Beyond ensuring your satisfaction, our extensive “Sound Defense” transferable warranty which covers all BASSBOSS products.
STANDARD CABINET WARRANTY
BASSBOSS loudspeaker cabinet integrity, including all joinery, fasteners, handles and wood, is warranted against defects in materials and workmanship for a
period of six years from the date of purchase. This warranty does not cover items that are intended to wear and can be replaced if worn or damaged. Examples
of items not covered by this warranty are cabinet feet, grills and the finish or coating applied to the cabinet.
ENHANCED COMPONENT WARRANTY
BASSBOSS self-powered loudspeaker amps and electronic components are covered against failures due to defects in materials and/or workmanship for a period
of three years from the date of purchase. Speaker drivers and burned or open voice coils in subwoofers are covered for two years.
OUR SUPPORT
It is our goal to provide trouble-free loudspeakers. That objective begins as part of the design phase and continues on through to any service you may require.
In order to be able to provide the lowest possible failure rate, the best possible warranty service and the fastest turn-around time, we request that you contact
us immediately if you notice any problem with your system, and before you attempt any repairs. We can provide the best and fastest solution if we know the
details of the problem before any repair attempts are made. Often BASSBOSS technicians can troubleshoot problems that may arise and no repair or further
service will be necessary.
TROUBLESHOOTING
If, after following the above instructions for setup, you have no output from the loudspeakers, please check the following:
Verify that the green power (ON) LED is lit. If not, check the following:
(Note: The ON LED is disabled when CARDIOID mode is selected. To check for power, switch to NORMAL mode to illuminate the LED)
1. Is the power cord plugged into a live outlet?
2. Is the Neutrik PowerCON connector rotated into the locked position?
3. Is the Power Switch on?
If the green power LED is on, check the following:
1. Is the signal cable connected to the input?
2. Is the signal cable connected to an operating output at the other end?
3. Is the signal flowing to the input? Check the integrity of the cable.
4. Is the attenuator turned all the way down or at a very low level?
5. Is the signal flowing to the input full-range? Filters in the signal may remove the operating frequencies of
the loudspeaker receiving them.
Need more assistance? Support is available via phone or email. Email: [email protected]
Phone: [phone] toll free or 512-368-3268 Web Site: www.bassboss.com

www.bassboss.com
©®2018 True Lee Loudspeakers, LLC – [email protected] – 512-368-3268 855-8-BASS-70 Toll Free Page 10
Warranty support is a service, and part of that service includes helping you prevent failures and minimize repair and shipping costs. Please do not ship products
without first obtaining a return authorization number by calling 512-368-3268 (855-822-7770 toll-free) or by emailing [email protected]. BASSBOSS
service technicians will provide assistance and instructions on shipping and packaging requirements specific to your service needs.
WARRANTY LIMITATIONS
During the warranty period, if your loudspeaker malfunctions or fails due to any defect in components or manufacturing, the failed parts will be repaired or
replaced. This warranty does not extend to damage resulting from improper installation, misuse, neglect or abuse. Warranty coverage will be determined upon
inspection by BASSBOSS personnel. This warranty does not cover labor other than that authorized and performed by BASSBOSS personnel. Service will be
performed upon the return of the failed unit, together with its original sales receipt or other proof of purchase, to BASSBOSS or an Authorized Service Facility.
Purchaser is responsible for all costs of shipping and handling. Cosmetic damage is specifically excluded from this warranty. This warranty is rendered void
if service, repairs and/or modifications are attempted or made by anyone not specifically authorized by BASSBOSS to perform said services. Please contact
BASSBOSS or your local BASSBOSS dealer before attempting any repairs and before shipping parts in for service.
This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. For more information concerning BASSBOSS
service and warranty policies please contact us at 512-36-3268 or [phone] toll-free.
EXPORT WARRANTY
BASSBOSS products can be purchased worldwide. In countries without local BASSBOSS distributors, product requiring service must be shipped back to the US
for warranty repairs. In most cases, the entire cabinet will not need to be shipped. Generally only the individual affected parts will need to be shipped to the
factory for servicing. Please contact BASSBOSS before attempting any repairs and before shipping parts in for service.
SHIPPING AND PACKAGING
Please package your returns safely and securely. BASSBOSS does not cover damage that occurs in transit. Freight insurance is recommended.
FCC COMPLIANCE NOTICE
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired
operation.
CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority
to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
