BATEC MINI User manual

BATEC MINI –BATEC ELECTRIC –BATEC ELECTRIC 2
–BATEC SCRAMBLER –BATEC MANUAL –BATEC
HYBRID
ENGLISH
Batec Mobility s.l.
Distributed in Canada by
49 Bespoke Inc.
51 Caldari Road, Units 6-7 B
Concord, Ontario, L4K 4G3
Tel: [phone]
Fax: [phone]
[email protected]

USER MANUAL
PAGE 2 / 119
NUMBER/VERSION: MU-001/12.0 APPLICATION DATE: 10/10/19
C/ Illa de Buda, 2 (P.I. Sud-Oest)
08192 Sant Quirze del Vallès [Barcelona - Spain]
T [phone]
www.batec-mobility.com [e-mail]
CONTENTS
WELCOME .......................................................................................................... 4
1. PRODUCT DESCRIPTION............................................................................... 5
2. SAFETY MEASURES AND GENERAL PRECAUTIONS...................................... 6
2.1. BEFORE USING YOUR BATEC FOR THE FIRST TIME.................................................................. 6
2.2. DURING USE:........................................................................................................................ 7
2.3. GENERAL PRECAUTIONS ........................................................................................................ 9
3. MODELS: CHARACTERISTICS AND PARTS ..................................................10
3.1. BATEC MINI / ELECTRIC 2 / SCRAMBLER................................................................................13
3.1.1 Characteristics .................................................................................................................................... 13
BATEC MINI................................................................................................................................................ 13
BATEC ELECTRIC 2...................................................................................................................................... 15
BATEC SCRAMBLER ..................................................................................................................................... 17
3.1.2. Partes del BATEC MINI / ELECTRIC 2 / SCRAMBLER............................................................................. 19
3.1.3. Parts of the BATEC QUAD MINI / ELECTRIC 2 / SCRAMBLER ................................................................ 22
3.1.4. Parts of the HEMI control for the BATEC MINI / ELECTRIC 2 / SCRAMBLER ........................................... 23
3.2. BATEC ELECTRIC..................................................................................................................24
3.2.1. BATEC ELECTRIC Specifications .......................................................................................................... 24
3.2.2. BATEC URBAN Specifications .............................................................................................................. 25
3.2.3. BATEC RAPID Specifications ............................................................................................................... 26
3.2.4. Parts of the BATEC ELECTRIC............................................................................................................. 27
3.2.5. Parts of the controls for BATEC QUAD ELECTRIC ................................................................................. 30
3.3. BATEC MANUAL....................................................................................................................31
3.3.1. BATEC MANUAL Specifications ............................................................................................................ 31
3.3.2. Parts of the BATEC MANUAL............................................................................................................... 32
3.3.3. Parts of the controls for BATEC QUAD MANUAL ................................................................................... 34
3.4. BATEC HYBRID.....................................................................................................................35
3.4.1. BATEC HYBRID Specifications ............................................................................................................. 35
3.4.2. Parts of the BATEC HYBRID................................................................................................................ 36
3.4.3. Parts of the controls for BATEC QUAD HYBRID .................................................................................... 39
4. OPERATING THE BATEC / USER GUIDE.......................................................40
4.1. DELIVERY ............................................................................................................................40
4.2. UNPACKING: ........................................................................................................................40
4.3. LIFTING AND TRANSPORT: ...................................................................................................40
4.4. ATTACHING THE BATEC:.......................................................................................................41
4.5. DETACHING THE BATEC: ......................................................................................................46

PAGE 3 / 119
USER MANUAL NUMBER/VERSION: MU-001/12.0 APPLICATION DATE: 10/10/19
C/ Illa de Buda, 2 (P.I. Sud-Oest)
08192 Sant Quirze del Vallès [Barcelona - Spain]
T [phone]
www.batec-mobility.com [e-mail]
4.6. USING THE BATEC MINI / ELECTRIC 2 / SCRAMBLER CONTROLS .............................................49
4.7. USING THE BATEC QUAD MINI / ELECTRIC 2 / SCRAMBLER CONTROLS ...................................54
4.8. OPERATING THE BATEC MINI / ELECTRIC 2 / SCRAMBLER HEMI CONTROLS ............................58
4.9. OPERATING THE BATEC ELECTRIC CONTROLS .......................................................................63
4.10. OPERATING THE BATEC QUAD ELECTRIC CONTROLS ............................................................68
4.11. OPERATING THE BATEC MANUAL CONTROLS........................................................................72
4.12. USING THE BATEC QUAD MANUAL CONTROLS......................................................................74
4.11.1. BATEC QUAD GRIPS of BATEC QUAD MANUAL................................................................................... 74
4.12.2. BATEC SHIFT LEVER of BATEC QUAD MANUAL .................................................................................. 75
4.12.3. BATEC QUAD MANUAL back pedal brake ........................................................................................... 78
4.12.4. BATEC QUAD MANUAL MAGIC LEVER................................................................................................ 78
4.13. OPERATING BATEC HYBRID CONTROLS ...............................................................................80
4.14. USING BATEC QUAD HYBRID CONTROLS..............................................................................85
4.14.1. BATEC QUAD GRIPS of BATEC QUAD HYBRID.................................................................................... 85
4.14.2. BATEC SHIFT LEVER of BATEC QUAD HYBRID ................................................................................... 86
4.14.3. BATEC QUAD HYBRID back pedal brake ............................................................................................ 89
4.14.4. BATEC QUAD HYBRID MAGIC LEVER................................................................................................. 89
4.15. BATTERY............................................................................................................................94
4.15.1 BASIC BATTERY USE ......................................................................................................................... 95
4.15.2. BATTERY SAFETY INFORMATION.................................................................................................... 100
4.15.3. ADDITIONAL INFORMATION ON THE BATTERY ............................................................................... 101
4.15.4. TECHNICAL SPECIFICATIONS OF THE 280 WH BATTERY ................................................................. 102
4.15.5. TECHNICAL SPECIFICATIONS OF THE 522 WH BATTERY ................................................................. 102
4.15.6. SPECIFICATIONS OF THE 696-WH BATTERY ................................................................................... 103
4.16. WEIGHTS.........................................................................................................................104
5. INSTALLATION AND ADJUSTMENTS..........................................................106
5.1. INSTALLATION OF THE BATEC ON A WHEELCHAIR ...............................................................106
5.2. USER ADJUSTMENTS ..........................................................................................................106
5.2.1. ADJUST THE DISTANCE BETWEEN THE BATEC AND THE CHAIR ........................................................ 107
5.2.2. ADJUST STEM ANGLE....................................................................................................................... 108
5.2.3. ADJUST STEM HEIGHT..................................................................................................................... 109
6. MAINTENANCE AND REPAIRS ...................................................................110
7. LABEL..........................................................................................................115
8. WARRANTY.................................................................................................116
8.1. WARRANTY PERIOD............................................................................................................116
8.2. WARRANTY CONDITIONS....................................................................................................116
8.3. WARRANTY CARD...............................................................................................................119

PAGE 4 / 119
USER MANUAL NUMBER/VERSION: MU-001/12.0 APPLICATION DATE: 10/10/19
C/ Illa de Buda, 2 (P.I. Sud-Oest)
08192 Sant Quirze del Vallès [Barcelona - Spain]
T [phone]
www.batec-mobility.com [e-mail]
WELCOME
First of all, we’d like to congratulate you on your purchase of a Batec, manufactured by
Batec Mobility S.L.
All of the products designed, manufactured and distributed by Batec Mobility comply with
European Directive 93/42/EEC concerning medical devices and the amendments in
2007/47/EC.
Each Batec is assembled individually by hand, to ensure maximum quality. The fact that
the inventor, founder and current director of Batec Mobility and many of our employees are
Batec users allows us to apply our direct experience gained over many years of use to our
products.
Here at Batec Mobility we’re committed to ensuring that each new user gets the most out
of their Batec, thus gaining greater mobility and independence.
It is very important that you read this manual and the safety instructions carefully before
using the product. This will help you understand how your Batec is made and how you
should use it for maximum comfort and safety.
For our part, we’re available at any time to answer any questions you may have or provide
any services you may need.

PAGE 5 / 119
USER MANUAL NUMBER/VERSION: MU-001/12.0 APPLICATION DATE: 10/10/19
C/ Illa de Buda, 2 (P.I. Sud-Oest)
08192 Sant Quirze del Vallès [Barcelona - Spain]
T [phone]
www.batec-mobility.com [e-mail]

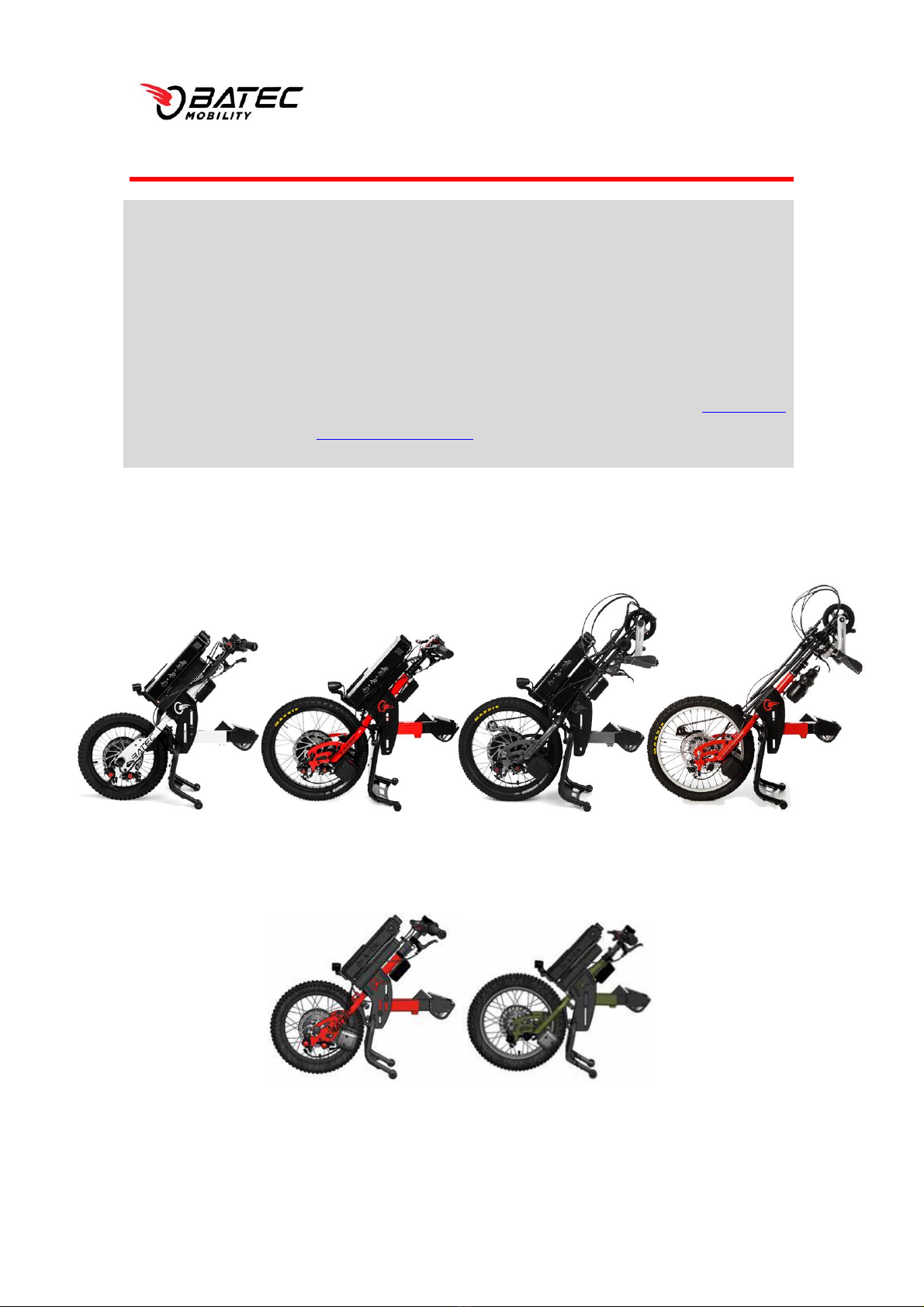

1. PRODUCT DESCRIPTION
The Batec is a handbike that attaches to a wheelchair to create a three-wheeled vehicle
that allows users to move around propelled only by their arms, optimising their capacities
and boosting autonomy.
Batec has CE marking as a class I medical device according to the requirements of
Directive 93/42/EEC concerning medical devices and the amendments in 2007/47/EC.
All of the Batec models operate in a similar manner, the only changes being to the way
they are powered and the gear shifter, as well as the brakes associated with each type of
gear shifter. See Section 3 (MODELS).
First, the handbike must be attached to a wheelchair. Once the two parts have been
joined, we have a three-wheeled vehicle with the seat on the wheelchair and transmission
and traction on the front wheel. To operate the handbike, just activate its transmission by
pedalling with your hands or pressing on the accelerator. This will provide traction to the
front wheel.
This product aims to provide wheelchair users (people with a disability that makes it
impossible for them to walk) with attractive, practical products that are useful both in their
daily life and for doing recreational activities and sport.
Thanks to the product configuration, users can do longer and more complicated trips than
with a wheelchair alone, boosting independence and autonomy.

PAGE 6 / 119
USER MANUAL NUMBER/VERSION: MU-001/12.0 APPLICATION DATE: 10/10/19
C/ Illa de Buda, 2 (P.I. Sud-Oest)
08192 Sant Quirze del Vallès [Barcelona - Spain]
T [phone]
www.batec-mobility.com [e-mail]
2. SAFETY MEASURES AND GENERAL PRECAUTIONS
2.1. BEFORE USING YOUR BATEC FOR THE FIRST TIME
•Before using your Batec for the first time, read this user manual carefully.
•Don’t exceed the maximum weight of 110 kg. This includes the user’s
weight and any other object being carried.
•The Batec isn't compatible with all wheelchairs on the market. Before
installing it, check the current Batec Compatibility Table on our website
(www.batec-mobility.com).
•It is important to start out slowly the first time you use your Batec in order
to learn the sensations you get and become familiar with it. Each new
manoeuvre is a potential risk. Be particularly careful with turns and speed.
•Choose a calm place to use your Batec the first time.
•Have someone help you become familiar with your Batec. Each new
manoeuvre can put you at risk of injury. Never use your Batec alone until
you have gained the necessary skill level. When someone is helping you, it
is important for them to have read the user manual beforehand as well.
•Safe use of the Batec requires training and experience.
•The Batec is a medical device classified as a technical aid for mobility and
we recommend consulting your local regulations on the circulation of such
vehicles. Batec Mobility S.L. can provide you with the Declaration of
Conformity as a medical device or certification as a technical aid, if
required.
•Check local laws regarding add-on handbikes and wheelchairs, as they may
vary depending on your location.
•Always do a safety check on your Batec before each use. To do this, check:
-Conditions of the fixed or removable axles on the rear wheels of your
wheelchair.
-The Velcro on the seat and backrest of your wheelchair.
-Tyre pressure on your wheelchair. If it is too low, there is a greater risk
of tipping over and greater wear (recommended pressure for
wheelchair: see side of tyre).

PAGE 7 / 119
USER MANUAL NUMBER/VERSION: MU-001/12.0 APPLICATION DATE: 10/10/19
C/ Illa de Buda, 2 (P.I. Sud-Oest)
08192 Sant Quirze del Vallès [Barcelona - Spain]
T [phone]
www.batec-mobility.com [e-mail]
-Batec tyre pressure (recommended pressure: depends on model).
-Conditions of the Batec frame.
-Chain tension on the BATEC MANUAL.
-All parts, in particular any screws, are properly tightened.
-Brakes are working properly.
-Except for BATEC MANUAL, make sure that all electrical connections are
in good conditions and properly connected.
-Except for BATEC MANUAL, make sure the battery is connected.
-The Batec attaches and detaches from the wheelchair properly.
2.2. DURING USE:
•The Batec must only be used to transport one person at a time.
•The Batec is only recommended for people with the physical and mental
state necessary to travel in situations with vehicle traffic.
•Avoid unnecessary risks like excess speed, fast turns and leaning to the
side. Also avoid travelling over objects that may cause you to brake sharply
or tip over.
•The safest way to drive the Batec is on level surfaces without obstacles.
Use ramps whenever possible. Always be extremely careful when crossing
the road.
•Use reflectors on your Batec and wheelchair or on your clothes to make you
more visible to drivers. In situations with reduced visibility, always use
lights.
•There is a risk of skidding on wet surfaces, gravel or irregular terrain,
reduce your speed and use extra caution. Don’t use the Batec on mud or
ice.
•Make sure your feet are properly positioned on the footrest of the
wheelchair and that the seatbelt is properly adjusted.
•We strongly recommend you wear helmet when travelling over 10 km/h.
•When you use your Batec, control your speed and only ride as fast as
appropriate for the given ground conditions. By maintaining a prudent
speed, you will avoid unnecessary risks. Don’t ride the Batec faster than
you would travel in a wheelchair alone.
•Maximum recommended speeds are:
o6 km/h on the street, pavement and pedestrian areas.
o12 km/h in cycle lanes.

PAGE 8 / 119
USER MANUAL NUMBER/VERSION: MU-001/12.0 APPLICATION DATE: 10/10/19
C/ Illa de Buda, 2 (P.I. Sud-Oest)
08192 Sant Quirze del Vallès [Barcelona - Spain]
T [phone]
www.batec-mobility.com [e-mail]
o> 12 km/h on private land.
•When you need to turn, remember to slow down and be extra careful. If
you take a turn to quickly, you may lose control of the Batec and run the
risk of tipping over or crashing. Lean your body into the curve for better
stability and to reduce the risk of tipping over.
•While driving and braking, hold the grips firmly with both hands in order to
avoid any accidents caused by steering error.
•Going up or down kerbs isn't recommended, as there is a risk of tipping
over. When you can't avoid a kerb, we recommend you:
-Get help whenever possible.
-Take the kerb perpendicularly, so that both wheels of your wheelchair
go over the kerb at the same time. Going over a kerb in any other way
significantly increases the risk of tipping over.
-Avoid banging the Batec when going up or down over a kerb, as this
could damage both the Batec and your wheelchair.
-The Batec and the wheelchair must roll gently over the kerb on all
wheels.
-Never try to go up or down over any kerb more than 10 cm high.
•When travelling up or down a hill, we recommend you:
-Get help whenever possible while on a hill.
-Stay a straight course.
-When going up steep hills, lean forward to put more weight on the front
wheel and improve traction.
-Avoid unnecessary turns and never turn sharply, as this puts you at risk
of tipping over.
-Avoid stopping: this may lead you to lose control of the Batec.
-When going downhill, go slowly, braking continuously, and avoid
braking sharply.
-Don’t use the brakes on your wheelchair; this could cause them to lock
up and you to lose control.
•When travelling long distances we recommend you carry an extra battery.
•For BATEC MANUAL and BATEC HYBRID, don’t put your hands in the chain
area. There is a risk your fingers may get stuck in any moving parts.
•Make sure the grip on your wheels is proper conditions.
•Make sure you are familiar with braking distances at various speeds.

PAGE 9 / 119
USER MANUAL NUMBER/VERSION: MU-001/12.0 APPLICATION DATE: 10/10/19
C/ Illa de Buda, 2 (P.I. Sud-Oest)
08192 Sant Quirze del Vallès [Barcelona - Spain]
T [phone]
www.batec-mobility.com [e-mail]
•Only use accessories approved by Batec Mobility. Check www.batec-
mobility.com.
•NEVER use your Batec with a child on your lap, as there is a high risk of
getting fingers stuck in the chains (for BATEC MANUAL and BATEC HYBRID)
and of tipping over in sharp turns (in all cases).
•The following manoeuvres are not allowed:
-Riding up or down stairs or staircases.
-Riding at an angle on the pavement.
-180º turns on steep hills.
-Sharp movements.
-Sharp braking on a curve.
2.3. GENERAL PRECAUTIONS
•Take your Batec to a distributor or technical service provider authorised by
Batec Mobility regularly for servicing.
•Avoid contact or proximity to fire, particularly lit cigarettes.
•If the Batec is exposed to direct sunlight or low temperatures for an
extended period of time, the Batec pieces may overheat (>41° C) or
become too cold (<0°).
•Only use our charger to charge the battery.
•If you don’t use your Batec for an extended period of time, make sure the
battery is fully charged and recharge it every 2 months to avoid damage
caused by “deep discharge”.
•Keep the Batec out of the reach of children when not under adult
supervision.
•Do not open the battery, as there is a risk of explosion and/or fire.

PAGE 10 / 119
USER MANUAL NUMBER/VERSION: MU-001/12.0 APPLICATION DATE: 10/10/19
C/ Illa de Buda, 2 (P.I. Sud-Oest)
08192 Sant Quirze del Vallès [Barcelona - Spain]
T [phone]
www.batec-mobility.com [e-mail]
3. MODELS: CHARACTERISTICS AND PARTS
Information!
The Batecs shown and described in this manual may not be exactly the
same as the model you own. However, all of the instructions provided
here apply. The manufacturer reserves the right to modify the weights,
measurements and other technical details in this manual without prior
notice. All figures, measurements and capacities in this manual are
approximate and not technical specifications. The manufacturer
reserves the right to modify this manual without prior notice. The most
current version of the manual is always available online: http://batec-
mobility.com/es/soporte

PAGE 11 / 119
USER MANUAL NUMBER/VERSION: MU-001/12.0 APPLICATION DATE: 10/10/19
C/ Illa de Buda, 2 (P.I. Sud-Oest)
08192 Sant Quirze del Vallès [Barcelona - Spain]
T [phone]
www.batec-mobility.com [e-mail]
There are six Batec models: BATEC MINI, BATEC ELECTRIC, BATEC ELECTRIC 2, BATEC
SCRAMBLER, BATEC MANUAL and BATEC HYBRID. All of the Batec models have the same
anchoring system and the same type of structure, only the power system varies on each
model:
•BATEC MINI: powered by an electric motor on the 16" front wheel.
•BATEC ELECTRIC: powered by an electric motor on the 19" front wheel.
•BATEC ELECTRIC 2: powered by an electric motor on the 18" front wheel.
•BATEC SCRAMBLER: powered by an electric motor on the 19" front wheel (all
terrain).
•BATEC MANUAL: powered by using hand pedals.
•BATEC HYBRID: powered by a combination of an electric motor on the front
wheel and hand pedals.
All 6 Batec models are designed for users with full hand function in their standard
configuration. For users without full hand function, we have specially adapted controls, sold
under the name QUAD. For users who only have functional difficulties in one of their upper
limbs, we offer controls specially adapted to this situation, sold under the name HEMI.
More information in the box below.

PAGE 12 / 119
USER MANUAL NUMBER/VERSION: MU-001/12.0 APPLICATION DATE: 10/10/19
C/ Illa de Buda, 2 (P.I. Sud-Oest)
08192 Sant Quirze del Vallès [Barcelona - Spain]
T [phone]
www.batec-mobility.com [e-mail]

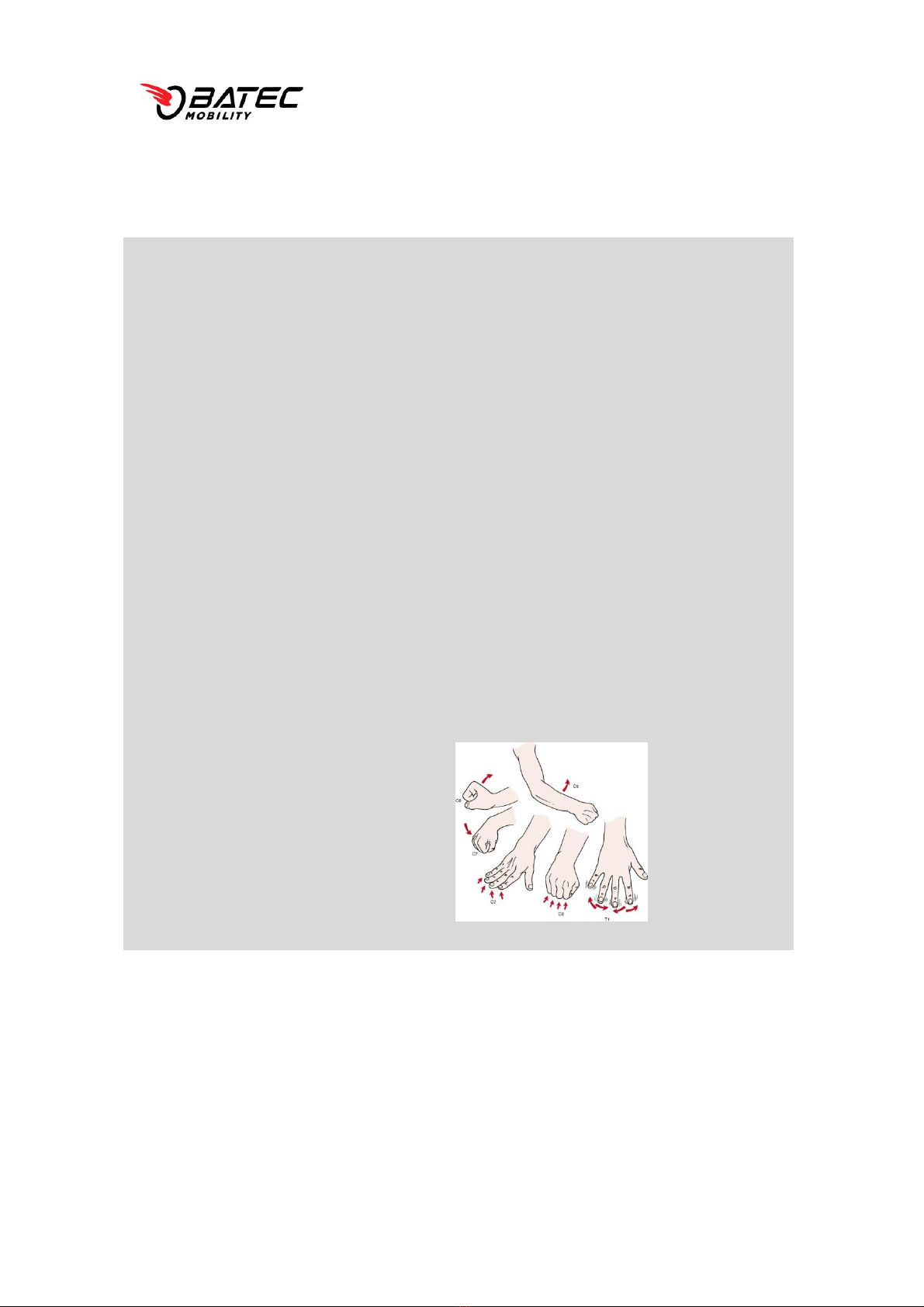

Information!
SKILLS NEEDED TO USE THE BATECS: Batecs are only
recommended for people with the physical and psychological
conditions to circulate in traffic. The standard Batec models
require full use of hands and arms.
To use the models with QUAD controls, users must have good
arm function and partial hand function, enough to accelerate,
brake and turn without danger. This is why Batec Mobility always
offers users the option to test the product before purchasing.
The most serious spinal cord injury compatible with use of the
BATEC QUAD is functional C6 (good biceps function and wrist
motion is essential).
To use versions equipped with HEMI controls, users must have
full functionality (hand and arm) in at least one of their upper
limbs.

PAGE 13 / 119
USER MANUAL NUMBER/VERSION: MU-001/12.0 APPLICATION DATE: 10/10/19
C/ Illa de Buda, 2 (P.I. Sud-Oest)
08192 Sant Quirze del Vallès [Barcelona - Spain]
T [phone]
www.batec-mobility.com [e-mail]
3.1. BATEC MINI / ELECTRIC 2 / SCRAMBLER
3.1.1 Characteristics
BATEC MINI
•Material: 7005 T6 aluminium
•Motor: 250 RPM, 900 W brushless motor / Nominal power: 900 W / Reverse
gear
•Top speed: 20 km/h
•Battery (2 options available):
o280 Wh (7.8 Ah) battery with 22-km battery range*
o522 Wh (14.5 Ah) battery with 40-km battery range*
*Battery range calculated under the following conditions: 75-kg user, extra-
light wheelchair, flat terrain, no wind and steady speed of 15 km/h. Life
may vary ±20 % depending on the battery.
•Fast 4A charger
•Tyre: 16" ultra-grip
•Rim: 16" double-wall aluminium
•Brakes: Avid BB5 180 mm mechanical disc brakes with aluminium levers
and parking brake
•Headset: 1.1/8 black
•Handlebar: Black matte aluminium
•BATEC EASY-FIT regulation system
•BATEC EASY-FIX anchor system
•BATEC SAFE-FEET stand frame
•700 lumen front LED light, runs off main battery
•Dual LED tail light on the stand frame
•ALL-IN-ONE LCD screen (battery gauge, 3-speed regulator and rear gear,
cycle computer, front and rear lights, and horn, all with 4 buttons on the
handlebar)
•Weight: 14.6 kg (without battery)
•Dimensions:

PAGE 14 / 119
USER MANUAL NUMBER/VERSION: MU-001/12.0 APPLICATION DATE: 10/10/19
C/ Illa de Buda, 2 (P.I. Sud-Oest)
08192 Sant Quirze del Vallès [Barcelona - Spain]
T [phone]
www.batec-mobility.com [e-mail]

PAGE 15 / 119
USER MANUAL NUMBER/VERSION: MU-001/12.0 APPLICATION DATE: 10/10/19
C/ Illa de Buda, 2 (P.I. Sud-Oest)
08192 Sant Quirze del Vallès [Barcelona - Spain]
T [phone]
www.batec-mobility.com [e-mail]
BATEC ELECTRIC 2
•Material: 7005 T6 aluminium
•Motor: 250 RPM, 900 W brushless motor / Nominal power: 900 W / Reverse
gear
•Top speed: 23 km/h
•Battery (2 options available):
o280 Wh (7.8 Ah) battery with 22-km battery range*
o522 Wh (14.5 Ah) battery with 40-km battery range*
*Battery range calculated under the following conditions: 75-kg user, extra-
light wheelchair, flat terrain, no wind and steady speed of 15 km/h. Life
may vary ±20 % depending on the battery.
•Fast 4A charger
•Tyre: 18" ultra-grip
•Rim: 18" double-wall aluminium
•Brakes: Avid BB5 180 mm mechanical disc brakes with aluminium levers
and parking brake
•Headset: 1.1/8 black
•Handlebar: Black matte aluminium
•BATEC EASY-FIT regulation system
•BATEC EASY-FIX anchor system
•BATEC SAFE-FEET stand frame
•700 lumen front LED light, runs off main battery
•Dual LED tail light on the stand frame
•ALL-IN-ONE LCD screen (battery gauge, 3-speed regulator and rear gear,
cycle computer, front and rear lights, and horn, all with 4 buttons on the
handlebar)
•Removable weights
•Weight: 14.9 kg (without battery/weights)
•Dimensions:

PAGE 16 / 119
USER MANUAL NUMBER/VERSION: MU-001/12.0 APPLICATION DATE: 10/10/19
C/ Illa de Buda, 2 (P.I. Sud-Oest)
08192 Sant Quirze del Vallès [Barcelona - Spain]
T [phone]
www.batec-mobility.com [e-mail]

PAGE 17 / 119
USER MANUAL NUMBER/VERSION: MU-001/12.0 APPLICATION DATE: 10/10/19
C/ Illa de Buda, 2 (P.I. Sud-Oest)
08192 Sant Quirze del Vallès [Barcelona - Spain]
T [phone]
www.batec-mobility.com [e-mail]
BATEC SCRAMBLER
•Material: 7005 T6 aluminium
•Motor: 250 RPM, 900 W brushless motor / Nominal power: 1.200 W /
Reverse gear
•Top speed: 28 km/h
•Battery:
o696 Wh (14.5 Ah) battery with 50-km battery range*
*Battery range calculated under the following conditions: 75-kg user, extra-
light wheelchair, flat terrain, no wind and steady speed of 15 km/h. Life
may vary ±20 % depending on the battery.
•Fast 3A charger
•Tyre: 19" ultra-grip
•Rim: 19" double-wall aluminium
•Brakes: Hydraulic double TRP HY/RD brake with adjustable Avid Speed Dial
Titanium brake levers
•Headset: 1.1/8 FSA Orbit Mx black
•Handlebar: Ultra-wide aluminium
•BATEC EASY-FIT regulation system
•BATEC EASY-FIX anchor system
•Stand frame with suspension
•700 lumen front LED light, runs off main battery
•Dual LED tail light on the stand frame
•ALL-IN-ONE LCD screen (battery gauge, 3-speed regulator and rear gear,
cycle computer, front and rear lights, and horn, all with 4 buttons on the
handlebar)
•Removable weights
•Weight: 16.1 kg (without battery/weights)
•Dimensions:

PAGE 18 / 119
USER MANUAL NUMBER/VERSION: MU-001/12.0 APPLICATION DATE: 10/10/19
C/ Illa de Buda, 2 (P.I. Sud-Oest)
08192 Sant Quirze del Vallès [Barcelona - Spain]
T [phone]
www.batec-mobility.com [e-mail]

PAGE 19 / 119
USER MANUAL NUMBER/VERSION: MU-001/12.0 APPLICATION DATE: 10/10/19
C/ Illa de Buda, 2 (P.I. Sud-Oest)
08192 Sant Quirze del Vallès [Barcelona - Spain]
T [phone]
www.batec-mobility.com [e-mail]
3.1.2. Partes del BATEC MINI / ELECTRIC 2 / SCRAMBLER
1. Battery
2. Handlebar
3. Controller
4. BATEC SAFE-FEET stand frame
5. Tail lights
6. Brake caliper
7. Disc brake
8. Tyre
9. Rim
10. Front light
11. Motor
12. Rear wheels
13. Foot protector
14. Anchoring bar
15. Detaching ramp
16. Anchor lever

PAGE 20 / 119
USER MANUAL NUMBER/VERSION: MU-001/12.0 APPLICATION DATE: 10/10/19
C/ Illa de Buda, 2 (P.I. Sud-Oest)
08192 Sant Quirze del Vallès [Barcelona - Spain]
T [phone]
www.batec-mobility.com [e-mail]
1. Brake levers
2. All-in-one display panel
3. Twist throttle
4. Horn button
5. Front gear button
6. USB charging port
7. Reverse gear button
8. Lights button
9. Handle
10. Charging port
11. Battery mount
