Timago TGR-R RS 881 User manual

1
USER MANUAL
Steel 4-wheeled rollator
Product code: TGR-R RS 881
Dear Customers,
Thank you for purchasing our product. We hope that the equipment you have selected will
meet your expectations. We would like to share some important information with you.
Timago International Group is a Polish company which distributes medical, rehabilitation and
orthopaedic products to pharmacies and medical stores.
Our mission is to ensure your comfort by offering safe, functional, and high-quality products.
We have many years of experience in this sector. Timago products reach a wide range of
users in Poland and throughout Europe through our distributors (medical retailers).
Timago’s company culture promotes openness to your needs. Our goal is to promote safe
and correct use of our products for treatment and rehabilitation in order to improve comfort
and quality of life.
We invite you to access our website for more information: timago.com.

2
1. Introduction
Prior to use of our products you should inspect the equipment for any defects which may
have occurred during transport. If this happens, please contact your retailer.
Then, please read this instruction which includes important information for the user.
Please contact us if you have any questions concerning the use of the equipment. Our
advisors will provide you with any information you require on an ongoing basis.
Please note that if you have questions other than those concerning the use of our products,
you should contact your doctor, nurse or physical therapist.
2. Characteristics

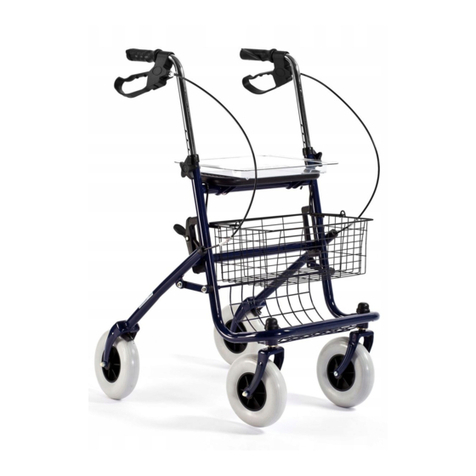

Folding 4-wheeled rollator is made of powder coated steel frame. The rollator is equipped
with brakes with locking mechanism, seat with removable tray, and basket. The product is
supplied with solid rubber wheels 8’’ in diameter and height adjustable handles with
anatomic handgrips.
The set includes:
•Frame with seat
•Two push handles with brakes
•Basket
•Tray
•Locking knobs – 2 pcs
Elements of the rollator:
a. push handle
b. brake
c. locking knob
d. lock of frame folding
e. transverse hinge
f. seat
g. crutch holder
h. upper adjustment of brake
i. lower adjustment of brake

3
3. Application
The rollator is designed for patients with reduced mobility who need stable support and help
while walking. It is also recommended to the elderly as an aid in keeping balance, improving
walking comfort and ensuring safety from falling. The use of the rollator affects positively on
the return to activity of the people with locomotion and tilting to erect position problems. It
guarantees better stabilization, support and security while walking.
4. Assembly and general recommendations for use
Note! Follow the information contained in this manual while assembly and adjustment.
Users with reduced mobility may need help from a third person who has appropriate skills.
Note! Do not use the rollator if any defects or deficiencies (e.g. cracks) are noticed due to
the risk of accident.
Unfolding and folding the rollator
•Firstly, fix the push handles into the mounting openings at the appropriate height by
tightening the locking knobs. The axis of the handles should be set parallel to the rear
wheels, while the brake cables should be placed at the front.
•To unfold the rollator, press the crossbar which is located under the seat, so that the
hinges on the outer sides of the rollator are completely unfolded.
•Hang basket in the front part of the frame, below the seat.
•The tray can be fixed on the seat so that the catches of the tray are in the mounting
openings.
•Remove plastic casing from wheels.
•To fold the rollator, engage the brake by pulling the handle downwards energetically.
Then, press the lock of frame folding located on the right and pull the crossbar
upwards simultaneously. The basket and tray may be dismantled.
NOTE! Be careful while folding the rollator due to the risk of smashing fingers in hinges.

4
Brakes
Note! The assistance of a third person may be required while first use regardless of the
user’s health condition.
•To stop the rollator, pull the brake handle upwards and hold.
•While stop or using the seat, lock the brake with locking mechanism by pushing down
the brake handle.
•To release the brake, pull the brake handle upwards.
Height adjustment of handles
The height of the handles should be adjusted so that the user can stand upright, as far as he
or she is able to, with his or her shoulders in rest position and with slightly bent elbows. It is
inadvisable to hang on the rollator with all the body weight.
•To adjust the height of the handles, unscrew the locking knobs which are located on
the outer side of the frame, select appropriate height and tighten the locking knobs.
Note! The handles must be set on the same level.
Adjustment of brakes
Note! Check the condition of brakes before first use. When the brake handles do not brake
equally, they should be adjusted.
Adjustment of upper brake
•Unscrew the nut of the cable, pull it up to the appropriate length and lock it by
tightening the locking nut.
Adjustment of lower brake
•Loosen the mounting screw with the use of open-end wrench, pull the black brake
cable to adjust the tension of the cable, and then, tighten the mounting screw.

5
5. Technical data
Overall width
57 cm
Overall depth
65 cm
Seat dimensions
38 cm x 16 cm
Seat height from the ground
60 cm
Handles height adjustment
75-98 cm
Weight
10.8 kg
Maximum capacity
135 kg
Maximum capacity of the basket
12 kg
Frame colour
dark blue
6. Notes and recommendations
•Only one person can use the rollator.
•The seat can be used only for temporary rest.
•Before using the seat, engage the brake.
•Do not use the seat for transport purposes.
•Do not lean backwards while sitting on the rollator due to the risk of accident.
•Do not stand on the rollator.
•The tray and basket are designed to carry only lightweight and small objects. Do not
carry sharp objects and liquids of high temperature.
•Do not hang any objects on the rollator due to the risk of accident.
•The rollator is designed for users with maximum weight 135 kg.
•The rollator is designed to be used on even surfaces with inclination less than 5%.
•Due to the risk of falling, it is unacceptable to use the rollator on wet, icy, greasy, and
strongly sandy surfaces as they do not provide firm support.
•Remove all potential obstacles in the room such as too high carpets or thresholds,
and secure slippery floor with anti-sliding mats.
•Avoid wet surfaces and use the rollator when the light is on.
•Be particularly careful when walking on uneven pavement, overcoming curbs. Do not
walk backwards.

6
•Do not make any repairs or modifications by yourself.Any repairs should be done by
qualified personnel of the manufacturer.
•It is essential to maintain all the elements of the rollator clean and to store the
rollator in an appropriate way. Storage in rooms with very high humidity (baths,
laundries, etc.) or in an open air in combination with lack of hygiene will result in a
rapid loss of usable and aesthetic parameters.
NOTE! Timago International Group does not bear responsibility of improper use of the
rollator, failure to comply safety regulations and misuse.
7. Cleaning and maintenance
Reviews
Make visual inspection of all the joining elements (clamps, hinges) of the rollator at least
once every three months including:
•Brakes
•Mounting elements (screws, knobs, nuts)
•Height adjustment of handles
•Stability and look of the frame
Cleaning
•Clean the frame with damp cloth and dry thoroughly.
•Do not use strong polishing agents due to the damage of protecting coatings.
•Clean the dirt from moving parts of the rollator regularly (hinges, clamping screws,
locks).
8. Warranty information
All products distributed by our company are under a warranty, the terms of which are
described in the warranty card received at the time of purchase.
Please, keep in mind that for warranty purposes, the proof of purchase (receipt or invoice)
should be retained.
As a user friendly company, we only supply products which have been thoroughly tested
with respect to materials, quality and functionality.
Please contact us if you have any questions concerning our servicing procedure.

7
9. Labels
Reference number Manufacturer
LOT number Manufacture date
Serial number
Representative in Euro-
pean Union
Note
Please read the
instruction
The Manufacturer checked for compliance with
essential medical devices requirements.
10. Recommended products
•Products offered by Timago International Group include:
•Orthoses and joint stabilizers
•Manual and special-use wheelchairs
•Walkers and rollators
•Crutches and canes
•Rehabilitation beds
•Ancillary and sanitary equipment
•Anti-decubitus equipment and accessories
•Stabilizing and immobilizing belts
•Electro-medical equipment
•Disposable medical equipment
Our complete line of products is available from our distributors.
Learn more at: timago.com.

8
Manufacturer:
Timago International Group
Spółka z o.o. i Spółka – Spółka komandytowa
ul. Karpacka 24/12
43-316 Bielsko-Biała, Polska
T.: [phone]
F.: [phone]
E.: [email protected]
Issue II, date 10.10.2016
