BATHSELECT BS10101 User manual

Plumbers Tape Tape Measure Adjustable Wrench
Screwdriver
Drill
Hex Wrench
Level
Pencil or Marker
Thread Sealant
*not included
POSSIBLE TOOLS REQUIRED*
Please read installation instructions below. All plumbing should be
installed in accordance with applicable building codes and regulations.
Unpack and inspect the items for any shipping damages. If you find
damages, do not install.
All products must be installed by a professional and certified plumber
otherwise warranty may be voided.
PRIOR TO INSTALLATION
MATTE BLACK COMMERCIAL HANDS FREE DECK MOUNT
SENSOR FAUCET INSTALLATION INSTRUCTIONS
Product code: BS10101
Customer Service: 800-500-9895
bathselect.com
1
Max counter top thickness without
deck plate:
1.38”/35mm
Pre-drilled hole size requirements:
Min: 1.26”/32mm - Max: 1.38”/35mm
Faucet Deck Mount Installation
Washer
Rubber Washer
Nut and locking bolts
Threaded Tube
Faucet Body
O ring
Hole Size Chart
Deck Mount Type 1
Middle Open Faucet Type
Washer
Rubber
Washer
Nut and
locking bolts
Water
flexible pipe
Sensor Cable
O ring
Water
Inlet Pipe
Sensor Cable
Customer Service: 800-500-9895
bathselect.com
2
Outlet
Inlet
This way up
G1/2
4.7 inch
5 inch
G1/2
1. Remove Control Box Cover
Remove all four screws in each corner of the control
box and remove the cover.
2. Remove Battery Box & Insert Batteries
Remove the battery case from the control box and
remove the screw from the center of the battery
case. Insert 4 AA batteries (batteries not included)
into the battery box ensuring they are inserted the
correct way.
3. Reinstall Battery Box & Control Box Cover
Re-install the battery box cover, matching the
alignment arrows together. Set the battery box back
into the control box, and re-assemble the control
box cover using the previously removed screws
ensuring they are all fully tightened.
Cover
Battery case
Battery Connector
Cover screws
Battery compartment
4a. Placement and Mounting Installation
Choose a location under the sink basin to mount the
control box, such that the sensor cable, flexible hose,
and incoming water supply all connect to the
control box. Under the sink basin, drill a hole
minimum 3/4” to fit the sensor cable and flexible
hose from the spout. Feed the sensor cable and
flexible hose through the hole.
Control Box Installation Instructions
Customer Service: 800-500-9895
bathselect.com
3
4b. Mount the control box on the wall. Drill two 1/8"
(3mm) holes as shown, and push drywall anchors
into each hole. Secure the control box to the wall
with the drywall screws.
5. Connect The Sensor Cable
Plug the sensor cable from the faucet into the
control box to activate the infrared sensor.
6. Water Pipe Connections
Connect the incoming water supply line to the
control box, at the connection marked Inlet. Thread
on the swivel nut to the hose by hand. Tighten with
a wrench.
Connect the faucet hose to the control box, at the
connection marked Outlet.
Water Supply
Outlet Water Supply
Inlet
Please wait approximately 60 seconds after
connecting the sensor cable for sensor calibration to
complete and to begin using the faucet.
or
Temp. Control Thermostatic Mixer
Many automatic faucets do not have hot & cold
handles to adjust the water temperature coming
out of the spout, and normally installed to a single
water supply only. This valve is used for automatic
faucet to mix hot and cold water and to control
water temperature. Normally it would be mounted
under the sink with required temperature set.
Working Pressure: 0.05MPa-0.5MPa
Cold Water Temp: 0°C
Hot Water Temp: 85°C
Outlet Flow Rate: 20m3/h
Cold Water in
NPS male G1/2
Mixer Water out
NPS female G1/2
Hot Water in
NPS male G1/2
Customer Service: 800-500-9895
bathselect.com
4
Battery (DC 6V) & AC 220V Control Box
Normal Water Connection Hot & Cold Water Connection
Battery (DC 6V) Only Control Box
1. Screw the hose into the corresponding screw-hole of the faucet body. Fix the O-ring into the
bottom groove of the faucet body.
2. Insert hose, threaded pipe, and sensor cable through the drilled hole of the countertop. Put
rubber washer and metal washer onto the threaded pipe, screwing in mounting nut. Adjust the
faucet body correctly and tighten the mounting nut with screws.
3. Install the control box to the faucet.
4. Then connect the battery cable to the control box.
5. Make Connections to water supplies. Turn on the water supply and flush water lines into a
container for one minute.
Important: This flushes away any debris that could cause damage to faucet internal parts.
6. Connect waterlines to angle stops. Turn on the angle stops and check for leaks (DO NOT TURN
FAUCET ON).
7. Turn the faucet on for 1 minute to flush any debris.
Customer Service: 800-500-9895
bathselect.com
5
Sensor Range
This sensor faucet can automatically adjust the
inductive range within 10 seconds of electrification.
Do not use inductor during this period so that the
inductor can automatically adjust to a suitable
inductive range.
Set Water Flow Time-Out
The sensor faucet will shut off the water when
washing time exceeds 1.5 minutes. If follow-up
washing is needed, re-induce after removing hands
for 2 seconds.
Notes
1. Please use the AA type alkaline battery (1.5v for
each).
2. Place batteries into each indicated spot. Utilizing
new batteries of the same brand is best. If mixed, it
could shorten the battery life to 1-2 months.
3. After installation of the battery, the solenoid valve
will do its self-testing.
4. Wait ten seconds for power to be applied and
allow the sensor faucet to self-adjust sensor
distance. Do not use your faucet during this time.
5. If the sensor distance is too short, please move the
barrier from the faucet for 5-6 mins and allow the
sensor faucet to adjust to normal.
6. If the sensor distance is too far, and water flows
continuously, the sensor faucet will self-adjust the
distance after 5 mins.
Incorrect Placement
Keep sensor range adjustment
within 4 inches away from center
of spout. This can only be done
with optional remote control.
Installing electronic soap dispenser
& faucet with intersecting centerline
might lead to accidental activation
of either or both.
Faucet FaucetSoap
Dispenser
Soap
Dispenser
Correct Placement
Keep sensor ranges
factory preset.
Keep soap spout & faucet
centerline parallel.
Faucet Faucet
Soap
Dispenser
Soap
Dispenser
General Information
Battery Override
In the event of a power failure, the sensor faucet will
automatically switch to battery-operated mode to
ensure the faucet continues to function. The sensor
faucet can also operate on the battery alone if no
main power source is available.
Hygienic
The proximity sensor faucet removes the need to
touch the faucet body, reducing the spread of
germs and the chance of cross-contamination.
Customer Service: 800-500-9895
bathselect.com
Our sensor spouts have a non-touch control which
uses infrared sensing technology to detect human
presence. Once detected, the spout instantly
dispenses water and automatically stops once the
user moves their hands away to eliminate
unnecessary water wastage, whilst creating a more
hygienic washroom solution.
All products manufactured and supplied by
BathSelect are safe and comply to legislative
requirements. Providing they are installed correctly
and receive regular maintenance in accordance
with these instructions your user experience will not
be affected.
6
All dimensions and specifications are nominal and may vary. Use actual products for accuracy in critical situations.
Specs
Overview
Power: DC:6V(4AA alkaline battery) AC:220V-240V; 50/60HZ
Water Consumption: 0.05Mpa-0.6Mpa
Detection Zone: 16-32 cm or adjustable
Motor valve lifespan: up to 500000 flushes
Battery lifespan: 100000 cycles
Static Power Consumption: 0.36mw
Working Power consumption: 0.5mw
Inductive Opening Time: < 1 second
Inductive Closing Time: < 2 second
Dia.of inlet / outlet pipe: G1/2"
Flux: ≥0.07L/S
Power Supply: Box Transformer (BOX)
Temperature Mixer: Below Deck Manual Mixing Valve (BDM)
Factory Default Timeout: 30s
Factory Default GPC: 0.75
Working pressure: 0.05 - 1.6 Mpa
Water flow: 1.2GPM (4.54 L/Min) @ 60PSI
FEATURES
Commercial Grade Faucet, ADA Compliant, Cast Brass Spout, Quick
Connect Fittings, Integrated Water Shut-off, Hygienic Line Flush,
Water Usage and Battery Strength Reporting, Self-adapting Sensor
Product code: BS10101
MATTE BLACK COMMERCIAL HANDS FREE DECK MOUNT
SENSOR FAUCET SPECIFICATIONS
Size
Customer Service: 800-500-9895
bathselect.com

Other BATHSELECT Plumbing Product manuals

BATHSELECT BS145112 User manual

BATHSELECT

BATHSELECT BS145112 User manual

BATHSELECT BS24BRUSHED User manual

BATHSELECT

BATHSELECT BS24BRUSHED User manual

BATHSELECT RIVERA OIL RUBBED BRONZE LED User manual

BATHSELECT

BATHSELECT RIVERA OIL RUBBED BRONZE LED User manual

BATHSELECT BS-BNS10 User manual

BATHSELECT

BATHSELECT BS-BNS10 User manual

BATHSELECT BS9645 User manual

BATHSELECT

BATHSELECT BS9645 User manual

BATHSELECT BST6112L User manual

BATHSELECT

BATHSELECT BST6112L User manual

BATHSELECT BSTD005-1ORB User manual

BATHSELECT

BATHSELECT BSTD005-1ORB User manual

BATHSELECT BS145105 User manual

BATHSELECT

BATHSELECT BS145105 User manual

BATHSELECT BST-008-1ORB User manual

BATHSELECT

BATHSELECT BST-008-1ORB User manual

BATHSELECT BST-959-ORB User manual

BATHSELECT

BATHSELECT BST-959-ORB User manual

Popular Plumbing Product manuals by other brands

PEERLESS WESTCHESTER P7923LF-OB manual

PEERLESS

PEERLESS WESTCHESTER P7923LF-OB manual

Hansa ELECTRA 0944 0172 Installation and maintenance guide

Hansa

Hansa ELECTRA 0944 0172 Installation and maintenance guide

Price Pfister Skye 42 Series manual

Price Pfister

Price Pfister Skye 42 Series manual

Hans Grohe Talis S 200 72813003 Instructions for use/assembly instructions

Hans Grohe

Hans Grohe Talis S 200 72813003 Instructions for use/assembly instructions

Hans Grohe 13975181 Installation instructions / warranty

Hans Grohe

Hans Grohe 13975181 Installation instructions / warranty

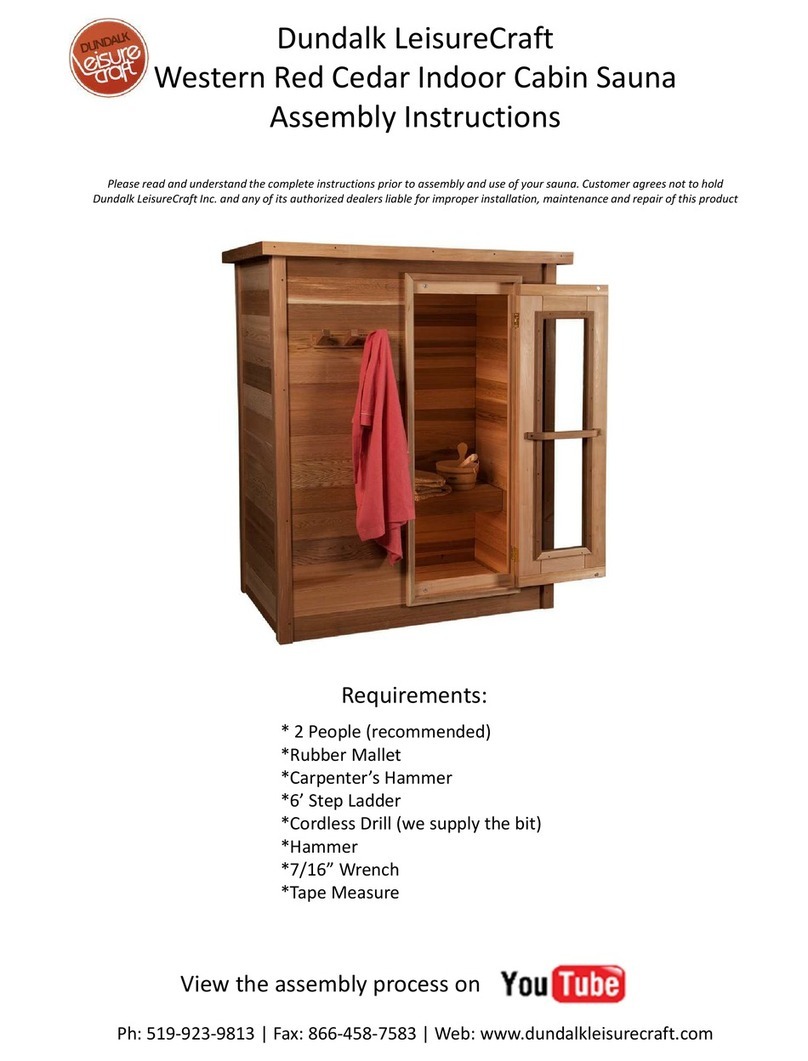

Dundalk LeisureCraft Indoor Cabin Sauna Assembly instructions

Dundalk LeisureCraft

Dundalk LeisureCraft Indoor Cabin Sauna Assembly instructions

Triton Thames Installation and operating instructions

Triton

Triton Thames Installation and operating instructions

Grohe 30 328 manual

Grohe

Grohe 30 328 manual

CALEFFI SATK16315 INSTRUCTIONS FOR INSTALLATION, COMMISSIONING AND MAINTENANCE

CALEFFI

CALEFFI SATK16315 INSTRUCTIONS FOR INSTALLATION, COMMISSIONING AND MAINTENANCE

Spectrum Brands Pfister Park Avenue 016-FE0 Quick installation guide

Spectrum Brands

Spectrum Brands Pfister Park Avenue 016-FE0 Quick installation guide

Grohe Europlus 33 939 quick start guide

Grohe

Grohe Europlus 33 939 quick start guide

Sunshower ONE PLUS S installation guide

Sunshower

Sunshower ONE PLUS S installation guide

Franke ZFAID696 Installation and operating instructions

Franke

Franke ZFAID696 Installation and operating instructions

Dolphin Torino 48 installation instructions

Dolphin

Dolphin Torino 48 installation instructions

Moen Monticello RT4110 Specifications

Moen

Moen Monticello RT4110 Specifications

Danze D464401 Installation

Danze

Danze D464401 Installation

American Standard Bath/Shower Trim Kit T028.50X installation instructions

American Standard

American Standard Bath/Shower Trim Kit T028.50X installation instructions

agape Bjhon 2 ACER1082M Series Assembly instructions

agape

agape Bjhon 2 ACER1082M Series Assembly instructions

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
