Instructions for use
GCX 5582

5019 496 96001
GB

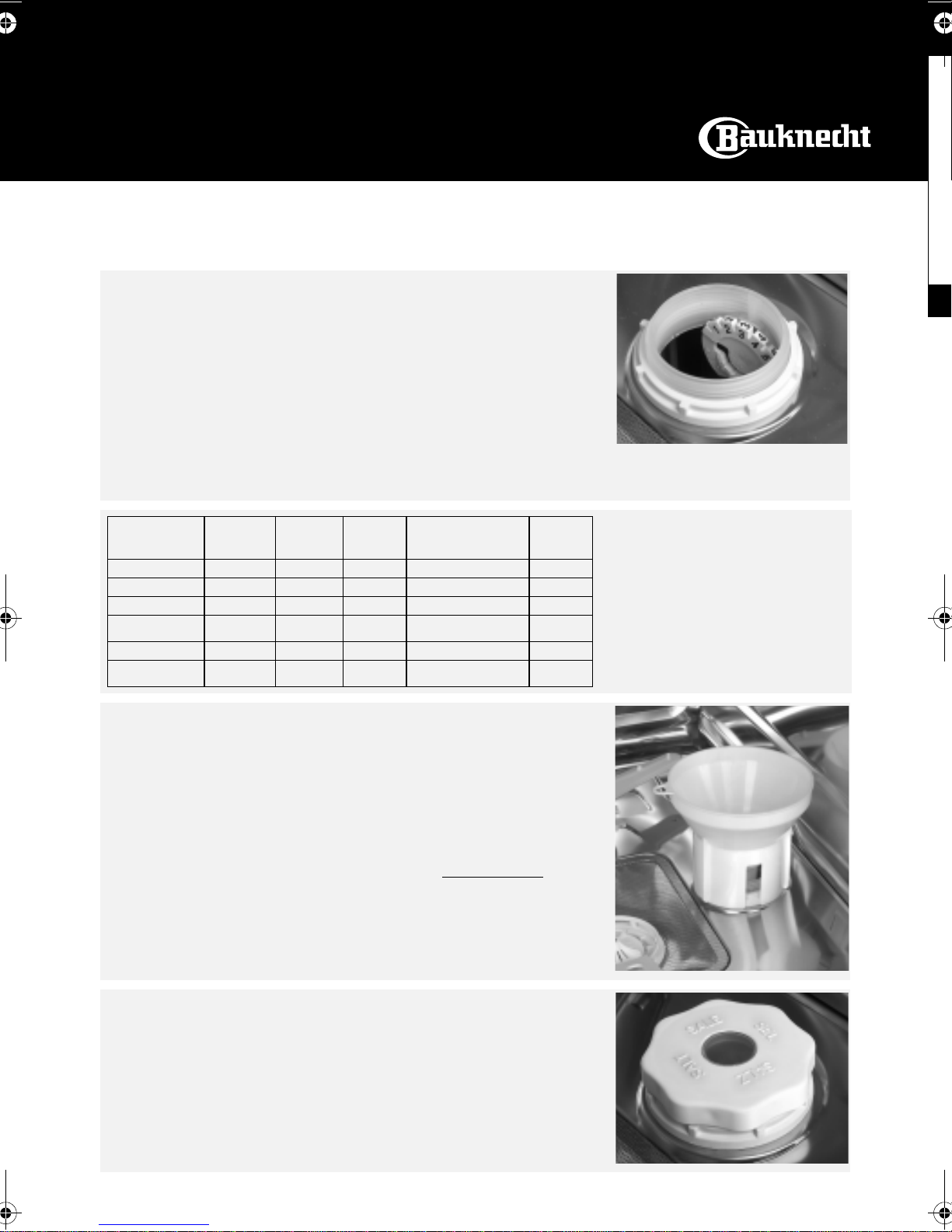

GCX 5582 Quick Reference Guide
Before using the dishwasher, read the user instructions!
(We reserve the right to make technical modifications)
Add regeneration salt
Only add regeneration salt immediately before
starting a wash programme.
Add rinse aid
“Delayed start” button
The wash cycle can be programmed to
start after 3-6-9 hours.
Press button (D) to select the delayed
start. The corresponding indicator lamp
(S) lights up.
The dishwasher will start at the set time.
To quit selection and start the wash
program without the delayed start, press
button (D) until the 3-6-9 indicator lamps
switch off.
Water stop device activated
Switch off the dishwasher and contact
the After-sales Service.
The dishwasher over fills with
water
Reset and start the programme again
from the beginning. If the problem
persists, contact the After-Sales Service.
The water heating system is not
working
Reset and start the programme again
from the beginning. If the problem
persists, contact the After-Sales Service.
Water temperature sensor fault
Reset and start the programme again
from the beginning. If the problem
persists, contact the After-Sales Service.
The dishwasher does not fill
with water
Check the water supply and filters, and
make sure that there are no kinks in the
water inlet hose. Open and close the
door in order to continue.
The dishwasher does not drain
Make sure that the filter unit and drain
hose are not clogged and if necessary
clean them.
1) Reference programme for energy label in compliance with
EN 50242 regulations;
2) Refer to “User instructions”;
3) Program data obtained in conformity with European
standard EN 50242. Values may vary in relation to usage,
e.g.: different loads, water temperatures - above or below
15°C - as well as water hardness and power supply
voltage, etc.
D
S
On/Off button
Press the ON button to switch on the dishwasher.
The indicator lamp of the last programme selected
lights up; at the end of the cycle an acoustic signal
sounds.
Programme selection button
Press the button to select a programme.
The corresponding indicator lamp lights up.
Indicators
Additional option
Additional options
in case of failure
Indicators
Off
Blinking
On
Programme chart Detergent 2) Consumption 3)
Programmes Loading instructions A B Litres kWh Minutes
Pre-Rinse cold Crockery to be washed later. - - 5.0 0.02 9
Rapid 45°C Lightly soiled crockery with no dried-on
food. X - 12.0 0.90 59
Eco 1) 50°C Normally soiled crockery. X - 13.0 1.01 125
Normal 65°C Normally or heavily soiled crockery. X X 16.0 1.26 85
Intensive 70°C Recommended programme for heavily
soiled crockery, especially suitable for pans
and saucepans. X X 20.0 1.45 100
4GB96001.fm Page 1 Wednesday, September 8, 2004 5:27 PM
Black process 45.0° 100.0 LPI

How to use the appliance
Further indications are given in the single chapters and in the user instructions.
Press the On/Off button .
Large compartment A
Small compartment B:
Mechanical indicator C.
Electric indicator on control panel (if provided).
On models with water softener system
only.
Mechanical indicator D.
Electric indicator on control panel
(if provided).
Refer to the dishwasher loading instructions.
Press the button until the desired programme lights up.
If necessary (and if provided).
The corresponding indicator lamp lights up.
“Cancel”
Open the door, press
until the indicator lamps
4 + 5 light up.
Close the door, after about 1
min. the cycle ends.
“Change programme in progress”
Open the door.
Select another programme and close the
door in order to start the new cycle.
- Only open the dishwasher if necessary
(Warning: beware of hot steam).
- If the appliance is switched off during a
wash cycle, when switched on again it
will resume the cycle from where it was
interrupted.
At the end of the programme an acoustic signal will sound.
Open the door and press the On/Off button .
All the indicator lamps switch off.
Warning: When the door is opened steam comes out!
Unload the appliance, starting from the lower rack.
Open the door,
switch on the appliance
How to fill the
detergent dispenser A
BC
Check the rinse aid level
Check the regeneration
salt level
D
Load the racks
Select a programme
Select additional options
Close the door to start
the programme
Turn on the water tap
Wash cycle
Switch off the appliance
Turn off the water
tap, unload the racks
4GB96001.fm Page 2 Wednesday, September 8, 2004 5:27 PM
Black process 45.0° 100.0 LPI

Dishwasher loading instructions and racks provided
Upper rack: depending on the model
Crockery holder (A):
Depending on the position: up or
down:
Long-handled utensils, cups and
glasses. Place the glasses to the side
of the rack or holders.
Place long and narrow utensils in
the centre of the rack or holders.
Long-handled utensils (e.g.
carving forks, knives) must be
arranged with the sharp end
facing in towards the appliance.
Rack height adjustment:
Release the caps (B) of both rack
rails.
Take the rack out.
Reposition the rack at the desired
height.
Close the caps (B).
The rack must be level on both
sides.
Lower rack:
Depending on the model with fixed
or tilting plate holders.
Cutlery basket:
Some models are provided with a
grid (C) that can be fitted onto the
cutlery basket to keep items
separated.
Sharp knives and forks that
might cause injury must be
placed in the cutlery basket
with the sharp end facing
downwards.
Only use dishwasher-proof crockery and dishes. Do not use the appliance for items not suitable for washing in a
dishwasher, for example wooden items, aluminium, plastic utensils, tin, hand-decorated crockery (unglazed),
silver cutlery.
A
AA
A
B
B
CC
CC
4GB96001.fm Page 3 Wednesday, September 8, 2004 5:27 PM
Black process 45.0° 100.0 LPI

What to do if...
If a fault occurs, before contacting our After-Sales Service, make the following checks to try and remedy the problem (* see
also the corresponding chapter in the user instructions).
Problem Cause Remedy
The appliance is not
working • No water supply. • Open the tap.
• The appliance does not load sufficient
water. • Clean the water supply tap filter. • Ensure there are no kinks in the water hose.
• There is a power failure. • Insert the plug into the mains socket.
• Open the door.
•Closethedoor.
• Check the domestic circuit fuse.
If crockery is not
perfectly dry • Insufficient rinse aid. •Increasedosage*.
• Residual water in cavities. • Load crockery at an angle.
If crockery is not
perfectly clean • The water jet does not reach the
crockery. • Arrange crockery so that items do not touch each other. Load crockery upside down.
• Insufficient detergent. • Follow recommended detergent dosage.
• Unsuitable programme. • Select a more intense wash cycle.
• Spray arms blocked. • The spray arms must be able to turn freely.
• Spray arm nozzles clogged. • Remove any impurities obstructing the water flow *.
• Incorrect detergent/detergent too old. • Use a good quality detergent.
Sandy or grainy residues • Clogged filters. • Check filters regularly/if necessary clean *.
• Filters incorrectly assembled. • Insert the filter correctly *.
Colour of plastic parts
faded • Tomato/carrot juice,... • Depending on the material, if necessary use a
detergent with a greater whitening power.
Deposits on crockery
•removable • Streaks on the crockery/glasses. • Reduce the rinse aid dosage *.
• Layer of salt on crockery/glasses. • Close the salt container lid properly *.
•notremovable • Insufficient water softening, calcium
deposits. • Change water hardness setting, if necessary add salt *.
Opaque glasses/
glasses not sparkling • Cannot be washed in the dishwasher. • Use suitable glasses.
Rust on cutlery • Not made of stainless steel. • Use suitable cutlery.
If after carrying out the above checks the malfunction persists or appears again, turn the appliance off and turn off the water
supply tap, then call our After-Sales Service (see guarantee).
Before contacting our After-Sales Service, take note of the following:
• The nature of the fault.
• The appliance type and model.
• The service code (the number indicated on the adhesive rating plate)
inside the door on the right-hand side.
4GB96001.fm Page 4 Wednesday, September 8, 2004 5:27 PM
Black process 45.0° 100.0 LPI

.

11
Instructions for use
Before using the dishwasher/Connections
Electrical connection
Precautions and general recommendations
How to fill the salt container
How to fill the rinse aid dispenser
How to fill the detergent dispenser
Care and maintenance
4gb94602.fm Page 11 Tuesday, January 21, 2003 10:27 AM
Black process 45.0° 100.0 LPI

12
Before using the dishwasher/Connections
1. Removing the packaging
and controls:
After unpacking, make sure
that the dishwasher is
undamaged and that the
door closes correctly.
If in doubt, contact a
qualified technician or your
local retailer.
•Keep the packaging
materials (plastic bags,
polystyrene parts, etc.) out of
reach of children, as they are
potentially dangerous.
•This dishwasher has been
factory tested to ensure it
functions correctly.
Such testing may leave slight
water marks that will
disappear with the first wash.
2. Water and electrical
connections:
All water and electrical
connections must be carried
out by a qualified technician
in compliance with the
manufacturer's instructions
(refer to the enclosed
installation booklet) and
current local safety
regulations.
The appliance must only be
used in the household for
the prescribed uses.
Do not use the dishwasher if
it has been damaged in
transit. Consult your local
retailer or our After-Sales
Service.
(Refer to the separate
installation instructions
booklet)
3. Water inlet and drain:
•Observe any special
regulations issued by your
local Water Board.
Water supply pressure:
0.3 - 10 bar.
•Make sure the inlet and drain
hoses are kink-free and are
not crushed.
•If the hose length is not
sufficient, please contact
your local dealer or our After-
Sales Service.
•The inlet hose must be
securely clamped to the
water tap to prevent leaks.
•The inlet water temperature
variesaccordingtothemodel
installed. Inlet hose marked
“25°C Max”:
maximum temperature 25°C.
All other models: maximum
temperature 60°C.
•When installing the
appliance, make sure the
drain water discharges
correctly (if necessary,
remove the wire gauze from
the sink siphon).
•Fix the drain hose to the
spigot with a clamp to
prevent it from coming off
during operation.
For appliances with water-
stop system only: if the water
connections are made
correctly, the water-stop
system safeguards your
home against damage
caused by flooding.
4. Electrical connection:
•Closely adhere to local
Electricity Board regulations.
•Voltageinformationisshown
on the rating plate mounted
inside the door on the right
hand side.
•The appliance must be
earthed as prescribed by law.
•Do not use extension leads or
multiple adapters.
•Before carrying out
maintenance, disconnect the
mains plug.
•If necessary, the power cable
maybereplacedwithonethe
same obtained from our
After-Sales Service. The
power cable must only be
replaced by a qualified
technician.
• For Austria: iftheapparatus
is series connected to a fault
current switch, this must be
sensitive to the pulsating
current.
4gb94602.fm Page 12 Tuesday, January 21, 2003 10:27 AM
Black process 45.0° 100.0 LPI

13
Electrical connection
1) For Great Britain only
Warning - this appliance
must be earthed
Fuse replacement
If the mains lead of this
appliance is fitted with a
BS 1363A 13amp fused plug,
to change a fuse in this type
of plug use an A.S.T.A.
approved fuse to BS 1362
type and proceed as follows:
1. Remove the fuse cover (A)
and fuse (B).
2. Fitreplacement 13Afuse into
fuse cover.
3. Refit both into plug.
Important:
The fuse cover must be
refitted when changing a
fuse and if the fuse cover is
lost the plug must not be
used until a correct
replacement is fitted.
Correct replacement are
identified by the colour
insert or the colour
embossed in words on the
base of the plug.
Replacement fuse covers are
available from your local
electrical store.
2) For the Republic of
Ireland only
The information given in
respect of Great Britain will
frequently apply, but a third
type of plug and socket is also
used, the 2-pin, side earth type.
3) Socket outlet / plug
(valid for both
countries)
If the fitted plug is not suitable
for your socket outlet, Please
contact Whirlpool Service for
further instruction. Please do
not attempt to change plug
yourself. This procedure needs
to be carried out by a qualified
Whirlpool technician in
compliance with the
manufactures instructions and
current standard safety
regulations.
4gb94602.fm Page 13 Tuesday, January 21, 2003 10:27 AM
Black process 45.0° 100.0 LPI

14
Precautions and general recommendations
1. Packing
The packing box may be fully
recycled as confirmed by the
recycling symbol .
2. Energy and water saving
tips:
•Do not rinse crockery under
running water.
•Always fully load the
dishwasher before switching
on.
•If ecological energy sources
are available,
such as solar panel heating,
heat pumps or centralised
heating systems, the
appliance may be connected
to the hot water mains up to
a maximum temperature of
60°C. Make sure the water
inlet hose is of the correct
type. Refer to the
“Connections” chapter in
these user instructions.
3. Disposal:
The appliance is built from
reusable materials. If you
decide to scrap the
dishwasher, it must be
disposed of in compliance
with local waste disposal
laws.
Before scrapping, cut off the
power cable so that the
appliance cannot be
connected to the mains.
•To prevent situations of
potential danger to children
(e.g. danger of suffocation),
break the lock of the door so
that it can no longer be
closed.
4. Child safety:
•Childrenmustnotbeallowed
to play with the dishwasher.
•Store the detergent, rinse aid
and salt in a dry place out of
the reach of children.
5. Safety warnings:
•The open dishwasher door
can only support the weight
of the loaded rack when
pulled out.
Do not rest objects on the
open door or sit or stand on
it: the appliance may
topple over!
•Donotusesolventsinsidethe
dishwasher: risk of
explosion!
•Before cleaning or carrying
out maintenance, switch off
the appliance, disconnect the
mains plug and turn off the
water tap.
•If a fault occurs, switch off
the appliance and turn off
the water tap.
•On completion of the
programme switch off the
dishwasher and turn off the
water tap.
•Repairs and technical
modificationsmustbecarried
out exclusively by a qualified
technician.
•The water in the dishwasher
is not potable.
•Do not store inflammable
liquids near the dishwasher.
•Donotoperatetheappliance
in the open air.
6. Resistance to frost:
If the appliance is placed in
surroundings exposed to the
risk of frost, it must be
drained completely.
Turn off the water tap,
remove the flexible inlet and
outlet hoses, and let all the
water run out.
7. For appliances with water
stop system:
The water inlet hose and
plastic casing contain
electrical components. Do
not therefore cut the hose or
immerse the plastic casing in
water.
If the hose is damaged switch
off the appliance
immediately.
8. The appliance must be
used at temperatures
between 5°C and 45°C.
EC Declaration of
Conformity
This appliance has been
designed, constructed and
distributed in compliance
with the safety requirements
of EC Directives:
•73/23/EC
•89/336/EC
•93/68/EC
Load capacity:
10 place settings.
4gb94602.fm Page 14 Tuesday, January 21, 2003 10:27 AM
Black process 45.0° 100.0 LPI

15
How to fill the salt container
From a water hardness category
of 1–2 (medium), before using
the dishwasher for the first
time, fill the salt container with
regeneration salt (to find out
the hardness level of water in
your area, contact your local
Water Board or check the last
bill you received).
Ifthewaterhardnesslevel does
not correspond to position 3 on
the selector (setting on
delivery) or if the water
hardness level changes:
Setting the correct water
hardness level:
Set the water hardness by
turning the selector inside the
salt container.
Use the table below to set the
dial to the correct setting:
Hardness
level German
degrees
°dH
French
degrees
°fH
mmol/l Clarke scale or
English degrees
°eH
Setting If the water hardness level
falls within category 1 (soft),
no salt is required.
1 soft 0 - 4 0 - 7 0 - 0,7 0 - 5,0 1
1 - 2 medium 5 - 9 8 - 15 0,9 - 1,6 6,3 - 11,3 1
2 average 10 - 22 16 - 30 1,8 - 4,0 12,5 - 27,5 2
3 medium-
hard 23 - 29 31 - 45 4,1 - 5,2 28,8 - 36,3 3
4 hard 30 - 35 46 - 60 5,4 - 6,3 37,5 - 43,8 4
5 extremely
hard 36 - 41 61 - 80 6,5 - 7,4 45,0 - 51,3 5
How to fill the salt container
Warning: only use
regeneration salts for use
domestic dishwashers!
Do not fill the salt container
with unsuitable substances,
such as detergent, as this will
cause irreparable damage to
the water softener system.
1. Remove the lower rack.
2. Unscrew the cap by turning
it counter-clockwise.
3. When first using the
dishwasher: fill the salt
container to the rim with
water.
4. Fill the salt container with
regeneration salt to the rim
(using the funnel provided)
(whenfillingforthefirsttime
min. 1.5 kg and max. 2 kg)
and stir with a spoon handle.
5. Screw the cap back on by
turning it clockwise.
6. Fit the lower rack.
7. If regeneration salt is to be
added, immediately start
a wash programme (rinsing
alone is not sufficient) in
order to eliminate any
residual saline solution
straight away and avoid
corrosion.
Salt level indicator
The dishwasher is equipped
with an electric or visual salt
level indicator (depending on
the model installed).
Electric indicator
The salt level indicator lamp on
thecontrolpanellightsupwhen
the salt container is empty.
Visual indicator
The float is clearly visible in the
cap window when the salt
container is full (see photo).
Thefloatlowersand is no longer
visible when the salt container is
empty.
4gb94602.fm Page 15 Tuesday, January 21, 2003 10:27 AM
Black process 45.0° 100.0 LPI

16
How to fill the rinse aid dispenser
The rinse aid facilitates drying
and prevents the formation of
unsightly spots and streaks on
crockery. Before using the
dishwasher for the first time,
fill the rinse aid dispenser.
Only use rinse aids
recommended for use in
domestic dishwashers.
1. Unscrew the cap Aby
turningitcounter-clockwise
(see drawing).
2. Fill the dispenser with rinse
aid up to the dotted line
“max” (approx. 140 cc).
Immediately wipe away any
rinse aid spilt accidentally!
This prevents the formation
of excess suds which may
spoil washing results.
3. Close the cover.
Thereafter, regularly check
the rinse aid level.
How to adjust the rinse aid
dosage regulator
Factory setting: medium
position.
If you are not satisfied with
washing or drying results,
change the rinse aid dosage
setting.
1. Unscrew the cap (A) by
turningitcounter-clockwise
(see drawing).
2. If crockery is prone to
whitish streaks: reduce the
dosage by turning the dial
(B) to a lower setting. If
crockeryisnotperfectlydry:
increase the dosage by
turning the dial to a higher
setting.
3. Close the cover.
Rinse aid level indicator: Visual indicator:
light add rinse aid
dark sufficient rinse aid.
Do not add any!
Electric indicator
(if provided):
The indicator lamp on the
control panel lights up when
more rinse aid needs to be
added.
A
B
4gb94602.fm Page 16 Tuesday, January 21, 2003 10:27 AM
Black process 45.0° 100.0 LPI

17
How to fill the detergent dispenser
How to fill the detergent
dispenser:
Only use detergents
recommended for use in
domestic dishwashers.
Only fill the detergent
dispenser prior to
starting a wash
programme.
1. Press button (C) to open the
cover.
2. How to fill the detergent
dispenser.
Programmes with
pre-rinse:
-Pour two thirds of the
recommended dosage into
the large
compartment (B).
- Pour the remaining third
into the small
compartment (A).
Programmes without
pre-rinse:
-Pour the entire
recommended dosage into
the large compartment (B).
If the recommended dosage
on the detergent pack is
over 45 ml (maximum
capacity of the large
compartment), pour the
remaining detergent into
the small compartment (A).
3. Close the cover.
Detergent
Use good quality liquid or
powder dishwasher detergents
and/or tablets (do not use
hand dishwashing
detergents).
In order to safeguard the
environment, follow the
manufacturer's directions for
use. Do not use more than the
amount of detergent that is
recommended. Observe the
manufacturer's safetywarnings.
Keep these products out of
reach of children.
If you use detergents in tablet
form, follow the manufacturer's
directions for use.
If you use multi-action
dishwasher detergents that
incorporate rinse aid and
regeneration salt, follow the
directions below:
•products that incorporate
the rinse aid enhance the
detergent action only with
some programs.
•products that do not require
using regeneration salt may
be used only in areas with
specific water hardness level.
Read the product user
instructions carefully. If in
doubt, contact the detergent
manufacturer.
The guarantee is not applicable
if faults are caused by the use of
these products.
AB
C
4gb94602.fm Page 17 Tuesday, January 21, 2003 10:27 AM
Black process 45.0° 100.0 LPI

18
Care and maintenance
Before cleaning or carrying
out maintenance, switch off
the appliance, disconnect
the mains plug and turn off
the water tap.
Cleaning the outside of the
appliance:
To clean the outside of the
appliance, use a neutral
detergent and a damp cloth.
Clean the control panel with a
damp cloth only.
Do not use abrasive
detergents.
Cleaning the inside of the
dishwasher:
Regularly wipe the door seal
and inside of the door with a
dampclothto remove any food
residue.
Upper spray arm:
1. Slacken the fixing nut (A)
(by turning it counter-
clockwise) and detach the
spray arm (B) by pulling it
down.
2. Rinse the nozzles.
3. To remount the spray arm,
align it and then tighten
the fixing nut (by turning it
clockwise),paying
attention not to bend it.
The fixing nut must be
tightened until it clicks!
Make sure the spray arm
rotates freely.
Lower spray arm:
1. Remove the spray arm by
pulling it upwards (C).
2. Disconnect part (E) from D
by pulling them apart.
3. Rinse the nozzles.
4. To remount the spray arm,
align it with the mounting
and insert it by pushing it
down.
Make sure the spray arm
rotates freely.
A
B
C
DE
4gb94602.fm Page 18 Tuesday, January 21, 2003 10:27 AM
Black process 45.0° 100.0 LPI

19
Care and maintenance
Cleaning the filters: 1. Rotate the microfilter
counter-clockwise (E) and
extract it (F).
2. Place the microfilter central
filter unit on a flat surface
and push the handle of the
microfilter (I).
Extract the filter (I) by
pulling it forwards and
upwards.
Extract filter (I) from
filter (H).
3. Extract the central steel
filter (J).
4. Clean all the filters
under running water.
Checkthatnoimpuritiesare
left inside the dishwasher!
5. Reassemble the microfilter,
replace the central steel
filter (J) and refit the
microfilter.
The filter unit must be
correctly assembled to
ensure good wash
results!
F
E
J
IH
G
4gb94602.fm Page 19 Tuesday, January 21, 2003 10:27 AM
Black process 45.0° 100.0 LPI
