Baumatic PV972GL User manual

ch
PV372SS 35 cm Island
cooker hood
PV972GL 90 cm Glass
island cooker hood

User Manual for your Baumatic
PV372SS 35 cm Island cooker hood
PV972GL 90 cm Glass island cooker
hood
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
DD 23/09/10
2

3
Contents Page
Environmentalnote 4
IMPORTANT SAFETY INFORMATION 5 – 7
Specifications of your cooker hood 8 – 10
PV372SS 8
PV972GL 9
Optionalextras(allmodels) 10
Using your Baumatic cooker hood 10 - 11
Beforefirstuse 10
To use your cooker hood 10 - 11
Cleaning your Baumatic cooker hood 11 - 12
The grease filter 12
Maintenance 12 - 17
Removing and cleaning the grease filter 12 - 13
Changingalightbulb 13-15
Fitting the carbon filter 16 - 17
Installation 17 - 27
Electricalconnection 18
Before beginning installation 19
Positioning 20-21
Installing your cooker hood 21
Installing the glass canopy 22 - 24
Supplied installation components 24
Fixing the cooker hood to the ceiling 24 – 27
Completing the installation 28
Extraction mode or recirculation mode? 28
Externalducting 28
Troubleshooting 29 - 30
Contactdetails 31

ENVIRONMENTAL NOTE
Note: Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any
plug useless. Cut the cable off directly behind the appliance to
prevent misuse. This should be undertaken by a competent
person.

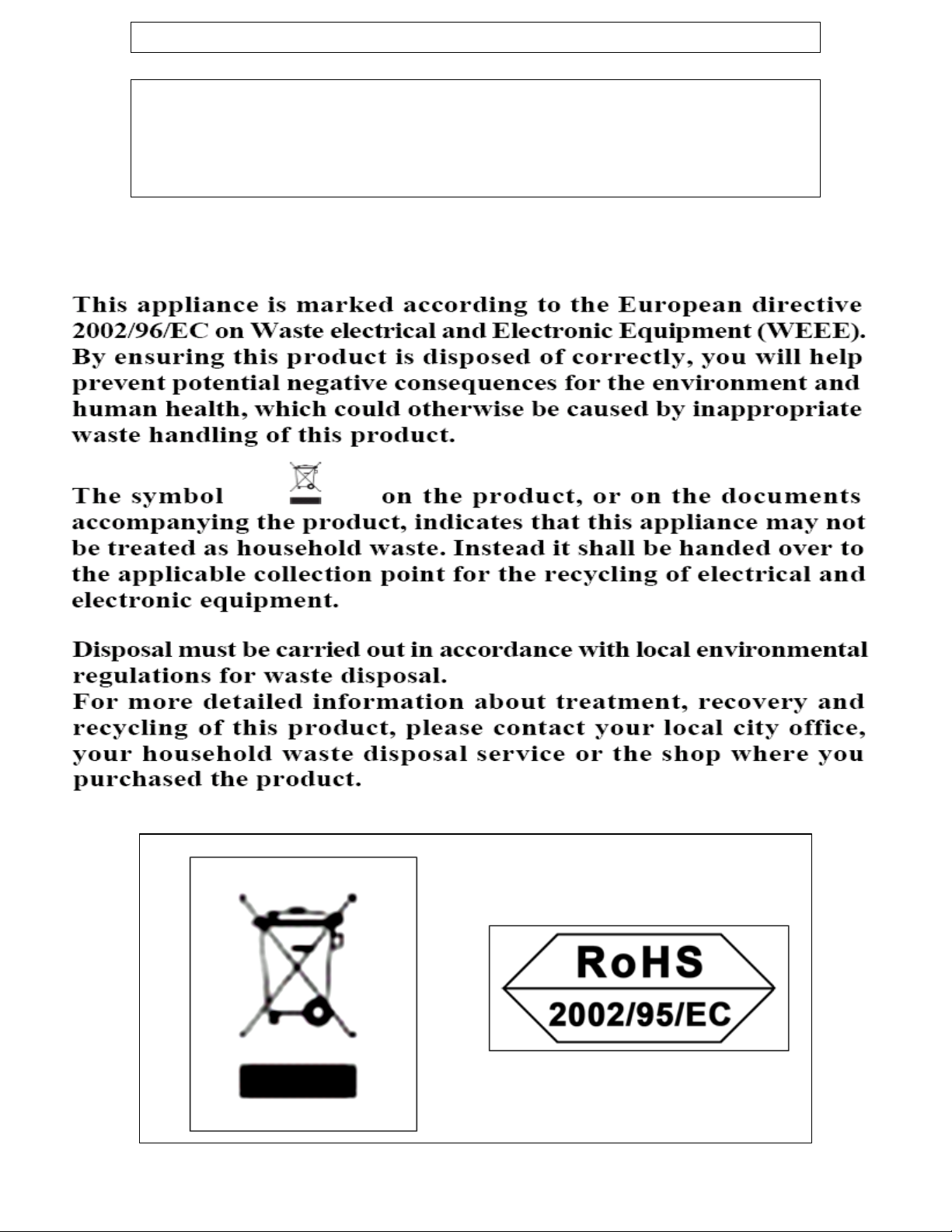

CONFORMITY TO W.E.E.E. DIRECTIVE
4

IMPORTANT SAFETY INFORMATION
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If
you are unsure of any of the information contained in
this booklet, please contact the Baumatic Advice Line.
IMPORTANT: Any installation work must be
carried out by a qualified electrician or
competent person.
oThe hood must be installed in accordance with the installation
instructions and all measurements followed.
oIf the cooker hood is installed for use above a gas appliance then
the provision for ventilation must be in accordance with the Gas
Safety Codes of Practice BS.6172, BS.5440 & BS.6891 (Natural
Gas) and BS.5482 (LP Gas) 1994, the Gas Safety (Installation &
Use) Regulations, the Building Regulations issued by the
Department of the Environment, the Building Standards
(Scotland) (Consolidated) Regulations issued by the Scottish
Development Department.
oIt is dangerous to alter the specifications or to modify this
product. Do not tamper with it or attempt to modify the
appliance in any way.
oWhen installing the hood, ensure that the following
recommended distances are observed between the highest point
on the hob top (including the burners) and the bottom of the
cooker hood:
¾Electric cookers: 700 mm
¾Gas cookers: 700 mm
¾Coal/ oil cookers: 800 mm
IMPORTANT: DO NOT SET YOUR COOKER HOOD LESS
THAN 700mm ABOVE YOUR COOKER.
oWhen installed between adjoining wall cabinets, the cabinets
must not overhang the hob.
5

oThe edges of the cooker hood are sharp – be mindful of this as
you handle your appliance, especially during installation and
cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTERS!
oIf the room where the cooker hood is to be used contains a fuel
burning appliance such as a central heating boiler then its flue
must be of the sealed or balanced flue type.
oIf other types of flue or appliances are fitted, ensure that there is
an adequate supply of air in the room.
oWhen the hood is being used in its extractor function, ensure
that the ducting is fire retardant and that there are no bends
sharper than 90 degrees as this will reduce the efficiency of the
hood.
oEnsure the ducting for the extractor function has the same
diameter as the outlet hole all the way through.
oKeep young children from using, playing with
or tampering with the cooker hood. Older
children and infirm persons should be
supervised if they are using the cooker hood.
oYour cooker hood is for domestic use only.
oPlease dispose of the packing material carefully – children are
especially vulnerable to it.
oDirty oil is an even greater fire risk.
oAlways put lids on pots and pans when cooking
on a gas cooker.
oThe manufacturer refuses to accept any responsibility for
damages arising to the hood or it catching on fire, from a failure
to observe the fire safety advice contained in this instruction
booklet.
6

oRemember that when in extraction mode, your cooker hood is
removing air from your room. Ensure that proper ventilation
measures are being observed.
oNote: Your cooker hood is designed to remove cooking
odours from the room and not steam.
oWarning - Always ensure that the cooker
hood has been disconnected from the
power supply before carrying out any work
on the hood, including replacing light bulbs.
oDo not connect the ducting system of this appliance to any
existing ventilation system which is being used for any other
purpose.
oDo not install above a cooker with a high level grill.
oNever leave frying pans unattended during use
as overheated fats and oils might catch fire.
oThe lights on this appliance should only be used during operation
of the cooker hood. They should not be left on permanently and
used as a lighting source.
oThe cooker hood should not be exposed to a direct heat source
from the cooking device underneath it, i.e. a naked flame from a
gas burner or heat from electric hob zones without a pan on
them.
oDo not attempt to use the cooker hood if it is damaged in any
way. Never attempt to use it without the grease filters fitted or
if the filters are excessively greasy!
oNever flambé cook under this cooker hood.
THE MANUFACTURER DECLINES ALL
RESPONSIBILITY IN THE EVENT OF FAILURE TO
OBSERVE THE INSTRUCTIONS GIVEN HERE, FOR
INSTALLATION, MAINTENANCE AND SUITABLE
USE OF THE HOOD.
7

Specifications of your cooker hood
PV372SS

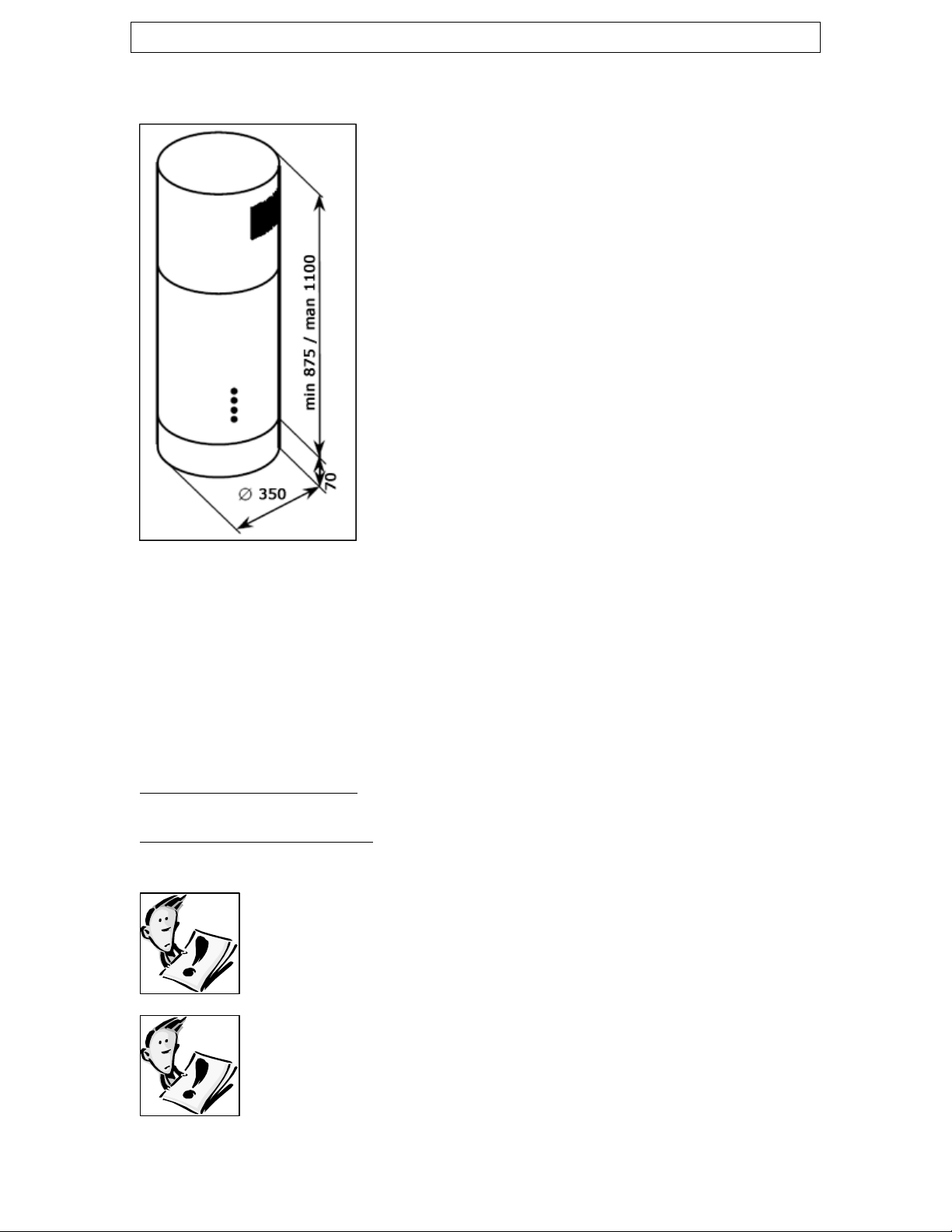

PRODUCT DIMENSIONS
Height: 875 - 1100 mm*
Width: Ø 350 mm
Depth: Ø 350 mm
Your stainless steel cooker hood is fitted with:
oHigh extraction tangential motor
oElectronic push button control operation
o3 speeds
o1 washable stainless steel grease filter
o3 LED lights
oSuitable for extraction or recirculation
Extraction capacity: 750 m³/hr
Noise level min/max: 58 – 62 dB
* IMPORTANT: Please see the positioning
instructions on pages 18 - 19 to obtain precise
information on the height requirements for this
product.
If you are using the appliance in recirculation mode, then
PLEASE NOTE that some of the vent in the upper chimney
section must be exposed. You will have to take this into
account when calculating the minimum height of the
cooker hood when installed.
8

PV972GL

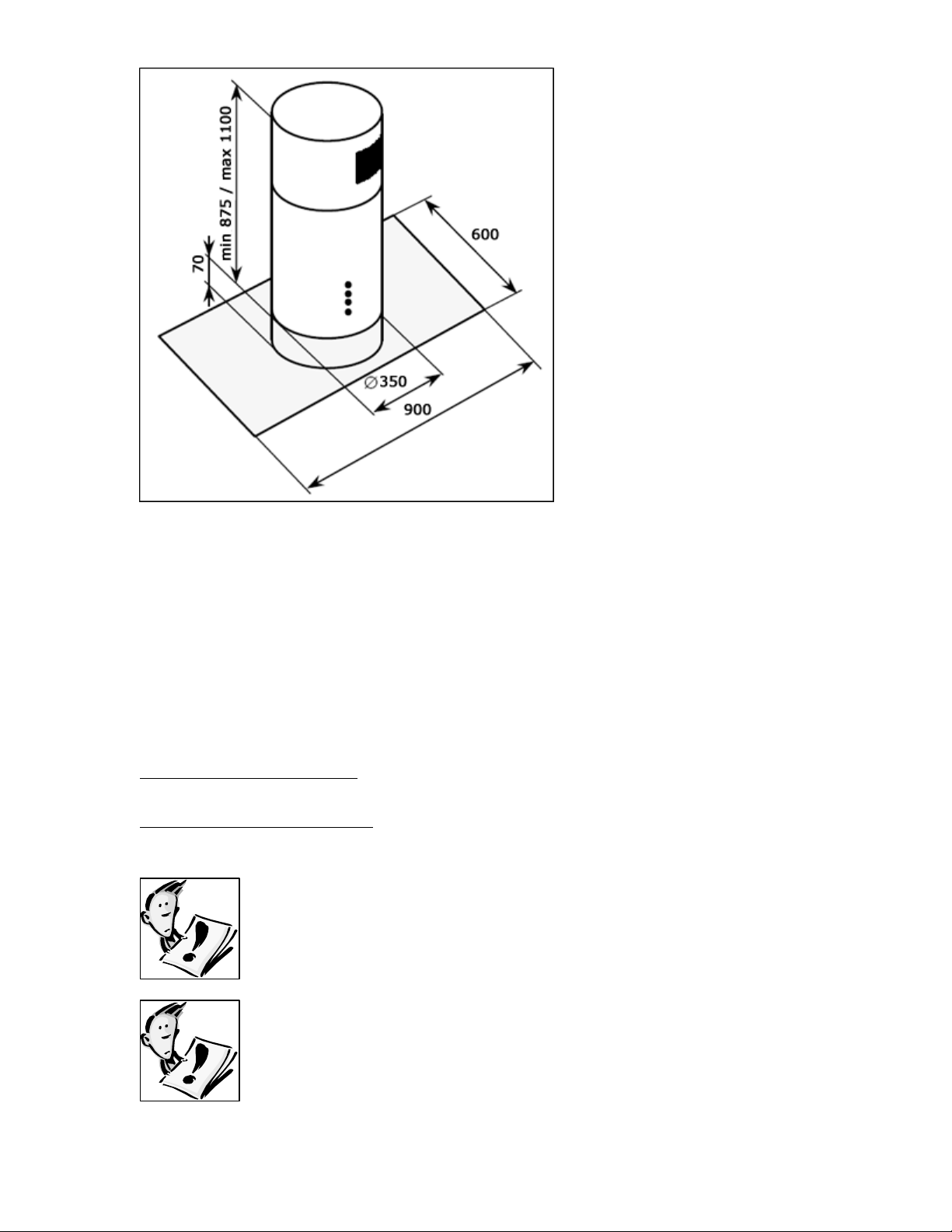

PRODUCT
DIMENSIONS
Height: 875 mm -
1100 mm*
Width: 900 mm
Depth: 600 mm
9
Your stainless steel cooker hood is fitted with:
oHigh extraction tangential motor
oElectronic push button control operation
o3 speeds
o1 washable stainless steel grease filter
o3 LED lights
oSuitable for extraction or recirculation
Extraction capacity: 750 m³/hr
Noise level min/max: 58 – 62 dB
* IMPORTANT: Please see the positioning
instructions on pages 18 - 19 to obtain precise
information on the height requirements for this
product.
If you are using the appliance in recirculation mode, then
PLEASE NOTE that some of the vent in the upper chimney
section must be exposed. You will have to take this into
account when calculating the minimum height of the
cooker hood when installed.

Optional extras (all models)
S1 1 pair of carbon filters
DK5 1 Metre length Ducting Kit 125 mm Ø.
DK10 3 Metre length Ducting Kit 125 mm Ø with flat channelling
included.
oAvailable from the Baumatic Spares Department.
Using your Baumatic cooker hood
Before first use
IMPORTANT: THIS PROCESS MUST BE FOLLOWED
BEFORE THE COOKER HOOD IS USED FOR THE FIRST
TIME.
oYou should use a good quality stainless steel cleaner and polish
on ALL of the stainless steel areas of your cooker hood, before it
is used for the first time.
oThis will help to leave a silicone water-resistant film to protect
the stainless steel surfaces.
To use your cooker hood
oA = Speed selection buttons
= Low speed
= Medium speed
= High speed
oB = Light on/off button
10

oBefore operating the hood, make sure that it has been installed
by a suitably qualified person, as per the information contained
in Baumatic’s installation instructions.
oFind the control panel, which is located in the middle of the main
body of the cooker hood.
oThere are several buttons on the control panel, which perform
separate functions (see line drawing on previous page).
IMPORTANT: IDEALLY YOU SHOULD SWITCH ON
YOUR HOOD TEN MINUTES BEFORE YOU START TO
COOK, OR AT THE VERY LEAST WHEN YOU BEGIN
COOKING. YOU SHOULD ALSO RUN YOUR HOOD FOR
TEN MINUTES AFTER YOU HAVE FINISHED COOKING.
Cleaning your Baumatic cooker hood
IMPORTANT: BEFORE CLEANING, ALWAYS
ENSURE THAT YOU HAVE SWITCHED YOUR
COOKER HOOD OFF AT THE OMNI-POLAR
SWITCH, SET AT THE WALL FROM THE CABLE.
Cleaning
oClean the external parts of your cooker hood with mild liquid
detergent and a new damp cloth.
oNever use abrasive powder, corrosive solvents or brushes.
oNever insert pointed objects into the motor’s protective grid.
oOnly clean the control panel and grease filter grill with mild liquid
detergents and a new damp cloth.
oIf you are using the appliance in recirculation mode, then be
sure to replace the carbon filters at the recommended intervals
(see section on “Fitting the carbon filter”). A build up of grease
could cause a fire hazard.
oNever attempt to clean the area above the grease filters.
11

The grease filter
oYour cooker hood is fitted with a grease filter, which helps to
absorb grease particles and protect your kitchen & furniture from
greasy residues.
oThis metallic filter may become inflammable if you allow them to
get saturated with this greasy residue.
oTo prevent this fire hazard, the filter should be cleaned regularly.
Depending on use, this should be done every 10-15 days or at
least once a month, using hot water and normal washing-up
detergent.
oDO NOT WASH THE GREASE FILTER IN A DISHWASHER.
Maintenance
Removing and cleaning the grease filter
oRemove the fixing screw that holds the grease filter in place and
then pull away the grease filter from the cooker hood.
oSoak the grease filter in hot
water and washing up liquid for
about an hour.
oRinse them off thoroughly with
hot water.
oRepeat the process if required.
12

oRefit the grease filter once it has dried and then retighten the
fixing screw that holds it in place.
oIMPORTANT: Let the grease filter dry thoroughly before
refitting it in the cooker hood.
Changing a light bulb
13
IMPORTANT: BEFORE ATTEMPTING TO CHANGE
A LIGHT BULB, YOU MUST ENSURE THAT YOU
HAVE DISCONNECTED THE COOKER HOOD FROM
YOUR MAINS SUPPLY.
oRemove the fixing screw that holds the grease filter in place and
then pull away the grease filter from the cooker hood.

oUse a screwdriver to remove the 6 fixing screws that hold the
light board in place.
oPrior to touching the light bulbs ensure that they have cooled
down.
oDisconnect the light wiring point (see page 22 for a line drawing
of how to disconnect the light wiring point). Tighten the retaining
ring, push the light out and replace it.
oIMPORTANT: Defective bulbs should be replaced immediately.
14

oPush the light back into the exposed hole in the hood and
reconnect the light wiring point (see page 23 for a line drawing
that shows how to reconnect the light wiring point).
oUse a screwdriver to retighten the 6 fixing screws that hold the
light board in place.
oRefit the grease filter once it has dried and then retighten the
fixing screw that holds it in place.
oIf the lights still do not work, make sure that the bulbs are fitted
properly into their housings before you call for technical
assistance.
15

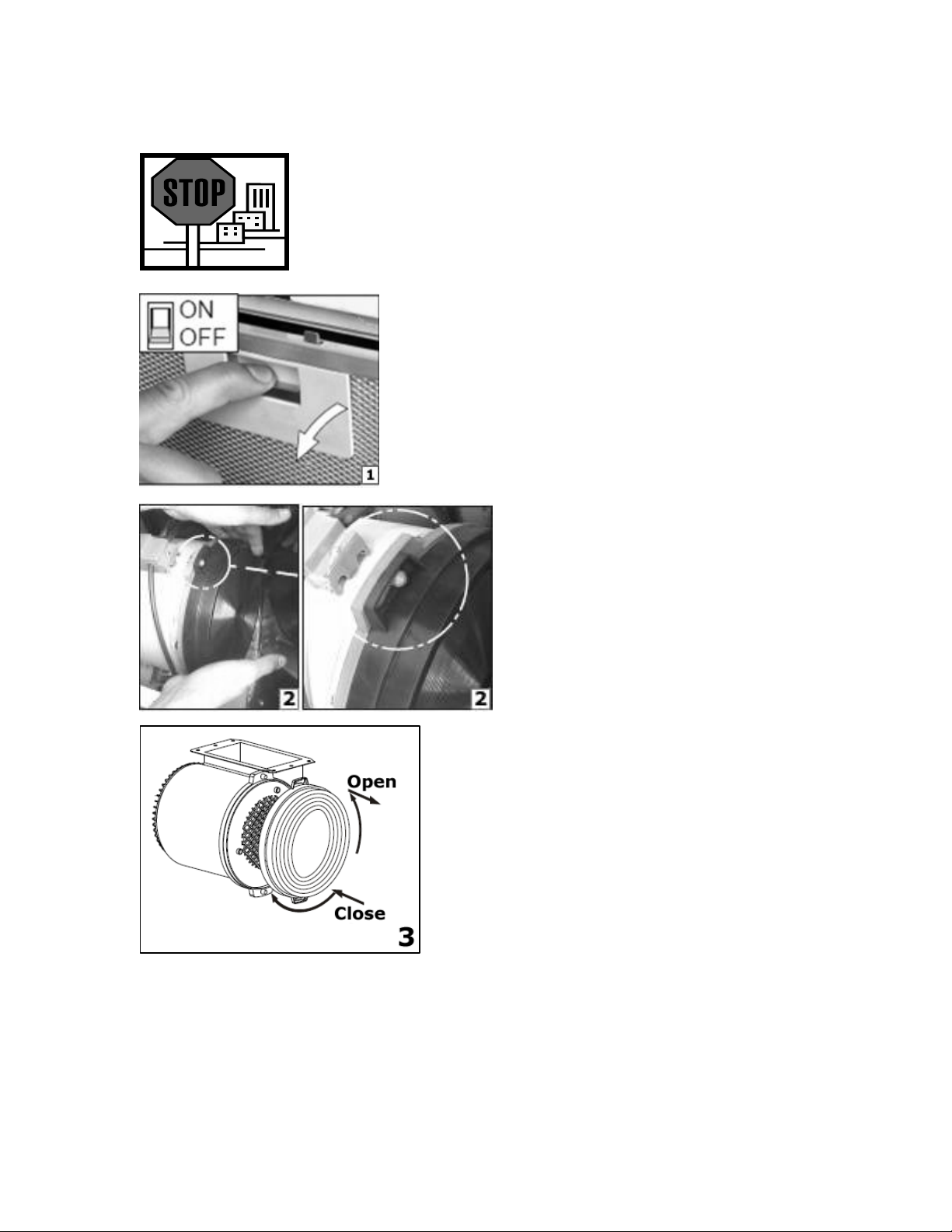

Fitting the carbon filters
If the appliance is being used to be used in recirculation mode then it
is necessary to fit carbon filters. This will help to absorb unpleasant
odours caused by cooking.
IMPORTANT: BEFORE ATTEMPTING TO FIT OR
REMOVE THE CARBON FILTERS, YOU MUST
ENSURE THAT YOU HAVE DISCONNECTED THE
COOKER HOOD FROM YOUR MAINS SUPPLY.
1) Remove the grease filter.
2) Hook the carbon filter over
the pins that are located at the
end of the motor.
3) Turn the carbon filter anticlockwise,
until you feel it click into place.
oRepeat this process for the second carbon filter. You need to
place a carbon filter at either end of the motor.
oRefit the grease filter.
16

oThe carbon filters should be replaced approximately every three
months, if they show signs of damage, or if you start to notice
that cooking smells are entering the kitchen through the upper
vents.
Installation
IMPORTANT: Before installation and usage read
all the instructions and make sure that the
voltage (V) and the frequency (Hz) indicated on
the rating plate are exactly the same as the
voltage and frequency in your home. The rating
plate can be found behind the grease filter.
The manufacturer declines all responsibility in the event of the installer
failing to observe all the accident prevention regulations in force,
which are necessary for normal use and the regular operation of the
electric system.
17

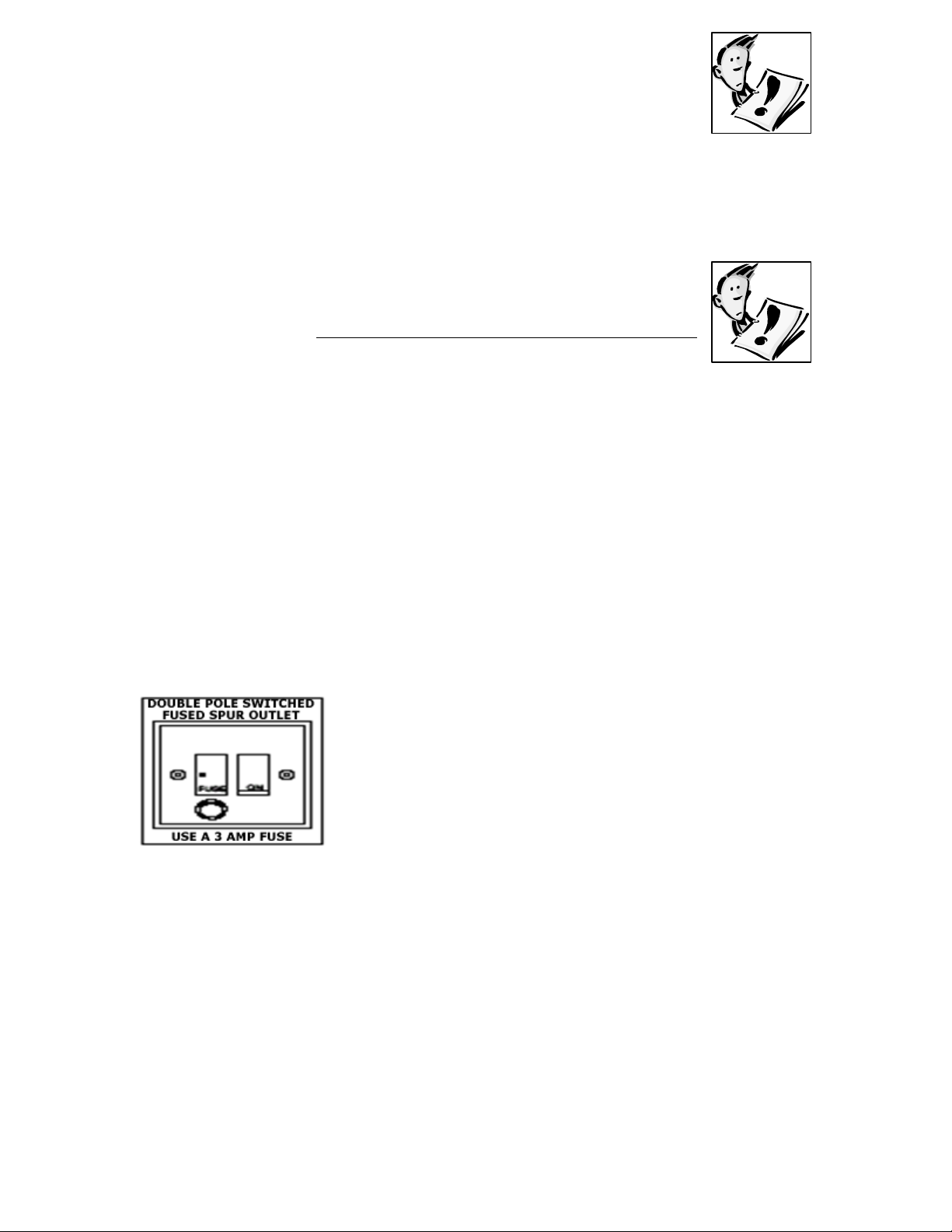

Electrical connection
YOUR COOKER HOOD IS INTENDED FOR FITTED AND
PERMANENT INSTALLATION.
oThe cooker hood’s power cable must be fitted upstream from the
electrical connection, using an omni-polar switch with a contact
distance of at least 3 mm. THE FUSE MUST BE RATED AT 3
AMPS.
WARNING: THIS APPLIANCE MUST BE EARTHED. It
should only be connected by a competent person, using
fixed wiring via a double pole switched fused spur outlet.
(UK ONLY).
We recommend that the appliance is connected by a qualified
electrician, who is a member of the N.I.C.E.I.C. and who will comply
with the I.E.E. and local regulations. The wires in the mains lead are
coloured in accordance with the following UK code:
Blue = Neutral, Brown = Live, Green/Yellow = Ground
If you only find two wires in the main’s lead (blue and brown),
then neither must be connected to the earth terminal.
oAs the colours of the wires in the appliance’s mains lead may not
correspond with the coloured markings identifying the terminals
in your spur box, please proceed as follows:
oThe blue wire must be connected to the
terminal marked “N” (neutral), or coloured
black.
oThe brown wire must be connected to the
terminal marked “L” (live), or coloured red.
18

19
Before beginning installation
oCheck that the product purchased is of a suitable size for the
chosen installation area. In addition check whether there is an
electrical socket available that will be accessible once the hood is
mounted. If the product is going to be used in extraction mode,
then there should also be space to connect a ducting hose to the
outside.
oCarry out all necessary masonry work prior to the fitting of the
cooker hood.
oEnsure that all electrical connections are carried out by a suitably
qualified person.
oCheck inside the product and ensure that there is no transit
packaging or any other materials, such as packets of screws,
guarantees etc. These should be removed and kept for future
use.
oIf possible, disconnect and move freestanding or slot-in cookers
from their position, to provide easier access to the ceiling. If this
is not possible, then a thick, protective covering should be
placed over the worktop, hob top or cooker. This will help to
protect these surfaces from damage and debris.
oSelect a flat surface for assembling the cooker hood. Cover that
surface with a protective covering and place all cooker hood
parts and fittings on it.
oWall plugs are provided to secure the hood to most types of
ceilings. However a qualified technician must verify the
suitability of the materials, in accordance with the type of ceiling.
The ceiling must be strong enough to take the weight of the
hood.
oDo not tile, grout or silicone this appliance to the ceiling. This
appliance is designed to be surface mounted only.
oRemove any protective wrapping that has been put on the
cooker hood or chimney sections, to protect them during transit.

Positioning

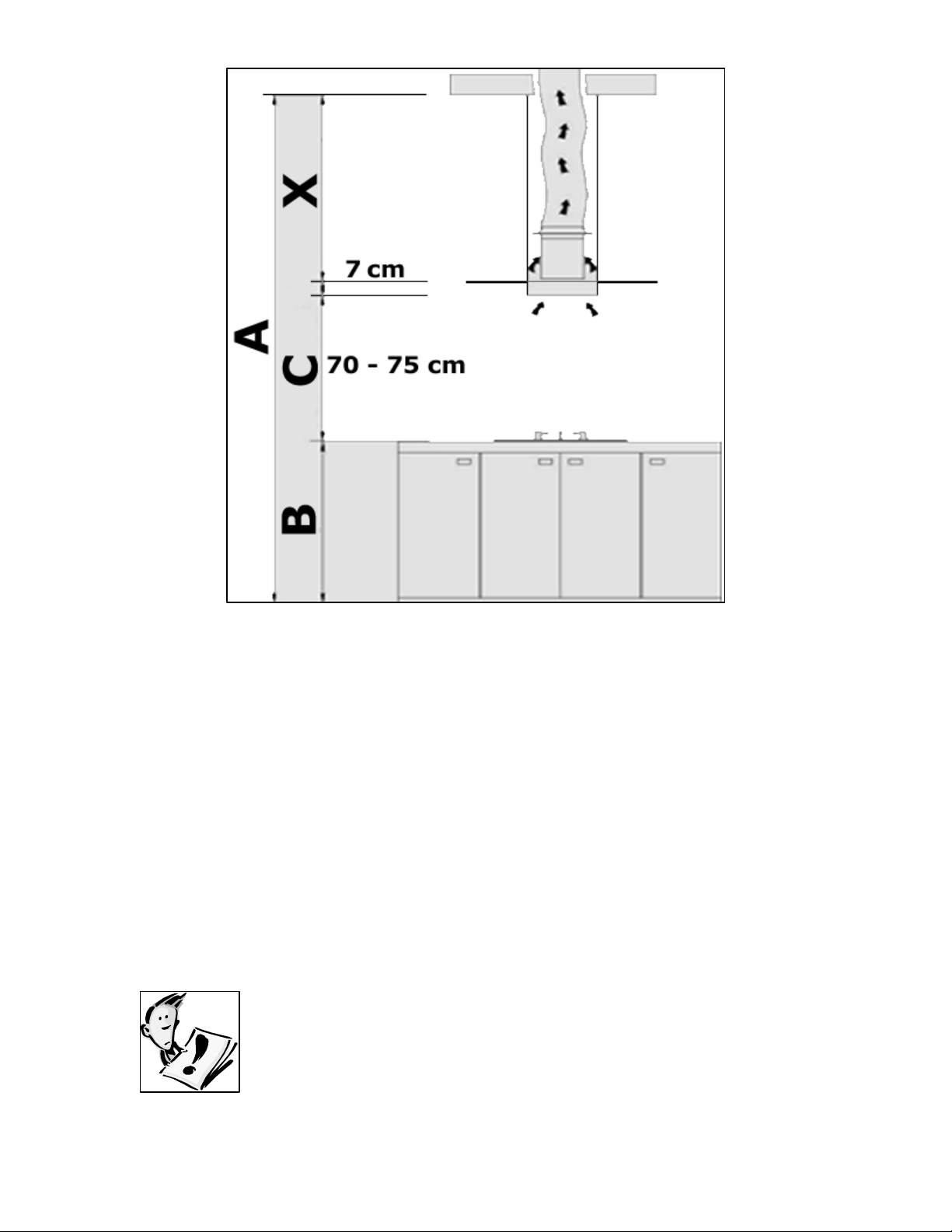

X = Height of the appliance
A = Total height of the kitchen
B = Height of the worktop
C = Distance between the hob and the hood
7 cm = Height of the hood canopy
oTo work out the height of the appliance, you need to use the
following formula: X = A – (B + C + 7 cm).
oThe overall height of the appliance should be calculated
according to the height of the chimney sections. You must allow
yourself sufficient space to make the electrical connections and
connecting the ducting hose (if required).
IMPORTANT: Your ceiling should have a minimum
height of 2.7 metres; otherwise you may encounter
difficulties when installing the appliance.
20
