Baumatic BT7.3GL User manual

BT7.3GL
Cooker Hood

User Manual for your Baumatic
BT7.3GL Cooker
Hood
70 cm Chimney Hood in Stainless Steel
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference.
1

CONTENTS
YOUR COOKER HOOD’S SPECIFICATIONS ….……………..………….3
IMPORTANT SAFETY INFORMATION……………………………….…4-5
CARING FOR THE ENVIRONMENT…………………………………………6
USING YOUR COOKER HOOD………………………………..……………..7
MAINTAINING AND CLEANING YOUR COOKER HOOD ……….8-10
INSTALLATION INSTRUCTIONS ……………………….……...….12-19
ELECTRICAL CONNECTION……………12
INSTALLING THE COOKER HOOD………13-15
FITTING THE CHIMNEY…………………16-17
ATTACHING THE GLASS…..18
INSTALLATION NOTES – EXTRACTION / PURIFYING VERSION .….19
NOTE ON INSTALLING THE VERSION WITH LOWER BRACKET..……20
TROUBLESHOOTING ……………………………………………21
CONDITIONS OF GUARANTEE……………………………………………22
CONTACT DETAILS…………………………………………………………..23
HT MOD 16/08/06
2

Specifications of your BT7.3GL Cooker Hood
Congratulations on purchasing a Baumatic Cooker
Hood!
To fully enjoy using your appliance long into the future,
please firstly familiarise yourself with its specifications,
safety advice and operational instructions included in this
manual. You will also need this manual to ensure that your
Cooker Hood has been installed properly.
DIMENSIONS
Width (canopy): 700 mm
Depth (canopy): 500 mm
Height (adjustable): 540 mm to 1010 mm
Dimensions of Chimney Section:
260 mm X 350 mm
Your stainless steel Cooker Hood is fitted with:
•High extraction tangential motor
•Electrical button control operation
•3 speeds
•1 metallic grease filter
•2 lights
Extraction capacity – 500m³/hr
Optional Extra: 1 x Pair of S1 Carbon filters for air
recirculation.
3

Important Safety Information: Please Read this before installing & using.
o Any installation work must be
carried out by a qualified
electrician or competent person.
o The hood must be installed in
accordance with the installation
instructions and all measurements
followed.
oIf the cooker hood is installed
for use above a gas appliance then
the provision for ventilation must
be in accordance with the Gas
Safety Codes of Practice BS.6172,
BS.5440 & BS.6891 (Natural Gas)
and BS.5482 (LP Gas) 1994, the
Gas Safety (Installation & Use)
Regulations, the Building
Regulations issued by the
Department of the Environment,
the Building Standards (Scotland)
(Consolidated) Regulations issued
by the Scottish Development
Dptmt.
oIt is dangerous to alter the
specifications or to modify this
product in any way. Do not tamper
with it or attempt to alter it in the
attempt to customise it further.
oWhen installing the hood,
ensure that the following
recommended distances are being
observed between the cooker top
and the bottom of the cooker hood:
9Electric cookers:
700 mm
9Gas cookers:
700 mm
9Coal/ oil cookers:
800 mm
* NOTE - DO NOT SET YOUR
COOKER HOOD LESS THAN
700mm ABOVE YOUR COOKER!
oWhen installed between
adjoining wall cabinets,
the cabinets must not
overhang the hob.
oThe edges of the cooker
hood are sharp – be
mindful of this as you
handle your appliance,
especially during
installation and cleaning.
DO NOT CLEAN IN
BEHIND THE GREASE
FILTERS!
oIf the room where the
cooker hood is to be used
contains a fuel burning
appliance such as a
central heating boiler
then its flue must be of
the sealed or balanced
flue type.
oIf other types of flue or
appliances are fitted,
ensure that there is an
adequate supply of air in
the room.
oWhen the hood is being
used in its extractor
function, ensure that the
ducting is fire retardant
and that there are no
bends sharper than 90
degrees as this will
reduce the efficiency of
the hood.
o
4

oEnsure the ducting for
the extractor function
has the same diameter as
the outlet hole all the
way through.
o
Keep young children from
using, playing with or
tampering with the
cooker hood. Older
children and infirm
persons should be
supervised if they are
using the cooker hood.
o
Your cooker hood is for
domestic use only.
o Please dispose of the
packing material
carefully – children are
especially vulnerable to
it.
o
Dirty oil is an even
greater fire risk.
o
Always put lids on pots
and pans when cooking
on a gas cooker.
o The manufacturer
refuses to accept any
responsibility for
damages arising to the
hood or it’s catching on
fire from failure to
observe fire safety advice
in these instructions.
o Remember that when in
extraction mode, your
cooker hood is removing
air from your room.
Ensure that proper
ventilation measures are
being observed. Note
that it removes odours
from your room, not
steam.
Important Safety Information: Please Read this before installing & using.
oWarning - Always ensure
that the cooker hood has
been disconnected from
the power supply before
carrying out any work on
the hood, including
replacing light bulbs.
:Do not connect the
ducting system of this
appliance to any existing
ventilation system which
is being used for any
other purpose.
:Do not install above a
cooker with a high level
grill.
: Never leave frying pans
unattended during use as
overheated fats and oils
might catch fire.
: Do not leave naked
flames under the cooker
hood.
:Do not attempt to use
the cooker hood if it is
damaged in any way.
Never attempt to use it
without the grease filters
fitted or if the filters are
excessively greasy!
: Never flambé cook under
this cooker hood.
5

Note: Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any plug
useless. Cut the cable off directly behind the appliance to prevent
misuse. This should be undertaken by a competent person.
CONFORMITY TO W.E.E.E. DIRECTIVE
Environmental Note
6

Usin
g
y
our Baumatic Cooker Hood:
To use your cooker hood:
1) Make sure it has been properly installed.
2) Find the CONTROL PANEL. It is located at the front of the
canopy, to the right.
3) The CONTROL PANEL contains buttons as shown in the Figure
below. These perform separate functions. You will need to
understand what these buttons do before you attempt to use your
cooker hood.
* Note: The hood should be switched on at least as soon as you start
cooking.
KEY
‘W’ - Motor operation:
-= low speed, == mid speed, == high speed.
‘U’ – Light ‘on/off’ button-This button controls the light
PLEASE NOTE THAT YOUR BAUMATIC COOKER HOOD CAN BE
USED EITHER IN RECIRCULATION MODE OR IN EXTRACTION
MODE. TO USE THE HOOD IN RECIRCULATION MODE, YOU WILL
NEED TO FIT THE CARBON FILTERS. (SEE PAGE 11)
7

IMPORTANT: Before cleaning, always ensure that you have
switched your cooker hood OFF at the omni-polar switch,
set at the wall from the cable:
Cleaning
ÂClean the external parts with
mild liquid detergents on a
damp cloth.
ÂNever use abrasive powder,
corrosive solvents or brushes.
ÂNever insert pointed objects
into the motor’s protective grid.
ÂOnly clean the control panel
and filter grill with a damp
cloth and delicate detergents.
ÂBe sure to replace the
carbon filters at the
recommended intervals.
Build up could cause a
fire hazard.
ÂNever take out the
grease filters and
attempt to clean the
space above where they
are set.
________________________________________________
Anti-Grease Grille
ÂYour cooker hood includes an anti-grease grille
which helps absorb vapour-suspended grease
particles to protect your kitchen & furniture from
greasy residues.
ÂThe metal grille may become inflammable if it
becomes saturated with greasy residue.
9To prevent this fire hazard, the grille should be
cleaned regularly (depending on use) every 10-15
days and at least once a month in hot water with
normal washing-up detergent. DO NOT USE A
DISHWASHER TO ACHIEVE THIS.
Cleanin
g
y
our Baumatic Cooker Hood:
8

First remove the grille by pulling down on it. Undo the
side catches.
You can now clean the anti-grease filter grilles.
9Soak them for about one hour in hot water with a
grease-loosening detergent then rinse off thoroughly
with hot water.
9Repeat the process if needed. Refit the grease grille
9
9LEASE NOTE: DISCOLOURATION OF THE GREASE
ILTER CAN TAKE PLACE WHEN CLEANED IN A
DISHWASHER, ETC. Do not worry about the slight
discolouration of the grille –its performance won’t
e affected.
et the filter grilles dry thoroughly before refitting
hem.
Maintenance - Cleaning the Anti-grease Filters
once it has dried.
Refit the grease grilles when dry.
P
F
b
L
t
9

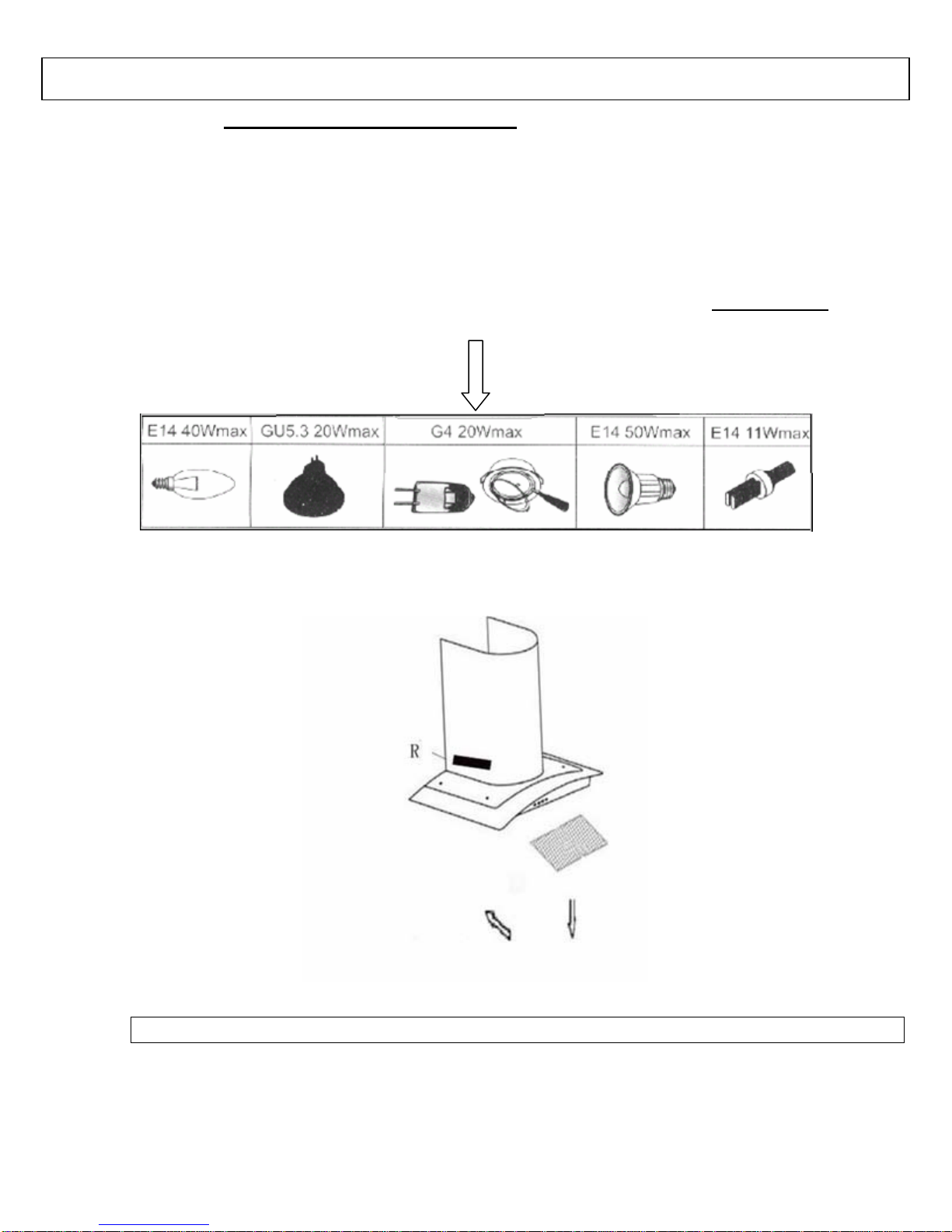

a) Changing the light bulb
Before changing
ou have switched it off at the
9the light bulb, ensure that the appliance is not live (i.e., ensure
that y wall switch).
9Remove the metal anti-grease filters (see Figure 2 below) and find the old bulb
locate ulb
d in the light fixture up inside the exposed canopy. Change the halogen b using
only olive-shaped spares with an G4 coupling, max. 20W.
Maintenance – Changingthe Light Bulb and Carbon Filter
* PLEASE NOTE - Defective bulbs should be replaced immediately.
9Replace the metal anti-grease filters.
10

Installin
g
/ Chan
g
in
g
the Carbon Filter
Installing / Changing the
Carbon Filter.
Your Baumatic Cooker Hood
uses a pair of CARBON
FILTERS to purify the air for
the air recirculation function.
You will find that the filters
will attach to both sides of
the fan motor (please see
figures at bottom of page).
The active carbon filters must
be replaced regularly, at least
ery three months,
low normal operation.
Before sta
filter, turn the omni-polar
s
CHANGING THE CARBON FILTER
once ev
to al
rting to fit the carbon
witch off at the wall.
grease
unit
essing
2) hey
motor.
s (which
have two fixing tongues), turning
clockwise so that the tongues latch
onto the motor’s sides. (Fig. 3 - left).
1) Press the handle of the metal
filter towards the rear part of the
ront
until it is released from the f
housing, and remove it by pr
downwards (Fig. 2 - above).
Remove the old carbon filters by
ntil t
twisting them anticlockwise u
unlatch from the sides of the
3) Place the new carbon filter
4) Reposition the anti-grease metallic filter grilles.
11

Before installation and usage, read all the the
INSTALLATION INSTRUCTIONS – Electrical Connection.
instructions and make sure that
voltag z) indicated on the identification plate (founde (V) and the frequency (H
inside your Cooker Hood) and all the data inside the appliance are exactly the
same as the voltage and frequency in your home.
NOTE: The manufacturer declines all responsibilit
accident-prevention regulations in force which are lar
operation of the electric system.
_______________________

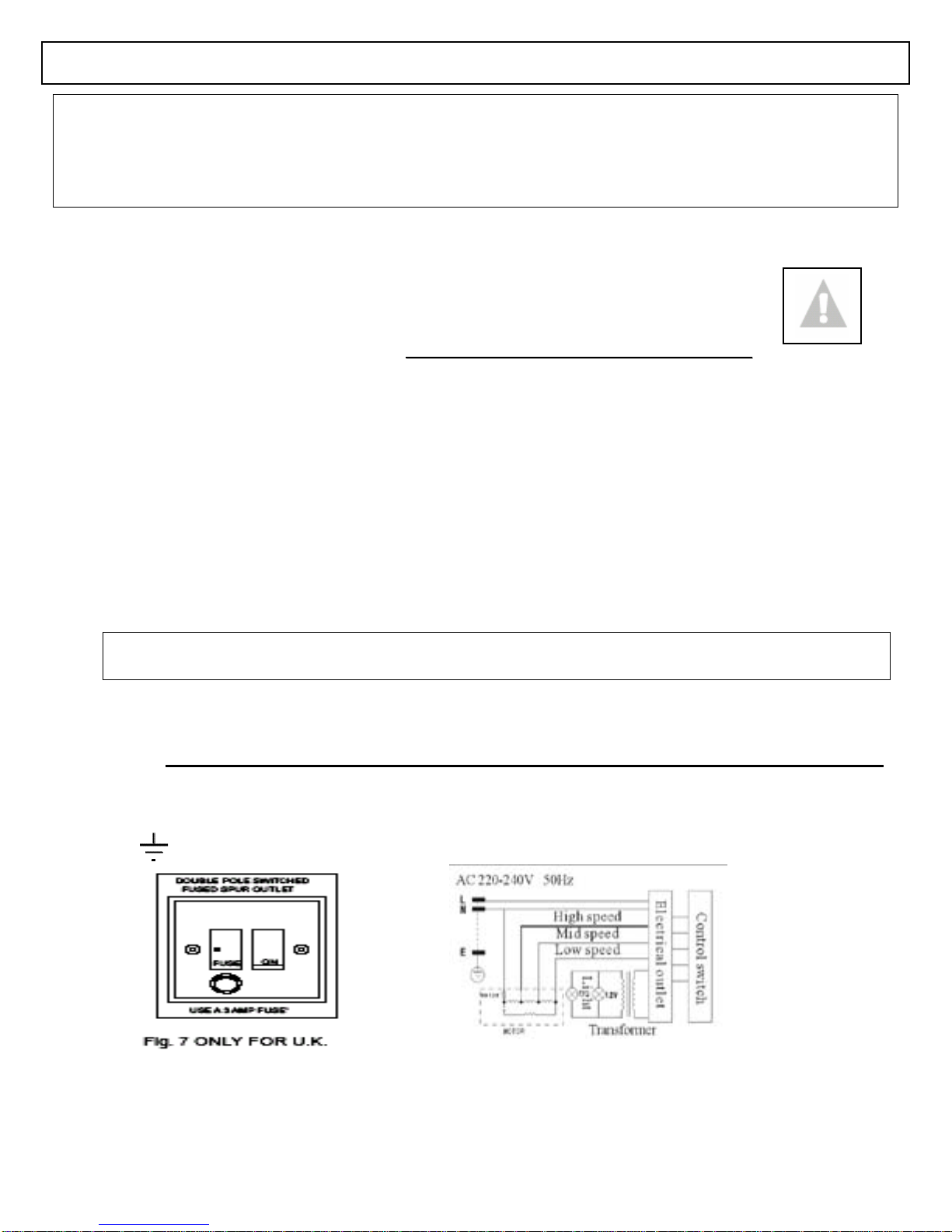

ELECTRICAL CONNECTION
Y
Yo ou ur r c co oo ok ke er r h ho oo od d i is s i in nt te en nd de ed d f fo or r f fi it tt te ed da an n
y in the event of failure to observe all the
necessary for normal use and regu
_______________________
d
d p pe er rm ma an ne en nt t i in ns st ta al ll la at ti io on n. .
oThe power cable must be
connected to the terminals
marked L (live) and N (neutral)
in the hood and fixed with a
cable clamp. distance of at least 3m
We recommend that the appliance is connected by a qualified electrician who is a member
of the N.I.C.E.I.C. and who will comply with the I.E.E. and local regulations. The wires in
the mains lead are coloured in accordance with the following U.K. code:
Blue= Neutral, Brown = Live, Green/Yellow = Ground
If you can only find two wires in the cable (blue and brown), neither mu t be
oThe cooker hood’s power cable
must be fitted upstream from the
electrical connection using an
omni-polar switch with a contact
s
connected to the Earth terminal!
ead may not ur
spur box, please proceed as follows:
•As the colours of the wires in the appliance’s mains l
correspond with the coloured markings identifying the terminals in yo
1) The BLUE WIRE must be connected to the terminal marked “N” (Neutral), or coloured Bla
2) The BROWN WIRE must be connected to the terminal marked “L” (LIVE), or coloured Red
3) The Green/Yellow wire must be connected to the terminal marked “E” or
ck
(Earth)(Fig 7 – at left) (Wire diagram-at right)
12

that at least
od.
NOTE: Your Baumatic Cooker Hood shou
NOT posi

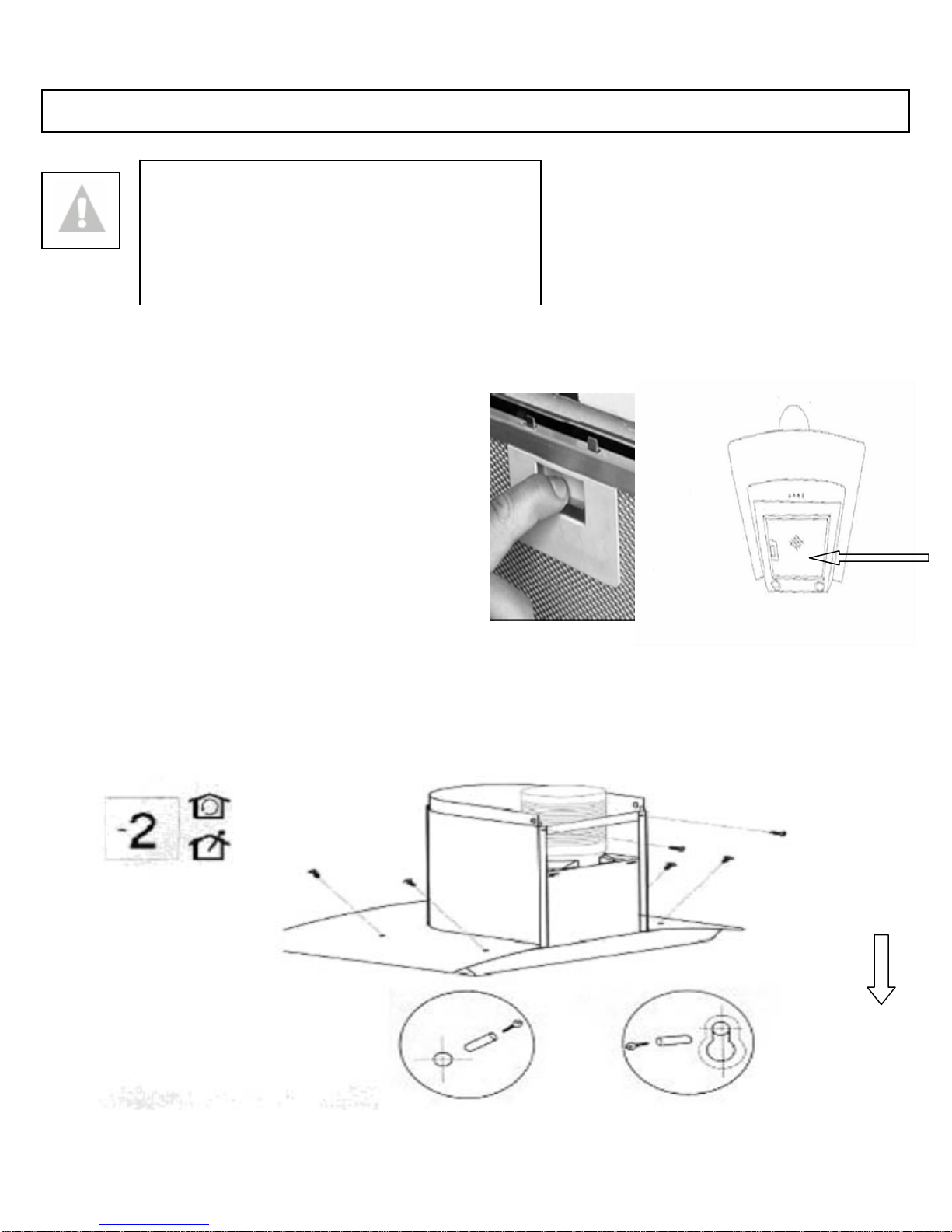

1) Remov
(S
INSTALLATION INSTRUCTIONS
–
Installin
g
y
our Cooker Hood
:
The cooker hood must not
be fitted above stoves with a
radiant top plate.
:
We recommend
two people install this ho
ld only be fitted on a wall. Do
tion it any less than 700 mm (70 cm) above the hob.
e the metal anti-grease filters
ee figure at right).
2) Position the hood against the wall and mark the position of the support
holes that are to be drilled as shown in the figure below. These support
holes can be found on Fig. 4 on next page marked as ‘D’ with the anchoring
holes marked as ‘E’ (Fig. 4 on next page). If you hood comes with an
make the marks for the screw holes.
attached jig, use that as a guide to
PLEASE NOTE THAT YOU WILL HAVE
TO DECIDE BEFORE INSTALLING YOUR
COOKER HOOD THAT YOU CAN ADAPT
IT AS AN EXTRACTION FAN. PLEASE
SEE PAGE 18 NOW TO UNDERSTAND
CRUCIAL DIFFERENCES IN THESE.
13

--------------------------------------------------------------------------

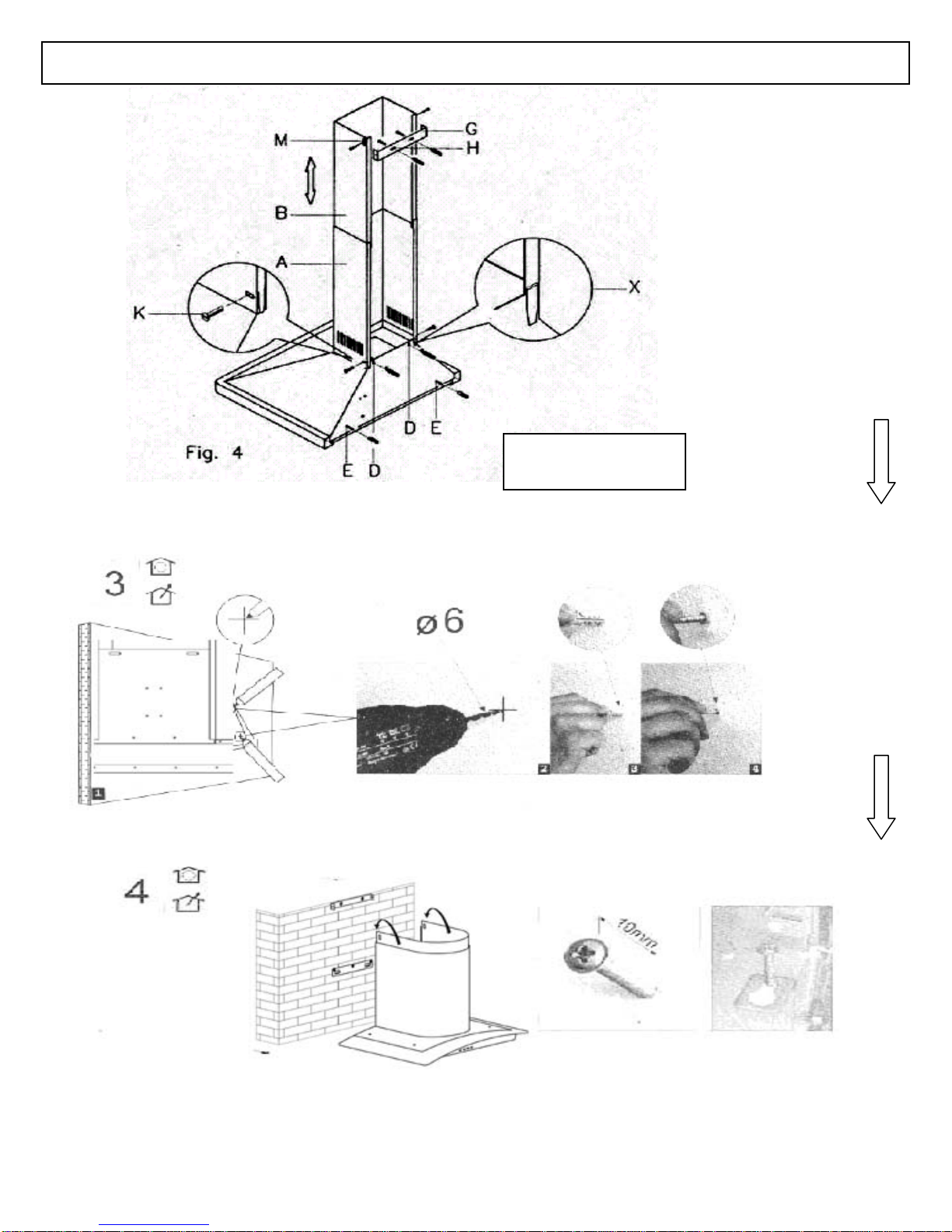

3) Using a drill bit with a 6 mm diameter, make holes in the wall where you have
marked these positions (see below).
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
4) Insert the expansion fixings (rawlplugs) in the holes and then screw the
support screws halfway in (see below figure, at right).

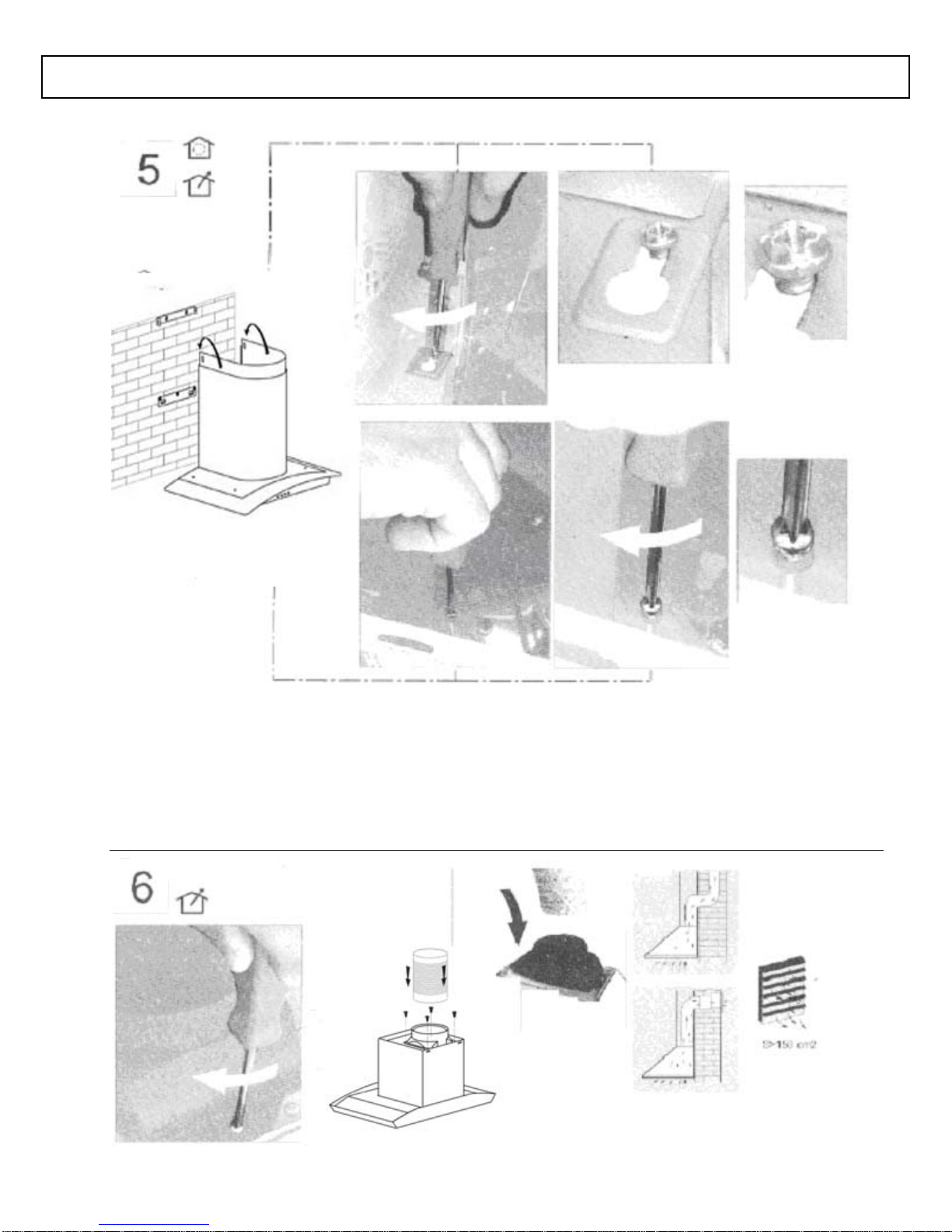

5) Hook the hood onto the screws (see above figure) and fasten it onto the
wall, tightening the support and anchoring screws the rest of the way in (next
page, at top.)
INSTALLATION INSTRUCTIONS – Attachin
g
the Hood
Rear view of your
cooker hood.
14

15
----------------- --------------------------------------------------------------------------
INSTALLATION INSTRUCTIONS – Attachin
g
the Hood
-------------------------------------------------------------------------------------------
6) (EXTRACTION FUNCTION ONLY) Connect the coupling to the top of the
cooker hood (see below). Then connect the discharge pipe to the coupling as
shown below. Remember that your ducting will have to match the
specifications shown in the notes on Extraction / Air Purifier (Recirculation)
Modes on p.18.

FITTING THE PIPE – Once your Cooker Hood has
been installed, you can now fit the pipe.

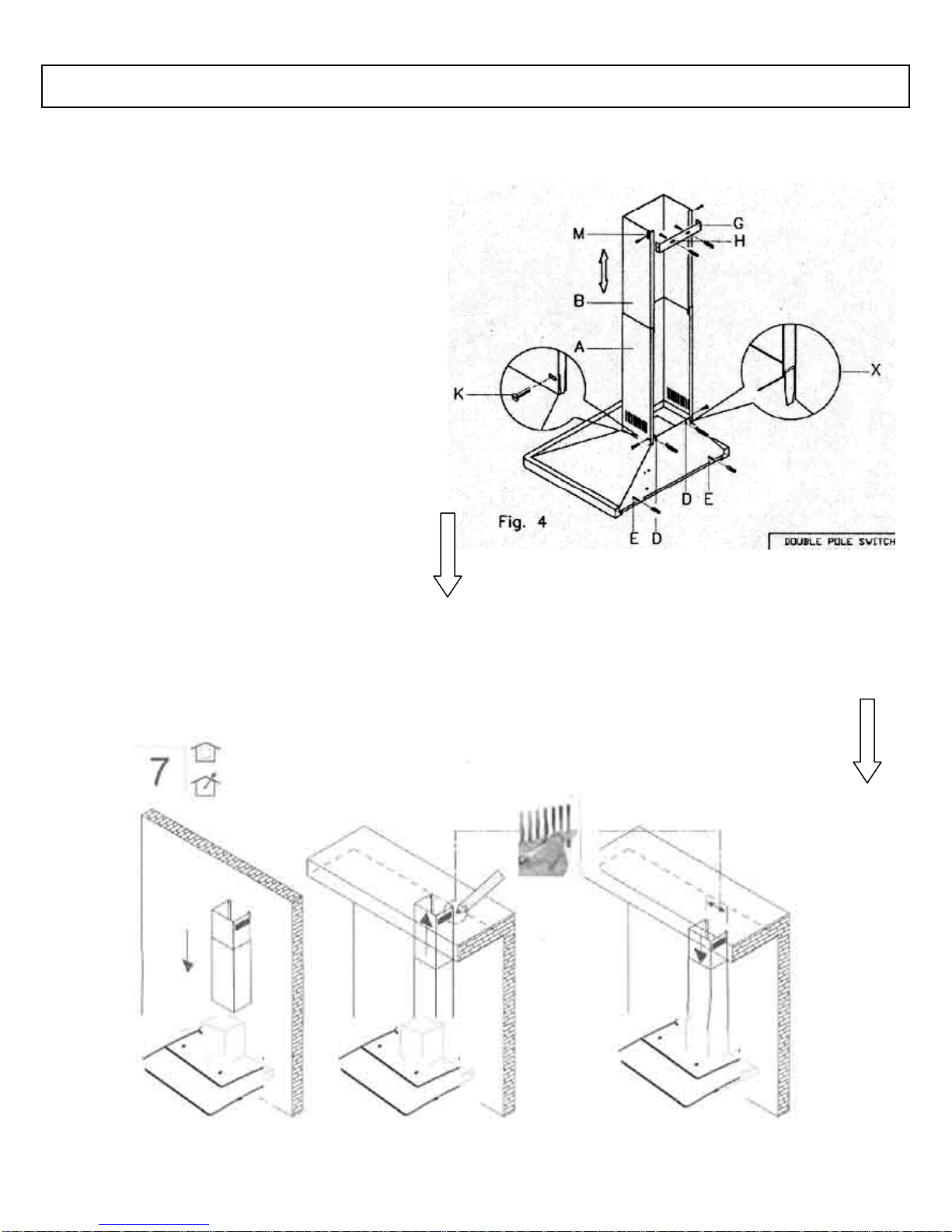

1) Take the two casings ‘A’ and ‘B’:
2) Rest the bottom of the casing ‘A’
on the top of the hood, taking
care to position the tabs of the
casing correctly on the back of
the hood as shown as part ‘X’ in
Figure 4 at right.
3) Fix casing ‘A’ onto the hood
using the two screws ‘K’
supplied in the bag of
accessories (Figure 4 – at right).
4) Lift the mobile part ‘B’ until it reaches the ceiling, checking
that it is perpendicular to the hood.
IN
5) Mark the side measurement of the mobile casing ‘B’ and then
lower it (see below).
STALLATION INSTRUCTIONS – Fittin
g
the Chimne
y
16

6) T
INSTALLATION INSTRUCTIONS – Fittin
g
the Chimne
y
w
coring holes
usly made (see below).
ake the fixing bracket ‘G’ (Fig. 4 – previous page), centre it
ith respect to the mark you previously made, keeping it in
ontact with the ceiling, and then mark the anch
(‘H’).
7) Using a drill bit with a 6m
fixing marks you previo m diameter, make two holes on the
8) Insert the expansion fixings (rawlplugs) provided, put brac
‘G’ (see Fig. 4 on previous page) in po ket sition and secure it with the
crews provided.
s
9) Lift casing ‘B’ up to the ceiling and secure it to the bracket ‘G’,
inserting the screws provided in the holes ‘M’ (Fig. 4 – previous
page).
17

2

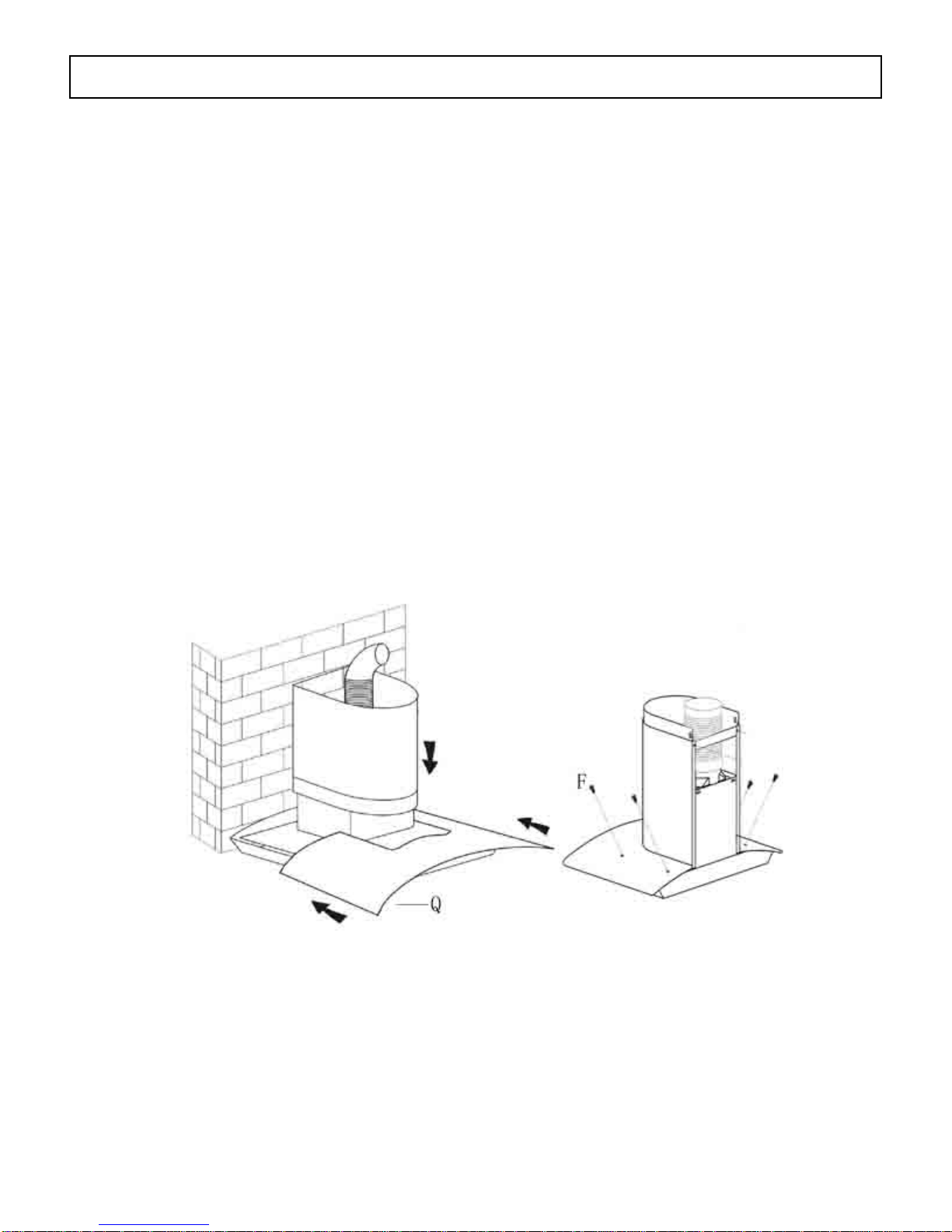

¾Remove the metal grease filters from the hood
¾Slac
ATTACHING THE GLASS
ken both anchoring screws “F”
in
¾Tightening the screws ‘F’ again in the hole and connecting
them to the unit.
¾Take care that the anchoring corner is firmly fastened,
tightening it well.
¾Re-insert the ventilation tube with the coupling tube ‘N’.
PLEASE NOTE * DO NOT OVERTIGHTEN THESE SCREWS OR YOU
MAY DAMAGE / DISTORT THE UNIT.
¾Place the glass ‘Q’ on the upper shelf of the hood, pushing it
towards the wall.
18

Extraction / Air Purifier Modes of O
p
eration
EXTRACTION OPERATION – Installation Instructions
ÂEnsure t
union (‘N’) to the upper part of the
hood usi
screws supplied inside the packing
(Fig. –
diamete
(N) on the od
(see F g. 1) to the discharge outlet
for cook
section of
ÂPLEASE NOTE: If there is no
discharg
be fitted
building, m ll
that i rge enough to fit a wind
and rain
section of at least 150 cm² and
conne
the u
hat you have fitted the
ng the packaged two
1 on right). Using a 125 mm
r pipe, connect the union
upper part of the ho
iing vapours with a cross-
at least 150 cm².
e outlet and the hood is to
to an outside wall of the
ake a hole in the wa
s la
-proof shutter with a cross
ct this to the outlet union of
nit by means of a pipe.
__________________________________________________________________________________________________________________________________________________________________________________________________________________________
.
AIR PURIFIER (RECIRCULATION) OPERATION - Installation
Instructions
The cooker hood can be
converted to work as an air
purifier in the event that there is
no provision for an external air
discharge duct.
In this case, air is recycled through
the vent ‘R’ (Fig. 1 – above). When
using the unit as an air purifier, you
need to install two active carbon
filters to absorb cooking vapours
(please see page 11).
Please note: For the extraction function, you
will need to connect a 125 mm diameter
outlet chimney to the spigot ‘N’ in fig. 1
above. This pipe is not provided with your
cooker hood. See fi
g
ure on left.
19
