User Manual for your Baumatic
STD6.1 Cooker Hood
11/07/05
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference.

2
YOUR COOKER HOOD’S SPECIFICATIONS ….……………..………….3
IMPORTANT SAFETY INFORMATION……………………………….…4-5
ENVIRONMENTAL NOTE ………….…………………………………………6
USING YOUR COOKER HOOD………………………………..……………..7
MAINTAINING AND CLEANING YOUR COOKER HOOD ……….8-10
INSTALLATION INSTRUCTIONS ……………………….……...….11-14
CARBON FILTER ………….……..11
ELECTRICAL CONNECTION………….………12
INSTALLING THE COOKER HOOD………….…13-14
TROUBLESHOOTING ……………………………………………15
CONDITIONS OF GUARANTEE……………………………………………16
CONTACT DETAILS…………………………………………………………..17
CONTENTS

3
Congratulations on purchasing a Baumatic Cooker
Hood!
To fully enjoy using your appliance long into the future,
please firstly familiarise yourself with its specifications,
safety advice and operational instructions included in this
manual. You will also need this manual to ensure that your
Cooker Hood has been installed properly.
Your cooker hood can work either as an extraction fan or as
an air recirculator. Whichever mode you choose, you will
need to bear in mind that the extractor calls for ducting (not
included) to be worked from the exhaust of your fan, while
the recirculation function will require the replacement of
carbon filters.
Please see the installation section of this manual for details.
DIMENSIONS
Width: 600 mm (at rear)
Depth: 485 mm (top); 540 (bottom)
Height: 150 mm
Your stainless steel Cooker Hood is fitted with:
•Slider control operation
•3 speeds
•1 light
Extraction capacity: 290 m³/hr
Optional Extra: 1 x UCF1 Carbon filter for air
recirculation.
Specifications of your STD6.1 Cooker Hood

4
o Any installation work must be
carried out by a qualified
electrician or competent person.
o The hood must be installed in
accordance with the installation
instructions and all measurements
followed.
oIf the cooker hood is installed
for use above a gas appliance then
the provision for ventilation must
be in accordance with the Gas
Safety Codes of Practice BS.6172,
BS.5440 & BS.6891 (Natural Gas)
and BS.5482 (LP Gas) 1994, the
Gas Safety (Installation & Use)
Regulations, the Building
Regulations issued by the
Department of the Environment,
the Building Standards (Scotland)
(Consolidated) Regulations issued
by the Scottish Development
Dptmt.
oIt is dangerous to alter the
specifications or to modify this
product in any way. Do not tamper
with it or attempt to alter it in the
attempt to customise it further.
oWhen installing the hood,
ensure that the following
recommended distances are being
observed between the cooker top
and the bottom of the cooker hood:
9Electric cookers:
700 mm
9Gas cookers:
700 mm
9Coal/ oil cookers:
800 mm
* NOTE - DO NOT SET YOUR
COOKER HOOD LESS THAN
700mm ABOVE YOUR COOKER!
oWhen installed between
adjoining wall cabinets,
the cabinets must not
overhang the hob and
their undersides must be
at least 50 mm off from
the hob edges.
oThe edges of the cooker
hood are sharp – be
mindful of this as you
handle your appliance,
especially during
installation and cleaning.
DO NOT CLEAN IN
BEHIND THE GREASE
FILTERS!
oIf the room where the
cooker hood is to be used
contains a fuel burning
appliance such as a
central heating boiler
then its flue must be of
the sealed or balanced
flue type.
oIf other types of flue or
appliances are fitted,
ensure that there is an
adequate supply of air in
the room.
oWhen the hood is being
used in its extractor
function, ensure that the
ducting is fire retardant
and that there are no
bends sharper than 90
degrees as this will
reduce the efficiency of
the hood.
Important Safety Information: Please Read this before installing & using.

5
oEnsure the ducting for
the extractor function
has the same diameter as
the outlet hole all the
way through.
o Keep young children from
using, playing with or
tampering with the
cooker hood. Older
children and infirm
persons should be
supervised if they are
using the cooker hood.
o Your cooker hood is for
domestic use only.
o Please dispose of the
packing material
carefully – children are
especially vulnerable to
it.
o Dirty oil is an even
greater fire risk.
o Always put lids on pots
and pans when cooking
on a gas cooker.
o The manufacturer
refuses to accept any
responsibility for
damages arising to the
hood or its catching on
fire from failure to
observe fire safety advice
in these instructions.
o Remember that when in
extraction mode, your
cooker hood is removing
air from your room.
Ensure that proper
ventilation measures are
being observed. Note
that it removes odours
from your room, not
steam.
oWarning - Always ensure
that the cooker hood has
been disconnected from
the power supply before
carrying out any work on
the hood, including
replacing light bulbs.
:Do not connect the
ducting system of this
appliance to any existing
ventilation system which
is being used for any
other purpose.
:Do not install above a
cooker with a high level
grill.
: Never leave frying pans
unattended during use as
overheated fats and oils
might catch fire.
: Do not leave naked
flames under the cooker
hood.
:Do not attempt to use
the cooker hood if it is
damaged in any way.
Never attempt to use it
without the grease filters
fitted or if the filters are
excessively greasy!
: Never flambé cook under
this cooker hood.
Important Safety Information: Please Read this before installing & using.

6
Note: Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any plug
useless. Cut the cable off directly behind the appliance to prevent
misuse. This should be undertaken by a competent person.

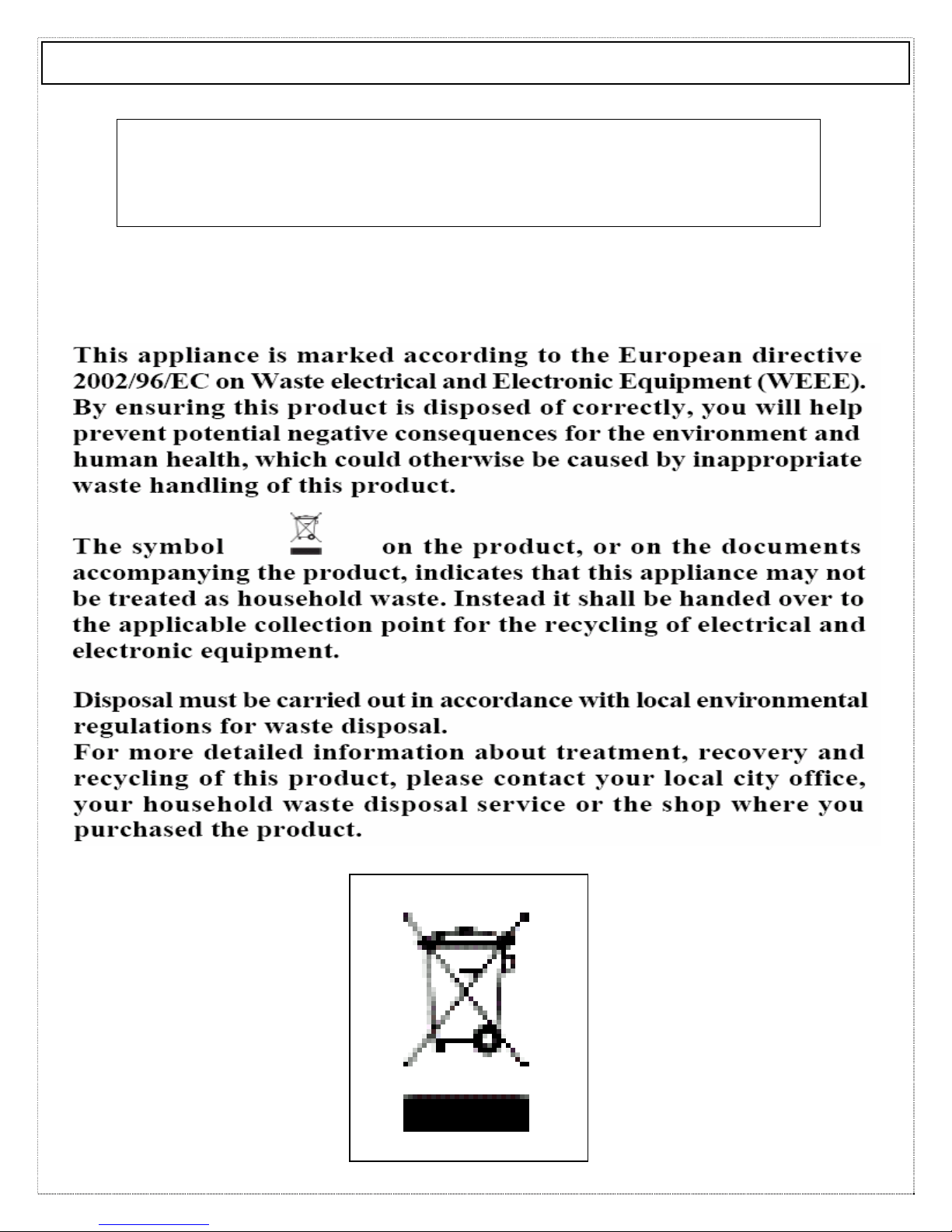

CONFORMITY TO W.E.E.E. DIRECTIVE
Environmental Note

7
To use your cooker hood:
1) Make sure it has been properly installed.
2) Find the CONTROL PANEL. It is located on the hood’s front
surface near the upper right corner of the unit.
3) The CONTROL PANEL contains switches as shown in the Figure below.
These perform separate functions. You will need to understand what
both switches do before you attempt to use your cooker hood.
* Note: The hood should be switched on at least as soon as you start
cooking.
MOTOR ON /OFF switch – the ‘ ’ switch (‘A’ in figure above) turns the motor
on and off and adjusts its speed. There are three speeds. Pushing the switch to
the right increases the speeds from ‘0’ (off) to ‘3’ (high).
Motor Operation Pilot light - ‘B’ in the figure above.
LIGHT ON/OFF switch - Pressing the ‘ ’ switch (‘C’ in figure above) turns your
cooker hood’s light on and off.
PLEASE NOTE THAT YOUR BAUMATIC COOKER HOOD CAN BE
USED EITHER IN RECIRCULATION MODE OR IN EXTRACTION
MODE. TO USE IN RE-CIRCULATION MODE, YOU WILL NEED TO
FIT THE CARBON FILTER.
Usin
g
y
our Baumatic Cooker Hood:
Your Cooker
Hood’s
Control Panel

8
* IMPORTANT!: Before cleaning, always ensure that you
have switched your cooker hood OFF at the omni-polar
switch, set at the wall from the cable:
Cleaning
ÂClean the external parts with
mild liquid detergents on a
damp cloth.
ÂNever use abrasive powder,
corrosive solvents or brushes.
ÂNever insert pointed objects
into the motor’s protective grid.
ÂOnly clean the control panel
and filter grill with a damp
cloth and delicate detergents.
ÂBe sure to replace the
carbon filters at the
recommended intervals.
Build up could cause a
fire hazard.
ÂNever take out the
grease filters and
attempt to clean the
space above where they
are set.
________________________________________________
Anti-Grease Grille
ÂYour cooker hood includes an anti-grease grille
which helps absorb vapour-suspended grease
particles to protect your kitchen & furniture from
greasy residues.
ÂThe metal grille may become inflammable if it
becomes saturated with greasy residue.
9To prevent this fire hazard, the grille should be
cleaned regularly (depending on use) every 10-15
days and at least every three months in a dishwasher
or in hot water with normal washing-up detergent.
Cleanin
g
y
our Baumatic Cooker Hood:

9

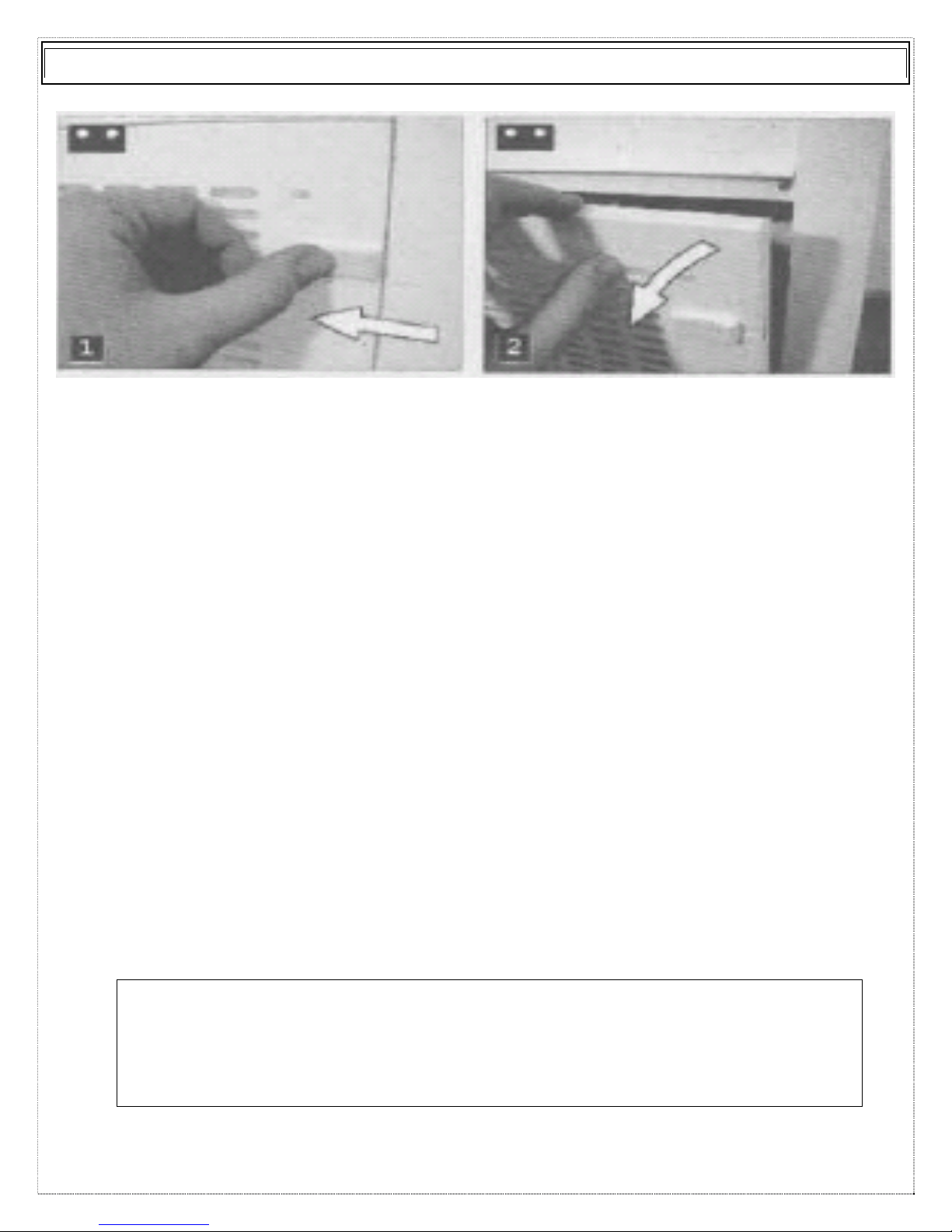

First remove the anti-
grease filter by sliding the
securing nibs at the sides
of the grille on the
underside of the hood.
You can now clean
the anti-grease grille:
To clean the grille by hand:
9Soak it for about one hour in
hot water with a grease-
loosening detergent then rinse off
thoroughly with hot water.
9Repeat the process if needed.
Refit the grease grille once it has
dried.
To clean the grille in your
dishwasher:
1) Place the grease grille in the
dishwasher. Select the most
powerful washing programme and
highest temperature. Repeat the
process if necessary.
2) Refit the grease grille when it is
dry. Do not worry about the slight
discolouration of the grille – its
performance won’t be affected.
DISCOLOURATION OF THE GREASE
FILTER CAN TAKE PLACE WHEN
CLEANED IN A DISHWASHER. THIS IS
NORMAL.
•NOTE - After carefully rinsing and drying the anti-
grease grille, put it back in place. Never put it back
in wet!
•Never attempt to use your Cooker hood without the
grease filter grille in place!
Maintenance - Cleaning the Anti-grease Filters

10
a) Changing the light bulb
9Before changing the light bulb, ensure that the appliance is not
live (i.e., ensure that you have switched it off at the omni-polar switch on
the wall switch plate).
9Open the grease filter support grille (see previous page).
9Find the bulb in its position.
9Change the bulb using only olive-shaped spares with an E14
coupling, max. 40W.
* PLEASE NOTE - Defective bulbs should be replaced
immediately.
9Replace the grease filter support grille.
Maintenance – Chan
g
in
g
the Li
g
ht Bulb

11

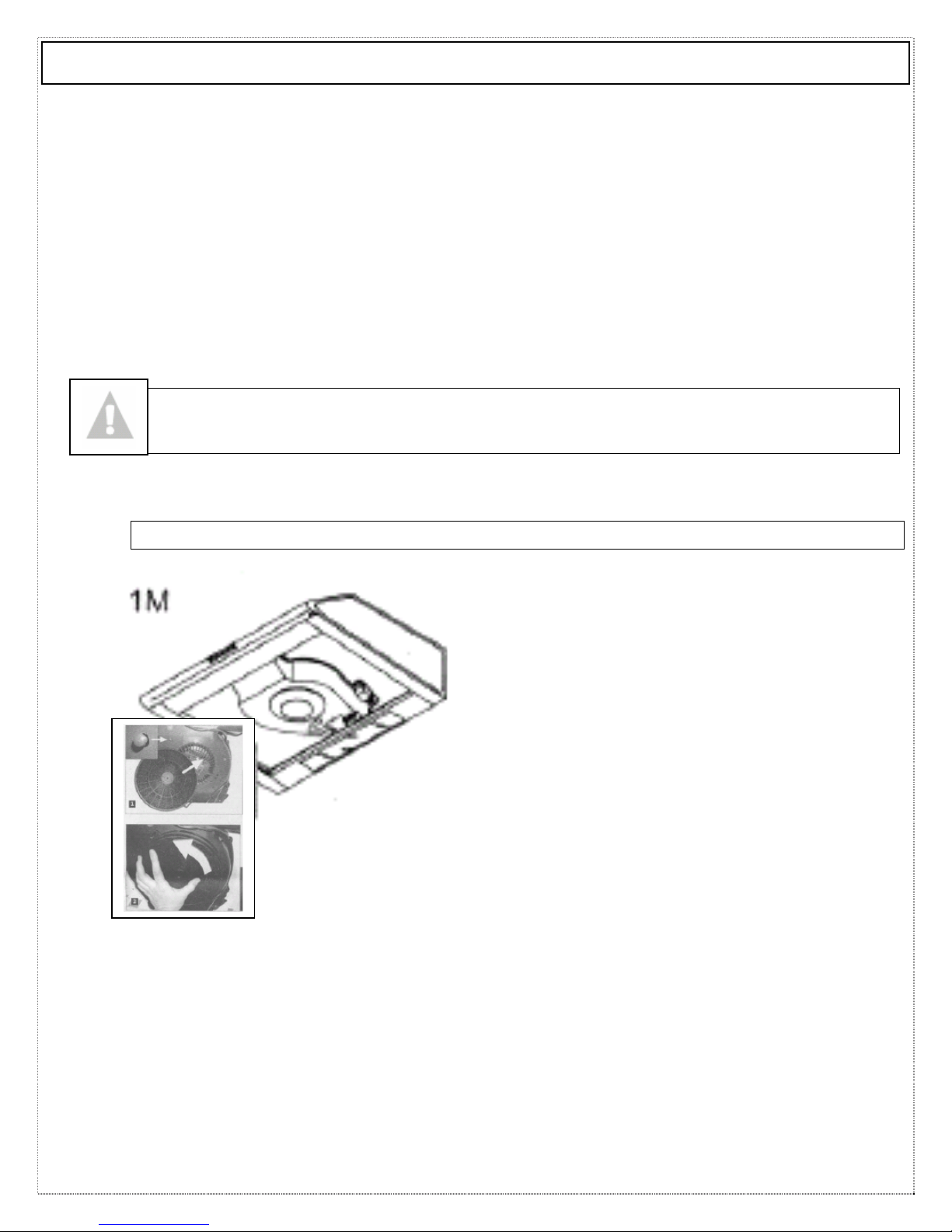

Your Baumatic Cooker Hood uses a CARBON FILTER to
purify the air for the air recirculation function.
You will find that one filter will attach over the front of the
fan motor (please see figure at bottom of page).
The active carbon filter must be replaced regularly, at least once
every three months, to allow normal operation.
B
Be ef fo or re e s st ta ar rt ti in ng g t to o f fi it t t th he e c ca ar rb bo on n f fi il lt te er r, , t tu ur rn n t th he e o om mn ni i- -
p
po ol la ar r s sw wi it tc ch h ( (w wh he er re e c ca ab bl le e m me ee et ts s w wa al ll l p pl la at te e) ) O OF FF F. .
To change the Carbon Filter
1) Remove the metal grease filter
grille (see page 9).
2) Take carbon filter and extract
centre peg on it about 10mm. (If
changing, remove the old carbon
filter by rotating it until it
unlatches from the sides of the
motor).
3) Place the new carbon filter over
the motor bracket, making sure
that the centre button fits exactly
into the hole on the bracket. Press
lightly until it snaps into place
then insert the centre peg.
4) Replace the anti-grease
filter grille.
Installin
g
/ Chan
g
in
g
the Carbon Filter

12
Before installation and usage, read all the instructions and make sure that the
voltage (V) and the frequency (Hz) indicated on the identification plate (found
inside your Cooker Hood) and all the data inside the appliance are exactly the
same as the voltage and frequency in your home.
NOTE: The manufacturer declines all responsibility in the event of failure to observe all the
accident-prevention regulations in force which are necessary for normal use and regular
operation of the electric system.
______________________________________________
ELECTRICAL CONNECTION
Y
Yo ou ur r c co oo ok ke er r h ho oo od d i is s i in nt te en nd de ed d f fo or r f fi it tt te ed d a an nd d p pe er rm ma an ne en nt t i in ns st ta al ll la at ti io on n. .
oThe power cable must be
connected to the terminals
marked L (live) and N (neutral)
in the hood and fixed with a
cable clamp.
oThe cooker hood’s power cable
must be fitted upstream from the
electrical connection using an
omni-polar switch with a contact
distance of at least 3mm.

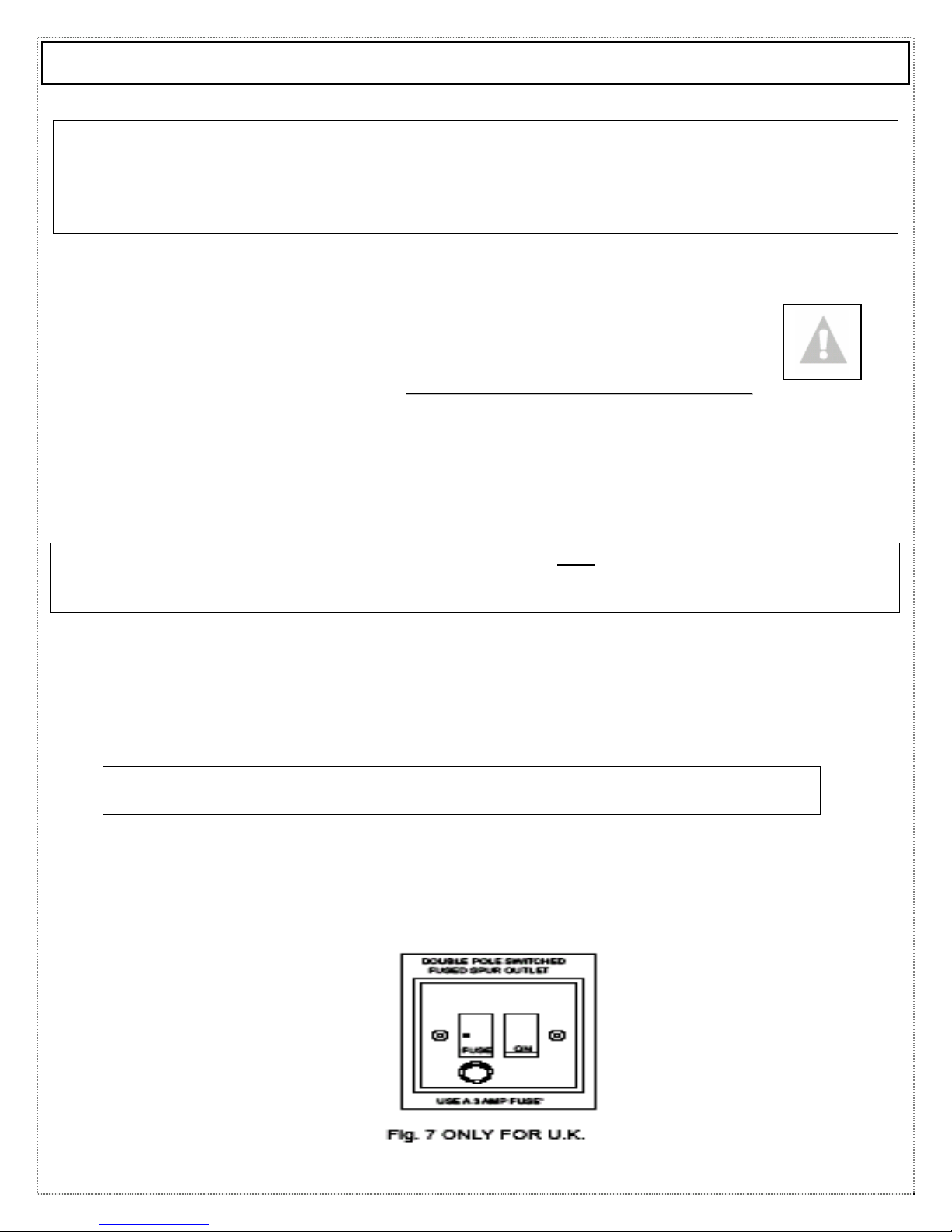

NOTE: (UK only) WARNING – THIS APPLIANCE MUST NOT BE EARTHED. It should only be
connected by a competent person using fixed wiring via a DOUBLE POLE SWITCHED FUSED
SPUR OUTLET.
We recommend that the appliance is connected by a qualified electrician who is a member
of the N.I.C.E.I.C. and who will comply with the I.E.E. and local regulations. The wires in
the mains lead are coloured in accordance with the following U.K. code:
Blue= Neutral, Brown = Live, Green / Yellow = Ground
If you can only find two wires in the cable (blue and brown), neither must be
connected to the Earth terminal!
•As the colours of the wires in the appliance’s mains lead may not
correspond with the coloured markings identifying the terminals in
your spur box, please proceed as follows:
__________________________________________________________
1) The BLUE WIRE
must be connected
to the terminal
marked ‘N’
(Neutral), or
coloured Black.
2) The BROWN
WIRE must be
connected to the
terminal marked
‘L’ (‘Live’), or
coloured RED
(Fig. 7 – at left)
INSTALLATION INSTRUCTIONS - Electrical

13
: The cooker hood must not
be fitted above stoves with a
radiant top plate.
:
We recommend that at least
two people install this hood.
Your Baumatic Cooker Hood should only be fitted on a wall on the underside
of a cabinet unit.
Do NOT position it any less than 700 mm (70 cm) above the hob.
Before Installing, Remove the metal anti-grease filter (see page 9).
NOTE: Y OU HAVE THE CHOICE OF FITTING YOUR COOKER HOOD TO A DUCTING HOLE THAT WILL
EITHER GO ABOVE YOUR COOKER HOOD OR BEHIND IT . (E)
WALL INSTALLATION

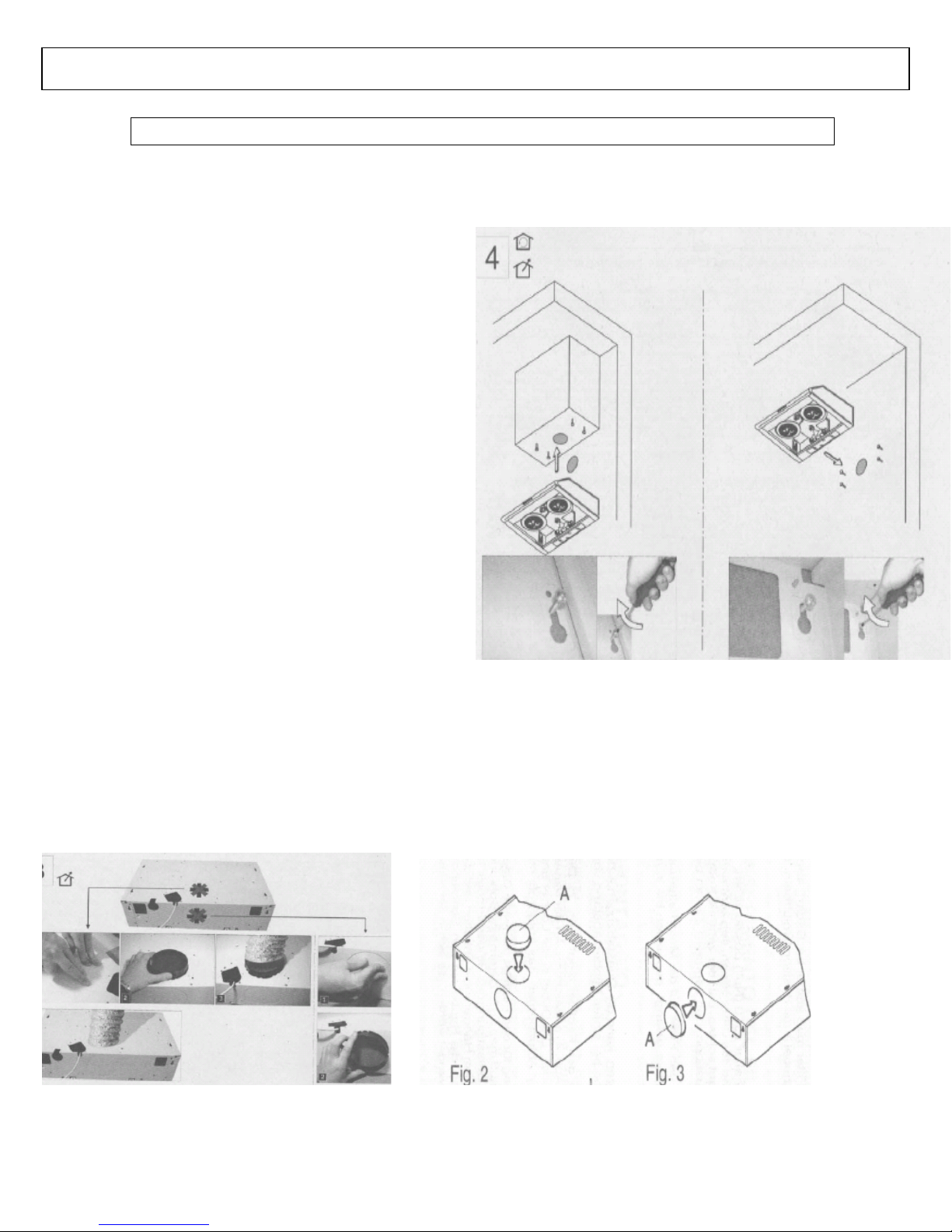

1) Position the hood against the wall and mark the positions for the
supporting bracket bolt holes (see Fig. 4 below) of the exhaust hole (this
hole must be 130mm in diameter).
2) Drill these holes into the wall using a 6 mm diameter drill bit. If you
intend to use your Cooker Hood as an extraction fan, you will need to fit
a ducting kit through this that will connect to your appliance.
3) Insert the rawlplugs into the holes and then insert the top screws
part way, so that the screws stick out by 10mm.
4) Hang the hood up on the screws. Insert the bottom screws.
5) Tighten the screws the rest of the way in.
6) (E) For the extraction function, connect the exhaust outlet pipe to
the collar strip. Find the screw holes in the top and rear of the
cooker hood. Tighten the bolts from inside the hood.
INSTALLATION INSTRUCTIONS
–
installin
g
y
our Cooker Hood
PLEASE NOTE THAT YOU WILL HAVE TO
DECIDE BEFORE INSTALLING YOUR
COOKER HOOD WHETHER YOU WANT IT
AS AN EXTRACTION FAN! THE
INSTRUCTIONS FOR EXTRACTION FAN
MODE WILL BE MARKED ‘(E)’ BELOW
ALL SCREWS,
RAWLPLUGS,
ETC. COME
WITH YOUR
COOKER HOOD!

14
7)
KITCHEN UNIT / UNDERSIDE OF CABINET INSTALLATION
NOTE: Ensure that the grease filter grille has been removed.
1) (E) – Extraction Function only If you
are using the top exhaust outlet
(meaning that you have plugged the
rear one), first cut a hole measuring
130mm in diameter in the floor of the
cupboard into which the hood will be
set (see Fig. 2, bottom centre of page)
so that the collar strip can be fastened.
2) If necessary, make a hole for the power
cable to feed through.
3) Hold the hood against the underside of
the hood and mark the points for the
supporting and fastening holes.

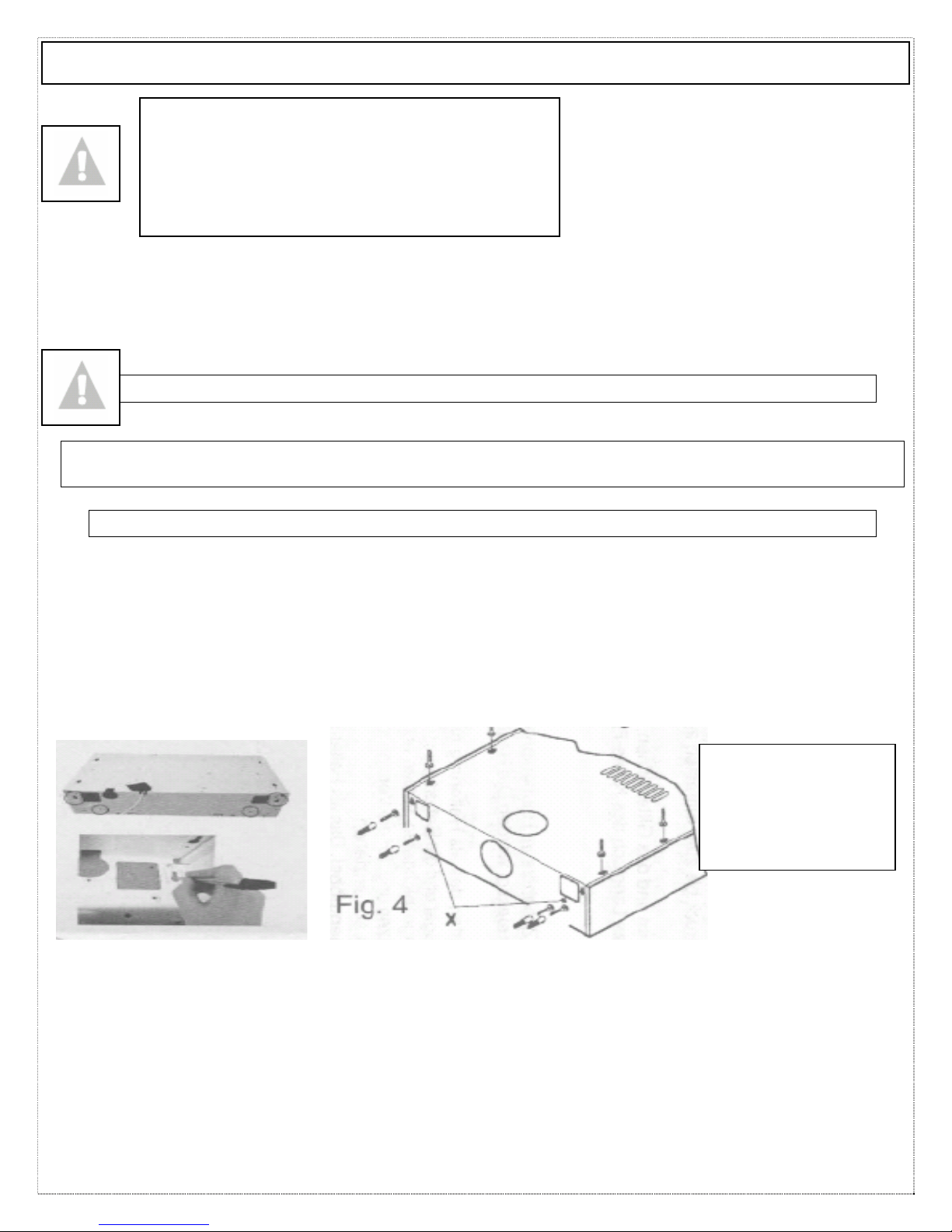

4) Screw in the four screws supplied with
the installation accessory kit.
5) Hook the hood onto the supporting
screws and tighten them completely
(Fig. 4 – on right). Alternatively, use
the attachment holes near the previous
ones.
__________________________
6)
7)
6) Close the grease filter grille.
NOTE: For the Extraction fan mode, you will need to decide which exhaust port will be
used – rear or top. If you want to connect the rear one, you will need to press in the
metal cover of the top port and then cover it with the collar strip (‘A’ in figure 2 -
below, centre).
If you want to connect the top exhaust port, you will need to press in the metal cover
on the back and then apply the collar strip there instead (‘A’ in Fig. 3 – above, right).
INSTALLATION INSTRUCTIONS
–
installin
g
y
our Cooker Hood

15
If something has gone wrong with your Cooker Hood, checking
against this chart might keep you from having to call for service.
Symptom Solution
The cooker hood will not start!
•Check that the hood is connected
to the electricity supply.
•Check that the fan speed control is
set properly.
The cooker hood is not working
effectively!
•The fan speed is not set high enough.
•The grease filter is dirty.
•The kitchen is not ventilated well
enough.
•If the hood is set for recirculation,
check that the carbon filters have not
expired.
•If the hood is set for extraction, check
that the ducting and outlets are not
blocked.
The cooker hood has switched off
during operation!
•The safety cut-out device has been
tripped.
•Turn off the hob and then wait for the
device to reset.
•Note that if you have installed your
cooker hood too low, this will happen.
If it happens frequently, it will be
damaged.
Troubleshootin
g

16
BAUMATIC LTD. - CONDITIONS OF GUARANTEE.
Dear Customer,
The conditions of guarantee which apply to your Baumatic appliance are as follows: This product is
guaranteed for 12 months from the date of original purchase.
Baumatic Ltd will repair any defect that arises due to faulty materials or workmanship free of charge
during this period.
In addition, your appliance is covered by a 5 year parts warranty. Baumatic Ltd will provide free of charge
the parts required to repair the appliance, only if they are fitted by a Baumatic engineer, for any defect
that arises due to faulty materials or workmanship within a period of 5 years from the original purchase
date.
An additional and annually renewable insurance scheme for labour is available should you wish to extend
the warranty period.
Should any person other than an authorised representative of Baumatic Ltd interfere with the appliance,
the policy is negated and Baumatic Ltd will be under no further liability.
The guarantee covers the appliance for normal domestic use only, unless otherwise stated.
Any claims made under the terms of the guarantee must be supported by the original invoice/bill of sale
issued at the time of purchase.
This guarantee is transferable only with the written consent of Baumatic Ltd.
If the appliance fails and is considered either not repairable or uneconomical to repair between twelve
months and five years from purchase date, a free of charge replacement will not be offered.
The guarantee for any replacement will only be for the remainder of the guarantee on the original product
purchased.
This guarantee does not cover:
1Sinks and taps
2Failure to comply with the manufacturer’s instructions for use.
3The replacement of cosmetic components or accessories.
4Accidental damage or wilful abuse.
5Subsequent loss or damage owing to the failure of the appliance or electrical supply.
6Incorrect installation.
7Losses caused by Acts of God, civil war, failure to obtain spare parts, strikes or lockouts.
8Filters, fuses, light bulbs, external hoses, damage to bodywork, paintwork, plastic items, covers,
baskets, trays, shelves, burner bases, burner caps, decals, corrosion, rubber seals, refrigeration
system blockage.
In the course of the work carried out it may be necessary to remove the appliance from its operating
position. Whilst all reasonable care will be taken, Baumatic Ltd cannot accept responsibility for damage
sustained to any property whatsoever in this process.
This guarantee is in addition to and does not diminish your statutory or legal rights.
Contacting Baumatic.
SALES
TEL: [phone]
FAX: [phone]
SERVICE
TEL: [phone]
FAX: [phone]
SPARES
TEL: [phone]
FAX: [phone]
TECHNICAL / ADVICE
TEL: [phone]
FAX: [phone]
For mainland UK and Northern Ireland, please contact one of the above numbers for further information or
any other query you may have.
For ROI (Republic of Ireland), please contact one the numbers below:
TEL: [phone] FAX: [phone]
Thank you for buying Baumatic.

17
Baumatic Ltd
Make-up for your kitchen
Headquarters
Baumatic Ltd.
Baumatic Buildings,
6 Bennet Road,
Reading,
Berkshire
RG2 0QX, United Kingdom
Sales Telephone
[phone]
Sales Fax
[phone]
Service Telephone
[phone]
Service Fax
[phone]
Spares Telephone
[phone]
Technical / Advice Telephone
[phone]
E-mail:
[email protected].uk
[e-mail]
Http (Internet site):
www.baumatic.com
Baumatic UK/cod. 1230000666

18

19
