User Manual for your Baumatic
OMBRA3.1SS/BL/R/W
P36BGL/P36SS/TG8
Cooker Hood
90cm Cooker Hood
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
GS 04/11/10
2

3
Contents Page
Environmentalnote 4
IMPORTANT SAFETY INFORMATION 5 – 7
Specifications of your cooker hood 8 - 9
Using your Baumatic cooker hood 9 - 11
Thecontrolpanel 9
Settingthetimeofday 10
Switching the cooker hood on and setting the fan speed 10 – 11
Thecutofftimer 11
Cleaning your Baumatic cooker hood 11 - 12
The grease filters 12
Maintenance 13 - 17
Removing and cleaning the grease filter 13 - 14
Changingalightbulb 14-15
Fitting the carbon filter 16 - 17
Installation 17 - 28
Electricalconnection 18
Before beginning installation 19
Extraction mode or recirculation mode? 20
Installing your cooker hood 21 - 23
Connecting to external ducting 24
Chimney section dimensions 24
Fitting the chimney 25 – 27
Completing the installation 28
Troubleshooting 28 - 29
Contactdetails 30

ENVIRONMENTAL NOTE
Note: Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any
plug useless. Cut the cable off directly behind the appliance to
prevent misuse. This should be undertaken by a competent
person.
CONFORMITY TO W.E.E.E. DIRECTIVE
4

IMPORTANT SAFETY INFORMATION
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If
you are unsure of any of the information contained in
this booklet, please contact the Baumatic Advice Line.
IMPORTANT: Any installation work must be
carried out by a qualified electrician or
competent person.
oThe hood must be installed in accordance with the installation
instructions and all measurements followed.
oIf the cooker hood is installed for use above a gas appliance then
the provision for ventilation must be in accordance with the Gas
Safety Codes of Practice BS.6172, BS.5440 & BS.6891 (Natural
Gas) and BS.5482 (LP Gas) 1994, the Gas Safety (Installation &
Use) Regulations, the Building Regulations issued by the
Department of the Environment, the Building Standards
(Scotland) (Consolidated) Regulations issued by the Scottish
Development Department.
oIt is dangerous to alter the specifications or to modify this
product. Do not tamper with it or attempt to modify the
appliance in any way.
oWhen installing the hood, ensure that the following
recommended distances are observed between the highest point
on the hob top (including the burners) and the bottom of the
cooker hood:
¾Electric cookers: 700 mm
¾Gas cookers: 700 mm
¾Coal/ oil cookers: 800 mm
IMPORTANT: DO NOT SET YOUR COOKER HOOD LESS
THAN 700mm ABOVE YOUR COOKER.
oWhen installed between adjoining wall cabinets, the cabinets
must not overhang the hob.
5

oThe edges of the cooker hood are sharp – be mindful of this as
you handle your appliance, especially during installation and
cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTERS!
oIf the room where the cooker hood is to be used contains a fuel
burning appliance such as a central heating boiler then its flue
must be of the sealed or balanced flue type.
oIf other types of flue or appliances are fitted, ensure that there is
an adequate supply of air in the room.
oWhen the hood is being used in its extractor function, ensure
that the ducting is fire retardant and that there are no bends
sharper than 90 degrees as this will reduce the efficiency of the
hood.
oEnsure the ducting for the extractor function has the same
diameter as the outlet hole all the way through.
oKeep young children from using, playing with
or tampering with the cooker hood. Older
children and infirm persons should be
supervised if they are using the cooker hood.
oYour cooker hood is for domestic use only.
oPlease dispose of the packing material carefully – children are
especially vulnerable to it.
oDirty oil is an even greater fire risk.
oAlways put lids on pots and pans when cooking
on a gas cooker.
oThe manufacturer refuses to accept any responsibility for
damages arising to the hood or it catching on fire, from a failure
to observe the fire safety advice contained in this instruction
booklet.
6

oRemember that when in extraction mode, your cooker hood is
removing air from your room. Ensure that proper ventilation
measures are being observed.
oNote: Your cooker hood is designed to remove cooking
odours from the room and not steam.
oWarning - Always ensure that the cooker
hood has been disconnected from the
power supply before carrying out any work
on the hood, including replacing light bulbs.
oDo not connect the ducting system of this appliance to any
existing ventilation system which is being used for any other
purpose.
oDo not install above a cooker with a high level grill.
oNever leave frying pans unattended during use
as overheated fats and oils might catch fire.
oThe lights on this appliance should only be used during operation
of the cooker hood. They should not be left on permanently and
used as a lighting source.
oThe cooker hood should not be exposed to a direct heat source
from the cooking device underneath it, i.e. a naked flame from a
gas burner or heat from electric hob zones without a pan on
them.
oDo not attempt to use the cooker hood if it is damaged in any
way. Never attempt to use it without the grease filters fitted or
if the filters are excessively greasy!
oNever flambé cook under this cooker hood.
THE MANUFACTURER DECLINES ALL
RESPONSIBILITY IN THE EVENT OF FAILURE TO
OBSERVE THE INSTRUCTIONS GIVEN HERE, FOR
INSTALLATION, MAINTENANCE AND SUITABLE
USE OF THE HOOD.
7

Specifications of your cooker hood
Congratulations on purchasing a Baumatic cooker hood!

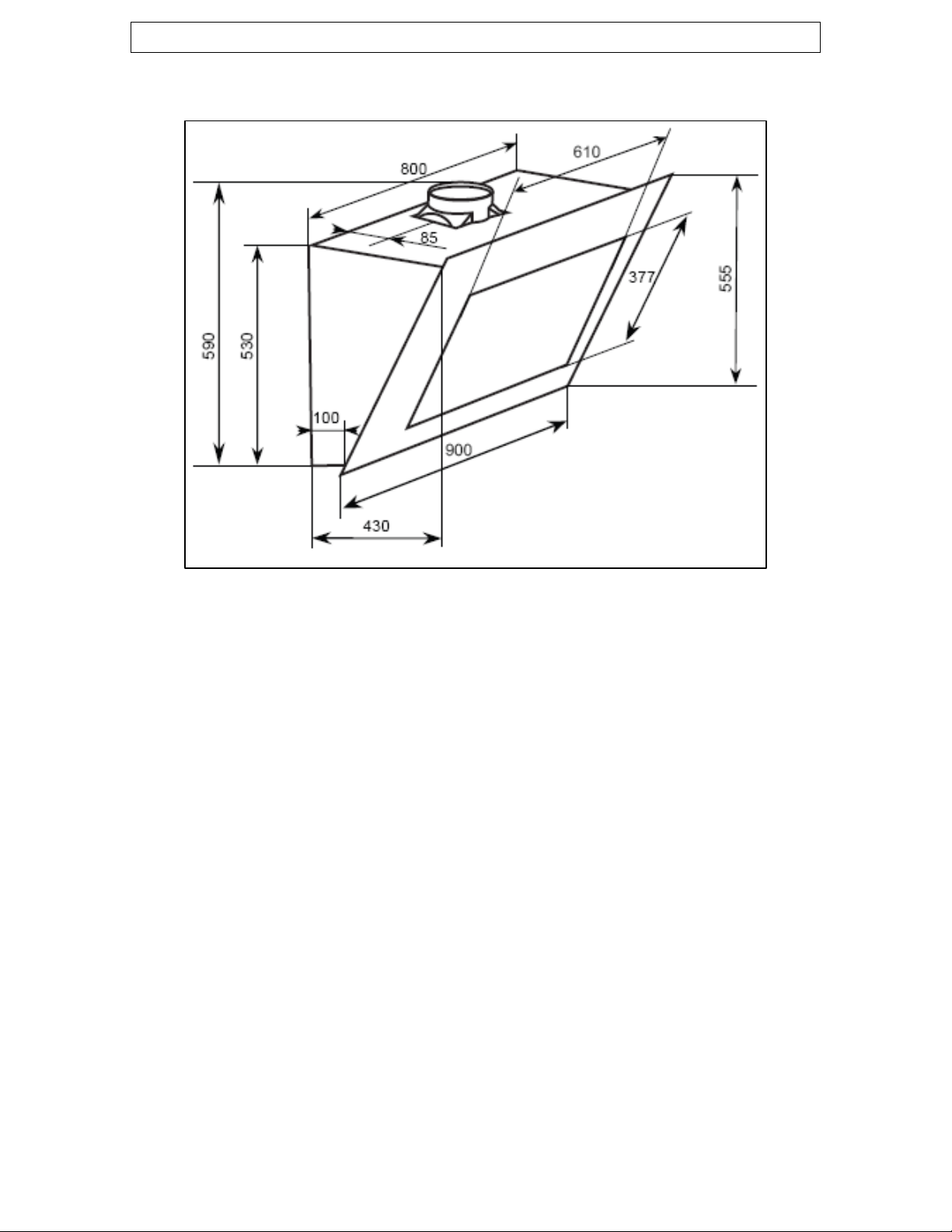

PRODUCT DIMENSIONS
Height: 590 mm
Height: 1030 – 1510 mm (with chimney)
Width: 900 mm
Depth: 430 mm
DIMENSIONS OF CHIMNEY SECTION:
Height: 500 – 980 mm
Width: 303 mm
Depth: 275 mm
Your cooker hood is fitted with:
oTouch control operation
(OMBRA3.1SS/BL/R/W/ P36BGL /TG8)
oElectronic pushbutton operation (P36SS)
o3 Speeds
o2 x Aluminium grease filters
oCut-off timer
o2 x LED lights
8

oExtraction capacity: 1000 m³/hr
oOptional extras: 1 x pair S1 Carbon filters required for
recirculation
1 x CQ4SS Decorative chimney covers
* If you are using the appliance in recirculation mode, then PLEASE
NOTE that some of the vent in the upper chimney section must be
exposed. You will have to take this into account when calculating the
minimum height of the cooker hood when installed.
Using your Baumatic cooker hood
The control panel
oMake sure that it has been installed by a suitably qualified
person, as per the information contained in Baumatic’s
installation instructions.

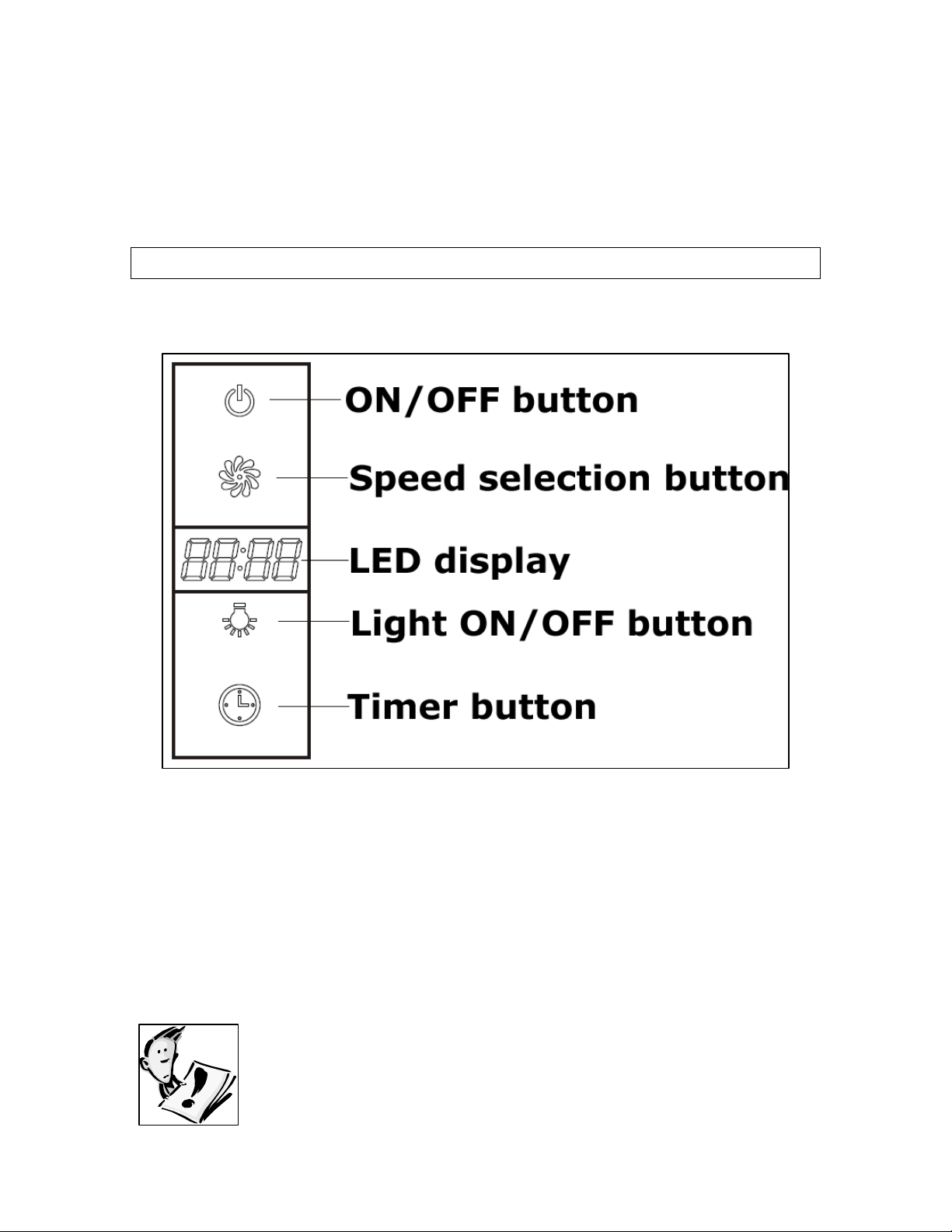

oFind the control panel, which is located at the front right hand
side of the canopy.
oThere are several buttons on the control panel, which perform
separate functions.
IMPORTANT: IDEALLY YOU SHOULD TURN ON YOUR
HOOD TEN MINUTES BEFORE YOU START TO COOK.
OR AT THE VERY LEAST WHEN YOU BEGIN COOKING.
YOU SHOULD ALSO RUN YOUR HOOD FOR TEN
MINUTES AFTER YOU HAVE FINISHED COOKING.
9

10
Setting the time of day
IMPORTANT: After the cooker hood is connected to the power
supply, the time of day should be set. However it is only possible to
set the time if the light is not switched on and the cooker hood fan
is not running.
oPress and hold the timer button until the hour digits of the LED
display flash.
oUse the speed selection button to increase the hour number
shown on the LED display or the light ON/OFF button to decrease
the hour number shown on the LED display.
oIf “23” appears on the LED display, the speed selection will no
longer operate and if “00” appears on the LED display, the light
ON/OFF button will no longer operate.
oWhen the correct hour digits appear on the LED display, press
and hold the timer button until the minute digits of the LED
display flash.
oUse the speed selection button to increase the minute number
shown on the LED display or the light ON/OFF button to decrease
the minute number shown on the LED display.
oIf “59” appears on the LED display, the speed selection will no
longer operate and if “00” appears on the LED display, the light
ON/OFF button will no longer operate.
oWhen the correct minute digits appear on the LED display, press
the timer button for a third time to confirm the time of day.
Switching the cooker hood on and setting the fan speed
oPress the ON/OFF button to switch the cooker hood on.
oUse the speed selection button to regulate the speed that the
motor is running at. The motor will run at the following speeds:-
One push - Low speed
Two pushes - Medium speed
Three pushes - High speed
oIf you press the speed selection button for a fourth time, then
the motor will return to running at low speed.
oTo switch the cooker hood off, press the ON/OFF button.

oWhen you next switch the hood on, it will remember the speed
that it was running at when it was last used.
The cut off timer
oWhilst the cooker hood is in use, if you press the timer button
the number “12:00” will appear on the LED display.
oThis indicates that the hood will run for a further 12 minutes at
the current fan speed.
oOnce the 12 minute period has elapsed, the cooker hood will
switch itself off.
oIt is possible to adjust the countdown time, using the light
ON/OFF button and speed selection button.
oIt is useful to use this feature when you have finished cooking.
You can press the timer button and the hood will run on to
extract any remaining odours and then switch itself off without
you needing to return to the kitchen.
IMPORTANT: IDEALLY YOU SHOULD SWITCH ON
YOUR HOOD TEN MINUTES BEFORE YOU START TO
COOK, OR AT THE VERY LEAST WHEN YOU BEGIN
COOKING. YOU SHOULD ALSO RUN YOUR HOOD FOR
TEN MINUTES AFTER YOU HAVE FINISHED COOKING.
Cleaning your Baumatic cooker hood
IMPORTANT: BEFORE CLEANING, ALWAYS
ENSURE THAT YOU HAVE SWITCHED YOUR

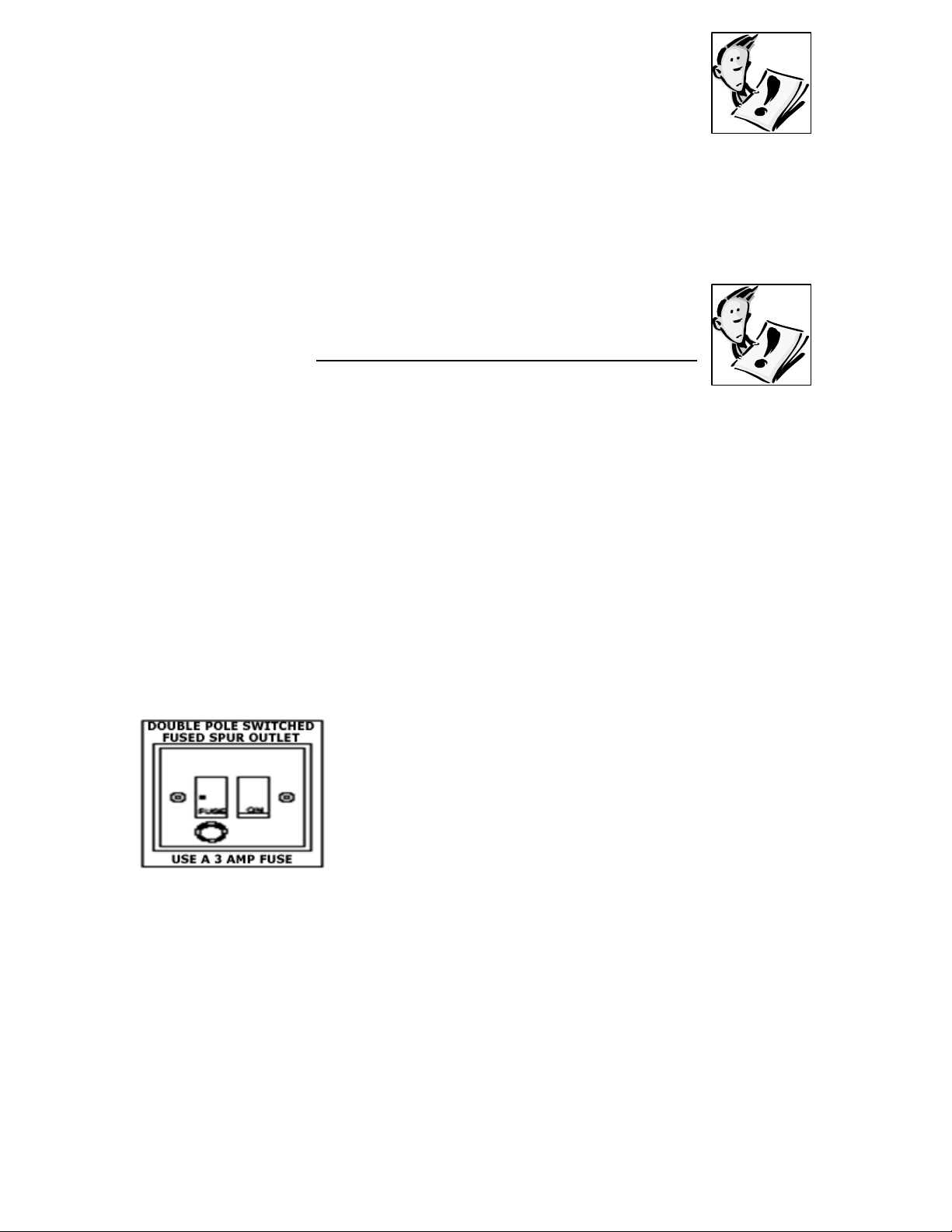

COOKER HOOD OFF AT THE OMNI-POLAR
SWITCH, SET AT THE WALL FROM THE CABLE.
Cleaning
oClean the external parts of your cooker hood with mild liquid
detergent and a new damp cloth.
oNever use abrasive powder, corrosive solvents or brushes.
oNever insert pointed objects into the motor’s protective grid.
oOnly clean the control panel and grease filter grill with mild liquid
detergents and a new damp cloth.
11

12
oIf you are using the appliance in recirculation mode, then be
sure to replace the carbon filter at the recommended interval
(see section on “Fitting the carbon filter”). A build up of grease
could cause a fire hazard.
oNever attempt to clean the area above the grease filters.
oIMPORTANT: You should regularly use a good quality
stainless steel cleaner to maintain the shine and finish on
the stainless steel areas of your cooker hood.
oThis will help to leave a silicone water-resistant film to protect
the stainless steel surfaces and keep them in good condition for
the life of the product.
The grease filters
oYour cooker hood includes grease filters which help to absorb
grease particles to protect your kitchen & furniture from greasy
residues.
oThe metallic filters may become inflammable if they become
saturated with this greasy residue.
oTo prevent this fire hazard, the filters should be cleaned
regularly. Depending on use, this should be done every 10-15
days or at least once a month, using hot water and normal
washing-up detergent.
oDO NOT WASH THE GREASE FILTERS IN A DISHWASHER.

Maintenance
Removing and cleaning the grease filters

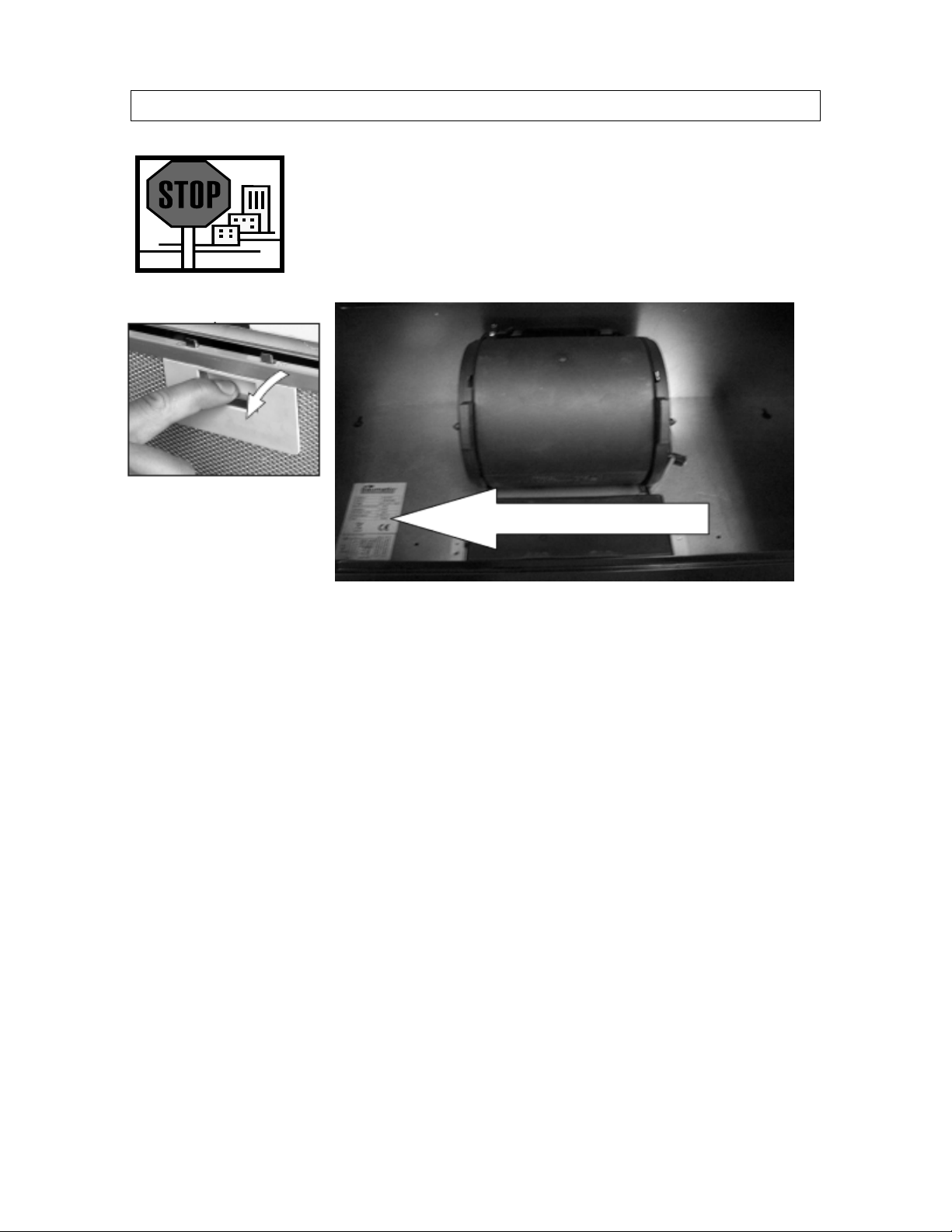

oOpen the cover screen at the front of the cooker hood, this will
allow you to gain access to the grease filters.
oRemove the grease filters by
pulling down on it.
oUndo the side catches.
oSoak the grease filters in hot water and washing up liquid for at
least 3 minutes. Then use a soft brush to loosen any grease
deposits that have formed.
oRinse the grease filters off thoroughly with hot water.
13

oRepeat the process if required.
oRefit the grease filters once they
have dried.
oIMPORTANT: Let the grease
filters dry thoroughly before
refitting them in the cooker
hood.
oClose the cover screen again, making sure that it clicks shut.
Changing a light bulb
14
IMPORTANT: BEFORE ATTEMPTING TO CHANGE
A LIGHT BULB, YOU MUST ENSURE THAT YOU
HAVE DISCONNECTED THE COOKER HOOD FROM
YOUR MAINS SUPPLY.

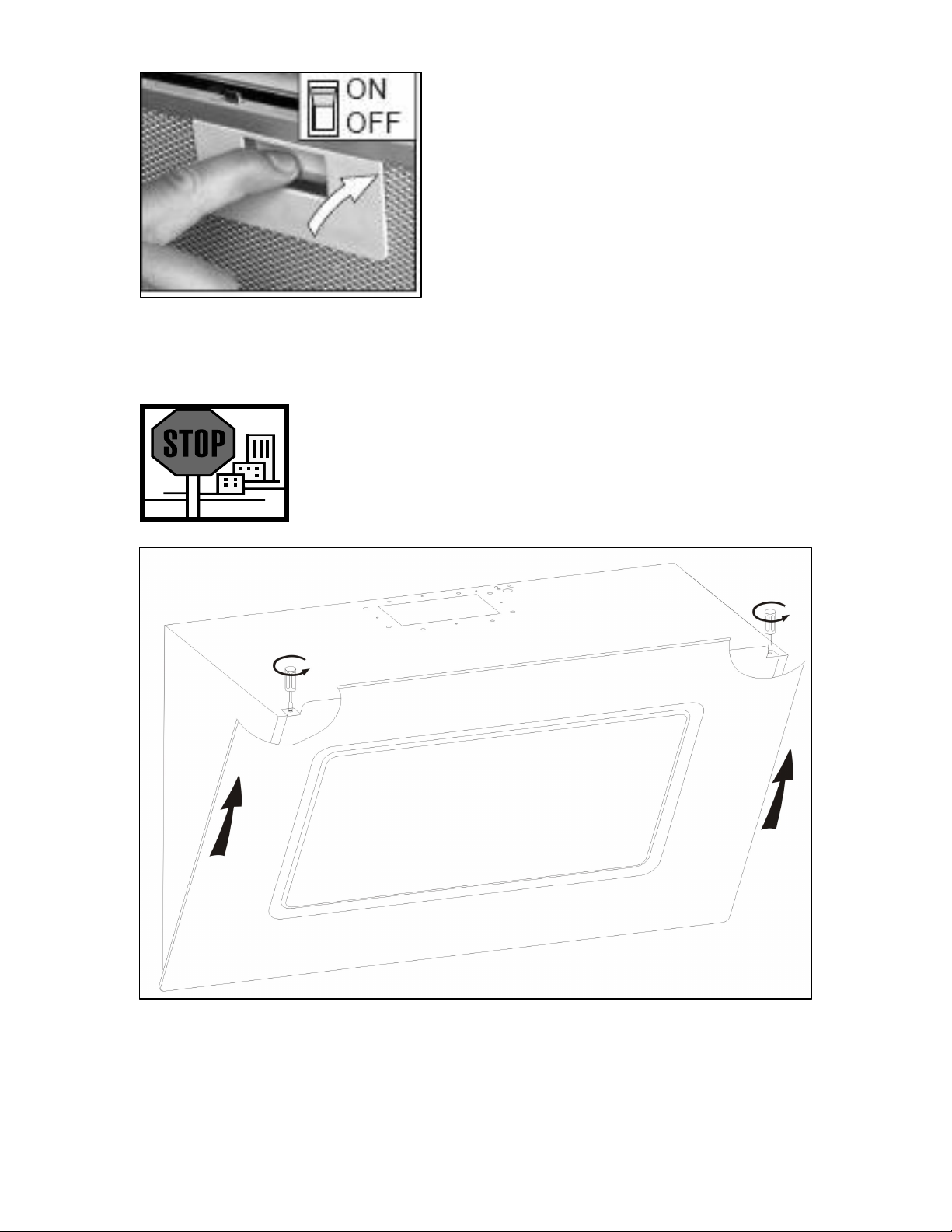

oRemove the screws from the top of the cooker hood canopy that
connect the front glass and the hood, and then slide the glass
section upwards (as shown in the line drawing above).
oPrior to touching the light bulbs ensure they are cooled down.

oDisconnect the light wiring point and remove the bulb holders
and wiring from the hood. IMPORTANT: It is not possible to
replace the bulbs individually, it will be necessary to obtain the
bulbs, bulb holders and wiring as a complete part. This is
available from our Spares Department.
oFit the replacement bulbs, bulb holders and wiring in the same
manner as the originals.
oReconnect the light wiring point.
oIMPORTANT: Defective bulbs should be replaced immediately.
oIf the lights still do not work, make sure that the lamps are fitted
properly into their housings before you call for technical
assistance.
oSlide the glass cover downwards and then fully retighten the
screws at the top of the cooker hood.
15

Fitting the carbon filters
If the appliance is being used to be used in recirculation mode then it
is necessary to fit carbon filters. This will help to absorb unpleasant
odours caused by cooking.
IMPORTANT: BEFORE ATTEMPTING TO FIT OR
REMOVE THE CARBON FILTERS, YOU MUST
ENSURE THAT YOU HAVE DISCONNECTED THE
COOKER HOOD FROM YOUR MAINS SUPPLY.
1) Remove the grease filters (as described
previously).
2) Hook the carbon filter over
the pins that are located at the
end of the motor.
3) Turn the carbon filter anticlockwise,
until you feel it click into place.
oRepeat this process for the second carbon filter. You need to
place a carbon filter at either end of the motor.
oRefit the grease filters.
16

oThe carbon filters should be replaced every 3 - 6 months or if
they show signs of damage.
Installation
IMPORTANT: Before installation and usage read
all the instructions and make sure that the
voltage (V) and the frequency (Hz) indicated on
the rating plate are exactly the same as the
voltage and frequency in your home. The rating
plate can be found behind the grease filters.
The manufacturer declines all responsibility in the event of the
installer failing to observe all the accident prevention
regulations in force, which are necessary for normal use and
the regular operation of the electric system.
17

Electrical connection
YOUR COOKER HOOD IS INTENDED FOR FITTED AND
PERMANENT INSTALLATION.
oThe power cable must be connected to the terminals marked L
(live) and N (neutral) in the hood and fixed with a cable clamp.
oThe cooker hood’s power cable must be fitted upstream from the
electrical connection, using an omni-polar switch with a contact
distance of at least 3 mm.
WARNING: THIS APPLIANCE MUST BE EARTHED. It
should only be connected by a competent person, using
fixed wiring via a double pole switched fused spur outlet.
(UK ONLY). THE FUSE MUST BE RATED AT 3 AMPS.
We recommend that the appliance is connected by a qualified
electrician, who is a member of the N.I.C.E.I.C. and who will comply
with the I.E.E. and local regulations. The wires in the mains lead are
coloured in accordance with the following UK code:
Blue = Neutral, Brown = Live, Green/Yellow = Ground
If you only find two wires in the main’s lead (blue and brown),
then neither must be connected to the earth terminal.
oAs the colours of the wires in the appliance’s mains lead may not
correspond with the coloured markings identifying the terminals
in your spur box, please proceed as follows:
oThe blue wire must be connected to the
terminal marked “N” (neutral), or coloured
black.
oThe brown wire must be connected to the
terminal marked “L” (live), or coloured red.
18

19
Before beginning installation
oCheck that the product purchased is of a suitable size for the
chosen installation area. In addition check whether there is an
electrical socket available that will be accessible once the hood is
mounted. If the product is going to be used in extraction mode,
then there should also be space to connect a ducting hose to the
outside.
oCarry out all necessary masonry work prior to the fitting of the
cooker hood.
oEnsure that all electrical connections are carried out by a suitably
qualified person.
oBefore commencing installation of the cooker hood the grease
filters should be removed.
oCheck inside the product and insure that there is no transit
packaging or any other materials, such as packets of screws,
guarantees etc. These should be removed and kept for future
use.
oIf possible, disconnect and move freestanding or slot-in cookers
from their position, to provide easier access to the rear wall and
ceiling. If this is not possible, then a thick, protective covering
should be placed over the worktop, hob top or cooker. This will
help to protect these surfaces from damage and debris.
oSelect a flat surface for assembling the cooker hood. Cover that
surface with a protective covering and place all cooker hood
parts and fittings on it.
oIn addition check whether there is an electrical socket available,
which will be accessible after the hood is mounted. If you are
going to use the appliance in extractor mode, you should also
ensure that there is space to connect a fumes discharge device
to the outside.
oRawl plugs are provided to secure the hood to most types of
walls and ceilings. However a qualified technician must verify the
suitability of the materials, in accordance with the type of wall
and ceiling. The wall and ceiling must be strong enough to take
the weight of the hood.
oDo not tile, grout or silicone this appliance to the wall. This
appliance is designed to be surface mounted only.

Extraction mode or recirculation mode?
IMPORTANT: YOU WILL HAVE TO DECIDE BEFORE
INSTALLING YOUR COOKER HOOD WHETHER TO USE
IT IN EXTRACTION MODE OR RECIRCULATION
MODE.
What is the difference between extraction and recirculation
modes?
In extraction mode, the stale air will be taken out of the room via
external ducting.
In recirculation mode stale air is taken via the grease filter, and passed
through a charcoal filter for purification. The air then re-enters the
kitchen via an opening in the hood.
For optimum performance, we recommend that the cooker hood is
used in extraction mode and connected to external ducting.
Unfortunately if you live in a flat or the hood is too far from an outside
wall, this may not be possible. The only alternative is to recirculate the
air.
Do I need a charcoal filter?
All cooker hoods have a grease filter but if you are using your cooker
hood in recirculation mode, then a charcoal filter must be fitted in
addition to the grease filters.
20
