Baumr-AG JHKELEBMRB24S User manual

Electric Jackhammer
User Manual
RETAIN THIS MANUAL FOR FUTURE REFERENCE
PLEASE READ THIS MANUAL CAREFULLY BEFORE USE

Electric Jackhammer
i
Table of Contents
Safety Information .................................................................................................................................... 1
Precautions on Using the Electric Jackhammer................................................................................. 3
Know your Jackhammer ............................................................................................................................ 3
Product Diagram ...........................................................................................................................................3
Included items...............................................................................................................................................4
Operation........................................................................................................................................................ 4
Inserting/Removing Chisel Bits......................................................................................................................4
Adjusting the Handle .....................................................................................................................................5
Using the Jackhammer..................................................................................................................................5
Maintenance and Inspection .................................................................................................................... 5
Specifications ............................................................................................................................................... 6

Electric Jackhammer
1
Safety Information
WARNING!
Read all instructions
Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
The term "power tool" in all of the warnings listed below refers to your mains operated (corded) power tool or
battery operated (cordless) power tool.
SAVE THESE INSTRUCTIONS
1. WORK AREA
a. Keep work area clean and well lit.
Cluttered and dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable
liquids, gases or dust.
Power tools create sparks which may ignite the dust of fumes.
c. Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
2. ELECTRICAL SAFETY
a. Power tool plugs must match the outlet.
Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and
refrigerators.
There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric shock.
3. PERSONAL SAFETY
a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do
not use a power tool white you are tired or under the influence of drugs, alcohol or medication.
A moment of inattention while operating power tools may result in serious personal injury.

Electric Jackhammer
2
b. Use safety equipment.
Always wear eye protection. Safety equipment such as dust mask, non-skid safety shoes, hardhat, or
hearing protection used for appropriate conditions will reduce personal injuries.
c. Avoid accidental starting. Ensure the switch is in the OFF position before plugging in.
Carrying power tools with your finger on the switch or plugging in power tools that have the switch on
invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on.
A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times.
This enables better control of the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away
from moving parts.
Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used.
Use of these devices can reduce dust related hazards.
4. POWER TOOL USE AND CARE
a. Do not force the power tool. Use the correct power tools for your application.
The correct power tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it ON and OFF.
Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source before making any adjustments, changing
accessories, or storing power tools.
Such preventive safety measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and
any other condition that may affect the power tools operation.
If damaged, have the power tool repaired before using it. Many accidents are caused by poorly
maintained power tools.
f. Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to
control.
g. Use the power tool, accessories and tool bits etc., in accordance with these instructions and in
the manner intended for the particular type of power tool, taking into account the working
conditions and the work to be performed.
Use of the power tool for operations different from intended could result in a hazardous situation.
PRECAUTION
Keep children and infirmed persons away. When not in use, tools should be stored out of reach of
children and infirmed persons.

Electric Jackhammer
3
Precautions on Using the Electric Jackhammer
•
Wear ear protections. Exposure to noise can cause hearing loss.
•
Use auxiliary handles supplied with the tool. Loss of control can cause personal injury.
•
Do not touch the bit during or immediately after operation. The bit becomes very hot during operation and
could cause serious burns.
•
Before starting to break, chip or drill into a wall, floor or ceiling, thoroughly confirm that such items as electric
cables or conduits are not buried inside.
•
Ensure the trigger is not engaged when plugged into power. Trigger can be engaged even when not holding
the device by the trigger lock!
•
Wear a mask when turning your head upward.
•
Properly set the bit holder
•
At the start of your work, confirm that all of the screws have been properly tightened.
•
When working at a highly elevated location, pay close attention to objects and people below.
•
Wear protective shoes to protect your feet.
Know your Jackhammer

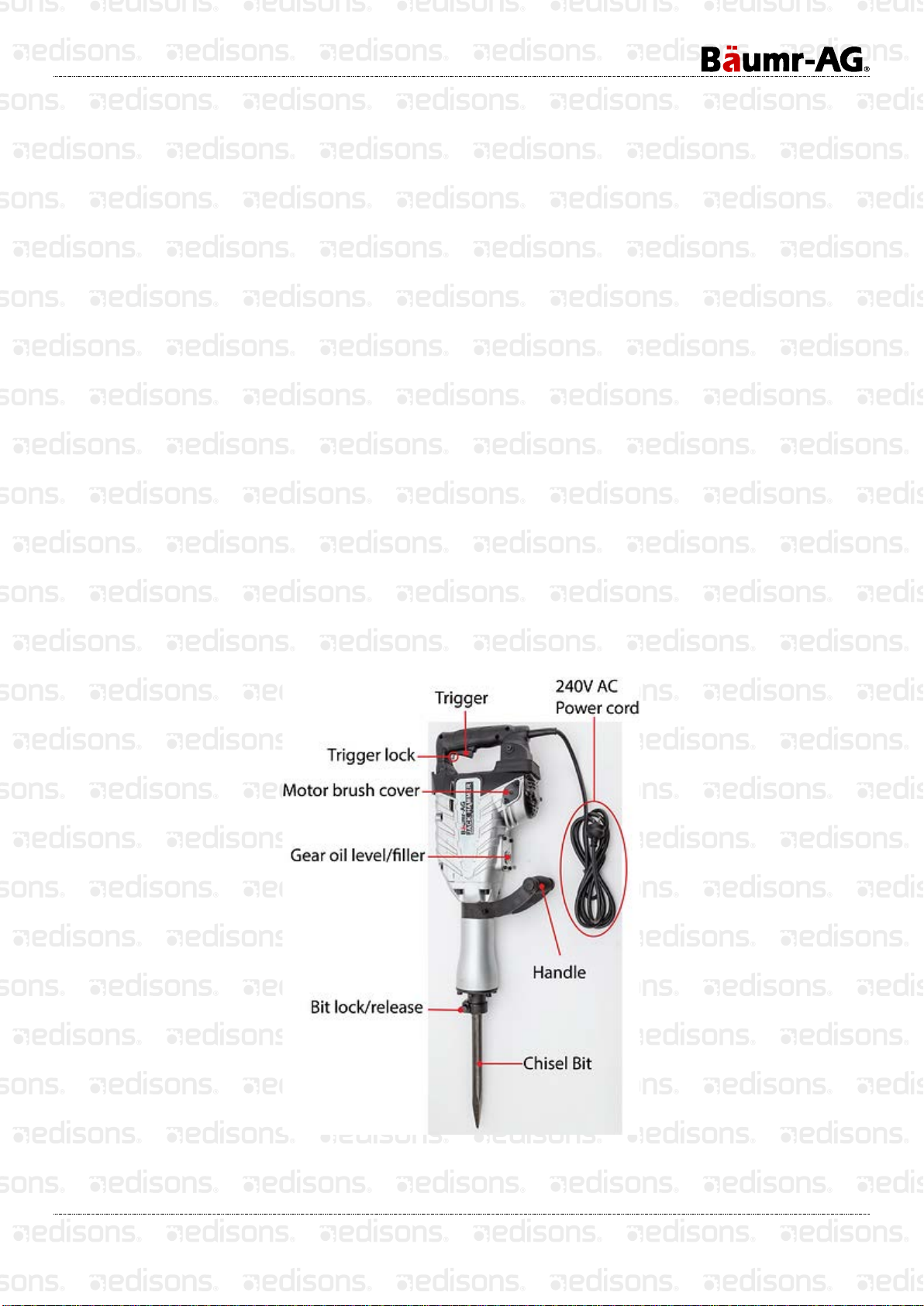

Product Diagram

Electric Jackhammer
4

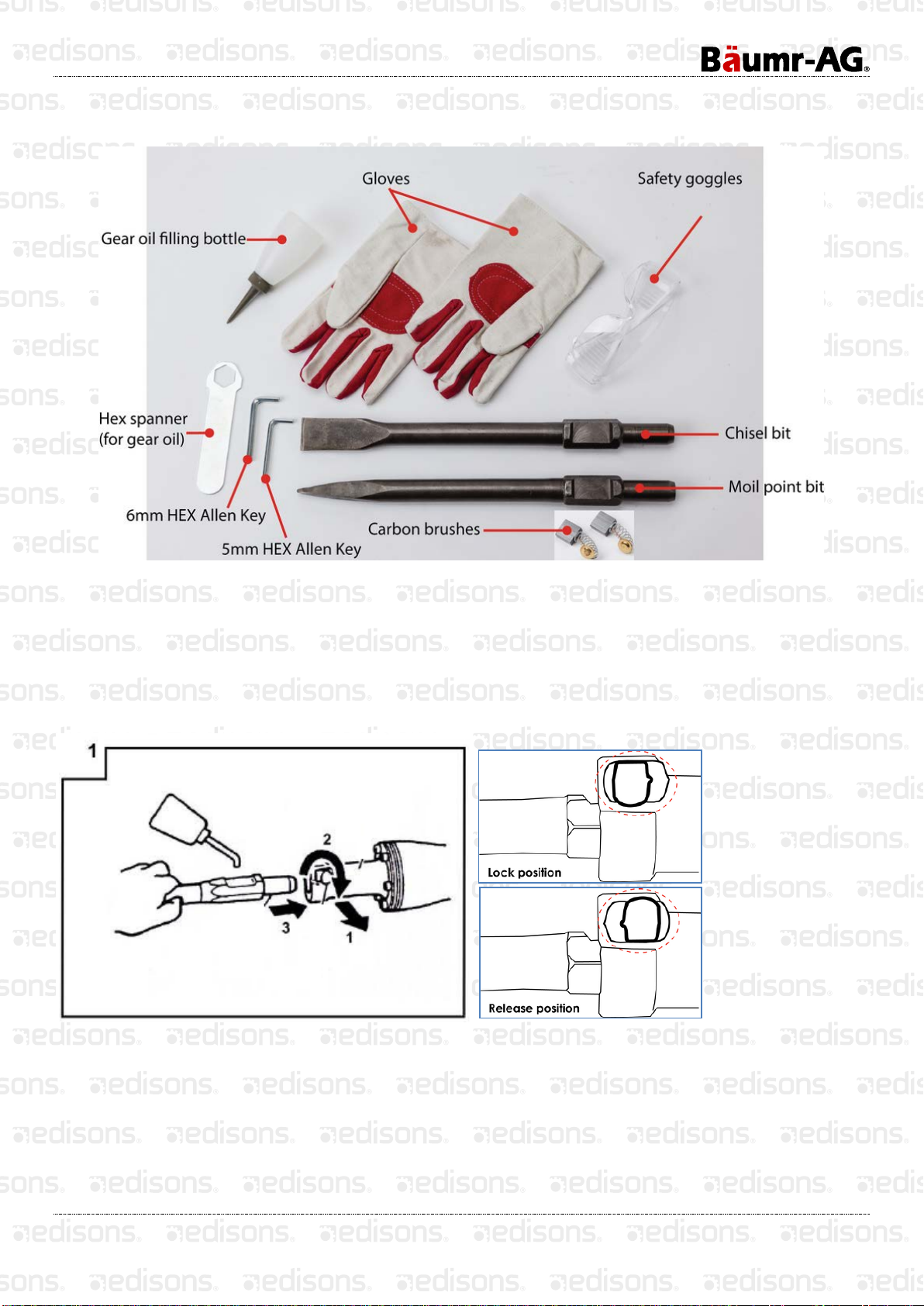

Included items
Please note, safety goggles and gloves are only intended for initial use. If extended use is intended, please
purchase higher grade safety items. Also, oil is not included with bottle.
Operation
Inserting/Removing Chisel Bits
1. Pull locking bolt out
2. Rotate to “Release” position
3. Add some oil and insert chisel bit
4. Pull out locking bolt and rotate to “Lock” position
Always ensure that the bit is secured by trying to remove by hand!

Electric Jackhammer
5
Adjusting the Handle
Loosen the 6mm hex screw (circled in red, left – one on
each side) with provided allen key.
Turn handle to preferred side (left or right)
Using the Jackhammer
1. Squeeze the trigger switch after applying the tip of the bit to the crushing position.
In some cases, it is necessary to punch the tip of the bit against the crushing position forcibly in order to
begin the striking motion.
This is not due to malfunction of the tool. It means that the safe guard mechanism against no-load striking is
working.
2. Operate the tool by utilizing its empty weight.
The performance will not be better even if the tool is pressed or trust forcibly against the work surface.
Hold the tool with a force just sufficient to counteract the reaction
3. To use the trigger lock, squeeze trigger and then press in the lock pin. Please be very careful when using
this feature! This is intended for extended periods of time. To disengage pin, squeeze trigger (this will make
the pin pop back out) and release trigger.
ALWAYS ENSURE TRIGGER IS DISENGAGED WHEN TURNING OFF AT THE MAINS POWER!
Maintenance and Inspection
Be sure to switch OFF and disconnect the power plug to avoid a serious accident.
1. Inspecting the tool
Since use of a dull tool will degrade efficiency and cause possible motor malfunction, sharpen or replace the
tool as soon as abrasion is noted.
2. Inspecting the mounting screws
Regularly inspect all mounting screws and ensure that they are properly tightened. Should any of the screws
be loose, retighten them immediately. Failure to do so could result in serious hazard.
3. Checking gear oil level/Refilling gear oil
Ensure jackhammer is exactly vertical/upright and check level.
Will need refilling if at level in red box

Electric Jackhammer
6
4. Refilling gear oil
Ensure jackhammer is laid down fully flat. Remove cap with provided hex spanner. Recommended gear oil
to use is 75W-90W SAE grade. Depending on usage, this should be done after every 50 hours of usage.
5. Maintenance of the motor
The motor unit winding is the very “heart” of the power tool. Exercise due care to ensure the winding does
not become damaged and/or wet with oil or water.
6. Inspecting the carbon brushes
The Motor employs carbon brushes which are consumable parts. When they become worn to or near the
“wear limit” (Approx. 7mm), it can result in motor issues. The motor may stop automatically or intermittently

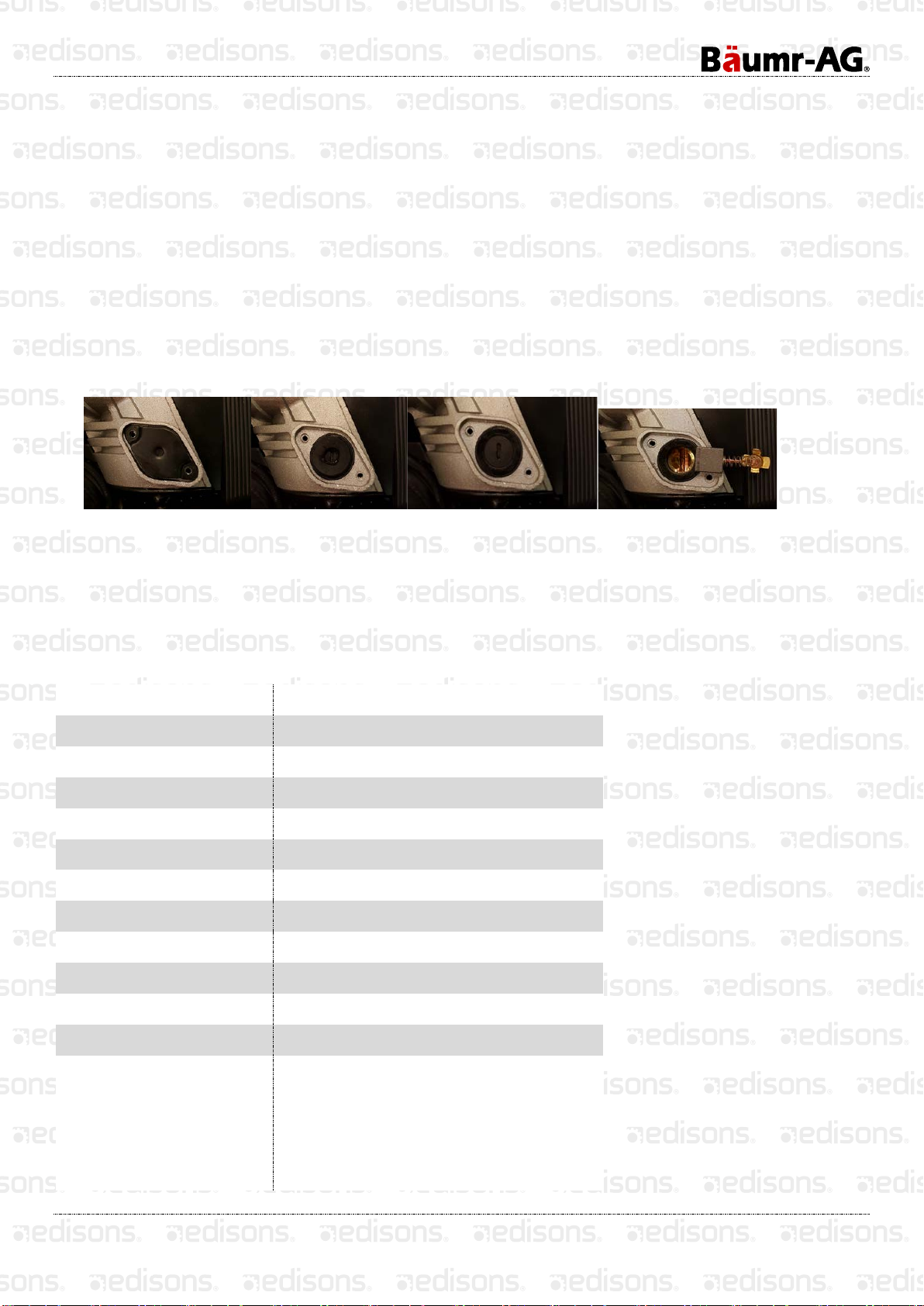

7. Replacing carbon brushes
Remove screws and cover. Remove rubber O ring. Unscrew cap with 5c or 10c piece (or large flat blade
screw driver). Remove carbon brush and replace.
CAUTION
•
Repair, modification and inspection of Power Tools must be carried out by this Authorised Service Centre.
•
In the operation and maintenance of power tools, the safety regulations and standards prescribed in each
country must be observed.
Specifications
Motor Type Induction Commercial Grade
Maximum Power 2400W @ 50% Duty Cycle
Continuous Power 1700W
Mass 17kg
‐
25kg bare
Maximum Full Load J/BPM 45J - 1400BPM
Tool Mount Size Hexagonal Chisel 30mm
Tool Mount Quick Change Hitachi comp.
Tool Size 410mm
Frequency 50Hz
Operating Voltage 240V
Machine Length (w/o tool) 800mm
Cord Length 3000mm
Bit Compatibility
All 30mm Hex Baumr
‐
AG, Hitachi PH65
PH65SA H65SB2 H70SA,
Makita HM1303 HM1317C HM1307C HM1304
HR1400 HR1317C, ROK 150‐36‐551,
TWM, Millers Falls PT4370, Z1G
‐
DW
‐
45 and
more

Some experts believe the incorrect or prolonged use of almost any
product could causeserious injury or death. For information that
may reduce your risk of serious injury or death consult thepoints
below and additionally, the information available at
www.datastreamserver.com/safety
- Consult all documentation, packaging and
product labelling be fore use. Note that some
products feature online documentation which
should be printed and kept with the product.
- Check product for loose / broken / damaged /
missing parts, wear or leaks (if applicable) be fore
each use. Never use a product with loose / broken
/ damaged / missing parts, wear or leaks (if
applicable).
- Products must be inspected and serviced (if
applicable) by a qualified specialist every 6
months assuming average residential use by a
person of average weight and strength, ab ove
average technical aptitude, on a property
matching average metropolitan specification.
Intended use outside these guidelines could
indicate the product is not suitable for intended
use or may require more regular inspection or
servicing.
- Ensure all possible users of the p roduct have
completed an industry recognised training course
before being given access to the product.
- The product has been supplied by a general merchandise
retailer that may not be familiar with your specific applic ation or
your description of the application. Be sure to attain third party
approval for your application from a qualified specialist before use
regardless of prior assurances by the retailer or its representatives.
- This product is not intended for use where fail-safe operation is
required. As with any product (take an au tomobile, aircraft,
computer or ball point pen for example) there is always a small
chance of a technical issue that needs to be repaired or may
require replacement of the product or a part. If the possibility of
such failure and the associated time it takes to rectify could in any
situation inconvenience the user, business or employee or could
financially affect the user, business or employee then the product
is not suitable for your requirements. This p roduct is not for use
where incorrect operation or a failure of any kind, including but
not limited to a condition requiring product return, replacement,
service by a technician or replacement of parts could cause a
financial loss, loss of employee time or an in convenience
requiring compensation.
- If this item has been purchased in error considering the points
above simply contact the retailer directly for details of their
returns policies if required.
