Bavaria BVC 1930 SA User manual

BVC 1930 SA
31011:.rN-.I39.124.32:.rN-.trA
7
GB Original operating instructions
Wet and dry vacuum cleaner
Anl_TH_VC_1930_SA_SPK7.indb 1 17.12.12 13:56

- 2 -
1
2
7
24
18
14 14
20
12
1
3
5
24
1
11 15
3
7
6
2
8
9
19
11
13
17
10
4
6
2
24
15 14 22
18161213 23
20 1
21
Anl_TH_VC_1930_SA_SPK7.indb 2Anl_TH_VC_1930_SA_SPK7.indb 2 17.12.12 13:5617.12.12 13:56

- 3 -
4 5
6 7
8 9
22
3 16
3
1.
911
1
318
14 14
22,1818,22
18
z
8
3
7
15
2.
Anl_TH_VC_1930_SA_SPK7.indb 3Anl_TH_VC_1930_SA_SPK7.indb 3 17.12.12 13:5717.12.12 13:57

- 4 -
10 11
11
12
12
12 12 20 23
20 13
Anl_TH_VC_1930_SA_SPK7.indb 4Anl_TH_VC_1930_SA_SPK7.indb 4 17.12.12 13:5717.12.12 13:57

GB
- 5 -
Important!
-erpytefaswefa,tnempiuqeehtgnisunehW
cautions must be observed to avoid injuries and
damage. Please read the complete operating
instructions and safety regulations with due care.
Keep this manual in a safe place, so that the in-
formation is available at all times. If you give the
equipment to any other person, hand over these
operating instructions and safety regulations as
well. We cannot accept any liability for damage
or accidents which arise due to a failure to follow
these instructions and the safety instructions.
1. Safety regulations
Caution!
Read all safety regulations and instructions.
Any errors made in following the safety regula-
tions and instructions may result in an electric
shock, fire and/or serious injury.
Keep all safety regulations and instructions
in a safe place for future use.
• Important: Read the operating instructions
before assembling and using for the first time.
• Check that the mains voltage is the same
as the mains voltage specified on the rating
plate.
• Pull out the power plug in the following cir-
cumstances: Whenever the equipment is not
in use, before opening the equipment and
before all cleaning and maintenance work.
• Never clean the equipment with solvents.
• Never pull the plug out of the socket by
pulling the cable.
• Never leave the equipment unattended when
ready for use.
• Keep away from children.
• Take care to ensure that the power cable
does not get damaged by being run over,
crushed, pulled or similar.
• Do not use the equipment if the power cable
is in less than perfect condition.
• If the power cable has to be replaced, the re-
placement must comply with the design spe-
cifications of the manufacturer.
• Never vacuum the following: Burning mat-
ches, smoldering ash and cigarette butts,
combustible, caustic, inflammable or explosi-
ve substances, vapor or liquids.
• This equipment is not suitable for vacuuming
dust which can be harmful to health.
• Store the equipment in a dry indoor location.
• Never use the equipment if it is damaged.
• Have the equipment serviced only by an au-
thorized after sales service outlet.
• Use the equipment only to carry out work for
which has been designed.
• Take extra care when cleaning steps.
• Use only genuine accessories and spare
parts.
This equipment is not designed to be used by
people (including children) with limited physical,
sensory or mental capacities or those with no
experience and/or knowledge unless they are
supervised by a person who is responsible for
their safety or they have received instructions
from such a person in to how to use the equip-
ment safely. Children must always be supervised
in order to ensure that they do not play with the
equipment.
2. Layout and items supplied
2.1 Layout (Fig. 1-3)
1. Handle
2. ON/OFF/Automatic switch
3. Head
4. Filter cage
5. Safety float valve
6. Automatic socket-outlet for electric tools
7. Locking hook
8. Tank
9. Suction hose connection
10. Blow connector
11. Flexible suction hose
12. 3-piece suction tube
13. Dual purpose nozzle
14. Castors
15. Pleated filter
16. Foamed plastic filter
17. Hook for cable store
18. Wheels
19. Water drain screw
20. Adapter
21. Fastening screws on the handle
22. Washer
23. Crevice nozzle
24. Accessory holder
Anl_TH_VC_1930_SA_SPK7.indb 15 17.12.12 13:57

GB
- 6 -
2.2 Items supplied
Please check that the article is complete as spe-
cified in the scope of delivery. If parts are missing,
please contact our service center or the nearest
branch of the DIY store where you made your
purchase at the latest within 5 work days after
purchasing the article and upon presentation of
a valid bill of purchase. Also, refer to the warranty
table in the warranty provisions at the end of the
operating instructions.
• -piuqeehttuoekatdnagnigakcapehtnepO
ment with care.
• ynadnalairetamgnigakcapehtevomeR
packaging and/or transportation braces (if
available).
• .deilppuserasmetillafieesotkcehC
• rofseirosseccadnatnempiuqeehttcepsnI
transport damage.
• litnugnigakcapehtpeekesaelp,elbissopfI
the end of the guarantee period.
Important!
The equipment and packaging material are
not toys. Do not let children play with plastic
bags, foils or small parts. There is a danger of
swallowing or suffocating!
• Handle
• Suction hose
• 3-piece suction tube
• Dual purpose nozzle
• Castor (2x)
• Pleated filter with cover
• Foamed plastic filter
• Wheel (2x)
• Adapter
• Fastening screw for handle (2x)
• Washer (2x)
• Crevice nozzle
• Original operating instructions
The equipment comes with a chain (z) on the tank
bottom. The chain helps to prevent static charging
during use.
3. Proper use
The wet and dry vacuum cleaner is designed
for wet and dry vacuuming using the appropri-
ate filter. The equipment is not suitable for the
vacuuming of combustible, explosive or harmful
substances.
The equipment is to be used only for its prescri-
bed purpose. Any other use is deemed to be a
case of misuse. The user / operator and not the
manufacturer will be liable for any damage or inju-
ries of any kind caused as a result of this.
Please note that our equipment has not been de-
signed for use in commercial, trade or industrial
applications. Our warranty will be voided if the
machine is used in commercial, trade or industrial
businesses or for equivalent purposes.
4. Technical data
Mains voltage...........................220-240V ~ 50 Hz
Power consumption: ................................ 1500 W
Max. power consumption
Automatic socket-outlet: ......................... 900 W
Max. total power consumption: ............... 2400 W
Tank volume: ..................................................30 l
Weight: .......................................................6.3 kg
5. Before starting the equipment
Before you connect the equipment to the mains
supply make sure that the data on the rating plate
are identical to the mains data.
The equipment may be connected only to a
shock-proof socket-outlet.
5.1 Assembling the equipment
Fitting the equipment head (Fig. 6)
The equipment head (3) is fastened to the tank
(8) by the locking hook (7).To remove the equip-
ment head (3), open the locking hook (7) and
take offthe equipment head (3). When fitting the
equipment head (3), make sure that the locking
hook (7) locks into place correctly.
Fitting the wheels (Fig. 5)
Fit the wheels in accordance with Fig. 5.
Anl_TH_VC_1930_SA_SPK7.indb 16 17.12.12 13:57

GB
- 7 -
Fitting the handle (Fig. 4)
Use a screwdriver to fit the handle (1).
5.2 Fitting the filters
Caution!
Never use the wet and dry vacuum cleaner wit-
hout a filter.
Always ensure that the filters are securely seated.
Fitting the foam filter (Fig. 7)
For wet vacuuming, slip the supplied foam filter
(16) over the filter basket (Fig. 2/4). The pleated
filter (15) already fitted upon delivery is not suita-
ble for wet vacuuming.
Fitting the pleated filter (Fig. 8)
For dry-vacuuming, slip the pleated filter (Fig. 15)
over the filter basket (Fig. 2/4). The pleated filter
(15) is suitable for dry-vacuuming only.
Fitting the dirt bag
(not supplied)
For vacuuming fine, dry dirt it is recommended
that you also fit the dirt bag. This will ensure that
the pleated filter (15) does not clog up so quickly
and help maintain the vacuuming power. It also
makes it easier to dispose of the dust. Slip the
dirt bag over the vacuuming hole.The dirt bag is
suitable for dry-vacuuming only.

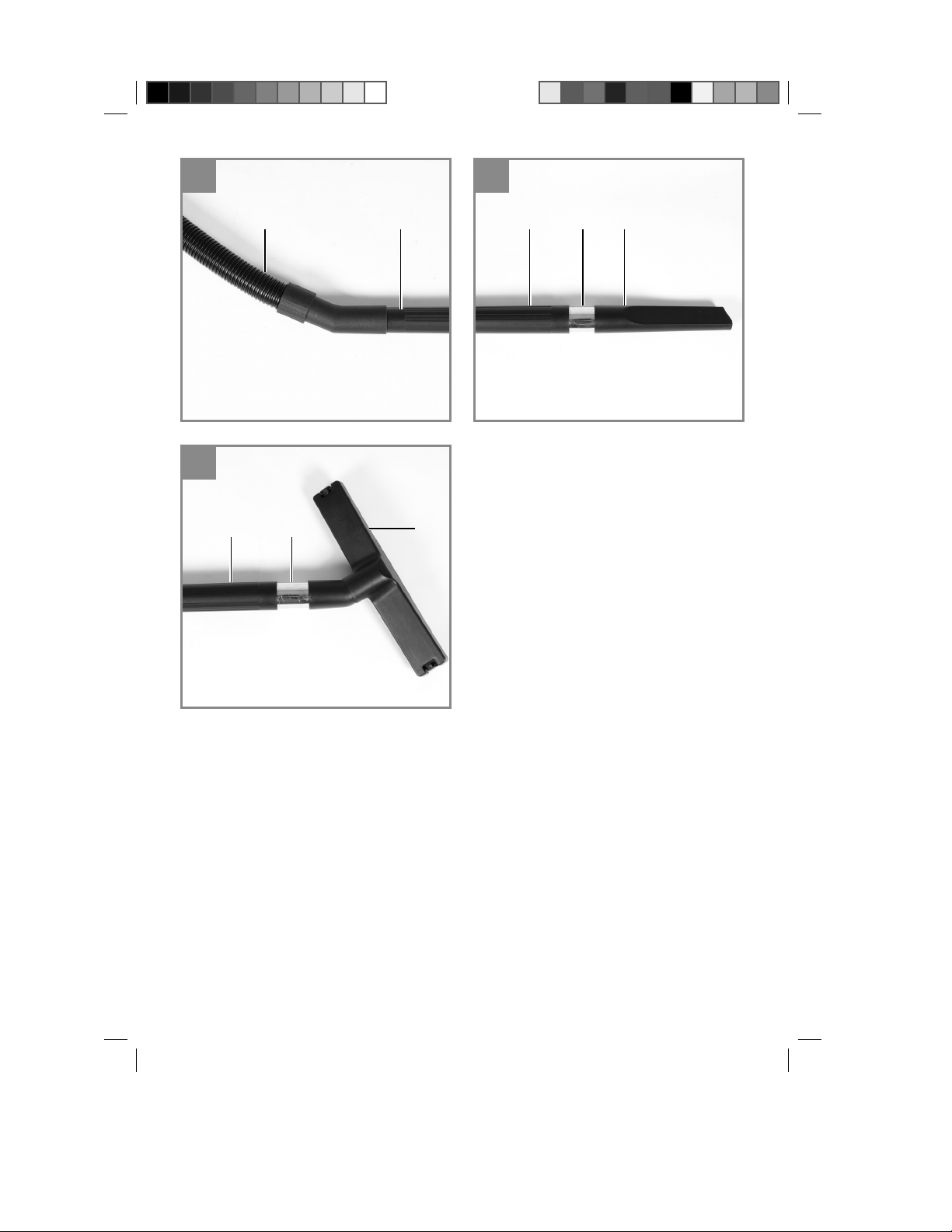

5.3 Fitting the suction hose (Fig. 9-12)
Connect the suction hose (11) to the correspon-
ding connector on the wet and dry vacuum clea-
ner, depending on the application required.
Vacuuming
Connect the suction hose (11) to the suction hose
connector (9).
Blowing
Connect the suction hose (11) to the blow con-
nector (10).
To extend the suction hose (11) you can attach
one or more of the elements which make up the
3-part suction tube (12) to the suction hose (11).
5.4 Suction nozzles
Combination nozzle (13)
The dual-purpose nozzle (13) is for vacuuming
solids and liquids over medium to large areas.
6. Operation
6.1 ON/OFF switch (Fig. 2/2)
Switch position 0: Off
Switch position I: Normal mode
Switch position AUTO: Automatic mode
6.2 Dry vacuuming
For dry-vacuuming, use the pleated filter (15). In
addition, you can also fit the dirt bag. (See point
5.2)
Always ensure that the filters are securely seated.
6.3 Wet vacuuming
For wet-vacuuming, use the foam filter (16) (see
point 5.2).
Check that the filter is securely seated at all times.
Water drain screw (Fig. 1)
To make the tank (8) easier to empty after wet va-
cuuming, it is fitted with a water drain screw (19).
Open the water drain screw (19) by turning it anti-
clockwise and drain the liquid.
Caution!
When wet vacuuming, the floating safety switch
(5) closes when the maximum tank level is
reached. At the same time, the suction noise of
the equipment will change and become louder.
You must then switch offthe equipment and em-
pty the tank.
Caution!
The wet and dry vacuum cleaner is not suitable
for the vacuuming of combustible liquids. For wet
vacuuming, use only the supplied foam filter.
6.4 Automatic mode
Connect the power cable of your electric tool to
the automatic socket-outlet (6) and connect the
suction hose (11) to the vacuuming connector of
your electric tool. Check that the connections are
secure and air-tight.
Set the switch (2) on the wet and dry vacuum
cleaner to position „AUTO“ (automatic mode).
The moment you switch on the electric tool, the
wet and dry vacuum cleaner switches on as well.
When you switch offthe electric tool, the wet and
dry vacuum cleaner switches offas well after a
pre-set delay.
Anl_TH_VC_1930_SA_SPK7.indb 17 17.12.12 13:57

GB
- 8 -
6.5 Blowing
Connect the suction hose (11) to the blow con-
nector (10) on the wet and dry vacuum cleaner.
7. Cleaning, maintenance and
ordering of spare parts
Always pull out the mains power plug before star-
ting any cleaning work.
7.1 Cleaning
• ehtdnastnevria,secivedytefasllapeeK
motor housing free of dirt and dust as far as
possible.
• tnempiuqeehtnaelcuoytahtdnemmocereW
immediately after you use it.
7.2 Cleaning the equipment head (3)
Clean the equipment regularly with a damp cloth
and some soft soap. Do not use cleaning agents
or solvents; these may be aggressive to the plas-
tic parts in the equipment.
7.3 Cleaning the tank (8)
The tank can be cleaned with a damp cloth and
some soft soap or under running water, depen-
ding on the amount of dirt.
7.4 Cleaning the filters
Cleaning the pleated filter (15)
Clean the pleated filter (15) regularly by carefully
patting it and cleaning it with a fine brush or hand
brush.
Cleaning the foam filter (16)
Clean the foam filter (16) with a little soft soap un-
der running water and allow it to air-dry.
7.5 Maintenance
At regular intervals and before each use, check
that the filters in the wet and dry vacuum cleaner
are securely fitted.
7.6 Ordering replacement parts:
Please quote the following data when ordering
replacement parts:
• enihcamfoepyT
• enihcamehtforebmunelcitrA
• enihcamehtforebmunnoitacifitnedI
• deriuqertrapehtforebmuntraptnemecalpeR
For our latest prices and information please go to
www.einhell.com.au
8. Disposal and recycling
The equipment is supplied in packaging to pre-
vent it from being damaged in transit. The raw
materials in this packaging can be reused or
recycled.The equipment and its accessories are
made of various types of material, such as metal
and plastic. Never place defective equipment in
your household refuse. The equipment should
be taken to a suitable collection center for proper
disposal. If you do not know the whereabouts of
such a collection point, you should ask in your
local council offices.
9. Storage
Store the equipment and accessories out of
children’s reach in a dark and dry place at above
freezing temperature. The ideal storage tempe-
rature is between 5 and 30 °C. Store the electric
tool in its original packaging.
Anl_TH_VC_1930_SA_SPK7.indb 18 17.12.12 13:57

GB
- 9 -
Warranty provisions
-ecalperrostcefedforiaperehtseetnaraugesahcrupuoyedamuoyerehwerotsEinhell Australia or the
ment of the equipment in accordance with the overview below. Statutory guarantee claims are unaffec-
ted.
ytnarraWelpmaxEyrogetaC
Defect with regard to material or
construction
24 months
Wear parts* Combination nozzle, crevice
nozzle, upholstery nozzle,
electric tool adapter, etc.
6 months
Consumables* Pleated filter, foam filter, dirt
bag, additional filter, etc.
Warranty only in case of an im-
mediate defect (24 hours after
purchase / date on the bill)
syadkrow5strapgnissiM
* Not necessarily included in the scope of delivery!
For consumables, wear parts and missing parts Einhell Australia guarantees the correction of defects or a
new delivery only if the defect is reported within 24 hours (consumables), 5 work days (missing parts) or
6 months (wear parts) after purchase and the purchase date is verified with the bill.
In case of defects concerning the material or construction, we kindly request you to submit the equip-
ment together with the fully completed warranty card supplied with the equipment. It is important that
you enter an exact description of the defect.
To do so, answer the following questions:
• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.
Anl_TH_VC_1930_SA_SPK7.indb 20 17.12.12 13:57

GB
Anl_TE_AG_125_750_SPK1.indb 24 14.09.12 12:19
The guarantee provided in this Guarantee Certificate is given by Einhell Australia Pty Limited
ACN 134 632 858 of 6/166 Wellington Street, Collingwood, Victoria (Telephone number 1300 922 271)
GUARANTEE CERTIFICATE
EINHELL AUSTRALIA PTY LTD
6/166 Wellington Street
Collingwood VIC 3066
Australia
Phone: [phone]
Dear Customer,
All of our products undergo strict quality checks. In the unlikely event that your device develops a fault, please
contact our service department at the address shown on this guarantee certificate. Of course, if you would
prefer to call us then we are also happy to offer our assistance under the service number printed below.
Please note the following terms under which claims under the Einhell Express Guarantee can be made:
1. The benefits conferred by the Einhell Express Guarantee are in addition to all rights and remedies which
you may be entitled to under the Australian Consumer Law, and any other statutory rights you may have
under other applicable laws. This Einhell Express Guarantee does not exclude, restrict or modify any
We do not charge you for the Einhell Express Guarantee.
2. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are
entitled to a replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods
fail to be of acceptable quality and the failure does not amount to a major failure.
3. The Einhell Express Guarantee only covers problems caused by material or manufacturing defects, and
our liability under the Einhell Express Guarantee is limited, at our discretion, to the rectification of these
defects or replacement of the product. Please note that the product has not been designed for use in
commercial, trade or industrial applications. Consequently, the Einhell Express Guarantee will not apply
if the product is used in commercial, trade or industrial applications or for other equivalent activities.
4. The following are also excluded from the Einhell Express Guarantee: compensation for transport
damage, damage caused by failure to comply with the installation/assembly instructions or damage
caused by unprofessional installation, failure to comply with the operating instructions (e.g. connection to
the wrong mains voltage or current type), misuse or inappropriate use (such as overloading of the
product or use of non-approved tools or accessories), failure to comply with the maintenance and safety
regulations, ingress of foreign bodies into the product (e.g. sand, stones or dust), effects of force or
external influences (e.g. damage caused by the product being dropped) and normal wear resulting from
proper operation of the product. The Einhell Express Guarantee will also not apply if any attempt is made
5. The Einhell Express Guarantee is valid for a period of 2 years starting from the purchase date of the
product. Claims made under the Einhell Express Guarantee should be submitted before the end of this
guarantee period and within two weeks of the defect being noticed. No claims under the Einhell Express
Guarantee will be accepted if submitted after the end of this guarantee period. The original guarantee
period remains applicable to the device even if repairs are carried out or parts are replaced. In such
cases, the work performed or parts fitted will not result in an extension of the guarantee period for the
Einhell Express Guarantee, and the Einhell Express Guarantee will not apply for the work performed or
6. To make a claim under the Einhell Express Guarantee, please send the relevant product postage-free to
the address shown below and enclose either the original or a copy of your sales receipt or another dated
proof of purchase. It would help us if you could describe the nature of the problem in as much detail as
possible. If the defect is covered by the Einhell Express Guarantee, your product will be repaired
immediately and returned to you, or we will send you a new device (at our election).
Any costs incurred by you in making a claim under this Einhell Express Guarantee, unless specified
otherwise in this guarantee certificate, must be borne by you.
Of course, we are also happy to offer a chargeable repair service for any defects which are not covered by the
scope of the Einhell Express Guarantee or for products which are no longer covered by the Einhell Express
Guarantee. To take advantage of this service, please send the product to our service address.
such rights or remedies.
to tamper with the product.
parts fitted. This also applies when an on-site service is used.
(Einhell Express Guarantee).

GB
Anl_TE_AG_125_750_SPK1.indb 24 14.09.12 12:19

GB
Anl_TE_AG_125_750_SPK1.indb 24 14.09.12 12:19
EH 04/2013 (01)
