BCM MX700CX-C15 User manual

LVDS Flat Panel Connector: JLVDS1
+12V 2 1 +12V
+12V 4 3 +12V
GND 6 5 +12V
GND 8 7 VCC3/VCC5
LCD_VDD 10 9 LCD_VDD
LDDC_DATA 12 11 LDDC_CLK
LVDS_VDDEN 14 13 L_BKLTCTL
GND 16 15 L_BKLTEN
LA_DATA0 18 17 LA_DATA0#
LA_DATA1 20 19 LA_DATA1#
LA_DATA2 22 21 LA_DATA2#
LA_CLK 24 23 LA_CLK#
LA_DATA3 26 25 LA_DATA3#
GND 28 27 GND
LB_DATA0 30 29 LB_DATA0#
LB_DATA1 32 31 LB_DATA1#
LB_DATA2 34 33 LB_DATA2#
LB_CLK 36 35 LB_CLK#
LB_DATA3 38 37 LB_DATA3#
GND 40 39 GND
ATX 20 Pin System Power Connector: ATX1
1 3.3V 11 3.3V
2 3.3V 12 -12V
3 GND 13 GND
4 5V 14 PS_ON
5 GND 15 GND
6 5V 16 GND
7 GND 17 GND
8 PW_OK 18 -5V
9 5V_SB 19 5V
10 12V 20 5V
SATA &
MX700CX-C15
VIA CX700 chipset with C7 1.5GHz Processor Support
User’s Quick Start Card Version 1.00 http://www.bcmcom.com
Inspect the Package:
One MX700CX-C15 Motherboard
One CPU Cooler onboard
One Standard I/O Shield
Two SATA Cable
One IDE Cable
One User’s Quick Start Card
One Driver/ User’s manual CD
Responsibility:
This manual is provided “As-Is” with no warranties of any kind, expressed or implied, including, but not limited to the
implied warranties or conditions of this product’s fitness for any particular purpose. In no event shall we be liable for any
loss of profits, loss of business, loss of data, interruption of business, or indirect, special, incidental, or consequential
damages of any kind, even the possibility of such damages arising from any defect or error in this manual or product. We
reserve the right to modify and update the user manual without prior notice.
WARNING: CMOS Battery Damage
Replace your system’s CMOS RAM battery only with the identical CR-2032 3V Lithium-Ion coin cell (or equivalent) battery
type to avoid risk of personal injury or physical damage to your equipment. Improper installation might cause battery to
explode. Always dispose of used batteries according to the manufacturer’s instructions, or as required by the local
ordinance (where applicable). The damage due to not following this warning will void your motherboard’s manufacturer
warranty.
Perchlorate Material- Special Handling May Apply.
See http://www.dtsc.ca.gov/hazardouswaste/perchlorate/
Additional Information:
Additional information on setting this board up can be found in the User’s Manual in the provided CD or DVD ROM. The
Online User’s Manual and FAQ/Knowledge Base can be found on our website by visiting our website:
http://www.bcmcom.com. If your question is not answered in our FAQ/Knowledge Base, visit our forums and post your
messages or submit a new FAQ through FAQ Submittal form for us to add your question in our FAQ with our answer.
ATTENTION: Incorrect BIOS Setup
If you do not know how to handle BIOS setup or how to set it up properly, it is strongly advisable that you do not modify
any of the settings than otherwise instructed in the User’s Quick Start Card. Even a seemingly small incorrect adjustment
or modification in the BIOS setup can render your system unstable or unusable. Incorrect BIOS setup is not covered by
your motherboard’s manufacturer warranty. Try Clear CMOS information when system does not boot after BIOS settings
change.
I/O Shield
MX700CX-C15

WARNING: Electrostatic Sensitive Device (ESD)
Static electricity can easily damage your motherboard and will void your motherboard warranty. Keep the motherboard
and other system components in their anti-static packaging until you are ready to install them. Touch a grounded surface
before you remove any system component from its protective anti-static packaging. Unpacking and installation should be
done on a grounded, anti-static mat. The operator should be wearing an anti-static wristband, grounded at the same
points as the anti-static mat. During configuration and installation touch a grounded surface frequently to discharge any
static electrical charge that may have built up in your body. Avoid touching the components when handling the
motherboard or a peripheral card. Handle the motherboard and peripheral cards either by the edges or by the peripheral
card case-mounting bracket.
WARNING: Misplaced Jumper Damage
Incorrect jumpers and connectors settings may lead to damage to your motherboard and will void your motherboard
warranty. Please pay special attention to not connect these headers in the wrong direction. DO NOT change ANY jumpers
while the motherboard has power.
Jumper / Connector
Name Description Note
J1 I2C Bus Connector 1x 4 pin
J2, J3, J4, J5 COM1, COM2, COM3, COM4 Power Jumper 4x 3 pin
J6 Digital IO Connector 2x 5 pin
J7 LCD Power Source 1x 3 pin
J8 Front Panel LAN LED 2 x 5 pin
CLR_CMOS Clear CMOS Jumper 1x 3 pin
JCF_SEL1 Compact Flash Select 1x 3 pin
IDEB1 IDE 2x 20 pin (keyed)
CF1 Compact Flash Slot
SATA1 Serial ATA 1
SATA2 Serial ATA 2
JAUD1 Audio Amplifier 1x 4 pin
JAUD2 Front Audio 2x7 pin (keyed)
CPUFAN1 CPU fan 1x 3 pin
SYSFAN1 System fan 1x 3 pin
TV/CRT TV Out / CRT Out Select 1x 3pin
JTV1 TV Out 2x3 pin (keyed)
JFP1 Front Panel 2x5 pin (keyed)
JLPT1 Parallel Port 2x13 pin (keyed)
F_USB1 Front USB1 2x5 pin (keyed)
PCI1 PCI Slot
MINIPCI1 MINI PCI Slot
JLVDS1 LVDS Connector 2x20 pin
IRDA1 IRDA Header 2x 3 (keyed)
JCD1 CD_IN Header 1x 4 pin
CON1 Mini PCI-Express Slot
ATX1 ATX Power Connector 2x 10 Block

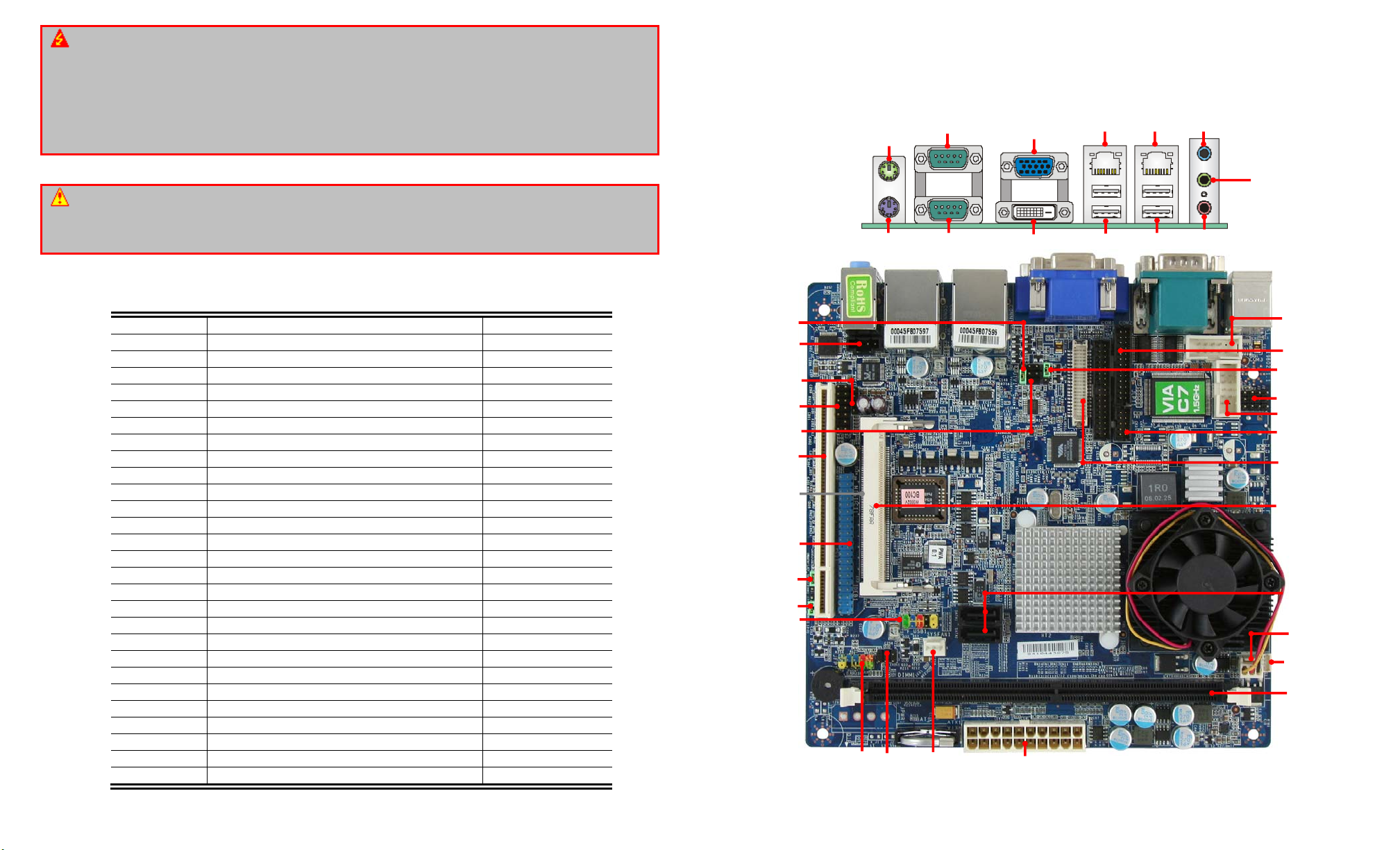

Motherboard Layout:
PS2 MS COM1 RGB VGA LAN2LAN1
PS2 KB COM2 DVI USB2USB1
LINE-IN
MIC
LINE-OUT
PCI 1
F_USB1
JCD1
IRDA1
IDE1
JCF_SEL1
ATX POWER
CF1
(BOTTOM)
SYS FAN
CPU FAN
DIMM1
JFP1
MiniPCI1
CLR_CMOS
JLPT1
J6
COM3
COM4
JLVDS1
TV/CRT1
J1
J7
J5, J4, J3, J2
JAUD2
JAUD1
JTV1
SATA1, 2

Clear CMOS Jumper: CLR_CMOS1
Front Panel Connector:
JFP1
CF Mode Selecting Jumper: JCF_SEL1
Audio Amplifier Connector: JAUD1
Pin1 Pin2 Pin3 Pin4
AMP_R+ AMP_R- AMP_L+ AMP_L-
Front Audio Connector: JAUD2
Pin13 Pin11 Pin9 Pin7 Pin5 Pin3 Pin1
SIDE_SURR_L JAUD_DET CEN_OUT L_OUT GND SPDF_OUT 5VSB
Pin14 Pin12 Pin10 Pin8 Pin6 Pin4 Pin2
SIDE_SURR_R AUDIO GND SURR_OUT_L SURR_OUT_R SPDF_IN NA VCC3
Digital IO Connector: J6
Pin1 Pin3 Pin5 Pin7 Pin9
GND N_GPO3 N_GPO2 N_GPI3 N_GPI2
Pin2 Pin4 Pin6 Pin8 Pin10
VCC5F N_GPO1 N_GPO0 N_GPI1 N_GPI0
Front USB Connector: F_USB1
Pin1 Pin3 Pin5 Pin7 Pin9
VCC USB0- USB0+ GND Key
Pin2 Pin4 Pin6 Pin8 Pin10
VCC USB1- USB1+ GND USBOC
TV-OUT Connector: JTV1
Pin1 Pin3 Pin5
TVGND LY LC
Pin2 Pin4 Pin6
LCVBS TVGND KEY
IRDA Infrared Module Header: IRDA1
Pin1 Pin3 Pin5
NC VCC5 IRTX
Pin2 Pin4 Pin6
KEY GND IRRX
I2C Bus Connector: J1
Pin1 Pin2 Pin3 Pin4
VCC5F SMBCLK GND SMBDATA-
LCD Power Source Jumper: J7
COM Port Power Jumpers: J2, J3, J4, J5 CD-In Connector: JCD1
Pin1 Pin2 Pin3 Pin4
L GND GND R
