USER GUIDE
www.bcoda.com
Jak Up
Your Smartphone Experience

CONTENTS
3
4
5
6
7
8
9
9
9
11
13
15
15
15
16
17
18
19
20
20
21
22
23
24
25
1.Jak Overview
2.What’s In the Box
3.Before You Start
Install Jak app
Connecting Your Smartphone to Jak
Create a playlist
4.For further instructions,refer to (Using the Jak app)
Using the Jak
(1) Using the Jak with TV
(2) Using the Jak with Audio
(3) Using the jak with PC
5.Using the Jak App
Photo Playlist
(1) Enlarge a photo
(2) Add photos
(3) Delete photos
(4) Empty playlist
(5) Delete playlist
Music,Video, Document Playlist
(1) Change the order of (songs,video files,document files)
(2) Delete playlist
(3) Add new files
(4) Add documents from Dropbox
(5) Empty playlist
(6) Delete playlist

26
27
27
28
29
30
31
31
33
35
36
37
6.Connection Status
7.Settings
Editing Jak ID
Editing password
Restoring factory default settings
Updating firmware
Using Internet while linked with Jak
(1) Uing internet while linked with Jak
(2) Connecting to 3G/4G Cellular Hotspot
8.Updating Jak App
9.Changing of Jak in English
10.Hardware Specification

Jak Overview
Jak is a revolutionary, rst-of-its-kind device that lets your smartphone content be unleashed onto the big screen and speakers of your home
theater and car entertainment system, wirelessly. Jak comes in a portable USB ash drive format and works with any USB 3.0-enabled host
device (backwards compatible with older USB versions) such as your HDTV, home or car stereo system, and computer.
This simple, yet powerful little device does it all in a snap. Wherever Wi-Fi connection is available, Jak loads and delivers your smartphone
content (movies, videos, songs, photos, and documents) for a bigger, better viewing and listening experience. Just plug Jak into a USB port on
a host device, and it does the rest. It’s that easy. No setup is required.
It’s as if you are plugging your smartphone directly into your home theater entertainment system or state-of-the-art car stereo system, but
wirelessly. Jak seamlessly loads and plays every song, every video, every photo, and every playlist of your smartphone on a host device via Wi-Fi.
Unlike a Bluetooth device, Jak transfers your smartphone content les to a host device, completely unaltered.
There is neither signal conversion nor loss of video/audio quality through Jak. What’s more, as many as 20 smartphones may be linked with a
single Jak device simultaneously, allowing your friends to share their own smartphone content. Enjoy your smartphone like never before.
Jak up your smartphone experience!


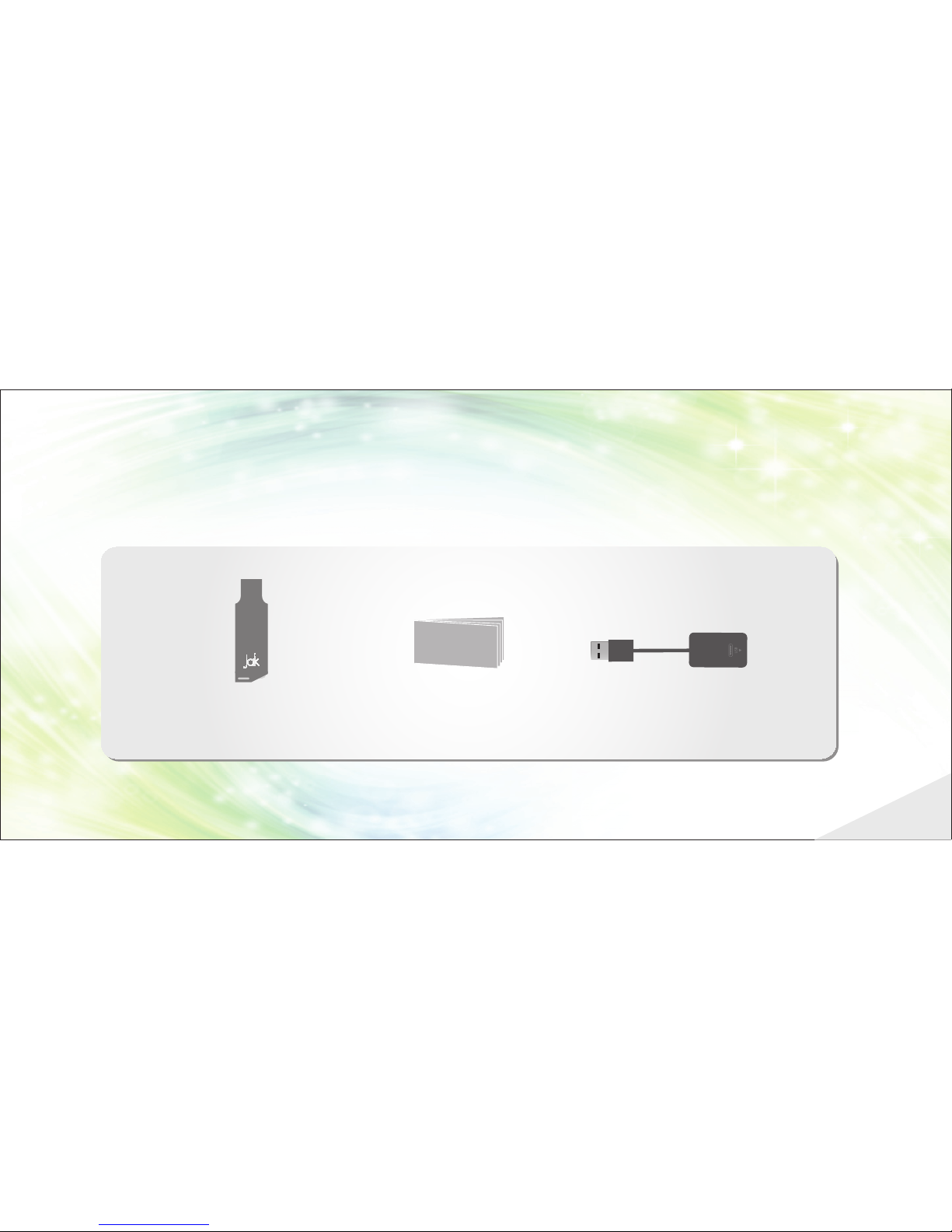

What’s in the Box
t+BL
t2VJDLHVJEF
t1PXFSBEBQUFSGPSDBSTUFSFPTZTUFNT

User Manual
Multishare JakQuick guideSuper Cap

BeforeYou Start
Before you can start enjoying your smartphone content via Jak, you need to download and install the free app for Jak on your smartphone.
Search “Jak” on the Google Play Store for Android devices and on the App Store for iOS devices.
Now, plug a Jak device into a USB port of a host device (HDTV, home or car stereo system, or computer).


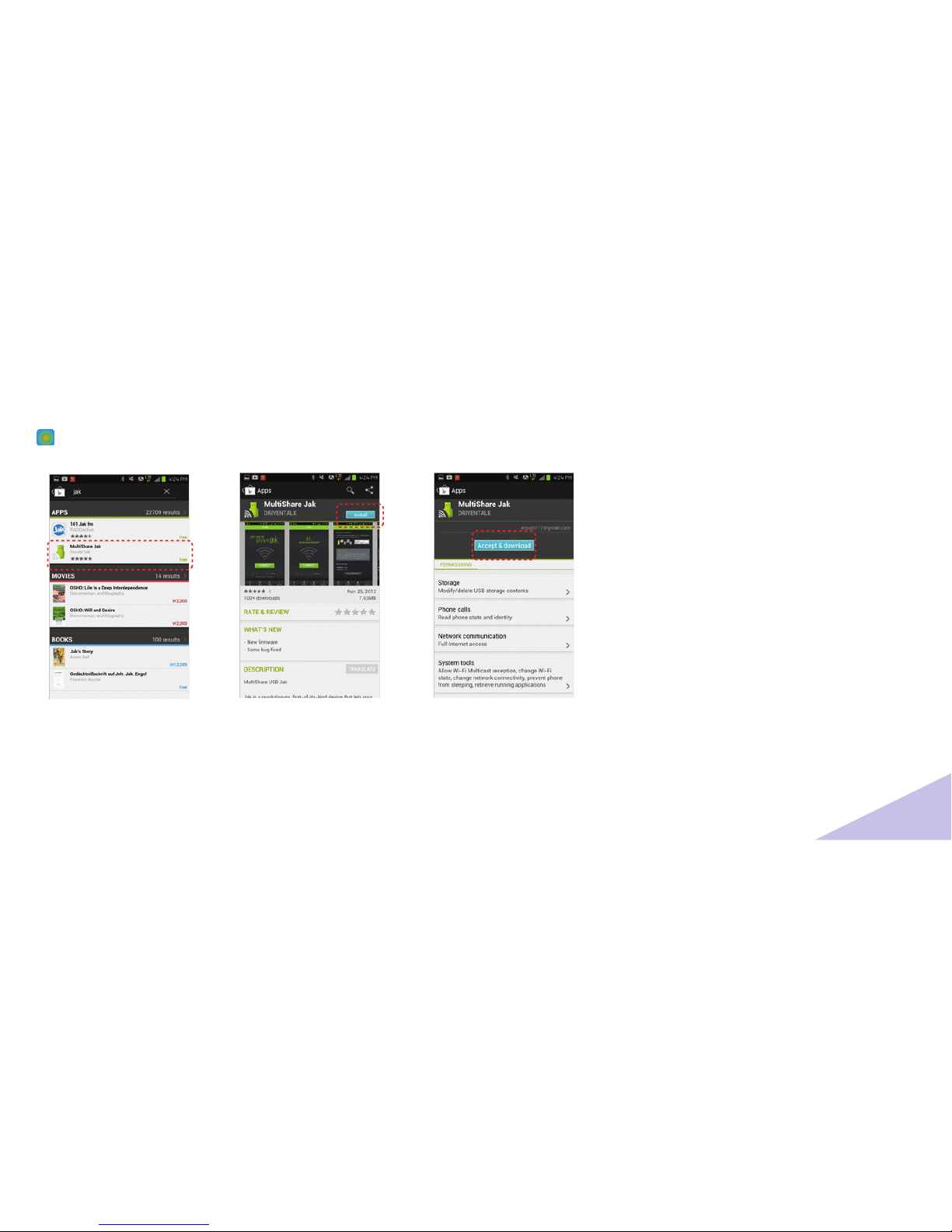

Search “Jak” on the Google Play
Store for Android smartphone
users and on the App Store for
iPhone users.
Download and install the free
Jak app.
Tap the install button icon on your
smartphone screen to install app.
Tap [Accept&download] button.

Install Jak app

Tap the Jak app icon on your
smartphone screen to start.
When the app opens, tap
[CONNECT] button. If your
smartphone`s Wi-Fi setting is
not already turned on, Tap
[CONNECT] button to turn it
on.
The Jak app will now search for
a Jak device. Tap the name of
a Jak device your smartphone
has detected.

Connecting Your Smartphone to Jak
Tap [Connect]. You will be prompted to enter
a password. By default, it is set
to 12345678. You may change
the password at any time in
the settings of the Jak app.
The Wi-Fi signal strength status
icon will turn blue if your smart-
phone connects successfully
with a Jak device via Wi-Fi.

Tap “Playlists” on the bottom
menu bar on Jak app.
Tap [Add] button at the top to
create a playlist.
Select a playlist type (music/
video/photo/document).
Type a playlist name and then
tap [OK].

Create a playlist
Tap a green [+] button next to
a desired item to select and add
it to the newly created playist.
Added items will turn dim.
Tap [DONE] button at the top
to complete a new playlist.
Tip!
If you tap the same green [+] button more
than once, the selection will be added
again to the playlist. For example, if you
tap a green [+] button for a certain song
5 times in a row, the playlist will carry 5
separate selections of the same song.
This feature may come in handy when
you want to repeat playing the same song.


For further instructions, refer to (Using the Jak app)
Tap the Jak app icon on your
smartphone screen to start.
Tap [CONNECT] button to link
your smartphone with Jak.
Using the Jak
(1) Using the Jak with TV
Turn TV on and plug Jak into a USB port of TV.
Wait until Jak blinks at a steady rate. The Wi-Fi signal strength status
icon will turn blue if your smart-
phone connects successfully
with a Jak device via Wi-Fi.


Tap a check box of a playlist
you want to activate. Then a
green check mark will appear.
Tap [OK] button.
And the selected playlist will start
playing its content on an audio.
Use TV/stereo controls
For home/car stereo systems, use play/pause/forward/backward
buttons directly on the stereo system or on its remote control.
For TV, use “input” button on its remote control to scroll through
different input modes and select USB input mode.
For further instructions, refer to TV/stereo user manual.


Tap the jak app icon on your
smartphone screen to start.
Tap [CONNECT] button to link
your smartphone with Jak.
For further connecting instructions,
refer to Page 8 (connecting your
smartphone to jak)
(2)Using the Jak with Audio
plug a Jak device into a USB port of an audio.
Jak LED will turn blue if Jak connects successfully with
an audio.
The Wi-Fi signal strength status
icon will turn blue. Tap [Playlists]
button at the bottom of the
smartphone screen to view
the content of playlists.


Music Picture Video Clip Document
Click the check box next to the
title of a playlist you want to
activate. A green check mark will
appear.
Tap [OK] button.
And the selected playlist will start
playing its content on an audio.
TIP. For home/car stereo systems, use play/pause/forward/backward
buttons directly on the stereo system or on its remote control.


Tap the jak app icon on your
smartphone screen to start.
Tap [CONNECT] button to link
your smartphone with Jak.
For further connecting instructions,
refer to Page 8 (connecting your
smart phone to jak).
(3) Using the jak with PC
Plug a Jak device into a USB port of a PC.
Jak LED will turn blue if Jak connects successfully with a PC. The Wi-Fi signal strength status
icon will turn blue. Tap [Playlists]
button at the bottom of the
smartphone screen to view the
content of playlists.


Click the check box next to the
title of a playlist you want to
activate. A green check mark
will appear.
Tap [OK] button.
And the selected playlist will
start playing its content on a PC.
TIP. For PC/car stereo systems, use play/pause/forward/backward
buttons directly on the PC


Using the Jak App
Tap a desired title of a photo
playlist to view its content.
Tap a desired photo to enlarge.
Photo Playlist
(1) Enlarge a photo
Tap the left or right arrow button
shown on the enlarged photo to
move to a previous or next photo.
Tap the left or right orientation button
on the top menu bar to rotate the photo
clockwise or counterclockwise.


In order to view the contents of
the selected playlist, tap the
playlist title.
Tap [Edit] button to add photos.
(2) Add photos
Tap [Add] button to import photos. Tap [Edit] button to add photos;
Tap a green [+] button in the lower-
right corner of a photo you want to
add; tapping the green [+] button
more than once will add the same
photo again to the playlist.


In order to view the content of
the selected playlist, tap the
playlist title.
Tap [Edit] button inside a playlist
to delete photos.
(3) Delete photos
Tap the trash icon if you want to
delete the displayed photo.


In order to view the content of
the selected playlist, tap the
playlist title.
Tap [Empty] button inside a
playlist to empty photos.
(4) Empty playlist
Tap [OK] button to empty the
entire photo contents inside a
playlist.


In order to view the content of
the selected playlist, tap the
playlist title.
Tap [Delete] button inside a
playlist to delete playlist.
(5) Delete playlist
Tap [OK] button to delete a playlist.
