BE Power Equipment BE4700iD User manual

OPERATORS
MANUAL
BE4700iD
OCTOBER 2023

2
TABLE OF CONTENTS
INTRODUCTION

IMPORTANT SAFETY WARNINGS

SET-UP



OPERATION





MAINTENANCE






TROUBLESHOOTING


WARRANTY


3
INTRODUCTION & PRODUCT INFO












Owner/Operator Responsibility







Product Registration





 (1-866-850-6662).

PRODUCT IDENTIFICATION




* THE ACTUAL PRODUCT MAY VARY FROM THE IMAGES SHOWN IN THE MANUAL.

4
SAFETY OVERVIEW
DANGER,
CAUTION, WARNING

DANGER

WARNING

CAUTION

NOTICE

SAVE THESE INSTRUCTIONS - SAFETY RULES
            


WARNING - 

• 


• 



• 




IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS


 
 

 󰀨
 
 

 

 

5
• 
󰀩

• 


• 
󰀨


• WARNING - 


• 

• 

WARNING 

• 

• 
• 
󰀨

• 


• 

• 






SAFETY OVERVIEW

6
SAFETY OVERVIEW
DANGER - 


• 




• 
• 


• 




• 






WARNING - 


• 



• 






• 







7
SAFETY OVERVIEW
• 
󰀨


• 

• 



• 

󰀪

• 
• 





• 


• 󰀨


• 




SAVE THESE INSTRUCTIONS

8

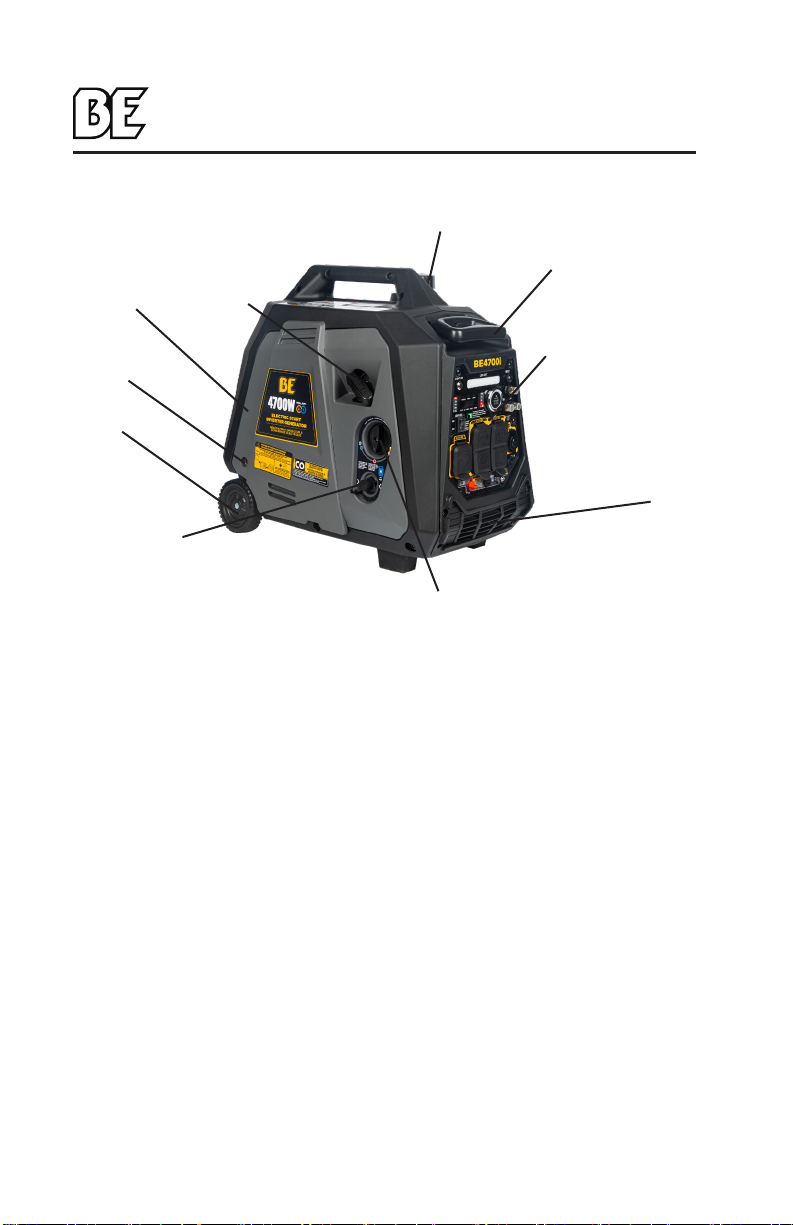

COMPONENT LIST
1
5
8
10
6
2
3
7
9
4
1: Fuel Tank Cap 
2: Recoil Handle 
3: Bolt 
4: Right Side Outer Cover
5: Control Panel
6: Engine Vents - 
7: Wheels
8: Handle
9: LPG Inlet - 
10: Fuel Source Switch - 

9

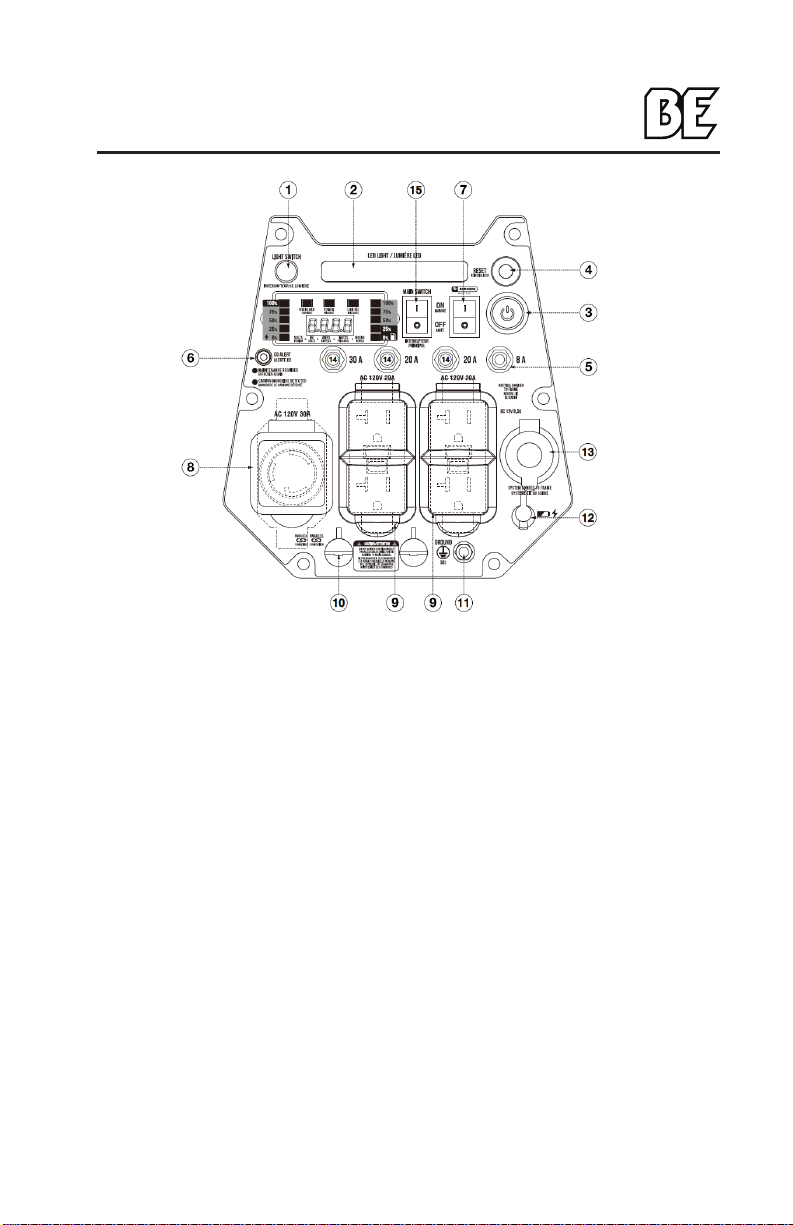

CONTROL PANEL - BE4700iD
1: Light Switch 󰀨
2: LED Light
3: Start/Stop Switch
4: Reset Switch - 


5: DC Protector
6: Carbon Monoxide Alarm



7: Eco Mode Switch 

8: 120V AC 30A L5-30R Outlet: 
9: 120V AC 20A 5-20R Outlet: 
10: Parallel Connectors: 


Parallel cables are sold seperately.
11: Ground Terminal: 
12: Battery Charging Port: 
13: 8A 12V DC Outlet
14: AC Protector: 
15: Main Switch


10

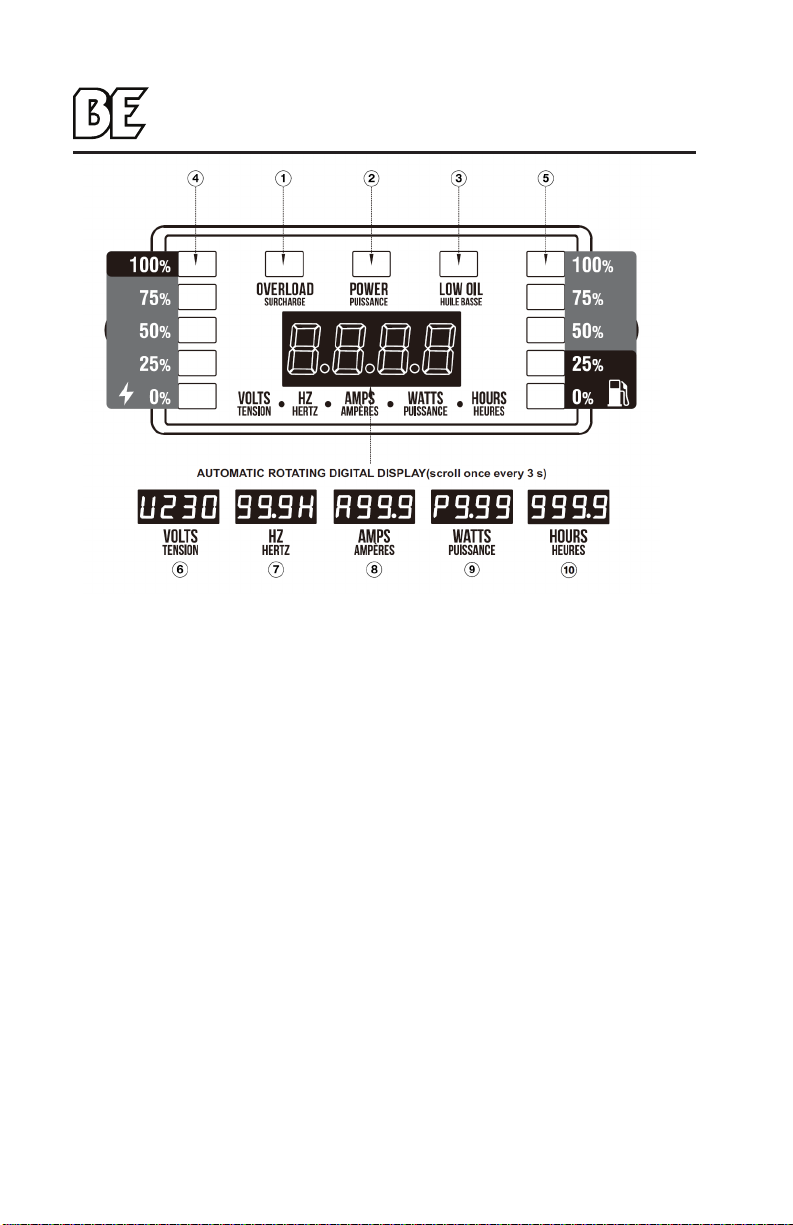

DISPLAY FUNCTION
1: OVERLOAD
2: OUTPUT
3: LOW OIL 
4: POWER OUTPUT 
5: GASOLINE FUEL METER 
6: VOLTS 
7: Hz 
8: AMPS 
9: POWER 
10: HOURS 

11
REFUELING:
DANGER - GASOLINE IS HIGHLY FLAMMABLE AND TOXIC. DO NOT
OVERFILL THE FUEL TANK. TIGHTEN FUEL CAP ONCE YOU HAVE
REFILLED THE MACHINE.
 
ATTENTION - 




OIL:
THIS GENERATOR IS SHIPPED WITHOUT OIL IN THE ENGINE. FILL
YOUR UNIT WITH THE PROVIDED OIL PRIOR TO FIRST USE.
PRE-OPERATION INSPECTION:


PRE-OPERATION SAFETY & INSPECTION PROCEDURES
LOW TEMPERATURE ENVIRONMENTS:








component check solutions
Fuel  
Oil
 
 
Abnormal
conditions
during
operation.

 
Battery  

12
START-UP AND SHUTDOWN PROCEDURE
START-UP PROCEDURE
SHUTDOWN PROCEDURE




BATTERY BY


112233
CHOOSE
YOUR
DESIRED
FUEL TYPE
FOLLOW THE STARTUP STEPS FOR YOUR CHOSEN FUEL TYPE
55
44
6677












88










5544
332211

13
GASOLINE START-UP PROCEDURE
LIQUID PROPANE START-UP PROCEDURE





CHOOSING A FUEL TYPE
AFTER FOLLOWING THE APPROPRIATE STEPS, REFER TO THE
PREVIOUS PAGE TO COMPLETE THE START UP PROCEDURE.

14
OPTIMAL ENVIRONMENT
󰀨
• º

• 

GENERATOR WIRING
• 

• 


• 
• 


OPERATION
AMBIENT TEMPERATURE -20ºC to 35ºC
OPTIMAL HUMIDITY 
OPTIMAL ALTITUDE 


15
BEFORE CONNECTING POWER
• 

• 

• 
ATTENTION




CONNECTING POWER
 
 
 
 
 
GENERATOR GROUNDING



 󰀩
 

 

 
tip: 


OPERATION

16




CHARGING METHODS
Starting the Generator:

External Charge

WARNING




Charge your battery properly:
• 


Charge your battery at the right temperature:
• ºº
Avoid overcharging:
• 



BATTERY CHARGING

17
MAINTENANCE SCHEDULE



ATTENTION
• I

• 


• 

EACH
USE
EACH MONTH
OR
20 HOURS
EVERY 3
MONTHS
OR
50 HOURS
EACH YEAR
OR
100 HOURS
ENGINE OIL
 
 
AIR CLEANER
 
 
 
SPARK PLUG  *
SPARK
ARRESTOR  
IDLE SPEED  
VALVE
CLEARANCE  
FUEL TANK
AND FUEL
FILTER
 
FUEL LINE  
CYLINDER
HEAD, PISTON


DEPOSIT**




ITEM
MAINTENANCE CYCLE

18
SPARK PLUG REPLACEMENT
WARNING















Spark plug torque: 14.±1Nm (123.9±8.8 inch-lb)

Spark plug gap: 0.7-0.8mm
BRAND MODEL
 

 A5RTC
tip: 


19
OIL SERVICE


CARBURETOR ADJUSTMENT

󰀨

OIL REPLACEMENT
WARNING






RECOMMENDED OIL 
OIL GRADE 
VOLUME 
FUEL FILTER CLEANING






20
AIR FILTER SERVICE








attention: 


tip: 



